It’s a good practice to test your assumptions about how your services respond to an attack by conducting periodic simulations. During testing, validate that your services or applications continue to function as expected and there’s no disruption to the user experience. Identify gaps from both a technology and process standpoint and incorporate them in the DDoS response strategy. We recommend that you perform such tests in staging environments or during non-peak hours to minimize the impact to the production environment.
For this tutorial, you'll create a test environment that includes:
A DDoS protection plan
A virtual network
An Azure Bastion host
A load balancer
Two virtual machines
You'll then configure diagnostic logs and alerts to monitor for attacks and traffic patterns. Finally, you'll configure a DDoS attack simulation using one of our approved testing partners.
Simulations help you:
Validate how Azure DDoS Protection helps protect your Azure resources from DDoS attacks.
Optimize your incident response process while under DDoS attack.
Document DDoS compliance.
Train your network security teams.
Azure DDoS simulation testing policy
You can only simulate attacks using our approved testing partners:
BreakingPoint Cloud: a self-service traffic generator where your customers can generate traffic against DDoS Protection-enabled public endpoints for simulations.
MazeBolt:The RADAR™ platform continuously identifies and enables the elimination of DDoS vulnerabilities – proactively and with zero disruption to business operations.
Red Button: work with a dedicated team of experts to simulate real-world DDoS attack scenarios in a controlled environment.
RedWolf: a self-service or guided DDoS testing provider with real-time control.
Our testing partners' simulation environments are built within Azure. You can only simulate against Azure-hosted public IP addresses that belong to an Azure subscription of your own, which will be validated by our partners before testing. Additionally, these target public IP addresses must be protected under Azure DDoS Protection. Simulation testing allows you to assess your current state of readiness, identify gaps in your incident response procedures, and guide you in developing a proper DDoS response strategy.
Note
BreakingPoint Cloud and Red Button are only available for the Public cloud.
For this tutorial you'll need to deploy a Load Balancer, a public IP address, Bastion, and two virtual machines. For more information, see Deploy Load Balancer with DDoS Protection. You can skip the NAT Gateway step in the Deploy Load Balancer with DDoS Protection tutorial.
Configure DDoS Protection metrics and alerts
In this tutorial, we'll configure DDoS Protection metrics and alerts to monitor for attacks and traffic patterns.
In the search box at the top of the portal, enter Monitor. Select Monitor in the search results.
Select Diagnostic Settings under Settings in the left pane, then select the following information in the Diagnostic settings page. Next, select Add diagnostic setting.
Setting
Value
Subscription
Select the Subscription that contains the public IP address you want to log.
Resource group
Select the Resource group that contains the public IP address you want to log.
Resource type
Select Public IP Addresses.
Resource
Select the specific Public IP address you want to log metrics for.

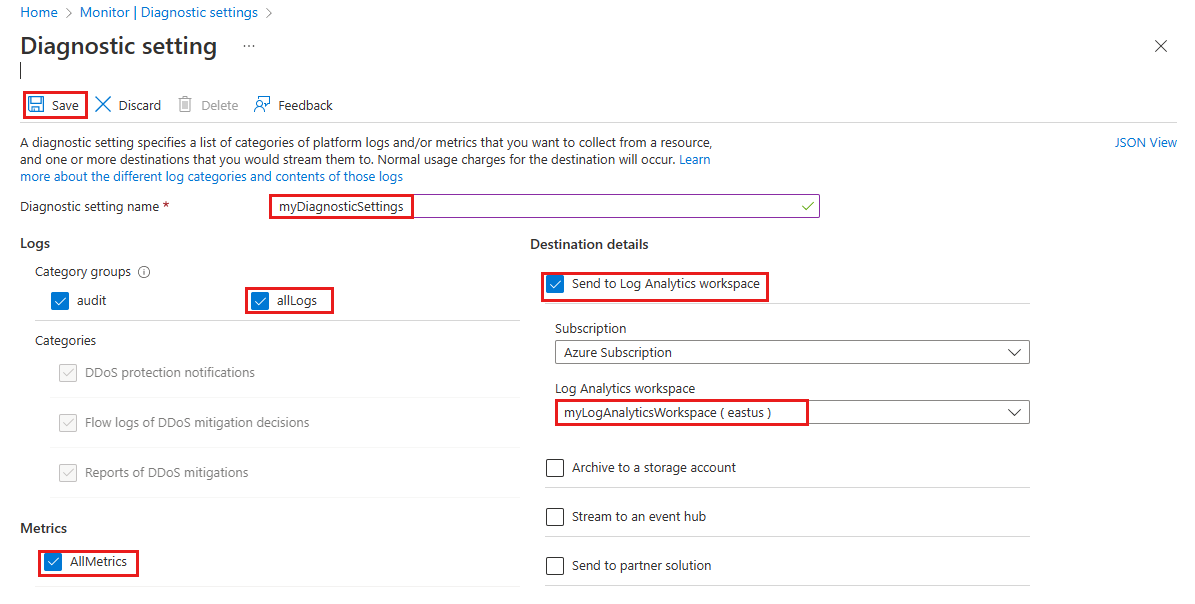

On the Diagnostic setting page, under Destination details, select Send to Log Analytics workspace, then enter the following information, then select Save.
In the search box at the top of the portal, enter Alerts. Select Alerts in the search results.
Select + Create on the navigation bar, then select Alert rule.
On the Create an alert rule page, select + Select scope, then select the following information in the Select a resource page.
Setting
Value
Filter by subscription
Select the Subscription that contains the public IP address you want to log.
Filter by resource type
Select Public IP Addresses.
Resource
Select the specific Public IP address you want to log metrics for.
Select Done, then select Next: Condition.

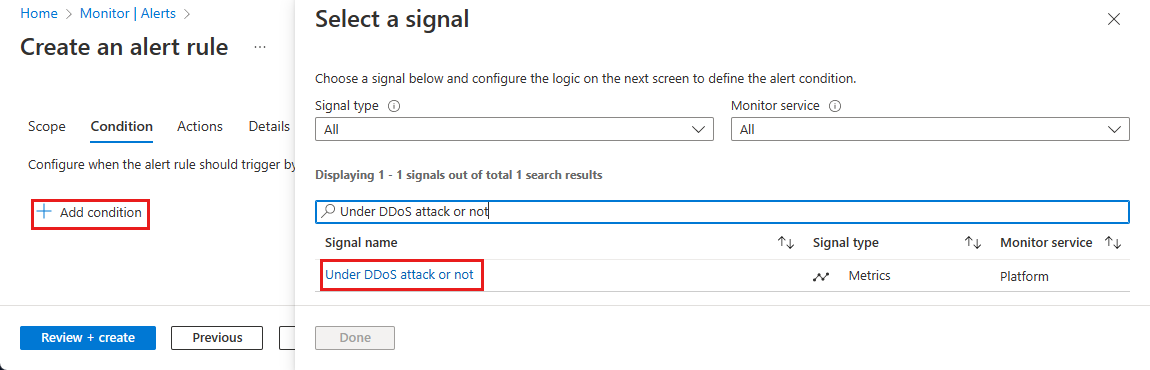

On the Condition page, select + Add Condition, then in the Search by signal name search box, search and select Under DDoS attack or not.
In the Create an alert rule page, enter or select the following information.
Setting
Value
Threshold
Leave as default.
Aggregation type
Leave as default.
Operator
Select Greater than or equal to.
Unit
Leave as default.
Threshold value
Enter 1. For the Under DDoS attack or not metric, 0 means you're not under attack while 1 means you are under attack.
Select Next: Actions then select + Create action group.
Create action group
In the Create action group page, enter the following information, then select Next: Notifications.
Setting
Value
Subscription
Select your Azure subscription that contains the public IP address you want to log.
Resource Group
Select your Resource group.
Region
Leave as default.
Action Group
Enter myDDoSAlertsActionGroup.
Display name
Enter myDDoSAlerts.
On the Notifications tab, under Notification type, select Email/SMS message/Push/Voice. Under Name, enter myUnderAttackEmailAlert.
On the Email/SMS message/Push/Voice page, select the Email check box, then enter the required email. Select OK.
Select Review + create and then select Create.
Continue configuring alerts through portal
Select Next: Details.
On the Details tab, under Alert rule details, enter the following information.
Setting
Value
Severity
Select 2 - Warning.
Alert rule name
Enter myDDoSAlert.
Select Review + create and then select Create after validation passes.
Configure a DDoS attack simulation

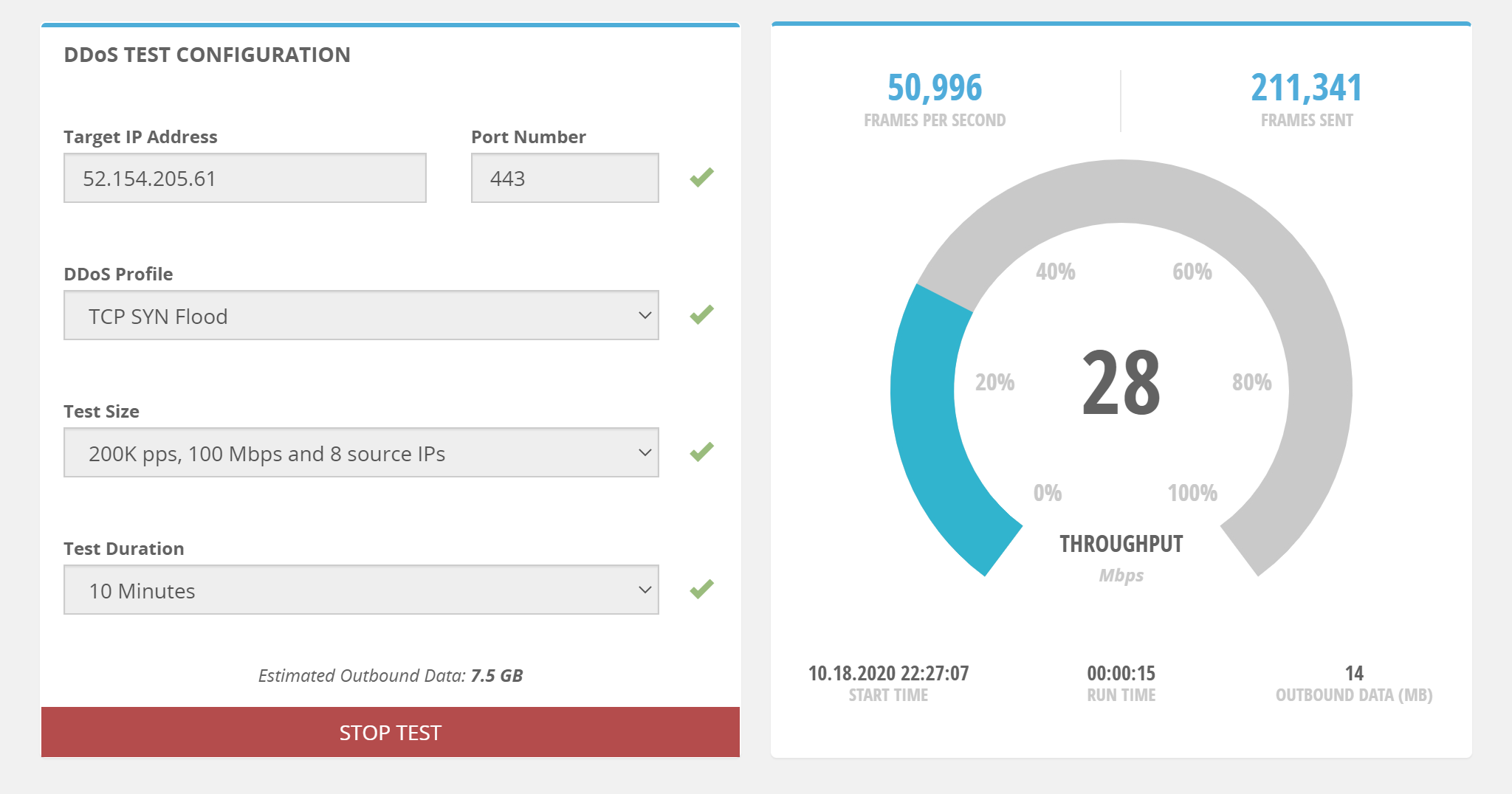

BreakingPoint Cloud
BreakingPoint Cloud is a self-service traffic generator where you can generate traffic against DDoS Protection-enabled public endpoints for simulations.
BreakingPoint Cloud offers:
A simplified user interface and an “out-of-the-box” experience.
Pay-per-use model.
Predefined DDoS test sizing and test duration profiles enable safer validations by eliminating the potential of configuration errors.
Red Button’s DDoS Testing service suite includes three stages:
Planning session: Red Button experts meet with your team to understand your network architecture, assemble technical details, and define clear goals and testing schedules. This includes planning the DDoS test scope and targets, attack vectors, and attack rates. The joint planning effort is detailed in a test plan document.
Controlled DDoS attack: Based on the defined goals, the Red Button team launches a combination of multi-vector DDoS attacks. The test typically lasts between three to six hours. Attacks are securely executed using dedicated servers and are controlled and monitored using Red Button’s management console.
Summary and recommendations: The Red Button team provides you with a written DDoS Test Report outlining the effectiveness of DDoS mitigation. The report includes an executive summary of the test results, a complete log of the simulation, a list of vulnerabilities within your infrastructure, and recommendations on how to correct them.
In addition, Red Button offers two other service suites, DDoS 360 and DDoS Incident Response, that can complement the DDoS Testing service suite.
RedWolf
RedWolf offers an easy-to-use testing system that is either self-serve or guided by RedWolf experts. RedWolf testing system allows customers to set up attack vectors. Customers can specify attack sizes with real-time control on settings to simulate real-world DDoS attack scenarios in a controlled environment.
Attack Vectors: Unique cloud attacks designed by RedWolf. For more information about RedWolf attack vectors, see Technical Details.
Guided Service: Leverage RedWolf's team to run tests. For more information about RedWolf's guided service, see Guided Service.
Self Service: Leverage RedWolf to run tests yourself. For more information about RedWolf's self-service, see Self Service.
MazeBolt
The RADAR™ platform continuously identifies and enables the elimination of DDoS vulnerabilities – proactively and with zero disruption to business operations.
Next steps
To view attack metrics and alerts after an attack, continue to these next tutorials.
