Tutorial: Analyze Apache Spark data using Power BI in HDInsight

In this tutorial, you learn how to use Microsoft Power BI to visualize data in an Apache Spark cluster in Azure HDInsight.

In this tutorial, you learn how to:

  • Visualize Spark data using Power BI

If you don't have an Azure subscription, create a free account before you begin.

Prerequisites

Verify the data

The Jupyter Notebook that you created in the previous tutorial includes code to create an hvac table. This table is based on the CSV file available on all HDInsight Spark clusters at \HdiSamples\HdiSamples\SensorSampleData\hvac\hvac.csv. Use the following procedure to verify the data.

  1. From the Jupyter Notebook, paste the following code, and then press SHIFT + ENTER. The code verifies the existence of the tables.

    %%sql
    SHOW TABLES


    The output looks like:

    Screenshot showing tables in Spark.

    If you closed the notebook before starting this tutorial, hvactemptable is cleaned up, so it's not included in the output. Only Hive tables that are stored in the metastore (indicated by False under the isTemporary column) can be accessed from the BI tools. In this tutorial, you connect to the hvac table that you created.

  2. Paste the following code in an empty cell, and then press SHIFT + ENTER. The code verifies the data in the table.

    %%sql
    SELECT * FROM hvac LIMIT 10


    The output looks like:

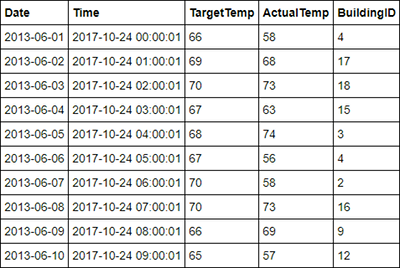

    Screenshot showing rows from hvac table in Spark.

  3. From the File menu on the notebook, select Close and Halt. Shut down the notebook to release the resources.

Visualize the data

In this section, you use Power BI to create visualizations, reports, and dashboards from the Spark cluster data.

Create a report in Power BI Desktop

The first steps in working with Spark are to connect to the cluster in Power BI Desktop, load data from the cluster, and create a basic visualization based on that data.

  1. Open Power BI Desktop. Close the start-up splash screen if it opens.

  2. From the Home tab, navigate to Get Data > More...

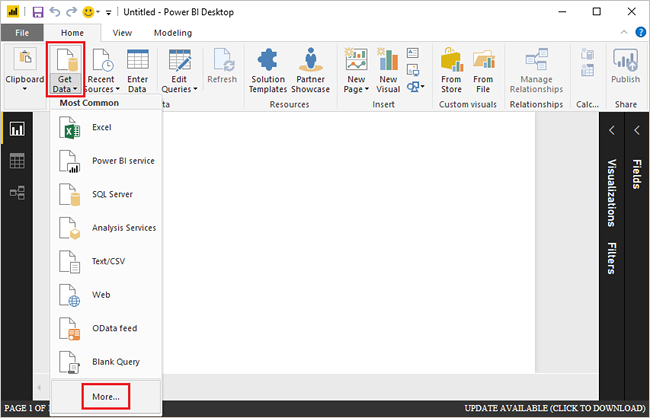

    Screenshot showing get data into Power BI Desktop from HDInsight Apache Spark.

  3. Enter Spark in the search box, select Azure HDInsight Spark, and then select Connect.

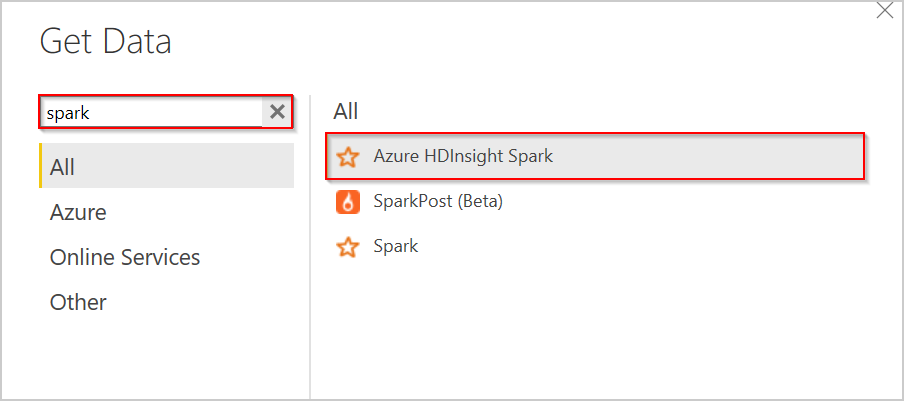

    Screenshot showing get data into Power BI from Apache Spark BI.

  4. Enter your cluster URL (in the form mysparkcluster.azurehdinsight.net) in the Server text box.

  5. Under Data connectivity mode, select DirectQuery. Then select OK.

    You can use either data connectivity mode with Spark. If you use DirectQuery, changes are reflected in reports without refreshing the entire dataset. If you import data, you must refresh the data set to see changes. For more information on how and when to use DirectQuery, see Using DirectQuery in Power BI.

  6. Enter the HDInsight login account information, then select Connect. The default account name is admin.

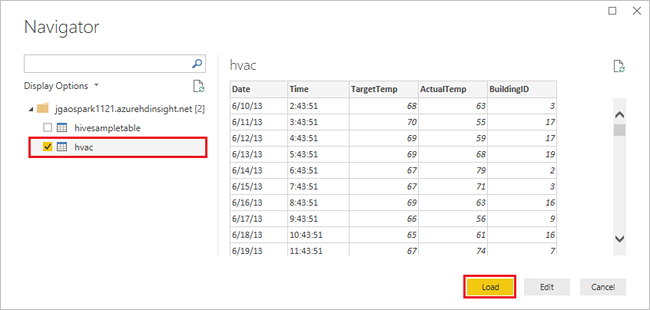

  7. Select the hvac table, wait to see a preview of the data, and then select Load.

    Screenshot showing Spark cluster user name and password.

    Power BI Desktop has the information it needs to connect to the Spark cluster and load data from the hvac table. The table and its columns are displayed in the Fields pane.

  8. Visualize the variance between target temperature and actual temperature for each building:

    1. In the VISUALIZATIONS pane, select Area Chart.

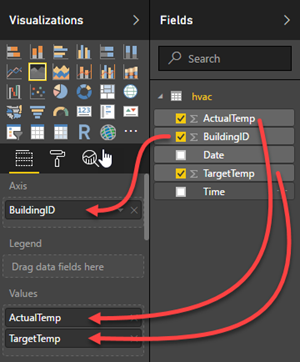

    2. Drag the BuildingID field to Axis, and drag the ActualTemp and TargetTemp fields to Value.

      Screenshot showing add value columns.

      The diagram looks like:

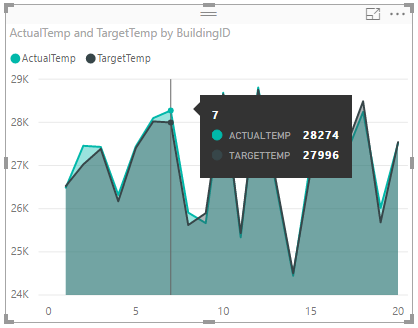

      Screenshot showing area graph sum.

      By default the visualization shows the sum for ActualTemp and TargetTemp. Select the down arrow next to ActualTemp and TragetTemp in the Visualizations pane, you can see Sum is selected.

    3. Select the down arrows next to ActualTemp and TragetTemp in the Visualizations pane, select Average to get an average of actual and target temperatures for each building.

      Screenshot showing average of values.

      Your data visualization shall be similar to the one in the screenshot. Move your cursor over the visualization to get tool tips with relevant data.

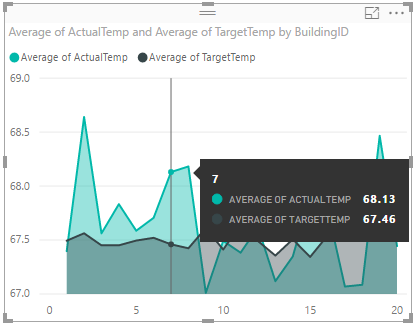

      Screenshot showing area graph

  9. Navigate to File > Save, enter the name BuildingTemperature for the file, then select Save.

Publish the report to the Power BI Service (optional)

The Power BI service allows you to share reports and dashboards across your organization. In this section, you first publish the dataset and the report. Then, you pin the report to a dashboard. Dashboards are typically used to focus on a subset of data in a report. You have only one visualization in your report, but it's still useful to go through the steps.

  1. Open Power BI Desktop.

  2. From the Home tab, select Publish.

    Screenshot showing publish from Power BI Desktop.

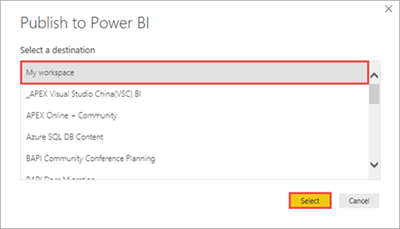

  3. Select a workspace to publish your dataset and report to, then select Select. In the following image, the default My Workspace is selected.

    Screenshot showing select workspace to publish dataset and report to.

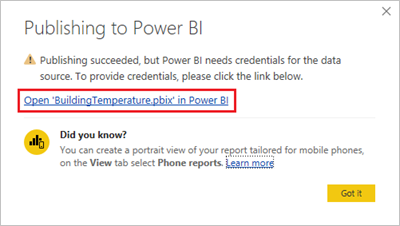

  4. After the publishing is succeeded, select Open 'BuildingTemperature.pbix' in Power BI.

    Screenshot showing publish success, click to enter credentials.

  5. In the Power BI service, select Enter credentials.

    Screenshot showing how to enter credentials in Power BI service.

  6. Select Edit credentials.

    Screenshot showing Edit credentials in Power BI service.

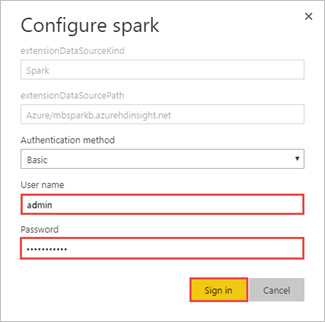

  7. Enter the HDInsight login account information, and then select Sign in. The default account name is admin.

    Screenshot showing Sign in to Spark cluster.

  8. In the left pane, go to Workspaces > My Workspace > REPORTS, then select BuildingTemperature.

    Screenshot showing Report listed under reports in left pane.

    You should also see BuildingTemperature listed under DATASETS in the left pane.

    The visual you created in Power BI Desktop is now available in the Power BI service.

  9. Hover your cursor over the visualization, and then select the pin icon on the upper right corner.

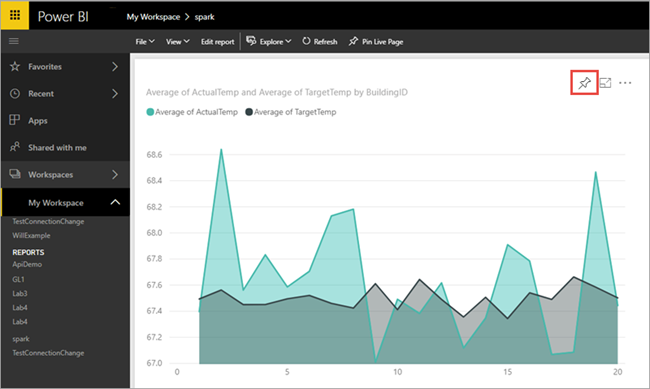

    Screenshot showing report in the Power BI service.

  10. Select "New dashboard", enter the name Building temperature, then select Pin.

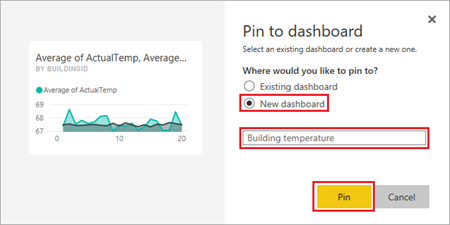

    Screenshot showing pin to new dashboard.

  11. In the report, select Go to dashboard.

Your visual is pinned to the dashboard - you can add other visuals to the report and pin them to the same dashboard. For more information about reports and dashboards, see Reports in Power BI and Dashboards in Power BI.

Clean up resources

After you complete the tutorial, you may want to delete the cluster. With HDInsight, your data is stored in Azure Storage, so you can safely delete a cluster when it isn't in use. You're also charged for an HDInsight cluster, even when it isn't in use. Since the charges for the cluster are many times more than the charges for storage, it makes economic sense to delete clusters when they aren't in use.

To delete a cluster, see Delete an HDInsight cluster using your browser, PowerShell, or the Azure CLI.

Next steps

In this tutorial, you learned how to use Microsoft Power BI to visualize data in an Apache Spark cluster in Azure HDInsight. Advance to the next article to see you can create a machine learning application.
