Get started with Azure Device Registry (preview)

This article describes how to set up an Azure Device Registry namespace and connect the IoT Hub instances and Device Provisioning Service (DPS) instances it depends on. You can create new resources, connect an existing DPS instance and its linked IoT Hub instances, or connect existing IoT Hub instances to a new DPS instance.

Important

Azure Device Registry integration with Azure IoT Hub is in public preview and isn't recommended for production workloads. See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Important

Azure Device Registry, including certificate management, is free during preview. The IoT Hub and Device Provisioning Service (DPS) instances that you use with it are billed at their standard rates. For details, see Azure IoT Hub pricing.

Prerequisites

• An active Azure subscription. If you don't have an Azure subscription, create a free account.

• The Microsoft.DeviceRegistry and Microsoft.Devices resource providers registered in your subscription. If you plan to use software updates, also register Microsoft.DeviceUpdate. For instructions, see Register a resource provider.

• Permissions to create resource groups, Azure Device Registry namespaces, managed identities, IoT Hub instances, and DPS instances in the target subscription.

• Permission to create role assignments. This requires a privileged role, such as Owner or User Access Administrator at the appropriate scope.

• A supported region for Azure Device Registry, IoT Hub, and DPS. All new resources are created in the same region as the namespace.

Warning

Connecting an existing IoT Hub instance or DPS instance to an Azure Device Registry namespace is permanent and can't be reversed. You're asked to acknowledge this effect when you select an existing resource.

Azure CLI setup

To use the CLI steps in either Bash or PowerShell, install the Azure CLI. Then sign in and install or update the preview version of the azure-iot extension:

az login
az extension add --upgrade --name azure-iot --allow-preview true

The CLI steps use system-assigned managed identities for the namespace and connected services.

Ways to get started

You can set up Azure Device Registry in two ways:

• Use the guided setup. A guided experience that walks you through creating or opening a namespace and connecting the services it depends on. Use this method to get to a working namespace without deep knowledge of the underlying services.
• Connect services individually. A step-by-step path where you open a namespace and connect each service one at a time. Use this method when you want full control over each resource or need to add resources to an existing namespace.

Both methods produce the same result: a namespace with connected IoT Hub instances and a DPS instance that you can manage through the Azure control plane.

The guided setup is available only in the Azure portal. When you connect services individually, you can use the Azure portal or the Azure CLI.

Use the guided setup

You can start the guided setup from either of these locations in the Azure portal:

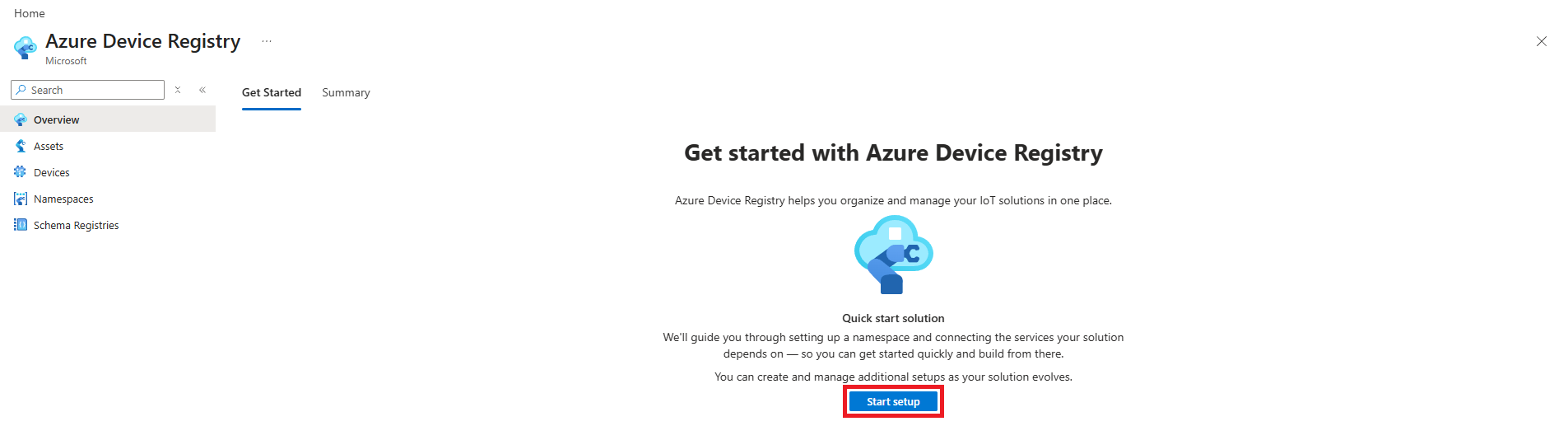

• From the Azure Device Registry page, on the Get started tab, select Start setup. This entry point creates a namespace as part of the setup.
• From an existing Azure Device Registry namespace, on the Get started tab. This entry point uses the subscription, resource group, and region of the namespace and adds services to it.

The guided setup walks you through four steps: ADR namespace, Connectivity, Capabilities, and Review + create.

1. ADR namespace

On the ADR namespace page:

1. Select whether to Create a namespace or Use an existing namespace.
2. Select the Azure subscription.
3. Create a resource group or select an existing one.
4. Enter a Namespace name that contains lowercase letters, numbers, and hyphens. The guided setup uses this value to suggest names for the resources it creates.
5. Select a region. If you plan to connect existing DPS instances or IoT Hub instances, select the region that contains those instances.

If you started from an existing namespace, the subscription, resource group, and region are already set and can't be changed.

2. Connectivity

On the Connectivity page, choose how your devices connect. Based on your selection, Azure uses or creates a DPS instance and one or more IoT Hub instances.

Select Use existing resources or Create new resources.

If you select Create new resources, choose a preset for your IoT Hub instances:

Preset	Devices	Connectivity	Telemetry	Resources created
Small scale or pilot deployment	Up to approximately 10,000	Intermittent connections	Lower telemetry volume	One IoT Hub instance (S1) with one unit
Production deployment	10,000-100,000	Mixed connectivity	Moderate throughput	Two IoT Hub instances (S2) with five units, to separate and scale workloads
Large scale or high-throughput deployment	1,000,000+	Mostly always on	High telemetry volume	Four IoT Hub instances (S3) for high throughput and horizontal scaling

Presets determine how many IoT Hub instances are created and connect them to a provisioning service. You can customize the configuration now and add more IoT Hub instances after onboarding.

If you select Use existing resources, choose whether to connect an Existing DPS linked to IoT Hub instances or Existing IoT Hub instances. Under Choose a linked setup, select a setup from the list. The list is filtered to the namespace's region, and only IoT Hub instances with public network access enabled appear.

Connecting an existing DPS instance or IoT Hub instance to the namespace is permanent.

3. Capabilities

On the Capabilities page, choose which capabilities to enable. Azure sets up the required resources based on your selection.

• Certificate management is enabled by default and uses a Microsoft-issued root certificate authority. You can bring your own certificate authority or change it later.
• Software updates (preview) is optional. If you enable it, Azure creates a software update instance with a default configuration. Select Configure to change the instance name before you continue. The instance's region matches the namespace and can't be changed.

4. Review + create

On the Review + create page, review the impact summary, namespace details, connectivity setup, and enabled capabilities before you submit:

• An Impact summary lists the services that are added to the subscription and resource group.
• Existing resources and resources created for you are both labeled in the namespace and connectivity blocks. Select the pencil icon next to a resource to change settings such as name, SKU, or daily message limit before you submit.
• A warning states that connecting these services is an irreversible action that can cause downtime for existing management services.

Note

Estimated cost information isn't currently shown during setup.

Select Submit. After setup finishes, the guided setup opens the namespace, where you can view the connected services on the Connected Services tab.

Connect services individually

If you want full control over each resource, connect services to a namespace one at a time instead of using the guided setup. Connect a DPS instance first, then one or more IoT Hub instances, and then an optional software update instance. This method produces the same connected result as the guided setup.

1. Create or open a namespace

Azure portal

Create an Azure Device Registry namespace, or open an existing namespace to add services to it. The namespace is the organizational and security boundary for the devices and resources in your solution.

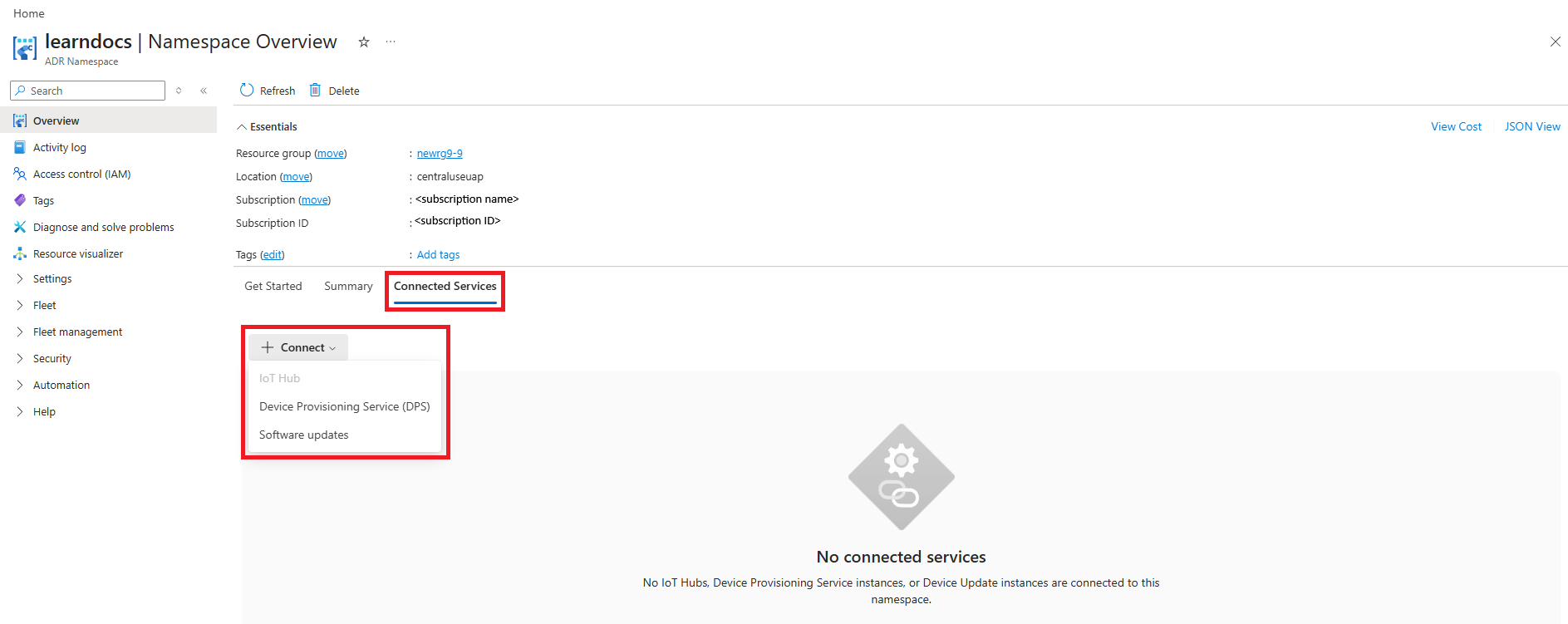

Open the namespace and select the Connected Services tab. Use the + Connect menu to add services one at a time.

Azure CLI (Bash)

The CLI steps use Bash syntax. The link commands in the following steps create any missing role assignments between the namespace and the connected services. If your account can't create role assignments, a command stops before it changes the namespace and prints the commands that someone with the required permissions must run.

Set the values that the commands reuse. Replace the angle-bracketed placeholders with your own values:

az account set --subscription "<subscription-id>"
RG="<resource-group>"
LOCATION="<region>"
NS="<namespace-name>"
DPS="<dps-name>"
HUB="<iot-hub-name>"
SU="<software-update-instance-name>"

If you're creating resources in a new resource group, create it first. Skip this command if you're using an existing resource group.

az group create --name $RG --location $LOCATION

Create a namespace that uses its system-assigned managed identity to call the services that you connect. Skip this command if you're using an existing namespace.

az iot adr ns create --name $NS --resource-group $RG --location $LOCATION --outbound-system-assigned-mi true

Azure CLI (PowerShell)

The CLI steps use PowerShell syntax. The link commands in the following steps create any missing role assignments between the namespace and the connected services. If your account can't create role assignments, a command stops before it changes the namespace and prints the commands that someone with the required permissions must run.

Set the values that the commands reuse. Replace the angle-bracketed placeholders with your own values:

az account set --subscription "<subscription-id>"
$RG = "<resource-group>"
$LOCATION = "<region>"
$NS = "<namespace-name>"
$DPS = "<dps-name>"
$HUB = "<iot-hub-name>"
$SU = "<software-update-instance-name>"

If you're creating resources in a new resource group, create it first. Skip this command if you're using an existing resource group.

az group create --name $RG --location $LOCATION

Create a namespace that uses its system-assigned managed identity to call the services that you connect. Skip this command if you're using an existing namespace.

az iot adr ns create --name $NS --resource-group $RG --location $LOCATION --outbound-system-assigned-mi true

2. Connect a Device Provisioning Service instance

Azure portal

Select + Connect > Device Provisioning Service (DPS), and then choose how to connect this service:

• Use existing: Select an unconnected DPS instance and its linked IoT Hub instances in the namespace's region.
• Create new: Select the subscription and resource group, and then enter a name for the new DPS instance. The region matches the namespace and can't be changed.

Select Save.

Azure CLI (Bash)

You can connect only one DPS instance to a namespace. The DPS instance needs a system-assigned managed identity.

1. Use an existing DPS instance, or create a new one in the namespace's region:

   az iot dps create --name $DPS --resource-group $RG --location $LOCATION --system-assigned-mi


2. Get the resource ID of the DPS instance and connect it to the namespace:

   DPS_ID=$(az iot dps show --name $DPS --resource-group $RG --query id --output tsv)
   az iot adr ns link dps add --name primary-dps --ns $NS --resource-group $RG --dps-id $DPS_ID --system-assigned-mi true


Azure CLI (PowerShell)

You can connect only one DPS instance to a namespace. The DPS instance needs a system-assigned managed identity.

1. Use an existing DPS instance, or create a new one in the namespace's region:

   az iot dps create --name $DPS --resource-group $RG --location $LOCATION --system-assigned-mi


2. Get the resource ID of the DPS instance and connect it to the namespace:

   $DPS_ID = az iot dps show --name $DPS --resource-group $RG --query id --output tsv
   az iot adr ns link dps add --name primary-dps --ns $NS --resource-group $RG --dps-id $DPS_ID --system-assigned-mi true


3. Connect an IoT Hub instance

Azure portal

Select + Connect > IoT Hub, and then choose how to connect this service:

• Use existing: Connect an existing IoT Hub instance.
• Create new: Select the subscription and resource group, and then enter a name, SKU, and daily message limit for the new IoT Hub instance. The region matches the namespace and can't be changed.

When you connect an existing IoT Hub instance, acknowledge that linking it to the namespace is permanent.

Submit the configuration to connect the IoT Hub instance to the namespace.

Azure CLI (Bash)

First, connect the DPS instance before you connect an IoT Hub instance. The command fails if the namespace doesn't have a connected DPS instance. The IoT Hub instance must use a standard tier SKU, such as S1, and have a system-assigned managed identity.

1. Use an existing IoT Hub instance, or create a new one in the namespace's region:

   az iot hub create --name $HUB --resource-group $RG --location $LOCATION --sku S1 --system-assigned-mi


2. Get the resource ID of the IoT Hub instance and connect it to the namespace:

   HUB_ID=$(az iot hub show --name $HUB --resource-group $RG --query id --output tsv)
   az iot adr ns link hub add --name primary-hub --ns $NS --resource-group $RG --hub-id $HUB_ID --system-assigned-mi true


To connect more IoT Hub instances, repeat these steps with a different IoT Hub instance and a unique endpoint name.

Azure CLI (PowerShell)

First, connect the DPS instance before you connect an IoT Hub instance. The command fails if the namespace doesn't have a connected DPS instance. The IoT Hub instance must use a standard tier SKU, such as S1, and have a system-assigned managed identity.

1. Use an existing IoT Hub instance, or create a new one in the namespace's region:

   az iot hub create --name $HUB --resource-group $RG --location $LOCATION --sku S1 --system-assigned-mi


2. Get the resource ID of the IoT Hub instance and connect it to the namespace:

   $HUB_ID = az iot hub show --name $HUB --resource-group $RG --query id --output tsv
   az iot adr ns link hub add --name primary-hub --ns $NS --resource-group $RG --hub-id $HUB_ID --system-assigned-mi true


To connect more IoT Hub instances, repeat these steps with a different IoT Hub instance and a unique endpoint name.

4. Connect software updates (optional)

Azure portal

Select + Connect > Software updates, and then enter a name for the new software update instance. The subscription, resource group, and region match the namespace and can't be changed.

Submit the configuration to create and connect the software update instance.

Azure CLI (Bash)

Only one software update instance can connect to a namespace.

1. Create a software update instance with a system-assigned managed identity:

   az iot adr ns su instance create --name $SU --resource-group $RG --location $LOCATION --system-assigned-mi true


2. Get the resource ID of the instance and connect it to the namespace:

   SU_ID=$(az iot adr ns su instance show --name $SU --resource-group $RG --query id --output tsv)
   az iot adr ns link su add --name primary-su --ns $NS --resource-group $RG --su-id $SU_ID --system-assigned-mi true


Azure CLI (PowerShell)

Only one software update instance can connect to a namespace.

1. Create a software update instance with a system-assigned managed identity:

   az iot adr ns su instance create --name $SU --resource-group $RG --location $LOCATION --system-assigned-mi true


2. Get the resource ID of the instance and connect it to the namespace:

   $SU_ID = az iot adr ns su instance show --name $SU --resource-group $RG --query id --output tsv
   az iot adr ns link su add --name primary-su --ns $NS --resource-group $RG --su-id $SU_ID --system-assigned-mi true


5. Verify the connected resources

Azure portal

On the namespace's Connected Services tab, confirm that the resources you connected show a Health status of Available and a Configuration status of Succeeded. Your namespace is ready when all the services you need appear as connected.

Azure CLI (Bash)

List the connected services and confirm that each one reports a linkingState of Succeeded:

az iot adr ns link dps list --ns $NS --resource-group $RG
az iot adr ns link hub list --ns $NS --resource-group $RG

If you connected a software update instance, verify that connection too:

az iot adr ns link su list --ns $NS --resource-group $RG

If a link add command returns before the link finishes, use az iot adr ns link wait to wait for all configured links to succeed:

az iot adr ns link wait --ns $NS --resource-group $RG

Azure CLI (PowerShell)

List the connected services and confirm that each one reports a linkingState of Succeeded:

az iot adr ns link dps list --ns $NS --resource-group $RG
az iot adr ns link hub list --ns $NS --resource-group $RG

If you connected a software update instance, verify that connection too:

az iot adr ns link su list --ns $NS --resource-group $RG

If a link add command returns before the link finishes, use az iot adr ns link wait to wait for all configured links to succeed:

az iot adr ns link wait --ns $NS --resource-group $RG

Resource naming

The guided setup suggests resource names based on the namespace name. You can change the suggested names before you submit them.

For example, if the namespace name is contoso-devices, the guided setup suggests the following names:

Resource	Suggested name pattern	Example
Azure Device Registry namespace	<namespace-name>	contoso-devices
IoT Hub instance	<namespace-name>-hub-<number>	contoso-devices-hub-1
Device Provisioning Service	<namespace-name>-provisioning	contoso-devices-provisioning
Software update instance	<namespace-name>-su	contoso-devices-su

Manage connected resources

Connecting services to a namespace doesn't replace their individual management experiences. To change settings for an IoT Hub instance, open the instance in the Azure portal. To change DPS settings, open the DPS instance in the Azure portal.
