Troubleshoot Azure RBAC

  • Article

This article describes some common solutions for issues related to Azure role-based access control (Azure RBAC).

Limits

Symptom - No more role assignments can be created

When you try to assign a role, you get the following error message:

No more role assignments can be created (code: RoleAssignmentLimitExceeded)

Cause

Azure supports up to 4000 role assignments per subscription. This limit includes role assignments at the subscription, resource group, and resource scopes, but not at the management group scope.

Solution

Try to reduce the number of role assignments in the subscription. Here are some ways that you can reduce the number of role assignments:

  • Add users to groups and assign roles to the groups instead.
  • Combine multiple built-in roles with a custom role.
  • Make common role assignments at a higher scope, such as subscription or management group.
  • If you have Azure AD Premium P2, make role assignments eligible in Azure AD Privileged Identity Management instead of permanently assigned.
  • Add an additional subscription.

To get the number of role assignments, you can view the chart on the Access control (IAM) page in the Azure portal. You can also use the following Azure PowerShell commands:

$scope = "/subscriptions/<subscriptionId>"
$ras = Get-AzRoleAssignment -Scope $scope | Where-Object {$_.scope.StartsWith($scope)}
$ras.Count

Symptom - No more role assignments can be created at management group scope

You're unable to assign a role at management group scope.

Cause

Azure supports up to 500 role assignments per management group. This limit is different than the role assignments limit per subscription.

Note

The 500 role assignments limit per management group is fixed and cannot be increased.

Solution

Try to reduce the number of role assignments in the management group.

Azure role assignments

Symptom - Unable to assign a role

You're unable to assign a role in the Azure portal on Access control (IAM) because the Add > Add role assignment option is disabled or because you get the following permissions error:

The client with object id does not have authorization to perform action

Cause

You're currently signed in with a user that doesn't have permission to assign roles at the selected scope.

Solution

Check that you're currently signed in with a user that is assigned a role that has the Microsoft.Authorization/roleAssignments/write permission such as Owner or User Access Administrator at the scope you're trying to assign the role.

Symptom - Unable to assign a role using a service principal with Azure CLI

You're using a service principal to assign roles with Azure CLI and you get the following error:

Insufficient privileges to complete the operation

For example, let's say that you have a service principal that has been assigned the Owner role and you try to create the following role assignment as the service principal using Azure CLI:

az login --service-principal --username "SPNid" --password "password" --tenant "tenantid"
az role assignment create --assignee "userupn" --role "Contributor"  --scope "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}"

Cause

It's likely Azure CLI is attempting to look up the assignee identity in Azure AD and the service principal can't read Azure AD by default.

Solution

There are two ways to potentially resolve this error. The first way is to assign the Directory Readers role to the service principal so that it can read data in the directory.

The second way to resolve this error is to create the role assignment by using the --assignee-object-id parameter instead of --assignee. By using --assignee-object-id, Azure CLI will skip the Azure AD lookup. You'll need to get the object ID of the user, group, or application that you want to assign the role to. For more information, see Assign Azure roles using Azure CLI.

az role assignment create --assignee-object-id 11111111-1111-1111-1111-111111111111  --role "Contributor" --scope "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}"

Symptom - Assigning a role to a new principal sometimes fails

You create a new user, group, or service principal and immediately try to assign a role to that principal and the role assignment sometimes fails. You get a message similar to following error:

PrincipalNotFound
Principal {principalId} does not exist in the directory {tenantId}. Check that you have the correct principal ID. If you are creating this principal and then immediately assigning a role, this error might be related to a replication delay. In this case, set the role assignment principalType property to a value, such as ServicePrincipal, User, or Group.  See https://aka.ms/docs-principaltype

Cause

The reason is likely a replication delay. The principal is created in one region; however, the role assignment might occur in a different region that hasn't replicated the principal yet.

Solution 1

If you're creating a new user or service principal using the REST API or ARM template, set the principalType property when creating the role assignment using the Role Assignments - Create API.

principalType apiVersion
User 2020-03-01-preview or later
ServicePrincipal 2018-09-01-preview or later

For more information, see Assign Azure roles to a new service principal using the REST API or Assign Azure roles to a new service principal using Azure Resource Manager templates.

Solution 2

If you're creating a new user or service principal using Azure PowerShell, set the ObjectType parameter to User or ServicePrincipal when creating the role assignment using New-AzRoleAssignment. The same underlying API version restrictions of Solution 1 still apply. For more information, see Assign Azure roles using Azure PowerShell.

Solution 3

If you're creating a new group, wait a few minutes before creating the role assignment.

Symptom - ARM template role assignment returns BadRequest status

When you try to deploy a Bicep file or ARM template that assigns a role to a service principal you get the error:

Tenant ID, application ID, principal ID, and scope are not allowed to be updated. (code: RoleAssignmentUpdateNotPermitted)

For example, if you create a role assignment for a managed identity, then you delete the managed identity and recreate it, the new managed identity has a different principal ID. If you try to deploy the role assignment again and use the same role assignment name, the deployment fails.

Cause

The role assignment name isn't unique, and it's viewed as an update.

Role assignments are uniquely identified by their name, which is a globally unique identifier (GUID). You can't create two role assignments with the same name, even in different Azure subscriptions. You also can't change the properties of an existing role assignment.

Solution

Provide an idempotent unique value for the role assignment name. It's a good practice to create a GUID that uses the scope, principal ID, and role ID together. It's a good idea to use the guid() function to help you to create a deterministic GUID for your role assignment names, like in this example:

resource roleAssignment 'Microsoft.Authorization/roleAssignments@2020-10-01-preview' = {
  name: guid(resourceGroup().id, principalId, roleDefinitionId)
  properties: {
    roleDefinitionId: roleDefinitionId
    principalId: principalId
    principalType: principalType
  }
}

For more information, see Create Azure RBAC resources by using Bicep.

Symptom - Role assignments with identity not found

In the list of role assignments for the Azure portal, you notice that the security principal (user, group, service principal, or managed identity) is listed as Identity not found with an Unknown type.

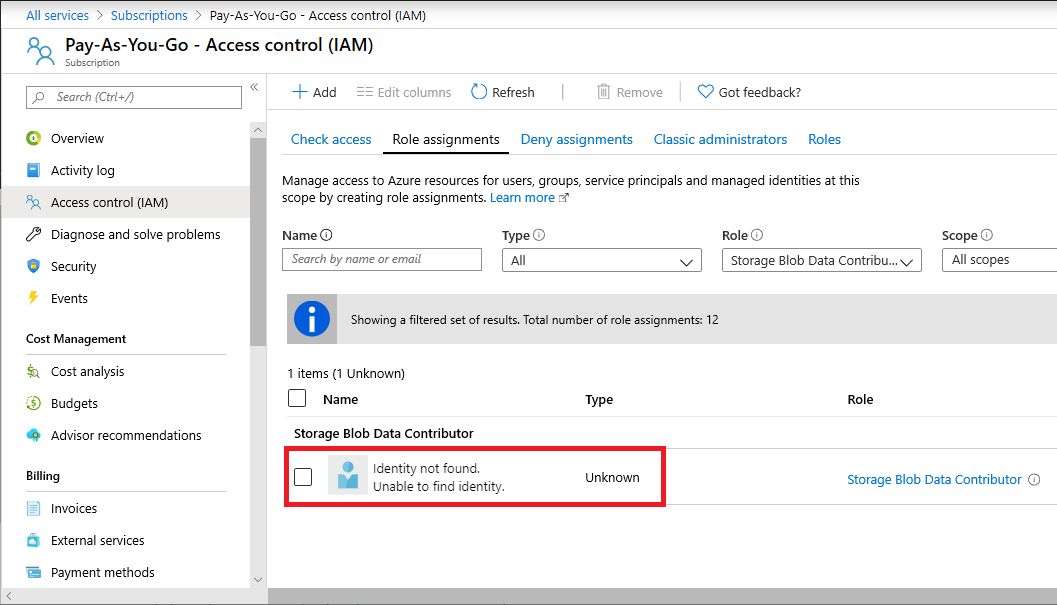

Identity not found listed in Azure role assignments

If you list this role assignment using Azure PowerShell, you might see an empty DisplayName and SignInName, or a value for ObjectType of Unknown. For example, Get-AzRoleAssignment returns a role assignment that is similar to the following output:

RoleAssignmentId   : /subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Authorization/roleAssignments/22222222-2222-2222-2222-222222222222
Scope              : /subscriptions/11111111-1111-1111-1111-111111111111
DisplayName        :
SignInName         :
RoleDefinitionName : Storage Blob Data Contributor
RoleDefinitionId   : ba92f5b4-2d11-453d-a403-e96b0029c9fe
ObjectId           : 33333333-3333-3333-3333-333333333333
ObjectType         : User
CanDelegate        : False

Similarly, if you list this role assignment using Azure CLI, you might see an empty principalName. For example, az role assignment list returns a role assignment that is similar to the following output:

{
    "canDelegate": null,
    "id": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Authorization/roleAssignments/22222222-2222-2222-2222-222222222222",
    "name": "22222222-2222-2222-2222-222222222222",
    "principalId": "33333333-3333-3333-3333-333333333333",
    "principalName": "",
    "roleDefinitionId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Authorization/roleDefinitions/ba92f5b4-2d11-453d-a403-e96b0029c9fe",
    "roleDefinitionName": "Storage Blob Data Contributor",
    "scope": "/subscriptions/11111111-1111-1111-1111-111111111111",
    "type": "Microsoft.Authorization/roleAssignments"
}

Cause 1

You recently invited a user when creating a role assignment and this security principal is still in the replication process across regions.

Solution 1

Wait a few moments and refresh the role assignments list.

Cause 2

You deleted a security principal that had a role assignment. If you assign a role to a security principal and then you later delete that security principal without first removing the role assignment, the security principal will be listed as Identity not found and an Unknown type.

Solution 2

It isn't a problem to leave these role assignments where the security principal has been deleted. If you like, you can remove these role assignments using steps that are similar to other role assignments. For information about how to remove role assignments, see Remove Azure role assignments.

In PowerShell, if you try to remove the role assignments using the object ID and role definition name, and more than one role assignment matches your parameters, you'll get the error message: The provided information does not map to a role assignment. The following output shows an example of the error message:

PS C:\> Remove-AzRoleAssignment -ObjectId 33333333-3333-3333-3333-333333333333 -RoleDefinitionName "Storage Blob Data Contributor"

Remove-AzRoleAssignment : The provided information does not map to a role assignment.
At line:1 char:1
+ Remove-AzRoleAssignment -ObjectId 33333333-3333-3333-3333-333333333333 ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo          : CloseError: (:) [Remove-AzRoleAssignment], KeyNotFoundException
+ FullyQualifiedErrorId : Microsoft.Azure.Commands.Resources.RemoveAzureRoleAssignmentCommand

If you get this error message, make sure you also specify the -Scope or -ResourceGroupName parameters.

PS C:\> Remove-AzRoleAssignment -ObjectId 33333333-3333-3333-3333-333333333333 -RoleDefinitionName "Storage Blob Data Contributor" - Scope /subscriptions/11111111-1111-1111-1111-111111111111

Symptom - Cannot delete the last Owner role assignment

You attempt to remove the last Owner role assignment for a subscription and you see the following error:

Cannot delete the last RBAC admin assignment

Cause

Removing the last Owner role assignment for a subscription isn't supported to avoid orphaning the subscription.

Solution

If you want to cancel your subscription, see Cancel your Azure subscription.

You're allowed to remove the last Owner (or User Access Administrator) role assignment at subscription scope, if you're a Global Administrator for the tenant or a classic administrator (Service Administrator or Co-Administrator) for the subscription. In this case, there's no constraint for deletion. However, if the call comes from some other principal, then you won't be able to remove the last Owner role assignment at subscription scope.

Symptom - Role assignment isn't moved after moving a resource

Cause

If you move a resource that has an Azure role assigned directly to the resource (or a child resource), the role assignment isn't moved and becomes orphaned.

Solution

After you move a resource, you must re-create the role assignment. Eventually, the orphaned role assignment will be automatically removed, but it's a best practice to remove the role assignment before moving the resource. For information about how to move resources, see Move resources to a new resource group or subscription.

Symptom - Role assignment changes are not being detected

You recently added or updated a role assignment, but the changes aren't being detected. You might see the message Status: 401 (Unauthorized).

Cause 1

Azure Resource Manager sometimes caches configurations and data to improve performance.

Solution 1

When you assign roles or remove role assignments, it can take up to 10 minutes for changes to take effect. If you're using the Azure portal, Azure PowerShell, or Azure CLI, you can force a refresh of your role assignment changes by signing out and signing in. If you're making role assignment changes with REST API calls, you can force a refresh by refreshing your access token.

Cause 2

You added managed identities to a group and assigned a role to that group. The back-end services for managed identities maintain a cache per resource URI for around 24 hours.

Solution 2

It can take several hours for changes to a managed identity's group or role membership to take effect. For more information, see Limitation of using managed identities for authorization.

Symptom - Role assignment changes at management group scope are not being detected

You recently added or updated a role assignment at management group scope, but the changes are not being detected.

Cause

Azure Resource Manager sometimes caches configurations and data to improve performance.

Solution

When you assign roles or remove role assignments, it can take up to 10 minutes for changes to take effect. If you add or remove a built-in role assignment at management group scope and the built-in role has DataActions, the access on the data plane might not be updated for several hours. This applies only to management group scope and the data plane. Custom roles with DataActions can't be assigned at the management group scope.

Symptom - Role assignments for management group changes are not being detected

You created a new child management group and the role assignment on the parent management group is not being detected for the child management group.

Cause

Azure Resource Manager sometimes caches configurations and data to improve performance.

Solution

It can take up to 10 minutes for the role assignment for the child management group to take effect. If you are using the Azure portal, Azure PowerShell, or Azure CLI, you can force a refresh of your role assignment changes by signing out and signing in. If you are making role assignment changes with REST API calls, you can force a refresh by refreshing your access token.

Symptom - Removing role assignments using PowerShell takes several minutes

You use the Remove-AzRoleAssignment command to remove a role assignment. You then use the Get-AzRoleAssignment command to verify the role assignment was removed for a security principal. For example:

Get-AzRoleAssignment -ObjectId $securityPrincipalObject.Id

The Get-AzRoleAssignment command indicates that the role assignment wasn't removed. However, if you wait 5-10 minutes and run Get-AzRoleAssignment again, the output indicates the role assignment was removed.

Cause

The role assignment has been removed. However, to improve performance, PowerShell uses a cache when listing role assignments. There can be delay of around 10 minutes for the cache to be refreshed.

Solution

Instead of listing the role assignments for a security principal, list all the role assignments at the subscription scope and filter the output. For example, the following command:

$validateRemovedRoles = Get-AzRoleAssignment -ObjectId $securityPrincipalObject.Id

Can be replaced with this command instead:

$validateRemovedRoles = Get-AzRoleAssignment -Scope /subscriptions/$subId | Where-Object -Property ObjectId -EQ $securityPrincipalObject.Id

Custom roles

Symptom - Unable to update a custom role

You're unable to update an existing custom role.

Cause

You're currently signed in with a user that doesn't have permission to update custom roles.

Solution

Check that you're currently signed in with a user that is assigned a role that has the Microsoft.Authorization/roleDefinition/write permission such as Owner or User Access Administrator.

Symptom - Unable to create or update a custom role

When you try to create or update a custom role, you get an error similar to following:

The client '<clientName>' with object id '<objectId>' has permission to perform action 'Microsoft.Authorization/roleDefinitions/write' on scope '/subscriptions/<subscriptionId>'; however, it does not have permission to perform action 'Microsoft.Authorization/roleDefinitions/write' on the linked scope(s)'/subscriptions/<subscriptionId1>,/subscriptions/<subscriptionId2>,/subscriptions/<subscriptionId3>' or the linked scope(s)are invalid

Cause

This error usually indicates that you don't have permissions to one or more of the assignable scopes in the custom role.

Solution

Try the following:

  • Review Who can create, delete, update, or view a custom role and check that you have permissions to create or update the custom role for all assignable scopes.
  • If you don't have permissions, ask your administrator to assign you a role that has the Microsoft.Authorization/roleDefinitions/write action, such as Owner or User Access Administrator, at the scope of the assignable scope.
  • Check that all the assignable scopes in the custom role are valid. If not, remove any invalid assignable scopes.

For more information, see the custom role tutorials using the Azure portal, Azure PowerShell, or Azure CLI.

Symptom - Unable to delete a custom role

You're unable to delete a custom role and get the following error message:

There are existing role assignments referencing role (code: RoleDefinitionHasAssignments)

Cause

There are role assignments still using the custom role.

Solution

Remove the role assignments that use the custom role and try to delete the custom role again. For more information, see Find role assignments to delete a custom role.

Symptom - Unable to add more than one management group as assignable scope

When you try to create or update a custom role, you can't add more than one management group as assignable scope.

Cause

You can define only one management group in AssignableScopes of a custom role.

Solution

Define one management group in AssignableScopes of your custom role. For more information about custom roles and management groups, see Organize your resources with Azure management groups.

Symptom - Unable to add data actions to custom role

When you try to create or update a custom role, you can't add data actions or you see the following message:

You cannot add data action permissions when you have a management group as an assignable scope

Cause

You're trying to create a custom role with data actions and a management group as assignable scope. Custom roles with DataActions can't be assigned at the management group scope.

Solution

Create the custom role with one or more subscriptions as the assignable scope. For more information about custom roles and management groups, see Organize your resources with Azure management groups.

Symptom - No more role definitions can be created

When you try to create a new custom role, you get the following message:

Role definition limit exceeded. No more role definitions can be created (code: RoleDefinitionLimitExceeded)

Cause

Azure supports up to 5000 custom roles in a directory. (For Azure China 21Vianet, the limit is 2000 custom roles.)

Solution

Try to reduce the number of custom roles.

Access denied or permission errors

Symptom - Authorization failed

When you try to create a resource, you get the following error message:

The client with object id does not have authorization to perform action over scope (code: AuthorizationFailed)

Cause

You're currently signed in with a user that doesn't have write permission to the resource at the selected scope.

Solution

Check that you're currently signed in with a user that is assigned a role that has write permission to the resource at the selected scope. For example, to manage virtual machines in a resource group, you should have the Virtual Machine Contributor role on the resource group (or parent scope). For a list of the permissions for each built-in role, see Azure built-in roles.

Symptom - Unable to create a support request

When you try to create or update a support ticket, you get the following error message:

You don't have permission to create a support request

Cause

You're currently signed in with a user that doesn't have permission to the create support requests.

Solution

Check that you're currently signed in with a user that is assigned a role that has the Microsoft.Support/supportTickets/write permission, such as Support Request Contributor.

Azure features are disabled

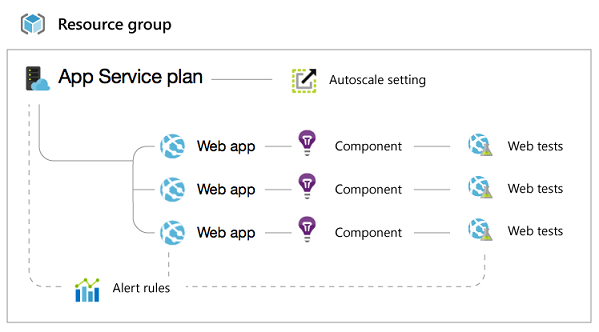

Symptom - Some web app features are disabled

A user has read access to a web app and some features are disabled.

Cause

If you grant a user read access to a web app, some features are disabled that you might not expect. The following management capabilities require write access to a web app and aren't available in any read-only scenario.

  • Commands (like start, stop, etc.)
  • Changing settings like general configuration, scale settings, backup settings, and monitoring settings
  • Accessing publishing credentials and other secrets like app settings and connection strings
  • Streaming logs
  • Resource logs configuration
  • Console (command prompt)
  • Active and recent deployments (for local git continuous deployment)
  • Estimated spend
  • Web tests
  • Virtual network (only visible to a reader if a virtual network has previously been configured by a user with write access).

Solution

Assign the Contributor or another Azure built-in role with write permissions for the web app.

Symptom - Some web app resources are disabled

A user has write access to a web app and some features are disabled.

Cause

Web apps are complicated by the presence of a few different resources that interplay. Here's a typical resource group with a couple of websites:

Web app resource group

As a result, if you grant someone access to just the web app, much of the functionality on the website blade in the Azure portal is disabled.

These items require write access to theApp Service plan that corresponds to your website:

  • Viewing the web app's pricing tier (Free or Standard)
  • Scale configuration (number of instances, virtual machine size, autoscale settings)
  • Quotas (storage, bandwidth, CPU)

These items require write access to the whole Resource group that contains your website:

  • TLS/SSL Certificates and bindings (TLS/SSL certificates can be shared between sites in the same resource group and geo-location)
  • Alert rules
  • Autoscale settings
  • Application insights components
  • Web tests

Solution

Assign an Azure built-in role with write permissions for the app service plan or resource group.

Symptom - Some virtual machine features are disabled

A user has access to a virtual machine and some features are disabled.

Cause

Similar to web apps, some features on the virtual machine blade require write access to the virtual machine, or to other resources in the resource group.

Virtual machines are related to Domain names, virtual networks, storage accounts, and alert rules.

These items require write access to the virtual machine:

  • Endpoints
  • IP addresses
  • Disks
  • Extensions

These require write access to both the virtual machine, and the resource group (along with the Domain name) that it is in:

  • Availability set
  • Load balanced set
  • Alert rules

If you can't access any of these tiles, ask your administrator for Contributor access to the Resource group.

Solution

Assign an Azure built-in role with write permissions for the virtual machine or resource group.

Symptom - Some function app features are disabled

A user has access to a function app and some features are disabled. For example, they can click the Platform features tab and then click All settings to view some settings related to a function app (similar to a web app), but they can't modify any of these settings.

Cause

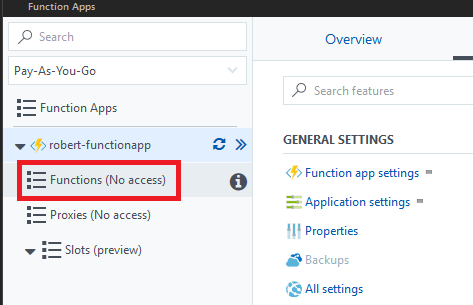

Some features of Azure Functions require write access. For example, if a user is assigned the Reader role, they won't be able to view the functions within a function app. The portal displays (No access).

Function apps no access

Solution

Assign an Azure built-in role with write permissions for the function app or resource group.

Transferring a subscription to a different directory

Symptom - All role assignments are deleted after transferring a subscription

Cause

When you transfer an Azure subscription to a different Azure AD directory, all role assignments are permanently deleted from the source Azure AD directory and aren't migrated to the target Azure AD directory.

Solution

You must re-create your role assignments in the target directory. You also have to manually recreate managed identities for Azure resources. For more information, see Transfer an Azure subscription to a different Azure AD directory and FAQs and known issues with managed identities.

Symptom - Unable to access subscription after transferring a subscription

Solution

If you're an Azure AD Global Administrator and you don't have access to a subscription after it was transferred between directories, use the Access management for Azure resources toggle to temporarily elevate your access to get access to the subscription.

Classic subscription administrators

Symptom - Deleting a guest assigned the Co-Administrator role doesn't the remove role assignment

Consider the following scenario:

  • Invite a guest user from an external tenant and then assign them the classic Co-Administrator role.
  • Later, you delete the guest user from your tenant without removing the role assignment.
  • The guest user signs in to the Azure portal and switches to your tenant.

The guest user still has the Co-Administrator role assignment.

Solution

Don't use the classic subscription administrator roles. Microsoft recommends that you manage access to Azure resources using Azure RBAC. For more information, see Assign Azure roles using the Azure portal and Assign Azure roles to external guest users using the Azure portal.

Next steps
