Create an Azure AI Search service in the portal

Azure AI Search is an information retrieval platform for the enterprise. It supports traditional search and conversational AI-driven search for "chat with your data" experiences over your proprietary content.

The easiest way to create a service is using the Azure portal, which is covered in this article.

You can also use Azure PowerShell, Azure CLI, the Management REST API, an Azure Resource Manager service template, a Bicep file, or Terraform.

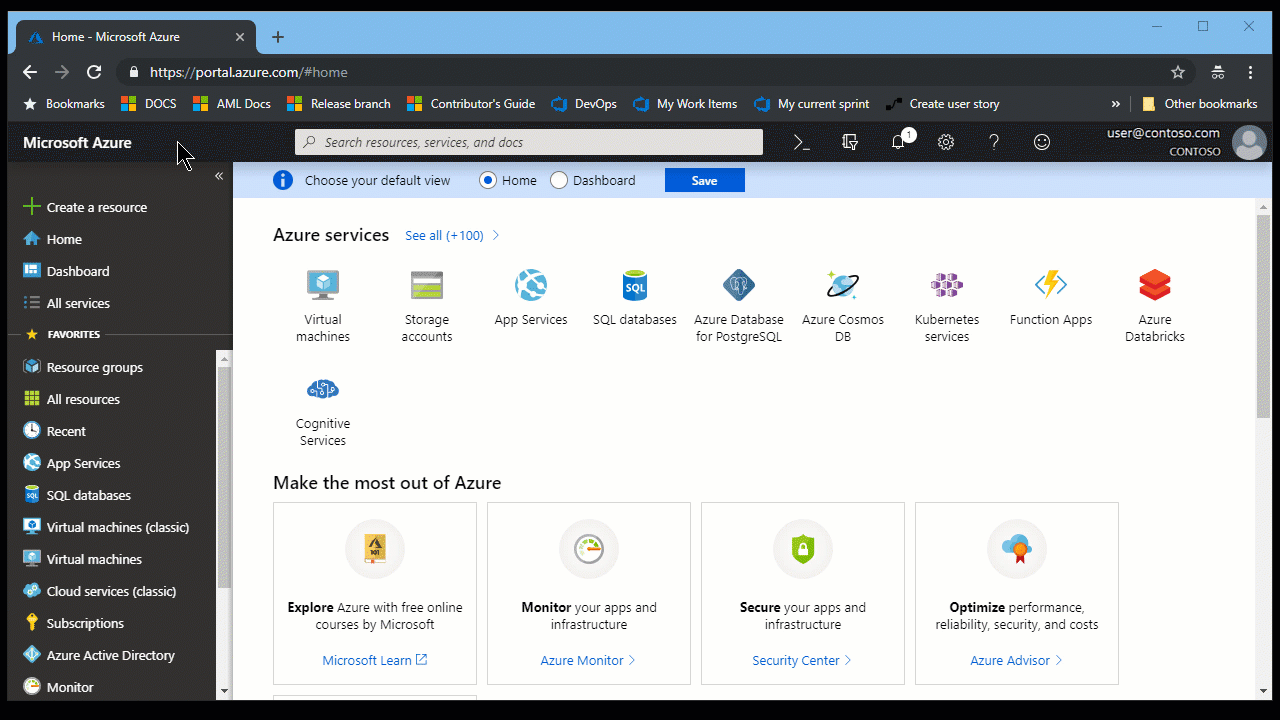

Animated GIF

Before you start

A few service properties are fixed for the lifetime of the service. Before creating the service, decide on a name, region, and tier.

  • Service name becomes part of the URL endpoint. The name must be unique and it must conform to naming rules.

  • Region determines data residency and the availability of certain features. Semantic ranker and Azure AI integration come with region requirements. Make sure your region of choice supports the features you need.

  • Service tier determines infrastructure, service limits, and billing. Some features aren't available on lower or specialized tiers.

Subscribe (free or paid)

Paid (or billable) search occurs when you choose a billable tier (Basic or higher) when creating the resource on a billable Azure subscription.

To try Azure AI Search for free, open a trial subscription and then create your search service by choosing the Free tier. You can have one free search service per Azure subscription. Free search services are intended for short-term evaluation of the product for nonproduction applications. Generally, you can complete all of the quickstarts and most tutorials, except for those featuring semantic ranker (it requires a billable service).

Alternatively, you can use free credits to try out paid Azure services. With this approach, you can create your search service at Basic or higher to get more capacity. Your credit card is never charged unless you explicitly change your settings and ask to be charged. Another approach is to activate Azure credits in a Visual Studio subscription. A Visual Studio subscription gives you credits every month you can use for paid Azure services.

Find the Azure AI Search offering

  1. Sign in to the Azure portal.

  2. Select (Create Resource") in the top-left corner.

  3. Use the search bar to find "Azure AI Search*.

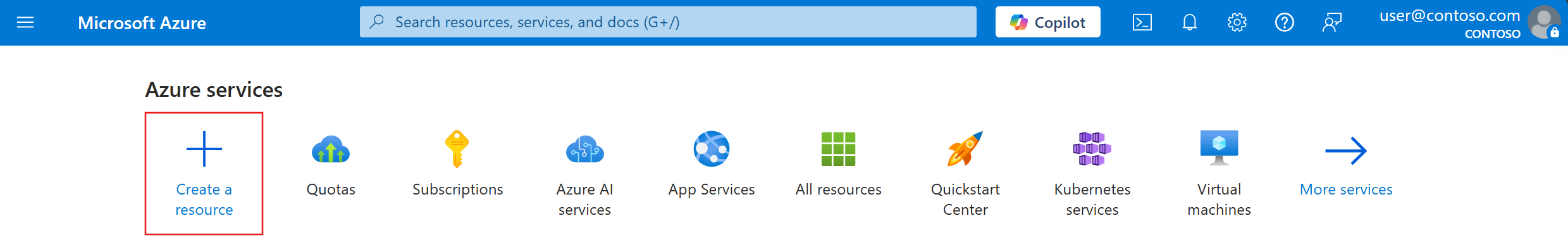

Screenshot of the Create Resource page in the portal.

Choose a subscription

If you have more than one subscription, choose one for your search service. If you're implementing customer-managed encryption or if you use other features that depend on managed service identities for external data access, choose the same subscription as the one used for Azure Key Vault or other services for which managed identities are used.

Set a resource group

A resource group is a container that holds related resources for your Azure solution. It's useful for consolidating same-solution resources, monitoring costs, and for checking the creation date of your search service.

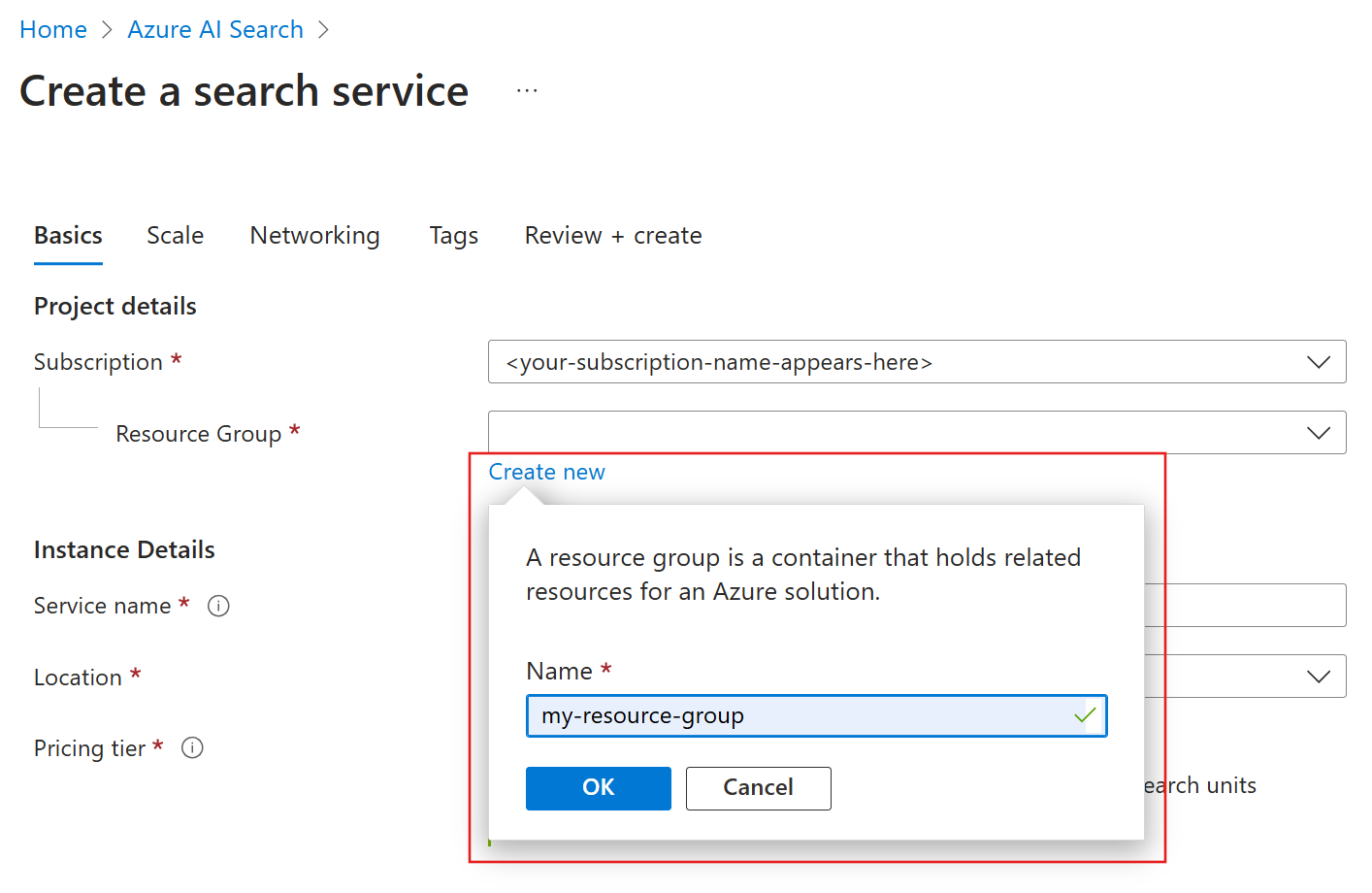

Screenshot of the Create Resource Group page in the portal.

Over time, you can track current and projected costs all-up or you can view charges for individual resources. The following screenshot shows the kind of cost information you can expect to see when you combine multiple resources into one group.

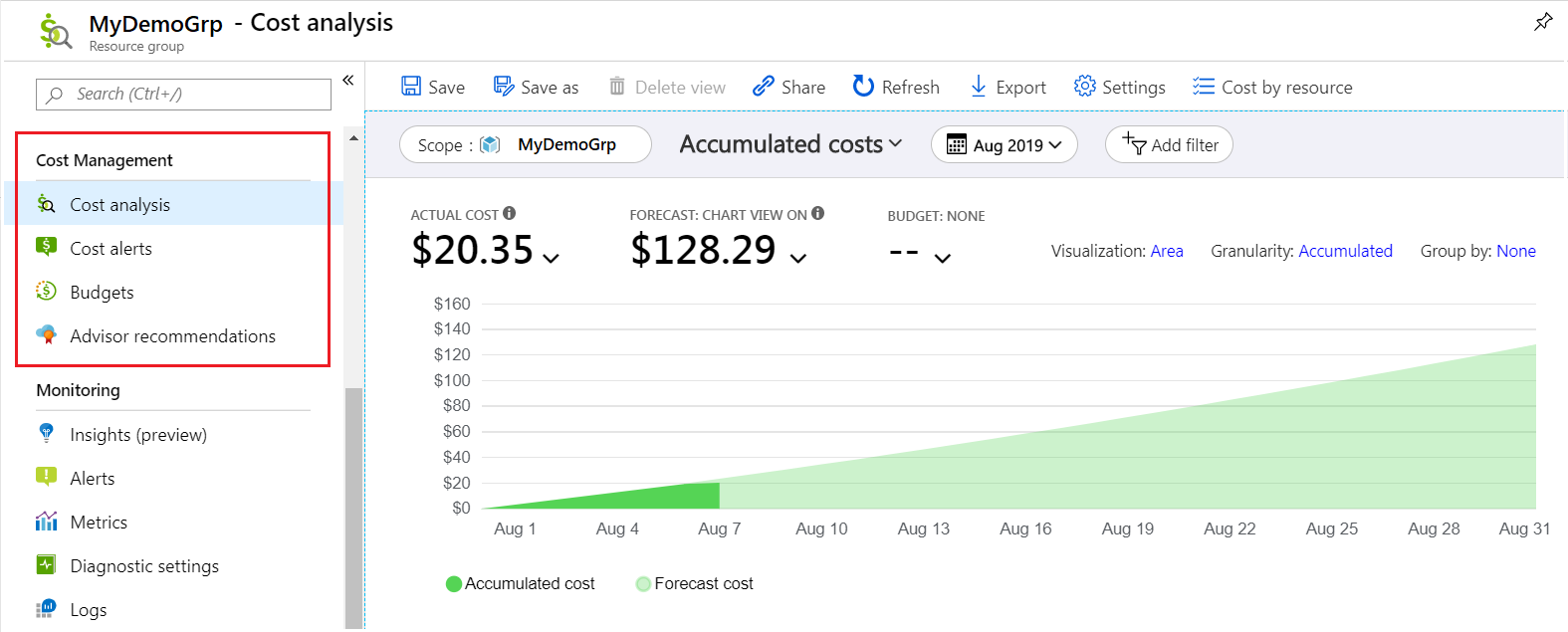

Screenshot of the Managing costs page in the portal.

Tip

Resource groups simplify cleanup because deleting a resource group deletes everything within it.

Name the service

In Instance Details, provide a service name in the URL field. The name is part of the endpoint against which API calls are issued: https://your-service-name.search.windows.net. For example, if you want the endpoint to be https://myservice.search.windows.net, you would enter myservice.

Service name requirements:

  • Unique within the search.windows.net namespace
  • Between 2-60 characters in length
  • Consist of lowercase letters, digits, or dashes (-)
  • Don't use dashes in the first two characters or as the last single character
  • Don't use consecutive dashes anywhere

Tip

If you have multiple search services, it helps to include the region (or location) in the service name as a naming convention. A name like mysearchservice-westus can save you a trip to the properties page when deciding how to combine or attach resources.

Choose a region

Important

Due to high demand, Azure AI Search is currently unavailable for new instances in some regions.

If you use multiple Azure services, putting all of them in the same region minimizes or voids bandwidth charges. There are no charges for data egress among same-region services.

Generally, choose a region near you, unless the following considerations apply:

  • Your nearest region is capacity constrained. For example, West Europe is at capacity and unavailable for new instances. Other regions are at capacity for specific tiers. One advantage to using the Azure portal for resource setup is that it provides only those regions and tiers that are available.

  • You want to use integrated data chunking and vectorization or built-in skills for AI enrichment. Azure OpenAI and Azure AI services multiservice accounts must be in the same region as Azure AI Search for integration purposes. Choose a region that provides all necessary resources.

  • You want to use Azure Storage for indexer-based indexing or you need to store application data that isn't in an index. Debug session state, enrichment caches, and knowledge stores are Azure AI Search features that have a dependency on Azure Storage. The region you choose for Azure Storage has implications for network security. Specifically, if you're setting up a firewall, you should place the resources in separate regions. For more information, see Outbound connections from Azure AI Search to Azure Storage.

Here's a checklist for choosing a region:

  1. Is Azure AI Search available in a nearby region? Check the supported regions list.

  2. Do you know which tier you want to use? Tiers are covered in the next step. Check region availability by tier to determine if you can create a search service at the desired tier in your region of choice.

  3. Do you need AI enrichment or integrated data chunking and vectorization? Verify that Azure OpenAI and Azure AI multiservice are offered in the same region as Azure AI Search.

    Be aware that Azure AI Vision multimodal embeddings API, used for integrated image vectorization, must be accessed through an Azure AI multiservice account, but is available in a smaller subset of regions.

  4. Do you have business continuity and disaster recovery (BCDR) requirements? Such requirements dictate creating multiple search services in regional pairs in availability zones. For example, if you're operating in North America, you might choose East US and West US, or North Central US and South Central US, for each search service.

Choose a tier

Azure AI Search is offered in multiple pricing tiers: Free, Basic, Standard, or Storage Optimized. Each tier has its own capacity and limits. There are also several features that are tier-dependent.

Review the tier descriptions for computing characteristics and feature availability.

Basic and Standard are the most common choices for production workloads, but many customers start with the Free service. Among the billable tiers, key differences are partition size and speed, and limits on the number of objects you can create.

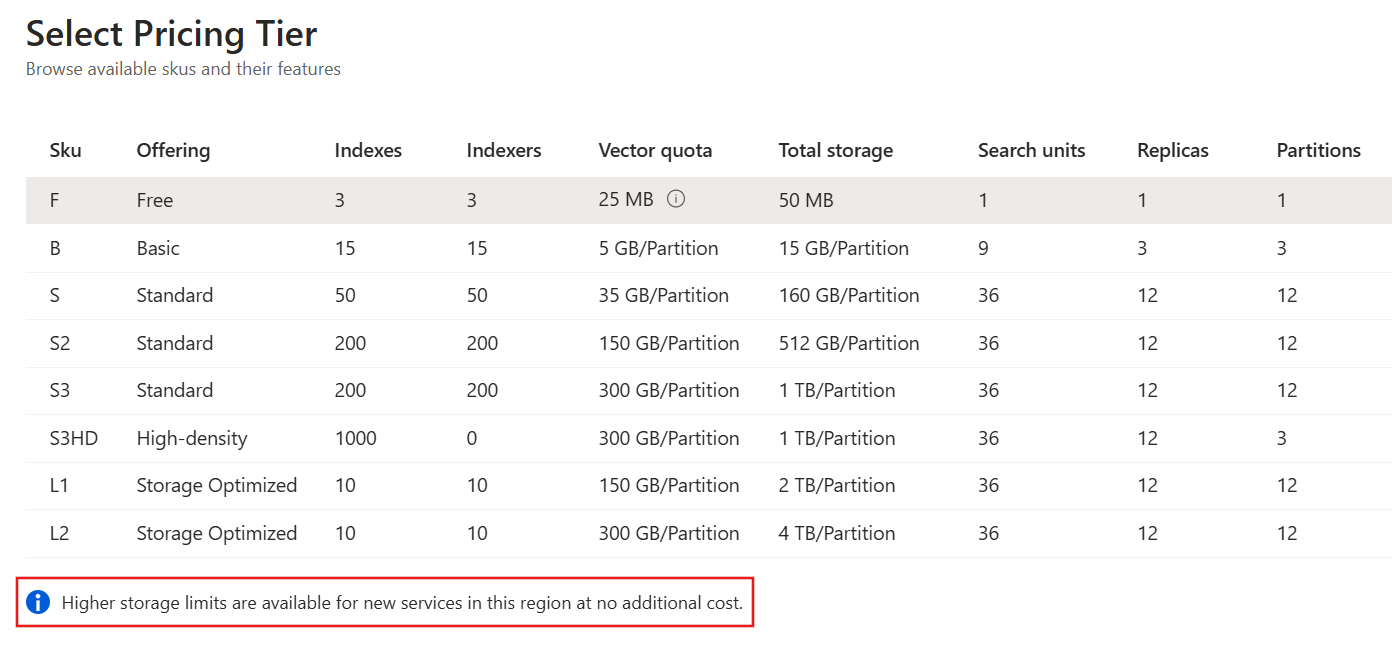

Screenshot of Select a pricing tier page.

Search services created after April 3, 2024 have larger partitions and higher vector quotas.

Currently, some regions are tier-constrained. For more information, see region availability by tier.

Remember, a pricing tier can't be changed once the service is created. If you need a higher or lower tier, you should re-create the service.

Create your service

After you've provided the necessary inputs, go ahead and create the service.

Screenshot of the Review and create the service page.

Your service is deployed within minutes. You can monitor progress through Azure notifications. Consider pinning the service to your dashboard for easy access in the future.

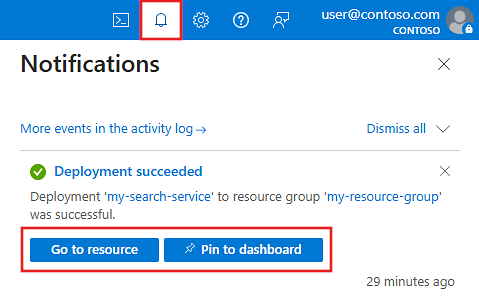

Screenshot of the Monitor and pin the service page.

Configure authentication

Unless you're using the portal, programmatic access to your new service requires that you provide the URL endpoint and an authenticated connection. You can use either or both of these options:

  1. When setting up a programmatic connection, you need the search service endpoint. On the Overview page, locate and copy the URL endpoint on the right side of the page.

    Screenshot of the service Overview page with URL endpoint.

  2. To set authentication options, use the Keys page. Most quickstarts and tutorials use API keys for simplicity, but if you're setting up a service for production workloads, consider using Azure roles. You can copy keys from this page.

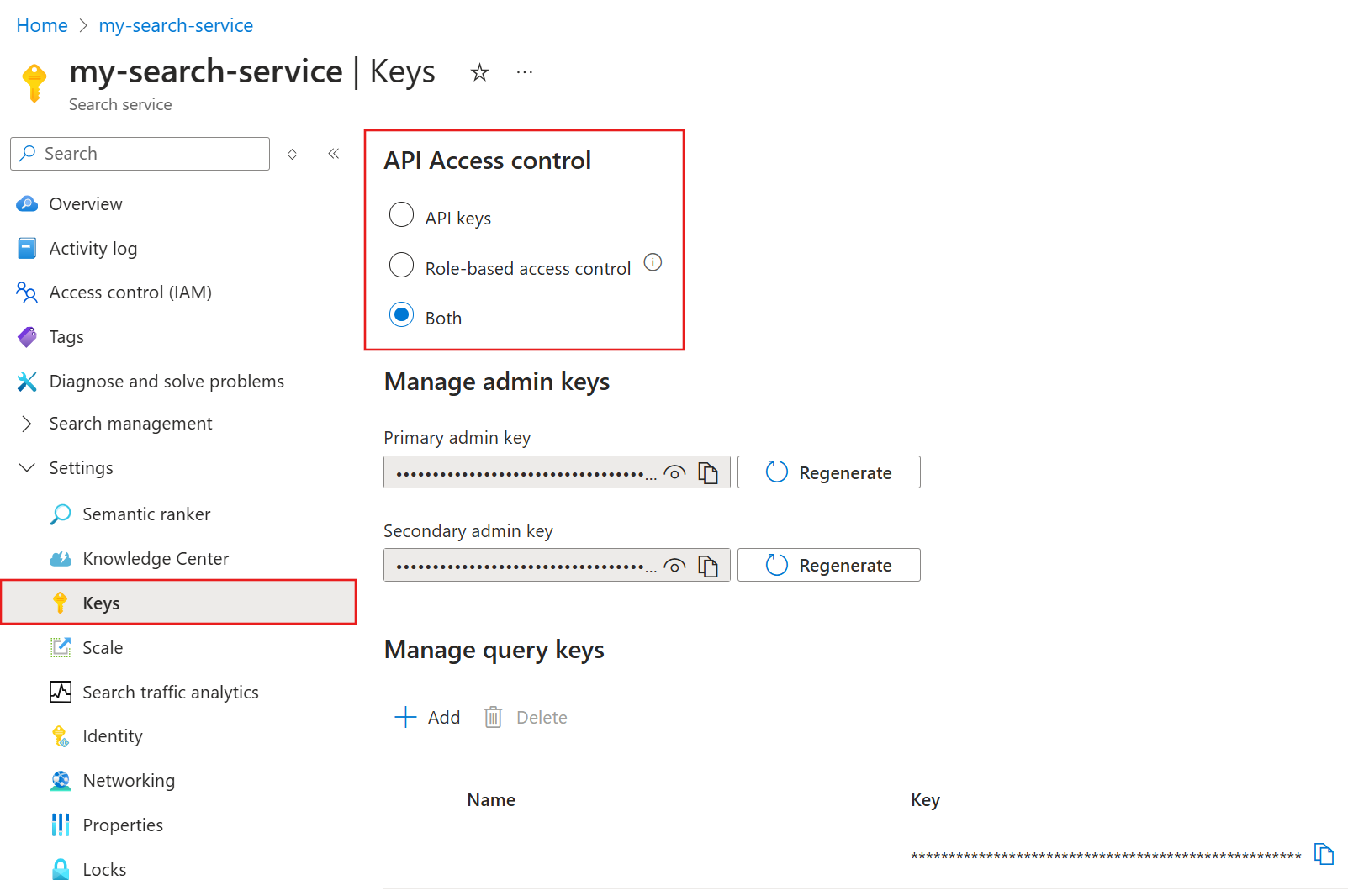

    Screenshot of the Keys page with authentication options.

An endpoint and key aren't needed for portal-based tasks. The portal is already linked to your Azure AI Search resource with admin rights. For a portal walkthrough, start with Quickstart: Create an Azure AI Search index in the portal.

Scale your service

After a search service is provisioned, you can scale it to meet your needs. On a billable tier, you can scale the service in two dimensions: replicas and partitions. For the free service, scale up isn't available and replica and partition configuration isn't offered.

Partitions allow your service to store and search through more documents.

Replicas allow your service to handle a higher load of search queries.

Adding resources increases your monthly bill. The pricing calculator can help you understand the billing ramifications of adding resources. Remember that you can adjust resources based on load. For example, you might increase resources to create a full initial index, and then reduce resources later to a level more appropriate for incremental indexing.

  1. Go to your search service page in the Azure portal.
  2. In the left-navigation pane, select Settings > Scale.
  3. Use the slidebar to add resources of either type.

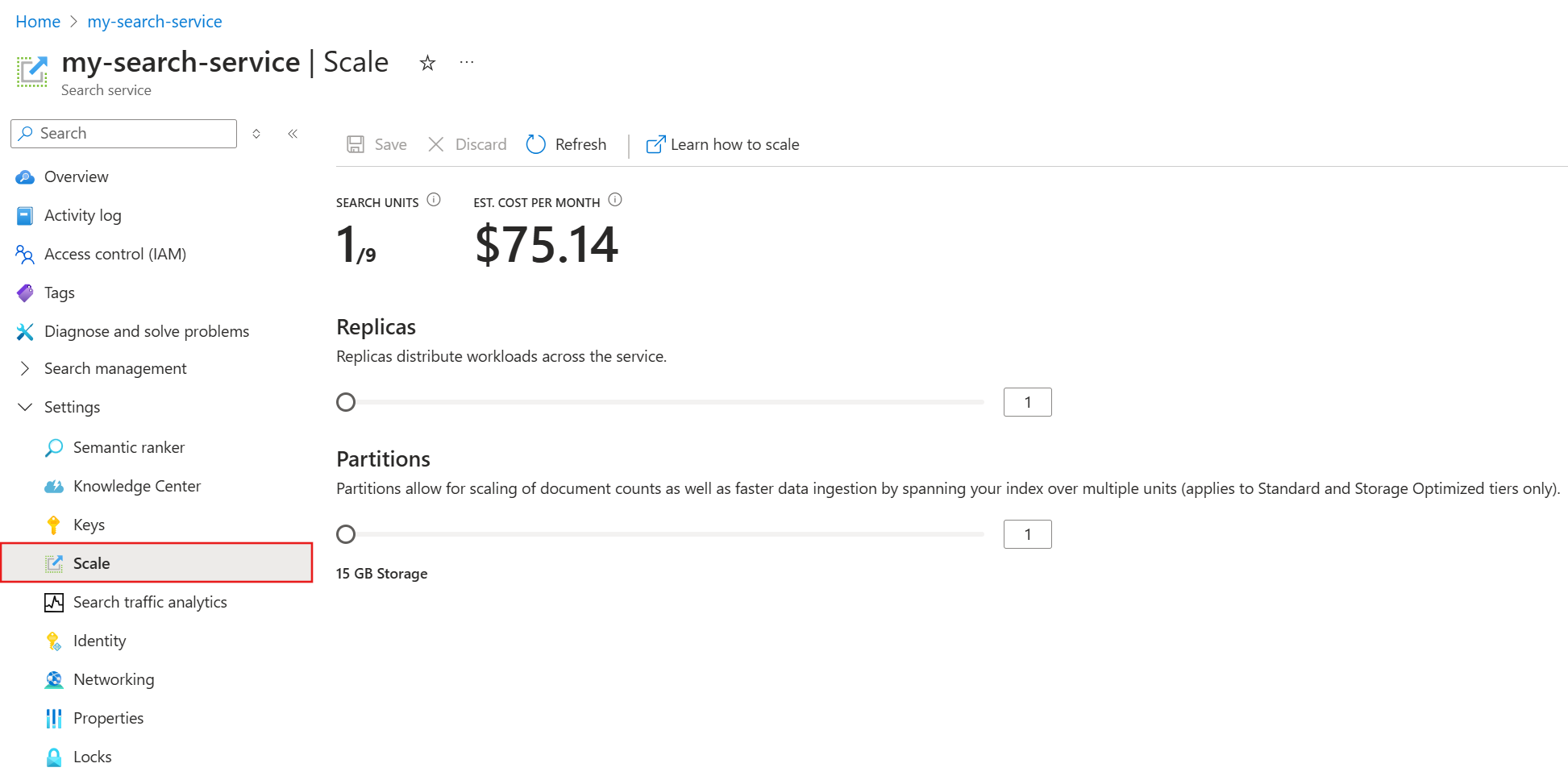

Screenshot of the scale page.

When to add a second service

Most customers use just one service provisioned at a tier sufficient for expected load. One service can host multiple indexes, subject to the maximum limits of the tier you select, with each index isolated from another. In Azure AI Search, requests can only be directed to one index, minimizing the chance of accidental or intentional data retrieval from other indexes in the same service.

Although most customers use just one service, service redundancy might be necessary if operational requirements include the following:

Note

In Azure AI Search, you cannot segregate indexing and querying operations; thus, you would never create multiple services for segregated workloads. An index is always queried on the service in which it was created (you cannot create an index in one service and copy it to another).

A second service isn't required for high availability. High availability for queries is achieved when you use two or more replicas in the same service. Replica updates are sequential, which means at least one is operational when a service update is rolled out. For more information about uptime, see Service Level Agreements.

Add more services to a subscription

Azure AI Search restricts the number of search services you can initially create in a subscription. If you exhaust your maximum limit, you can request more quota.

You must have Owner or Contributor permissions on the subscription to request quota. Depending on region and datacenter capacity, you can automatically request more quota to add services to your subscription. If the request fails, you should either decrease the number or file a support ticket. For a large increase in quota, such as more than 30 extra services, you should expect a one-month turnaround.

  1. Sign in to the Azure portal, search for "quotas" in your dashboard, and then select the Quotas service.

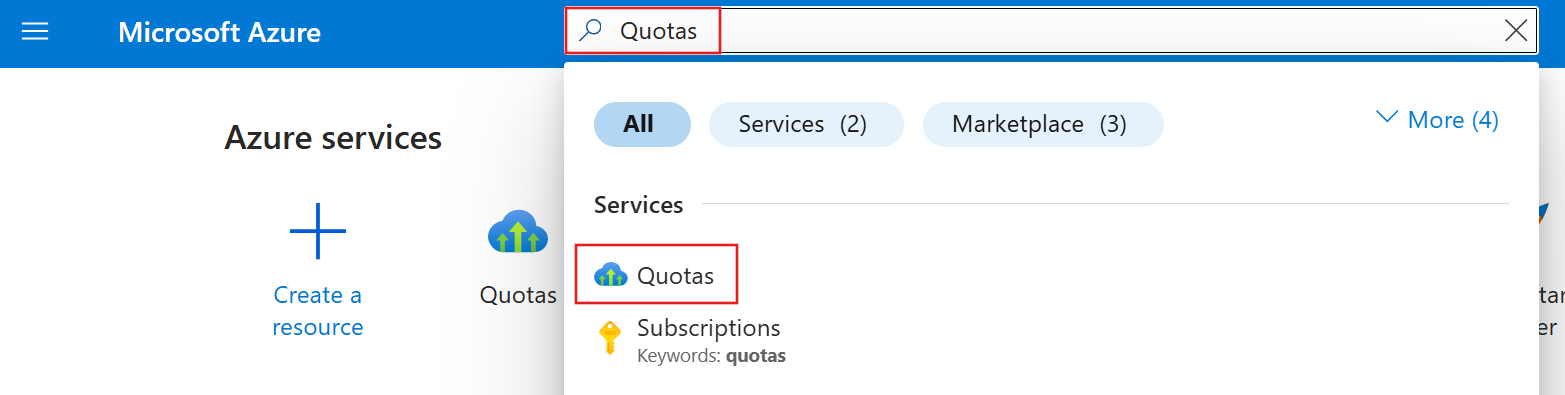

    Screenshot of the quota search term and Quotas service in the results.

  2. In the Quota's Overview page, select Search.

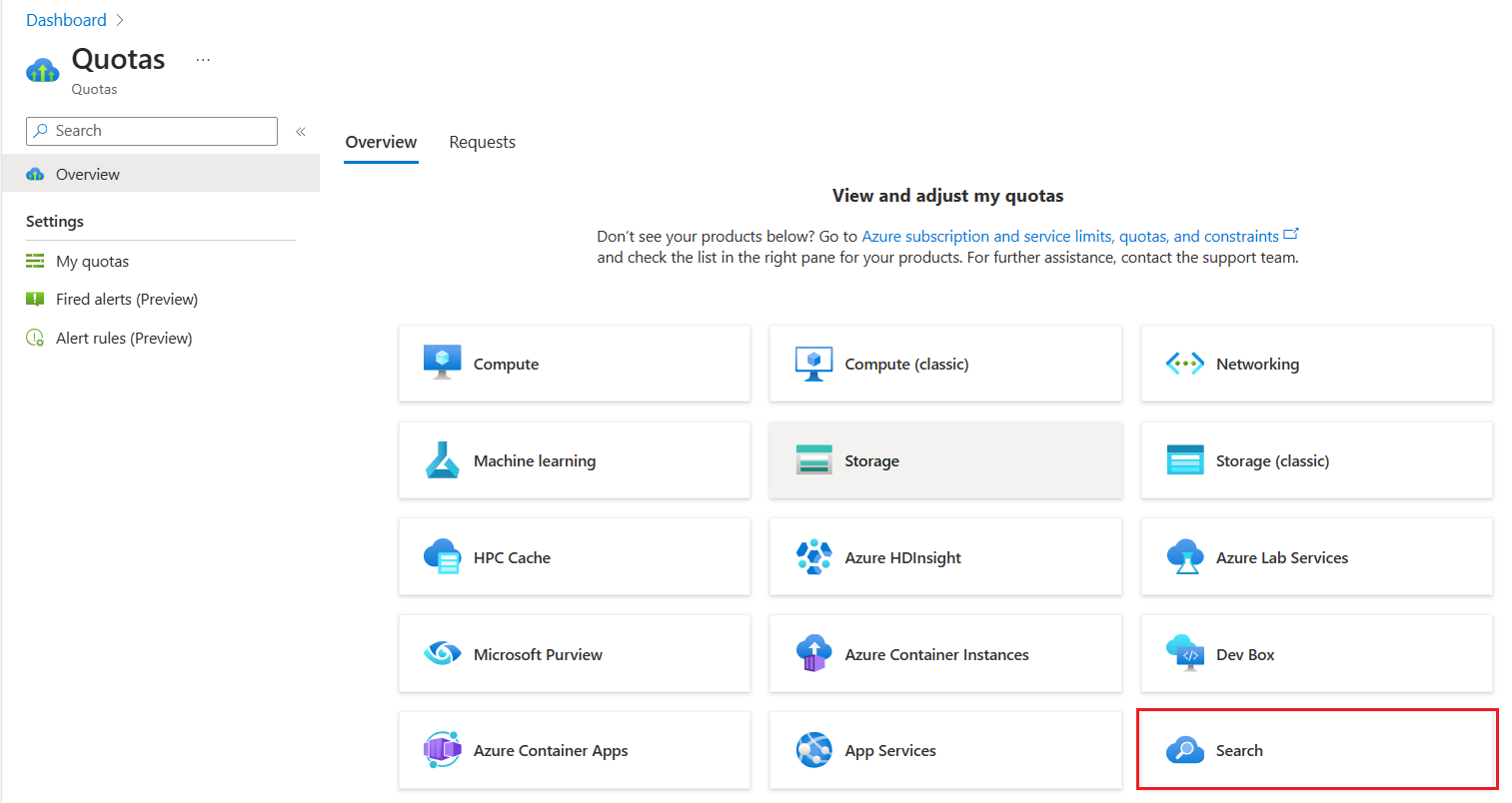

    Screenshot of the search tile in the Quota's overview page.

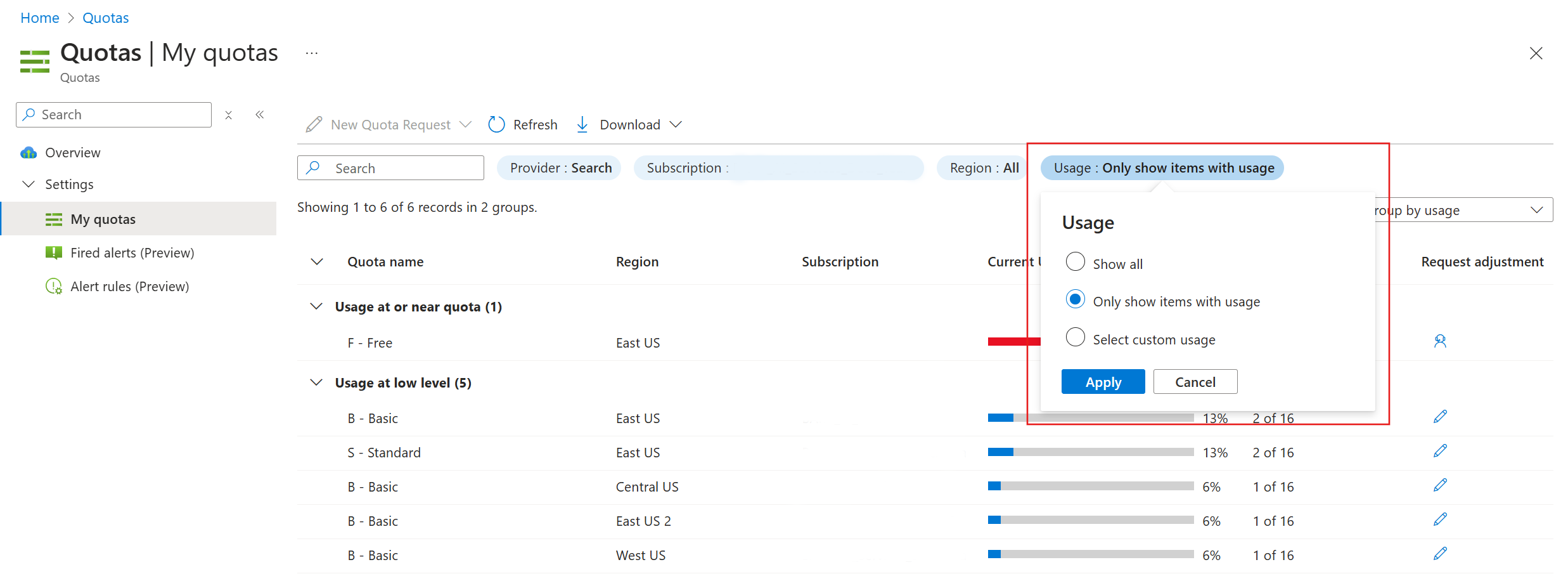

  3. Set filters so that you can review existing quota for search services in the current subscription. We recommend filtering by usage.

  4. Find the region and tier that needs more quota and select the Edit pencil icon to begin your request.

    Screenshot of the My Quotas page with a region at maximum quota.

  5. In Quota details, specify the location, tier, and a new limit for your subscription quota. None of the values can be empty. The new limit must be greater than the current limit. If regional capacity is constrained, your request won't be automatically approved. In this scenario, an incident report is generated on your behalf for investigation and resolution.

  6. Submit the request.

  7. Monitor notifications in the Azure portal for status updates on the new limit. Most requests are approved within 24 hours.

Next steps

After provisioning a service, you can continue in the portal to create your first index.
