Modules, handlers, and middleware

Tip

This content is an excerpt from the eBook, Blazor for ASP NET Web Forms Developers for Azure, available on .NET Docs or as a free downloadable PDF that can be read offline.

Download PDF

An ASP.NET Core app is built upon a series of middleware. Middleware is handlers that are arranged into a pipeline to handle requests and responses. In a Web Forms app, HTTP handlers and modules solve similar problems. In ASP.NET Core, modules, handlers, Global.asax.cs, and the app life cycle are replaced with middleware. In this chapter, you'll learn about middleware in the context of a Blazor app.

Overview

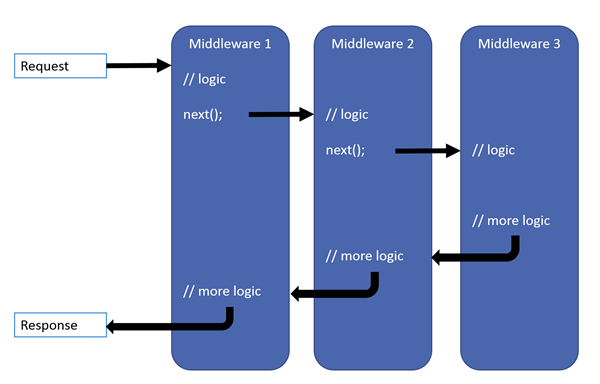

The ASP.NET Core request pipeline consists of a sequence of request delegates, called one after the other. The following diagram demonstrates the concept. The thread of execution follows the black arrows.

The preceding diagram lacks a concept of lifecycle events. This concept is foundational to how ASP.NET Web Forms requests are handled. This system makes it easier to reason about what process is occurring and allows middleware to be inserted at any point. Middleware executes in the order in which it's added to the request pipeline. They're also added in code instead of configuration files, usually in Startup.cs.

Katana

Readers familiar with Katana will feel comfortable in ASP.NET Core. In fact, Katana is a framework from which ASP.NET Core derives. It introduced similar middleware and pipeline patterns for ASP.NET 4.x. Middleware designed for Katana can be adapted to work with the ASP.NET Core pipeline.

Common middleware

ASP.NET 4.x includes many modules. In a similar fashion, ASP.NET Core has many middleware components available as well. IIS modules may be used in some cases with ASP.NET Core. In other cases, native ASP.NET Core middleware may be available.

The following table lists replacement middleware and components in ASP.NET Core.

Module	ASP.NET 4.x module	ASP.NET Core option
HTTP errors	CustomErrorModule	Status Code Pages Middleware
Default document	DefaultDocumentModule	Default Files Middleware
Directory browsing	DirectoryListingModule	Directory Browsing Middleware
Dynamic compression	DynamicCompressionModule	Response Compression Middleware
Failed requests tracing	FailedRequestsTracingModule	ASP.NET Core Logging
File caching	FileCacheModule	Response Caching Middleware
HTTP caching	HttpCacheModule	Response Caching Middleware
HTTP logging	HttpLoggingModule	ASP.NET Core Logging
HTTP redirection	HttpRedirectionModule	URL Rewriting Middleware
ISAPI filters	IsapiFilterModule	Middleware
ISAPI	IsapiModule	Middleware
Request filtering	RequestFilteringModule	URL Rewriting Middleware IRule
URL rewriting†	RewriteModule	URL Rewriting Middleware
Static compression	StaticCompressionModule	Response Compression Middleware
Static content	StaticFileModule	Static File Middleware
URL authorization	UrlAuthorizationModule	ASP.NET Core Identity

This list isn't exhaustive but should give an idea of what mapping exists between the two frameworks. For a more detailed list, see IIS modules with ASP.NET Core.

Custom middleware

Built-in middleware may not handle all scenarios needed for an app. In such cases, it makes sense to create your own middleware. There are multiple ways of defining middleware, with the simplest being a simple delegate. Consider the following middleware, which accepts a culture request from a query string:

public class Startup
{
    public void Configure(IApplicationBuilder app)
    {
        app.Use(async (context, next) =>
        {
            var cultureQuery = context.Request.Query["culture"];

            if (!string.IsNullOrWhiteSpace(cultureQuery))
            {
                var culture = new CultureInfo(cultureQuery);

                CultureInfo.CurrentCulture = culture;
                CultureInfo.CurrentUICulture = culture;
            }

            // Call the next delegate/middleware in the pipeline
            await next();
        });

        app.Run(async (context) =>
            await context.Response.WriteAsync(
                $"Hello {CultureInfo.CurrentCulture.DisplayName}"));
    }
}

Middleware can also be defined as class, either by implementing the IMiddleware interface or by following middleware convention. For more information, see Write custom ASP.NET Core middleware.
