Tutorial: Automate solution deployment using GitHub Actions for Microsoft Power Platform

Article
10/06/2022

In this tutorial, you will learn how to:

Create a new GitHub repository
Create two GitHub workflows using GitHub Actions for Microsoft Power Platform

The workflows can automatically export your app (as an unmanaged solution) from a development environment, generate a build artifact (managed solution), and deploy the app into your production environment. This tutorial uses the ALMLab solution you built and the environments you set up in previous tutorials.

Related tutorials: Get started, and Build a model-driven app.

Create a GitHub Account

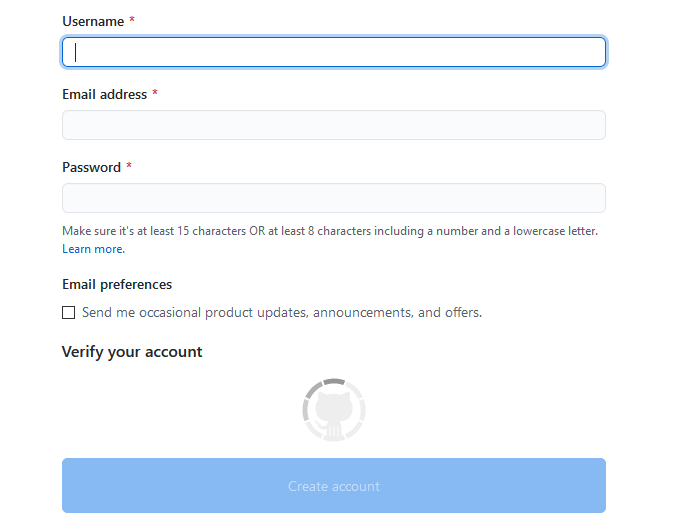

Go to https://github.com and click Sign up or Start a free trial (or sign in if you have an existing account).

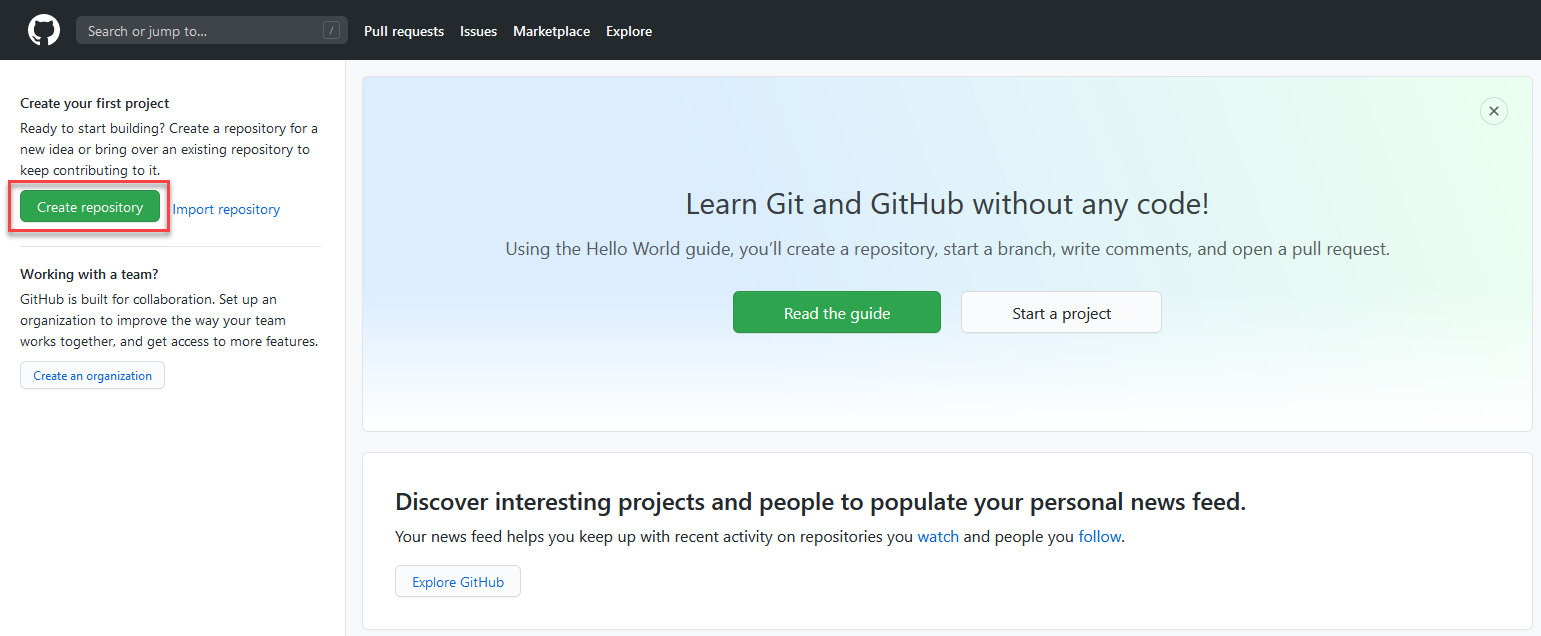

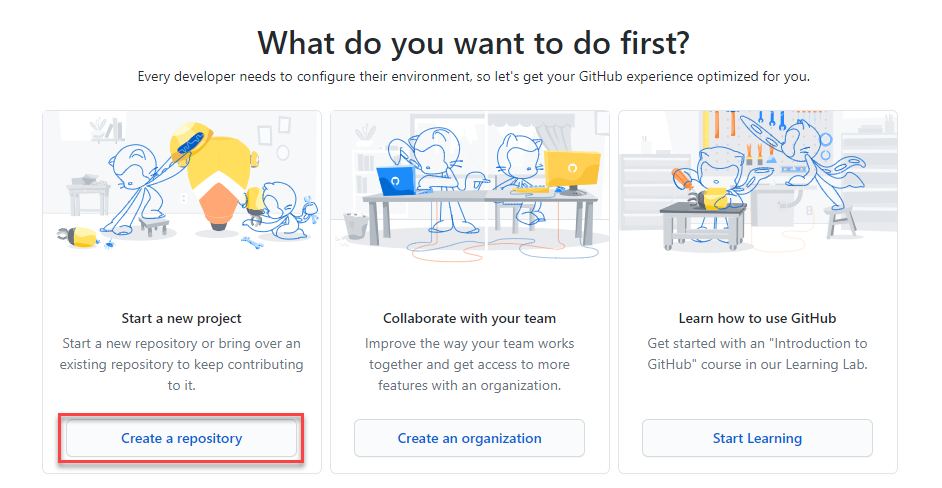

After you have created your account, create a repository by selecting Create repository or New.

You might see the following alternative landing screen:

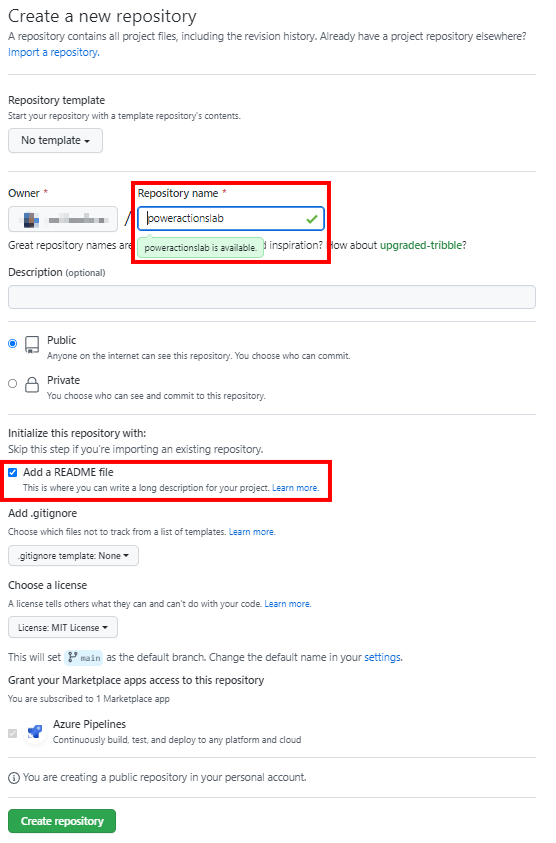

Create your new repository and name it 'poweractionslab'. Make sure you select Add a README file to initiate the repo and choose Create repository.

Creating a new secret for Service Principal Authentication

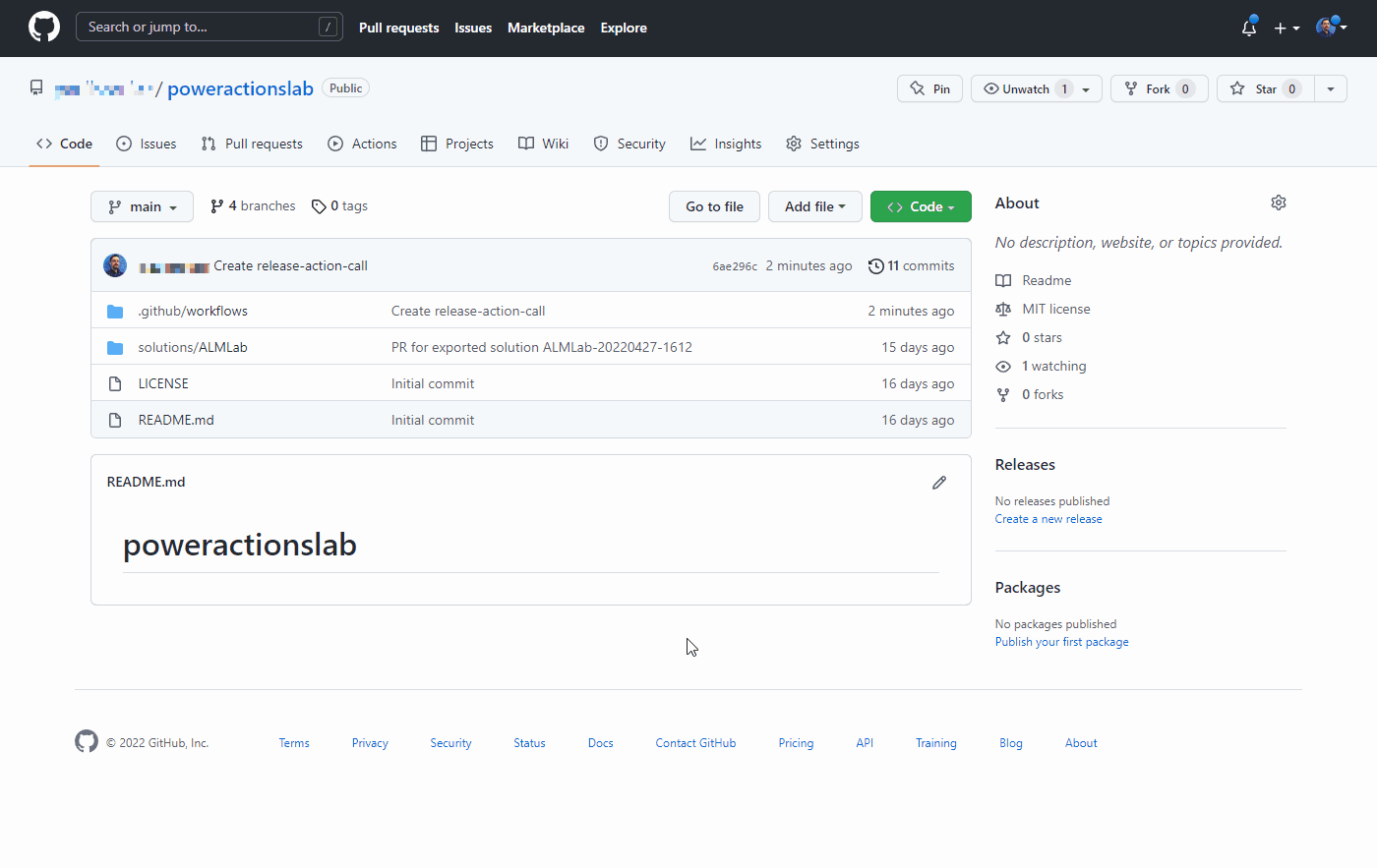

Navigate to your repository and click Settings, then expand Secrets, and then and click Actions.
On the Secrets page, name the secret 'PowerPlatformSPN'. Use the client secret from the application registration created in Microsoft Entra and enter it into the Value field, and then select Add secret. The client secret will be referenced in the YML files used to define the GitHub workflows later in this lab.

The client secret is now securely stored as a GitHub secret.

Create a workflow to export and unpack the solution file to a new branch

click on Actions and click set up a workflow yourself or click Configure in the Simple workflow box under the suggested for this repository section.

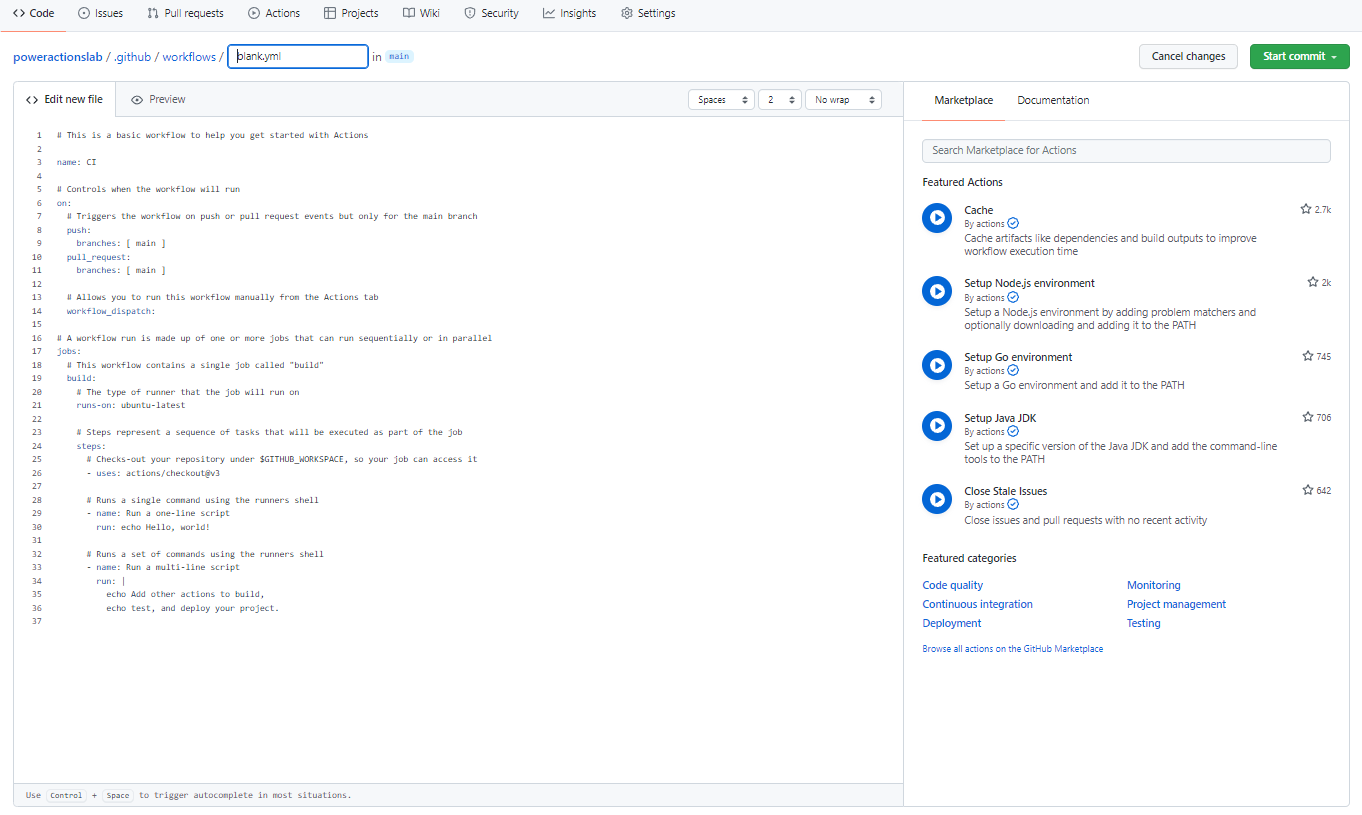

This will start a new YAML file with a basic workflow to help you get started with GitHub actions.

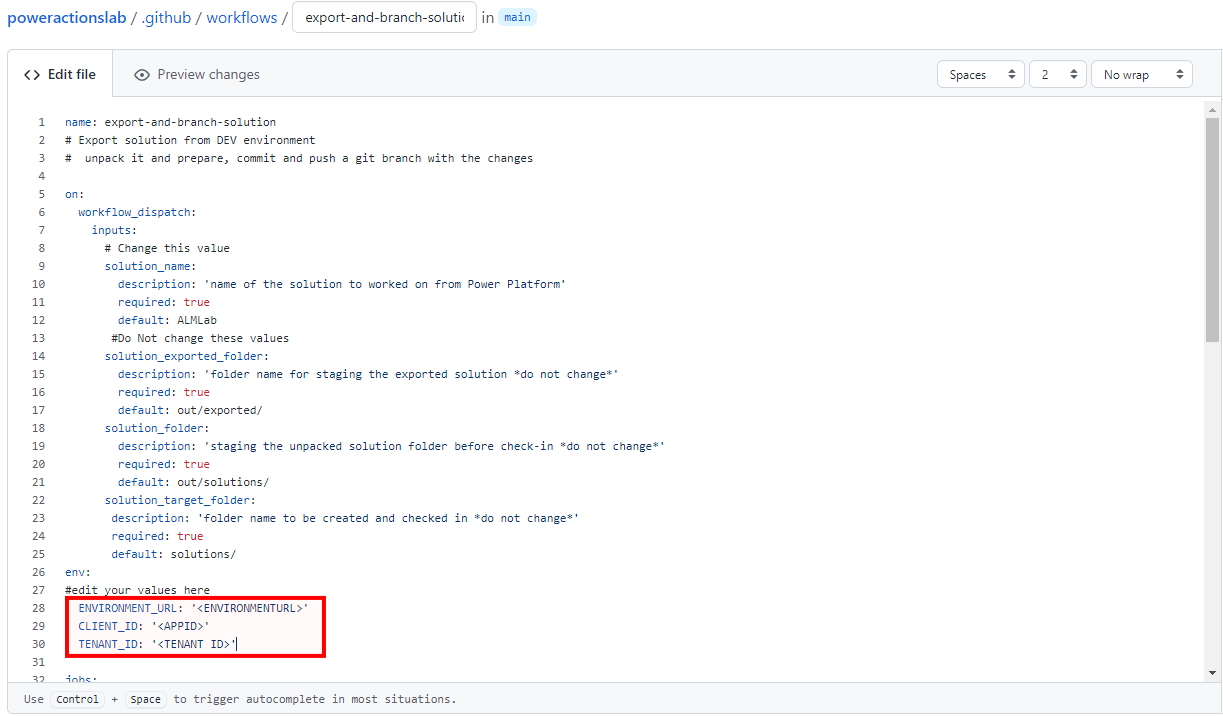

Delete the pre-created content, paste the content from the export-and-branch-solution-with-spn-auth.yml file, and then rename the file to 'export-and-branch-solution'.yml.
Update <ENVIRONMENTURL> with the URL for the development environment you want to export from (for example: https://poweractionsdev.crm.dynamics.com).
Update <APPID> and <TENANT ID> with your values.

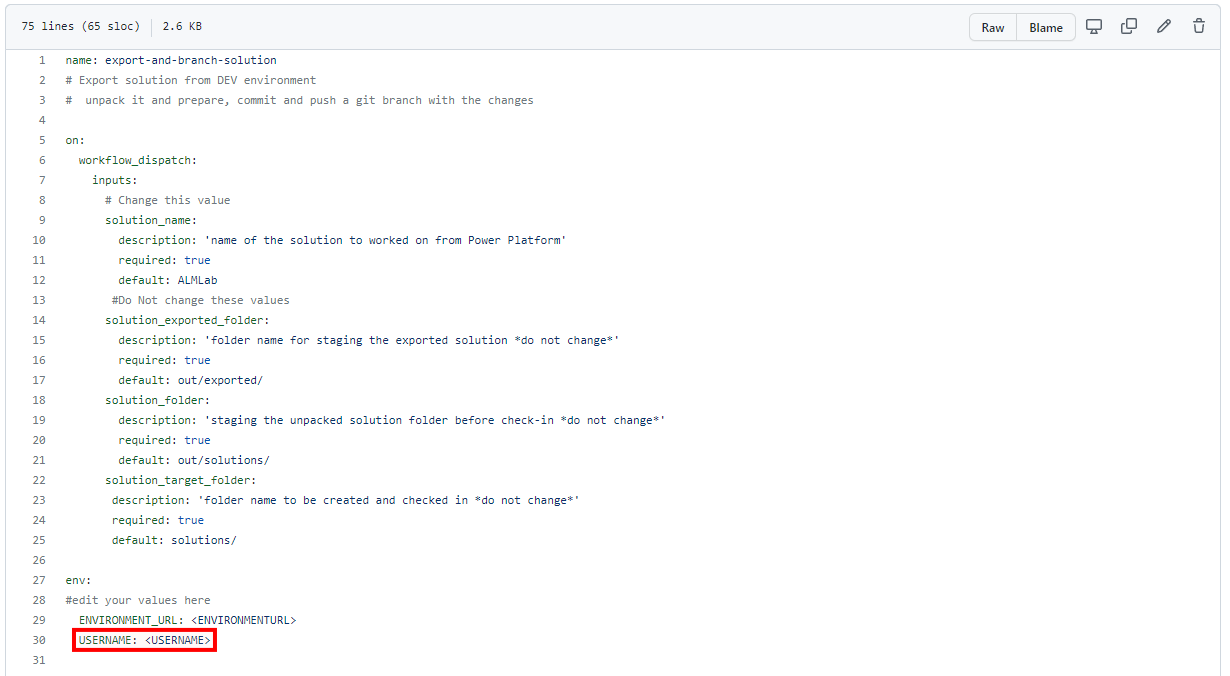

- If you are using credentials, paste the export-and-branch-solution.yml file instead of the export-and-branch-solution-with-spn-auth.yml file contents. Update <USERNAME> with the username you are using to connect to the environment.
Tip

If you are not familiar with GitHub Actions and want to learn more check out the official documentation at https://docs.github.com/en/actions.

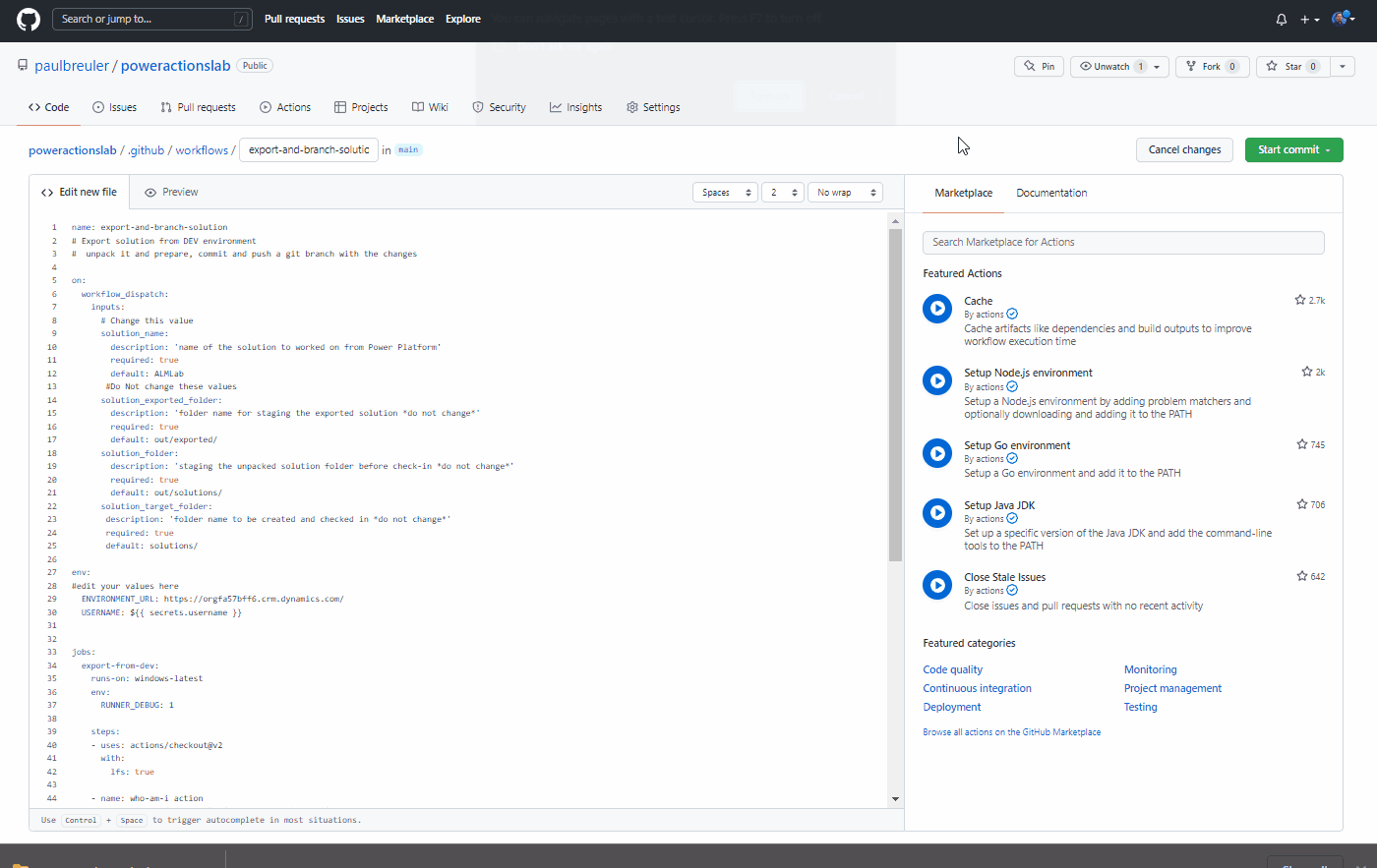

You are now ready to commit your changes. Select Start commit, type Create export yml in the title field, and then add a description (optional). Next, click Commit new file.

Congratulations, you have just created your first GitHub workflow using the following actions:

Who Am I: Ensures that you can successfully connect to the environment you are exporting from.
Export Solution: Exports the solution file from your development environment.
Unpack Solution: The solution file that is exported from the server is a compressed (zip) file with consolidated configuration files. These initial files are not suitable for source code management as they are not structured to make it feasible for source code management systems to properly do differencing on the files and capture the changes you want to commit to source control. You need to 'unpack' the solution files to make them suitable for source control storage and processing.
Branch Solution: Creates a new branch to store the exported solution.

Test the export and unpack workflow

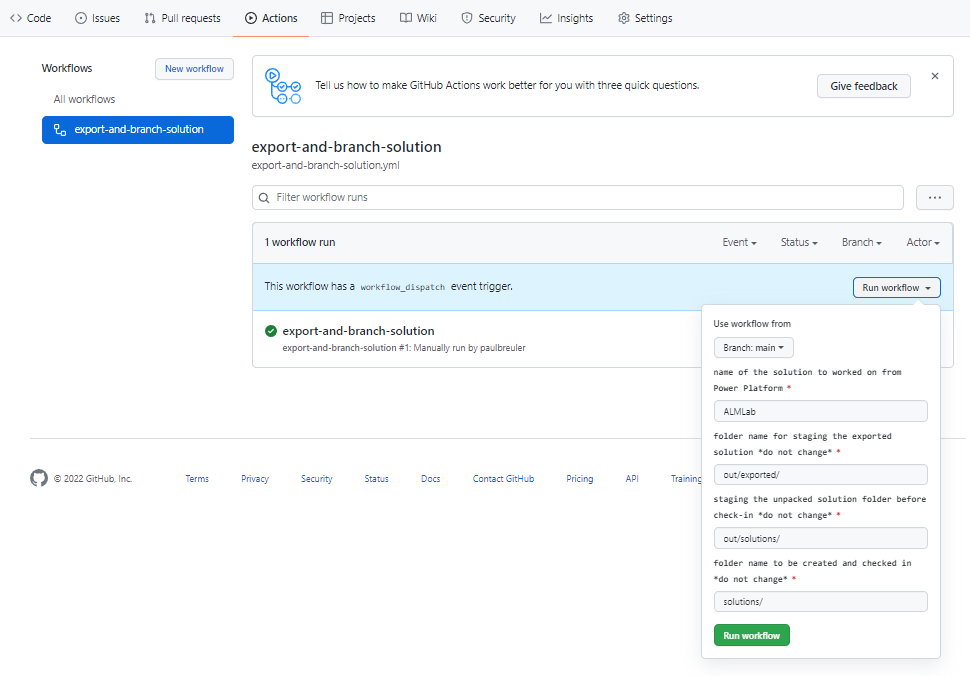

Next, test that the workflow runs. Navigate to Actions, Run workflow, and choose Run workflow. If you have a different solution name than 'ALMLab' then change the value here but leave the other values as is.

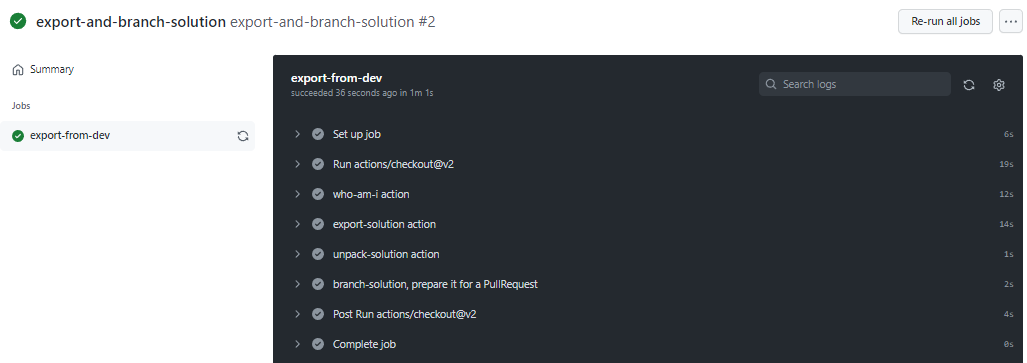

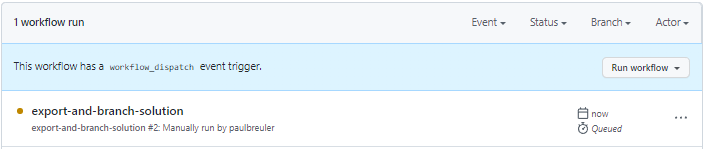

After 5–10 seconds the workflow will start, and you can select the running workflow to monitor progress.

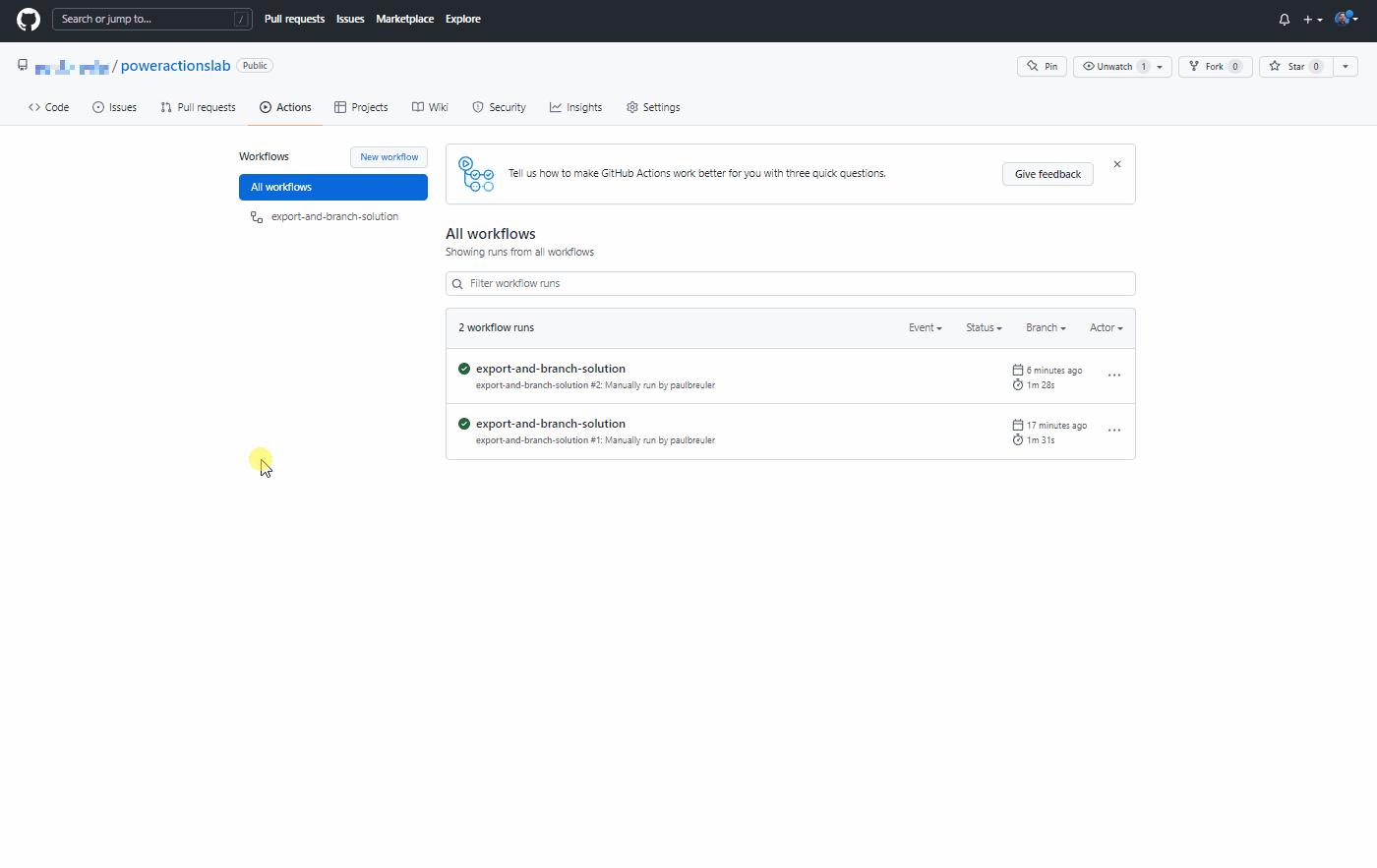

After the workflow has completed, validate that a new branch has been created with the solution unpacked to the solutions/ALMLab folder. Navigate to the Code tab and expand the branches drop-down.
Select the branch that was created by the action.
Validate that the solutions/ALMLab folder has been created in the new branch and then create a Pull request to merge the changes into the main branch. Click Contribute and in the flyout click Open Pull request.
On the Open a Pull request screen, add a title and description, as desired, then click Create pull request.
The screen will update showing the newly create pull request. As the pull request is created confirmation will be provided showing that our branch has no conflict with the main branch. This confirmation means that the changes can be merged into the main branch automatically. Click Merge pull request and then click Confirm merge. Optionally, click delete branch to clean up the now defunct branch.
Navigate back to the default (main) branch and validate the solution is now available there as well.

Create a reusable workflow to generate a build artifact and import to production

In this section, we will create an additional workflow that:

Creates a managed solution and publishes it as a GitHub artifact
Imports the build artifact into the production environment

Navigate to Actions and select New workflow.
Chose setup a workflow yourself.

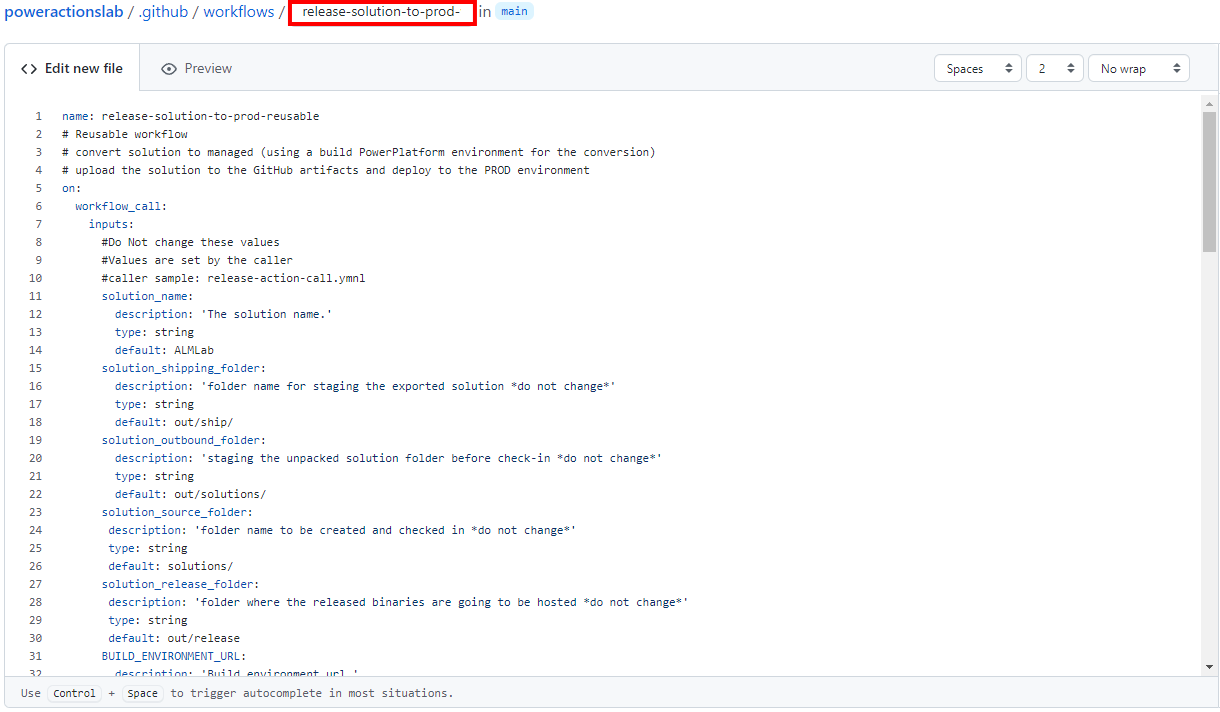

Rename the title of the workflow to 'release-solution-to-prod-with-inputs' and copy the content from the release-solution-to-prod-with-inputs.yml file and paste it into the Edit new file screen.

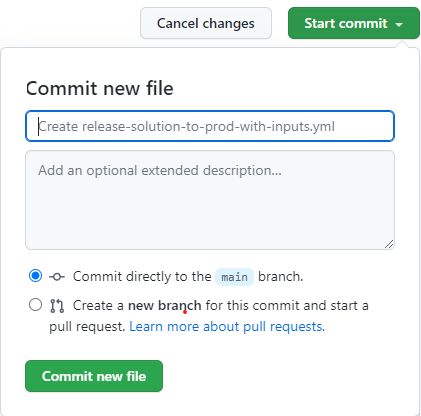

Commit the changes. Choose Start commit and then add a title and description (optional). Next, select Commit new file.

Call the reusable workflow on the release event

In this section, we will call the reusable workflow on the release event.

Navigate to Actions and select New workflow.
Choose setup a workflow yourself.

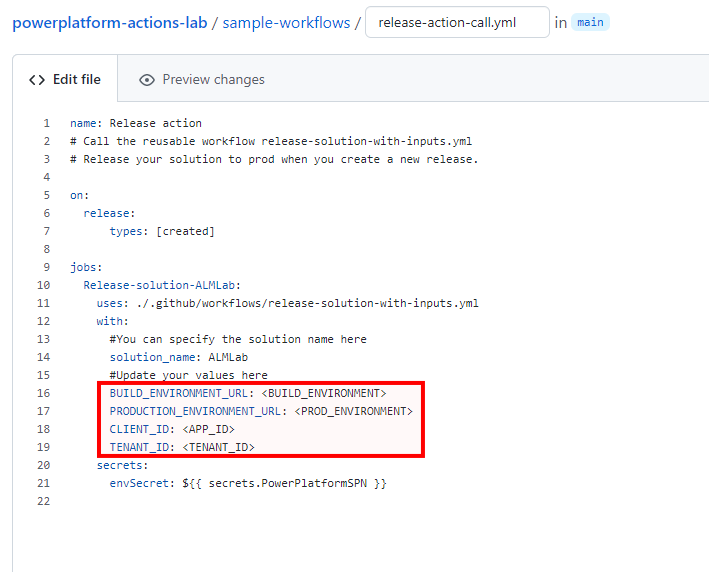

Rename the title of the workflow to 'release-action-call' and copy the content from the release-action-call.yml file and paste it into the Edit new file screen.
Update the following variables in the new workflow file:
- Update <BUILD_ENVIRONMENT> with the URL for the build environment you are using to generate the managed solution. For example: https://poweractionsbuild.crm.dynamics.com.
- Update <PROD_ENVIRONMENT> with the URL for the production environment you are deploying to. For example: https://poweractionsprod.crm.dynamics.com.
- Update <APP_ID> with the Application (Client) ID that can be found in the App registrations blade of the Microsoft Azure Portal by clicking into the registration created previously in this tutorial.
- Update <TENANT_ID> with the Directory (tenant) ID that can be found in the App registrations blade of the Microsoft Azure Portal by clicking into the registration created previously in this tutorial.

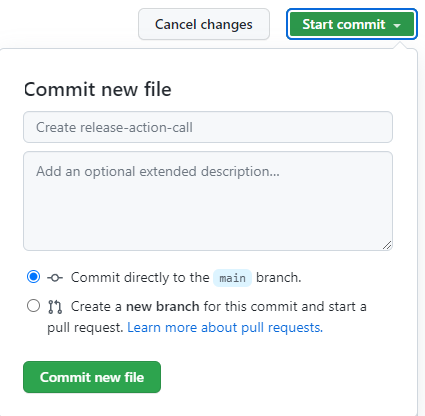

Commit the changes. Choose Start commit and then add a title (optional) and description (optional). Next, select Commit new file.

Test the release to production workflow

You are now ready to test the last workflow. This workflow is triggered when a new release is deployed to production.

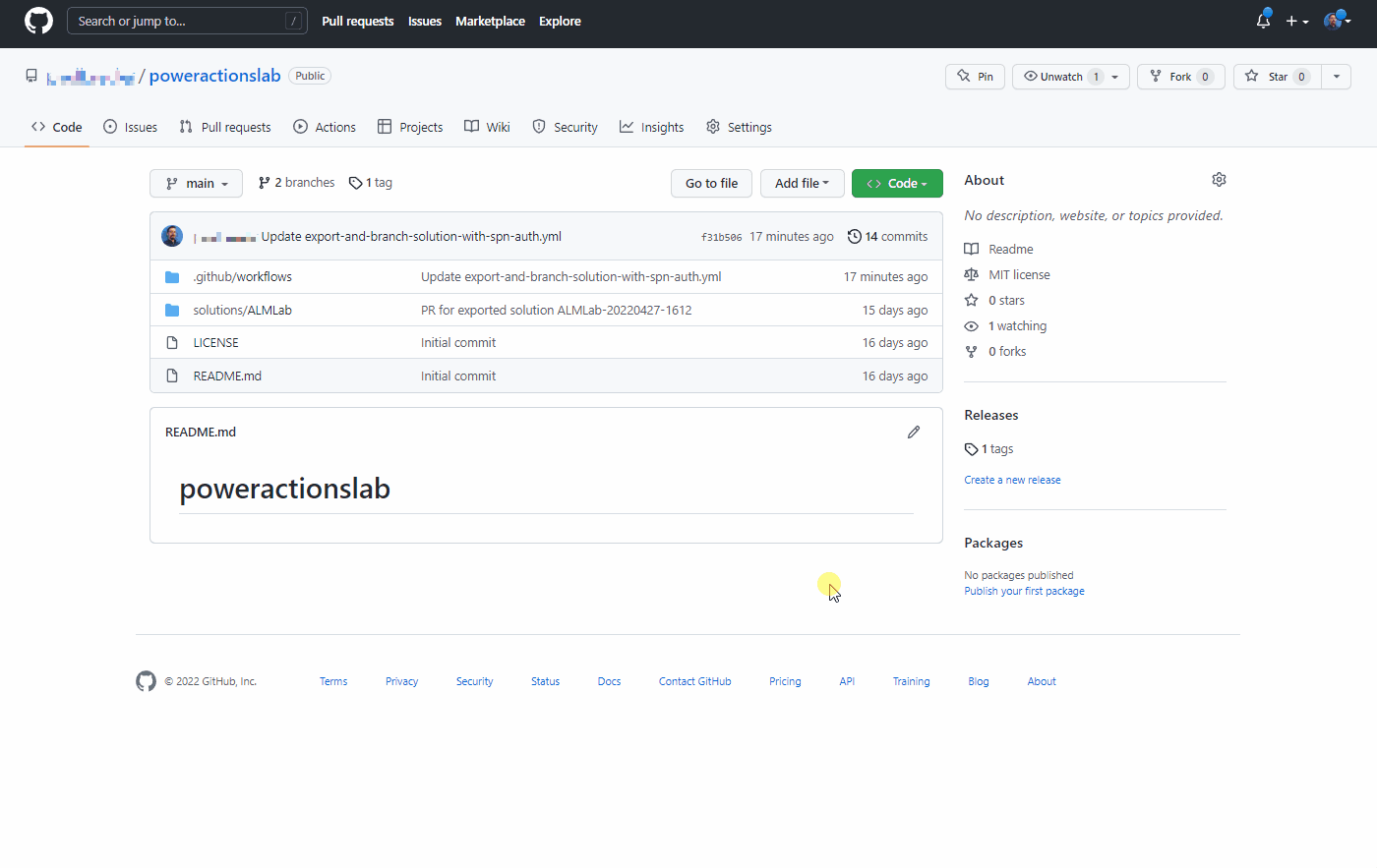

Navigate to Releases.
Select Draft a new release.
Add a release tag, a title, and choose Publish release.

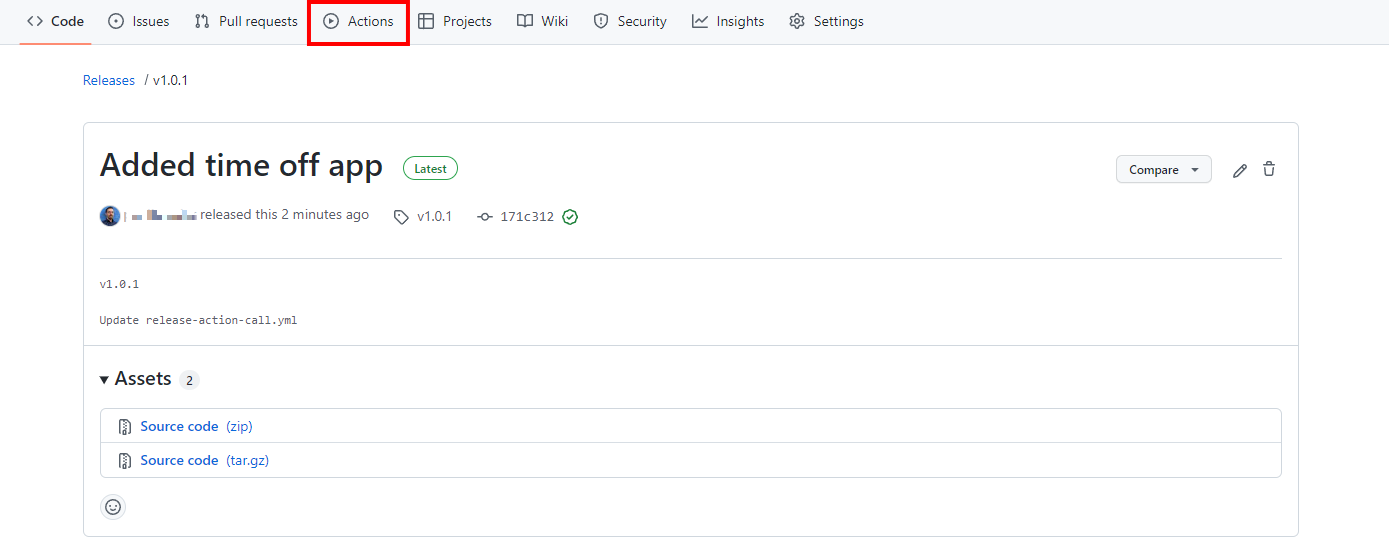

Select Actions to view the running workflow.

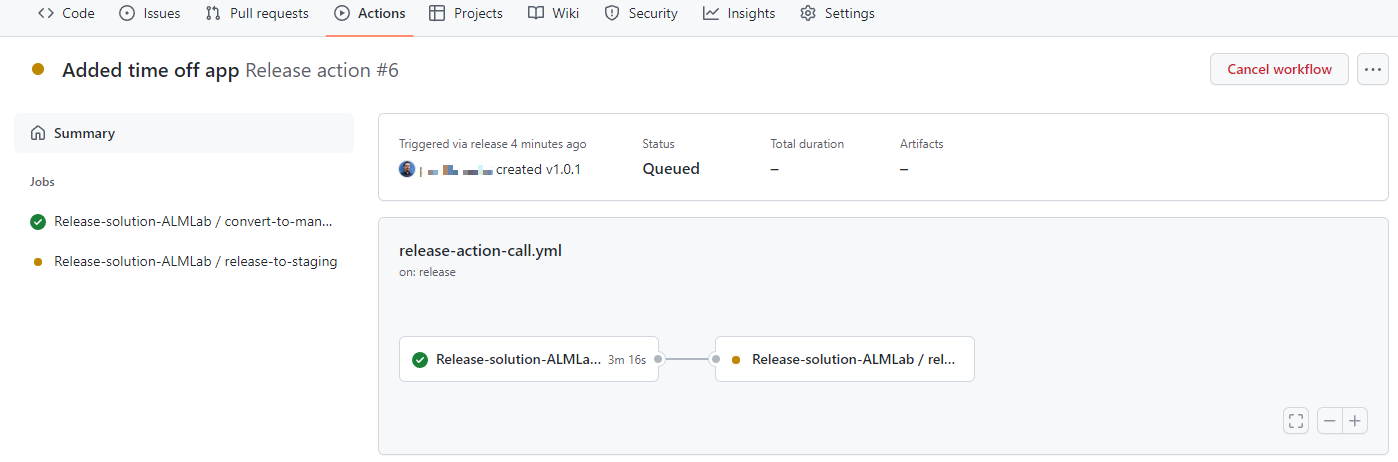

Choose the running workflow to view the actions as they run.
Wait for each action to complete.
After the workflow has completed, log into your production environment and validate that the solution has been deployed as a managed solution.

Deploy the update and review changes before production release

We will now test the end-to-end process and then see how we can view and validate changes to an app before it is deployed to production.

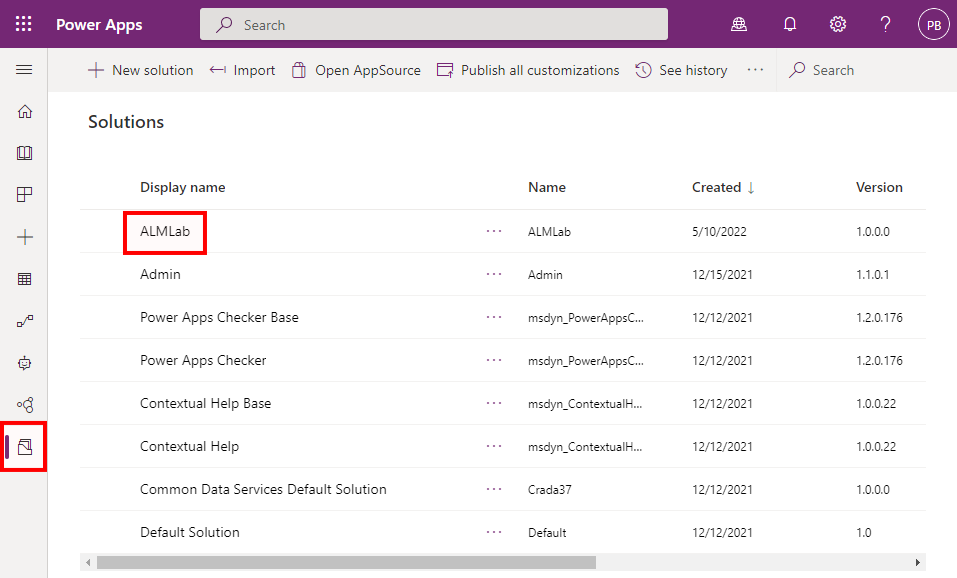

Navigate to the ALMLab solution in your development environment and choose Edit or click the solutions display name.

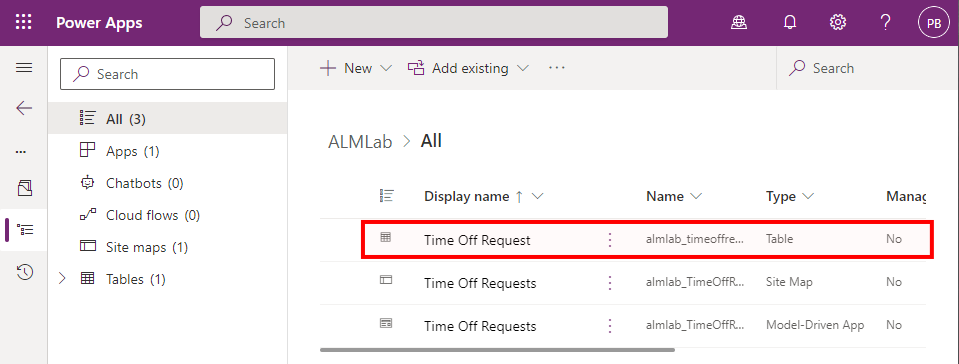

Select and view the Time off Request table.

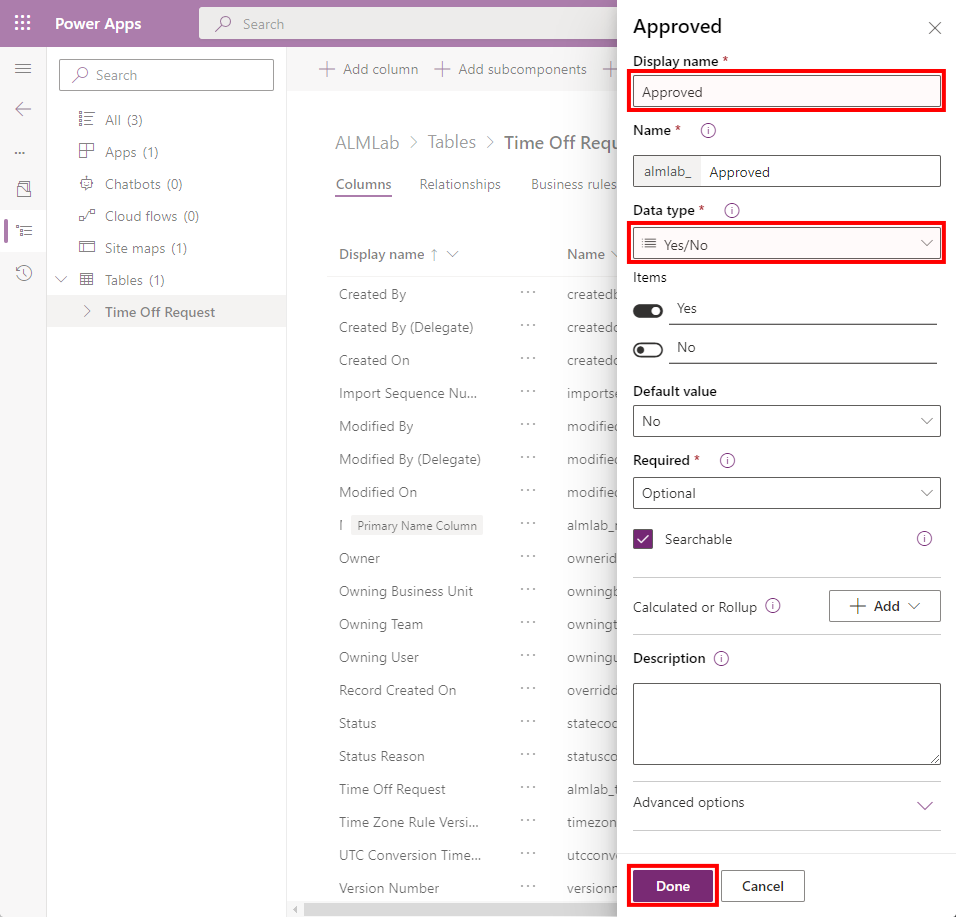

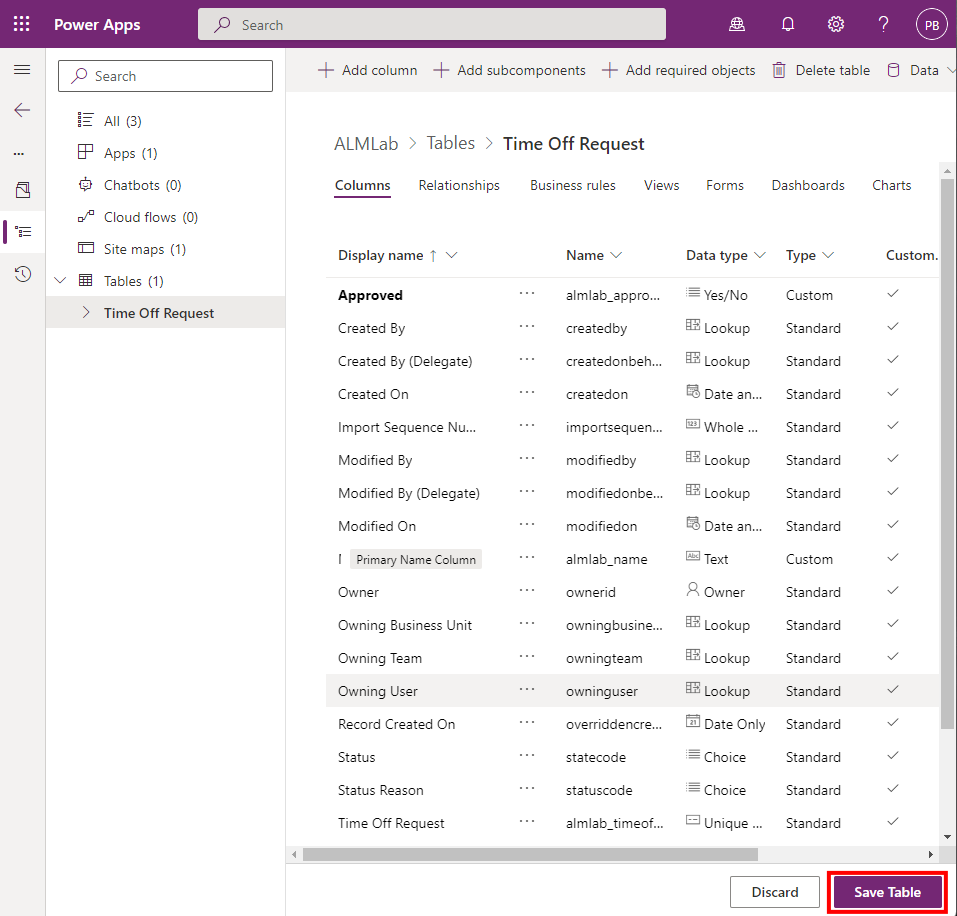

Click + Add column and create the new column as shown in the figure below.

Updated Field values:**
- Display name: Approved
- Data type: Yes/No
Click Done.
Click Save Table

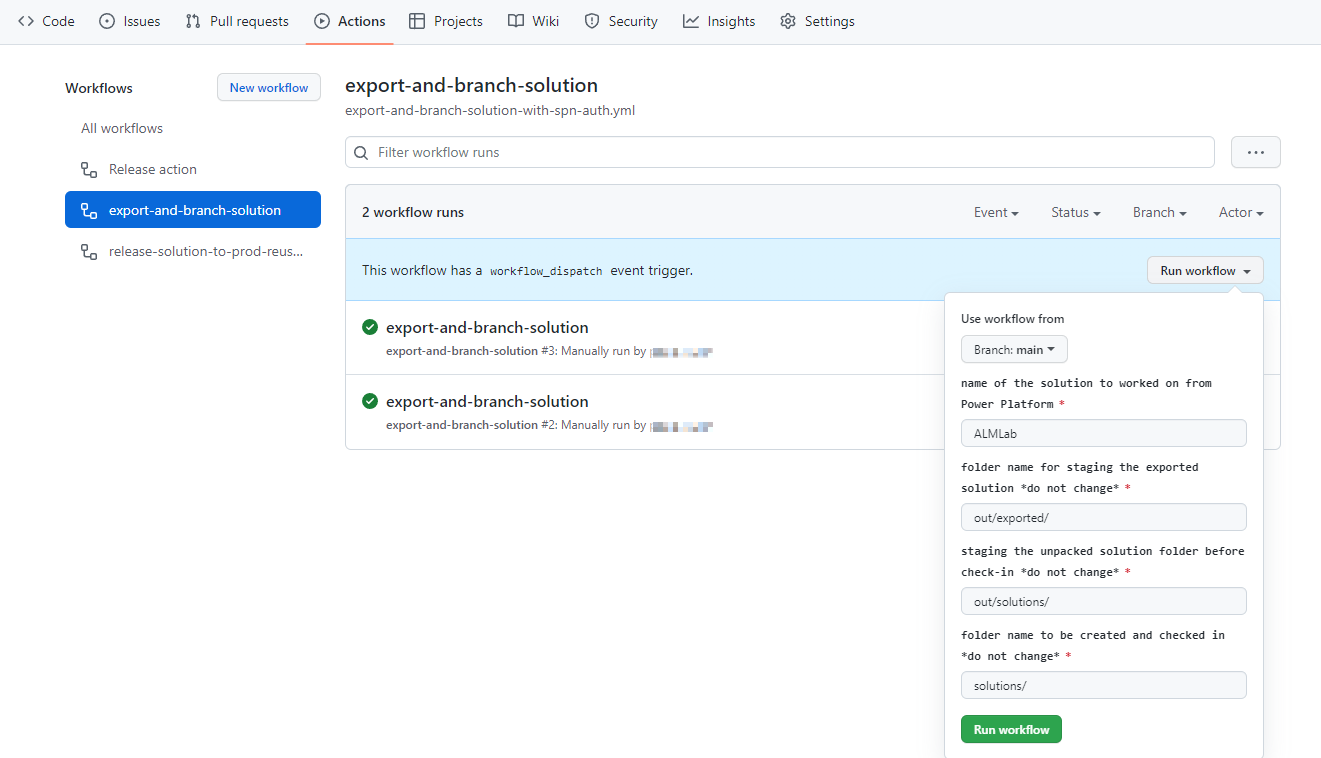

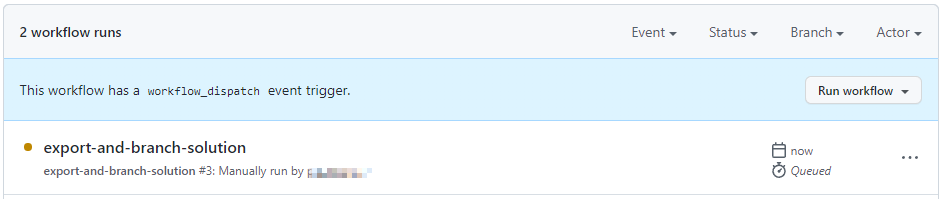

Navigate back to your GitHub repositories Actions tab, choose Run workflow, and select the Run workflow button.

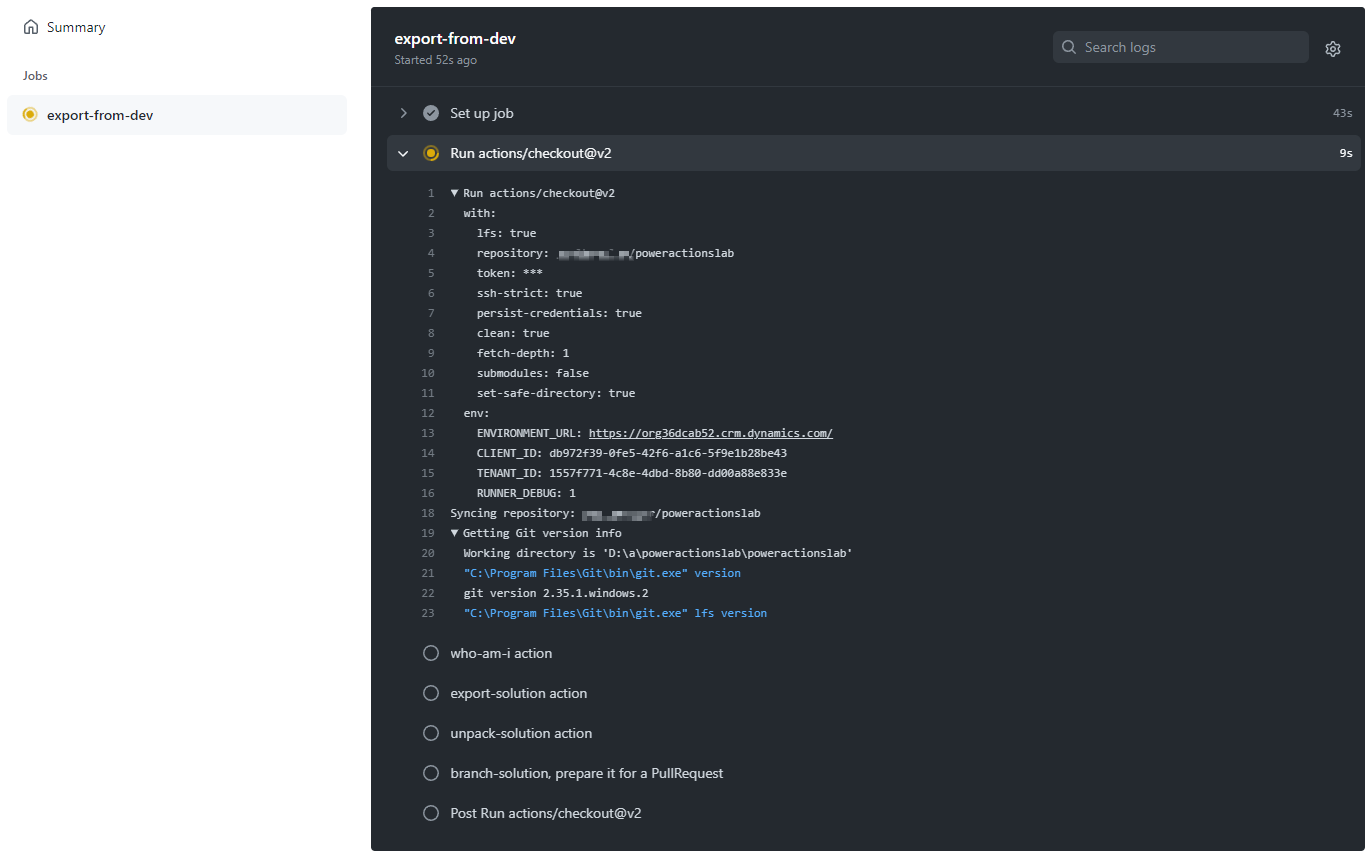

After 5–10 seconds, the workflow will start and you can click on the running workflow to monitor its progress.

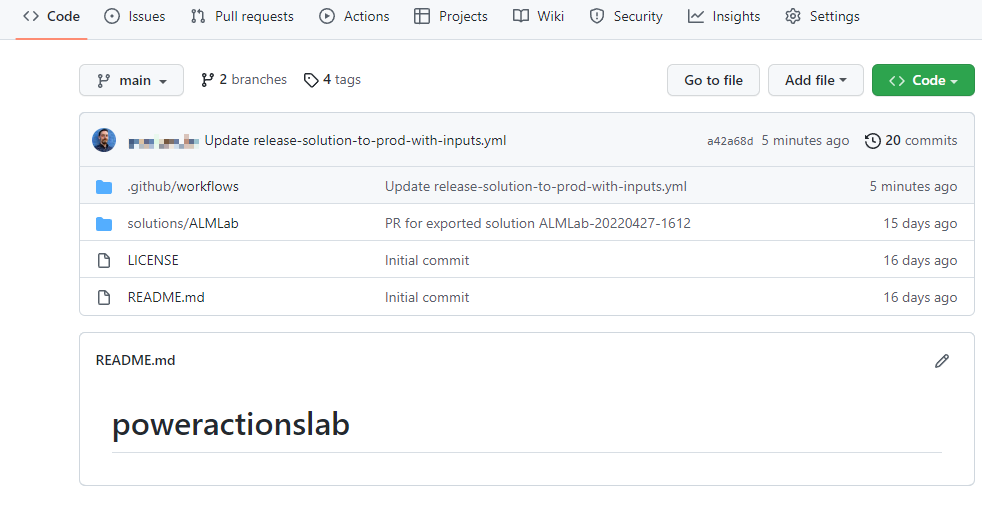

After the workflow completes, navigate to the new branch by selecting Code and then Branches.

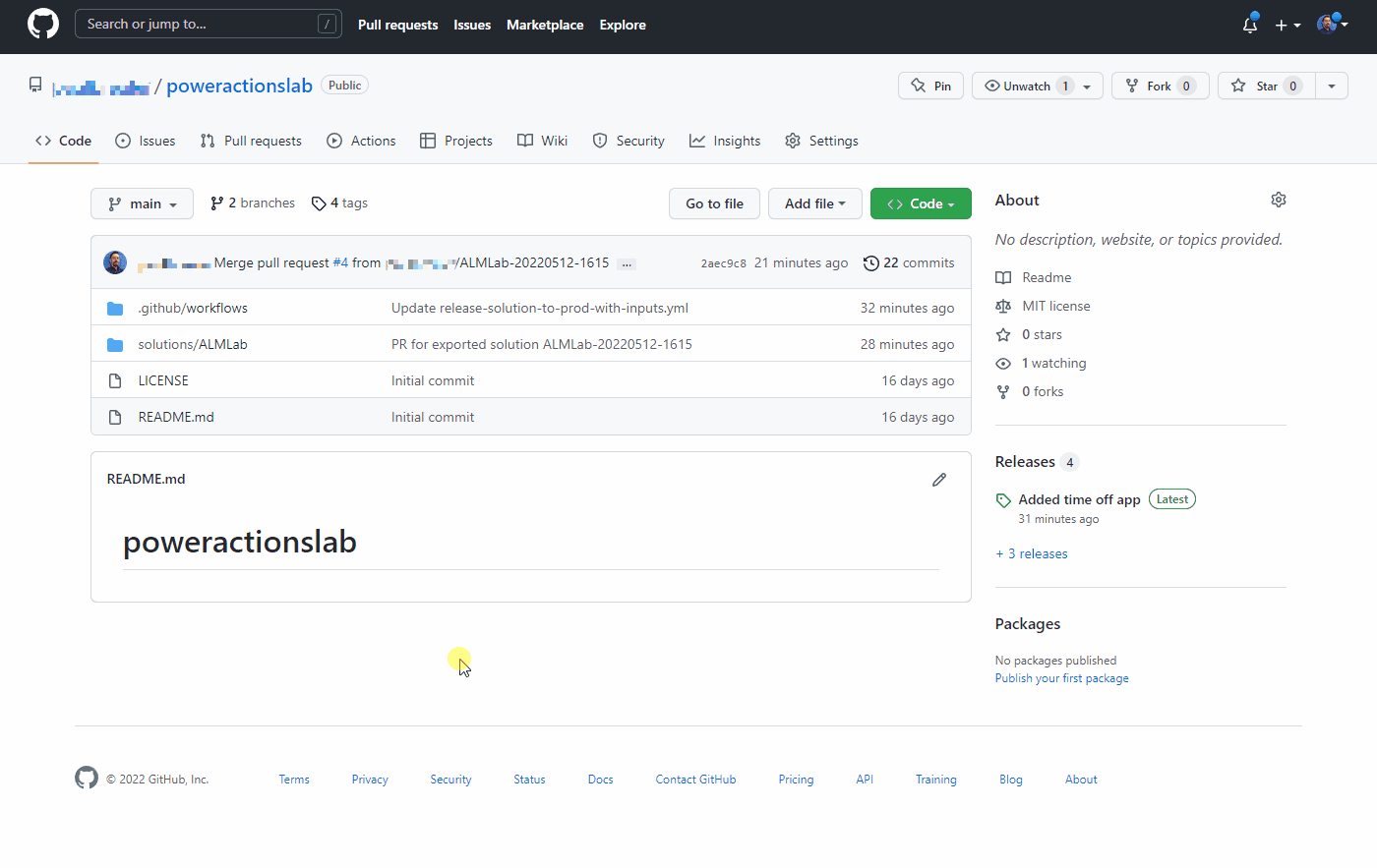

Select the branch that was created by the expand contribute and click Open pull request.
Add a title (optional) and then click Create pull request.
After the content updates, click the Files changed tab.
Notice that the changes to the solution are highlighted in green to indicate that this section of the file was added when compared to the same file in the main branch.
Navigate back to the Conversation tab. Select Pull requests and then select the pull request previously created.
On the Pull request page, select Squash and merge to merge the updated solution file into your main branch, optionally delete that is now merged into main.
Follow the steps in the Test the release to production workflow section to create a new release and validate that the updated solution has been deployed to your production environment.
