Use information barriers with SharePoint

Microsoft Purview Information Barriers are policies in Microsoft 365 that a compliance admin can configure to prevent users from communicating and collaborating with each other. This solution is useful if, for example, one division is handling information that shouldn't be shared with specific other divisions, or a division needs to be prevented, or isolated, from collaborating with all users outside of the division. Information barriers are often used in highly regulated industries and those organizations with compliance requirements, such as finance, legal, and government.

For SharePoint, information barriers can determine and prevent the following kinds of unauthorized collaborations:

  • Adding a user to a site
  • User access to a site or site content
  • Sharing a site or site content with other users

Information barriers modes and SharePoint sites

Information barriers modes help strengthen access, sharing, and membership of a site based on its IB mode and segments associated with the site.

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

When using information barriers with SharePoint, the following IB modes are supported:

Mode Description Examples
Open When a SharePoint site doesn't have segments, the site's IB mode is automatically set as Open. See this section for details on managing segments with the Open mode configuration. A Team site created for picnic event for your organization.
Owner Moderated When a SharePoint site is created for collaboration between incompatible segments moderated by the site owner, the site's IB mode should be set as Owner Moderated. See this section for details on managing Owner Moderated site. A site is created for collaboration between VP of Sales and Research in the presence of VP of HR (site owner).
Implicit When a site is provisioned by Microsoft Teams, the site's IB mode is set as Implicit by default. A SharePoint Administrator or Global Administrator can't manage segments with the Implicit mode configuration. A Team is created for all Sales segment users to collaborate with each other.
Explicit When segment is added to a SharePoint site either via end-user site creation experience or by a SharePoint Administrator adding segment to a site, the site's IB mode is set as Explicit. See this section for details on managing segments with the Explicit mode configuration. A research site is created for Research segment users.

Sharing sites for IB modes

Sharing of sites with users is based on the IB mode of the site.

Open

When a site has no segments and site's information barriers mode is set to Open:

  • The site and its contents can be shared based on the information barrier policy applied to the user. For example, if a user in HR is allowed to communicate with users in Research, the user will be able to share the site with those users.

Tip

If you want to allow sharing of Open mode sites with mail-enabled security groups, see the Allow sharing of Open mode sites with mail-enabled security groups section in this article.

Owner Moderated

When a site has information barriers mode is set to Owner Moderated:

  • The option to share with Anyone with the link is disabled.
  • The option to share with Company-wide link is disabled.
  • (For group connected sites) The site and its content can be shared with existing members.
  • (For non-group connected sites) The site and its content can be shared only by the site owner per their IB policy.

Implicit

When a site's information barriers mode is set to Implicit:

  • The option to share with Anyone with the link is disabled.
  • The option to share with Company-wide link is disabled.
  • The site and its content can be shared with existing members via a sharing link.
  • New users can't be added to the site directly. The Team owner should add users to the Team's group using Microsoft Teams.

Note

If you've enabled information barriers for SharePoint in your organization before March 15, 2022, see the Enable SharePoint and OneDrive information barriers section in this article.

Explicit

When a site is associated with segment(s) and site's information barriers mode is set to Explicit:

  • The option to share with Anyone with the link is disabled.
  • The option to share with Company-wide link is disabled.
  • The site and its content can be shared only with users whose segment matches that of the site. For example, if a site is associated with the HR segment, the site can be shared with just HR users (even though HR is compatible with both Sales and Research segments).
  • New users can be added as site members only if their segment matches the segment of the site.

Access control for IB modes

IB policy is enforced when opening the SharePoint site or content in the SharePoint site. This is based on the IB mode of the site.

Open mode

For a user to access a SharePoint site that has no segment and site's information barriers mode is set to Open:

  • The user has site access permissions.

Owner Moderated mode

For a user to access a SharePoint site with site's information barriers mode is set to Owner Moderated:

  • (For non-group connected sites) The user has site access permissions.
  • (For group connected sites) The user must be a member of the Microsoft 365 group connected to the site.

Implicit mode

For a user to access SharePoint sites that have information barriers mode set to Implicit:

  • The user must be a member of the Microsoft 365 group connected to the site
  • User who isn't a member of the Microsoft 365 group connected to the site won't have access to the site
  • The information barriers compliance assistant ensures the group membership is IB compliant.

Note

If you've enabled information barriers for SharePoint in your organization before March 15, 2022, see the Enable SharePoint and OneDrive information barriers section in this article.

Explicit mode

For a user to access SharePoint sites that have segments and site's information barriers mode is Explicit:

  • The user's segment must match a segment that is associated with the site.

    AND

  • The user must have access permission to the site.

Non-segment users can't access a site associated with segments. They'll see an error message.

Allow apps running in App-only mode to access IB sites

Many organizations use applications running in an app-only context in their organization. To allow these apps running in app-only mode to access IB protected sites, SharePoint admins can enable opt-in capability.

Important

Information barriers policies may impact the applications accessing sites in app-only mode. We recommend you enable the policy and then test the experience for the apps used in your organization.

To enable applications running in app-only mode to access IB sites, run the following command:

Set-SPOTenant -AppBypassInformationBarriers $true

Example scenario

The following example illustrates three segments in an organization: HR, Sales, and Research. An information barrier policy has been defined that blocks communication and collaboration between the Sales and Research segments. These segments are incompatible.

Example of segments in an organization.

With SharePoint information barriers, a SharePoint Administrator or Global Administrator can associate segments to a site to prevent the site from being shared with or accessed by users outside the segments. Up to 100 compatible segments can be associated with a site. The segments are associated at the site level (previously called site collection level). The Microsoft 365 group connected to the site is also associated with the site's segment.

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

In the above example, the HR segment is compatible with both Sales and Research. However, because the Sales and Research segments are incompatible, they can't be associated with the same site.

Prerequisites

  1. Make sure you meet the licensing requirements for information barriers.
  2. Create information barrier policies that allow or block communication between the segments, and then set them to active. Create segments and define the users in each.
  3. After you've configured and activated your information barrier policies, wait 24 hours for the changes to propagate through your organization.
  4. Complete the steps in the following sections to enable and manage SharePoint and OneDrive information barriers in your organization.

Enable SharePoint and OneDrive information barriers in your organization

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

SharePoint Administrators or Global Administrators can enable information barriers in SharePoint and OneDrive in your organization. Complete the following steps to enable information barriers for your organization:

  1. Download and install the latest version of SharePoint Online Management Shell.

  2. Connect to SharePoint Online as a Global Administrator or SharePoint Administrator in Microsoft 365. To learn how, see Getting started with SharePoint Online Management Shell.

  3. To enable information barriers in SharePoint and OneDrive, run the following command:

    Set-SPOTenant -InformationBarriersSuspension $false

  4. After you've enabled information barriers for SharePoint and OneDrive in your organization, wait for approximately 1 hour for the changes to take effect.

Note

If you have enabled information barriers for SharePoint in your organization before March 15, 2022, the default access and sharing control for Implicit mode for Microsoft Teams-connected sites are based on the segments associated with the site.

To enable Microsoft 365 group-membership based access and sharing control for all Implicit mode Teams-connected sites in your tenant, run the following command:

Set-SPOTenant -IBImplicitGroupBased $true

If you installed a previous version of the SharePoint Online Management Shell, complete the following steps:

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

  1. Go to Add or remove programs and uninstall SharePoint Online Management Shell.

  2. Navigate to the Microsoft Download Center for the SharePoint Online Management Shell), select your language, and then select Download.

  3. You may be asked to choose between downloading a x64 and x86 .msi file. Download the x64 file if you're running the 64-bit version of Windows or the x86 file if you're running the 32-bit version of Windows. If you don't know which version you're running on your computer, see Which version of Windows operating system am I running?.

  4. After the download is complete, run the installer file and follow the configuration steps in the setup wizard.

  5. Connect to SharePoint Online as a Global Administrator or SharePoint Administrator in Microsoft 365. To learn how, see Getting started with SharePoint Online Management Shell.

  6. To enable information barriers in SharePoint and OneDrive, run the following command:

    Set-SPOTenant -InformationBarriersSuspension $false

  7. After you've configured information barriers in SharePoint and OneDrive in your organization, wait for approximately 1 hour for the changes to take effect.

Note

If you have enabled information barriers for SharePoint in your organization before March 15, 2022, the default access and sharing control for Implicit mode for Microsoft Teams-connected sites are based on the segments associated with the site.

To enable Microsoft 365 group-membership based access and sharing control for all Implicit mode sites in your organization, run the following command:

Set-SPOTenant -IBImplicitGroupBased $true

Note

If you have Microsoft 365 Multi-Geo, you must run this command for each of your geo-locations.

View and manage segments as an administrator

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

SharePoint Administrators or Global Administrators can view and manage segments on a SharePoint site. Your organization can have up to 5,000 segments and users can be assigned to multiple segments.

Important

Support for 5,000 segments and assigning users to multiple segments is only available when your organization isn't in Legacy mode. Assigning users to multiple segments requires additional actions to change the information barriers mode for your organization. For more information, see Use multi-segment support in information barriers) for details.

For organizations in Legacy mode, the maximum number of segments supported is 250 and users are restricted to being assigned to only one segment. Organizations in Legacy mode will be eligible to upgrade to the newest version of information barriers in the future. For more information, see the information barriers roadmap.

View and manage information barriers segments as follows:

1. Use the SharePoint admin center to view and manage information segments

To view, edit, or remove information segments for a site, use Active sites in the SharePoint admin center.

The Segments column lists the first segment associated with the site and shows whether the site has other segments associated. Learn how to show or move this column

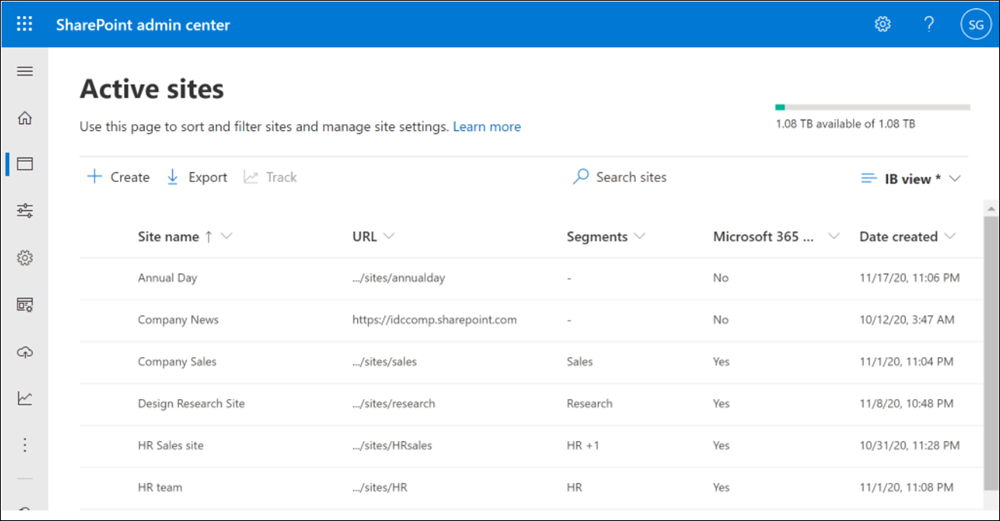

Segments column on the Active sites page.

To view the complete list of segments associated with a site, select the site name to open the details panel, and then select the Settings tab.

To edit the segments associated with the site, select Edit, add or remove segments, and then select Save.

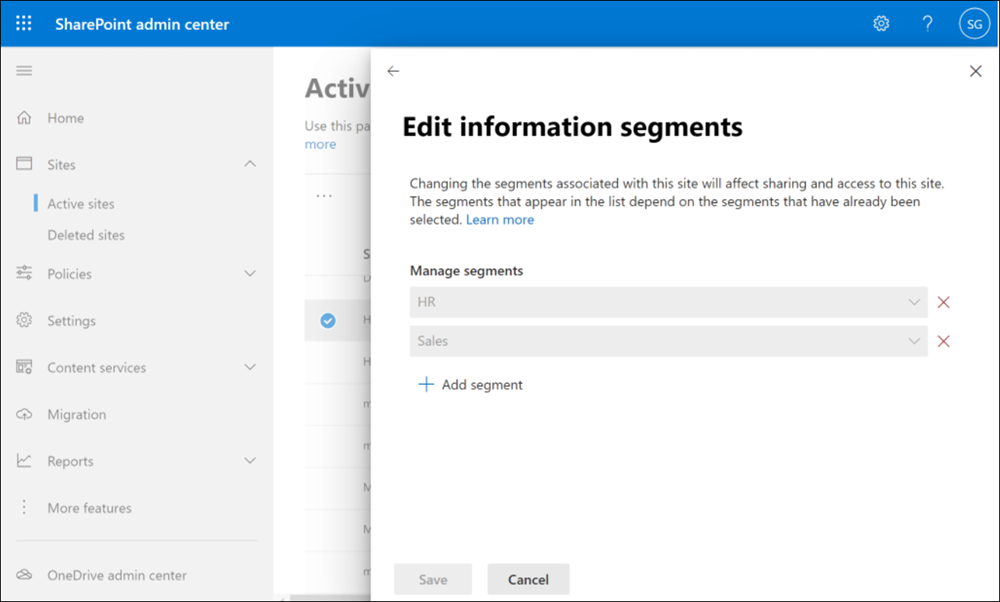

Edit information segments panel.

2. Use SharePoint PowerShell to view and manage information segments on a site

Important

Microsoft recommends that you use roles with the fewest permissions. Minimizing the number of users with the Global Administrator role helps improve security for your organization. Learn more about Microsoft Purview roles and permissions.

  1. Connect to the Security & Compliance Center PowerShell as a Global Administrator.

  2. Run the following command to get the list of segments and their GUIDs.

    Get-OrganizationSegment | ft Name, EXOSegmentID

  3. Save the list of segments.

    Name EXOSegmentId
    Sales a9592060-c856-4301-b60f-bf9a04990d4d
    Research 27d20a85-1c1b-4af2-bf45-a41093b5d111
    HR a17efb47-e3c9-4d85-a188-1cd59c83de32
  4. If not previously completed, download and install the latest SharePoint Online Management Shell. If you installed a previous version of the SharePoint Online Management Shell, follow the instructions in the Enable SharePoint and OneDrive information barriers in your organization section in this article.

  5. Connect to SharePoint Online as a Global Administrator or SharePoint Administrator in Microsoft 365. To learn how, see Getting started with SharePoint Online Management Shell.

  6. Run the following command:

    Set-SPOSite -Identity <site URL> -AddInformationSegment <segment GUID>


    For example:

    Set-SPOSite -Identity https://contoso.sharepoint.com/sites/ResearchTeamSite -AddInformationSegment 27d20a85-1c1b-4af2-bf45-a41093b5d111


You'll see an error message if you attempt to associate a segment that isn't compatible with the site's existing segments.

Note

When you add a segment to a site, the site's IB mode is automatically updated as Explicit.

To remove segment from a site, run the following command:

Set-SPOSite -Identity <site URL> -RemoveInformationSegment <segment GUID>

For example:

Set-SPOSite -Identity https://contoso.sharepoint.com/sites/ResearchTeamSite -RemoveInformationSegment 27d20a85-1c1b-4af2-bf45-a41093b5d111

Note

When all segments are removed from a site, the site's IB mode is automatically updated to Open.

To view the segments of a site, run the following command to return the GUIDs of any segments associated with the site.

Get-SPOSite -Identity <site URL> | Select InformationSegment

3. Use the SharePoint REST API to view and manage information segments on a site

SharePoint includes a Representational State Transfer (REST) service that you can use to manage segments on a site. To access SharePoint resources and manage site segments using REST, you'll construct a RESTful HTTP request by using the OData standard, which corresponds to the desired client object model application programming interface (API).

For more information about the SharePoint REST service, see Get to know the SharePoint REST service.

View and manage IB modes as an administrator with SharePoint PowerShell

To view the IB mode of a site, run the following command:

Get-SPOSite -Identity <site URL> | Select InformationBarriersMode

Owner Moderated mode scenario

You want to allow a Sales and Research user to collaborate on a SharePoint site in the presence of HR user.

Owner Moderated is a mode applicable to site (Teams-connected site, non-group connected sites) which allows incompatible segment users access to site. Only the site owner has the capability to invite incompatible segment users on this same site.

To update a site's mode to Owner Moderated, run the following PowerShell command:

Set-SPOSite -Identity <siteurl> -InformationBarriersMode OwnerModerated

Owner Moderated IB mode can't be set on a site with segments. Remove the segments first before setting IB mode as Owner Moderated. Access to an Owner Moderated site is allowed to users who have site access permissions. Sharing of an Owner Moderated site and its contents is only allowed by the site owner per their IB policy.

Auditing

Audit events are available in the Microsoft Purview portal and the Microsoft Purview compliance portal to help you monitor information barrier activities. Audit events are logged for the following activities:

  • Enabled information barriers for SharePoint and OneDrive
  • Applied segment to site
  • Changed segment of site
  • Removed segment of site
  • Applied information barriers mode to site
  • Changed information barriers mode of site
  • Disabled information barriers for SharePoint and OneDrive

For more information about SharePoint segment auditing in Office 365, see Search the audit log in the compliance portal.

Site creation and management by site owners

When a segmented user creates a SharePoint site, the site is associated with the user's segment and site's information barriers mode is automatically set to Explicit.

In addition, the site owners have the capability to add more segments to a SharePoint site that already has segments with site's mode set as Explicit. Site owners can't remove added segments from sites. SharePoint Administrators will have to remove added segments in your organization if needed.

When a non-segmented user creates a SharePoint site, the site isn't associated with any segment and site's information barriers mode is automatically set to Open.

When a SharePoint Administrator creates a SharePoint site from the SharePoint admin center, the site isn't associated with any segment and the site's IB mode is set to Open.

To help site owners add a segment to a site, share the Associate information segments with SharePoint sites article with your SharePoint site owners.

Microsoft Teams sites

When a team is created in Microsoft Teams, a SharePoint site is automatically created for the team's files. To protect the Microsoft Team sites with information barriers control, you can enable information barriers in SharePoint for your tenant.

Within 24 hours, the site's information barriers mode is automatically set as Implicit and segments associated with the team's members are associated with the site.

Microsoft Teams sites with the information barrier mode as Implicit have site access and sharing based on Microsoft 365 group membership.

For example, users have access to the Microsoft Teams site if they're members of the Microsoft 365 group connected to the site. The Microsoft 365 group connected to the Team is IB compliant.

Note

If you have enabled information barriers for SharePoint in your organization before March 15, 2022, the Teams-connected site's access and sharing is based on the segments of the site. For example:

  • The site and its content can be shared with user whose segment matches that of the site.
  • The site and its content can be accessed by a user if they have same segment as that of the site and have site access permissions.

To enable Microsoft 365 group membership-based access and sharing control for all Implicit mode sites in your organization, run the following command as a SharePoint Administrator:

Set-SPOTenant -IBImplicitGroupBased $true

Private channel and information barriers

When SharePoint Information barriers are enabled in your organization, any new private channel site automatically inherits its parent Microsoft Team's IB mode within 24 hours. The mode for a private channel is assigned as follows:

Parent Team's IB mode Private channel site's IB mode
Open Open
Implicit or Owner Moderated Implicit

Private channel site access and sharing is governed by its IB mode:

  • Private channel site with Open information barriers mode

    • Access is allowed to anyone who has site access permissions
    • Sharing links are allowed per the site's existing sharing policy
    • People picker allows discoverability of user per the sharer's IB policy
  • Private channel site with Implicit information barriers mode

    • Access is allowed to user who is currently a member of the private channel
    • Sharing is allowed using People with existing access link

Private channel sites already configured in your organization will have their information barriers mode set as Open. To configure existing private channel sites to Implicit mode, run the following cmdlet in SharePoint PowerShell module:

Set-Sposite -Identity <site URL> -InformationBarriersMode Implicit

Learn more about managing Microsoft Teams connected teams sites.

Users will see search results from:

  • Segment associated sites: When the site's segment matches the user's segment and the user has site access permission. For example, a site with Explicit mode.
  • Non-segmented sites: When the user has existing access to the content or site. For example, sites with Open, Owner Moderated or Implicit mode. When the user selects the search result to open the content in the site, the user is denied access if they don't match the site's IB policy.

Effects of changes to user segments

If a SharePoint site owner or site member's segment changes, they'll continue to have access to the site or content per the site's IB mode:

  • Open mode: User can access the site if they have existing site access permissions.
  • Owner Moderated: User can access the site if they have existing site access permissions.
  • Implicit Mode: If the user is a member of the Microsoft 365 group, they'll continue to have access to the site.
  • Explicit Mode: If the user's new segment matches the site's segment and user has site access permissions, they'll continue to have access to the site.

Effects of changes to existing information barrier policies

If a compliance administrator changes an existing IB policy, the change may impact the compatibility of the segments associated with a site (in Explicit or Implicit mode). For example, segments that were once compatible may no longer be compatible.

With Information barriers policy compliance report, the SharePoint Administrator will have the capability to view the list of sites where segments are no longer compatible. For more information, see Learn how to create an information barriers policy compliance report in PowerShell.

To manage out of compliance sites:

  • In Explicit mode, a SharePoint Administrator must change the associated segments to bring them in to IB compliance.
  • In Implicit mode, a SharePoint Administrator can't manage segments directly. We recommend the Teams admin to manage the Team's membership to bring the Teams membership roster and segments in to IB compliance.

How to suspend SharePoint and OneDrive information barriers in your organization

If your organization would like to temporarily suspend information barriers on SharePoint, you must use SharePoint Online Management Shell and the Set-Spotenant cmdlet.

To suspend information barriers, run the following command:

Set-SPOTenant -InformationBarriersSuspension $true

Note

If you have Microsoft 365 Multi-Geo, you must run this command for each of your geo-locations.

Allow sharing of Open mode sites with mail-enabled security groups

IB supports an opt-in capability available in the SharePoint PowerShell module for sites in Open mode to be shared with mail-enabled security groups for site permissions, sharing, and audience targeting. This is only supported in Open mode sites. SharePoint admins can enable this support in your organization and we recommend you ensure the security group membership is IB compliant.

Before enabling group support, verify that you've met the following prerequisites:

To configure mail-enabled security group support in Open mode sites, run the following command:

Set-SPOTenant -ShowPeoplePickerGroupSuggestionsForIB $true

Resources
