Azure Functions with Service Bus Trigger and VNet Integration

Browse code

An Azure Functions sample that demonstrates secure, scalable message processing using Service Bus with virtual network integration. This sample showcases a complete queue-based processing system with enterprise networking and security features.

Architecture

This architecture shows how the Azure Function processes messages through Service Bus in a secure virtual network. The key components include:

  • Service Bus Queue: Premium SKU with high-throughput message handling and VNet integration
  • Azure Functions Flex Consumption: Automatically scales based on queue messages with VNet integration
  • Virtual Network: Private endpoints for Service Bus and Storage with network isolation
  • Managed Identity Authentication: Passwordless security for all Azure resource access
  • Azure Monitor: Comprehensive logging and metrics for function execution and message processing

This serverless architecture enables highly scalable, event-driven message processing with built-in resiliency and enterprise security.

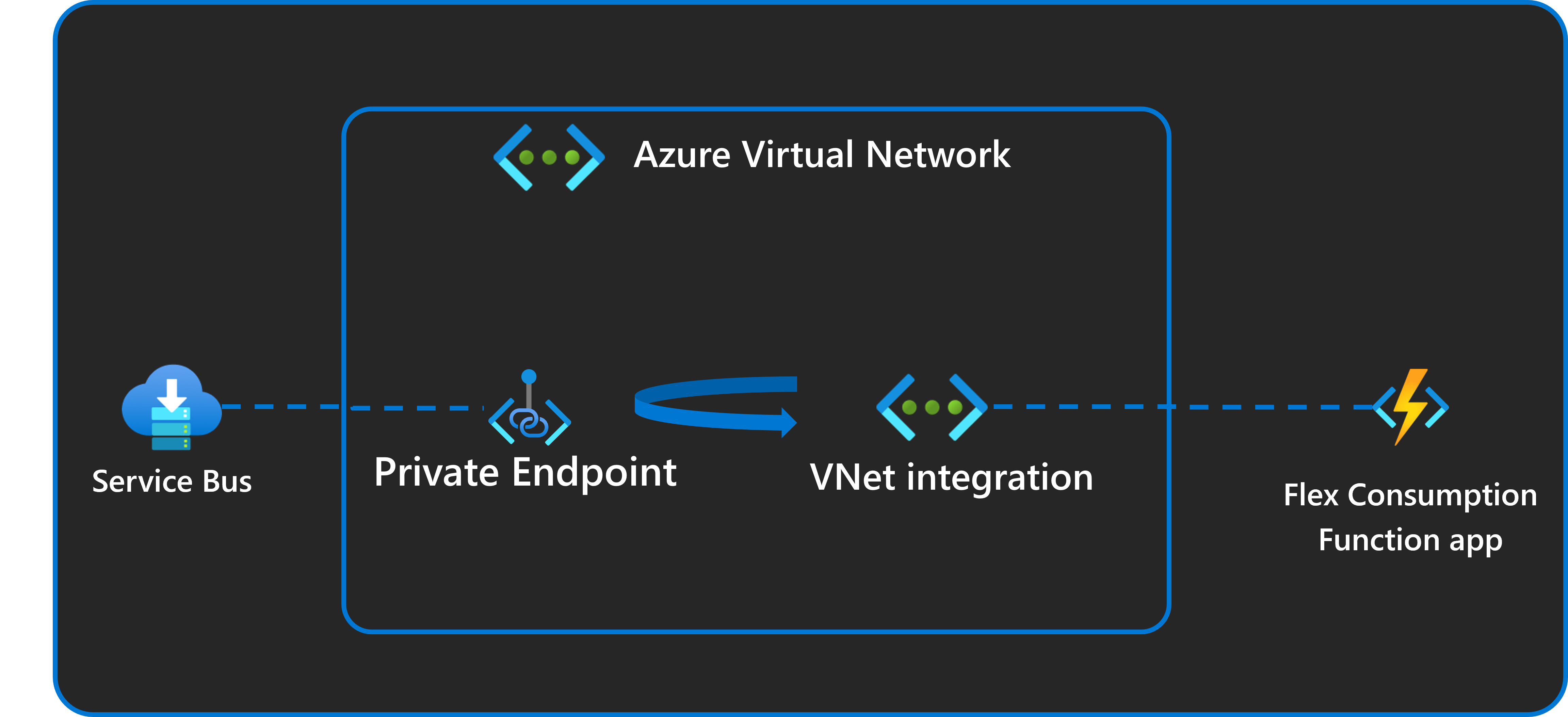

Diagram showing Service Bus with a private endpoint and an Azure Functions Flex Consumption app triggering from it via VNet integration

Key Features

  • Service Bus Trigger with advanced message processing
  • Azure Functions Flex Consumption plan for automatic scaling
  • VNet integration with private endpoints for enhanced security
  • Azure Developer CLI (azd) integration for easy deployment
  • Infrastructure as Code using Bicep templates with Azure Verified Modules
  • Managed Identity authentication for secure, passwordless access
  • Comprehensive monitoring with Application Insights
  • Cross-platform development with automatic local environment setup

Sample Highlights

  • High Scale: Low concurrency of 1 configured in host.json - scales to one instance per message
  • Virtual Network Integration: Service Bus secured behind private endpoints accessible via VNet
  • Simulated Processing: 30-second delay per message to demonstrate scaling behavior
  • Automatic Setup: Postprovision scripts configure local development environment

Important

This sample creates several Azure resources. Make sure to clean up with azd down after testing to minimize charges!

Prerequisites

Getting Started

Quickstart

  1. Clone this repository

    git clone https://github.com/nzthiago/functions-e2e-sb-vnet.git
cd functions-e2e-sb-vnet

  2. Make sure to run this before calling azd to provision resources

    Mac/Linux:

    chmod +x ./infra/scripts/*.sh

    Windows:

    Set-ExecutionPolicy RemoteSigned

  3. Sign in to Azure

    azd auth login
az login

  4. Initialize azd environment

    azd env new

    This will prompt you to create a new environment. Choose a name for your environment (e.g., "flexsbe2evnet").

  5. Provision Azure resources using azd

    azd provision

    This will create all necessary Azure resources and create or update local.settings.json for local testing of the function app.

    The azd provision command automatically:

    • Adds your client IP to Service Bus network rules
    • Sets up managed identity authentication
    • Configures VNet integration and private endpoints
    • Creates the local development configuration file

  6. Start the function app locally

    cd src
func start

    Or use VS Code with the Azure Functions extension (press F5).

  7. Send test messages to verify local functionality

    With the function app running locally, run the included Python test script from a different terminal:

    # Set up Python environment for testing
cd test-send
python -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\Activate
pip install azure-servicebus azure-identity

# Send test messages (run from project root)
python test_messages.py 5

    You should see console output like:

    🚀 Service Bus Message Sender
========================================
🔐 Authenticating with Azure...
📡 Connecting to Service Bus: sb-xxxxx.servicebus.windows.net
📤 Sending 5 messages to queue: sbq-xxxxx
✅ Successfully sent 5 messages!

    And in your function terminal:

[2025-11-17T18:18:25.054Z] Executing 'Functions.servicebus_queue_trigger' (Reason='(null)', Id=0ba2fc76-bf30-427e-8c74-ae7c7af98d58) [2025-11-17T18:18:25.055Z] Trigger Details: MessageId: c906657d-4172-4e43-84c4-353610cab8c0, SequenceNumber: 1, DeliveryCount: 1, EnqueuedTimeUtc: 2025-11-17T18:17:55.2570000+00:00, LockedUntilUtc: 2025-11-17T18:19:25.0260000+00:00, SessionId: (null) [2025-11-17T18:18:25.098Z] Python ServiceBus Queue trigger start processing a message: Test message 1/5 - sent at 2025-11-17 10:17:49 [2025-11-17T18:18:55.090Z] Python ServiceBus Queue trigger end processing a message [2025-11-17T18:18:55.099Z] Executed 'Functions.servicebus_queue_trigger' (Succeeded, Id=0ba2fc76-bf30-427e-8c74-ae7c7af98d58, Duration=30060ms) [2025-11-17T18:18:55.303Z] Executing 'Functions.servicebus_queue_trigger' (Reason='(null)', Id=dd02c3b8-bbc0-4f21-98d7-1066c56c654f) [2025-11-17T18:18:55.303Z] Trigger Details: MessageId: 562fe1cb-1ad2-4e6c-bd51-d4114267b2b4, SequenceNumber: 2, DeliveryCount: 1, EnqueuedTimeUtc: 2025-11-17T18:17:55.2570000+00:00, LockedUntilUtc: 2025-11-17T18:19:55.3530000+00:00, SessionId: (null) [2025-11-17T18:18:55.305Z] Python ServiceBus Queue trigger start processing a message: Test message 2/5 - sent at 2025-11-17 10:17:49 [2025-11-17T18:19:25.312Z] Python ServiceBus Queue trigger end processing a message [2025-11-17T18:19:25.313Z] Executed 'Functions.servicebus_queue_trigger' (Succeeded, Id=dd02c3b8-bbc0-4f21-98d7-1066c56c654f, Duration=30010ms)


When running locally, you have sequential processing as it's single instance processing messages (i.e., only your local machine), and the concurrency limit is set to 1 in [host.json](./src/host.json). Each message will take 30 seconds to complete as there's a [delay of 30 seconds](./src/function_app.py) in the python function app code.  When deployed to Azure with Flex Consumption, the behavior changes dramatically: with automatic scaling, Azure creates one instance per message and multiple messages are processed simultaneously.

8. **Deploy to Azure**

Stop the local function app, and then run the following command from the root folder of the sample:

```bash
azd up

This builds and deploys your function app to Azure, then verifies the deployment.

  1. Test the deployed function

    • Navigate to your Function App in the Azure Portal
    • Go to Functions → servicebus_trigger → Monitor tab
    • Use Application Insights Live Metrics to see real-time processing
    • Send more messages using the test script to verify cloud functionality

Scaling Configuration

The host.json file configures low concurrency to demonstrate scaling:

{
  "version": "2.0",
  "functionTimeout": "00:10:00",
  "extensions": {
    "serviceBus": {
      "maxConcurrentCalls": 1
    }
  }
}

This ensures the function scales to multiple instances when processing multiple messages simultaneously. You can change this concurrency to allow an instance of the function app to process multiple messages in parallel, especially for lightweight processing.

Networking and VNet Integration

This sample implements VNet integration with private endpoints for enhanced security.

VNet Architecture

The deployment creates a comprehensive network architecture:

Subnets:

  • App Integration Subnet: For Function App VNet integration
  • Service Bus Private Endpoints Subnet: For Service Bus private endpoints
  • Storage Private Endpoints Subnet: For Storage Account private endpoints

Private Endpoints:

  • Service Bus: Namespace private endpoint for secure queue access
  • Storage Account: Blob, Table, and Queue private endpoints

Security Features:

  • Public access to Service Bus and Storage is disabled
  • All traffic flows through private endpoints within the VNet
  • Client IP automatically added to Service Bus network rules for local development
  • Managed Identity authentication eliminates connection strings

Alternative Testing Methods

Azure Portal (Simplest)

  1. Navigate to Service Bus namespace → Queues → Your queue
  2. Use Service Bus Explorer → Send messages
  3. Enter test content and send multiple messages
# From project root
python test-send/test_messages.py 10  # Send 10 messages

Clean Up Resources

When finished testing, clean up all Azure resources:

azd down
