LineString
Applies to:
SQL Server
Azure SQL Database
Azure SQL Managed Instance
A LineString is a one-dimensional object representing a sequence of points and the line segments connecting them.
LineString Instances

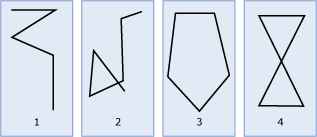

The illustration below shows examples of LineString instances.
As shown in the illustration:
Figure 1 is a simple, nonclosed LineString instance.
Figure 2 is a nonsimple, nonclosed LineString instance.
Figure 3 is a closed, simple LineString instance, and therefore is a ring.
Figure 4 is a closed, nonsimple LineString instance, and therefore is not a ring.
Accepted Instances
Accepted LineString instances can be input into a geometry variable, but they may not be valid LineString instances. The following criteria must be met for a LineString instance to be accepted. The instance must be formed of at least two points or it must be empty. The following LineString instances are accepted.
DECLARE @g1 geometry = 'LINESTRING EMPTY';
DECLARE @g2 geometry = 'LINESTRING(1 1,2 3,4 8, -6 3)';
DECLARE @g3 geometry = 'LINESTRING(1 1, 1 1)';
@g3
shows that a LineString instance can be accepted, but not valid.
The following LineString instance is not accepted. It will throw a System.FormatException
.
DECLARE @g geometry = 'LINESTRING(1 1)';
Valid Instances
For a LineString instance to be valid, it must meet the following criteria.
- The LineString instance must be accepted.
- If a LineString instance is not empty, then it must contain at least two distinct points.
- The LineString instance cannot overlap itself over an interval of two or more consecutive points.
The following LineString instances are valid.
DECLARE @g1 geometry= 'LINESTRING EMPTY';
DECLARE @g2 geometry= 'LINESTRING(1 1, 3 3)';
DECLARE @g3 geometry= 'LINESTRING(1 1, 3 3, 2 4, 2 0)';
DECLARE @g4 geometry= 'LINESTRING(1 1, 3 3, 2 4, 2 0, 1 1)';
SELECT @g1.STIsValid(), @g2.STIsValid(), @g3.STIsValid(), @g4.STIsValid();
The following LineString instances are not valid.
DECLARE @g1 geometry = 'LINESTRING(1 4, 3 4, 2 4, 2 0)';
DECLARE @g2 geometry = 'LINESTRING(1 1, 1 1)';
SELECT @g1.STIsValid(), @g2.STIsValid();
Warning
The detection of LineString overlaps is based on floating-point calculations, which are not exact.
Examples
Example A.
The following example shows how to create a geometry``LineString
instance with three points and an SRID of 0:
DECLARE @g geometry;
SET @g = geometry::STGeomFromText('LINESTRING(1 1, 2 4, 3 9)', 0);
Example B.
Each point in the LineString
instance may contain Z (elevation) and M (measure) values. This example adds M values to the LineString
instance created in the example above. M and Z can be null values.
DECLARE @g geometry;
SET @g = geometry::STGeomFromText('LINESTRING(1 1 NULL 0, 2 4 NULL 12.3, 3 9 NULL 24.5)', 0);
Example C.
The following example shows how to create a geometry LineString
instance with two points that are the same. A call to IsValid
indicates that the LineString instance is not valid and a call to MakeValid
will convert the LineString instance into a Point.
DECLARE @g geometry
SET @g = geometry::STGeomFromText('LINESTRING(1 3, 1 3)',0);
IF @g.STIsValid() = 1
BEGIN
SELECT @g.ToString() + ' is a valid LineString.';
END
ELSE
BEGIN
SELECT @g.ToString() + ' is not a valid LineString.';
SET @g = @g.MakeValid();
SELECT @g.ToString() + ' is a valid Point.';
END
Here is the result set.
LINESTRING(1 3, 1 3) is not a valid LineString
POINT(1 3) is a valid Point.
