Removing extensions from VMs created from NetApp CVO images

Applies to: ✔️ NetApp CVO Linux VMs

Summary

This article discusses how to remove extensions that are installed on Microsoft Azure virtual machines (VMs) that are created from NetApp Cloud Volumes ONTAP (CVO) images. This article also discusses how to prevent extensions from being installed.

Prerequisites

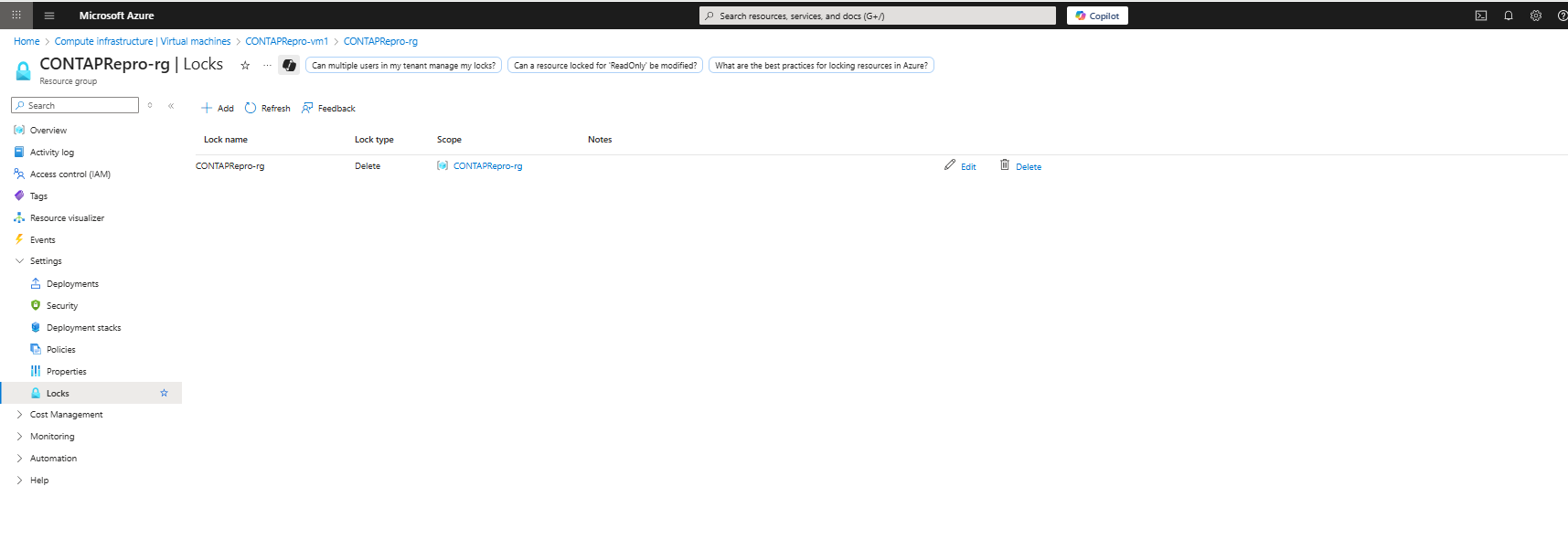

• The NetApp CVO resource group has a "delete" lock feature that might prevent the script from uninstalling VM extensions. You might have to remove the lock and restore it after you run the scripts in the "Resolution" section. The lock properties are as follows:

  • Name: (matches the CVO resource group name)
  • Type: Delete
  • Scope: CVO resource group



• Download and install the latest version of the Windows Installer (MSI) agent from the GitHub page for Azure Windows VM Agent releases. You must have administrator rights to complete the installation.

Symptoms

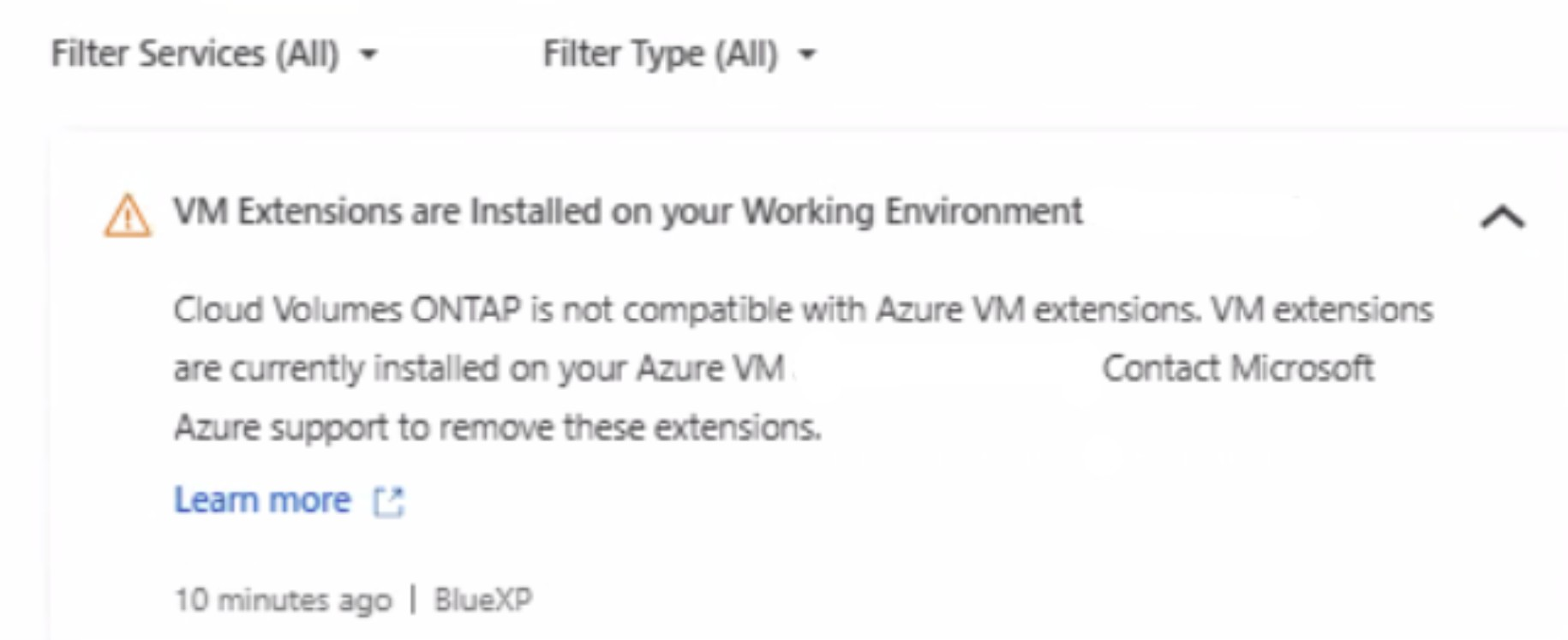

You receive the following error message:

Cloud Volumes ONTAP is not compatible with Azure VM extensions. VM extensions are currently installed on your Azure VM. Contact Microsoft Azure support to remove those extensions.

Cause

Cloud Volumes ONTAP doesn't support Azure VM extensions because extensions affect BlueXP management operations. Although CVO VM appears as Linux (ONTAP version) in the Azure portal, it's actually a highly customized derivative of the FreeBSD operating system that ONTAP uses.

Note

Starting in BlueXP 3.9.54, NetApp enforces this pre-existing limitation as a notification in BlueXP.

Resolution

To resolve this issue, run the following script against any affected NetApp CVO VMs.

PowerShell

$subscriptionId = (Get-AzContext).Subscription.Id
$resourceGroup = "RGname"
$vmName = "VMName"
$apiVersion = "2025-04-01"
$uri = "https://management.azure.com/subscriptions/${subscriptionId}/resourceGroups/${resourceGroup}/providers/Microsoft.Compute/virtualMachines/${vmName}?api-version=${apiVersion}"
$response = Invoke-AzRestMethod -Method GET -Uri $uri
$vmModel = $response.Content | ConvertFrom-Json
$vmModel.resources = @()
$body = $vmModel | ConvertTo-Json -Depth 10 -Compress
Invoke-AzRestMethod -Method PUT -Uri $uri -Payload $body

CLI

subscriptionId=$(az account show --query id -o tsv)
resourceGroup="RGName"
vmName="VMName"
apiVersion="2025-04-01"
uri="https://management.azure.com/subscriptions/${subscriptionId}/resourceGroups/${resourceGroup}/providers/Microsoft.Compute/virtualMachines/${vmName}?api-version=${apiVersion}"
response=$(az rest --method get --uri "$uri")
vmModel=$(echo "$response" | jq '.resources = []')
az rest --method put --uri "$uri" --body "$vmModel"

Note

This operation might take 20-30 minutes to finish if the guest agent doesn't exist. This condition occurs because Azure CRP polls for the agent status first. The script removes all extensions from a VM model.

More information

To prevent extensions from installing in VMs without a guest agent or extensions, disable extensions. You can disable extensions either through a policy definition or by setting AllowExtensionOperations to false.

Option 1: Set a policy definition

{
 "if": {
  "allOf": [
   {
    "field": "type",
    "equals": "Microsoft.Compute/virtualMachines/extensions"
   }
  ]
 },
 "then": {
  "effect": "deny"
 }
}

Option 2: Set AllowExtensionOperations to false

$vm = Get-AzVM -Name <VMName> -ResourceGroupName <ResourceGroupName>
$vm.OSProfile.AllowExtensionOperations = $false
$vm | Update-AzVM

References

Installing Azure VM management extensions into Cloud Volume ONTAP
