WIF doesn't work from GCP Composer/Airflow's service account

Question

I got my WIF working with GCP -> Azure using help from a Microsoft Engineer per the post made by me here: https://learn.microsoft.com/en-us/answers/questions/2235923/wif-still-requires-client-secret?page=1&orderby=Helpful&comment=answer-2017150&translated=false

But my problem now is moving the process from instead a development GCP VM to the Composer (Airflow)'s worker VM. I have this error:

{'error': 'invalid_client', 'error_description': "AADSTS700213: No matching federated identity record found for presented assertion subject '103432211958501047059'. Check your federated identity credential Subject, Audience and Issuer against the presented assertion. https://learn.microsoft.com/entra/workload-id/workload-identity-federation Trace ID: b74d6477-82ea-4764-8f92-0f9435ed4000 Correlation ID: f27b9148-efae-44e2-881b-7d88cff88df1 Timestamp: 2025-04-03 22:48:10Z", 'error_codes': [700213], 'timestamp': '2025-04-03 22:48:10Z', 'trace_id': 'b74d6477-82ea-4764-8f92-0f9435ed4000', 'correlation_id': 'f27b9148-efae-44e2-881b-7d88cff88df1', 'error_uri': 'https://login.microsoftonline.com/error?code=700213'}

I have specifically double-checked from the GCP token the following:

• service account, which is "******@developer.gserviceaccount.com",
• issuer (iss: "https://accounts.google.com"),
• sub, or azp ("103432211958501047059"),
• aud or audience ("//iam.googleapis.com/projects/3xxxxxxxxxx9/locations/global/workloadIdentityPools/azure-ad-pool-1/providers/azure-ad-provider-1)

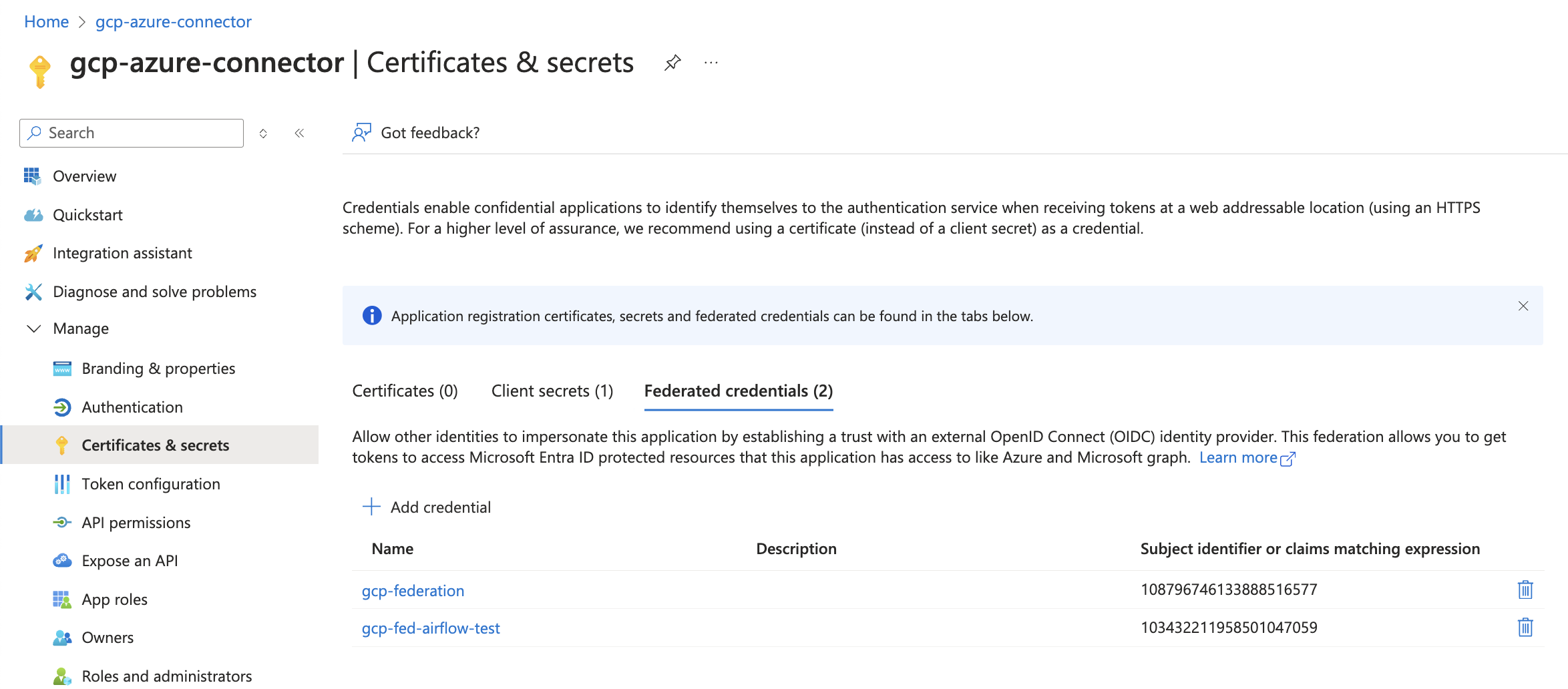

And I have created a new Credential for the same app - so the azure app registration has 2 credentials, 1 for previous development VM which WORKED as discussed in the Q&A link above, 1 for the new airflow VM:

And I have permissioned properly the service account with IAM role, just like I did with the previous development GCP VM:

gcloud iam service-accounts add-iam-policy-binding \
******@developer.gserviceaccount.com \
--member="principal://iam.googleapis.com/projects/3xxxxxxxxxx9/locations/global/workloadIdentityPools/azure-ad-pool-1/subject/103432211958501047059" \
--role="roles/iam.workloadIdentityUser" \
--project=azure-federation-playground

Yet the error is saying as if I didn't create a working new Credential, or Azure is not recognizing the service account to auth against. I'm using the same script that your engineer provided me in the last comment of that Q&A link that I accepted as answer, so I don't think the script is the problem there, but just in case:

import datetime
from airflow import models
from airflow.operators.bash import BashOperator
from airflow.operators.python import PythonOperator
import requests
import logging
default_dag_args = {
    "start_date": datetime.datetime(2025, 4, 1),
    'retries': 3,
    'retry_delay': datetime.timedelta(minutes=5),
}
with models.DAG(
    "federation_auth_testing",
    schedule_interval=datetime.timedelta(days=1),
    default_args=default_dag_args,
    max_active_runs=1,
    catchup=False,
    dagrun_timeout=datetime.timedelta(minutes=5),
) as dag:
    def gcp_azure_list_subs():
        # Get GCP token
        metadata_url = "http://metadata.google.internal/computeMetadata/v1/instance/service-accounts/default/identity"
        audience = "//iam.googleapis.com/projects/3xxxxxxxxxx9/locations/global/workloadIdentityPools/azure-ad-pool-1/providers/azure-ad-provider-1"
        gcp_response = requests.get(f"{metadata_url}?audience={audience}", headers={"Metadata-Flavor": "Google"})
        if gcp_response.status_code != 200:
            logging.exception(f"Error getting GCP token: {gcp_response.text}")
            exit(1)
        gcp_token = gcp_response.text
        logging.exception(f"DEBUG GCP TOKEN: {gcp_token}")
        # Exchange GCP token for Azure token
        azure_token_url = "https://login.microsoftonline.com/9b3d5632-d903-43e8-8e6f-3ef7d5079cab/oauth2/v2.0/token"
        azure_client_id = "

Answer 1

Hello @Geo Cheng,

As per the latest update from the support engineer who was assisting you in this issue, I'm glad to know that you were able to resolve your issue.

I am providing the resolution steps below, so that it will be beneficial for the other community members who are facing this same issue and they can also review this proposed resolution steps for their reference and resolve their issue.

On Mac devices, by default, when double spaces are entered, a FULL STOP automatically appeared after a string, which was what happened to the sub field when setting up the Credential on the Azure side. You have checked that field multiple times, but because it's a small dot (fullstop) at the end, and the html text field length was short, it wasn't easy to spot that dot.

If I missed anything please let me know and I'd be happy to add it to my answer, or please feel free to comment below with any additional information.

I hope this above information provided is helpful. Please feel free to reach out if you have any further questions.

Please click "Accept Answer" and kindly upvote it as it will be beneficial for the other community members who are facing this same issue. If you have extra questions about this answer, please click "Comment".
