How to extract images from docx file using Microsoft.Office.Interop.Word

Question

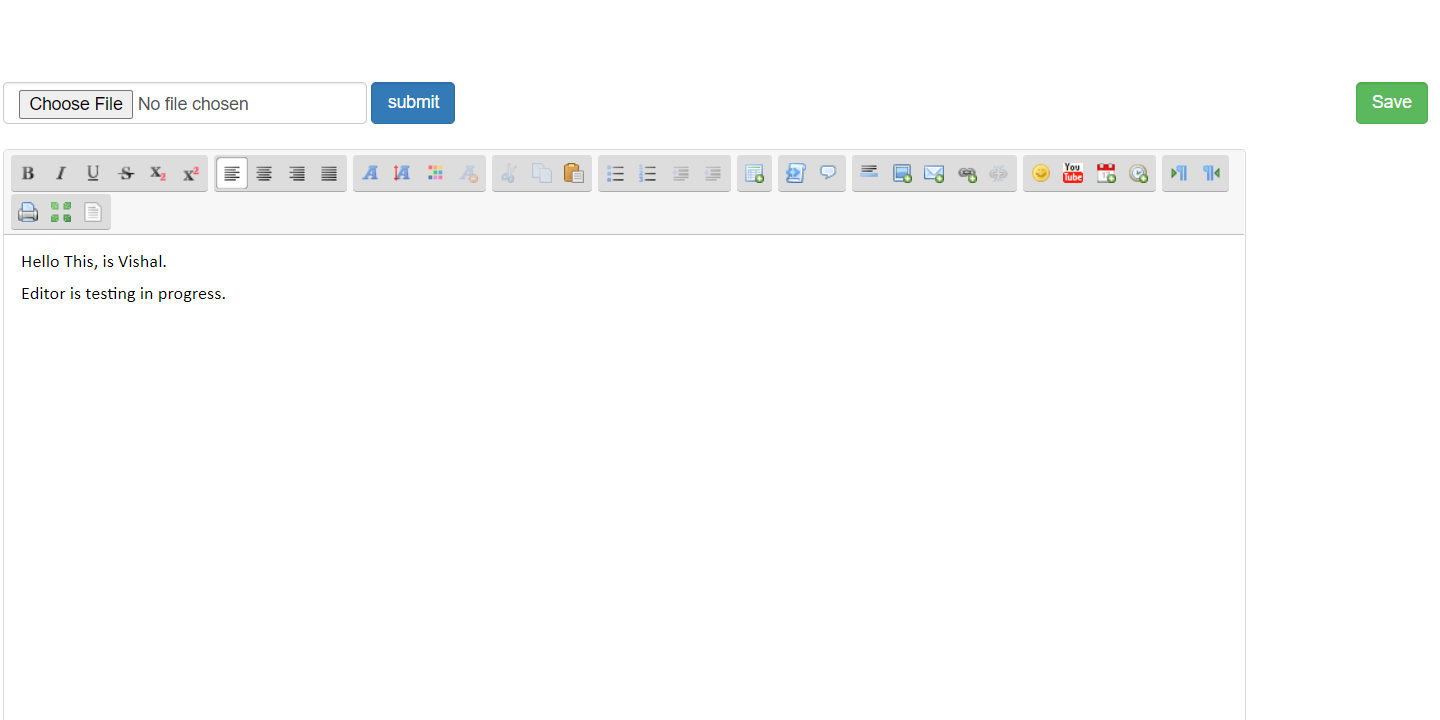

I am trying to edit Docx in my application by using Microsoft.Office.Interop.Word but while parsing Docx to HTML, It is not extracting images from the header and footer. I want to extract images from the header and footer. Can anyone send me the sample code or reference links?

Answer 1

Headers and Footers are stored by Section within the Word document. And then there are 5 types of Headers and Footers that you should iterate through. Finally, you have to determine if the shape is an image, is embedded or linked, and does it have wrapping text (inline shape or floating shape range). Below is a sample code that will find all images.

Sub GetHderFooterPics()
    Dim sec As Word.Section, HDFT As Word.HeaderFooter
    Dim i As Long
    For Each sec In ActiveDocument.Sections
        For Each HDFT In sec.Headers
            If HDFT.Range.InlineShapes.Count > 0 Then
                For i = 1 To HDFT.Range.InlineShapes.Count
                    If HDFT.Range.InlineShapes(i).Type = wdInlineShapeLinkedPicture Or _
                       HDFT.Range.InlineShapes(i).Type = wdInlineShapePicture Then
                        'do something with the picture
                    End If
                Next
            End If
            If HDFT.Range.ShapeRange.Count > 0 Then
                For i = 1 To HDFT.Range.ShapeRange.Count
                    If HDFT.Range.ShapeRange(i).Type = msoLinkedPicture Or _
                       HDFT.Range.ShapeRange(i).Type = msoPicture Then
                        'do something with the picture
                    End If
                Next
            End If
        Next
        For Each HDFT In sec.Footers
            If HDFT.Range.InlineShapes.Count > 0 Then
                For i = 1 To HDFT.Range.InlineShapes.Count
                    If HDFT.Range.InlineShapes(i).Type = wdInlineShapeLinkedPicture Or _
                       HDFT.Range.InlineShapes(i).Type = wdInlineShapePicture Then
                        'do something with the picture
                    End If
                Next
            End If
            If HDFT.Range.ShapeRange.Count > 0 Then
                For i = 1 To HDFT.Range.ShapeRange.Count
                    If HDFT.Range.ShapeRange(i).Type = msoLinkedPicture Or _
                       HDFT.Range.ShapeRange(i).Type = msoPicture Then
                        'do something with the picture
                    End If
                Next
            End If
        Next
    Next
End Sub
