Debug Sessions in Azure AI Search

Debug Sessions is a visual editor that works with an existing skillset in the Azure portal, exposing the structure and content of a single enriched document as it's produced by an indexer and skillset for the duration of the session. Because you're working with a live document, the session is interactive - you can identify errors, modify and invoke skill execution, and validate the results in real time. If your changes resolve the problem, you can commit them to a published skillset to apply the fixes globally.

This article explains supported scenarios and how the editor is organized. Tabs and sections of the editor unpack different layers of the skillset so that you can examine skillset structure, flow, and the content it generates at run time.

Supported scenarios

Use Debug Sessions to investigate and resolve problems with:

  • Built-in skills used for AI enrichment, such as OCR, image analysis, entity recognition, and keyword extraction.

  • Built-in skills used for integrated vectorization, with data chunking through Text Split, and vectorization through an embedding skill.

  • Custom skills used to integrate external processing that you provide.

Compare the following debug session images for the first two scenarios. For both scenarios, the surface area shows the progression of skills that generate or transform content en route from the source document to the search index. The flow includes index mapping options, and you can trace the arrows to follow the processing trail. The details pane to the right is context-sensitive. It shows a representation of the enriched document, or the details of a skill or mapping.

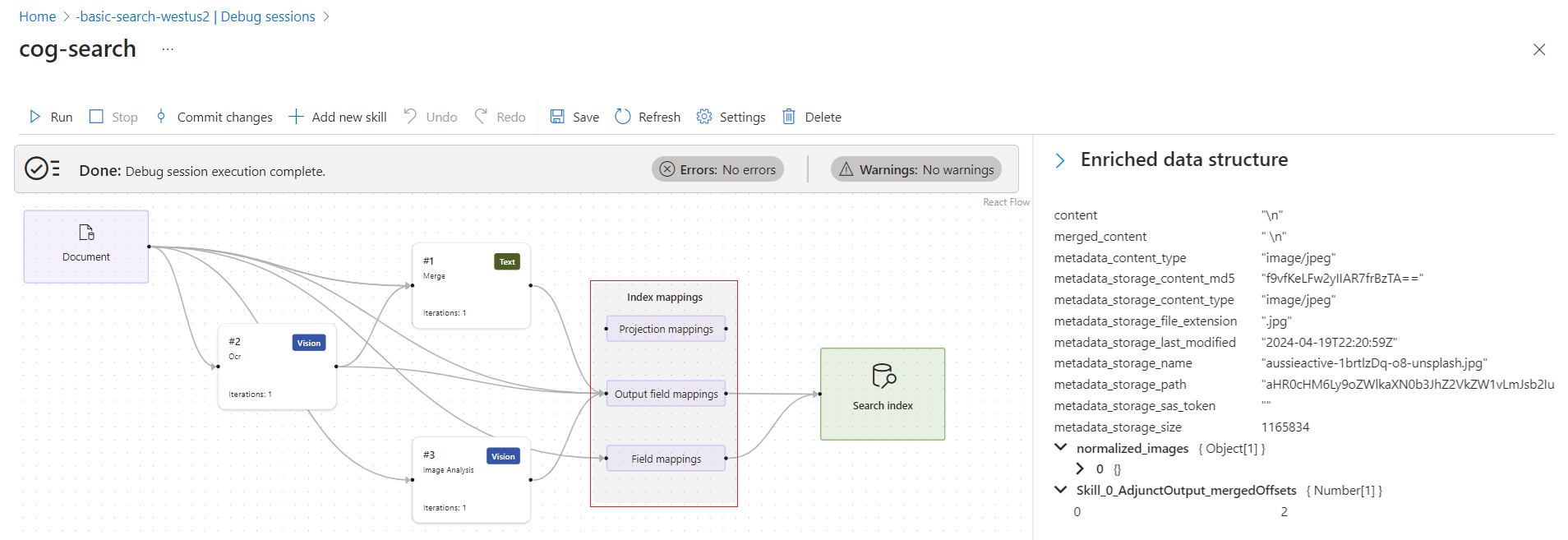

The first image shows a pattern for applied AI enrichment. Skills can run sequentially or in parallel if there are no dependencies. Output field mappings send enriched or generated content from in-memory data structures to fields in an index.

Screenshot of a debug session for OCR and image analysis.

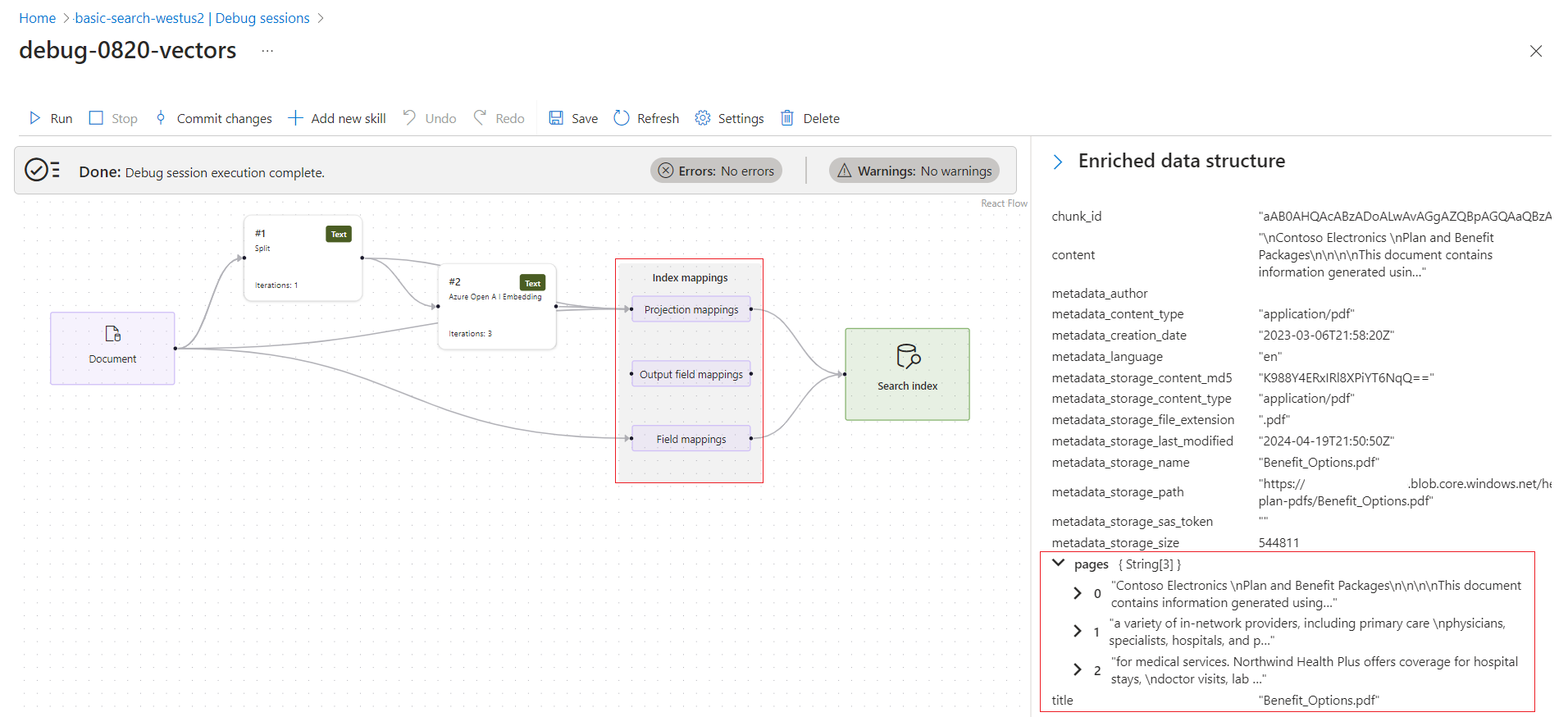

The second image shows a typical pattern for integrated vectorization. Skills for integrated vectorization usually includes Text Split and an embedding skill. A Text Split skill chunks a document into pages. An embedding skills provides vectorization. Projection mappings control how chunks of content are index. This particular skillset skips the parent index and creates an index of just chunked content, using metadata to identify the source of the chunk.

Screenshot of a debug session for integrated vectorization.

Limitations

Debug Sessions work with all generally available indexer data sources and most preview data sources, with the following exceptions:

  • SharePoint Online indexer.

  • Azure Cosmos DB for MongoDB indexer.

  • For the Azure Cosmos DB for NoSQL, if a row fails during index and there's no corresponding metadata, the debug session might not pick the correct row.

  • For the SQL API of Azure Cosmos DB, if a partitioned collection was previously non-partitioned, the debug session won't find the document.

  • For custom skills, a user-assigned managed identity isn't supported for a debug session connection to Azure Storage. As stated in the prerequisites, you can use a system managed identity, or specify a full access connection string that includes a key. For more information, see Connect a search service to other Azure resources using a managed identity.

  • Currently, the ability to select which document to debug is unavailable. This limitation is not permanent and will be lifted soon. At this time, Debug Sessions selects the first document in the source data container or folder.

How a debug session works

When you start a session, the search service creates a copy of the skillset, indexer, and a data source containing a single document used to test the skillset. All session state is saved to a new blob container created by the Azure AI Search service in an Azure Storage account that you provide. The name of the generated container has a prefix of ms-az-cognitive-search-debugsession. The prefix is required because it mitigates the chance of accidentally exporting session data to another container in your account.

A cached copy of the enriched document and skillset is loaded into the visual editor so that you can inspect the content and metadata of the enriched document, with the ability to check each document node and edit any aspect of the skillset definition. Any changes made within the session are cached. Those changes won't affect the published skillset unless you commit them. Committing changes will overwrite the production skillset.

If the enrichment pipeline doesn't have any errors, a debug session can be used to incrementally enrich a document, test and validate each change before committing the changes.

Debug session layout

The visual editor is organized into a surface area showing a progression of operations, starting with document cracking, followed by skills, mappings, and an index.

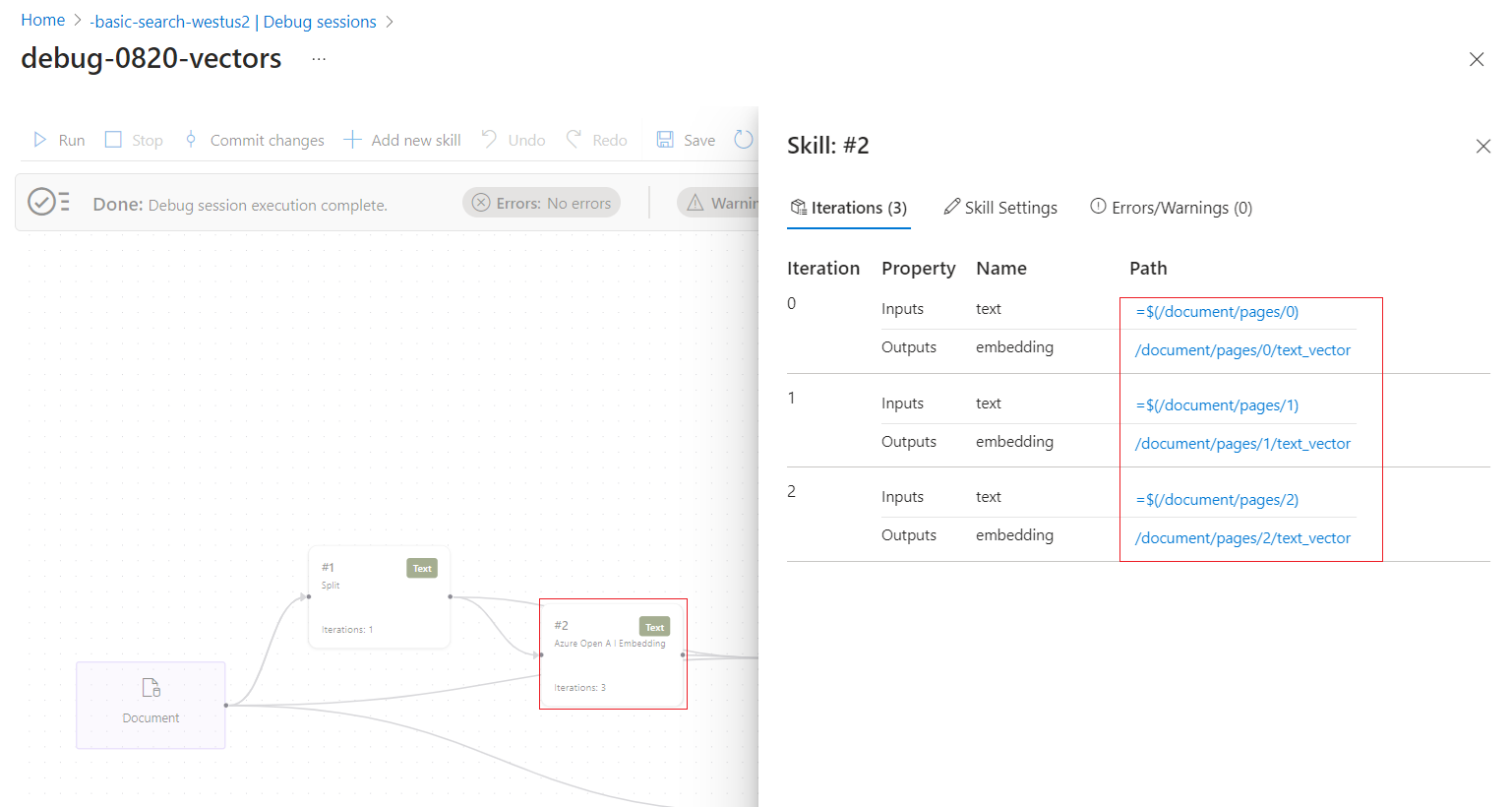

Select any skill or mapping, and a pane opens to side showing relevant information.

Screenshot showing a skill details pane with drilldown for more information.

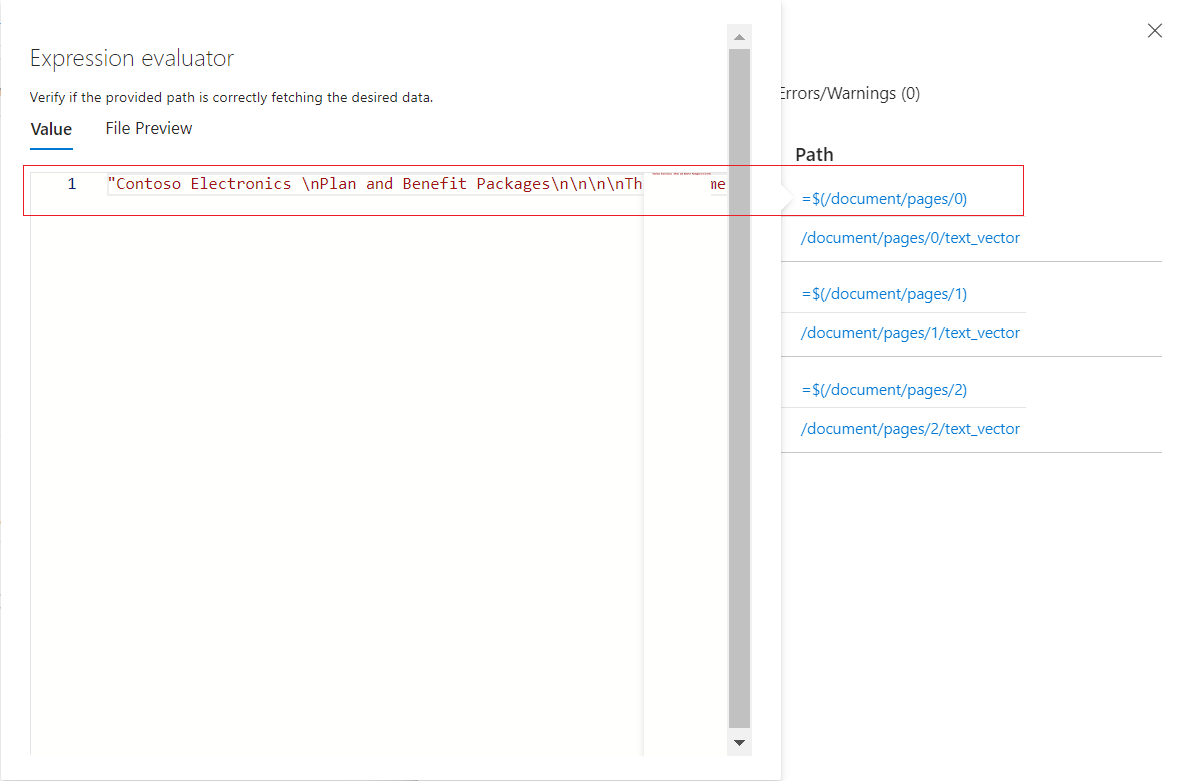

Follow the links to drill further into skills processing. For example, the following screenshot shows the output of the first iteration of the Text Split skill.

Screenshot showing a skill details pane with Expression Evaluator for a given output.

Skill details pane

The Skill details pane has the following sections:

  • Iterations: Shows you how many times a skill executes. You can check the inputs and outputs of each one.
  • Skill Settings: View or edit the JSON skillset definition.
  • Errors and warnings: Shows the errors or warnings specific to this skill.

Enriched data structure pane

The Enriched Data Structure pane slides out to the side when you select the blue show or hide arrow symbol. It's a human readable representation of what the enriched document contains. Previous screenshots in this article show examples of the enriched data structure.

Next steps

Now that you understand the elements of debug sessions, start your first debug session on an existing skillset.
