Monitor replication for the Data migration toolkit

Article
04/26/2023

The Data migration toolkit for Microsoft Dynamics 365 is used for self-service environments. It uses SQL replication to transfer data from the customer's on-premises SQL Server instance to the Azure SQL database that's used for Dynamics 365.

The toolkit is used both in upgrades from Dynamics AX 2012 to Dynamics 365 and in migrations from Dynamics 365 (on-premises) to Dynamics 365 in the cloud.

For more information, see the following articles:

The toolkit has an RS command that lets you monitor the replication status. For more information, see Toolkit Reporting Section. However, you might want to monitor the replication directly in SQL Server Management Studio (SSMS). This article explains how to monitor replication and describes the specific steps of replication.

Replication overview

By default, when you run the Data migration toolkit, two publications are created for tables that have primary keys, one publication is created for other objects (functions), and one publication is created for tables that don't have primary keys. Additionally, one final publication can be created for locked tables or record count mismatches, if it's required.

Each publication has two SQL agent jobs:

Snapshot agent – This agent is responsible for the initial snapshot of the tables (articles) in the publication. It will create files in the snapshot folder for each table. For more information about these files, see the File type details section of this article.
Log reader agent – This agent is responsible for pushing the snapshot to the target database (subscriber) and for any ongoing changes to the tables.

Note

The publication for tables that don't have primary keys only pushes up the snapshot.

Replication Monitor

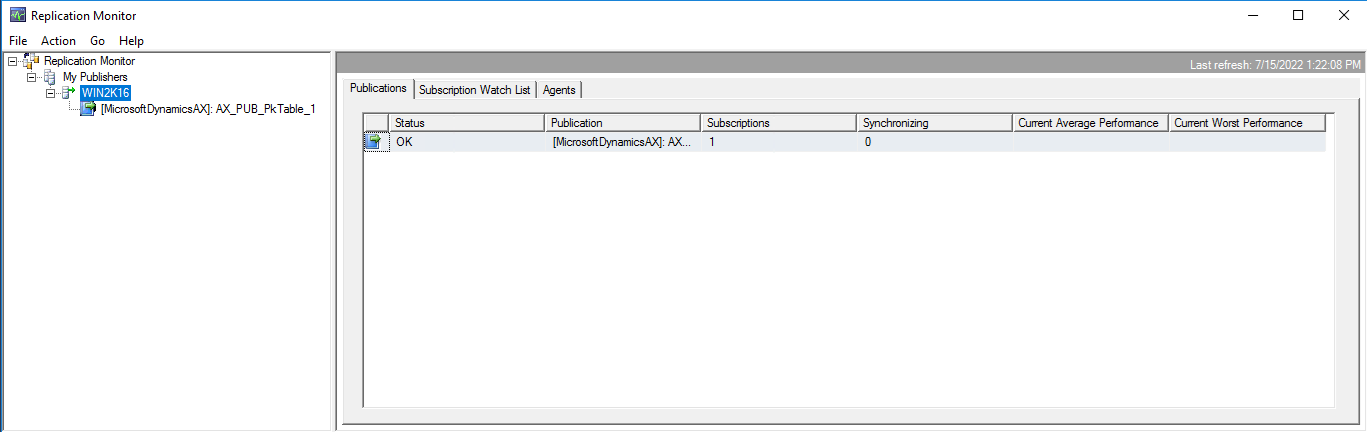

To monitor the replication in SSMS, connect to the source on-premises database server, expand the Replication folder, select and hold (or right-click), and then select Launch Replication Monitor to open Replication Monitor.

Note

As the preceding illustration shows, there's only one publication for tables that have primary keys, whereas there are usually two.

Snapshot generation

There are a few ways to view the snapshot agent details:

Select the publication on the left.

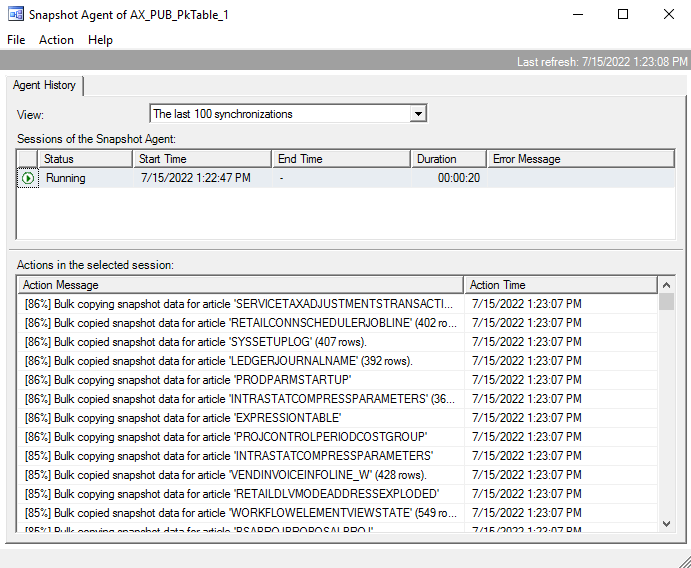

On the Agents tab, select and hold (or right-click) Snapshot Agent, and then select View Details.

The Snapshot Agent window is opened.

The process of generating a snapshot has four steps:

Update statistics on indexes.
Create bulk copy files.
Customize object scripting.
Generate scripts.

The snapshot files are created in the folder that you specified when you set up the Data migration toolkit. In File Explorer, open that folder, and drill down through the folders to the publications that you're reviewing.

File type details

The following table explains the different types of snapshot files.

File name	Type of file	Description
*.bcp	SQL Server replication snapshot bulk copy file	A binary file that contains the data in the table. There can be one or several of these files for each table, depending on the size of the table.
*.dri	SQL Server replication snapshot constraint script	An SQL script that contains the constraints on the table.
*.idx	SQL Server replication snapshot index script	An SQL script that contains the indexes on the table.
*.pre	SQL Server replication snapshot script	An SQL script that's used to move existing objects in the target database.
*.sch	SQL Server replication snapshot schema script	An SQL script that creates the table and stored procedures that are used to replicate the data to the subscriber database. This script doesn't include constraints or indexes.
*.xpp	SQL Server replication snapshot extended properties script	An SQL script that contains any extended properties on the table. For AX 2012 tables, this script tends to be empty.

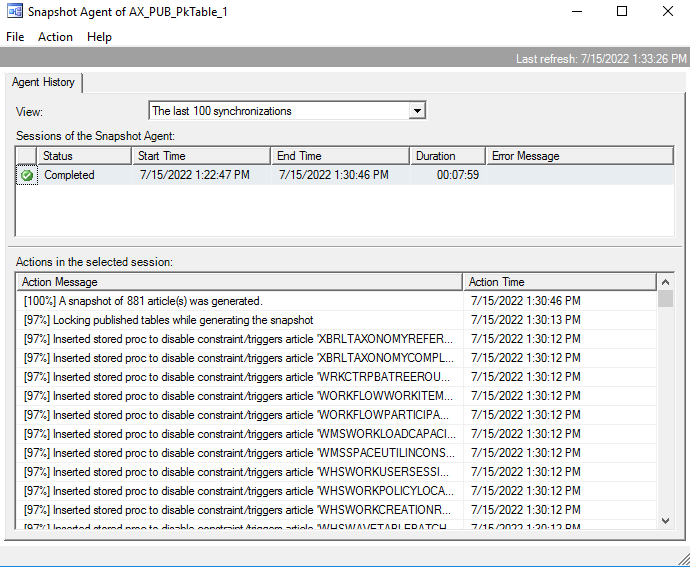

After the snapshot is completed, the following message is shown: "A snapshot of <number of articles> article(s) was generated."

At this stage, the snapshot is only in the file share. In the next step, the distributor will move it to the target (subscriber) database.

Distributor to subscriber

You can use the distributor-to-subscriber details to monitor the following information:

The push of the generated snapshot to the target (subscriber) database
Any ongoing transactions that were created during snapshot generation
Ongoing transactions

To view the distributor-to-subscriber logs, on the All Subscriptions tab, select View Details.

Follow these steps to move a snapshot.

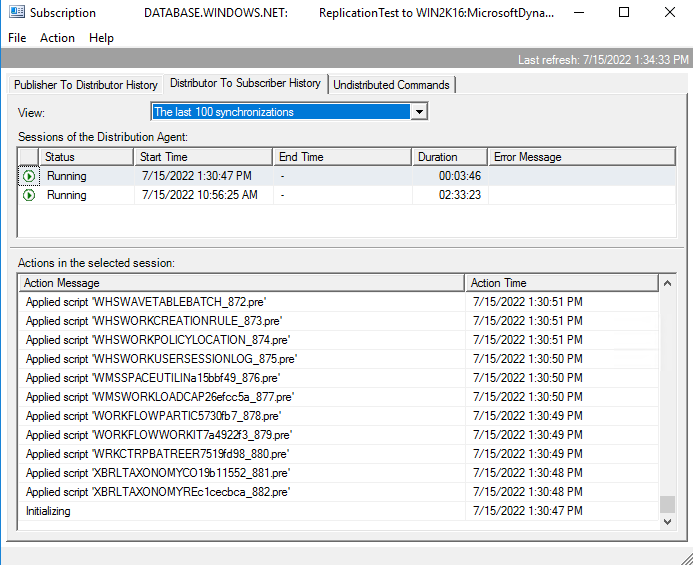

Run the .pre files. These scripts drop existing objects in the target.
Run the .sch files. These scripts create the tables.
After the tables have been scripted in the subscriber (target) database, the bulk copy files are imported into the target.

The process of importing .bcp files can take several hours.
Create the indexes.
Apply constraints and extended properties.

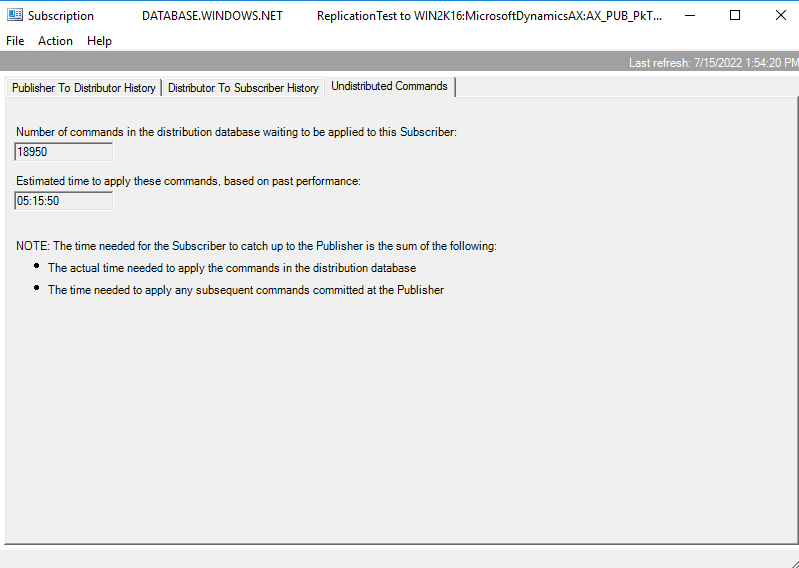

On the Undistributed Commands tab, you can monitor the progress of the distribution, including the number of outstanding commands to apply and the estimated remaining time.

After the snapshot is delivered, the following message is shown: "Delivered snapshot from the \\unc\server\folder."

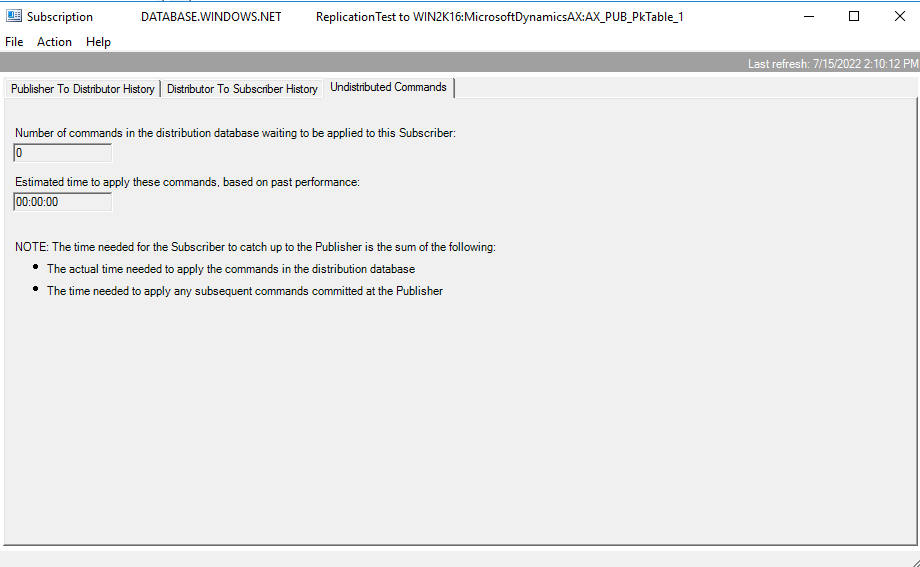

If there are no more outstanding commands, the Undistributed Commands tab shows the number of outstanding commands to apply as 0 (zero) and the estimated remaining time as 00:00:00.

Transaction replication

After the snapshot is delivered, any new transactions that were created in the database during or after the push of the snapshot are delivered to the subscriber (target). After the database is stabilized, and there's nothing to replicate, the following message is shown: "No replicated transactions are available."

Network bandwidth

While the snapshot is being pushed, you can monitor the bandwidth from the distributor process to the target database. This information is useful if upload performance issues occur.

Open Task manager.
Select Open resource monitor.

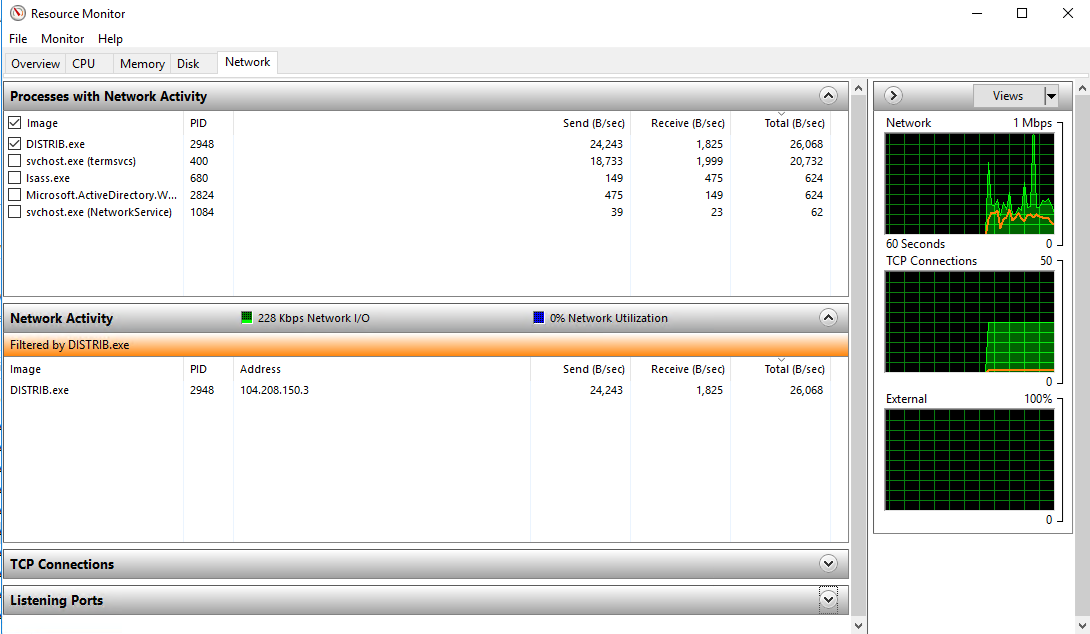

In Resource Monitor, on the Network tab, filter on DISTRIB.exe. The send bandwidth speed is shown.
