Secure an Amazon Bedrock agent with Microsoft Entra Agent ID

This guide shows you how to secure an Amazon Bedrock agent by using the Microsoft Entra Auth SDK (sidecar) to authenticate to downstream APIs. The sidecar runs as a separate container and handles all credential management and token exchange with Microsoft Entra ID. Your agent requests an authorization header from the sidecar, and the sidecar handles the OAuth 2.0 exchange with Microsoft Entra ID.

Prerequisites

Before you begin, make sure you have:

  • A Microsoft Entra tenant.
  • An Azure subscription.
  • Docker Desktop (macOS/Windows) or Docker Engine with Compose v2 (Linux).
  • PowerShell 7+.
  • Azure CLI.
  • AWS CLI v2.
  • An AWS account with Bedrock model access enabled for Anthropic Claude 3 Haiku (or your preferred model). Enable access in the AWS Bedrock console under Model access > Manage model access.
  • Global Administrator role for first-time Microsoft Entra setup. Use Privileged Identity Management (PIM) to activate this role just-in-time.

Clone the sample repository

  1. Clone the repository and go to the AWS sample directory:

    git clone https://github.com/microsoft/entra-agentid-samples.git
cd entra-agentid-samples/sidecar/aws

Architecture

The Microsoft Entra Auth SDK (sidecar) sits between your agent and Microsoft Entra ID. The agent never talks to Microsoft Entra ID directly and never manages credentials. It asks the sidecar for an Authorization header to call a downstream API. Amazon Bedrock handles LLM inference separately, without having to worry about identity.

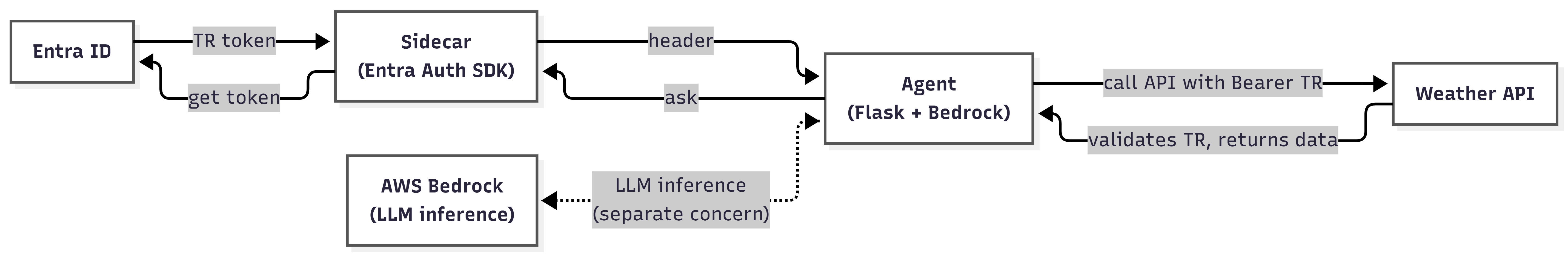

Diagram showing the token flow between the Bedrock agent, sidecar, Entra ID, and Weather API.

The sample runs three containers on a Docker bridge network:

  • llm-agent-aws: Flask app with a chat UI and a LangGraph ReAct agent that calls Amazon Bedrock (Claude) for reasoning. Exposed on port 3001.
  • agent-id-sidecar-aws: The official Microsoft Entra Auth SDK container. Acquires and caches tokens. No host port, reachable only from within the Docker network.
  • weather-api-aws: A downstream API that validates the agent's JWT (signature, issuer, expiry, audience) on every request and returns weather data.

The request flows through these steps:

  1. You type a query in the chat UI at http://localhost:3001.
  2. The Flask app sends the query to AWS Bedrock (Claude) via the LangGraph ReAct agent.
  3. When Claude decides it needs weather data, it calls the get_weather tool.
  4. The tool asks the sidecar for an authorization header by calling GET /AuthorizationHeader?AgentIdentity={agentId}.
  5. The sidecar authenticates to Microsoft Entra ID using OAuth 2.0 (client credentials or OBO exchange).
  6. Microsoft Entra ID returns the requested token (TR) to the sidecar.
  7. The agent calls the weather API with Authorization: Bearer TR.
  8. The weather API validates TR and returns the weather JSON response.

Understand the token flow

Three tokens are involved in the identity exchange:

Token Issued to When How
Tc Signed-in user OBO flow only MSAL.js in the browser
T1 Blueprint app Both flows Sidecar (client credentials)
TR Agent (downstream API) Both flows Sidecar-app-only (autonomous) or OBO exchange

In the autonomous flow, the sidecar uses client credentials to get T1, then exchanges it for TR scoped to the downstream API. In the OBO flow, the sidecar also receives Tc (the user's token) and performs an OBO exchange to get TR that acts on behalf of the signed-in user.

In this setup, only the chat UI (port 3001) is exposed to your host. The sidecar and weather API are only reachable within the Docker network, which establishes a clear security boundary.

Choose an execution mode and identity flow

The sample supports two execution modes and two identity flows that you can combine:

Autonomous (app-only) OBO (on behalf of user)
Direct (no LLM) Fast demo path. Token fetched and weather API called directly. Same, but uses the authenticated sidecar endpoint with the user token.
Bedrock + LangChain LangGraph ReAct agent decides when to call get_weather. Same, but the agent passes the user token through when the tool runs.

Use Direct mode to verify your token flow end-to-end without needing AWS Bedrock access. Switch to Bedrock mode for the full agent experience.

Choose an AWS authentication tier

The sample supports three ways to authenticate to Amazon Bedrock. Choose the tier that matches your environment:

  • Temporary STS credentials: Best for local development with AWS SSO. Set AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, and AWS_SESSION_TOKEN in your .env file. These credentials expire after approximately one hour.
  • Bedrock API key: Best for demos and workshops. Set AWS_BEARER_TOKEN_BEDROCK in your .env file. Scoped to Bedrock only with a configurable lifetime.
  • OIDC federation: Best for production deployments on Azure App Service. Uses AWS_ROLE_ARN and AWS_WEB_IDENTITY_TOKEN_FILE set by the platform. No secrets stored anywhere.

Tip

For production deployments, see the Azure App Service deployment guide for step-by-step instructions on setting up OIDC federation between Azure and AWS with zero stored secrets.

Select a Bedrock model

The sample defaults to us.anthropic.claude-3-haiku-20240307-v1:0 because it's the cheapest Anthropic model on Bedrock and supports tool calling. The us. prefix indicates a cross-region inference profile that routes between US regions for higher availability.

Other supported models:

Model ID Cost per 1K input tokens Notes
us.anthropic.claude-3-haiku-20240307-v1:0 $0.00025 Default. Fast, cheapest, supports tool calling.
us.anthropic.claude-3-5-haiku-20241022-v1:0 $0.0008 Newer, smarter, still affordable.
us.anthropic.claude-3-5-sonnet-20241022-v2:0 $0.003 Best quality/cost ratio.

Override the default by setting BEDROCK_MODEL_ID in your .env file. You must enable each model in the AWS Bedrock console > Model access before it can be invoked.

Create the Entra objects (first-time setup)

If you already have a .env file from a previous run with BLUEPRINT_APP_ID populated, skip to Configure environment variables.

Run the following commands once per tenant to create the Blueprint app, Agent ID, and the SPA app used for OBO sign-in.

  1. Create the Blueprint app and Agent ID for the autonomous flow by following the PowerShell workflow in Create an agent identity blueprint and Create agent identities. At the end you have:

    • TENANT_ID: Your Entra tenant.
    • BLUEPRINT_APP_ID: Blueprint app registration.
    • BLUEPRINT_CLIENT_SECRET: Client secret for the Blueprint.
    • AGENT_CLIENT_ID: The Agent ID created from the Blueprint.

  2. (Optional) Create the SPA app and configure OBO. This step is required only if you want to use the OBO identity flow:

    Bash:

    bash ../../scripts/setup-obo-client-app.sh
bash ../../scripts/setup-obo-blueprint.sh

    PowerShell:

    pwsh ../../scripts/setup-obo-client-app.ps1
pwsh ../../scripts/setup-obo-blueprint.ps1 `
    -TenantId        '<TENANT_ID>' `
    -BlueprintAppId  '<BLUEPRINT_APP_ID>' `
    -AgentAppId      '<AGENT_CLIENT_ID>' `
    -ClientSpaAppId  '<CLIENT_SPA_APP_ID>'

The SPA redirect URI for this sample is http://localhost:3001 (port 3001, not 3003). Make sure this URI is registered.

Configure environment variables

The sidecar supports multiple credential types through the AzureAd__ClientCredentials__0__SourceType setting in docker-compose.yml:

  • ClientSecret: Local development only. The sample includes this type.
  • SignedAssertionFromManagedIdentity: Deployed on Azure. Zero secrets, recommended for production.
  • KeyVault: Certificate from Azure Key Vault.
  • StoreWithThumbprint: Certificate from local machine store.

  1. Copy the environment template and open it in your editor:

    Bash:

    cp .env.example .env

    PowerShell:

    Copy-Item .env.example .env

  2. Set the following variables in your .env file:

    • TENANT_ID: Your Entra tenant ID.
    • BLUEPRINT_APP_ID: Blueprint app registration. The sidecar authenticates as this app.
    • BLUEPRINT_CLIENT_SECRET: Blueprint client secret (local development only).
    • AGENT_CLIENT_ID: Your Agent ID. Appears as the AgentIdentity query parameter.
    • CLIENT_SPA_APP_ID: SPA app ID used by MSAL.js for browser sign-in (OBO only).
    • AWS_REGION: AWS region for Bedrock, such as us-east-2.
    • BEDROCK_MODEL_ID: Model ID. Default: us.anthropic.claude-3-haiku-20240307-v1:0.
    • VALIDATE_TOKEN_SIGNATURE: Default true. Set to false to skip JWKS signature validation in the weather API (debugging only).

  3. Add your AWS credentials based on the tier you chose:

    • Tier A (STS): Set AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, and AWS_SESSION_TOKEN.
    • Tier B (API key): Set AWS_BEARER_TOKEN_BEDROCK.
    • Tier C (OIDC): Configured through platform App Settings, not in .env.

Tip

If you already have a .env from a previous session, you only need to refresh your AWS credentials (STS tokens expire after about one hour). Skip directly to Start the stack.

Start the stack

  1. Make sure Docker is running and then start all containers:

    docker compose up --build -d

  2. Verify the stack is ready:

    Bash:

    curl http://localhost:3001/api/status

    PowerShell:

    Invoke-RestMethod http://localhost:3001/api/status

    You see a response indicating bedrock_available: true (or false if you're using Direct mode without AWS credentials).

Important

When you update .env (for example, to refresh expired STS credentials), docker compose restart doesn't reload environment variables. Use docker compose up -d --force-recreate llm-agent-aws instead.

Send a query through the chat UI

  1. Open http://localhost:3001 in your browser.

  2. Use the header bar to configure your demo:

    • Execution Mode: Direct (skip LLM) or Bedrock (LangChain ReAct agent on Claude).
    • Identity Flow: Autonomous (app-only token) or OBO (acts for a signed-in user).

  3. If you select OBO, select Sign in to authenticate through the MSAL.js popup.

  4. Type a query like "Weather in Dallas?" and select Send.

  5. Watch the Identity Trace panel on the right side for a step-by-step breakdown of every token exchange and API call. The panel shows color-coded JWT cards for each token (Tc, T1, TR) with decoded claims.

Troubleshoot common issues

If something isn't working as expected, check the following table for common issues and fixes:

Symptom Likely cause Fix
/api/status shows bedrock_available: false AWS credentials missing or expired, or model access not granted. Check docker logs llm-agent-aws. Refresh STS credentials with aws sso login. Enable the model in the Bedrock console.
ExpiredTokenException from Bedrock STS session token (Tier A) expired. Paste fresh credentials in .env, then run docker compose up -d --force-recreate llm-agent-aws.
AccessDeniedException on InvokeModel IAM principal lacks bedrock:InvokeModel permission, or model access isn't enabled. Grant bedrock:InvokeModel on the model and inference profile ARNs.
ValidationException: invalid model identifier Region doesn't host the model, or you used a bare model ID instead of the us. inference profile. Use the us.-prefixed inference profile ID (for example, us.anthropic.claude-3-haiku-20240307-v1:0).
Weather API returns 401 Unauthorized Token tenant mismatch, expired secret, or signature check failed. Verify TENANT_ID matches the Blueprint's tenant. Check sidecar logs.
LLM responds without calling the tool Query wasn't clearly tool-shaped, or model doesn't support tool calling. Use Claude 3 Haiku or newer. Phrase the request as "What's the weather in <city>?".
OBO sign-in popup blocked Browser popup blocker. Allow popups for localhost:3001.
4xx from sidecar during OBO CLIENT_SPA_APP_ID missing or SPA redirect URI mismatch. Rerun setup-obo-client-app. Ensure http://localhost:3001 is on the SPA's redirect URIs.

View container logs for debugging:

docker logs llm-agent-aws
docker logs agent-id-sidecar-aws
docker logs weather-api-aws

Clean up resources

Stop and remove the containers when you're done:

# Stop containers but keep volumes and images
docker compose down

# Remove everything including volumes and images
docker compose down -v --rmi all

The Entra objects (agent blueprint, Agent ID, SPA app registration) are tenant-side state, so using docker compose down won't remove them. Remove them manually in the Microsoft Entra admin center if no longer needed.
