which servers should be put in the same Hyper V ?

Anonymous
2024-04-19T14:01:15+00:00

when multiple hyper V in two VCenter and all guest computers in Hyper V,

there are CA servers, DNS servers, Active directory servers, DHCP servers and some members servers are operation masters, RID master, schema master etc,

Hyper V servers have Scale out clustering, File server and DHCP servers etc have general purpose clustering with file share quorum,

which servers should be put in the same Hyper V in order to keep availability and clustering work properly with least human manipulation and expect least number of Hyper V for VMotion and Disaster Recovery manager works well with Hyper V and Guest computer servers?

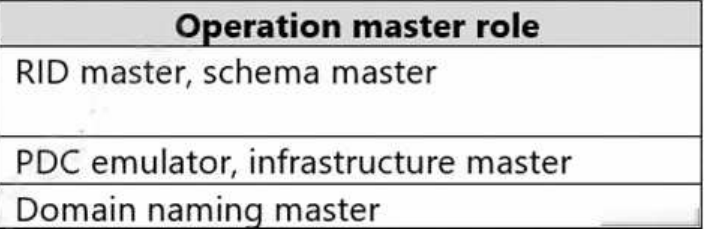

master roles have below types:

Windows for business | Windows Server | Storage high availability | Virtualization and Hyper-V

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question. To protect privacy, user profiles for migrated questions are anonymized.

0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2024-04-22T01:53:53+00:00

    Hi Admin,

    Hope you're doing well.

    From my point of view, place all domain controllers within the same Hyper-V cluster. This ensures that the Active Directory infrastructure remains highly available and minimizes the risk of split-brain scenarios. Since Active Directory replication relies heavily on network connectivity, keeping DCs within the same cluster helps maintain a consistent replication topology. At the same time, deploy DNS servers alongside the Active Directory domain controllers within the same Hyper-V cluster. DNS is tightly integrated with Active Directory, and having DNS servers in close proximity to domain controllers helps ensure fast and reliable name resolution for AD-related services.

    Similar to domain controllers, place all Certificate Authority servers within the same Hyper-V cluster to maintain high availability. CA servers typically handle critical functions related to certificate issuance and management, so ensuring their availability is crucial for the overall security infrastructure.

    For DHCP servers, it's advisable to deploy them in separate Hyper-V clusters to distribute the load and avoid a single point of failure. However, if DHCP failover is configured at the DHCP server level, you can place the DHCP servers in the same Hyper-V cluster for redundancy.

    Operation master roles such as RID master, schema master, PDC emulator, infrastructure master, and domain naming master are critical for Active Directory operations. It's recommended to distribute these roles across multiple domain controllers within the same Hyper-V cluster to ensure redundancy and fault tolerance.

    In addition, if you have file servers with Scale-Out File Server (SOFS) clustering, deploy them in a separate Hyper-V cluster dedicated to file server workloads. This helps optimize storage performance and scalability for file sharing services.

    Best Regards
