Shailender Bhatia,

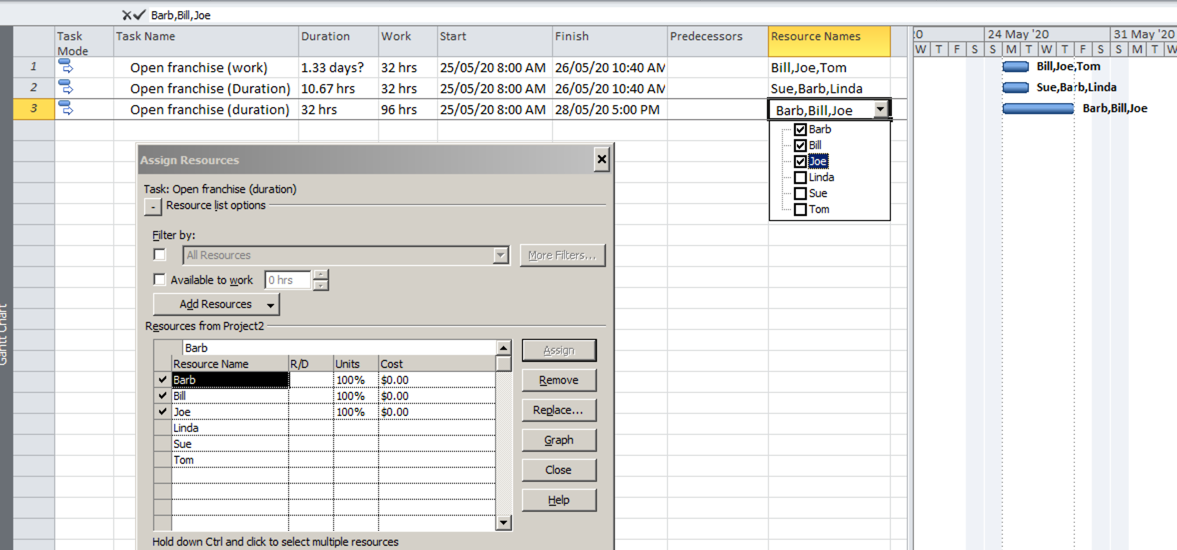

Okay, I was able to open your file. What you have in your file is different from what you show and describe in your initial post. Initially you show a task as Fixed Work type which by default is effort driven. However, the actual file you reference shows the task as Fixed Units, non-effort driven. That's a different scenario.
When you assign 3 resources to a fixed unit task that is not driven by effort, Project will spread the full resource effort of all three assignments across the full task duration (i.e. the task duration is not decreased by the added effort regardless of how many resources are assigned).
What you need to do is to switch the task type to Fixed Work, like you showed initially. Then assign the 3 resources. The task duration will be decreased because of the added effort (i.e. effort driven). Or, you could leave the task as Fixed Units and check the Effort-Driven option.
Hope this helps.
John
