Azure NetApp Files performance benchmarks for Linux

This article describes performance benchmarks Azure NetApp Files delivers for Linux.

Linux scale-out

This section describes performance benchmarks of Linux workload throughput and workload IOPS.

Linux workload throughput

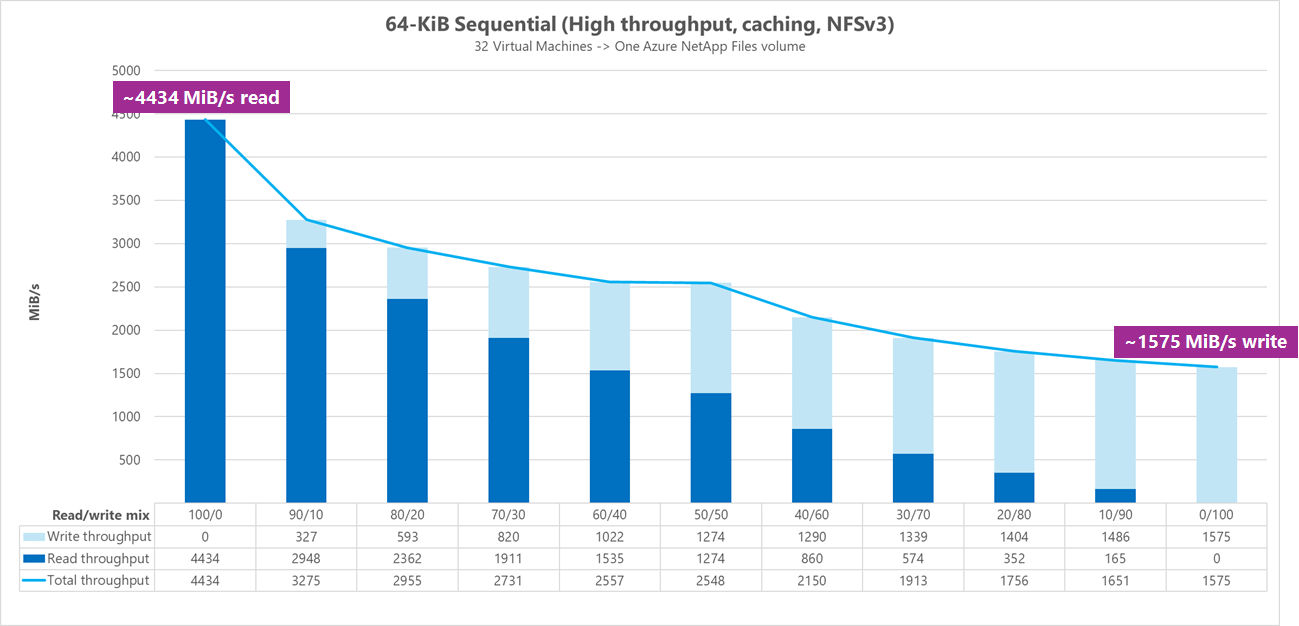

The graph below represents a 64-kibibyte (KiB) sequential workload and a 1 TiB working set. It shows that a single Azure NetApp Files volume can handle between ~1,600 MiB/s pure sequential writes and ~4,500 MiB/s pure sequential reads.

The graph illustrates decreases in 10% at a time, from pure read to pure write. It demonstrates what you can expect when using varying read/write ratios (100%:0%, 90%:10%, 80%:20%, and so on).

Linux workload throughput

Linux workload IOPS

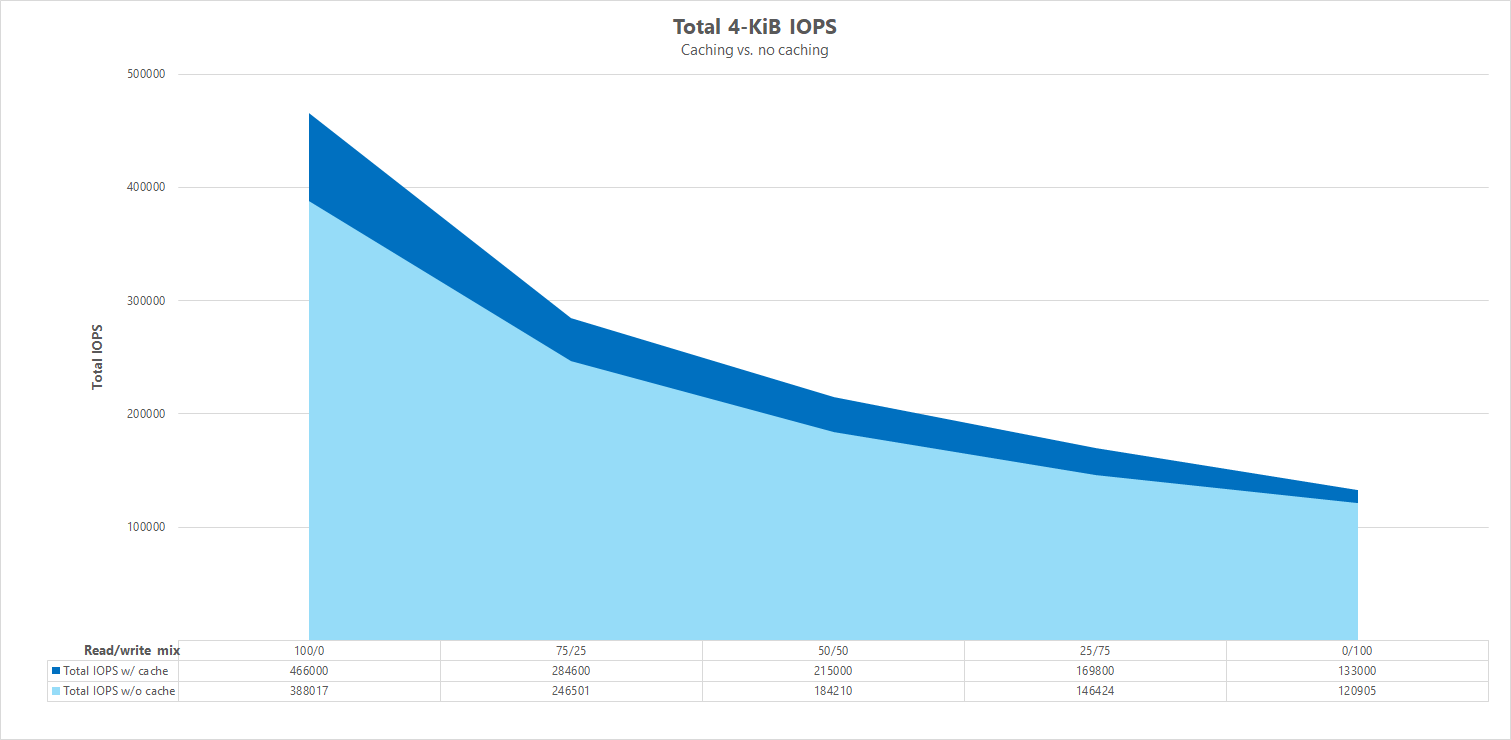

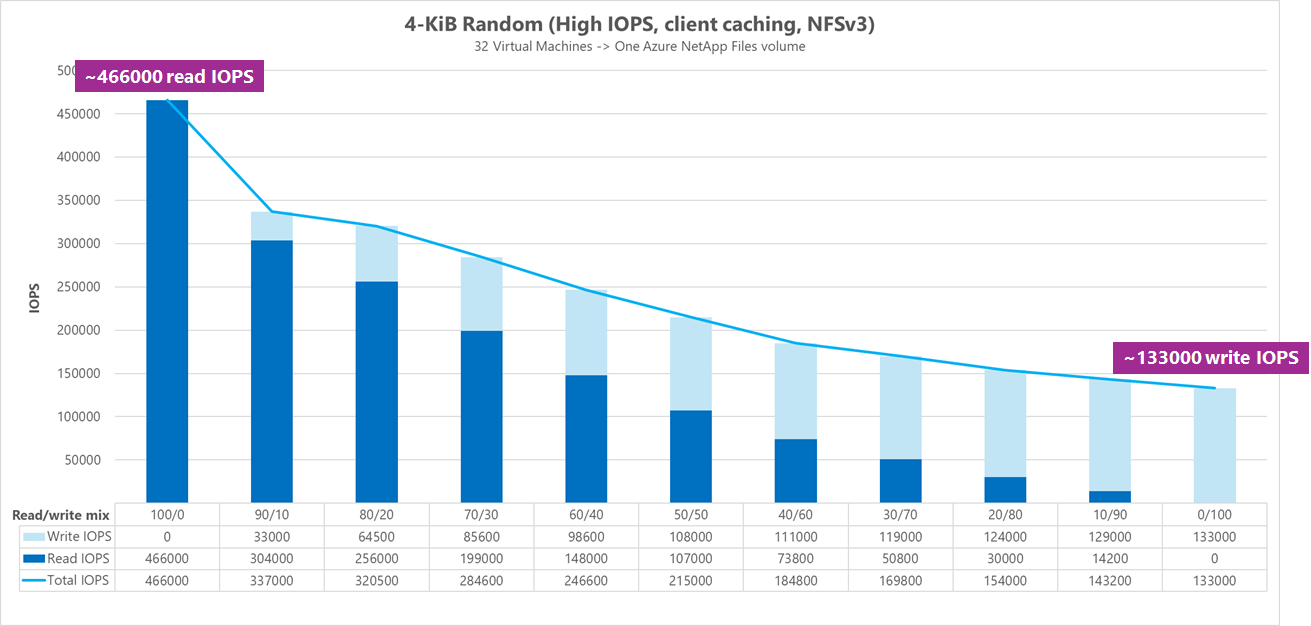

The following graph represents a 4-kibibyte (KiB) random workload and a 1 TiB working set. The graph shows that an Azure NetApp Files volume can handle between ~130,000 pure random writes and ~460,000 pure random reads.

This graph illustrates decreases in 10% at a time, from pure read to pure write. It demonstrates what you can expect when using varying read/write ratios (100%:0%, 90%:10%, 80%:20%, and so on).

Linux workload IOPS

Linux scale-up

The graphs in this section show the validation testing results for the client-side mount option with NFSv3. For more information, see nconnect section of Linux mount options.

The graphs compare the advantages of nconnect to a non-connected mounted volume. In the graphs, FIO generated the workload from a single D32s_v4 instance in the us-west2 Azure region using a 64-KiB sequential workload – the largest I/O size supported by Azure NetApp Files at the time of the testing represented here. Azure NetApp Files now supports larger I/O sizes. For more details, see rsize and wsize section of Linux mount options.

Linux read throughput

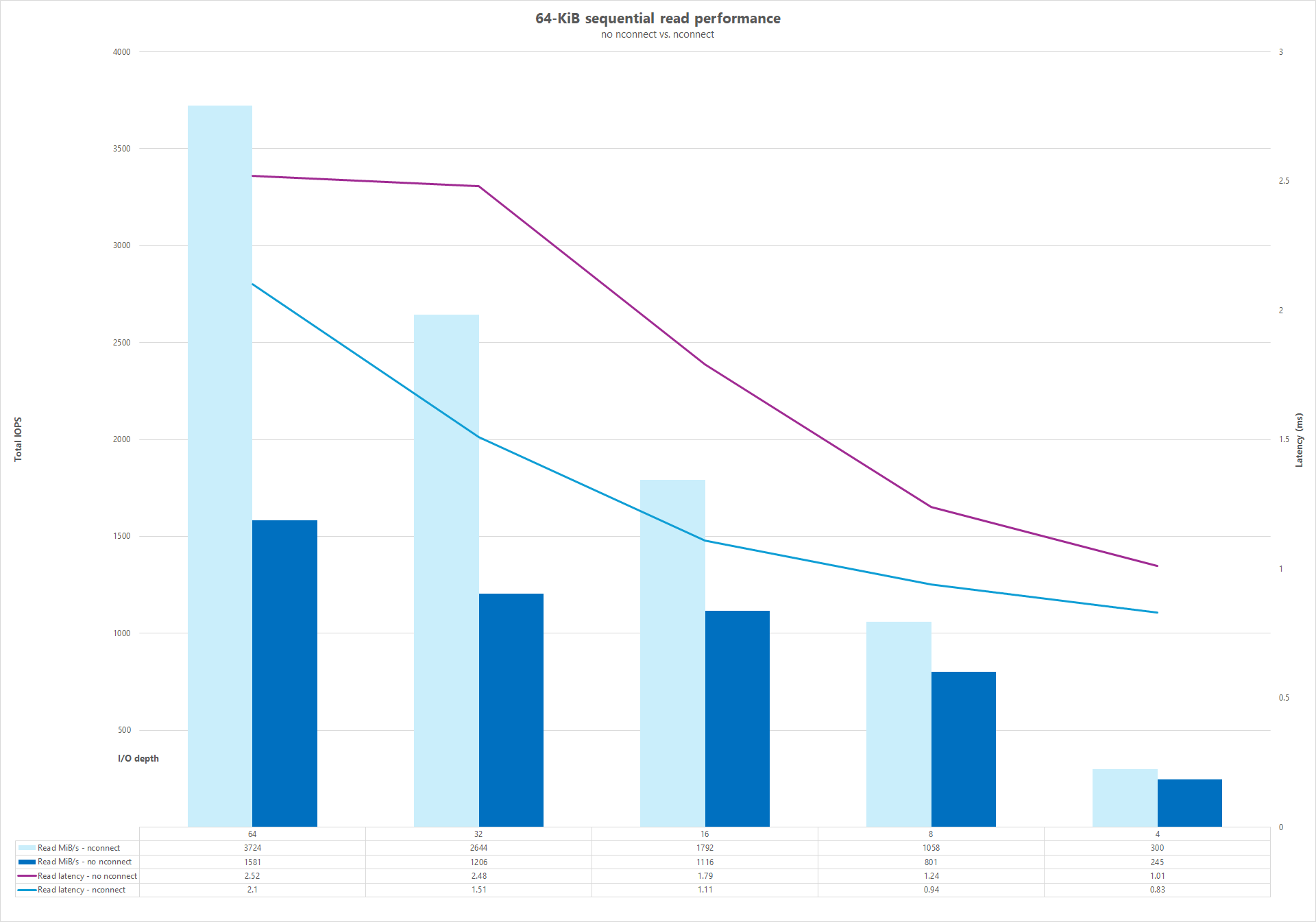

The following graphs show 64-KiB sequential reads of ~3,500 MiB/s reads with nconnect, roughly 2.3X non-nconnect.

Linux read throughput

Linux write throughput

The following graphs show sequential writes. They indicate that nconnect has no noticeable benefit for sequential writes. 1,500 MiB/s is roughly both the sequential write volume upper limit and the D32s_v4 instance egress limit.

Linux write throughput

Linux read IOPS

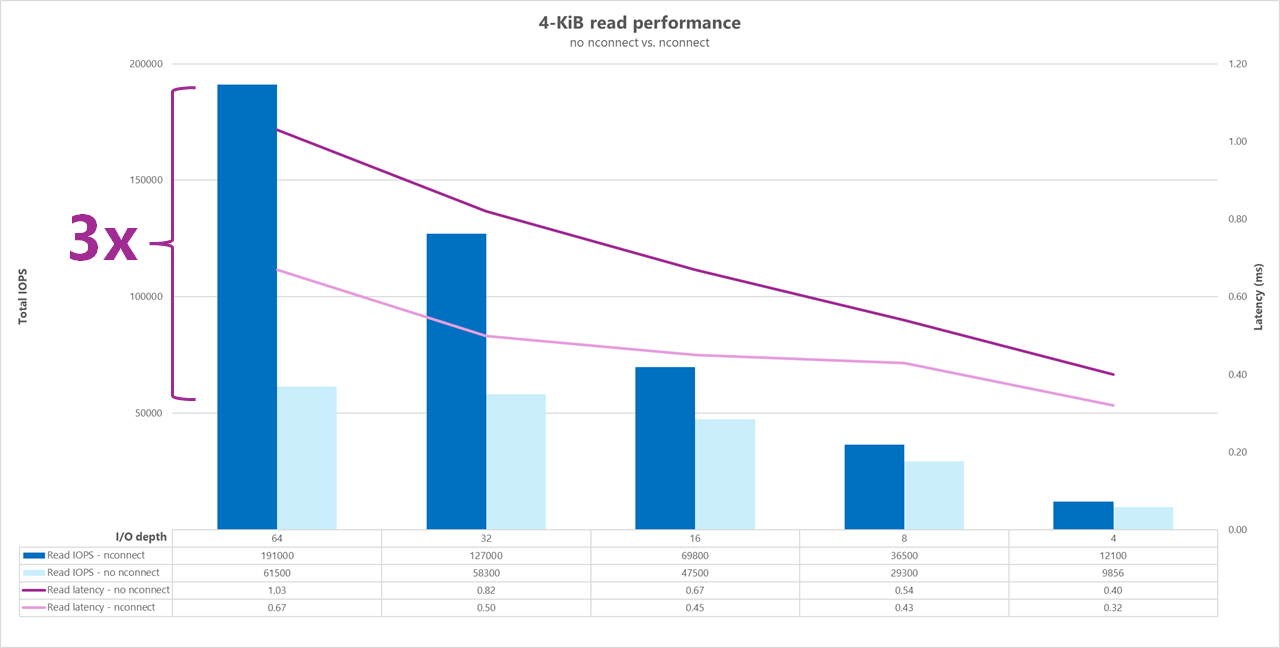

The following graphs show 4-KiB random reads of ~200,000 read IOPS with nconnect, roughly 3X non-nconnect.

Linux read IOPS

Linux write IOPS

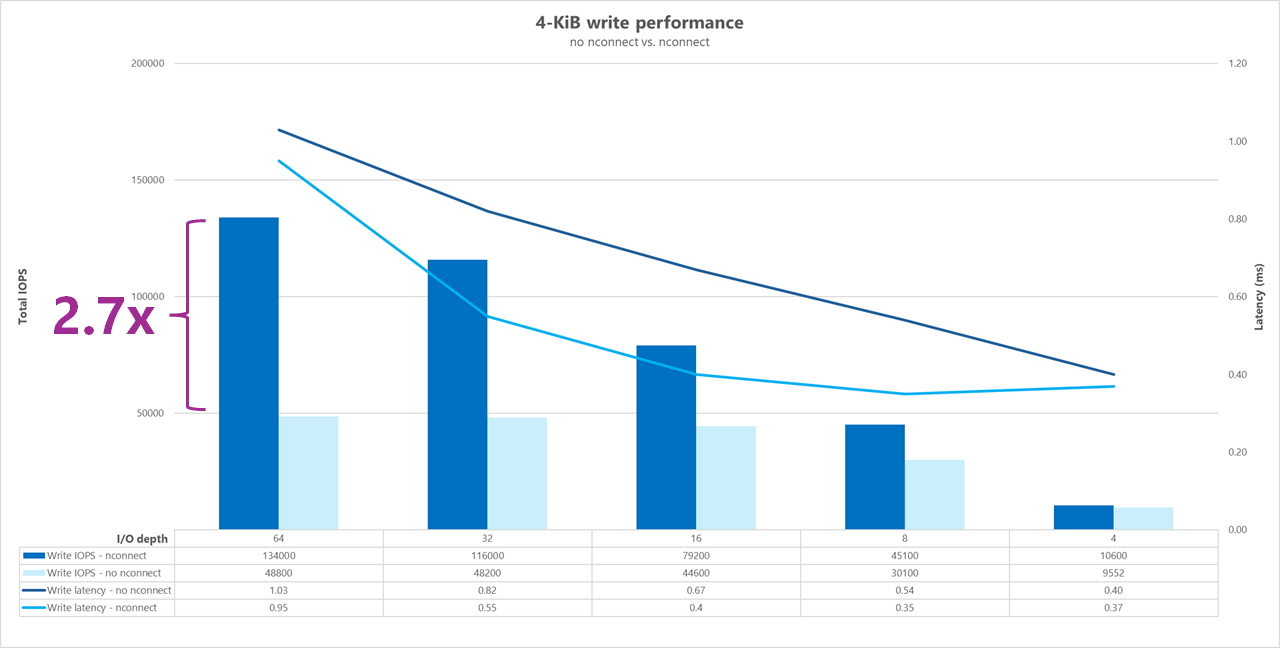

The following graphs show 4-KiB random writes of ~135,000 write IOPS with nconnect, roughly 3X non-nconnect.

Linux write IOPS
