Deploy and configure Azure VMware Solution

After you plan your deployment, deploy and configure your Azure VMware Solution private cloud.

In this tutorial, you'll:

• Register the resource provider and create a private cloud
• Connect to a new or existing ExpressRoute virtual network gateway
• Validate the network connection

Once you completed this section, follow the next steps provided at the end of this tutorial.

Register the Microsoft.AVS resource provider

To use Azure VMware Solution, you must first register the resource provider with your subscription. For more information about resource providers, see Azure resource providers and types.

Portal

1. Sign in to the Azure portal.

   Note

   If you need access to the Azure US Gov portal, go to https://portal.azure.us/

2. On the Azure portal menu, select All services.

3. In the All services box, enter subscription, and then select Subscriptions.

4. Select the subscription from the subscription list to view.

5. Select Resource providers and enter Microsoft.AVS into the search.

6. If the resource provider isn't registered, select Register.

Azure CLI

To begin using Azure CLI:

• Use the Bash environment in Azure Cloud Shell. For more information, see Quickstart for Bash in Azure Cloud Shell.



• If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.

  • If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Sign in with the Azure CLI.

  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use extensions with the Azure CLI.

  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.

Sign in to the Azure subscription you use for the Azure VMware Solution deployment through the Azure CLI. Register the Microsoft.AVS resource provider with the az provider register command:

az provider register -n Microsoft.AVS --subscription <your subscription ID>

You can use the az provider list command to see all available providers.

Create an Azure VMware Solution private cloud

You can create an Azure VMware Solution private cloud using the Azure portal or the Azure CLI.

Portal

1. Sign in to the Azure portal.

   Note

   If you need access to the Azure US Gov portal, go to https://portal.azure.us/

2. Select Create a resource.

3. In the Search services and marketplace text box, type Azure VMware Solution and select it from the search results.

4. On the Azure VMware Solution window, select Create.

5. If you need more hosts, request a host quota increase.

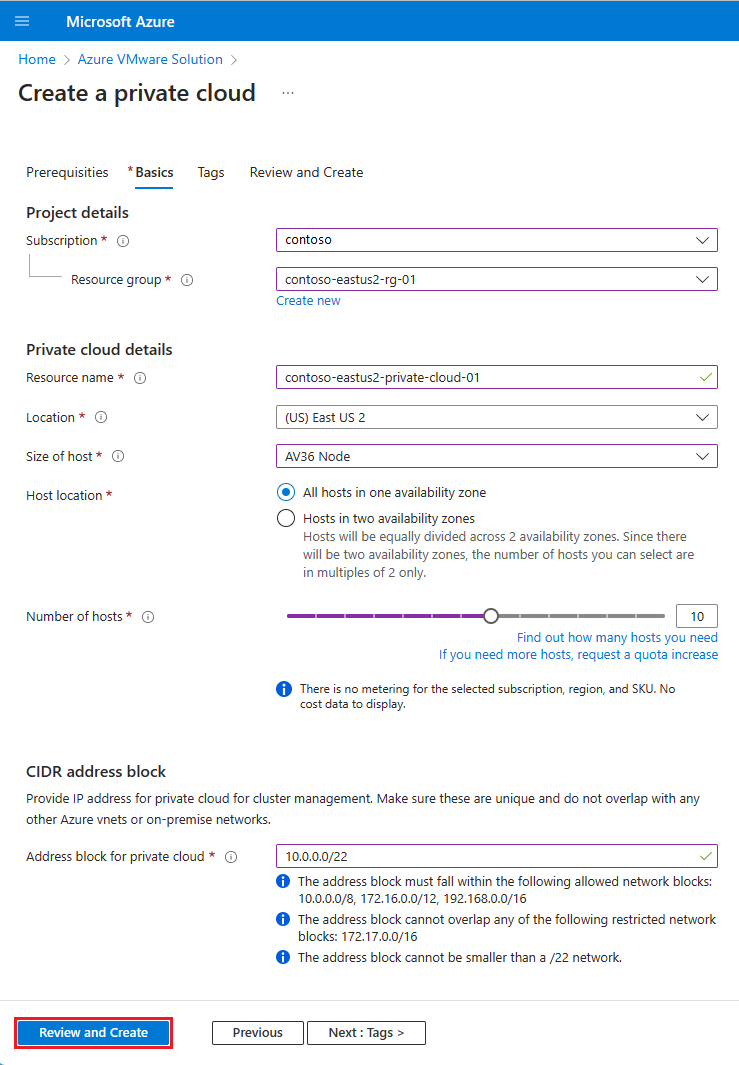

6. On the Basics tab, enter values for the fields and then select Review + Create.

   Tip

   You gathered this information during the planning phase of this quick start.

   Field	Value
   Subscription	Select the subscription you plan to use for the deployment. All resources in an Azure subscription are billed together.
   Resource group	Select the resource group for your private cloud. An Azure resource group is a logical container into which Azure resources are deployed and managed. Alternatively, you can create a new resource group for your private cloud.
   Resource name	Provide the name of your Azure VMware Solution private cloud.
   Location	Select a location, such as (US) East US 2. It's the region you defined during the planning phase.
   Size of host	Select the AV36, AV36P or AV52 SKU.
   Host Location	Select All hosts in one availability zone for a standard private cloud or Hosts in two availability zones for stretched clusters.
   Number of hosts	Number of hosts allocated for the private cloud cluster. The default value is 3, which you can increase or decrease after deployment. If these nodes aren't listed as available, contact support to request a quota increase. You can also select the link labeled If you need more hosts, request a quota increase in the Azure portal.
   Address block for private cloud	Provide an IP address block for the private cloud. The CIDR represents the private cloud management network and is used for the cluster management services, such as vCenter Server and NSX-T Manager. Use /22 address space, for example, 10.175.0.0/22. The address should be unique and not overlap with other Azure Virtual Networks and with on-premises networks.



7. Verify the information entered, and if correct, select Create.

   Note

   This step takes roughly 3-4 hours. Adding a single host in an existing or the same cluster takes between 30 - 45 minutes.

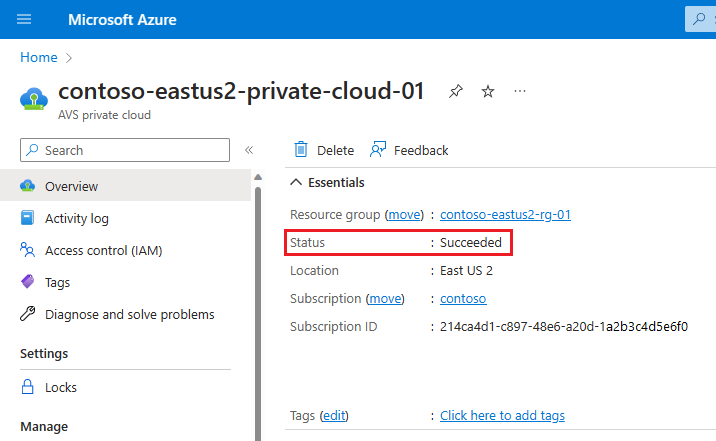

8. Verify that the deployment was successful. Navigate to the resource group you created and select your private cloud. You see the status of Succeeded when the deployment is finished.



Azure CLI

Instead of the Azure portal to create an Azure VMware Solution private cloud, you can use the Azure CLI using the Azure Cloud Shell. For a list of commands you can use with Azure VMware Solution, see Azure VMware commands.

To begin using Azure CLI:

• Use the Bash environment in Azure Cloud Shell. For more information, see Quickstart for Bash in Azure Cloud Shell.



• If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.

  • If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Sign in with the Azure CLI.

  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use extensions with the Azure CLI.

  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.

1. Create a resource group with the 'az group create' command. An Azure resource group is a logical container into which Azure resources are deployed and managed. The following example creates a resource group named myResourceGroup in the eastus location:


   az group create --name myResourceGroup --location eastus


2. Provide a name for the resource group and the private cloud, a location, and the size of the cluster.

   Property	Description
   -g (Resource Group name)	The name of the resource group for your private cloud resources.
   -n (Private Cloud name)	The name of your Azure VMware Solution private cloud.
   --location	The region used for your private cloud.
   --cluster-size	The size of the cluster. The minimum value is 3.
   --network-block	The CIDR IP address network block to use for your private cloud. The address block shouldn't overlap with address blocks used in other virtual networks that are in your subscription and on-premises networks.
   --sku	The SKU value: AV36, AV36P or AV52

   az vmware private-cloud create -g myResourceGroup -n myPrivateCloudName --location eastus --cluster-size 3 --network-block xx.xx.xx.xx/22 --sku AV36


Connect to Azure Virtual Network with ExpressRoute

In the planning phase, you defined whether to use an existing or new ExpressRoute virtual network gateway.

Important

If you plan to scale your Azure VMware Solution hosts using Azure NetApp Files datastores, deploying the vNet close to your hosts with an ExpressRoute virtual network gateway is crucial. The closer the storage is to your hosts, the better the performance.

Use a new ExpressRoute virtual network gateway

Important

You must have a virtual network with a GatewaySubnet that does not already have a virtual network gateway.

If	Then
You don't already have a virtual network...	Create the following: Virtual network GatewaySubnet Virtual network gateway Connect ExpressRoute to the gateway
You already have a virtual network without a GatewaySubnet...	Create the following: GatewaySubnet Virtual network gateway Connect ExpressRoute to the gateway
You already have a virtual network with a GatewaySubnet...	Create the following: Virtual network gateway Connect ExpressRoute to the gateway

Use an existing virtual network gateway

1. Request an ExpressRoute authorization key:

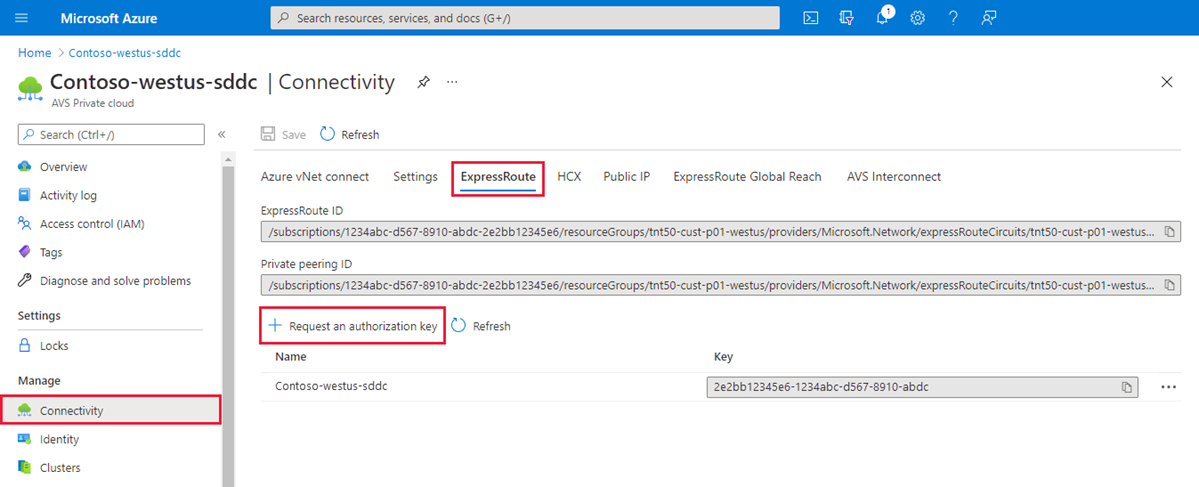

   1. In the Azure portal, navigate to the Azure VMware Solution private cloud. Select Manage > Connectivity > ExpressRoute and then select + Request an authorization key.



   2. Provide a name for it and select Create.

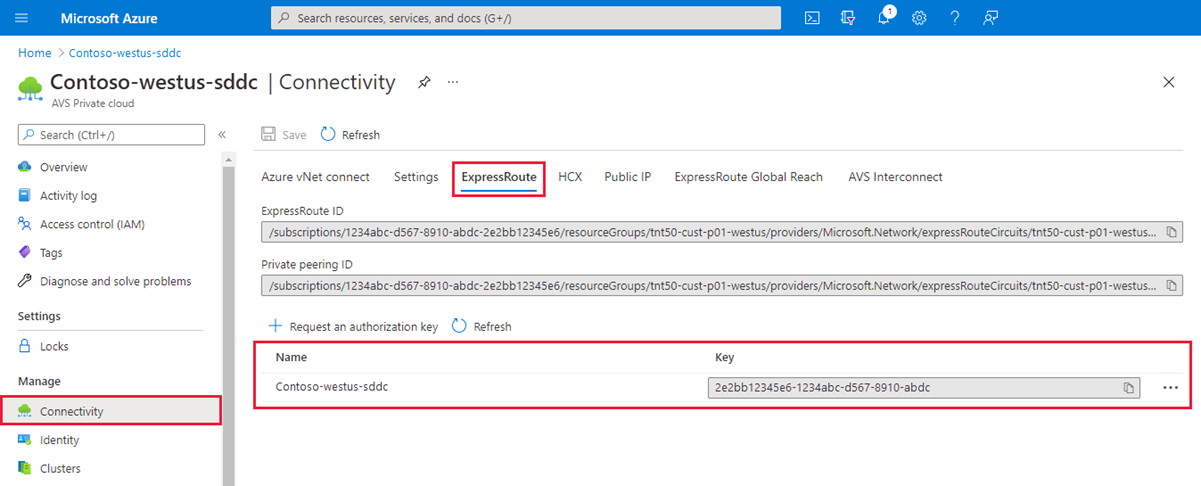

      It can take about 30 seconds to create the key. Once created, the new key appears in the list of authorization keys for the private cloud.



   3. Copy the authorization key and ExpressRoute ID. You need them to complete the peering. The authorization key disappears after some time, so copy it as soon as it appears.

2. Navigate to the virtual network gateway you plan to use and select Connections > + Add.

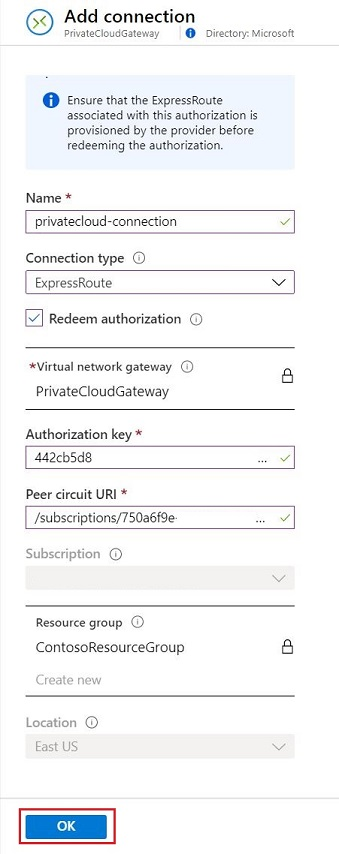

3. On the Add connection page, provide values for the fields, and select OK.

   Field	Value
   Name	Enter a name for the connection.
   Connection type	Select ExpressRoute.
   Redeem authorization	Ensure this box is selected.
   Virtual network gateway	The virtual network gateway you intend to use.
   Authorization key	Paste the authorization key you copied earlier.
   Peer circuit URI	Paste the ExpressRoute ID you copied earlier.

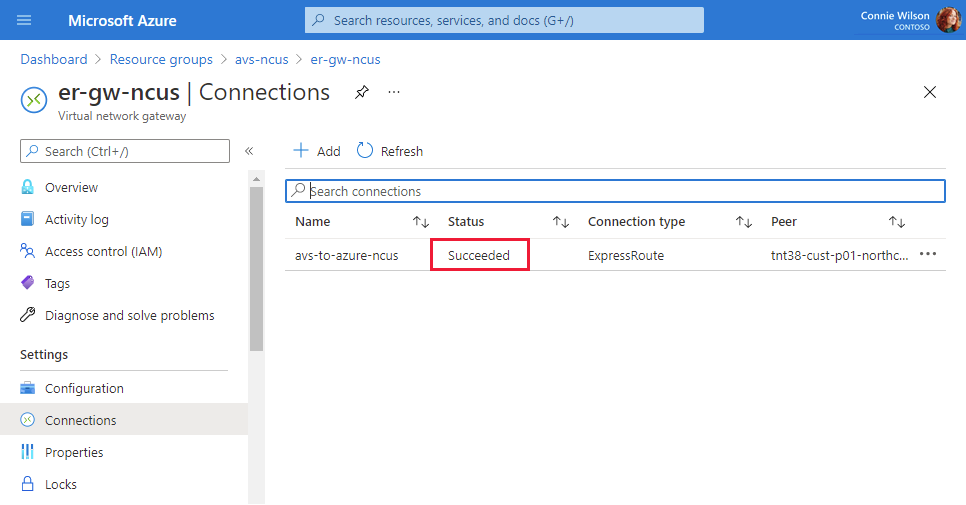

The connection between your ExpressRoute circuit and your Virtual Network is created.

Validate the connection

Ensure connectivity between the Azure Virtual Network where the ExpressRoute terminates and the Azure VMware Solution private cloud.

1. Use a virtual machine within the Azure Virtual Network where the Azure VMware Solution ExpressRoute terminates. For more information, see Connect to Azure Virtual Network with ExpressRoute.

   1. Sign in to the Azure portal.

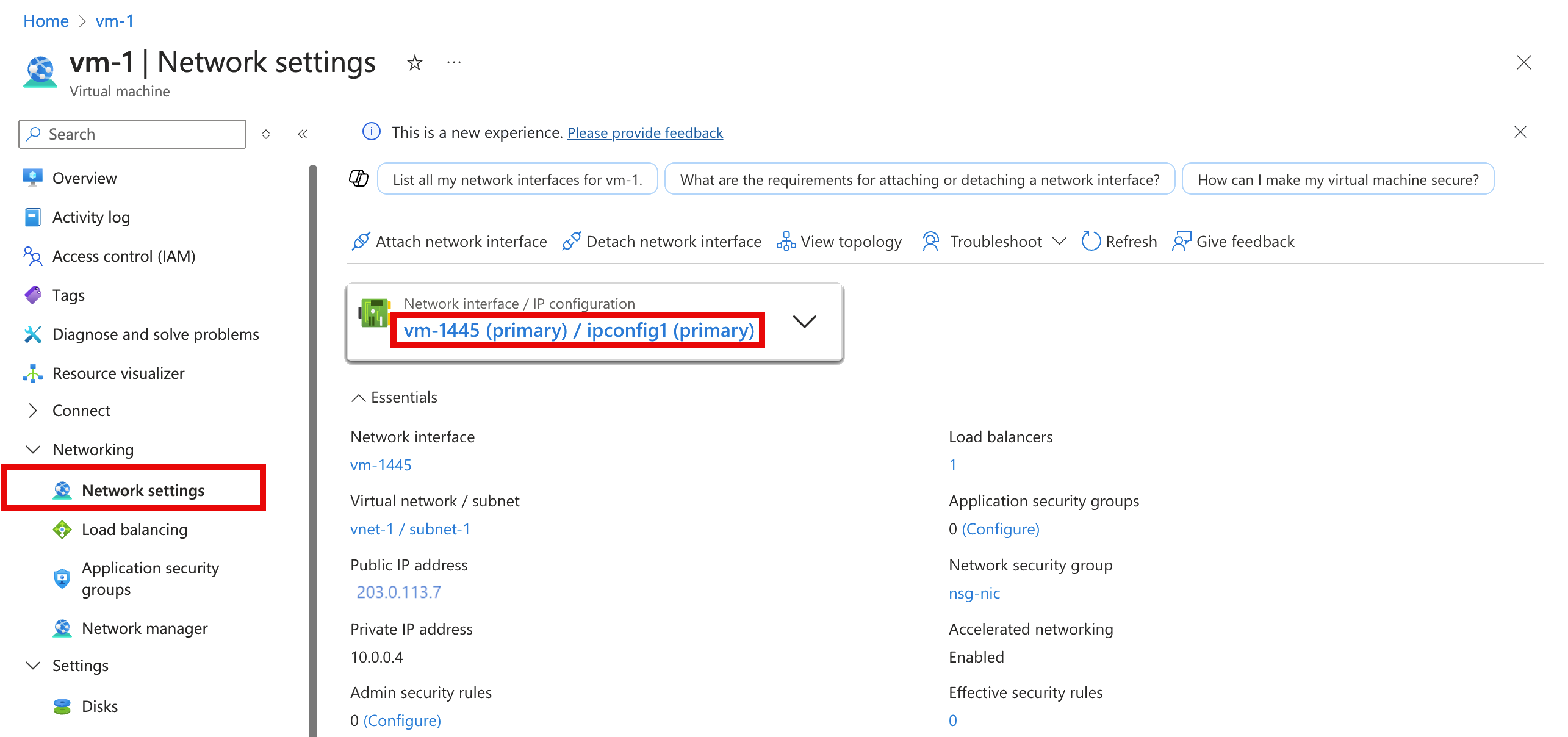

   2. Navigate to a running VM, and under Settings, select Networking and the network interface resource.



   3. On the left, select Effective routes. A list of address prefixes that are contained within the /22 CIDR block you entered during the deployment phase displays.

2. To sign in to both vCenter Server and NSX-T Manager, open a web browser and sign in to the same virtual machine used for network route validation.

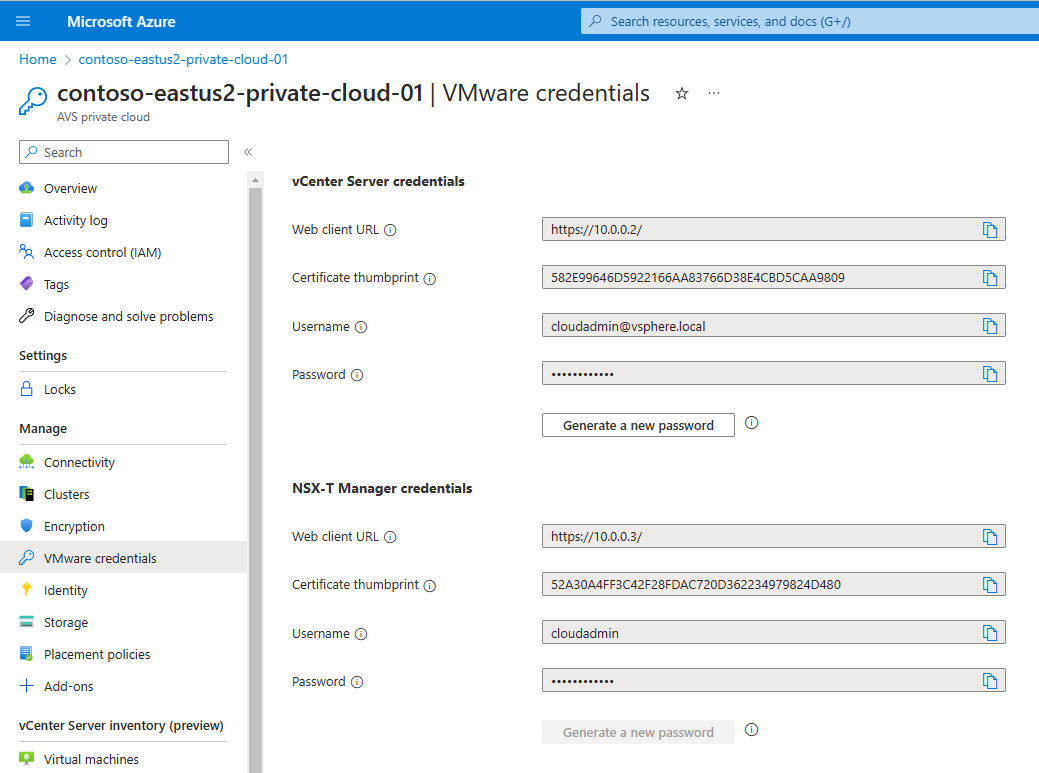

   Find the vCenter Server and NSX-T Manager console's IP addresses and credentials in the Azure portal. Select your private cloud and then Manage > VMware credentials.



Next steps

In the next tutorial, you'll connect Azure VMware Solution to your on-premises network through ExpressRoute.

Connect to your on-premises environment
