How to use parameters, expressions and functions in Azure Data Factory
APPLIES TO:
Azure Data Factory
Azure Synapse Analytics
Tip
Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!
In this document, we will primarily focus on learning fundamental concepts with various examples to explore the ability to create parameterized data pipelines within Azure Data Factory. Parameterization and dynamic expressions are such notable additions to ADF because they can save a tremendous amount of time and allow for a much more flexible Extract, Transform, Load (ETL) or Extract, Load, Transform (ELT) solution, which will dramatically reduce the cost of solution maintenance and speed up the implementation of new features into existing pipelines. These gains are because parameterization minimizes the amount of hard coding and increases the number of reusable objects and processes in a solution.
Azure Data Factory UI and parameters

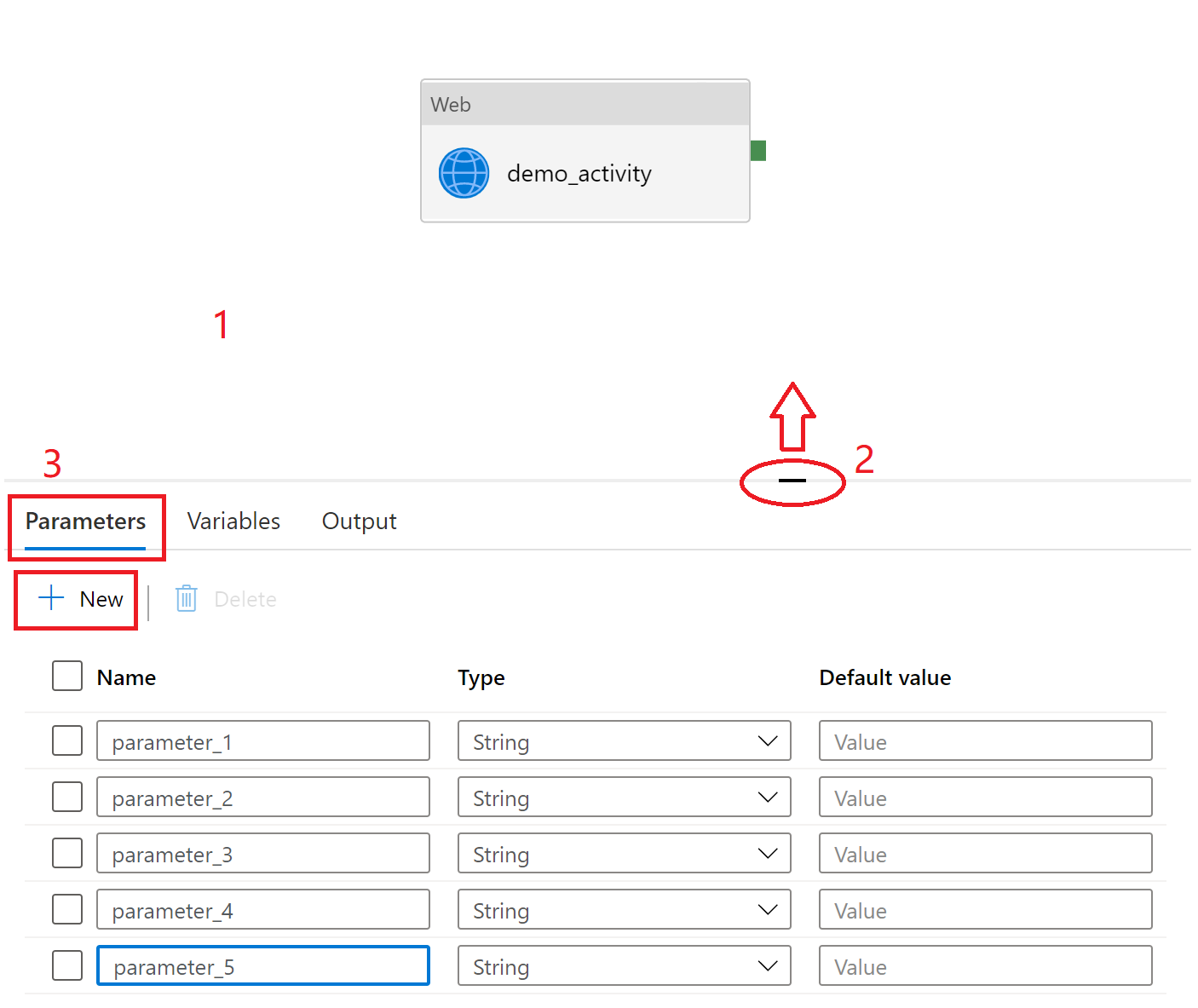

If you are new to Azure Data Factory parameter usage in ADF user interface, please review Data Factory UI for linked services with parameters and Data Factory UI for metadata driven pipeline with parameters for a visual explanation.
Parameter and expression concepts
You can use parameters to pass external values into pipelines, datasets, linked services, and data flows. Once the parameter has been passed into the resource, it cannot be changed. By parameterizing resources, you can reuse them with different values each time. Parameters can be used individually or as a part of expressions. JSON values in the definition can be literal or expressions that are evaluated at runtime.
For example:
"name": "value"
or
"name": "@pipeline().parameters.password"
Expressions can appear anywhere in a JSON string value and always result in another JSON value. Here, password is a pipeline parameter in the expression. If a JSON value is an expression, the body of the expression is extracted by removing the at-sign (@). If a literal string is needed that starts with @, it must be escaped by using @@. The following examples show how expressions are evaluated.
| JSON value | Result |
|---|---|
| "parameters" | The characters 'parameters' are returned. |
| "parameters[1]" | The characters 'parameters[1]' are returned. |
| "@@" | A 1 character string that contains '@' is returned. |
| " @" | A 2 character string that contains ' @' is returned. |
Expressions can also appear inside strings, using a feature called string interpolation where expressions are wrapped in @{ ... }. For example: "name" : "First Name: @{pipeline().parameters.firstName} Last Name: @{pipeline().parameters.lastName}"
Using string interpolation, the result is always a string. Say I have defined myNumber as 42 and myString as foo:
| JSON value | Result |
|---|---|
| "@pipeline().parameters.myString" | Returns foo as a string. |
| "@{pipeline().parameters.myString}" | Returns foo as a string. |
| "@pipeline().parameters.myNumber" | Returns 42 as a number. |
| "@{pipeline().parameters.myNumber}" | Returns 42 as a string. |
| "Answer is: @{pipeline().parameters.myNumber}" | Returns the string Answer is: 42. |
| "@concat('Answer is: ', string(pipeline().parameters.myNumber))" | Returns the string Answer is: 42 |
| "Answer is: @@{pipeline().parameters.myNumber}" | Returns the string Answer is: @{pipeline().parameters.myNumber}. |
Examples of using parameters in expressions
Complex expression example
The below example shows a complex example that references a deep sub-field of activity output. To reference a pipeline parameter that evaluates to a sub-field, use [] syntax instead of dot(.) operator (as in case of subfield1 and subfield2)
@activity('*activityName*').output.*subfield1*.*subfield2*[pipeline().parameters.*subfield3*].*subfield4*
Dynamic content editor
Dynamic content editor automatically escapes characters in your content when you finish editing. For example, the following content in content editor is a string interpolation with two expression functions.
{
"type": "@{if(equals(1, 2), 'Blob', 'Table' )}",
"name": "@{toUpper('myData')}"
}
Dynamic content editor converts above content to expression "{ \n \"type\": \"@{if(equals(1, 2), 'Blob', 'Table' )}\",\n \"name\": \"@{toUpper('myData')}\"\n}". The result of this expression is a JSON format string showed below.
{
"type": "Table",
"name": "MYDATA"
}
A dataset with parameters
In the following example, the BlobDataset takes a parameter named path. Its value is used to set a value for the folderPath property by using the expression: dataset().path.
{
"name": "BlobDataset",
"properties": {
"type": "AzureBlob",
"typeProperties": {
"folderPath": "@dataset().path"
},
"linkedServiceName": {
"referenceName": "AzureStorageLinkedService",
"type": "LinkedServiceReference"
},
"parameters": {
"path": {
"type": "String"
}
}
}
}
A pipeline with parameters
In the following example, the pipeline takes inputPath and outputPath parameters. The path for the parameterized blob dataset is set by using values of these parameters. The syntax used here is: pipeline().parameters.parametername.
{
"name": "Adfv2QuickStartPipeline",
"properties": {
"activities": [
{
"name": "CopyFromBlobToBlob",
"type": "Copy",
"inputs": [
{
"referenceName": "BlobDataset",
"parameters": {
"path": "@pipeline().parameters.inputPath"
},
"type": "DatasetReference"
}
],
"outputs": [
{
"referenceName": "BlobDataset",
"parameters": {
"path": "@pipeline().parameters.outputPath"
},
"type": "DatasetReference"
}
],
"typeProperties": {
"source": {
"type": "BlobSource"
},
"sink": {
"type": "BlobSink"
}
}
}
],
"parameters": {
"inputPath": {
"type": "String"
},
"outputPath": {
"type": "String"
}
}
}
}
Calling functions within expressions
You can call functions within expressions. The following sections provide information about the functions that can be used in an expression.
String functions
To work with strings, you can use these string functions and also some collection functions. String functions work only on strings.
| String function | Task |
|---|---|
| concat | Combine two or more strings, and return the combined string. |
| endsWith | Check whether a string ends with the specified substring. |
| guid | Generate a globally unique identifier (GUID) as a string. |
| indexOf | Return the starting position for a substring. |
| lastIndexOf | Return the starting position for the last occurrence of a substring. |
| replace | Replace a substring with the specified string, and return the updated string. |
| split | Return an array that contains substrings, separated by commas, from a larger string based on a specified delimiter character in the original string. |
| startsWith | Check whether a string starts with a specific substring. |
| substring | Return characters from a string, starting from the specified position. |
| toLower | Return a string in lowercase format. |
| toUpper | Return a string in uppercase format. |
| trim | Remove leading and trailing whitespace from a string, and return the updated string. |
Collection functions
To work with collections, generally arrays, strings, and sometimes, dictionaries, you can use these collection functions.
| Collection function | Task |
|---|---|
| contains | Check whether a collection has a specific item. |
| empty | Check whether a collection is empty. |
| first | Return the first item from a collection. |
| intersection | Return a collection that has only the common items across the specified collections. |
| join | Return a string that has all the items from an array, separated by the specified character. |
| last | Return the last item from a collection. |
| length | Return the number of items in a string or array. |
| skip | Remove items from the front of a collection, and return all the other items. |
| take | Return items from the front of a collection. |
| union | Return a collection that has all the items from the specified collections. |
Logical functions
These functions are useful inside conditions, they can be used to evaluate any type of logic.
| Logical comparison function | Task |
|---|---|
| and | Check whether all expressions are true. |
| equals | Check whether both values are equivalent. |
| greater | Check whether the first value is greater than the second value. |
| greaterOrEquals | Check whether the first value is greater than or equal to the second value. |
| if | Check whether an expression is true or false. Based on the result, return a specified value. |
| less | Check whether the first value is less than the second value. |
| lessOrEquals | Check whether the first value is less than or equal to the second value. |
| not | Check whether an expression is false. |
| or | Check whether at least one expression is true. |
Conversion functions
These functions are used to convert between each of the native types in the language:
- string
- integer
- float
- boolean
- arrays
- dictionaries
| Conversion function | Task |
|---|---|
| array | Return an array from a single specified input. For multiple inputs, see createArray. |
| base64 | Return the base64-encoded version for a string. |
| base64ToBinary | Return the binary version for a base64-encoded string. |
| base64ToString | Return the string version for a base64-encoded string. |
| binary | Return the binary version for an input value. |
| bool | Return the Boolean version for an input value. |
| coalesce | Return the first non-null value from one or more parameters. |
| createArray | Return an array from multiple inputs. |
| dataUri | Return the data URI for an input value. |
| dataUriToBinary | Return the binary version for a data URI. |
| dataUriToString | Return the string version for a data URI. |
| decodeBase64 | Return the string version for a base64-encoded string. |
| decodeDataUri | Return the binary version for a data URI. |
| decodeUriComponent | Return a string that replaces escape characters with decoded versions. |
| encodeUriComponent | Return a string that replaces URL-unsafe characters with escape characters. |
| float | Return a floating point number for an input value. |
| int | Return the integer version for a string. |
| json | Return the JavaScript Object Notation (JSON) type value or object for a string or XML. |
| string | Return the string version for an input value. |
| uriComponent | Return the URI-encoded version for an input value by replacing URL-unsafe characters with escape characters. |
| uriComponentToBinary | Return the binary version for a URI-encoded string. |
| uriComponentToString | Return the string version for a URI-encoded string. |
| xml | Return the XML version for a string. |
| xpath | Check XML for nodes or values that match an XPath (XML Path Language) expression, and return the matching nodes or values. |
Math functions
These functions can be used for either types of numbers: integers and floats.
| Math function | Task |
|---|---|
| add | Return the result from adding two numbers. |
| div | Return the result from dividing two numbers. |
| max | Return the highest value from a set of numbers or an array. |
| min | Return the lowest value from a set of numbers or an array. |
| mod | Return the remainder from dividing two numbers. |
| mul | Return the product from multiplying two numbers. |
| rand | Return a random integer from a specified range. |
| range | Return an integer array that starts from a specified integer. |
| sub | Return the result from subtracting the second number from the first number. |
Date functions
| Date or time function | Task |
|---|---|
| addDays | Add a number of days to a timestamp. |
| addHours | Add a number of hours to a timestamp. |
| addMinutes | Add a number of minutes to a timestamp. |
| addSeconds | Add a number of seconds to a timestamp. |
| addToTime | Add a number of time units to a timestamp. See also getFutureTime. |
| convertFromUtc | Convert a timestamp from Universal Time Coordinated (UTC) to the target time zone. |
| convertTimeZone | Convert a timestamp from the source time zone to the target time zone. |
| convertToUtc | Convert a timestamp from the source time zone to Universal Time Coordinated (UTC). |
| dayOfMonth | Return the day of the month component from a timestamp. |
| dayOfWeek | Return the day of the week component from a timestamp. |
| dayOfYear | Return the day of the year component from a timestamp. |
| formatDateTime | Return the timestamp as a string in optional format. |
| getFutureTime | Return the current timestamp plus the specified time units. See also addToTime. |
| getPastTime | Return the current timestamp minus the specified time units. See also subtractFromTime. |
| startOfDay | Return the start of the day for a timestamp. |
| startOfHour | Return the start of the hour for a timestamp. |
| startOfMonth | Return the start of the month for a timestamp. |
| subtractFromTime | Subtract a number of time units from a timestamp. See also getPastTime. |
| ticks | Return the ticks property value for a specified timestamp. |
| utcNow | Return the current timestamp as a string. |
Detailed examples for practice
Detailed Azure Data Factory copy pipeline with parameters
This Azure Data Factory copy pipeline parameter passing tutorial walks you through how to pass parameters between a pipeline and activity as well as between the activities.
Detailed Mapping data flow pipeline with parameters
Please follow Mapping data flow with parameters for comprehensive example on how to use parameters in data flow.
Detailed Metadata driven pipeline with parameters
Please follow Metadata driven pipeline with parameters to learn more about how to use parameters to design metadata driven pipelines. This is a popular use case for parameters.
Related content
For a list of system variables you can use in expressions, see System variables.
