Quickstart: Route custom events to Azure Event Hubs with Azure CLI and Event Grid

  • Article

Azure Event Grid is a highly scalable and serverless event broker that you can use to integrate applications using events. Event Grid delivers events to supported event handlers and Azure Event Hubs is one of them. In this article, you use Azure CLI for the following steps:

  1. Create an Event Grid custom topic.
  2. Create an Azure Event Hubs subscription for the custom topic.
  3. Send sample events to the custom topic.
  4. Verify that those events are delivered to the event hub.

If you don't have an Azure subscription, create an Azure free account before you begin.

Create a resource group

Event Grid topics are Azure resources, and must be placed in an Azure resource group. The resource group is a logical collection into which Azure resources are deployed and managed.

Create a resource group with the az group create command. The following example creates a resource group named gridResourceGroup in the westus2 location.

Note

Select Try it next to the CLI example to launch Cloud Shell in the right pane. Select Copy button to copy the command, paste it in the Cloud Shell window, and then press ENTER to run the command.

az group create --name gridResourceGroup --location westus2

Enable the Event Grid resource provider

  1. If you haven't previously used Event Grid in your Azure subscription, you might need to register the Event Grid resource provider. Run the following command to register the provider:

    az provider register --namespace Microsoft.EventGrid

  2. It might take a moment for the registration to finish. To check the status, run the following command:

    az provider show --namespace Microsoft.EventGrid --query "registrationState"

    When registrationState is Registered, you're ready to continue.

Create a custom topic

An Event Grid topic provides a user-defined endpoint that you post your events to. The following example creates the custom topic in your resource group. Replace <topic_name> with a unique name for your custom topic. The Event Grid topic name must be unique because it's represented by a Domain Name System (DNS) entry.

  1. Specify a name for the topic.

    topicname="<TOPIC NAME>"

  2. Run the following command to create the topic.

    az eventgrid topic create --name $topicname -l westus2 -g gridResourceGroup

Create an event hub

Before subscribing to the custom topic, let's create the endpoint for the event message. You create an event hub for collecting the events.

  1. Specify a unique name for the Event Hubs namespace.

    namespace="<EVENT HUBS NAMESPACE NAME>"

  2. Run the following commands to create an Event Hubs namespace and an event hub named demohub in that namespace.

    hubname=demohub

az eventhubs namespace create --name $namespace --resource-group gridResourceGroup
az eventhubs eventhub create --name $hubname --namespace-name $namespace --resource-group gridResourceGroup

Subscribe to a custom topic

You subscribe to an Event Grid topic to tell Event Grid which events you want to track. The following example subscribes to the custom topic you created, and passes the resource ID of the event hub for the endpoint. The endpoint is in the format:

/subscriptions/<AZURE SUBSCRIPTION ID>/resourceGroups/<RESOURCE GROUP NAME>/providers/Microsoft.EventHub/namespaces/<NAMESPACE NAME>/eventhubs/<EVENT HUB NAME>

The following script gets the resource ID for the event hub, and subscribes to an Event Grid topic. It sets the endpoint type to eventhub and uses the event hub ID for the endpoint.

hubid=$(az eventhubs eventhub show --name $hubname --namespace-name $namespace --resource-group gridResourceGroup --query id --output tsv)
topicid=$(az eventgrid topic show --name $topicname -g gridResourceGroup --query id --output tsv)

az eventgrid event-subscription create \
  --source-resource-id $topicid \
  --name subtoeventhub \
  --endpoint-type eventhub \
  --endpoint $hubid

The account that creates the event subscription must have write access to the event hub.

Send an event to your custom topic

Let's trigger an event to see how Event Grid distributes the message to your endpoint. First, let's get the URL and key for the custom topic.

endpoint=$(az eventgrid topic show --name $topicname -g gridResourceGroup --query "endpoint" --output tsv)
key=$(az eventgrid topic key list --name $topicname -g gridResourceGroup --query "key1" --output tsv)

To simplify this article, you use sample event data to send to the custom topic. Typically, an application or Azure service would send the event data. CURL is a utility that sends HTTP requests. In this article, use CURL to send the event to the custom topic. The following example sends three events to the Event Grid topic:

for i in 1 2 3
do
   event='[ {"id": "'"$RANDOM"'", "eventType": "recordInserted", "subject": "myapp/vehicles/motorcycles", "eventTime": "'`date +%Y-%m-%dT%H:%M:%S%z`'", "data":{ "make": "Ducati", "model": "Monster"},"dataVersion": "1.0"} ]'
   curl -X POST -H "aeg-sas-key: $key" -d "$event" $endpoint
done

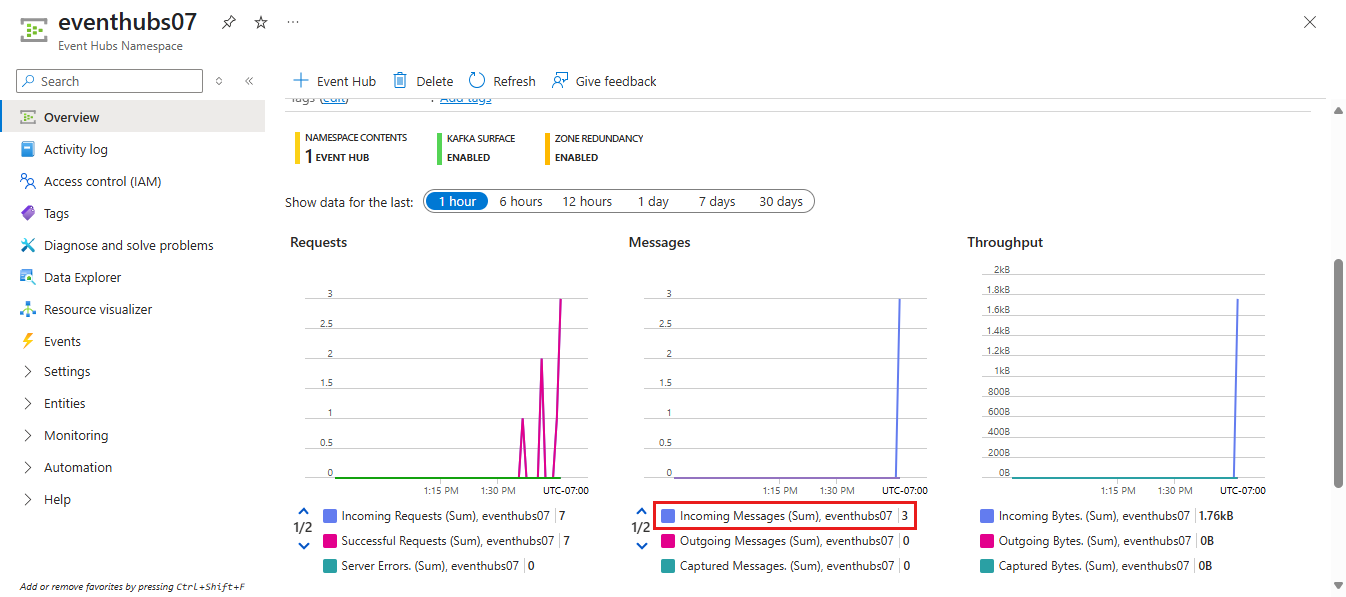

On the Overview page for your Event Hubs namespace in the Azure portal, notice that Event Grid sent those three events to the event hub. You see the same chart on the Overview page for the demohub Event Hubs instance page.

Image showing the portal page with incoming message count as 3.

Typically, you create an application that retrieves the events from the event hub. To create an application that gets messages from an event hub, see:

Clean up resources

If you plan to continue working with this event, don't clean up the resources created in this article. Otherwise, use the following command to delete the resources you created in this article.

az group delete --name gridResourceGroup
