What is Azure Network Watcher?
Azure Network Watcher provides a suite of tools to monitor, diagnose, view metrics, and enable or disable logs for Azure IaaS (Infrastructure-as-a-Service) resources. Network Watcher enables you to monitor and repair the network health of IaaS products like virtual machines (VMs), virtual networks (VNets), application gateways, load balancers, etc. Network Watcher isn't designed or intended for PaaS monitoring or Web analytics.

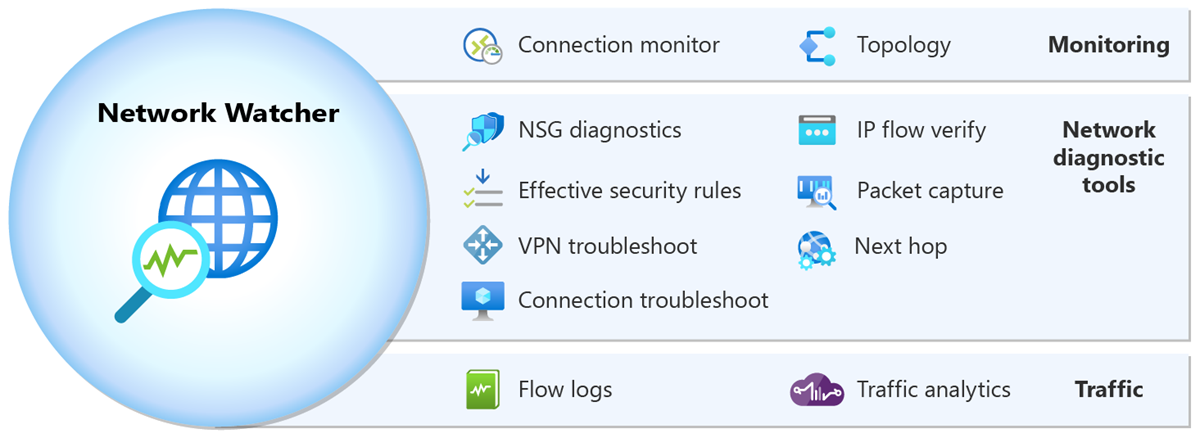

Network Watcher consists of three major sets of tools and capabilities:
When you create or update a virtual network in your subscription, Network Watcher is automatically enabled in your virtual network's region. There's no impact on your resources or associated charge for automatically enabling Network Watcher. For more information, see Enable or disable Network Watcher.
Network Watcher offers two monitoring tools that help you view and monitor resources:
- Connection monitor
Topology provides a visualization of the entire network for understanding network configuration. It provides an interactive interface to view resources and their relationships in Azure spanning across multiple subscriptions, resource groups, and locations. For more information, see Topology overview.
Connection monitor provides end-to-end connection monitoring for Azure and hybrid endpoints. It helps you understand network performance between various endpoints in your network infrastructure. For more information, see Connection monitor overview and Monitor network communication between two virtual machines.
Network diagnostic tools
Network Watcher offers seven network diagnostic tools that help troubleshoot and diagnose network issues:
- IP flow verify
- NSG diagnostics
- Next hop
- Effective security rules
- Connection troubleshoot
- Packet capture
- VPN troubleshoot
IP flow verify
IP flow verify allows you to detect traffic filtering issues at a virtual machine level. It checks if a packet is allowed or denied to or from an IP address (IPv4 or IPv6 address). It also tells you which security rule allowed or denied the traffic. For more information, see IP flow verify overview and Diagnose a virtual machine network traffic filter problem.
NSG diagnostics allows you to detect traffic filtering issues at a virtual machine, virtual machine scale set, or application gateway level. It checks if a packet is allowed or denied to or from an IP address, IP prefix, or a service tag. It tells you which security rule allowed or denied the traffic. It also allows you to add a new security rule with a higher priority to allow or deny the traffic. For more information, see NSG diagnostics overview and Diagnose network security rules.
Next hop allows you to detect routing issues. It checks if traffic is routed correctly to the intended destination. It provides you with information about the Next hop type, IP address, and Route table ID for a specific destination IP address. For more information, see Next hop overview and Diagnose a virtual machine network routing problem.
Effective security rules
Effective security rules allows you to view the effective security rules applied to a network interface. It shows you all security rules applied to the network interface, the subnet the network interface is in, and the aggregate of both. For more information, see Effective security rules overview and View details of a security rule.
Connection troubleshoot enables you to test a connection between a virtual machine, a virtual machine scale set, an application gateway, or a Bastion host and a virtual machine, an FQDN, a URI, or an IPv4 address. The test returns similar information returned when using the connection monitor capability, but tests the connection at a point in time instead of monitoring it over time, as connection monitor does. For more information, see Connection troubleshoot overview and Troubleshoot connections with Azure Network Watcher.
Packet capture allows you to remotely create packet capture sessions to track traffic to and from a virtual machine (VM) or a virtual machine scale set. For more information, see packet capture and Manage packet captures for virtual machines.
Network Watcher offers two traffic tools that help you log and visualize network traffic:
- Flow logs

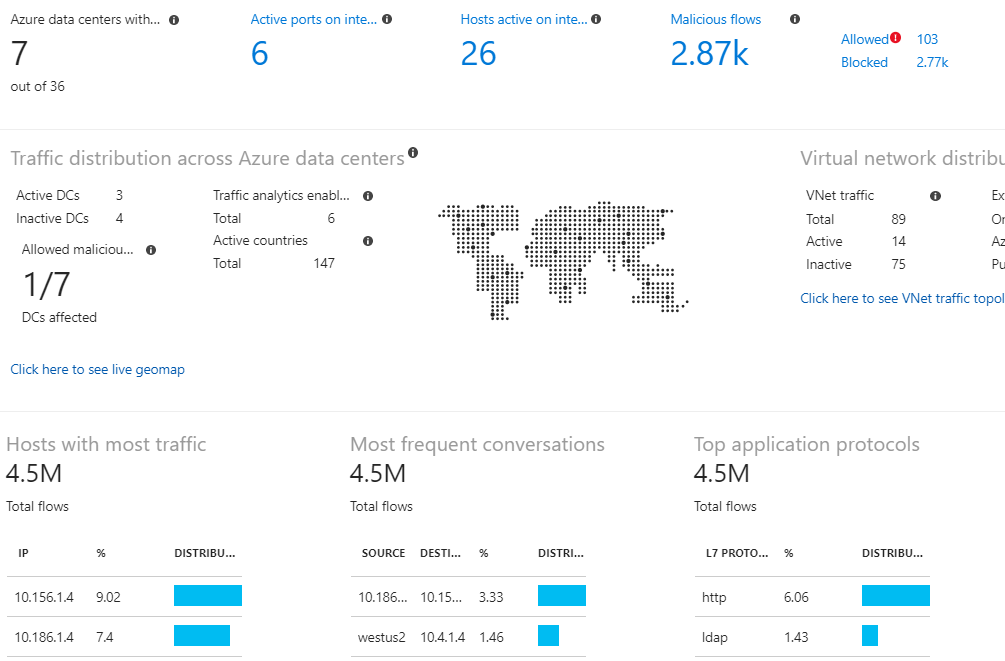

- Traffic analytics
Flow logs allows you to log information about your Azure IP traffic and stores the data in Azure storage. You can log IP traffic flowing through a network security group or Azure virtual network. For more information, see:
- NSG flow logs and Log network traffic to and from a virtual machine.
- VNet flow logs (preview) and Manage VNet flow logs.
Usage + quotas

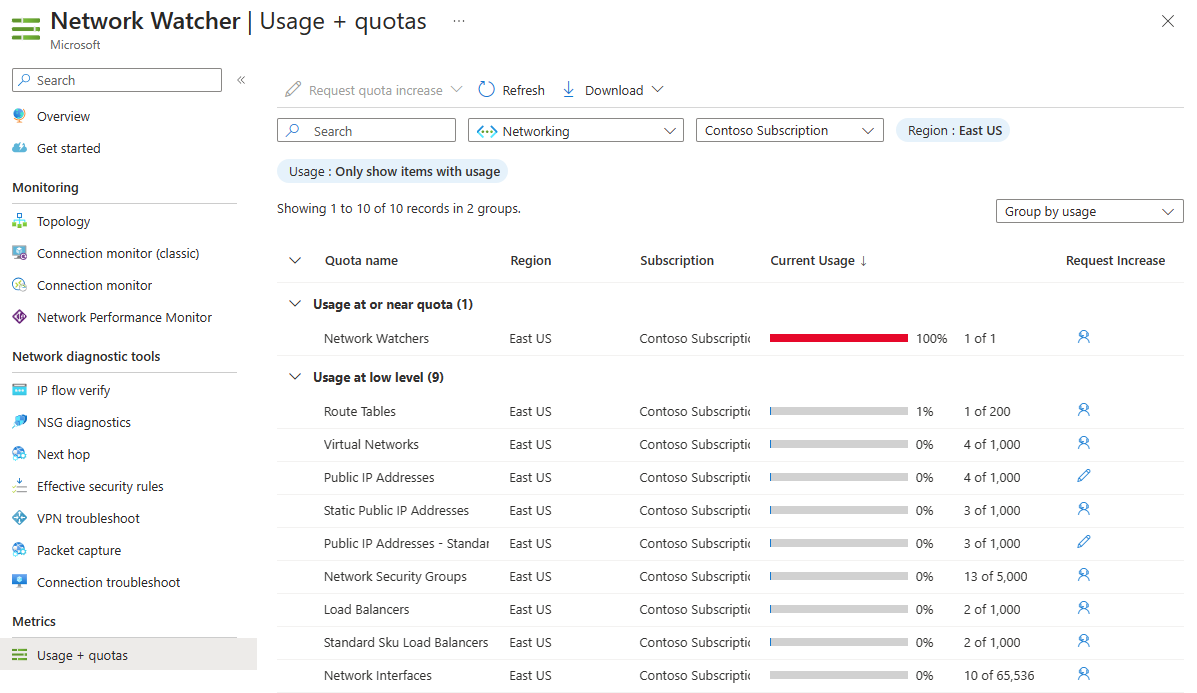

The Usage + quotas capability of Network Watcher provides a summary of how many of each network resource you've deployed in a subscription and region and what the limit is for the resource. For more information, see Networking limits to the number of network resources that you can create within an Azure subscription and region. This information is helpful when planning future resource deployments as you can't create more resources if you reach their limits within the subscription or region.
Network Watcher limits
Network Watcher has the following limits:
|Network Watcher instances per region per subscription
|1 (One instance in a region to enable access to the service in the region)
|Connection monitors per region per subscription
|Maximum test groups per a connection monitor
|Maximum sources and destinations per a connection monitor
|Maximum test configurations per a connection monitor
|Packet capture sessions per region per subscription
|10,000 (Number of sessions only, not saved captures)
|VPN troubleshoot operations per subscription
|1 (Number of operations at one time)
For pricing details, see Network Watcher pricing.
Service Level Agreement (SLA)
For service level agreement details, see Service Level Agreements (SLA) for Online Services.
Frequently asked questions (FAQ)
To get answers to most frequently asked questions about Network Watcher, see Azure Network Watcher frequently asked questions (FAQ).
To view the latest Network Watcher feature updates, see Service updates.
- To get started using Network Watcher diagnostic tools, see Quickstart: Diagnose a virtual machine network traffic filter problem.
- To learn more about Network Watcher, see Training module: Introduction to Azure Network Watcher.
