Apache Spark in Azure Synapse Analytics

Apache Spark is a parallel processing framework that supports in-memory processing to boost the performance of big data analytic applications. Apache Spark in Azure Synapse Analytics is one of Microsoft's implementations of Apache Spark in the cloud. Azure Synapse makes it easy to create and configure a serverless Apache Spark pool in Azure. Spark pools in Azure Synapse are compatible with Azure Storage and Azure Data Lake Generation 2 Storage. So you can use Spark pools to process your data stored in Azure.

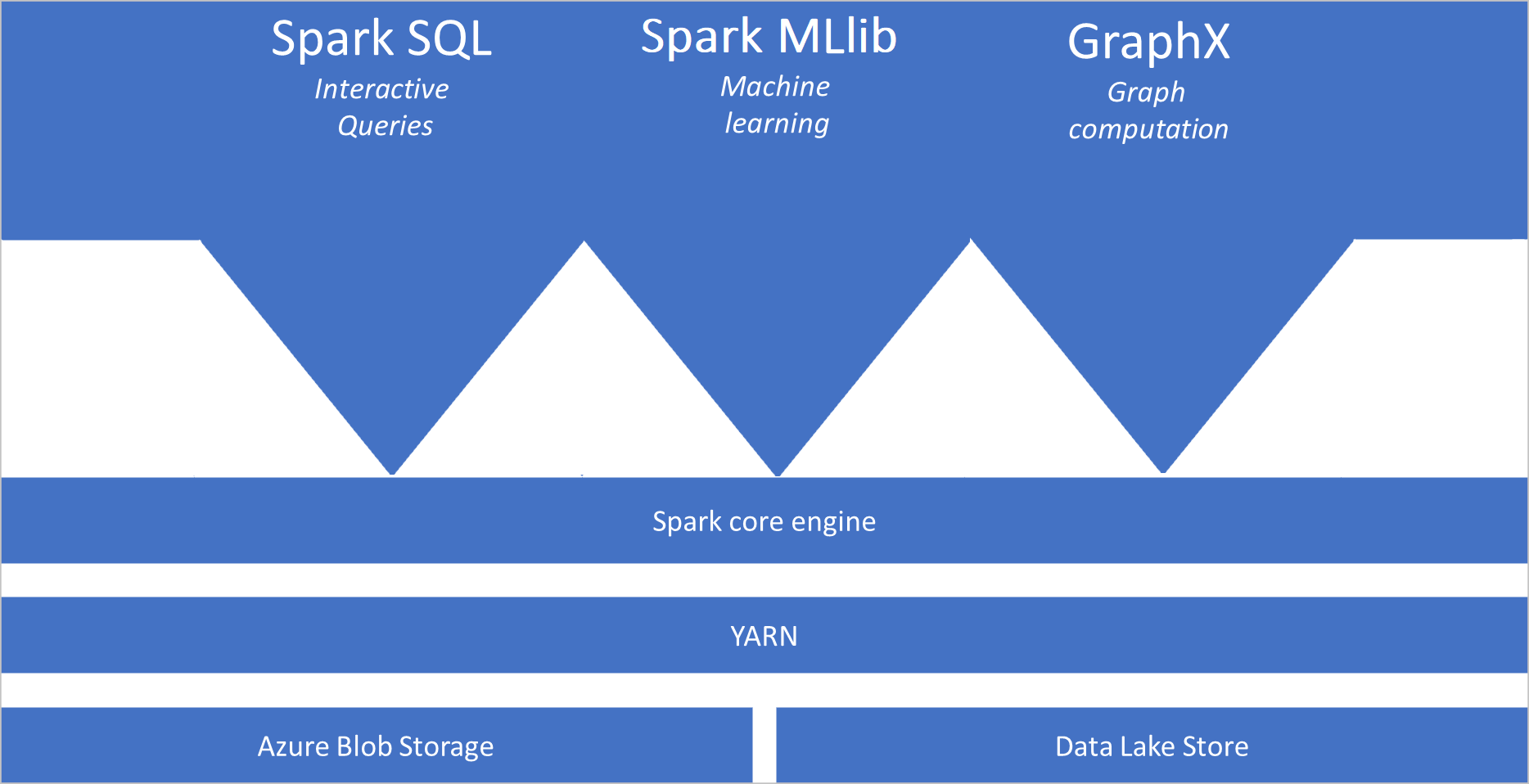

Diagram shows Spark SQL, Spark MLib, and GraphX linked to the Spark core engine, above a YARN layer over storage services.

What is Apache Spark

Apache Spark provides primitives for in-memory cluster computing. A Spark job can load and cache data into memory and query it repeatedly. In-memory computing is much faster than disk-based applications. Spark also integrates with multiple programming languages to let you manipulate distributed data sets like local collections. There's no need to structure everything as map and reduce operations. You can learn more from the Apache Spark for Synapse video.

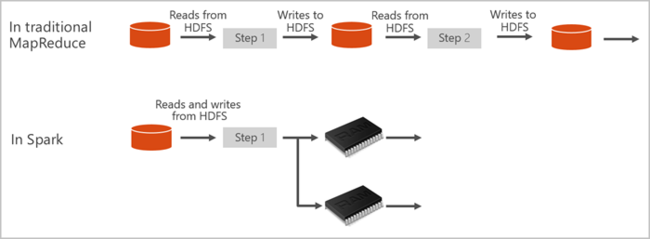

Diagram shows Traditional MapReduce, with disk-based apps and Spark, with cache-based operations.

Spark pools in Azure Synapse offer a fully managed Spark service. The benefits of creating a Spark pool in Azure Synapse Analytics are listed here.

Feature Description
Speed and efficiency Spark instances start in approximately 2 minutes for fewer than 60 nodes and approximately 5 minutes for more than 60 nodes. The instance shuts down, by default, 5 minutes after the last job runs unless it's kept alive by a notebook connection.
Ease of creation You can create a new Spark pool in Azure Synapse in minutes using the Azure portal, Azure PowerShell, or the Synapse Analytics .NET SDK. See Get started with Spark pools in Azure Synapse Analytics.
Ease of use Synapse Analytics includes a custom notebook derived from nteract. You can use these notebooks for interactive data processing and visualization.
REST APIs Spark in Azure Synapse Analytics includes Apache Livy, a REST API-based Spark job server to remotely submit and monitor jobs.
Support for Azure Data Lake Storage Generation 2 Spark pools in Azure Synapse can use Azure Data Lake Storage Generation 2 and BLOB storage. For more information on Data Lake Storage, see Overview of Azure Data Lake Storage.
Integration with third-party IDEs Azure Synapse provides an IDE plugin for JetBrains' IntelliJ IDEA that is useful to create and submit applications to a Spark pool.
Preloaded Anaconda libraries Spark pools in Azure Synapse come with Anaconda libraries preinstalled. Anaconda provides close to 200 libraries for machine learning, data analysis, visualization, and other technologies.
Scalability Apache Spark in Azure Synapse pools can have Auto-Scale enabled, so that pools scale by adding or removing nodes as needed. Also, Spark pools can be shut down with no loss of data since all the data is stored in Azure Storage or Data Lake Storage.

Spark pools in Azure Synapse include the following components that are available on the pools by default:

Spark pool architecture

Spark applications run as independent sets of processes on a pool, coordinated by the SparkContext object in your main program, called the driver program.

The SparkContext can connect to the cluster manager, which allocates resources across applications. The cluster manager is Apache Hadoop YARN. Once connected, Spark acquires executors on nodes in the pool, which are processes that run computations and store data for your application. Next, it sends your application code, defined by JAR or Python files passed to SparkContext, to the executors. Finally, SparkContext sends tasks to the executors to run.

The SparkContext runs the user's main function and executes the various parallel operations on the nodes. Then, the SparkContext collects the results of the operations. The nodes read and write data from and to the file system. The nodes also cache transformed data in-memory as Resilient Distributed Datasets (RDDs).

The SparkContext connects to the Spark pool and is responsible for converting an application to a directed acyclic graph (DAG). The graph consists of individual tasks that run within an executor process on the nodes. Each application gets its own executor processes, which stay up during the whole application and run tasks in multiple threads.

Apache Spark in Azure Synapse Analytics use cases

Spark pools in Azure Synapse Analytics enable the following key scenarios:

  • Data Engineering/Data Preparation

Apache Spark includes many language features to support preparation and processing of large volumes of data so that it can be made more valuable and then consumed by other services within Azure Synapse Analytics. This is enabled through multiple languages (C#, Scala, PySpark, Spark SQL) and supplied libraries for processing and connectivity.

  • Machine Learning

Apache Spark comes with MLlib, a machine learning library built on top of Spark that you can use from a Spark pool in Azure Synapse Analytics. Spark pools in Azure Synapse Analytics also include Anaconda, a Python distribution with a variety of packages for data science including machine learning. When combined with built-in support for notebooks, you have an environment for creating machine learning applications.

  • Streaming Data

Synapse Spark supports Spark structured streaming as long as you are running supported version of Azure Synapse Spark runtime release. All jobs are supported to live for seven days. This applies to both batch and streaming jobs, and generally, customers automate restart process using Azure Functions.

Where do I start

Use the following articles to learn more about Apache Spark in Azure Synapse Analytics:


Some of the official Apache Spark documentation relies on using the Spark console, which is not available on Azure Synapse Spark. Use the notebook or IntelliJ experiences instead.

Next steps

This overview provided a basic understanding of Apache Spark in Azure Synapse Analytics. Advance to the next article to learn how to create a Spark pool in Azure Synapse Analytics:
