VPN Gateway topology and design

There are many different configuration options available for VPN Gateway connections. To help you select the connection topology that meets your requirements, use the diagrams and descriptions in the following sections. The diagrams show the main baseline topologies, but it's possible to build more complex configurations using the diagrams as guidelines.

Site-to-site VPN

A site-to-site (S2S) VPN gateway connection is a connection over IPsec/IKE (IKEv1 or IKEv2) VPN tunnel. Site-to-site connections can be used for cross-premises and hybrid configurations. A site-to-site connection requires a VPN device located on-premises that has a public IP address assigned to it.

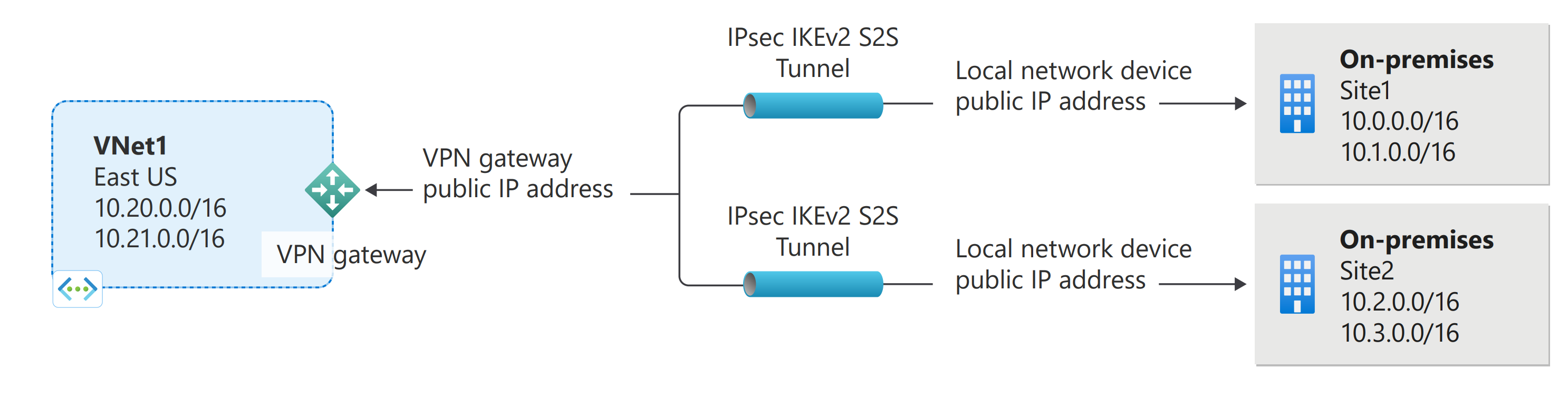

You can create more than one VPN connection from your virtual network gateway, typically connecting to multiple on-premises sites. When working with multiple connections, you must use a RouteBased VPN type. Because each virtual network can only have one VPN gateway, all connections through the gateway share the available bandwidth. This type of connectivity design is sometimes referred to as multi-site.

If you want to create a design for highly available gateway connectivity, you can configure your gateway to be in active-active mode. This mode lets you configure two active tunnels (one from each gateway virtual machine instance) to the same VPN device to create highly available connectivity. In addition to being a highly available connectivity design, another advantage of active-active mode is that customers experience higher throughputs.

• For information about selecting a VPN device, see the VPN Gateway FAQ - VPN devices.
• For information about highly available connections, see Designing highly available connections.
• For information about active-active mode, see About active-active mode gateways.

Deployment models and methods for S2S

Deployment model	Azure portal	PowerShell	Azure CLI
Resource Manager	Tutorial	Tutorial	Tutorial

Point-to-site VPN

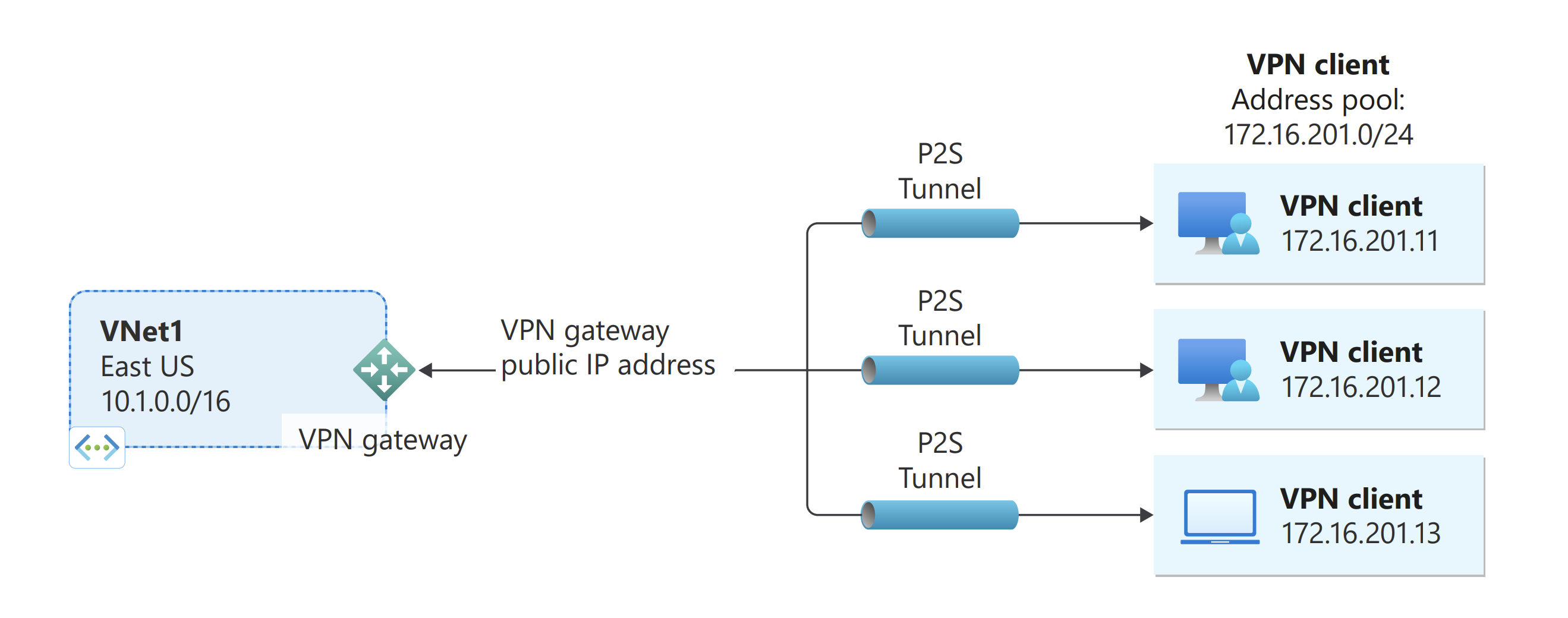

A point-to-site (P2S) VPN gateway connection lets you create a secure connection to your virtual network from an individual client computer. A point-to-site connection is established by starting it from the client computer. This solution is useful for telecommuters who want to connect to Azure virtual networks from a remote location, such as from home or a conference. Point-to-site VPN is also a useful solution to use instead of site-to-site VPN when you have only a few clients that need to connect to a virtual network.

Unlike site-to-site connections, point-to-site connections don't require an on-premises public-facing IP address or a VPN device. Point-to-site connections can be used with site-to-site connections through the same VPN gateway, as long as all the configuration requirements for both connections are compatible. For more information about point-to-site connections, see About point-to-site VPN.

Deployment models and methods for P2S

Authentication method	Article
Certificate	Tutorial How-to
Microsoft Entra ID	How-to
RADIUS	How-to

P2S VPN client configuration

Authentication	Tunnel type	Client OS	VPN client
Certificate
	IKEv2, SSTP	Windows	Native VPN client
	IKEv2	macOS	Native VPN client
	IKEv2	Linux	strongSwan
	OpenVPN	Windows	Azure VPN client OpenVPN client
	OpenVPN	macOS	OpenVPN client
	OpenVPN	iOS	OpenVPN client
	OpenVPN	Linux	Azure VPN Client OpenVPN client
Microsoft Entra ID
	OpenVPN	Windows	Azure VPN client
	OpenVPN	macOS	Azure VPN Client
	OpenVPN	Linux	Azure VPN Client

VNet-to-VNet connections (IPsec/IKE VPN tunnel)

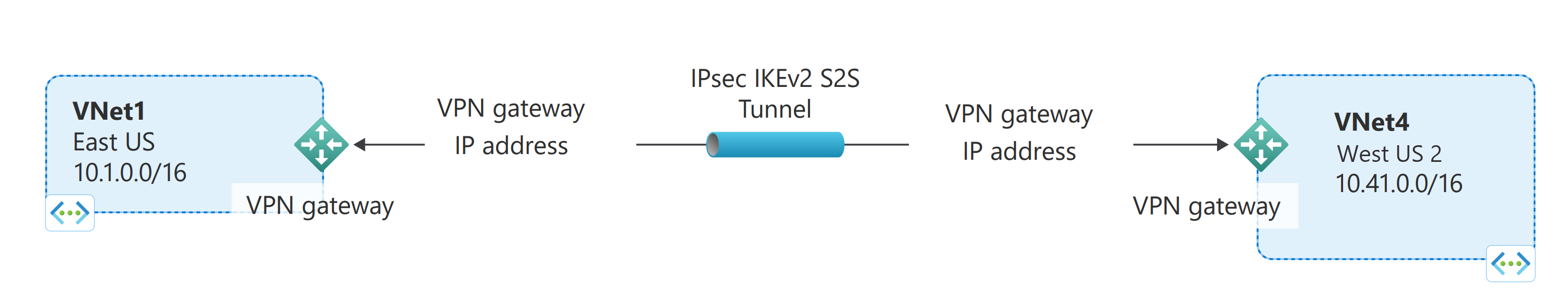

Connecting a virtual network to another virtual network (VNet-to-VNet) is similar to connecting a virtual network to an on-premises site location. Both connectivity types use a VPN gateway to provide a secure tunnel using IPsec/IKE. You can even combine VNet-to-VNet communication with multi-site connection configurations. This lets you establish network topologies that combine cross-premises connectivity with inter-virtual network connectivity.

The virtual networks you connect can be:

• in the same or different regions
• in the same or different subscriptions
• in the same or different deployment models

Deployment models and methods for VNet-to-VNet

Deployment model	Azure portal	PowerShell	Azure CLI
Resource Manager	Tutorial+	Tutorial	Tutorial

(+) Denotes this deployment method is available only for VNets in the same subscription.

In some cases, you might want to use virtual network peering instead of VNet-to-VNet to connect your virtual networks. Virtual network peering doesn't use a virtual network gateway. For more information, see Virtual network peering.

Site-to-site and ExpressRoute coexisting connections

ExpressRoute is a direct, private connection from your WAN (not over the public Internet) to Microsoft Services, including Azure. Site-to-site VPN traffic travels encrypted over the public Internet. Being able to configure site-to-site VPN and ExpressRoute connections for the same virtual network has several advantages.

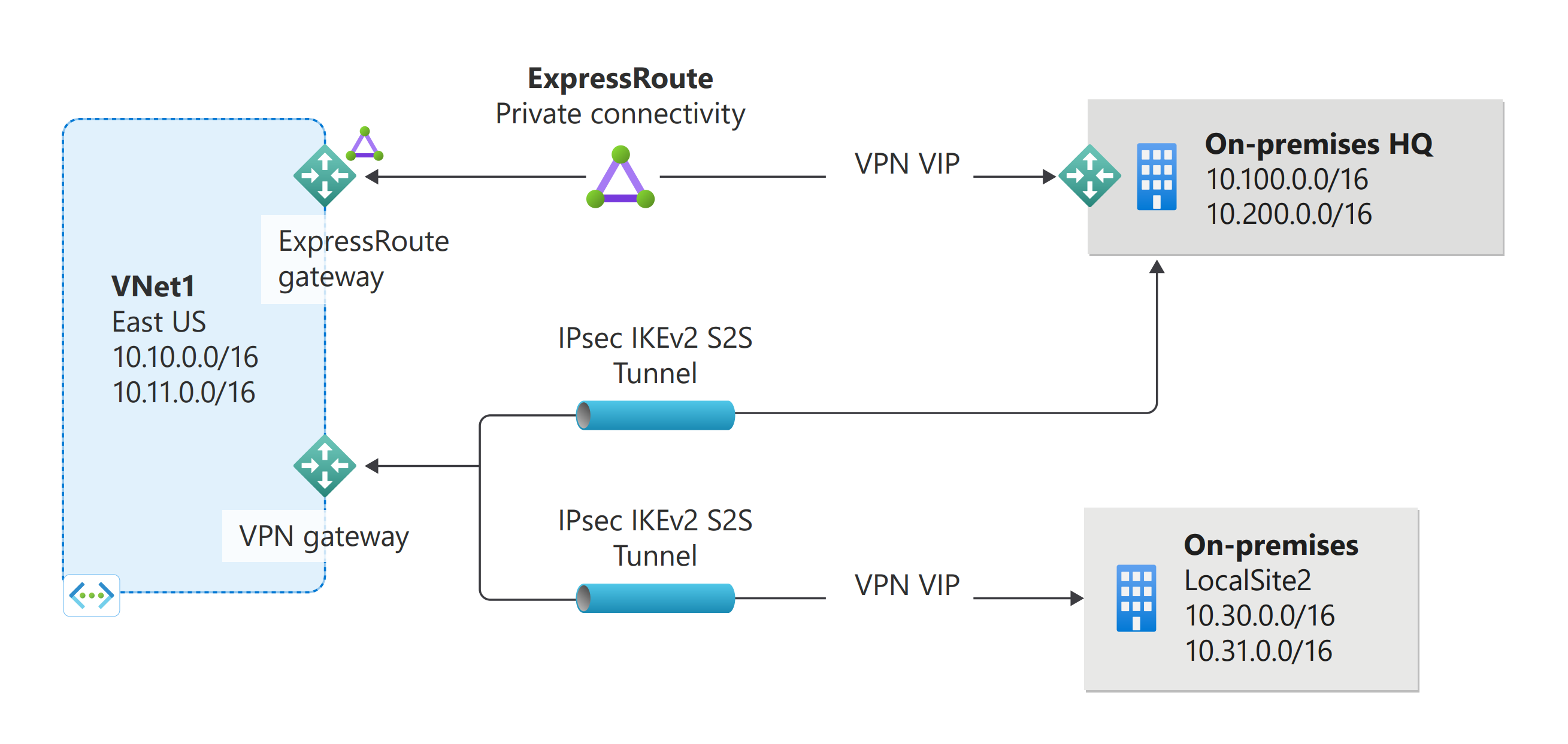

You can configure a site-to-site VPN as a secure failover path for ExpressRoute, or use site-to-site VPNs to connect to sites that aren't part of your network, but that are connected through ExpressRoute. Notice that this configuration requires two virtual network gateways for the same virtual network, one using the gateway type Vpn, and the other using the gateway type ExpressRoute.

Deployment models and methods for S2S and ExpressRoute coexisting connections

Deployment model	Azure portal	PowerShell
Resource Manager	Tutorial	Tutorial

Highly available connections

For planning and designing highly available connections, including active-active mode configurations, see Design highly available gateway connectivity for cross-premises and VNet-to-VNet connections.
