Tutorial: Microsoft Entra single sign-on (SSO) integration with Fivetran

  • Article

In this tutorial, you'll learn how to integrate Fivetran with Microsoft Entra ID. When you integrate Fivetran with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Fivetran.
  • Enable your users to be automatically signed-in to Fivetran with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • A Fivetran account.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Fivetran supports IDP initiated SSO.
  • Fivetran supports Just In Time user provisioning.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Fivetran into Microsoft Entra ID, you need to add Fivetran from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Fivetran in the search box.
  4. Select Fivetran from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Fivetran

Configure and test Microsoft Entra SSO with Fivetran using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Fivetran.

To configure and test Microsoft Entra SSO with Fivetran, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Fivetran SSO - to configure the single sign-on settings on application side.
    1. Create Fivetran test user - to have a counterpart of B.Simon in Fivetran that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Fivetran > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, the application is pre-configured and the necessary URLs are already pre-populated with Azure. The user needs to save the configuration by clicking the Save button.

  6. Fivetran application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.


  7. In addition to above, Fivetran application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source Attribute
    FirstName user.givenname
    LastName user.surname

  8. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    The Certificate download link

  9. On the Set up Fivetran section, copy the Login URL and Microsoft Entra Identifier values.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Fivetran.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Fivetran.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been setup for this app, you see "Default Access" role selected.
  7. In the Add Assignment dialog, click the Assign button.

Configure Fivetran SSO

In this section, you'll configure single sign-on on the Fivetran side.

  1. In a different web browser window, sign in to your Fivetran account as the account owner.

  2. Select the arrow in the top left corner of the window, and then select Manage Account from the drop-down list.

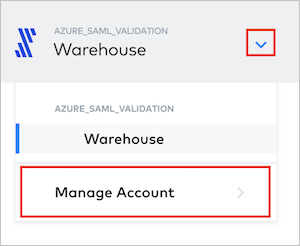

    Screenshot that shows the Manage Account menu option selected.

  3. Go to the SAML Config section of the Settings page.

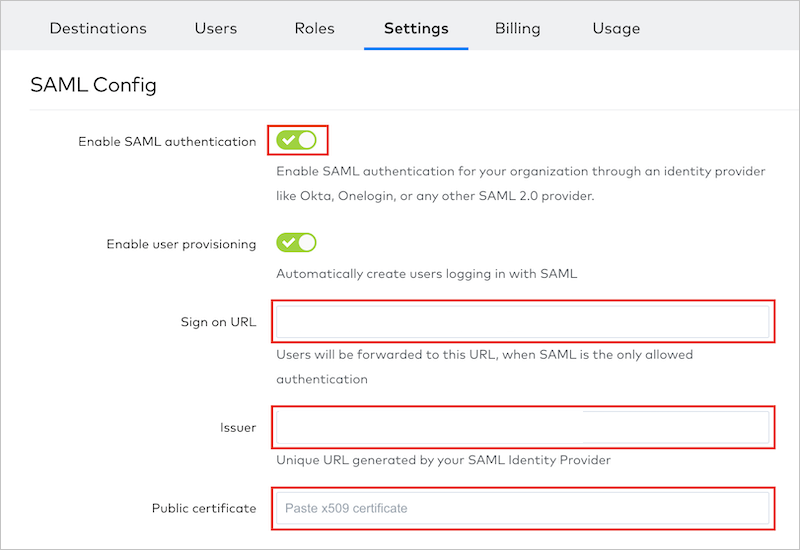

    Screenshot that shows the SAML Config pane with configuration options highlighted.

    1. For Enable SAML authentication, select ON.
    2. In Sign on URL, paste the value of Login URL, which you copied.
    3. In Issuer, paste the value of Microsoft Entra Identifier, which you copied.
    4. Open your downloaded certificate file in a text editor, copy the certificate into your clipboard, and then paste it to in the Public certificate text box.
    5. Select SAVE CONFIG.

Create Fivetran test user

In this section, a user called B.Simon is created in Fivetran. Fivetran supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Fivetran, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, and you should be automatically signed in to the Fivetran for which you set up the SSO.

  • You can use Microsoft My Apps. When you click the Fivetran tile in the My Apps, you should be automatically signed in to the Fivetran for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Fivetran you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
