Configure Data Warehouse in a copy activity

This article outlines how to use the copy activity in data pipeline to copy data from and to a Data Warehouse.

Supported configuration

For the configuration of each tab under copy activity, go to the following sections respectively.

• General
• Source
• Destination
• Mapping
• Settings

General

For the General tab configuration, go to General.

Source

The following properties are supported for Data Warehouse as Source in a copy activity.

The following properties are required:

• Data store type: Select Workspace.

• Workspace data store type: Select Data Warehouse from the data store type list.

• Data Warehouse: Select an existing Data Warehouse from the workspace.

• Use query: Select Table, Query, or Stored procedure.

  • If you select Table, choose an existing table from the table list, or specify a table name manually by selecting the Edit box.



  • If you select Query, use the custom SQL query editor to write a SQL query that retrieves the source data.



  • If you select Stored procedure, choose an existing stored procedure from the drop-down list, or specify a stored procedure name as the source by selecting the Edit box.



Under Advanced, you can specify the following fields:

• Query timeout (minutes): Timeout for query command execution, with a default of 120 minutes. If this property is set, the allowed values are in the format of a timespan, such as "02:00:00" (120 minutes).

• Isolation level: Specify the transaction locking behavior for the SQL source.

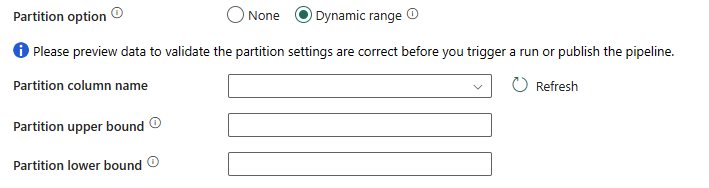

• Partition option: Specify the data partitioning options used to load data from Data Warehouse. You can select None or Dynamic range.

  If you select Dynamic range, the range partition parameter(?AdfDynamicRangePartitionCondition) is needed when using query with parallel enabled. Sample query: SELECT * FROM <TableName> WHERE ?AdfDynamicRangePartitionCondition.



  • Partition column name: Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that is used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is detected automatically and used as the partition column.
  • Partition upper bound: The maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.
  • Partition lower bound: The minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.

• Additional columns: Add additional data columns to store source files' relative path or static value. Expression is supported for the latter.



Destination

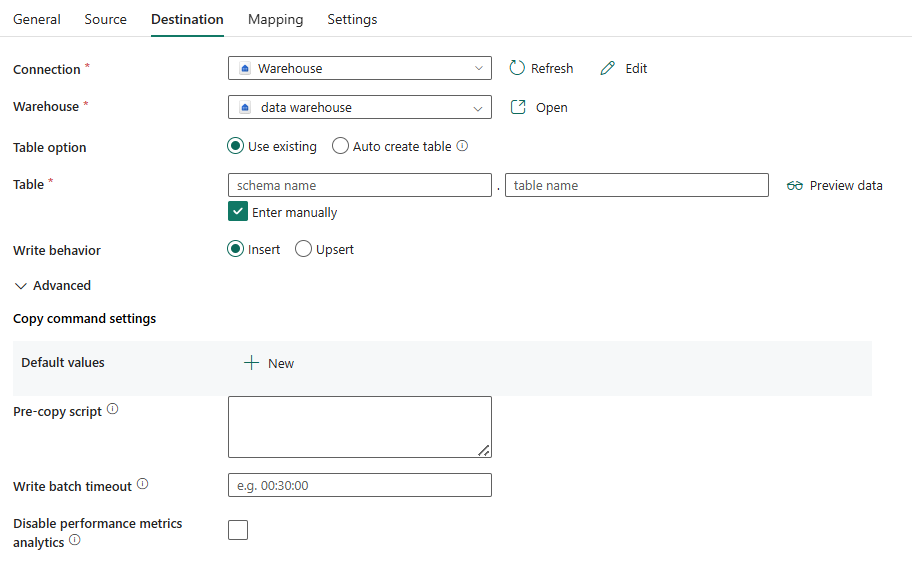

The following properties are supported for Data Warehouse as Destination in a copy activity.

The following properties are required:

• Data store type: Select Workspace.
• Workspace data store type: Select Data Warehouse from the data store type list.
• Data Warehouse: Select an existing Data Warehouse from the workspace.
• Table: Choose an existing table from the table list or specify a table name as destination.

Under Advanced, you can specify the following fields:

• Copy command settings: Specify copy command properties.



• Table options: Specify whether to automatically create the destination table if none exists based on the source schema. You can select None or Auto create table.

• Pre-copy script: Specify a SQL query to run before writing data into Data Warehouse in each run. Use this property to clean up the preloaded data.

• Write batch timeout: The wait time for the batch insert operation to finish before it times out. The allowed values are in the format of a timespan. The default value is "00:30:00" (30 minutes).

• Disable performance metrics analytics: The service collects metrics for copy performance optimization and recommendations. If you're concerned with this behavior, turn off this feature.

Direct copy

The COPY statement is the primary way to ingest data into Warehouse tables. Data Warehouse COPY command directly supports Azure Blob Storage and Azure Data Lake Storage Gen2 as source data stores. If your source data meets the criteria described in this section, use COPY command to copy directly from the source data store to Data Warehouse.

1. The source data and format contain the following types and authentication methods:

   Supported source data store type	Supported format	Supported source authentication type
   Azure Blob Storage	Delimited text Parquet	Anonymous authentication Account key authentication Shared access signature authentication
   Azure Data Lake Storage Gen2	Delimited text Parquet	Account key authentication Shared access signature authentication

2. The following Format settings can be set:


   1. For Parquet: Compression type can be None, snappy, or gzip.
   2. For DelimitedText:
      1. Row delimiter: When copying delimited text to Data Warehouse via direct COPY command, specify the row delimiter explicitly (\r; \n; or \r\n). Only when the row delimiter of the source file is \r\n, the default value (\r, \n, or \r\n) works. Otherwise, enable staging for your scenario.
      2. Null value is left as default or set to empty string ("").
      3. Encoding is left as default or set to UTF-8 or UTF-16.
      4. Skip line count is left as default or set to 0.
      5. Compression type can be None or gzip.

3. If your source is a folder, you must select Recursively checkbox.

4. Start time (UTC) and End time (UTC) in Filter by last modified, Prefix, Enable partition discovery, and Additional columns aren't specified.

To learn how to ingest data into your Data Warehouse using the COPY command, see this article.

If your source data store and format isn't originally supported by a COPY command, use the Staged copy by using the COPY command feature instead. It automatically converts the data into a COPY command compatible format, then calls a COPY command to load data into Data Warehouse.

Staged copy

When your source data is not natively compatible with COPY command, enable data copying via an interim staging storage. In this case, the service automatically converts the data to meet the data format requirements of COPY command. Then it invokes COPY command to load data into Data Warehouse. Finally, it cleans up your temporary data from the storage.

To use staged copy, go to Settings tab and select Enable staging. You can choose Workspace to use auto-created staging storage within Fabric. For External, Azure Blob Storage and Azure Data Lake Storage Gen2 are supported as the external staging storage. You need to create an Azure Blob Storage or Azure Data Lake Storage Gen2 connection first, and then select the connection from the drop-down list to use the staging storage.

Please note that you need to ensure the IP range of the Data Warehouse has been allowed correctly from the staging storage.

Mapping

For the Mapping tab configuration, if you don't apply Data Warehouse with auto create table as your destination, go to Mapping.

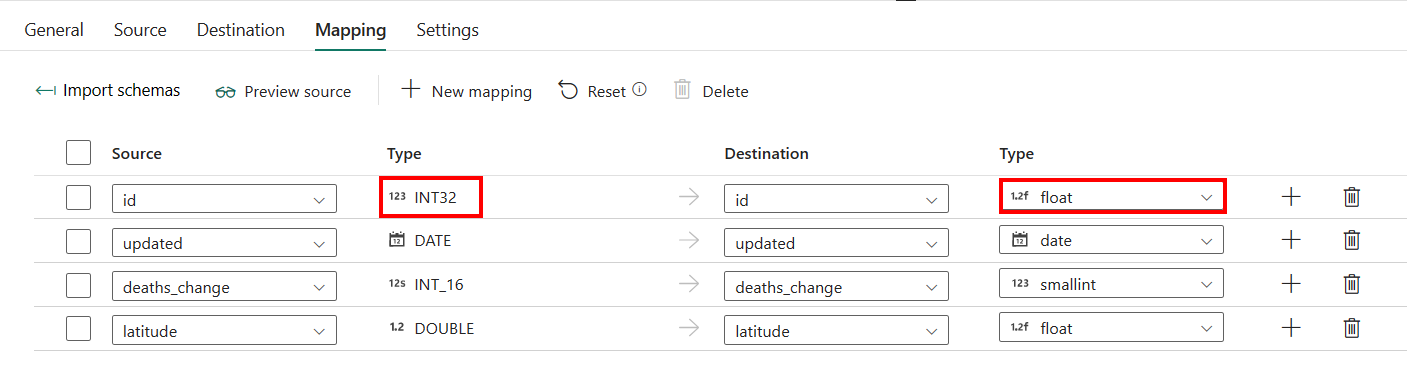

If you apply Data Warehouse with auto create table as your destination, except the configuration in Mapping, you can edit the type for your destination columns. After selecting Import schemas, you can specify the column type in your destination.

For example, the type for ID column in source is int, and you can change it to float type when mapping to the destination column.

Settings

For the Settings tab configuration, go to Settings.

Table summary

The following tables contain more information about a copy activity in Data Warehouse.

Source information

Name	Description	Value	Required	JSON script property
Data store type	Your data store type.	Workspace	Yes	/
Workspace data store type	The section to select your workspace data store type.	Data Warehouse	Yes	type
Data Warehouse	The Data Warehouse that you want to use.	<your data warehouse>	Yes	endpoint artifactId
Use query	The way to read data from Data Warehouse.	• Tables • Query • Stored procedure	No	(under typeProperties -> source) • typeProperties:  schema  table • sqlReaderQuery • sqlReaderStoredProcedureName
Query timeout (minutes)	Timeout for query command execution, with a default of 120 minutes. If this property is set, the allowed values are in the format of a timespan, such as "02:00:00" (120 minutes).	timespan	No	queryTimeout
Isolation level	The transaction locking behavior for source.	• None • Snapshot	No	isolationLevel
Partition option	The data partitioning options used to load data from Data Warehouse.	• None • Dynamic range	No	partitionOption
Partition column name	The name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that is used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is detected automatically and used as the partition column.	<partition column name>	No	partitionColumnName
Partition upper bound	The maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.	<partition upper bound>	No	partitionUpperBound
Partition lower bound	The minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.	<partition lower bound>	No	partitionLowerBound
Additional columns	Add additional data columns to store source files' relative path or static value.	• Name • Value	No	additionalColumns: • name • value

Destination information

Name	Description	Value	Required	JSON script property
Data store type	Your data store type.	Workspace	Yes	/
Workspace data store type	The section to select your workspace data store type.	Data Warehouse	Yes	type
Data Warehouse	The Data Warehouse that you want to use.	<your data warehouse>	Yes	endpoint artifactId
Table	The destination table to write data.	<name of your destination table>	Yes	schema table
Copy command settings	The copy command property settings. Contains the default value settings.	Default value: • Column • Value	No	copyCommandSettings: defaultValues: • columnName • defaultValue
Table option	Whether to automatically create the destination table if none exists based on the source schema.	• None • Auto create table	No	tableOption: • autoCreate
Pre-copy script	A SQL query to run before writing data into Data Warehouse in each run. Use this property to clean up the preloaded data.	<pre-copy script>	No	preCopyScript
Write batch timeout	The wait time for the batch insert operation to finish before it times out. The allowed values are in the format of a timespan. The default value is "00:30:00" (30 minutes).	timespan	No	writeBatchTimeout
Disable performance metrics analytics	The service collects metrics for copy performance optimization and recommendations, which introduce additional master DB access.	select or unselect	No	disableMetricsCollection: true or false
