Configure Dynamics AX in a copy activity

  • Article

This article outlines how to use the copy activity in Data pipeline to copy data from Dynamics AX.

Supported configuration

For the configuration of each tab under copy activity, go to the following sections respectively.

General

Refer to the General settings guidance to configure the General settings tab.

Source

The following properties are supported for Dynamics AX under the Source tab of a copy activity.

Screenshot showing source tab.

The following properties are required:

  • Data store type: Select External.
  • Connection: Select a Dynamics AX connection from the connection list. If no connection exists, then create a new Dynamics AX connection by selecting New.
  • Connection type: Select Dynamics AX.
  • Use query: Specify way to read data. Select Path to read data from the specified path or select Query to read data using queries.

    • If you select Path:

      • Path: Specify the path to the Dynamics AX OData entity.

        Screenshot showing Use query - Path.

    • If you select Query:

      • Path: Specify the path to the Dynamics AX OData entity.
      • Query: Specify the OData query options for filtering data. For example, "?$select=Name,Description&$top=5".

      Note

      The connector copies data from the combined URL: [URL specified in linked service]/[path specified in dataset][query specified in copy activity source]. For more information, see OData URL components.

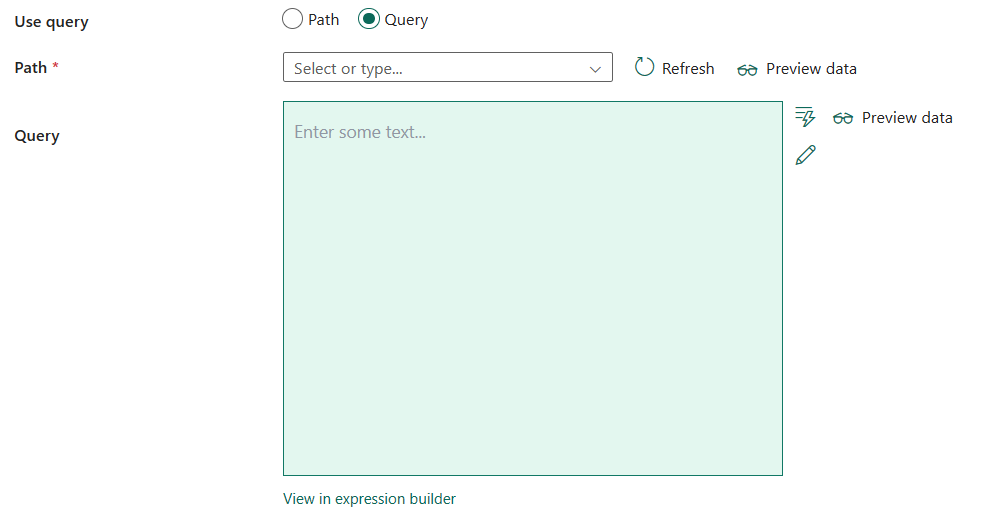

      Screenshot showing Use query - Query.

Under Advanced, you can specify the following fields:

  • Request timeout: Specify the timeout (the TimeSpan value) for the HTTP request to get a response. This value is the timeout to get a response, not the timeout to read response data. If not specified, the default value is 00:05:00 (5 minutes).
  • Additional columns: Add additional data columns to store source files' relative path or static value. Expression is supported for the latter.

Mapping

For Mapping tab configuration, see Configure your mappings under mapping tab.

Settings

For Settings tab configuration, go to Configure your other settings under settings tab.

Table summary

The following tables contain more information about the copy activity in Dynamics AX.

Source information

Name Description Value Required JSON script property
Data store type Your data store type. External Yes /
Connection Your connection to the source data store. <your Dynamics AX connection> Yes connection
Connection type Select a type for your connection. Dynamics AX Yes /
Use query The way to read data from Dynamics AX. Apply Path to read data from the specified path or apply Query to read data using queries. • Path
• Query		 Yes /
Path The path to the Dynamics AX OData entity. < your path > Yes path
Query OData query options for filtering data. For example, "?$select=Name,Description&$top=5".

Note: The connector copies data from the combined URL: [URL specified in linked service]/[path specified in dataset][query specified in copy activity source]. For more information, see OData URL components.		 < your query > No query
Request timeout The timeout (the TimeSpan value) for the HTTP request to get a response. This value is the timeout to get a response, not the timeout to read response data. timespan
(the default is 00:05:00 - 5 minutes)		 No httpRequestTimeout
Additional columns Add additional data columns to store source files' relative path or static value. Expression is supported for the latter. • Name
• Value		 No additionalColumns:
• name
• value
