Set up your Google Cloud Storage connection

  • Article

This article outlines the steps to create a Google Cloud Storage connection.

Supported authentication types

This Google Cloud Storage connector supports the following authentication types for copy activity.

Authentication type Copy Dataflow Gen2
Basic √ n/a

Set up your connection in Dataflow Gen2

The Google Cloud Storage connector isn't currently supported in Dataflow Gen2.

Set up your connection in a data pipeline

To create a connection in a data pipeline:

  1. From the page header in the Data Factory service, select Settings Settings gear icon > Manage connections and gateways

    Screenshot showing how to open the manage gateway resource.

  2. Select New at the top of the ribbon to add a new data source.

    Screenshot showing the '+ new' page.

    The New connection pane now appears on the left side of the page.

    Screenshot showing the 'New connection' pane.

Setup connection

Step 1: Specify the new connection name, type, and URL

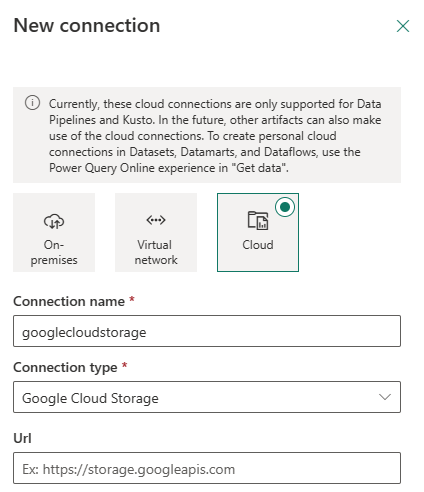

Screenshot showing how to set new connection.

In the New connection pane, choose Cloud, and specify the following fields:

  • Connection name: Specify a name for your connection.
  • Connection type: Select Google Cloud Storage for your connection type.
  • Url: Specify the custom GCS endpoint as https://storage.googleapis.com.

Step 2: Select and set your authentication

Under Authentication method, select your authentication from the drop-down list and complete the related configuration. This Google Cloud Storage connector supports the following authentication types.

Screenshot showing that authentication method of Google Cloud Storage.

Basic authentication

  • Username: ID of the secret access key. To find the access key and secret, go to Prerequisites.
  • Password: The secret access key itself.

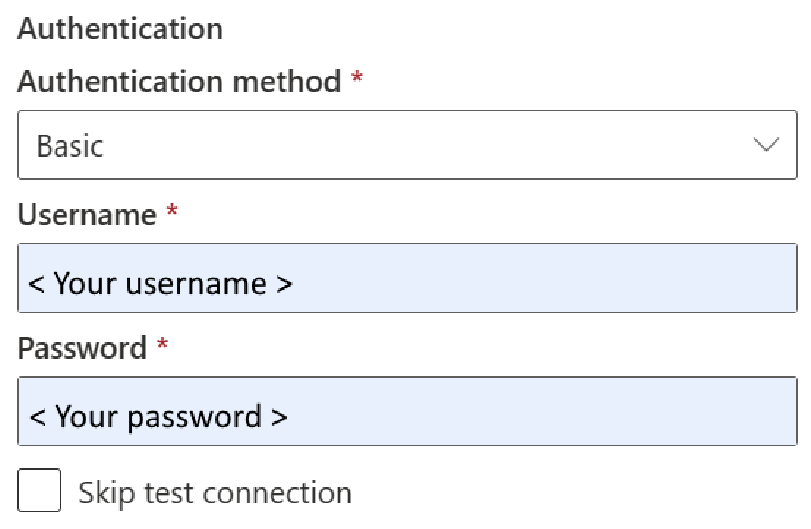

Screenshot showing that basic authentication method.

Step 3: Specify the privacy level that you want to apply

In the General tab, select the privacy level that you want apply in the Privacy level drop-down list. Three privacy levels are supported. For more information, go to privacy levels.

Step 4: Create your connection

Select Create. Your creation is successfully tested and saved if all the credentials are correct. If not correct, the creation fails with errors.

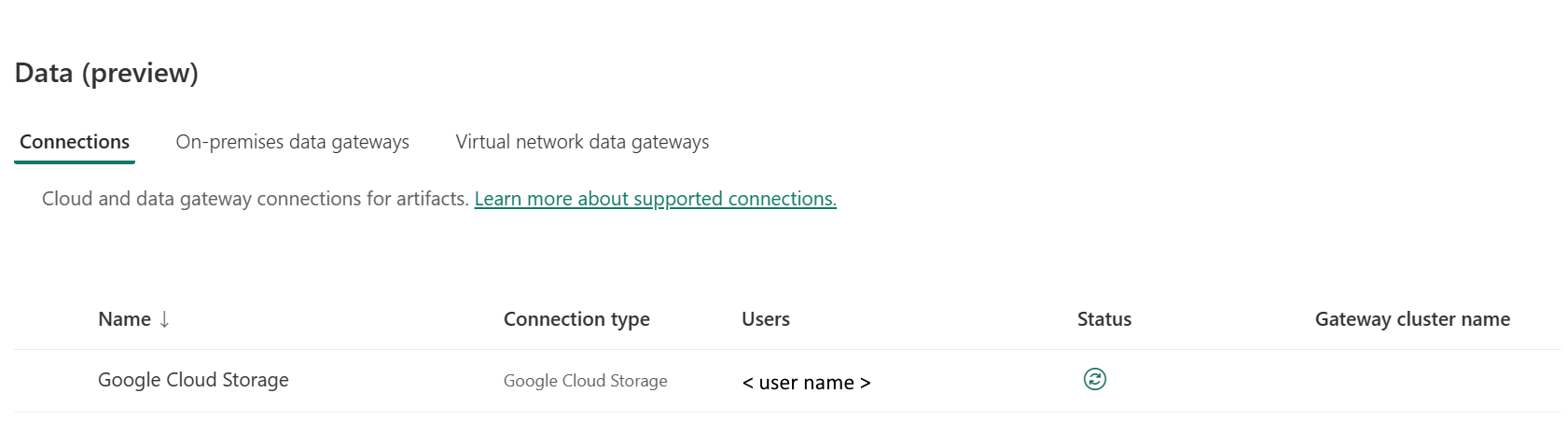

Screenshot showing connection page.

Table summary

The following table contains connector properties that are supported in pipeline copy.

Name Description Required Property Copy
Connection name A name for your connection. Yes ✓
Connection type Select a type for your connection. Select Google Cloud Storage. Yes ✓
Url The base Url to the Google Cloud Storage service. Yes ✓
Authentication Go to Authentication Yes Go to Authentication

Authentication

The following properties in the table are the supported authentication types.

Name Description Required Property Copy
Basic ✓
- Username ID of the secret access key. To find the access key and secret, go to Prerequisites. Yes
- Password The secret access key itself. Yes
