Outlook add-in design guidelines

Article
04/18/2023

Add-ins are a great way for partners to extend the functionality of Outlook beyond our core feature set. Add-ins enable users to access external experiences, tasks, and content without needing to leave their inbox. Once installed, Outlook add-ins are available on every platform and device.

The following high-level guidelines will help you design and build a compelling add-in, which brings the best of your app right into Outlook on the web, on Windows, on Mac, on Android, and on iOS.

Principles

Focus on a few key tasks; do them well

The best designed add-ins are simple to use, focused, and provide real value to users. Because your add-in will run inside of Outlook, there is additional emphasis placed on this principle. Outlook is a productivity app—it's where people go to get things done.

Your add-in will be an extension of our experience and it's important to make sure the scenarios you enable feel like a natural fit inside Outlook. Think carefully about which of your common use cases will benefit the most from having hooks to them from within our email and calendaring experiences.

An add-in shouldn't attempt to do everything your app does. The focus should be on the most frequently used, and appropriate, actions in the context of Outlook content. Think about your call to action and make it clear what the user should do when your task pane opens.

Make it feel as native as possible

Your add-in should be designed using patterns native to the platform that Outlook is running on. To achieve this, be sure to respect and implement the interaction and visual guidelines set forth by each platform. Outlook has its own guidelines and those are also important to consider. A well-designed add-in will be an appropriate blend of your experience, the platform, and Outlook.

This does mean that your add-in will have to visually be different when it runs in Outlook on iOS versus on Android.

Make it enjoyable to use and get the details right

People enjoy using products that are both functionally and visually appealing. You can help ensure the success of your add-in by crafting an experience where you've carefully considered every interaction and visual detail. The necessary steps to complete a task must be clear and relevant. Ideally, no action should be further than a click or two away.

Try not to take a user out of context to complete an action. A user should easily be able to get in and out of your add-in and back to whatever they were doing before. An add-in isn't meant to be a destination to spend a lot of time in—it's an enhancement to our core functionality. If done properly, your add-in will help us deliver on the goal of making people more productive.

Brand wisely

We value great branding, and we know it's important to provide users with your unique experience. But we feel the best way to ensure your add-in's success is to build an intuitive experience that subtly incorporates elements of your brand versus displaying persistent or obtrusive brand elements that only distract a user from moving through your system in an unencumbered manner.

A good way to incorporate your brand in a meaningful way is through the use of your brand colors, icons, and voice—assuming these don't conflict with the preferred platform patterns or accessibility requirements. Strive to keep the focus on content and task completion, not brand attention.

Note

Ads should not be shown within add-ins in Outlook on iOS or on Android.

Design patterns

Note

While the above principles apply to all endpoints/platforms, the following patterns and examples are specific to mobile add-ins in Outlook on iOS.

To help you create a well-designed add-in, we have templates that contain iOS mobile patterns that work within the Outlook mobile environment. Leveraging these specific patterns will help ensure your add-in feels native to both the iOS platform and Outlook mobile. These patterns are also detailed later in this article. While not exhaustive, this is the start of a library that we'll continue to build upon as we uncover additional paradigms partners wish to include in their add-ins.

Overview

A typical add-in is made up of the following components.

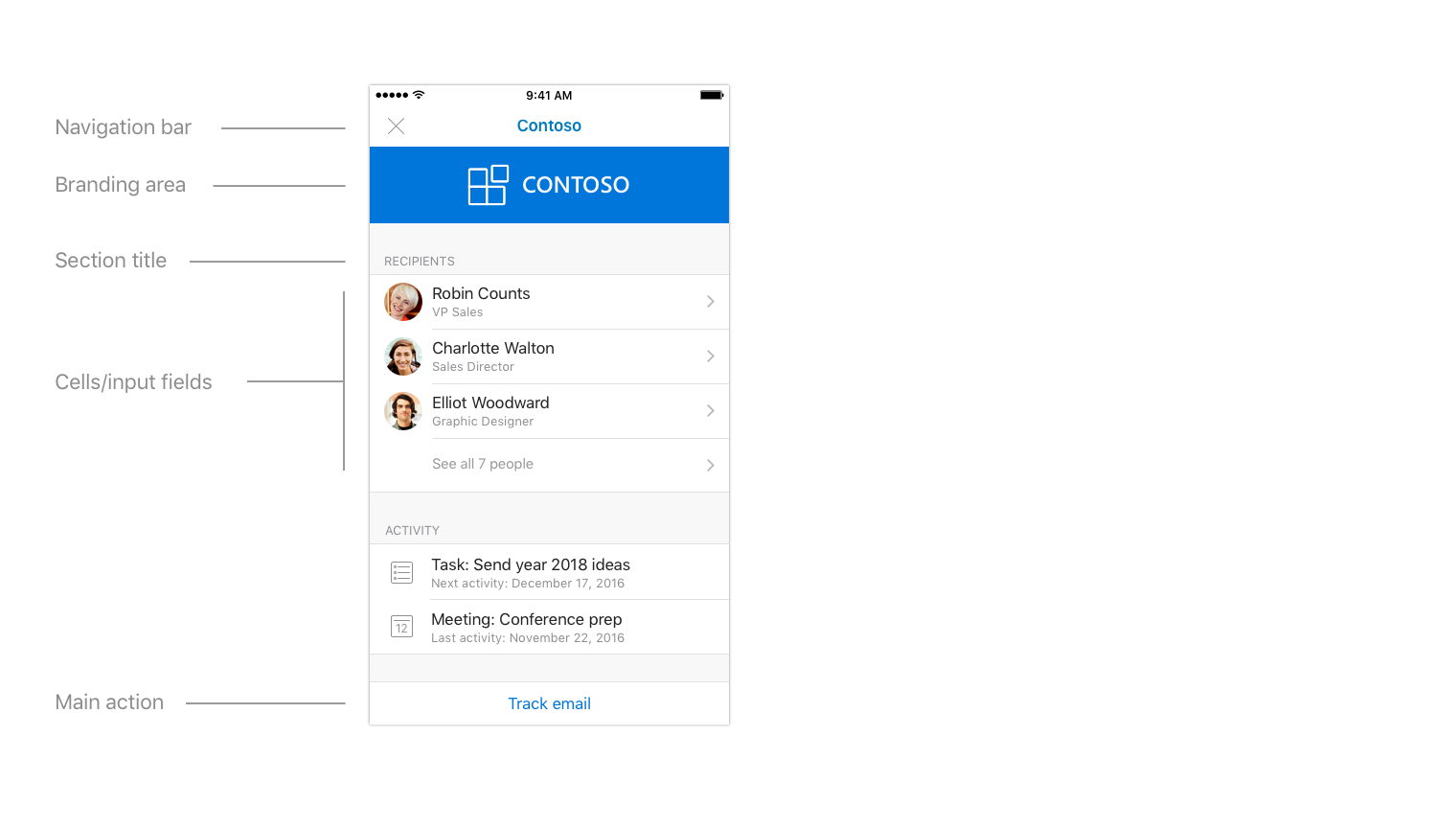

Diagram of basic UX patterns for a task pane on iOS.

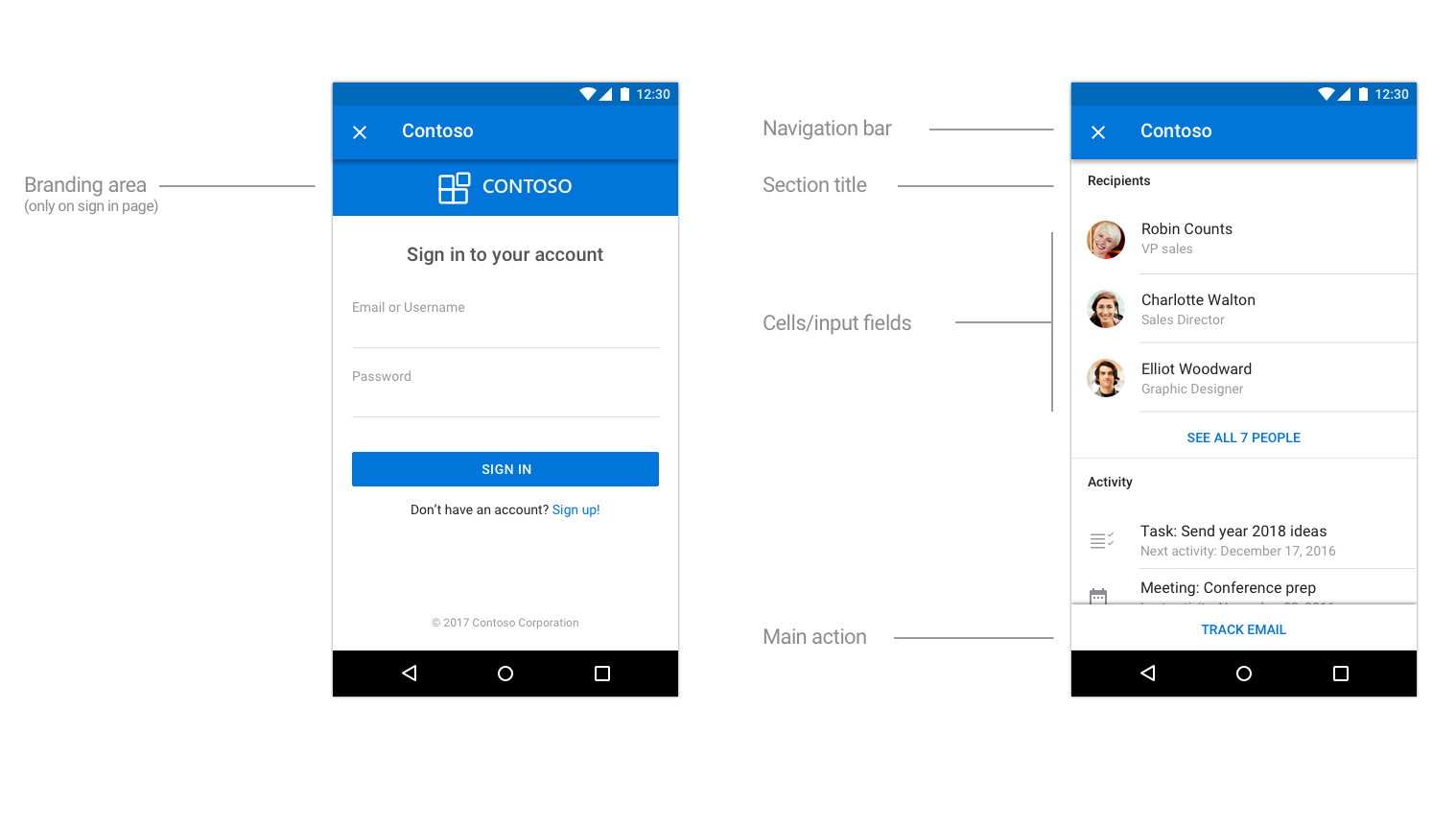

Diagram of basic UX patterns for a task pane on Android.

Loading

When a user taps on your add-in, the UX should display as quickly as possible. If there is any delay, use a progress bar or activity indicator. A progress bar should be used when the amount of time is determinable and an activity indicator should be used when the amount of time is indeterminable.

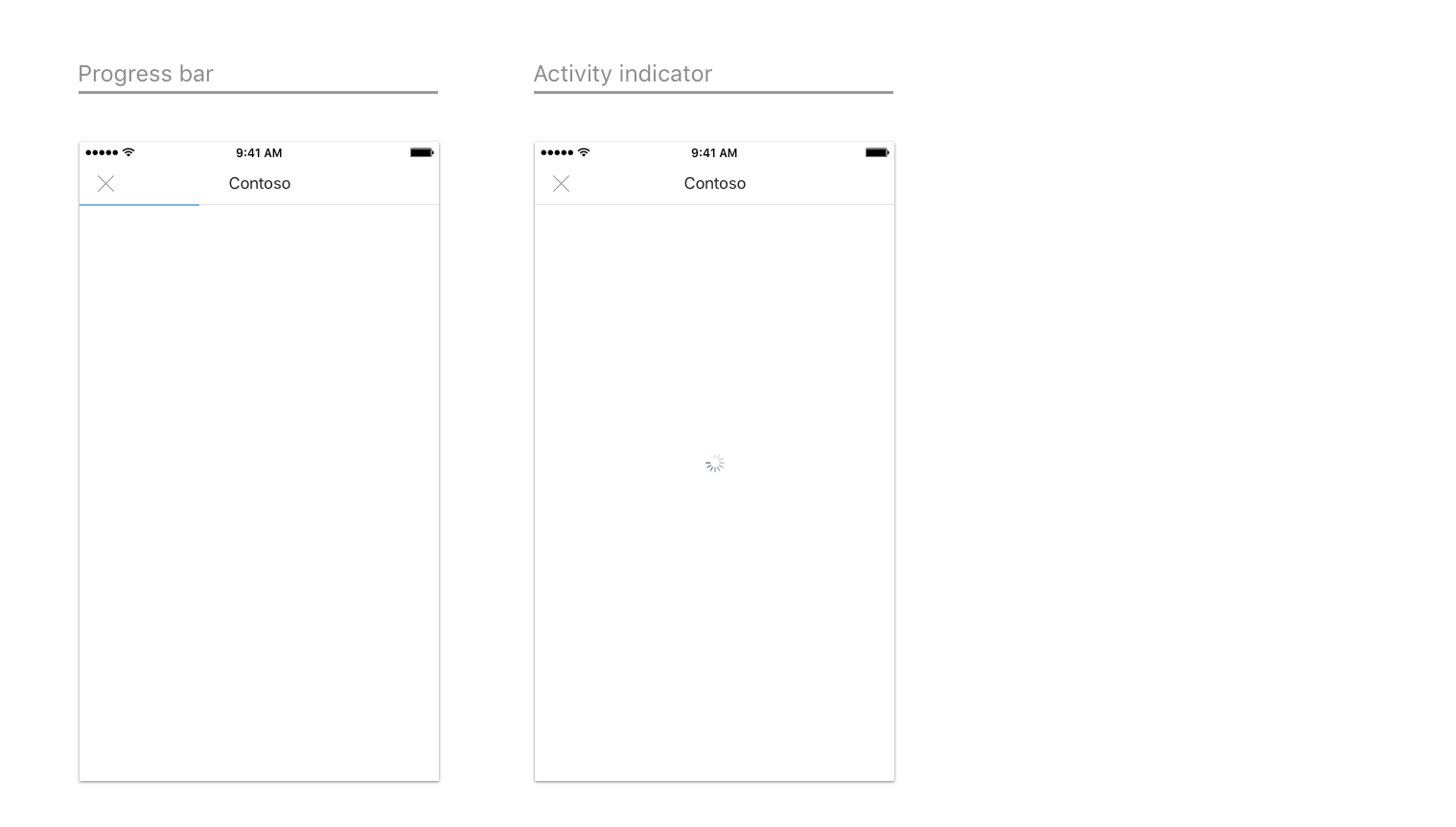

An example of loading pages on iOS

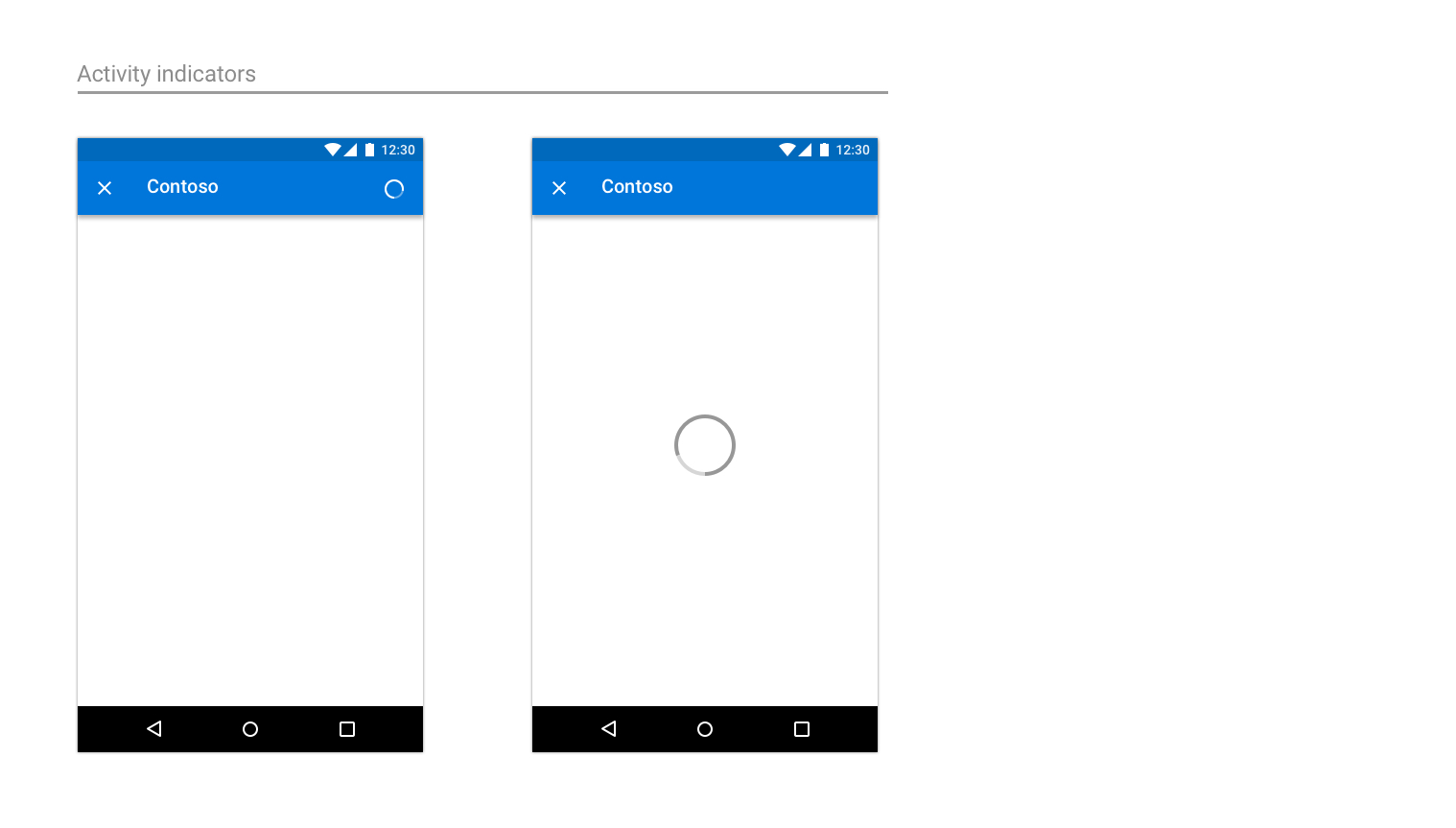

An example of loading pages on Android

Sign in/Sign up

Make your sign in (and sign up) flow straightforward and simple to use.

An example page to sign in and sign up on iOS

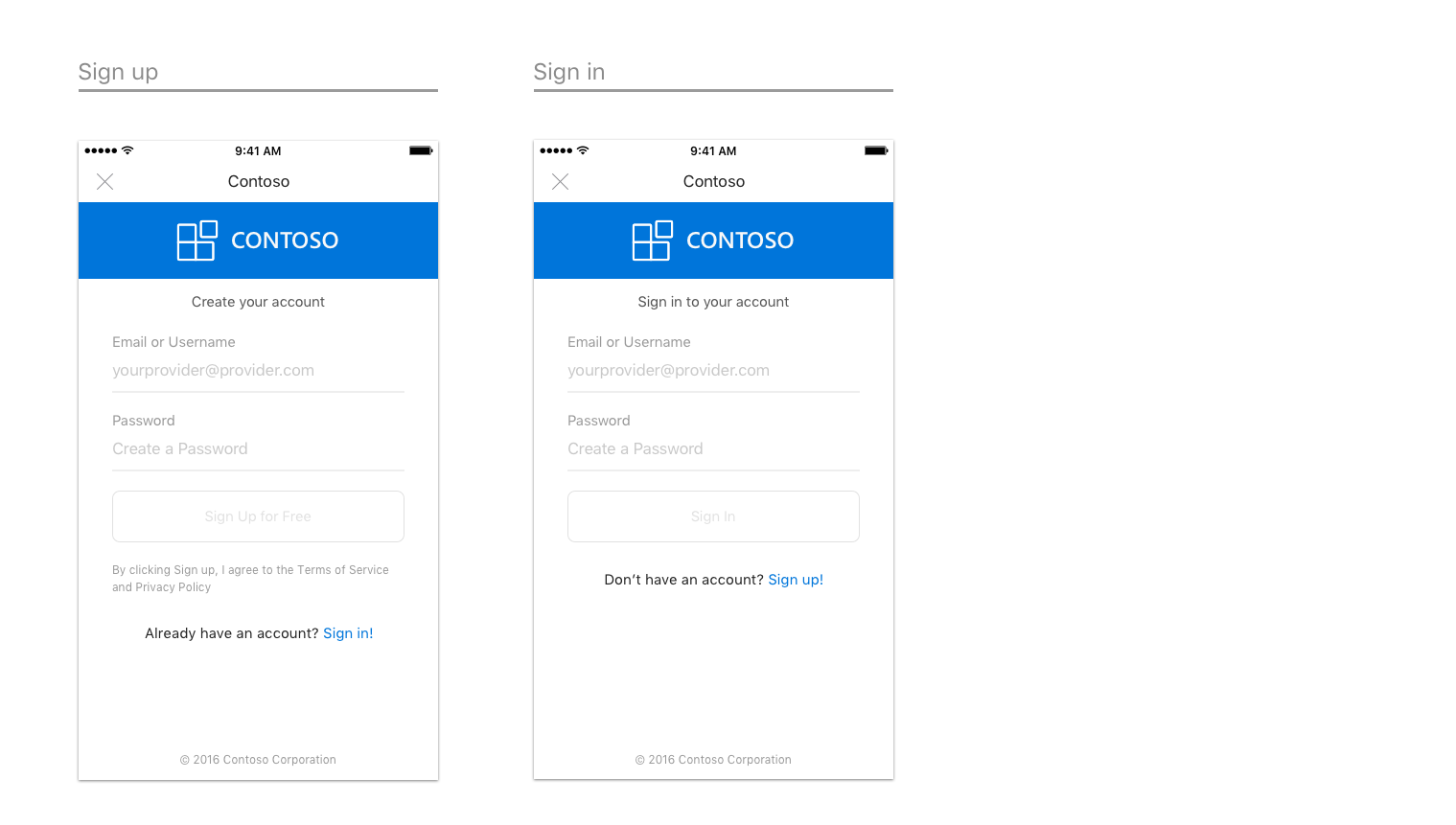

Examples of pages to sign in and sign up on iOS.

An example sign in page on Android

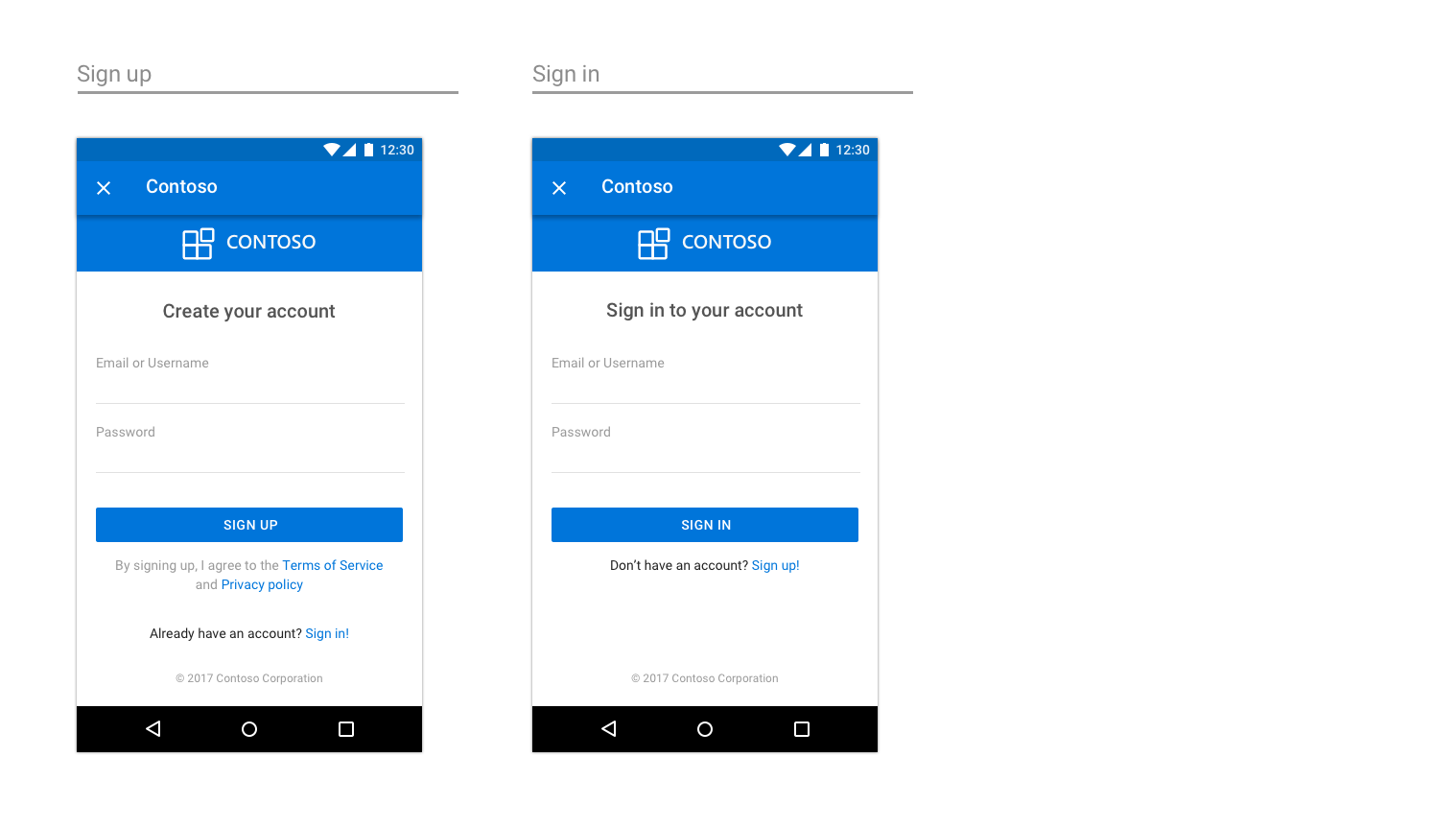

Examples of page to sign in on Android.

Brand bar

The first screen of your add-in should include your branding element. Designed for recognition, the brand bar also helps set context for the user. Because the navigation bar contains the name of your company/brand, it's unnecessary to repeat the brand bar on subsequent pages.

An example of branding on iOS

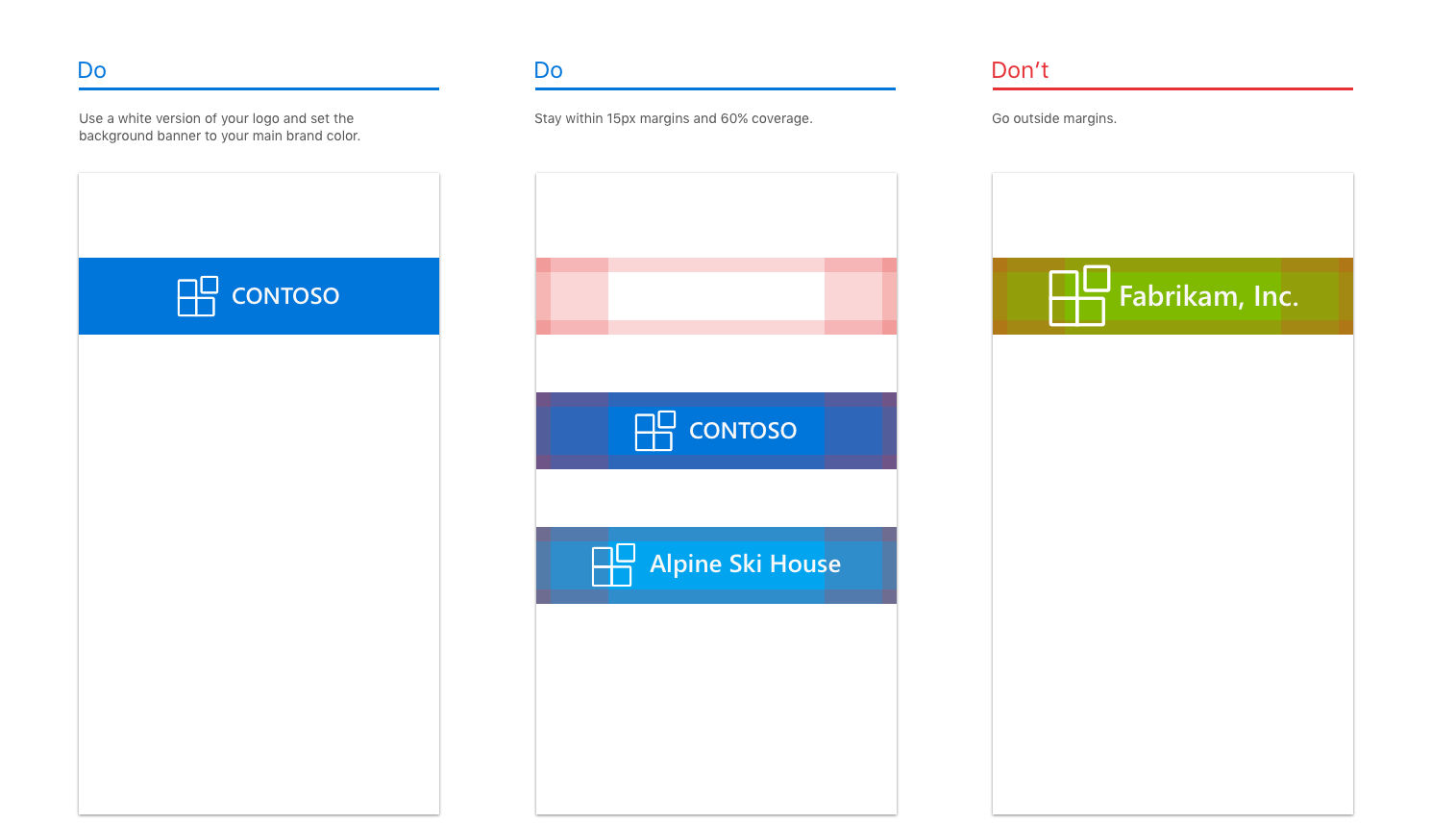

Examples of brand bars on iOS.

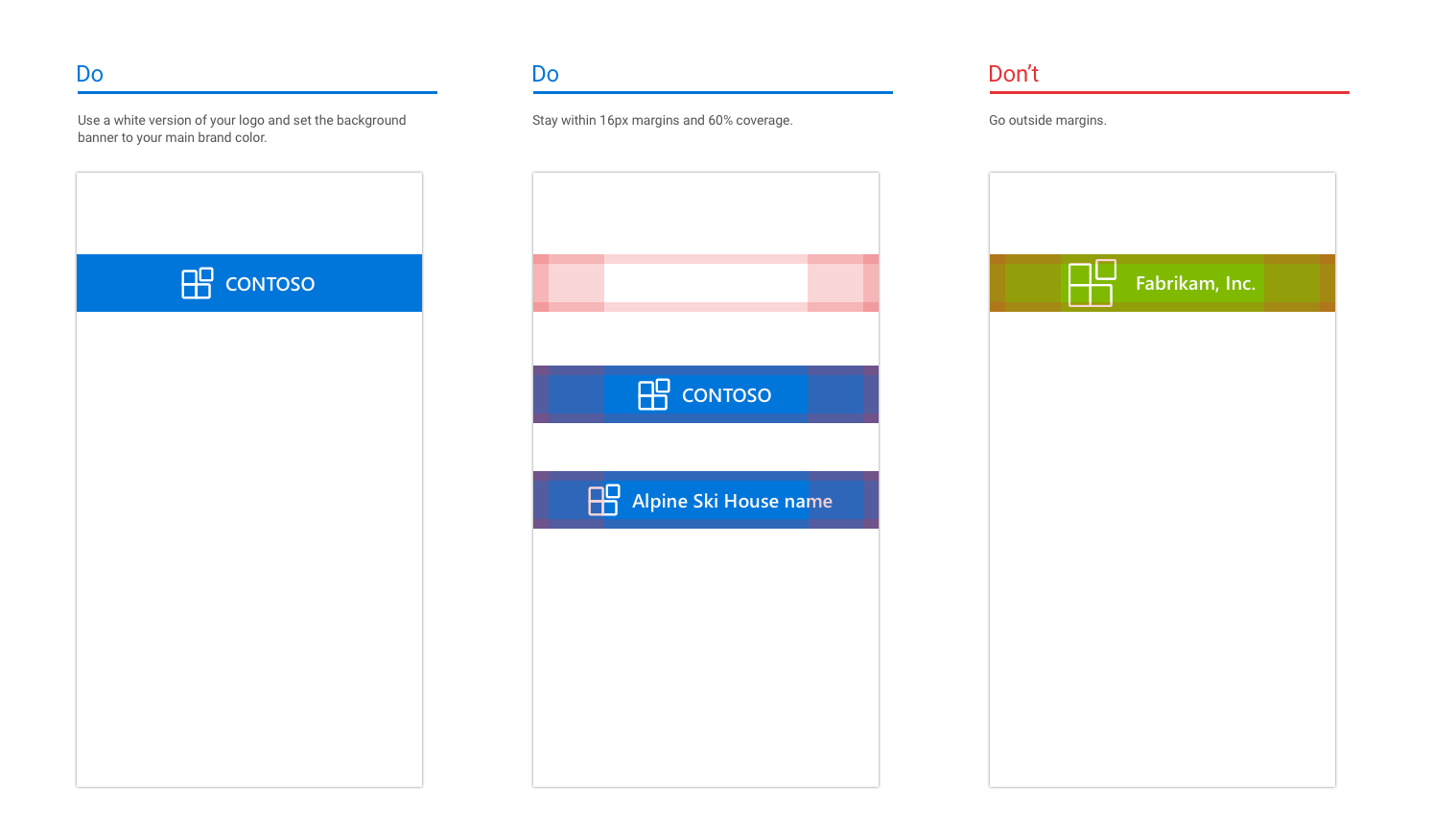

An example of branding on Android

Examples of brand bars on Android.

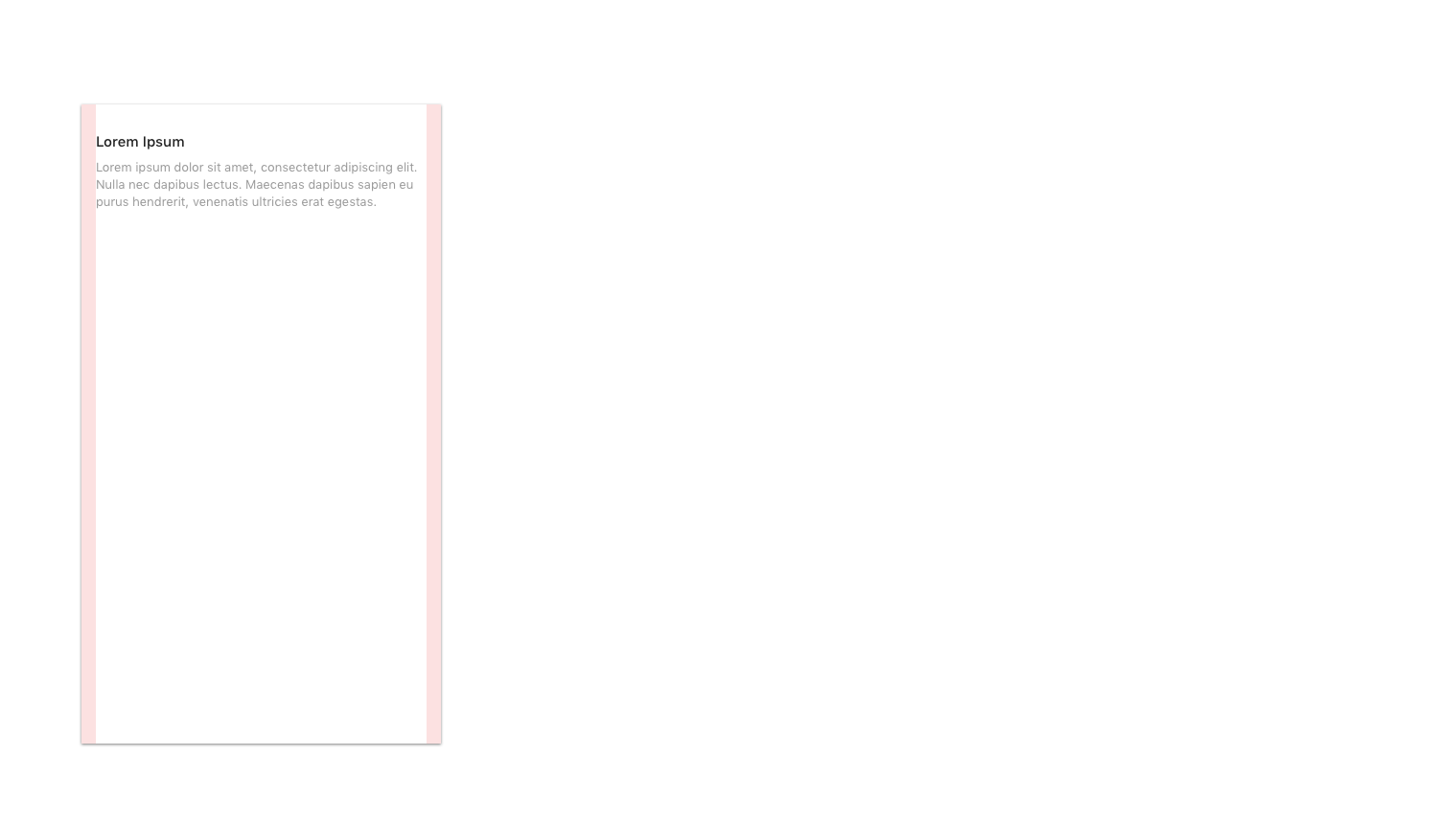

Margins

Mobile margins should be set to 15px (8% of screen) for each side, to align with Outlook on iOS and 16px for each side to align with Outlook on Android.

Examples of margins on iOS.

Typography

Typography usage is aligned to Outlook on iOS and is kept simple for scannability.

Typography on iOS

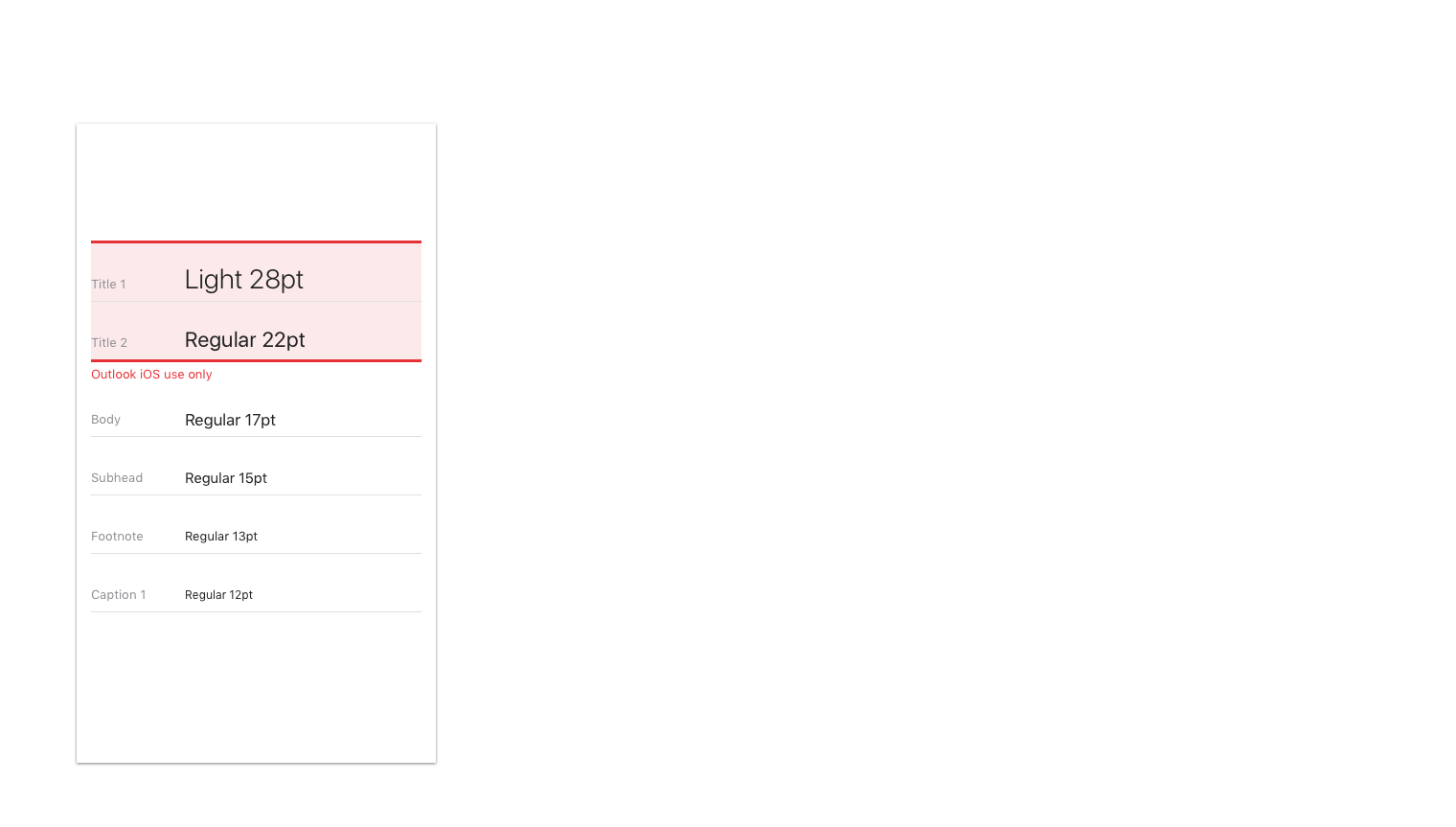

Typography samples for iOS.

Typography on Android

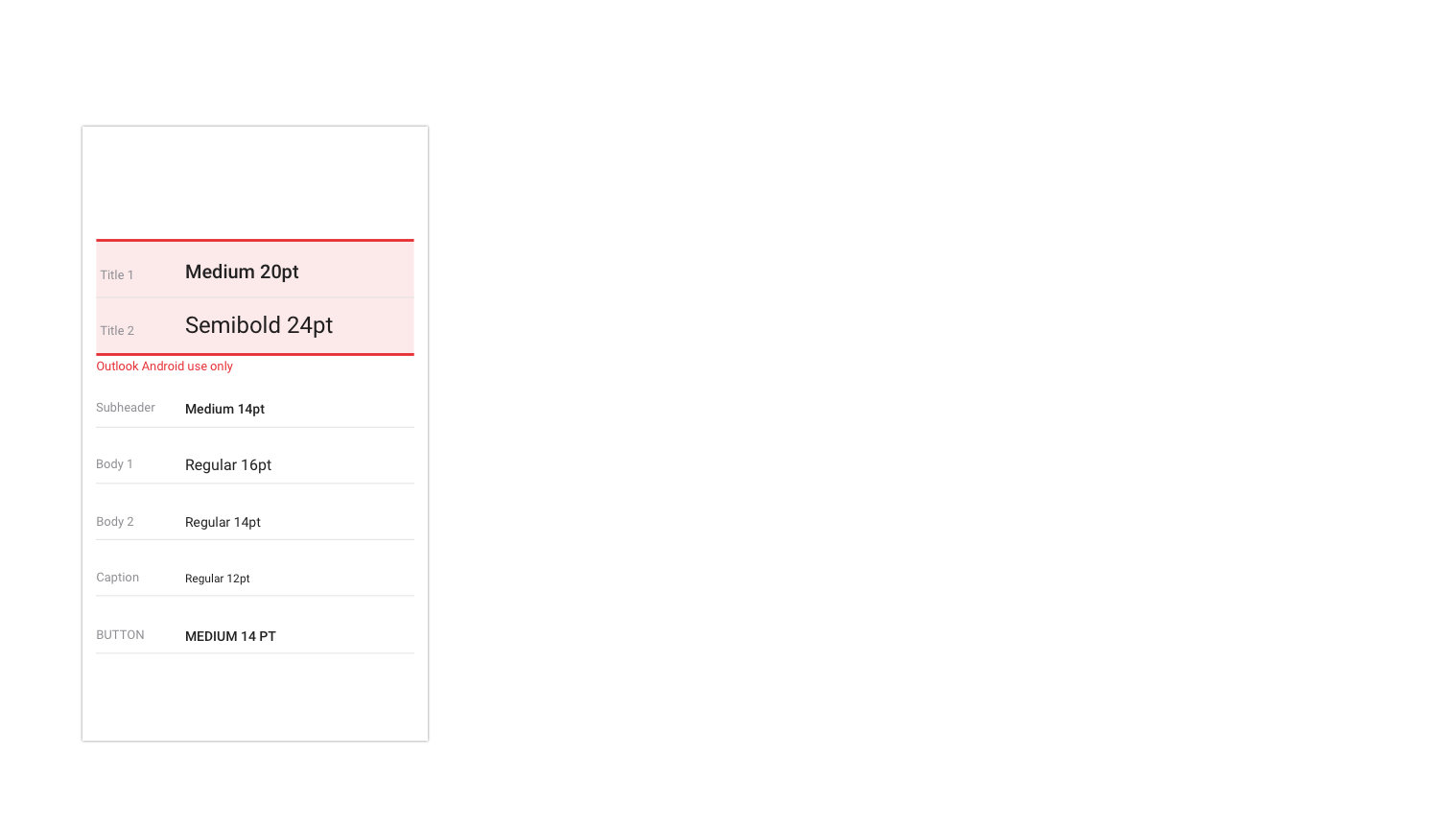

Typography samples for Android.

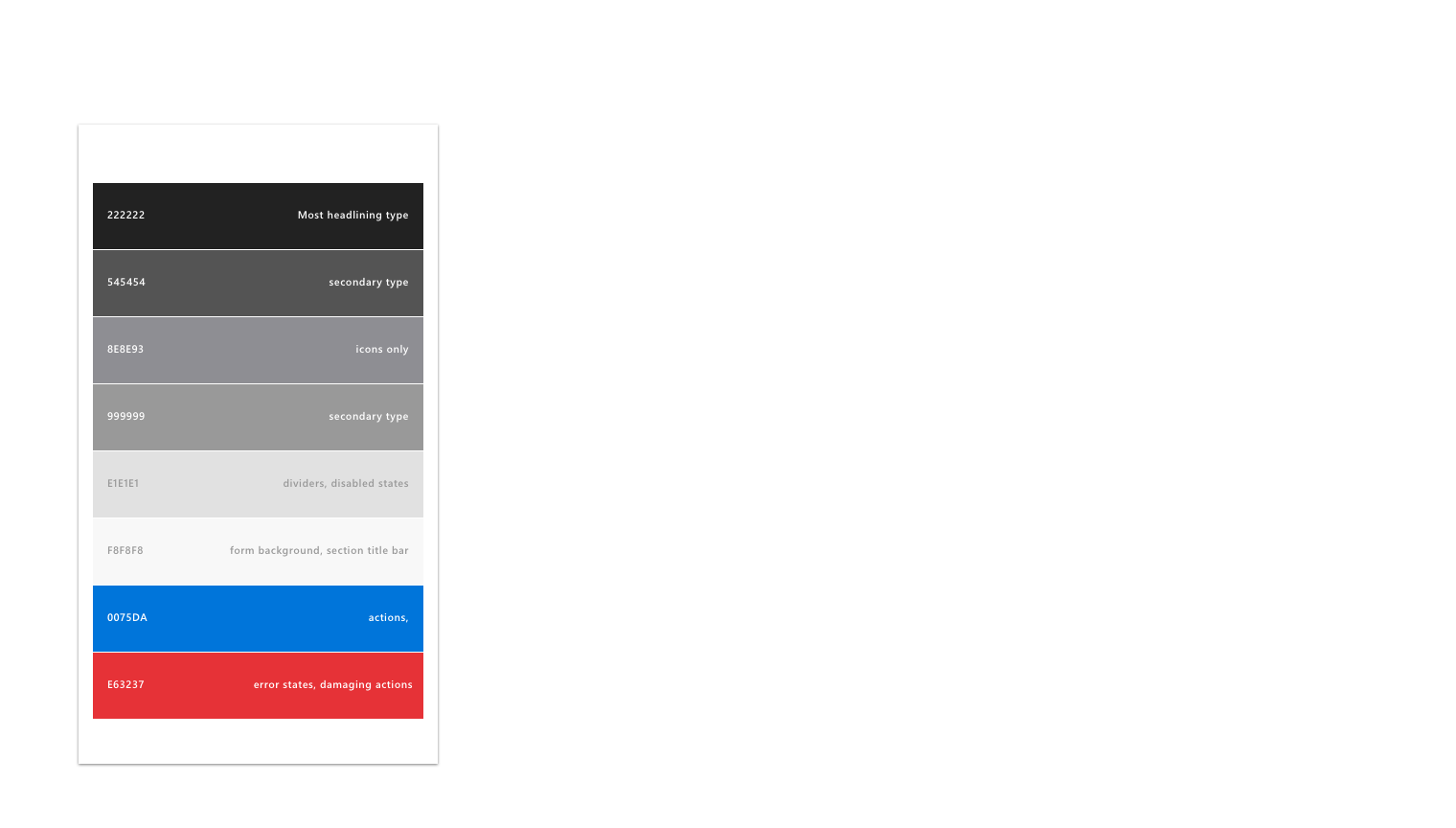

Color palette

Color usage is subtle in Outlook on iOS. To align, we ask that usage of color is localized to actions and error states, with only the brand bar using a unique color.

Color palette for iOS.

Cells

Since the navigation bar cannot be used to label a page, use section titles to label pages.

Examples of cells on iOS

Cell types for iOS.

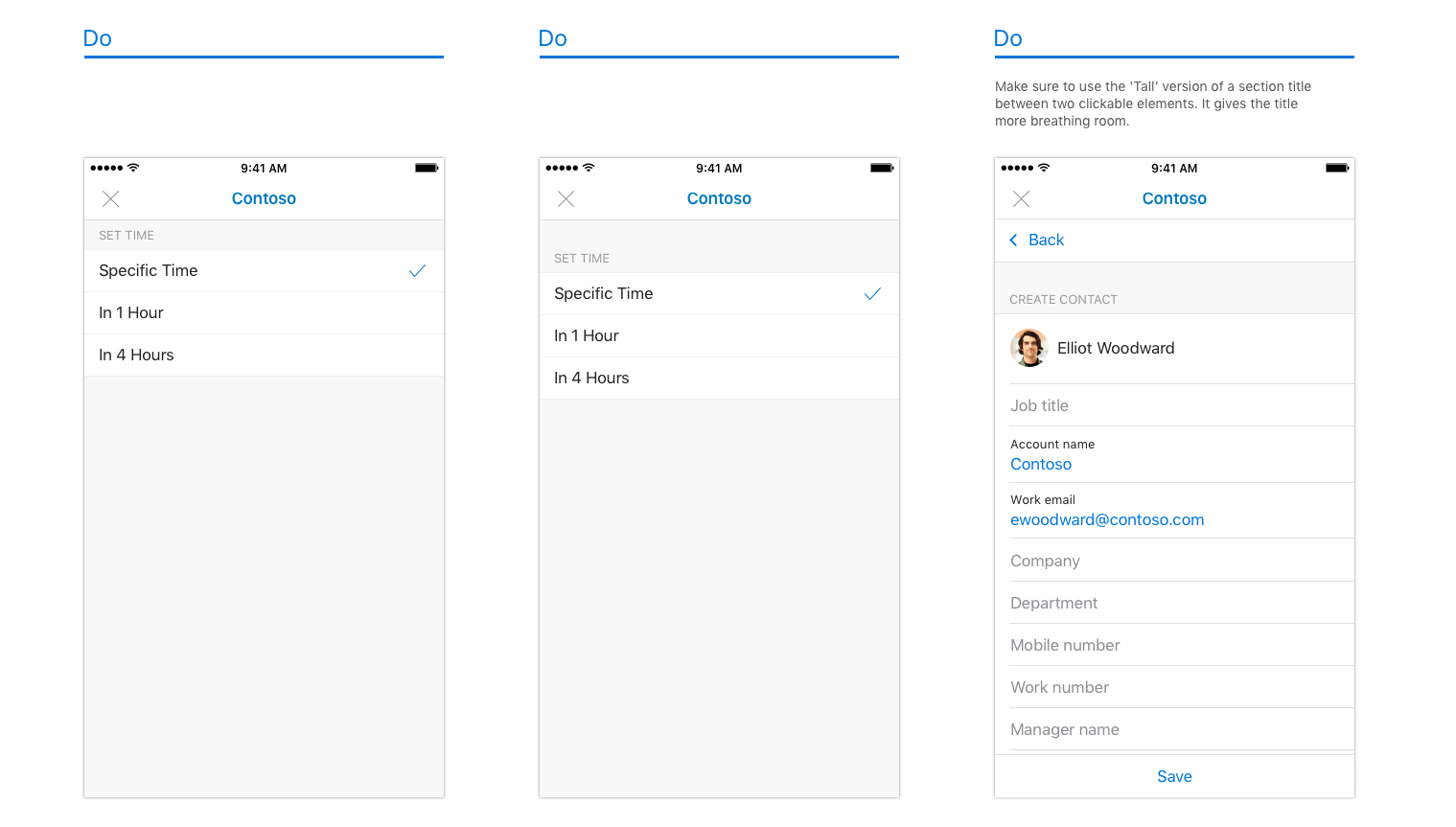

Cell 'dos' for iOS.

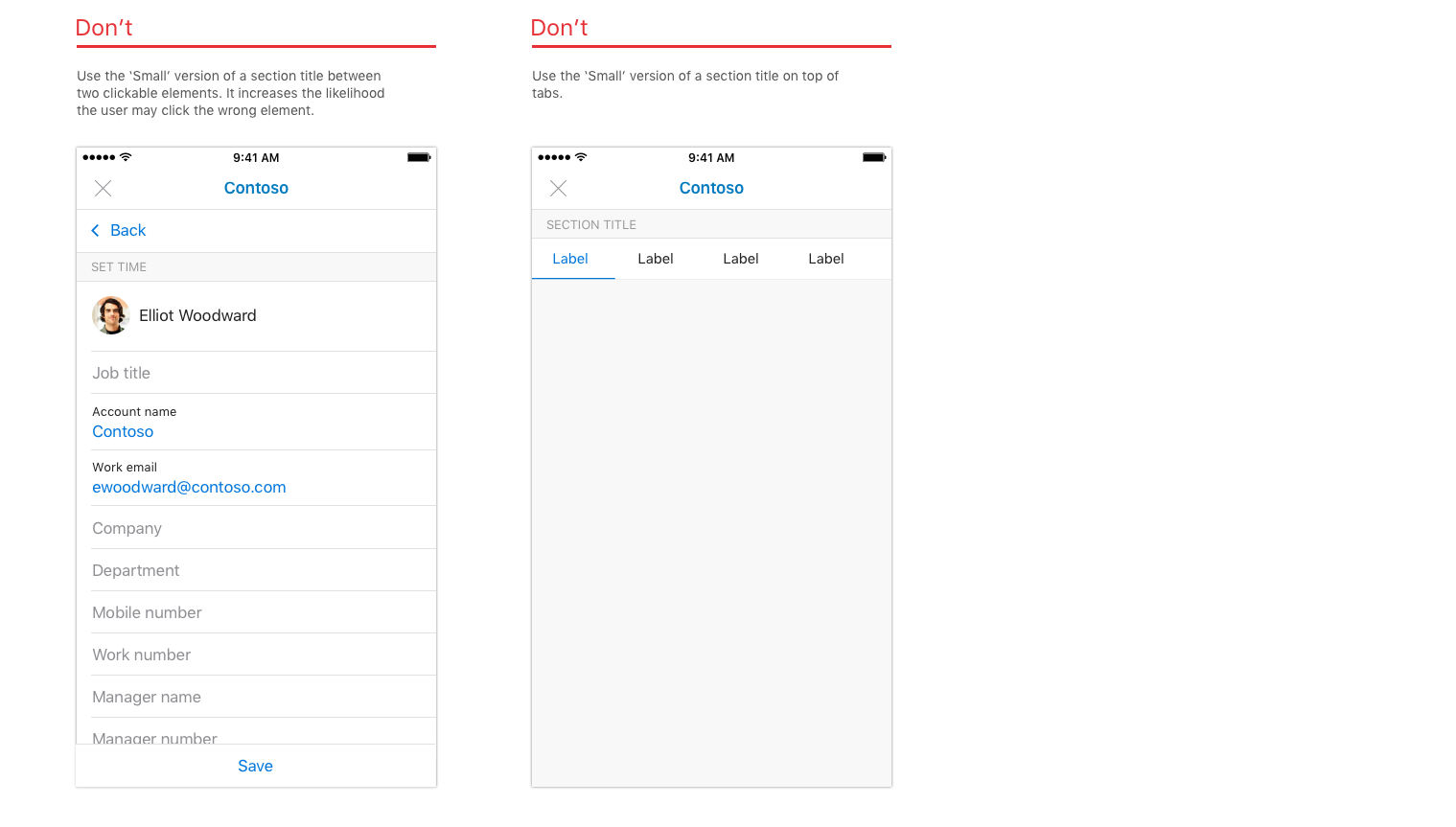

Cell 'don'ts' for iOS.

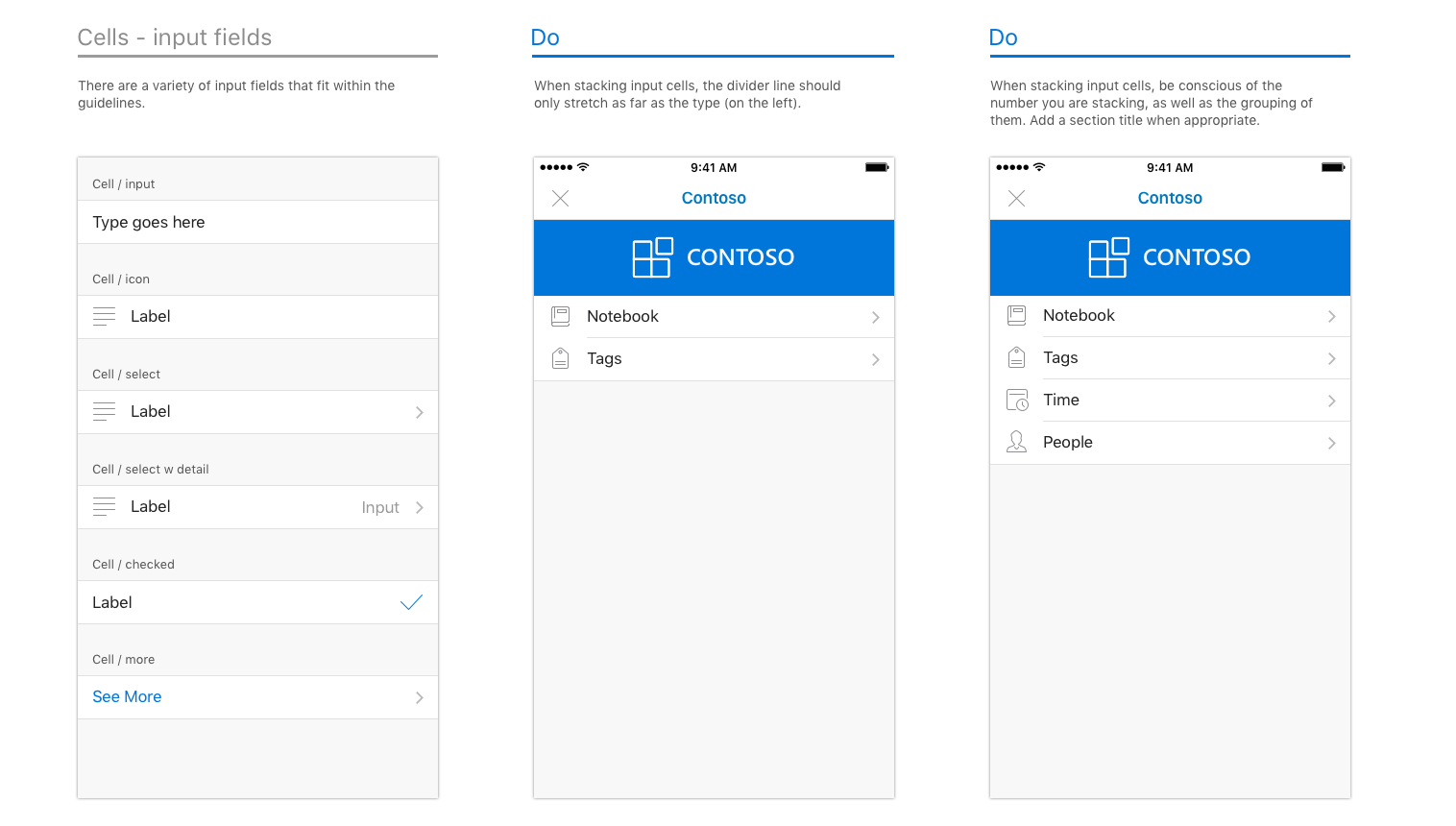

Cells and inputs for iOS.

Examples of cells on Android

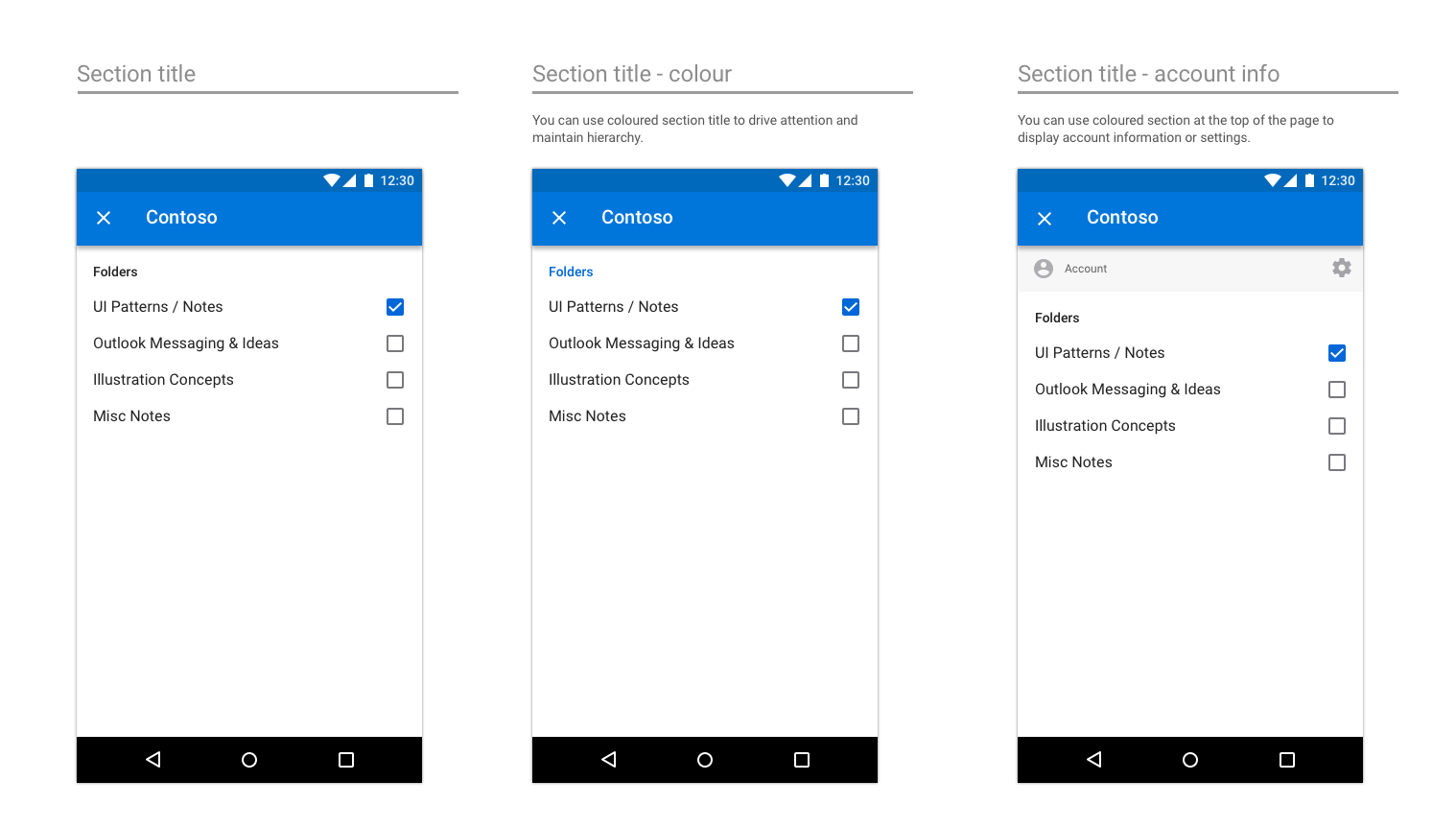

Cell types for Android.

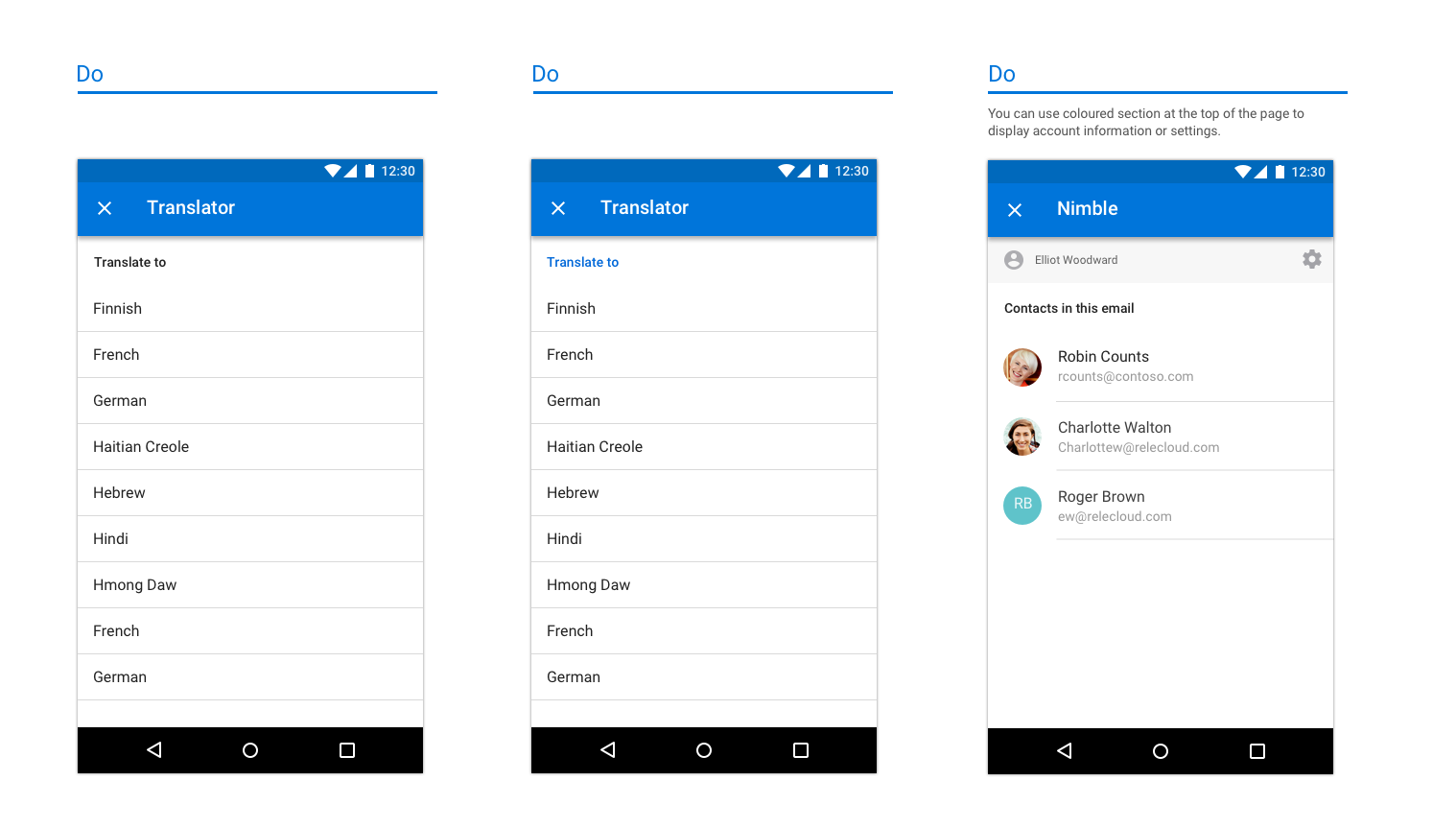

Cell 'dos' for Android.

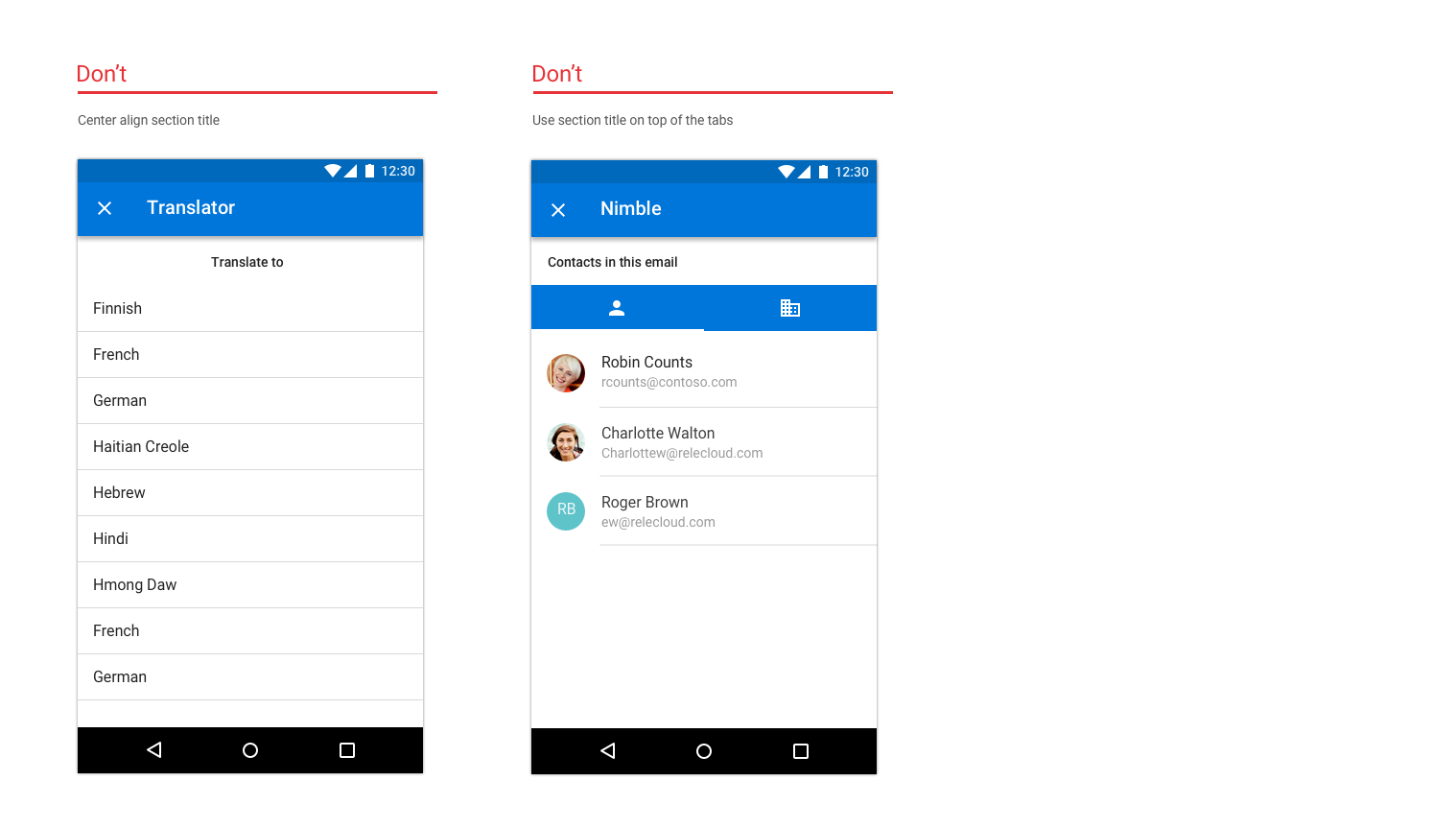

Cell 'don'ts' for Android.

Cells and inputs for Android part 1.

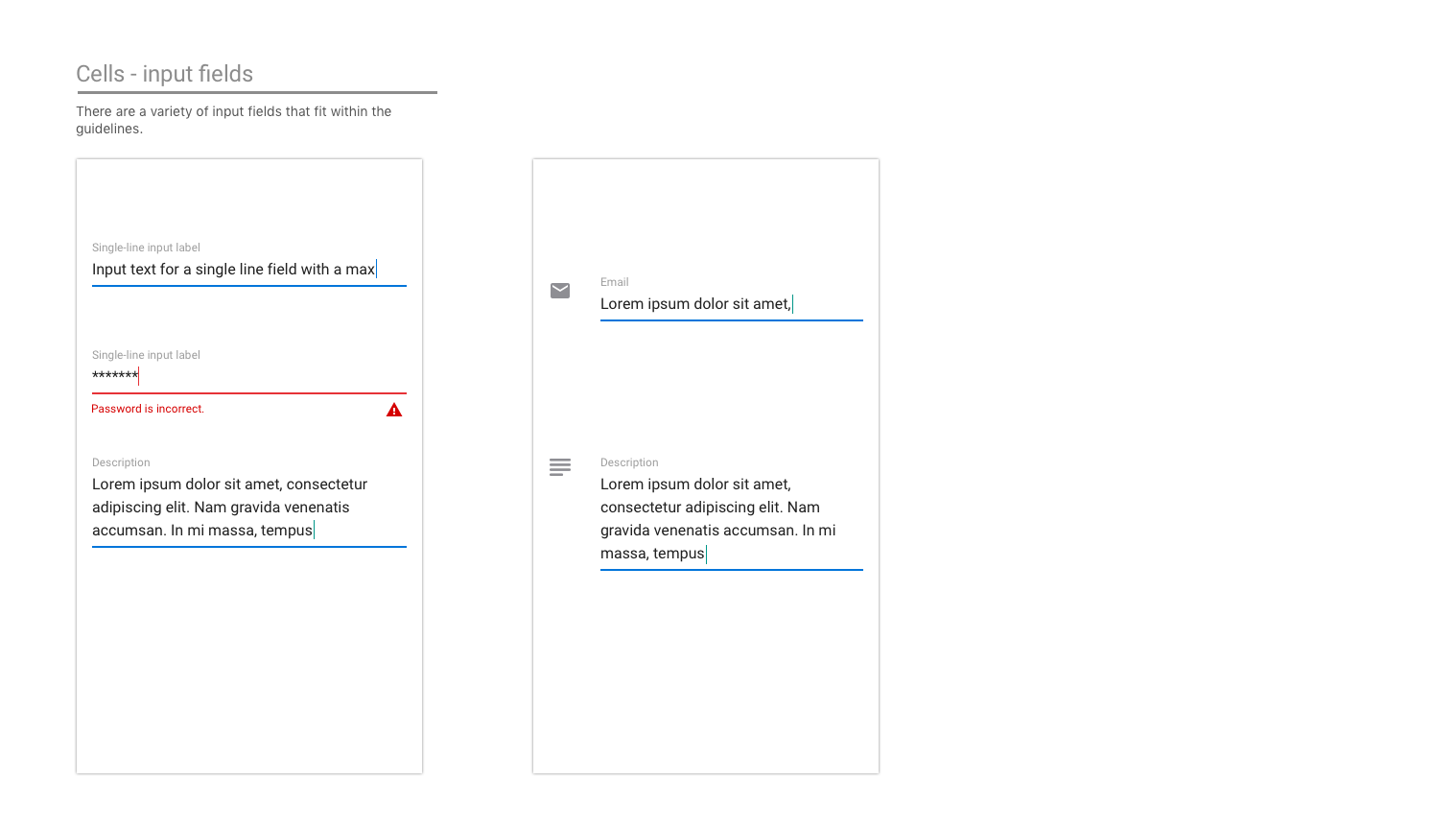

Cells and inputs for Android part 2.

Actions

Even if your app handles a multitude of actions, think about the most important ones you want your add-in to perform, and concentrate on those.

Examples of actions on iOS

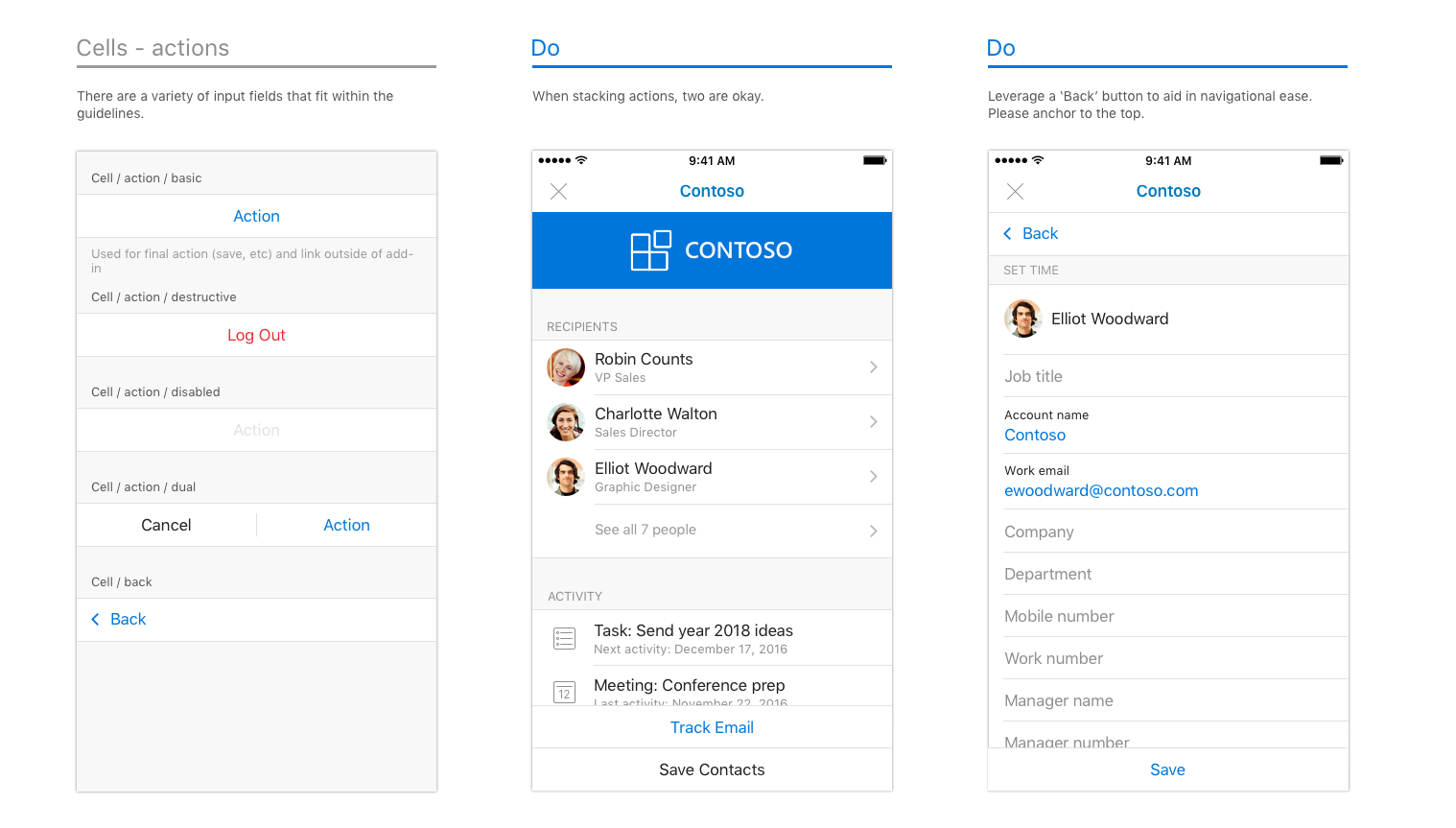

Actions and cells in iOS.

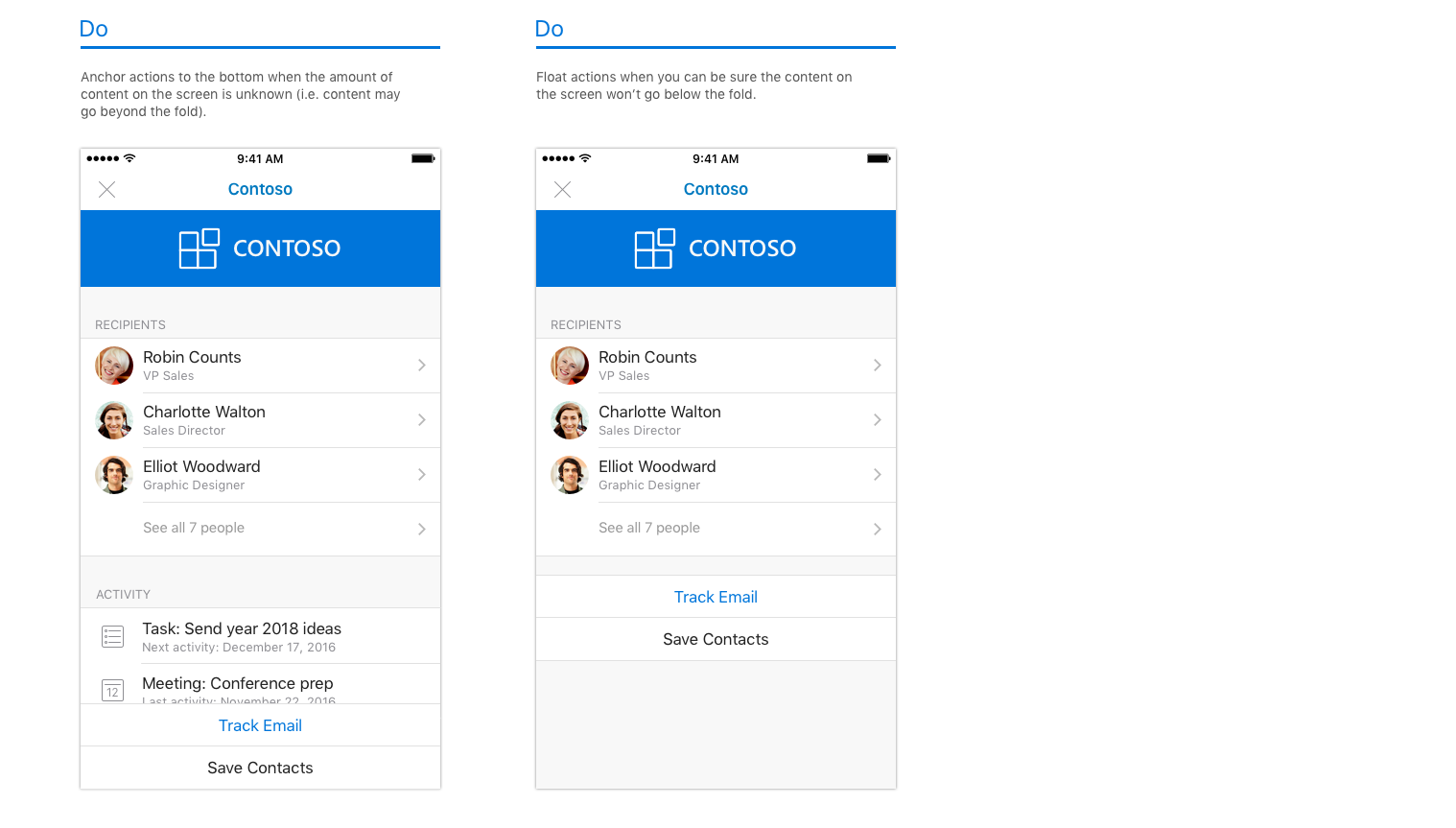

Actions 'dos' for iOS.

Examples of actions on Android

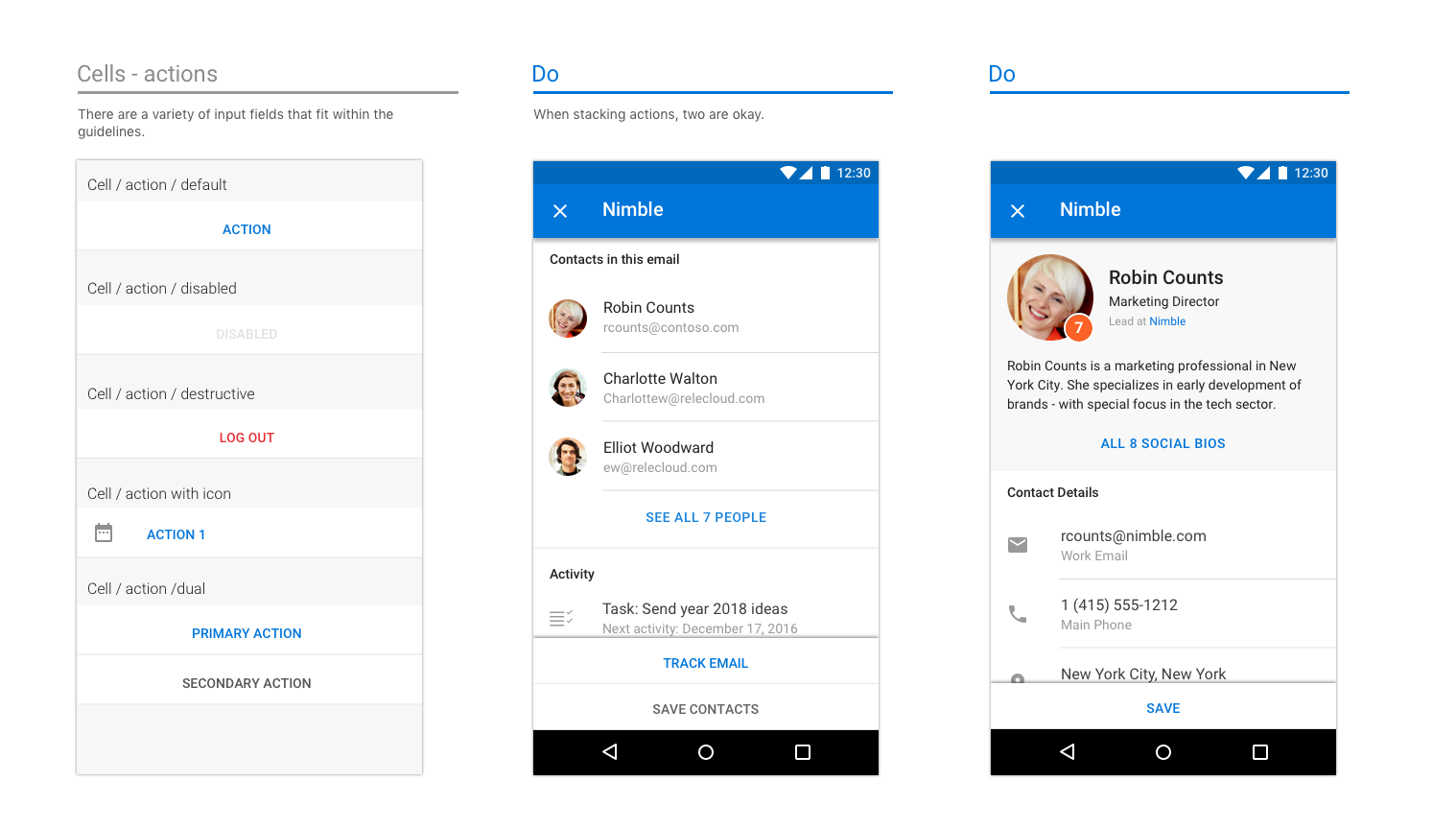

Actions and cells in Android.

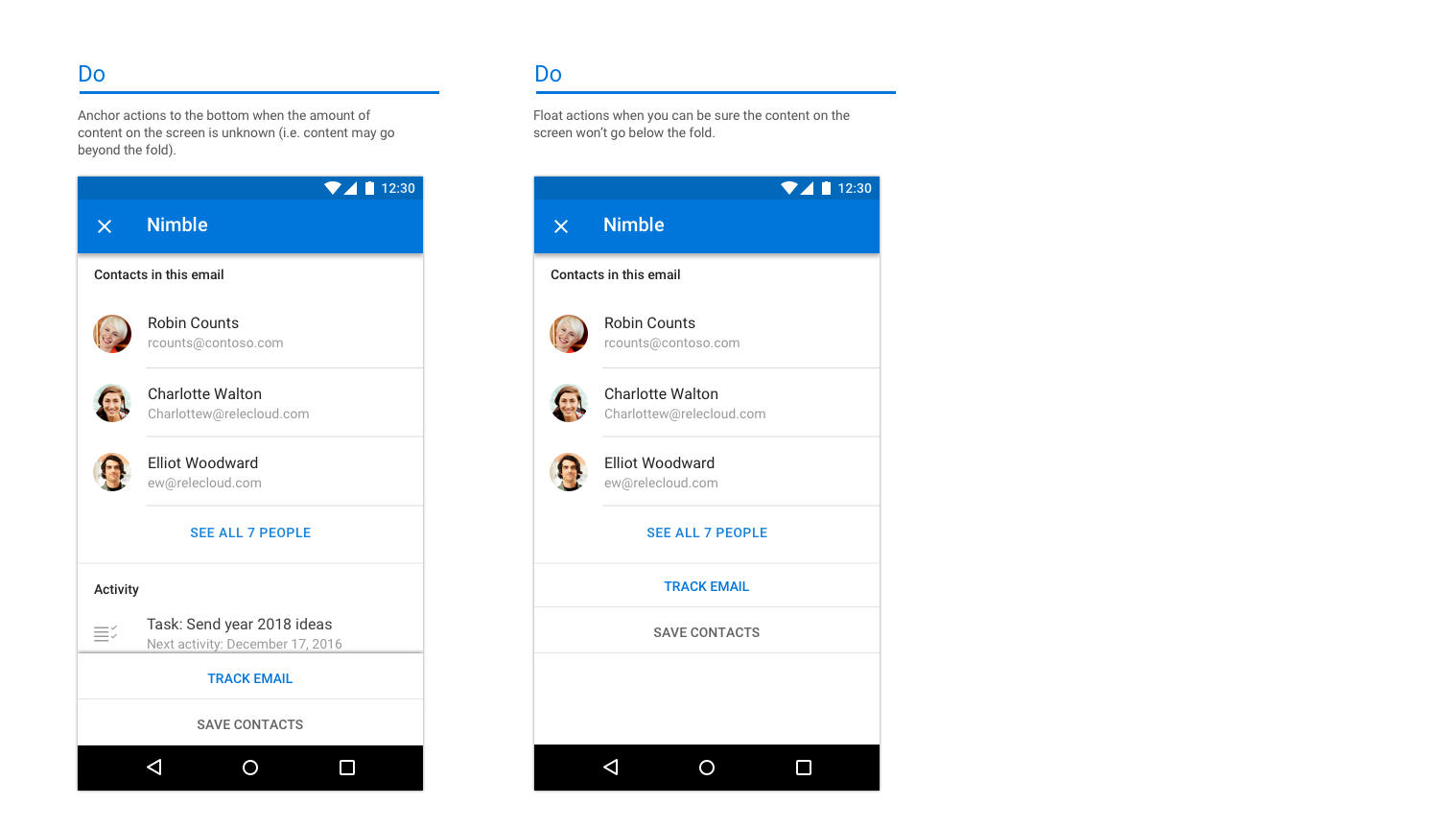

Actions 'dos' for Android.

Buttons

Buttons are used when there are other UX elements below (vs. actions, where the action is the last element on the screen).

Examples of buttons on iOS

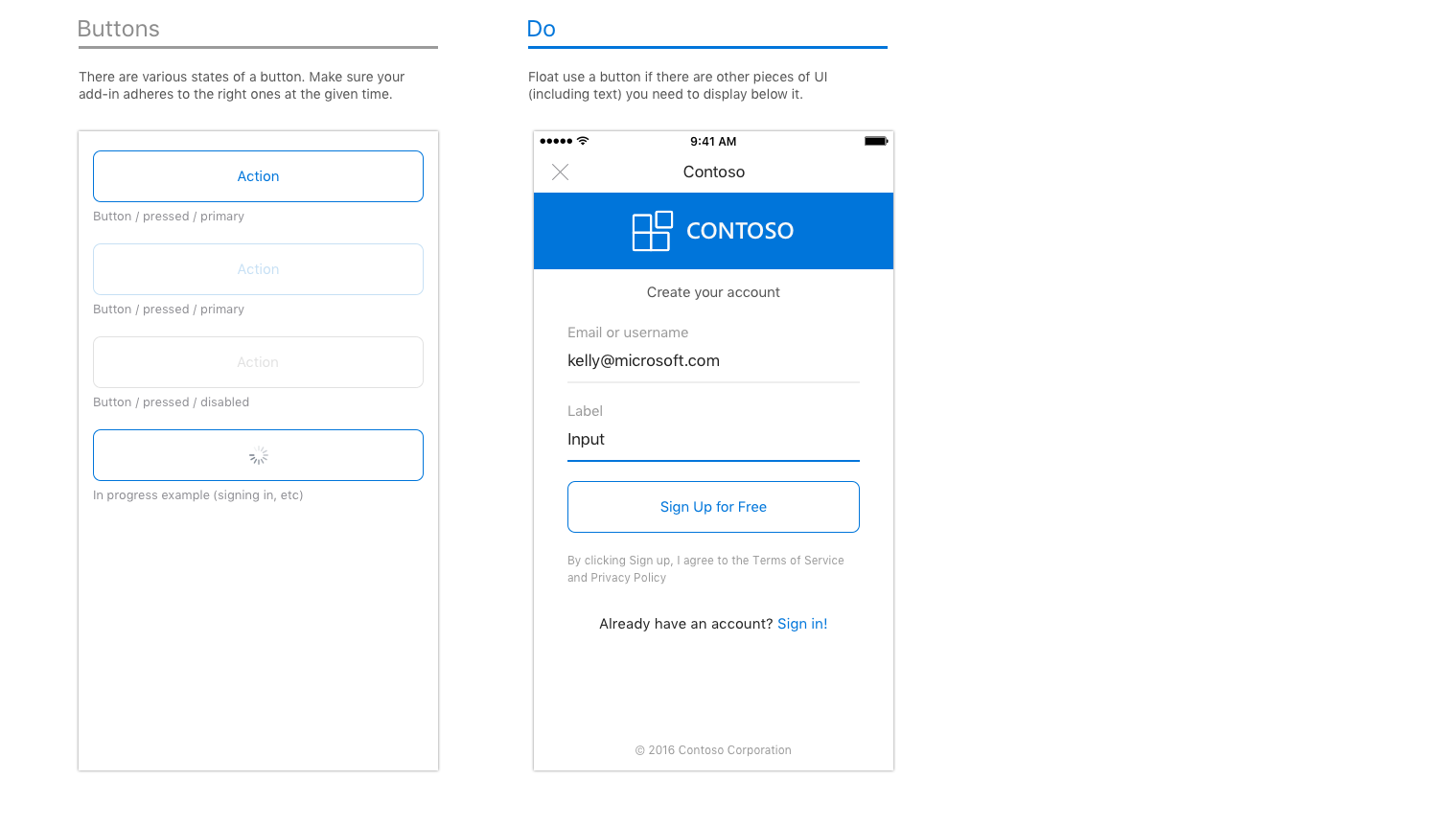

Examples of buttons for iOS.

Examples of buttons on Android

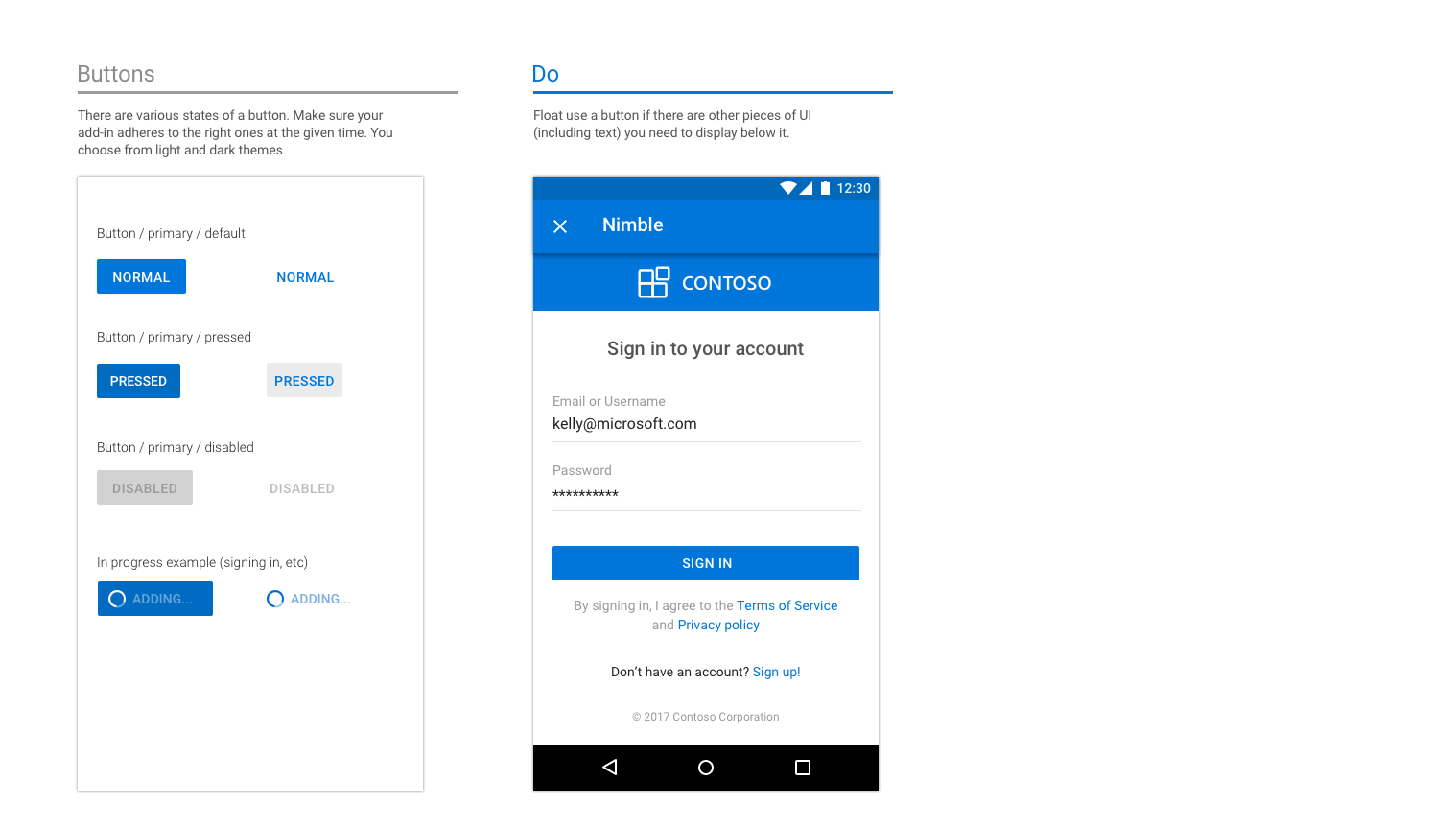

Examples of buttons for Android.

Tabs

Tabs can aid in content organization.

Examples of tabs on iOS

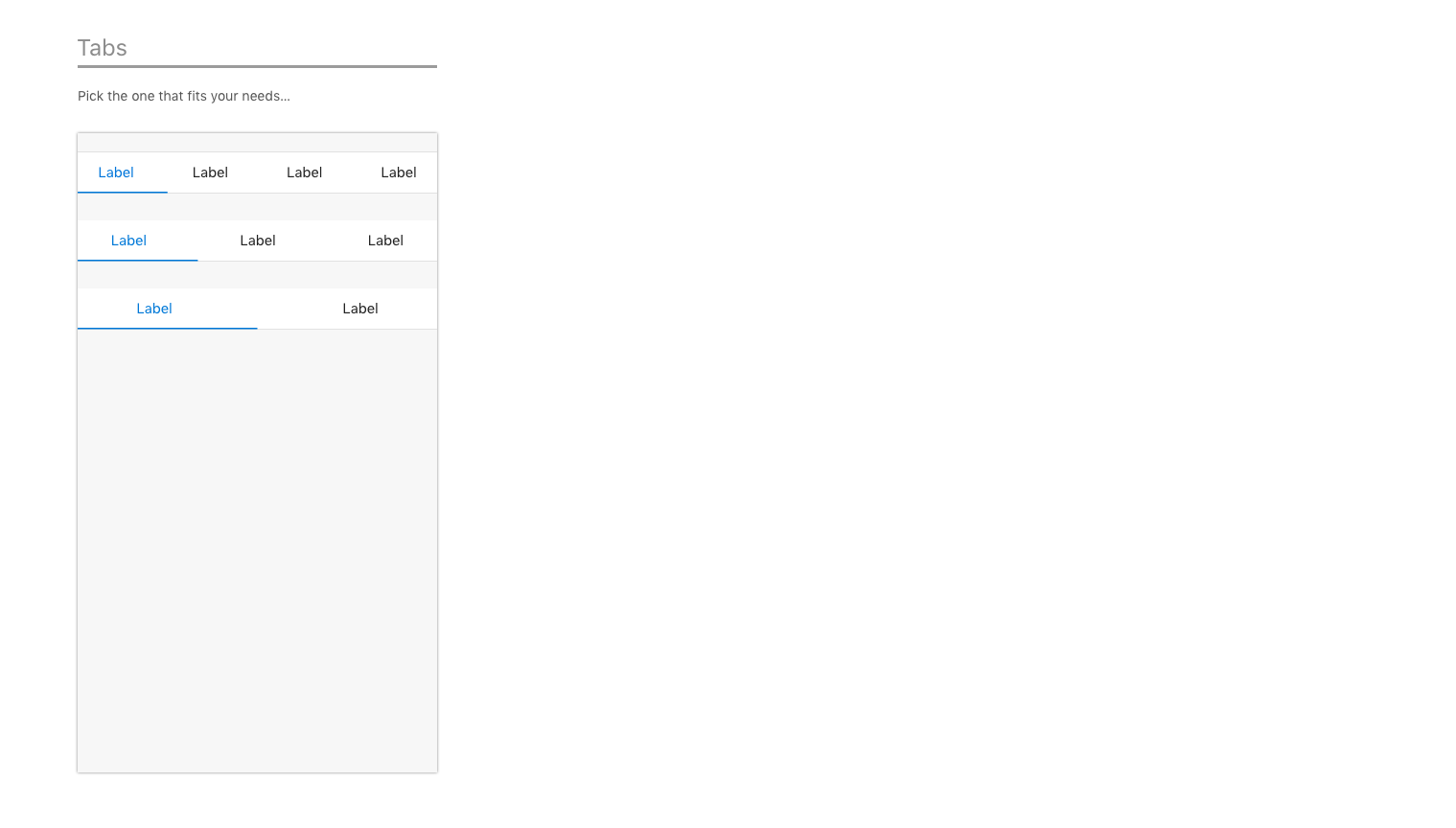

Examples of tabs for iOS.

Examples of tabs on Android

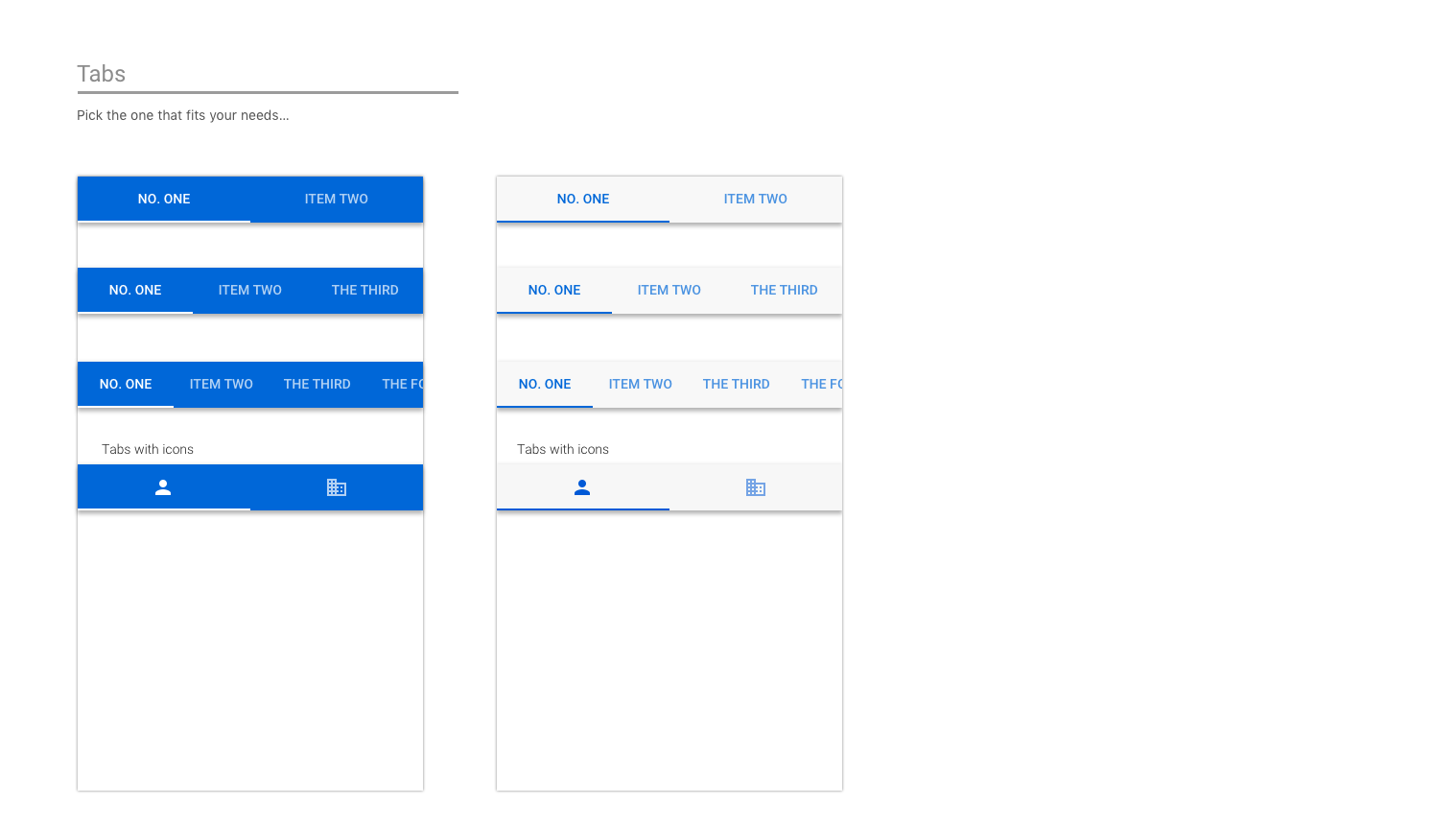

Examples of tabs for Android.

Icons

Icons should follow the current Outlook on iOS design when possible. Use our standard size and color.

Examples of icons on iOS

Examples of icons for iOS.

Examples of icons on Android

Examples of icons for Android.

End-to-end examples

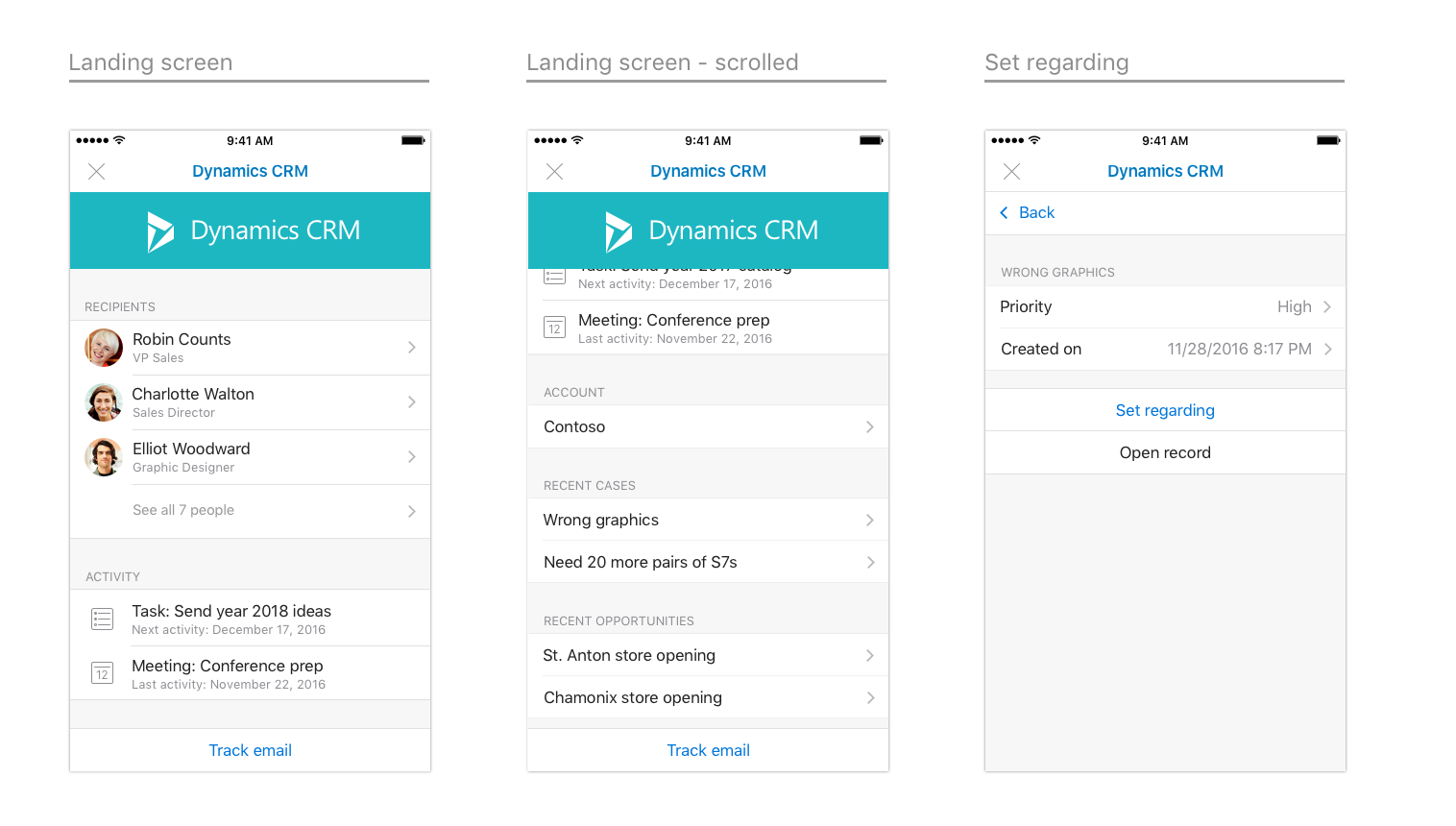

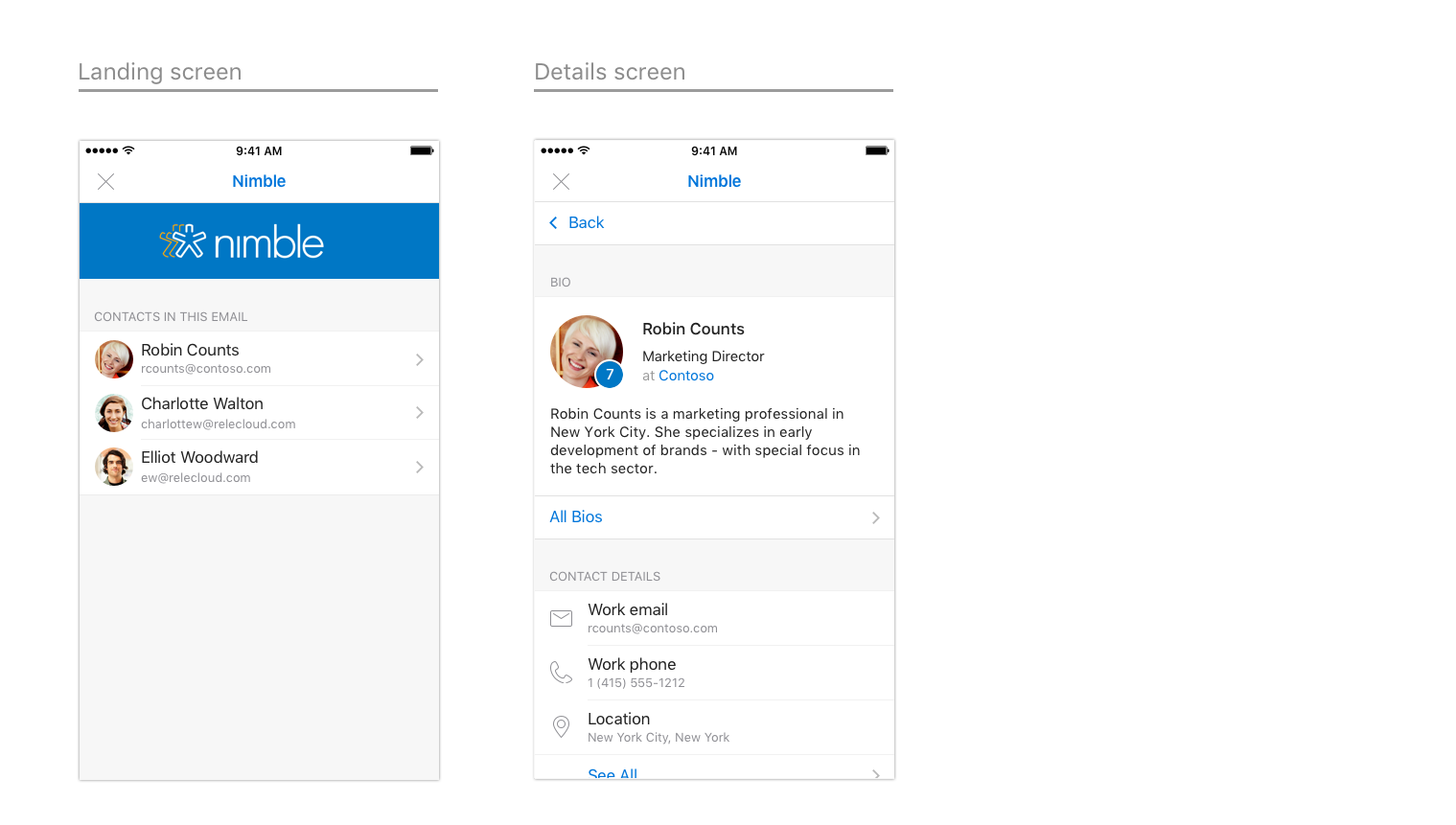

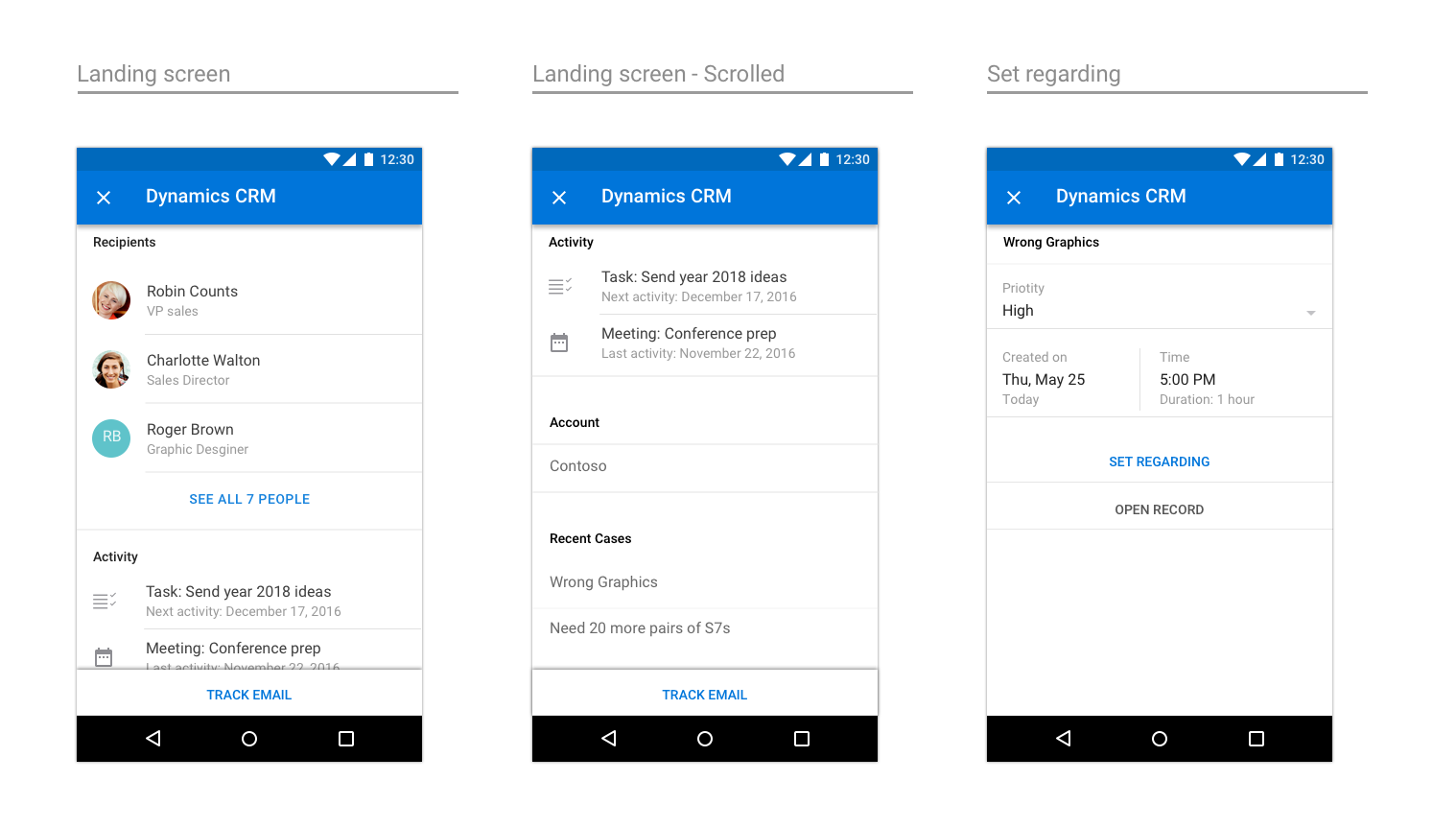

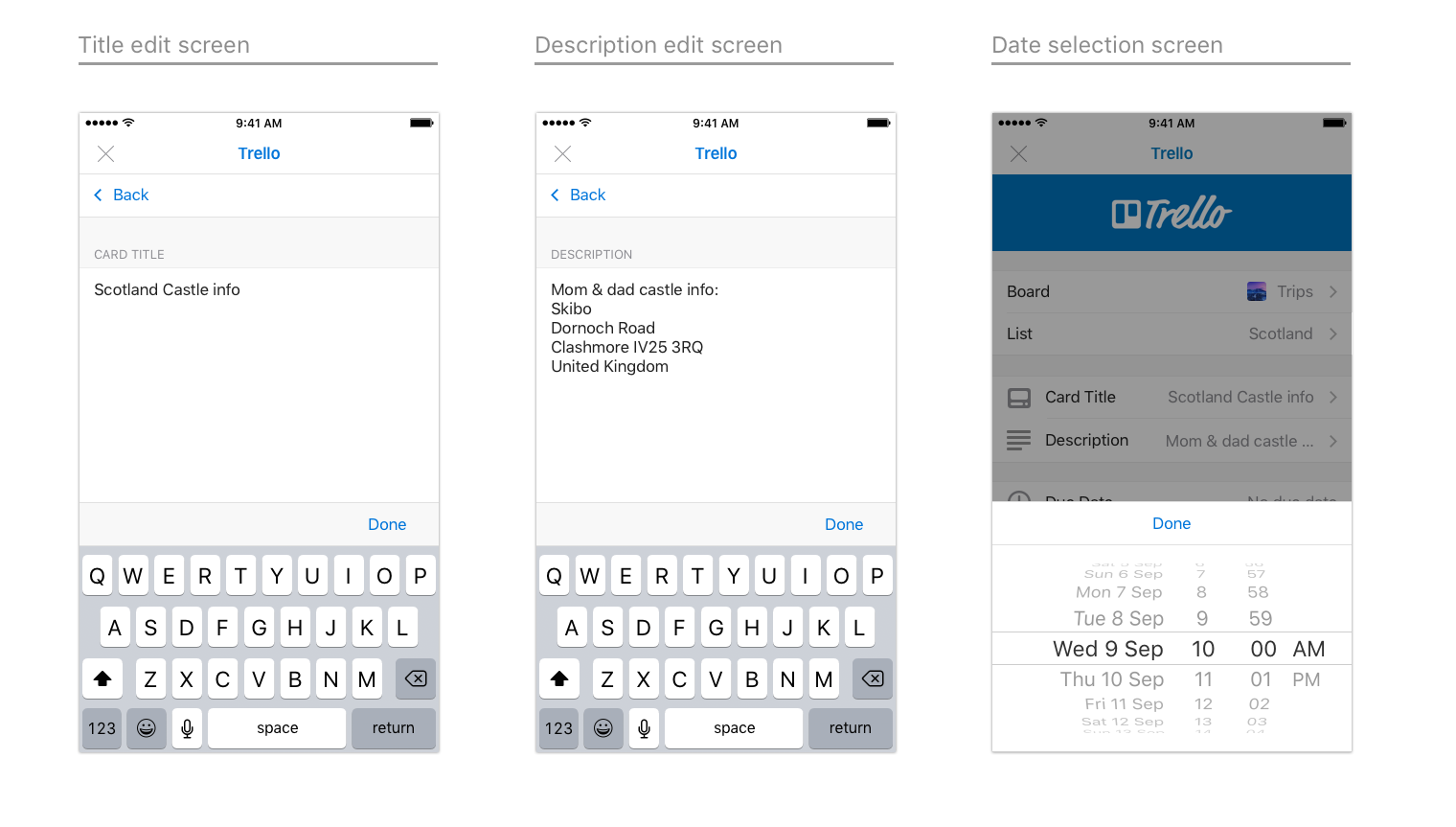

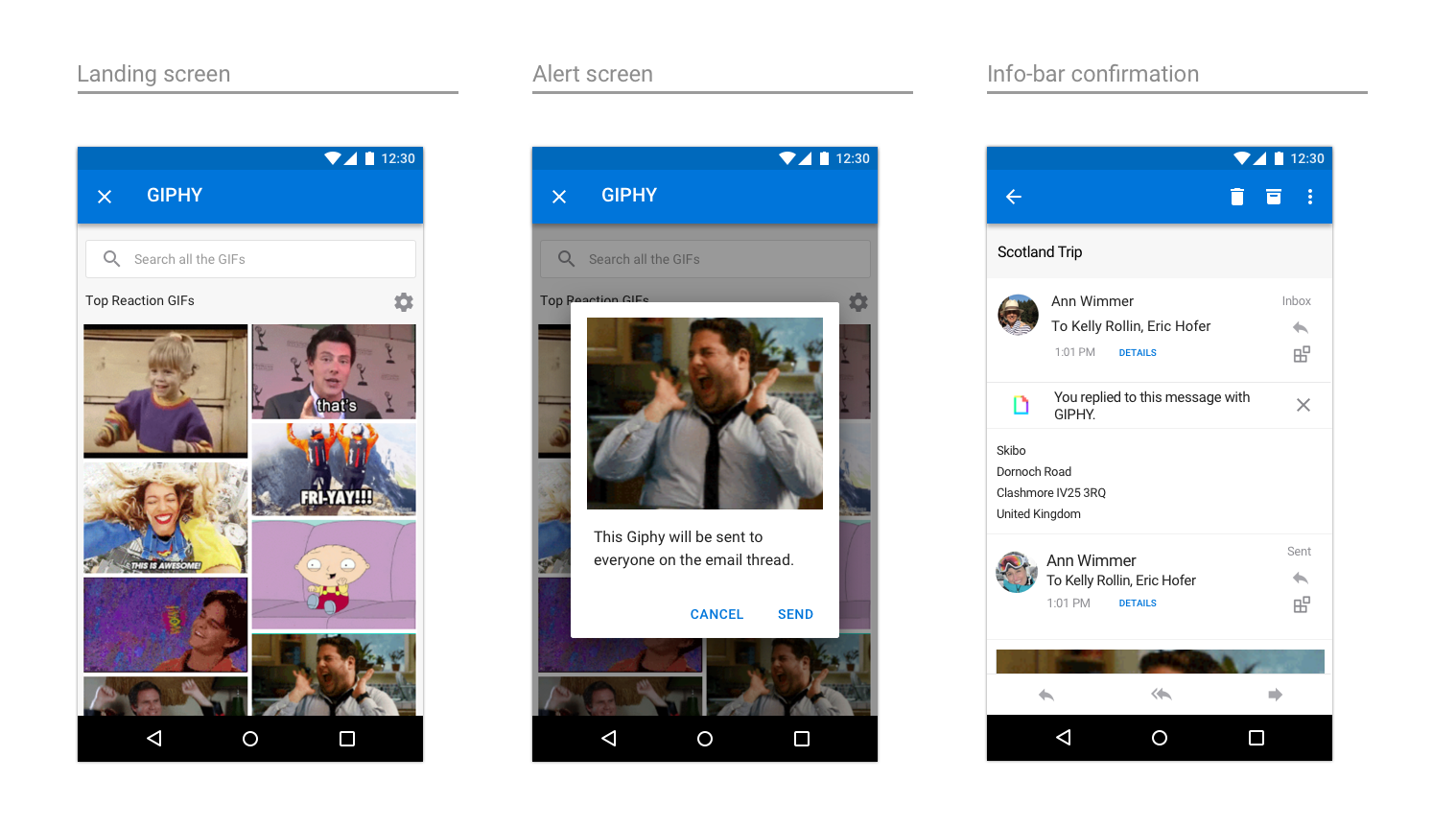

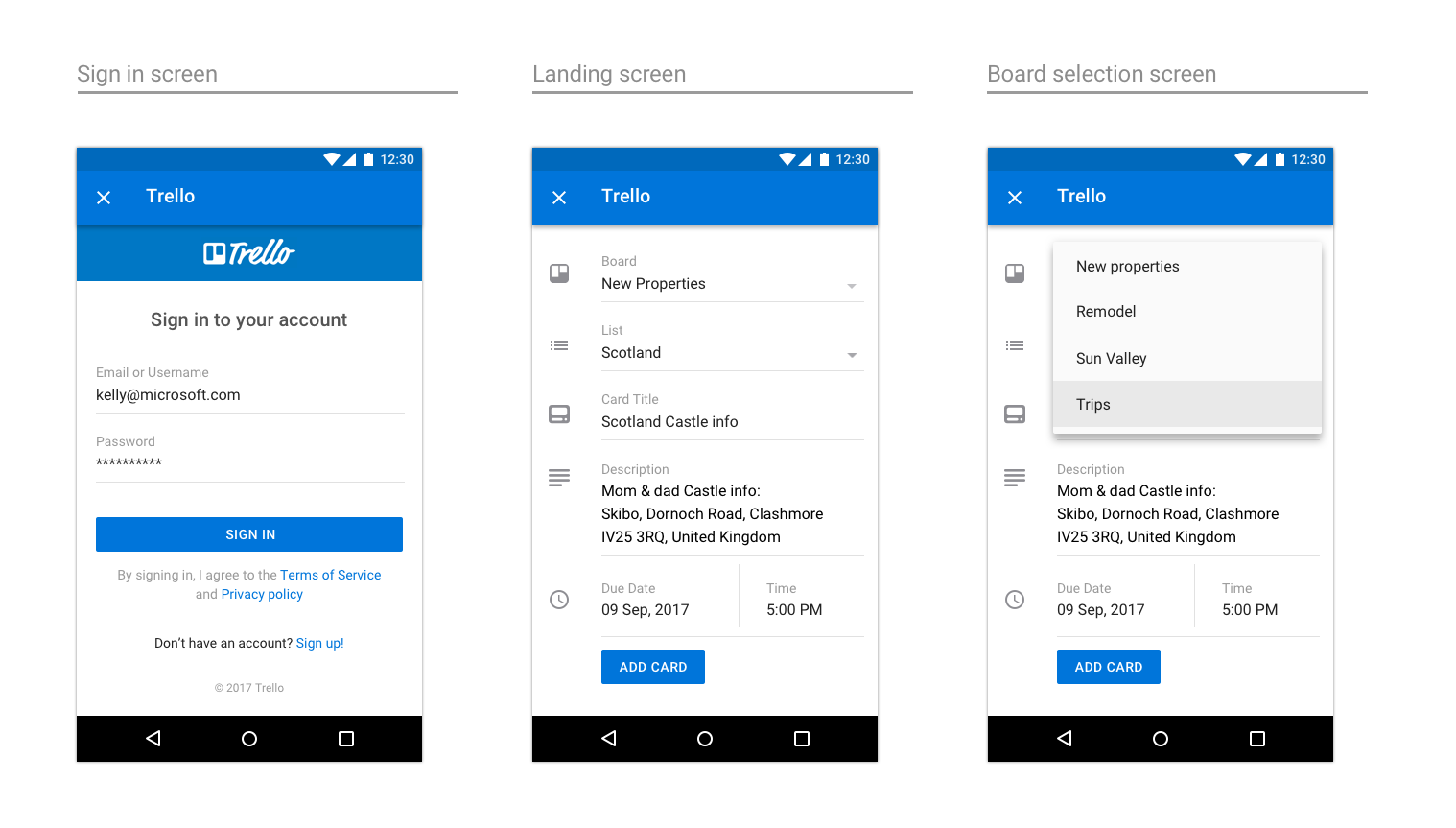

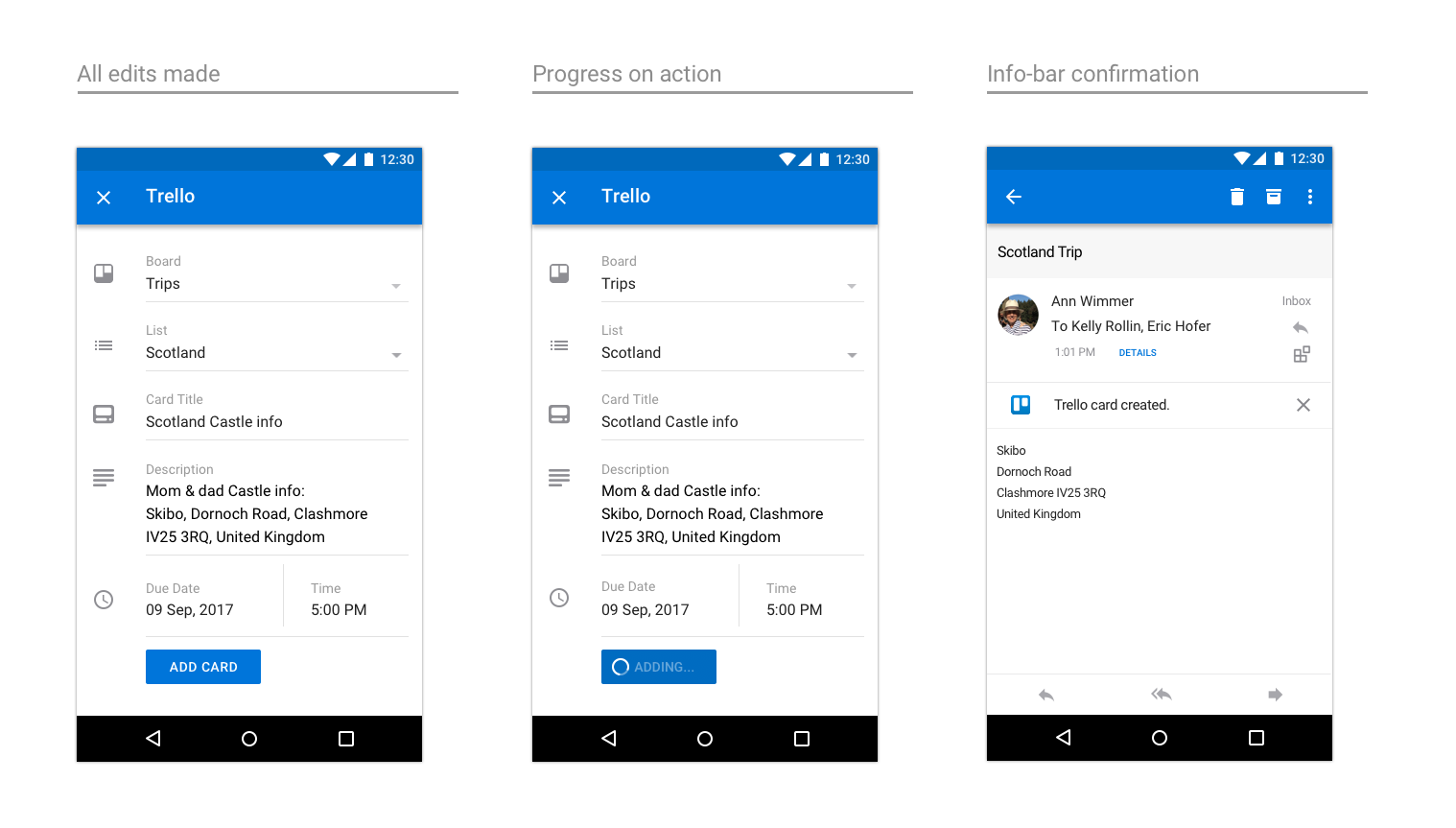

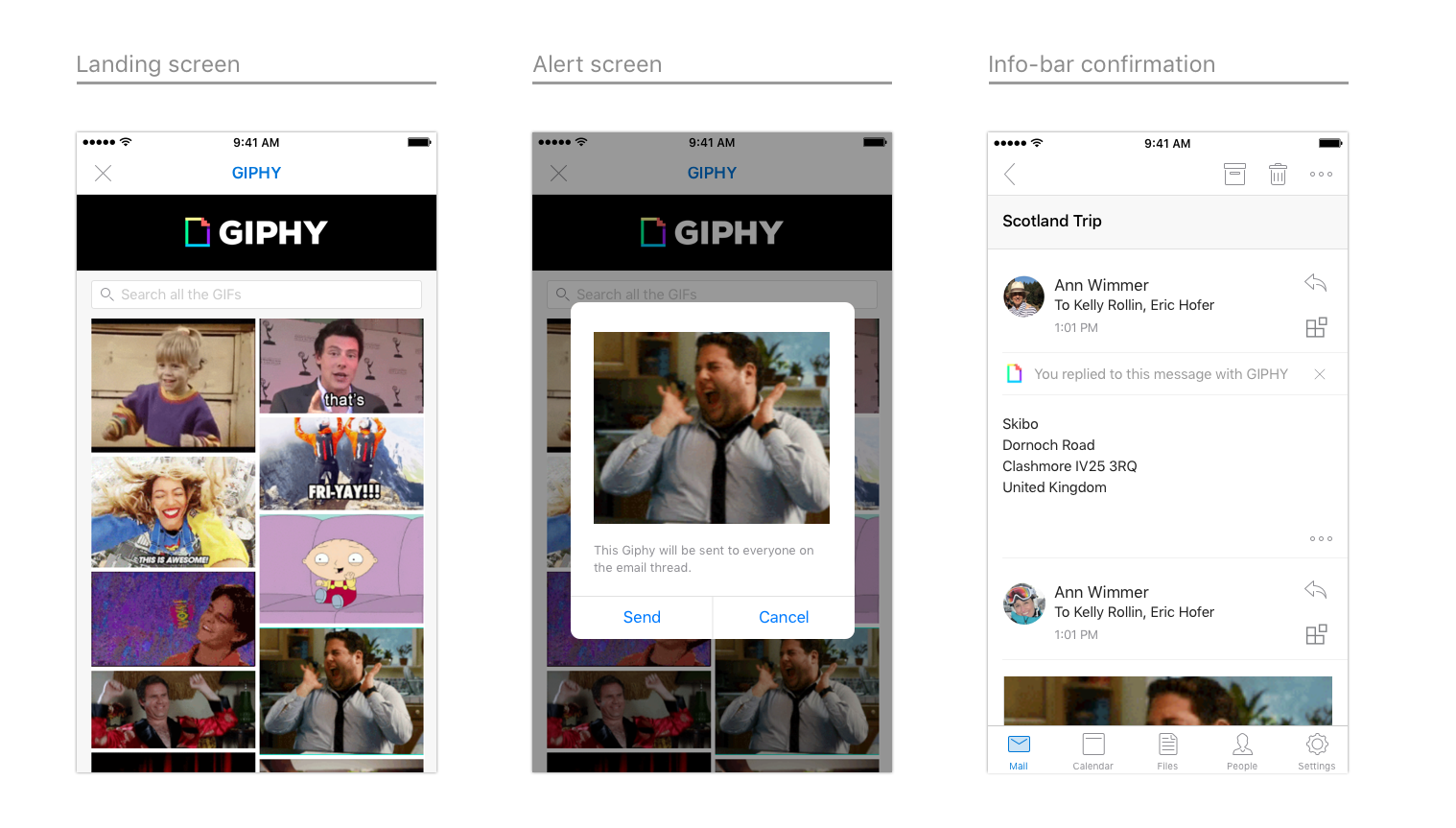

When Outlook mobile add-ins were launched, we worked closely with our partners who were building add-ins. As a way to showcase the potential of their add-ins on Outlook mobile, our designer put together end-to-end flows for each add-in, leveraging our guidelines and patterns.

Important

These examples are meant to highlight the ideal way to approach both the interaction and visual design of an add-in and may not match the exact feature sets in the shipped versions of the add-ins.
