Xamarin.Forms WebView

Article
05/06/2020

WebView is a view for displaying web and HTML content in your app:

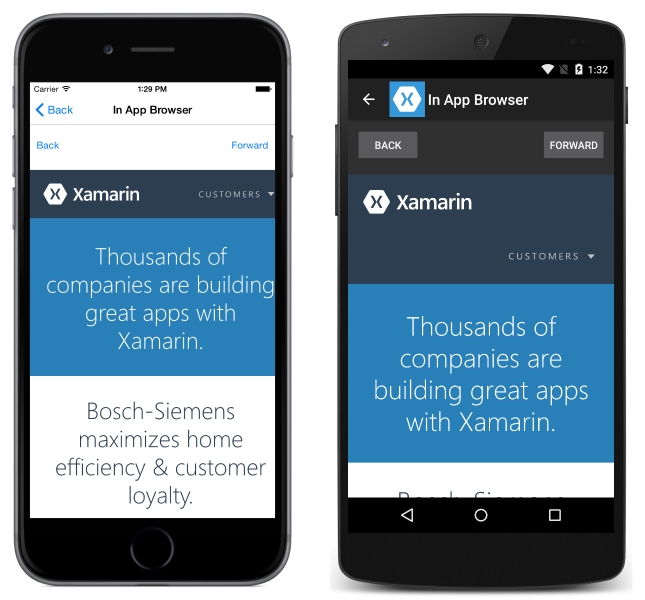

In App Browser

Content

WebView supports the following types of content:

HTML & CSS websites – WebView has full support for websites written using HTML & CSS, including JavaScript support.
Documents – Because WebView is implemented using native components on each platform, WebView is capable of showing documents in the formats that are supported by the underlying platform.
HTML strings – WebView can show HTML strings from memory.
Local Files – WebView can present any of the content types above embedded in the app.

Note

WebView on Windows does not support Silverlight, Flash or any ActiveX controls, even if they are supported by Internet Explorer on that platform.

Websites

To display a website from the internet, set the WebView's Source property to a string URL:

var browser = new WebView
{
  Source = "https://dotnet.microsoft.com/apps/xamarin"
};

Note

URLs must be fully formed with the protocol specified (i.e. it must have "http://" or "https://" prepended to it).

iOS and ATS

Since version 9, iOS will only allow your application to communicate with servers that implement best-practice security by default. Values must be set in Info.plist to enable communication with unsecure servers.

Note

If your application requires a connection to an unsecure website, you should always enter the domain as an exception using NSExceptionDomains instead of turning ATS off completely using NSAllowsArbitraryLoads. NSAllowsArbitraryLoads should only be used in extreme emergency situations.

The following demonstrates how to enable a specific domain (in this case xamarin.com) to bypass ATS requirements:

<key>NSAppTransportSecurity</key>
    <dict>
        <key>NSExceptionDomains</key>
        <dict>
            <key>xamarin.com</key>
            <dict>
                <key>NSIncludesSubdomains</key>
                <true/>
                <key>NSTemporaryExceptionAllowsInsecureHTTPLoads</key>
                <true/>
                <key>NSTemporaryExceptionMinimumTLSVersion</key>
                <string>TLSv1.1</string>
            </dict>
        </dict>
    </dict>
    ...
</key>

It is best practice to only enable some domains to bypass ATS, allowing you to use trusted sites while benefitting from the additional security on untrusted domains. The following demonstrates the less secure method of disabling ATS for the app:

<key>NSAppTransportSecurity</key>
    <dict>
        <key>NSAllowsArbitraryLoads </key>
        <true/>
    </dict>
    ...
</key>

See App Transport Security for more information about this new feature in iOS 9.

HTML Strings

If you want to present a string of HTML defined dynamically in code, you'll need to create an instance of HtmlWebViewSource:

var browser = new WebView();
var htmlSource = new HtmlWebViewSource();
htmlSource.Html = @"<html><body>
  <h1>Xamarin.Forms</h1>
  <p>Welcome to WebView.</p>
  </body></html>";
browser.Source = htmlSource;

WebView Displaying HTML String

In the above code, @ is used to mark the HTML as a verbatim string literal, meaning most escape characters are ignored.

Note

It may be necessary to set the WidthRequest and HeightRequest properties of the WebView to see the HTML content, depending upon the layout the WebView is a child of. For example, this is required in a StackLayout.

Local HTML Content

WebView can display content from HTML, CSS and JavaScript embedded within the app. For example:

<html>
  <head>
    <title>Xamarin Forms</title>
  </head>
  <body>
    <h1>Xamarin.Forms</h1>
    <p>This is an iOS web page.</p>
    <img src="XamarinLogo.png" />
  </body>
</html>

CSS:

html,body {
  margin:0;
  padding:10;
}
body,p,h1 {
  font-family: Chalkduster;
}

Note that the fonts specified in the above CSS will need to be customized for each platform, as not every platform has the same fonts.

To display local content using a WebView, you'll need to open the HTML file like any other, then load the contents as a string into the Html property of an HtmlWebViewSource. For more information on opening files, see Working with Files.

The following screenshots show the result of displaying local content on each platform:

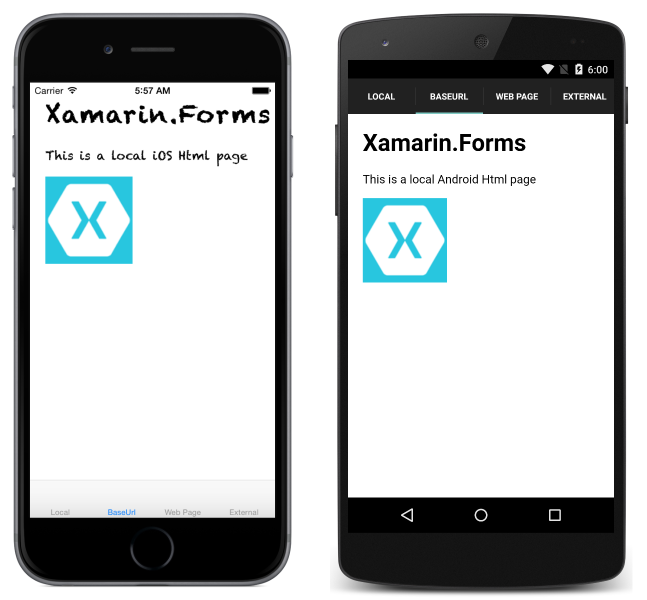

WebView Displaying Local Content

Although the first page has been loaded, the WebView has no knowledge of where the HTML came from. That is a problem when dealing with pages that reference local resources. Examples of when that might happen include when local pages link to each other, a page makes use of a separate JavaScript file, or a page links to a CSS stylesheet.

To solve this, you need to tell the WebView where to find files on the filesystem. Do that by setting the BaseUrl property on the HtmlWebViewSource used by the WebView.

Because the filesystem on each of the operating systems is different, you need to determine that URL on each platform. Xamarin.Forms exposes the DependencyService for resolving dependencies at runtime on each platform.

To use the DependencyService, first define an interface that can be implemented on each platform:

public interface IBaseUrl { string Get(); }

Note that until the interface is implemented on each platform, the app will not run. In the common project, make sure that you remember to set the BaseUrl using the DependencyService:

var source = new HtmlWebViewSource();
source.BaseUrl = DependencyService.Get<IBaseUrl>().Get();

Implementations of the interface for each platform must then be provided.

iOS

On iOS, the web content should be located in the project's root directory or Resources directory with build action BundleResource, as demonstrated below:

Visual Studio
Visual Studio for Mac

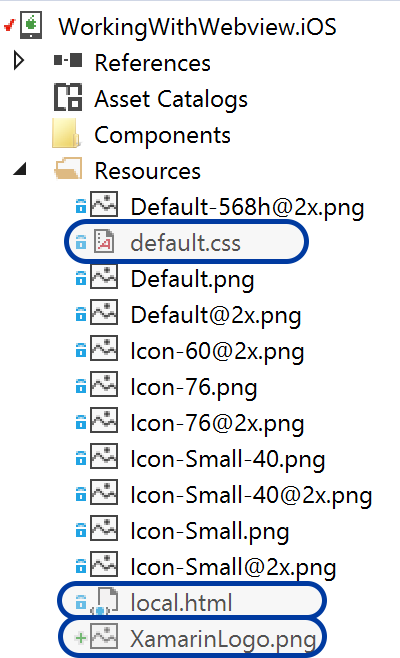

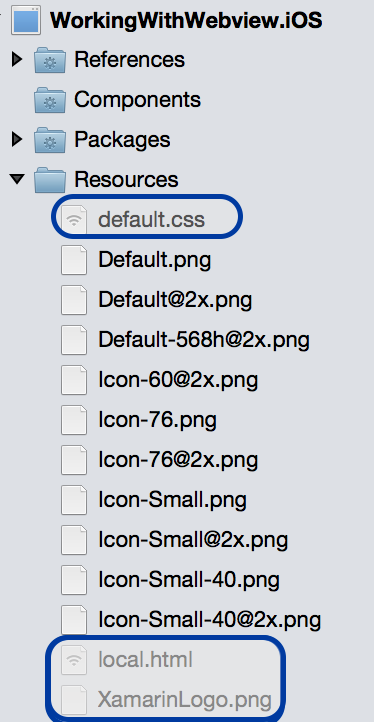

Local Files on iOS

The BaseUrl should be set to the path of the main bundle:

[assembly: Dependency (typeof (BaseUrl_iOS))]
namespace WorkingWithWebview.iOS
{
  public class BaseUrl_iOS : IBaseUrl
  {
    public string Get()
    {
      return NSBundle.MainBundle.BundlePath;
    }
  }
}

Android

On Android, place HTML, CSS, and images in the Assets folder with build action AndroidAsset as demonstrated below:

Visual Studio
Visual Studio for Mac

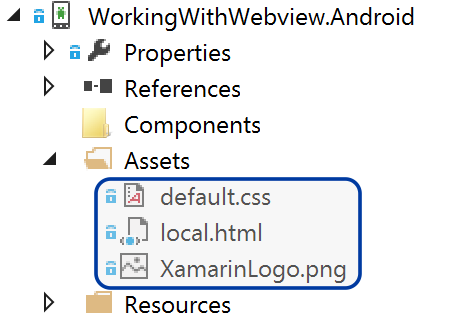

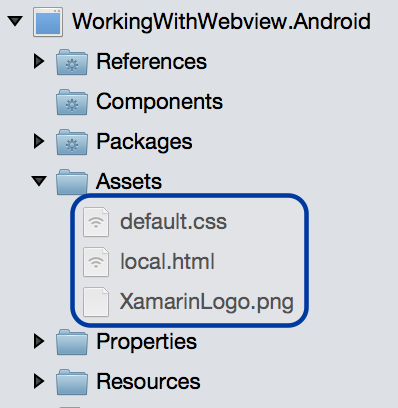

Local Files on Android

On Android, the BaseUrl should be set to "file:///android_asset/":

[assembly: Dependency (typeof(BaseUrl_Android))]
namespace WorkingWithWebview.Android
{
  public class BaseUrl_Android : IBaseUrl
  {
    public string Get()
    {
      return "file:///android_asset/";
    }
  }
}

On Android, files in the Assets folder can also be accessed through the current Android context, which is exposed by the MainActivity.Instance property:

var assetManager = MainActivity.Instance.Assets;
using (var streamReader = new StreamReader (assetManager.Open ("local.html")))
{
  var html = streamReader.ReadToEnd ();
}

Universal Windows Platform

On Universal Windows Platform (UWP) projects, place HTML, CSS and images in the project root with the build action set to Content.

The BaseUrl should be set to "ms-appx-web:///":

[assembly: Dependency(typeof(BaseUrl))]
namespace WorkingWithWebview.UWP
{
    public class BaseUrl : IBaseUrl
    {
        public string Get()
        {
            return "ms-appx-web:///";
        }
    }
}

WebView supports navigation through several methods and properties that it makes available:

GoForward() – if CanGoForward is true, calling GoForward navigates forward to the next visited page.
GoBack() – if CanGoBack is true, calling GoBack will navigate to the last visited page.
CanGoBack – true if there are pages to navigate back to, false if the browser is at the starting URL.
CanGoForward – true if the user has navigated backwards and can move forward to a page that was already visited.

Within pages, WebView does not support multi-touch gestures. It is important to make sure that content is mobile-optimized and appears without the need for zooming.

It is common for applications to show a link within a WebView, rather than the device's browser. In those situations, it is useful to allow normal navigation, but when the user hits back while they are on the starting link, the app should return to the normal app view.

Use the built-in navigation methods and properties to enable this scenario.

Start by creating the page for the browser view:

<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="WebViewSample.InAppBrowserXaml"
             Title="Browser">
    <StackLayout Margin="20">
        <StackLayout Orientation="Horizontal">
            <Button Text="Back" HorizontalOptions="StartAndExpand" Clicked="OnBackButtonClicked" />
            <Button Text="Forward" HorizontalOptions="EndAndExpand" Clicked="OnForwardButtonClicked" />
        </StackLayout>
        <!-- WebView needs to be given height and width request within layouts to render. -->
        <WebView x:Name="webView" WidthRequest="1000" HeightRequest="1000" />
    </StackLayout>
</ContentPage>

In the code-behind:

public partial class InAppBrowserXaml : ContentPage
{
    public InAppBrowserXaml(string URL)
    {
        InitializeComponent();
        webView.Source = URL;
    }

    async void OnBackButtonClicked(object sender, EventArgs e)
    {
        if (webView.CanGoBack)
        {
            webView.GoBack();
        }
        else
        {
            await Navigation.PopAsync();
        }
    }

    void OnForwardButtonClicked(object sender, EventArgs e)
    {
        if (webView.CanGoForward)
        {
            webView.GoForward();
        }
    }
}

That's it!

WebView Navigation Buttons

Events

WebView raises the following events to help you respond to changes in state:

Navigating – event raised when the WebView begins loading a new page.
Navigated – event raised when the page is loaded and navigation has stopped.
ReloadRequested – event raised when a request is made to reload the current content.

The WebNavigatingEventArgs object that accompanies the Navigating event has four properties:

Cancel – indicates whether or not to cancel the navigation.
NavigationEvent – the navigation event that was raised.
Source – the element that performed the navigation.
Url – the navigation destination.

The WebNavigatedEventArgs object that accompanies the Navigated event has four properties:

NavigationEvent – the navigation event that was raised.
Result – describes the result of the navigation, using a WebNavigationResult enumeration member. Valid values are Cancel, Failure, Success, and Timeout.
Source – the element that performed the navigation.
Url – the navigation destination.

If you anticipate using webpages that take a long time to load, consider using the Navigating and Navigated events to implement a status indicator. For example:

<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="WebViewSample.LoadingLabelXaml"
             Title="Loading Demo">
    <StackLayout>
        <!--Loading label should not render by default.-->
        <Label x:Name="labelLoading" Text="Loading..." IsVisible="false" />
        <WebView HeightRequest="1000" WidthRequest="1000" Source="https://dotnet.microsoft.com/apps/xamarin" Navigated="webviewNavigated" Navigating="webviewNavigating" />
    </StackLayout>
</ContentPage>

The two event handlers:

void webviewNavigating(object sender, WebNavigatingEventArgs e)
{
    labelLoading.IsVisible = true;
}

void webviewNavigated(object sender, WebNavigatedEventArgs e)
{
    labelLoading.IsVisible = false;
}

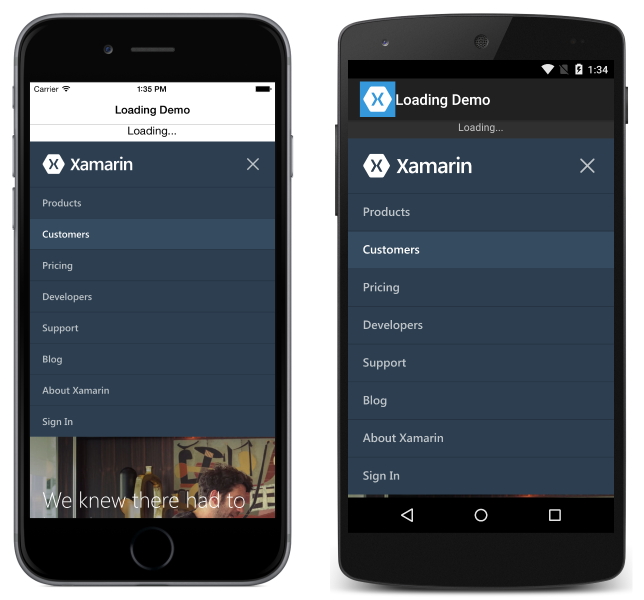

This results in the following output (loading):

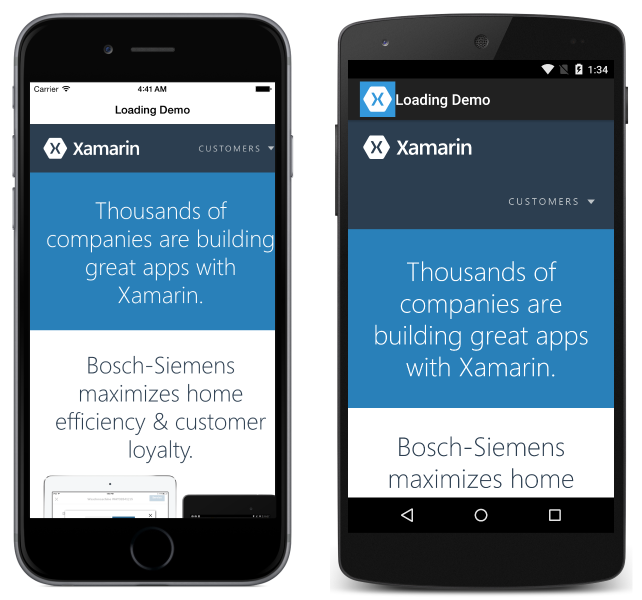

Finished Loading:

Reloading content

WebView has a Reload method that can be used to reload the current content:

var webView = new WebView();
...
webView.Reload();

When the Reload method is invoked the ReloadRequested event is fired, indicating that a request has been made to reload the current content.

Performance

Popular web browsers adopt technologies like hardware accelerated rendering and JavaScript compilation. Prior to Xamarin.Forms 4.4, the Xamarin.Forms WebView was implemented on iOS by the UIWebView class. However, many of these technologies were unavailable in this implementation. Therefore, since Xamarin.Forms 4.4, the Xamarin.Forms WebView is implemented on iOS by the WkWebView class, which supports faster browsing.

Note

On iOS, the WkWebViewRenderer has a constructor overload that accepts a WkWebViewConfiguration argument. This enables the renderer to be configured on creation.

An application can return to using the iOS UIWebView class to implement the Xamarin.Forms WebView, for compatibility reasons. This can be achieved by adding the following code to the AssemblyInfo.cs file in the iOS platform project for the application:

// Opt-in to using UIWebView instead of WkWebView.
[assembly: ExportRenderer(typeof(Xamarin.Forms.WebView), typeof(Xamarin.Forms.Platform.iOS.WebViewRenderer))]

Note

In Xamarin.Forms 5.0, the WebViewRenderer class has been removed. Therefore, Xamarin.Forms 5.0 doesn't contain a reference to the UIWebView control.

WebView on Android by default is about as fast as the built-in browser.

The UWP WebView uses the Microsoft Edge rendering engine. Desktop and tablet devices should see the same performance as using the Edge browser itself.

Permissions

In order for WebView to work, you must make sure that permissions are set for each platform. Note that on some platforms, WebView will work in debug mode, but not when built for release. That is because some permissions, like those for internet access on Android, are set by default by Visual Studio for Mac when in debug mode.

UWP – requires the Internet (Client & Server) capability when displaying network content.
Android – requires INTERNET only when displaying content from the network. Local content requires no special permissions.
iOS – requires no special permissions.

Layout

Unlike most other Xamarin.Forms views, WebView requires that HeightRequest and WidthRequest are specified when contained in StackLayout or RelativeLayout. If you fail to specify those properties, the WebView will not render.

The following examples demonstrate layouts that result in working, rendering WebViews:

StackLayout with WidthRequest & HeightRequest:

<StackLayout>
    <Label Text="test" />
    <WebView Source="https://dotnet.microsoft.com/apps/xamarin"
        HeightRequest="1000"
        WidthRequest="1000" />
</StackLayout>

RelativeLayout with WidthRequest & HeightRequest:

<RelativeLayout>
    <Label Text="test"
        RelativeLayout.XConstraint= "{ConstraintExpression
                                      Type=Constant, Constant=10}"
        RelativeLayout.YConstraint= "{ConstraintExpression
                                      Type=Constant, Constant=20}" />
    <WebView Source="https://dotnet.microsoft.com/apps/xamarin"
        RelativeLayout.XConstraint="{ConstraintExpression Type=Constant,
                                     Constant=10}"
        RelativeLayout.YConstraint="{ConstraintExpression Type=Constant,
                                     Constant=50}"
        WidthRequest="1000" HeightRequest="1000" />
</RelativeLayout>

AbsoluteLayout without WidthRequest & HeightRequest:

<AbsoluteLayout>
    <Label Text="test" AbsoluteLayout.LayoutBounds="0,0,100,100" />
    <WebView Source="https://dotnet.microsoft.com/apps/xamarin"
      AbsoluteLayout.LayoutBounds="0,150,500,500" />
</AbsoluteLayout>

Grid without WidthRequest & HeightRequest. Grid is one of the few layouts that does not require specifying requested heights and widths.:

<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="100" />
        <RowDefinition Height="*" />
    </Grid.RowDefinitions>
    <Label Text="test" Grid.Row="0" />
    <WebView Source="https://dotnet.microsoft.com/apps/xamarin" Grid.Row="1" />
</Grid>

Invoking JavaScript

WebView includes the ability to invoke a JavaScript function from C#, and return any result to the calling C# code. This is accomplished with the WebView.EvaluateJavaScriptAsync method:

var numberEntry = new Entry { Text = "5" };
var resultLabel = new Label();
var webView = new WebView();
...

int number = int.Parse(numberEntry.Text);
string result = await webView.EvaluateJavaScriptAsync($"factorial({number})");
resultLabel.Text = $"Factorial of {number} is {result}.";

The WebView.EvaluateJavaScriptAsync method evaluates the JavaScript that's specified as the argument, and returns any result as a string. In this example, the factorial JavaScript function is invoked, which returns the factorial of number as a result. This JavaScript function is defined in the local HTML file that the WebView loads, and is shown in the following example:

<html>
<body>
<script type="text/javascript">
function factorial(num) {
        if (num === 0 || num === 1)
            return 1;
        for (var i = num - 1; i >= 1; i--) {
            num *= i;
        }
        return num;
}
</script>
</body>
</html>

Cookies

Cookies can be set on a WebView, which are then sent with the web request to the specified URL. This is accomplished by adding Cookie objects to a CookieContainer, which is then set as the value of the WebView.Cookies bindable property. The following code shows an example of this:

using System.Net;
using Xamarin.Forms;
// ...

CookieContainer cookieContainer = new CookieContainer();
Uri uri = new Uri("https://dotnet.microsoft.com/apps/xamarin", UriKind.RelativeOrAbsolute);

Cookie cookie = new Cookie
{
    Name = "XamarinCookie",
    Expires = DateTime.Now.AddDays(1),
    Value = "My cookie",
    Domain = uri.Host,
    Path = "/"
};
cookieContainer.Add(uri, cookie);
webView.Cookies = cookieContainer;
webView.Source = new UrlWebViewSource { Url = uri.ToString() };

In this example, a single Cookie is added to the CookieContainer object, which is then set as the value of the WebView.Cookies property. When the WebView sends a web request to the specified URL, the cookie is sent with the request.

UIWebView Deprecation and App Store Rejection (ITMS-90809)

Starting in April 2020, Apple will reject apps that still use the deprecated UIWebView API. While Xamarin.Forms has switched to WKWebView as the default, there is still a reference to the older SDK in the Xamarin.Forms binaries. Current iOS linker behavior does not remove this, and as a result the deprecated UIWebView API will still appear to be referenced from your app when you submit to the App Store.

Important

In Xamarin.Forms 5.0, the WebViewRenderer class has been removed. Therefore, Xamarin.Forms 5.0 doesn't contain a reference to the UIWebView control.

A preview version of the linker is available to fix this issue. To enable the preview, you will need to supply an additional argument --optimize=experimental-xforms-product-type to the linker.

The prerequisites for this to work are:

Xamarin.Forms 4.5 or higher. Xamarin.Forms 4.6, or higher, is required if your app uses Material Visual.
Xamarin.iOS 13.10.0.17 or higher. Check your Xamarin.iOS version in Visual Studio. This version of Xamarin.iOS is included with Visual Studio for Mac 8.4.1 and Visual Studio 16.4.3.
Remove references to UIWebView. Your code should not have any references to UIWebView or any classes that make use of UIWebView.

For more information about detecting and removing UIWebView references, see UIWebView deprecation.

Follow these steps for the linker to remove UIWebView references:

Open iOS project properties – Right-click your iOS project and choose Properties.
Navigate to the iOS Build section – Select the iOS Build section.
Update the Additional mtouch arguments – In the Additional mtouch arguments add this flag --optimize=experimental-xforms-product-type (in addition to any value that might already be in there). Note: this flag works together with the Linker Behavior set to SDK Only or Link All. If, for any reason, you see errors when setting the Linker Behavior to All, this is most likely a problem within the app code or a third-party library that is not linker safe. For more information on the linker, see Linking Xamarin.iOS Apps.
Update all build configurations – Use the Configuration and Platform lists at the top of the window to update all build configurations. The most important configuration to update is the Release/iPhone configuration, since that is typically used to create builds for App Store submission.

You can see the window with the new flag in place in this screenshot:

Follow these steps for the linker to remove UIWebView references:

Open iOS project options – Right-click your iOS project and choose Options.
Navigate to the iOS Build section – Select the iOS Build section.
Update the Additional mtouch arguments – In the Additional mtouch arguments add this flag --optimize=experimental-xforms-product-type (in addition to any value that might already be in there). Note: this flag works together with the Linker Behavior set to SDK Only or Link All. If, for any reason, you see errors when setting the Linker Behavior to All, this is most likely a problem within the app code or a third-party library that is not linker safe. For more information on the linker, see Linking Xamarin.iOS Apps.
Update all build configurations – Use the Configuration and Platform lists at the top of the window to update all build configurations. The most important configuration to update is the Release/iPhone configuration, since that is typically used to create builds for App Store submission.

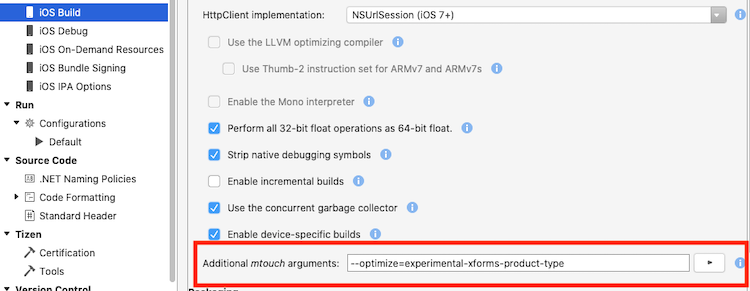

You can see the window with the new flag in place in this screenshot:

Now when you create a new (release) build and submit it to the App Store, there should be no warnings about the deprecated API.

UIWebView deprecation

Share via

Xamarin.Forms WebView

Content

Websites

iOS and ATS

HTML Strings

Local HTML Content

iOS

Android

Universal Windows Platform

Navigation

Events

Reloading content

Performance

Permissions

Layout

Invoking JavaScript

Cookies

UIWebView Deprecation and App Store Rejection (ITMS-90809)

Configure the linker

Additional resources

Share via

Xamarin.Forms WebView

Content

Websites

iOS and ATS

HTML Strings

Local HTML Content

iOS

Android

Universal Windows Platform

Navigation

Events

Reloading content

Performance

Permissions

Layout

Invoking JavaScript

Cookies

UIWebView Deprecation and App Store Rejection (ITMS-90809)

Configure the linker

Related Links

Additional resources
