Configure credential manager - GitHub API

  • Article

APPLIES TO: All API Management tiers

In this article, you learn how to create a managed connection in API Management and call a GitHub API that requires an OAuth 2.0 token. The authorization code grant type is used in this example.

You learn how to:

  • Register an application in GitHub
  • Configure a credential provider in API Management
  • Configure a connection
  • Create an API in API Management and configure a policy
  • Test your GitHub API in API Management

Prerequisites

Step 1: Register an application in GitHub

Create a GitHub OAuth app for the API and give it the appropriate permissions for the requests that you want to call.

  1. Sign in to GitHub.

  2. In your account profile, go to Settings > Developer Settings > OAuth Apps. Select New OAuth app.

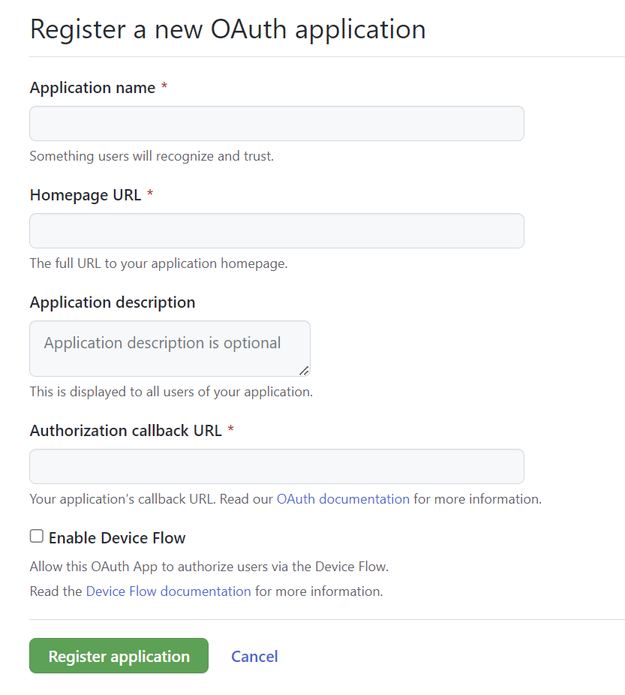

    Screenshot of registering a new OAuth application in GitHub.

    1. Enter an Application name and Homepage URL for the application. For this example, you can supply a placeholder URL such as http://localhost.
    2. Optionally, add an Application description.
    3. In Authorization callback URL (the redirect URL), enter https://authorization-manager.consent.azure-apim.net/redirect/apim/<YOUR-APIM-SERVICENAME>, substituting the name of the API Management instance where you will configure the credential provider.

  3. Select Register application.

  4. On the General page, copy the Client ID, which you'll use in Step 2.

  5. Select Generate a new client secret. Copy the secret, which won't be displayed again, and which you'll use in Step 2.

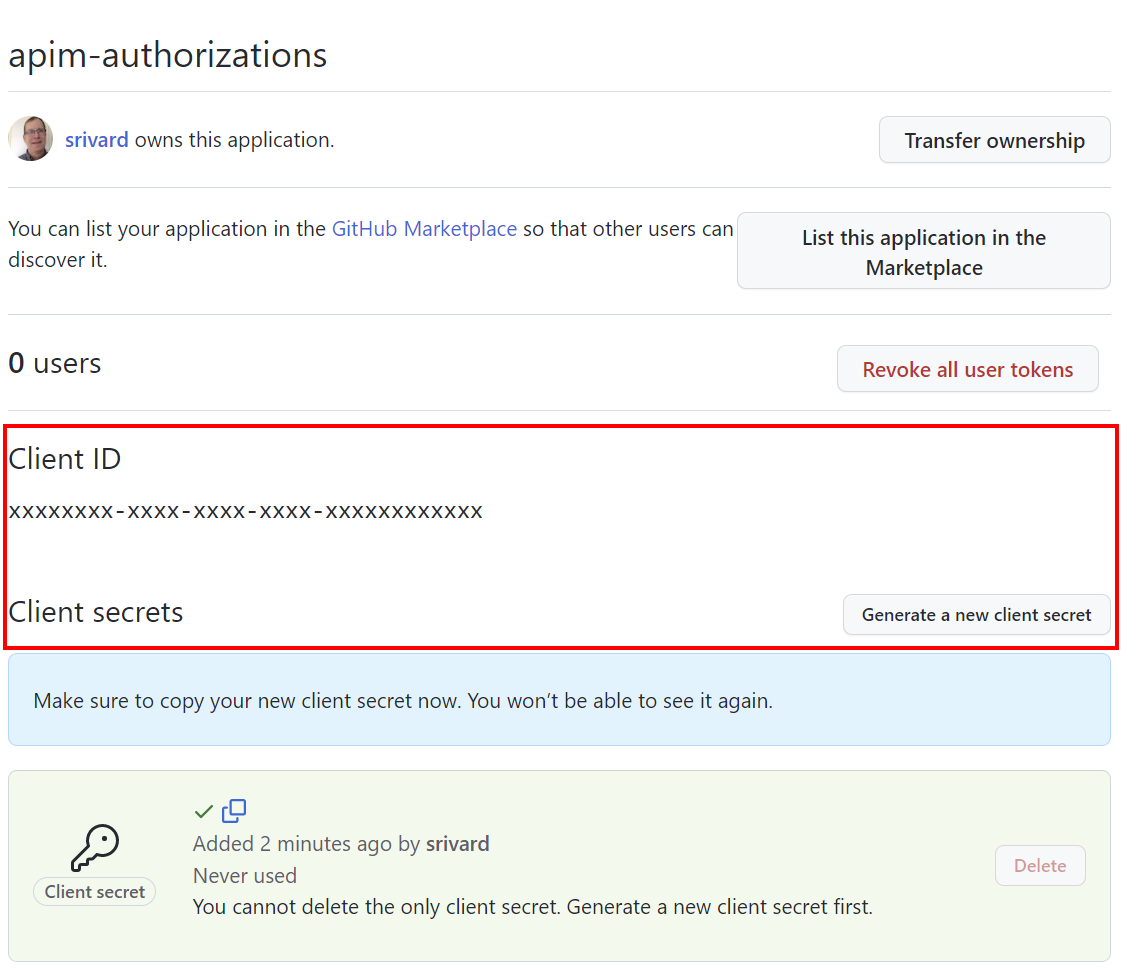

    Screenshot showing how to get client ID and client secret for the application in GitHub.

Step 2: Configure a credential provider in API Management

  1. Sign into the portal and go to your API Management instance.

  2. On the left menu, select Credential manager > + Create.

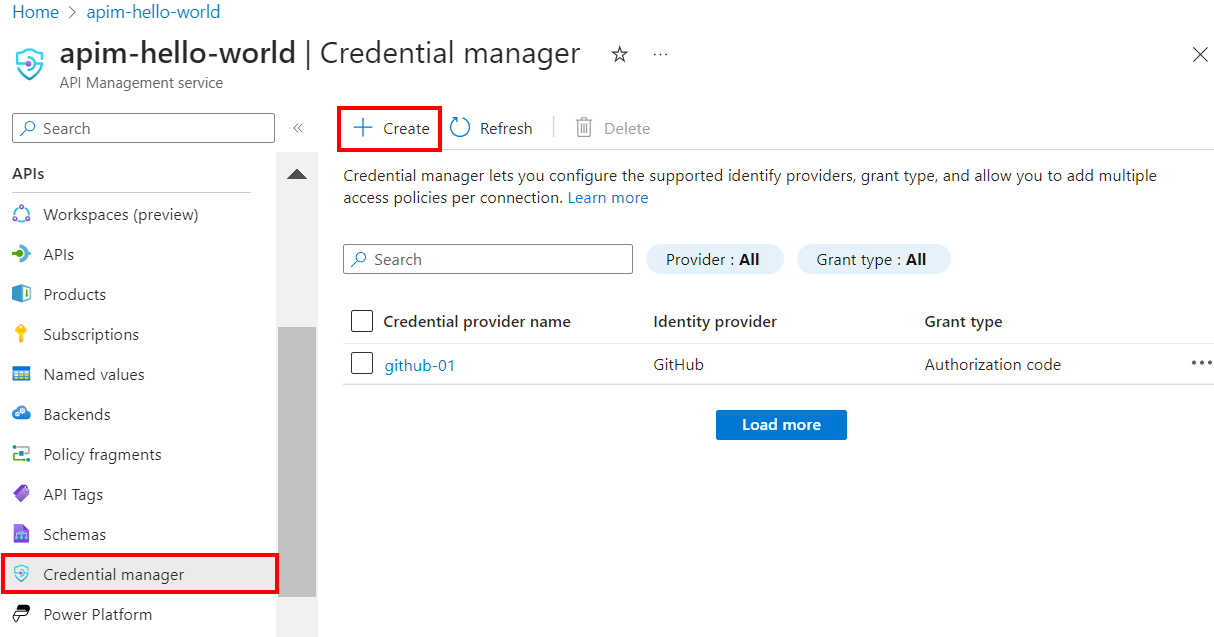

    Screenshot of creating an API Management credential in the Azure portal.

  3. On the Create credential provider page, enter the following settings:

    Settings Value
    Credential provider name A name of your choice, such as github-01
    Identity provider Select GitHub
    Grant type Select Authorization code
    Client ID Paste the value you copied earlier from the app registration
    Client secret Paste the value you copied earlier from the app registration
    Scope For this example, set the scope to User

  4. Select Create.

  5. When prompted, review the OAuth redirect URL that's displayed, and select Yes to confirm that it matches the URL you entered in the app registration.

Step 3: Configure a connection

On the Connection tab, complete the steps for your connection to the provider.

Note

When you configure a connection, API Management by default sets up an access policy that enables access by the instance's systems-assigned managed identity. This access is sufficient for this example. You can add additional access policies as needed.

  1. Enter a Connection name, then select Save.
  2. Under Step 2: Login to your connection (for authorization code grant type), select the link to login to the credential provider. Complete steps there to authorize access, and return to API Management.
  3. Under Step 3: Determine who will have access to this connection (Access policy), the managed identity member is listed. Adding other members is optional, depending on your scenario.
  4. Select Complete.

The new connection appears in the list of connections, and shows a status of Connected. If you want to create another connection for the credential provider, complete the preceding steps.

Tip

Use the portal to add, update, or delete connections to a credential provider at any time. For more information, see Configure multiple connections.

Step 4: Create an API in API Management and configure a policy

  1. Sign into the portal and go to your API Management instance.

  2. On the left menu, select APIs > + Add API.

  3. Select HTTP and enter the following settings. Then select Create.

    Setting Value
    Display name githubuser
    Web service URL https://api.github.com
    API URL suffix githubuser

  4. Navigate to the newly created API and select Add Operation. Enter the following settings and select Save.

    Setting Value
    Display name getauthdata
    URL for GET /user

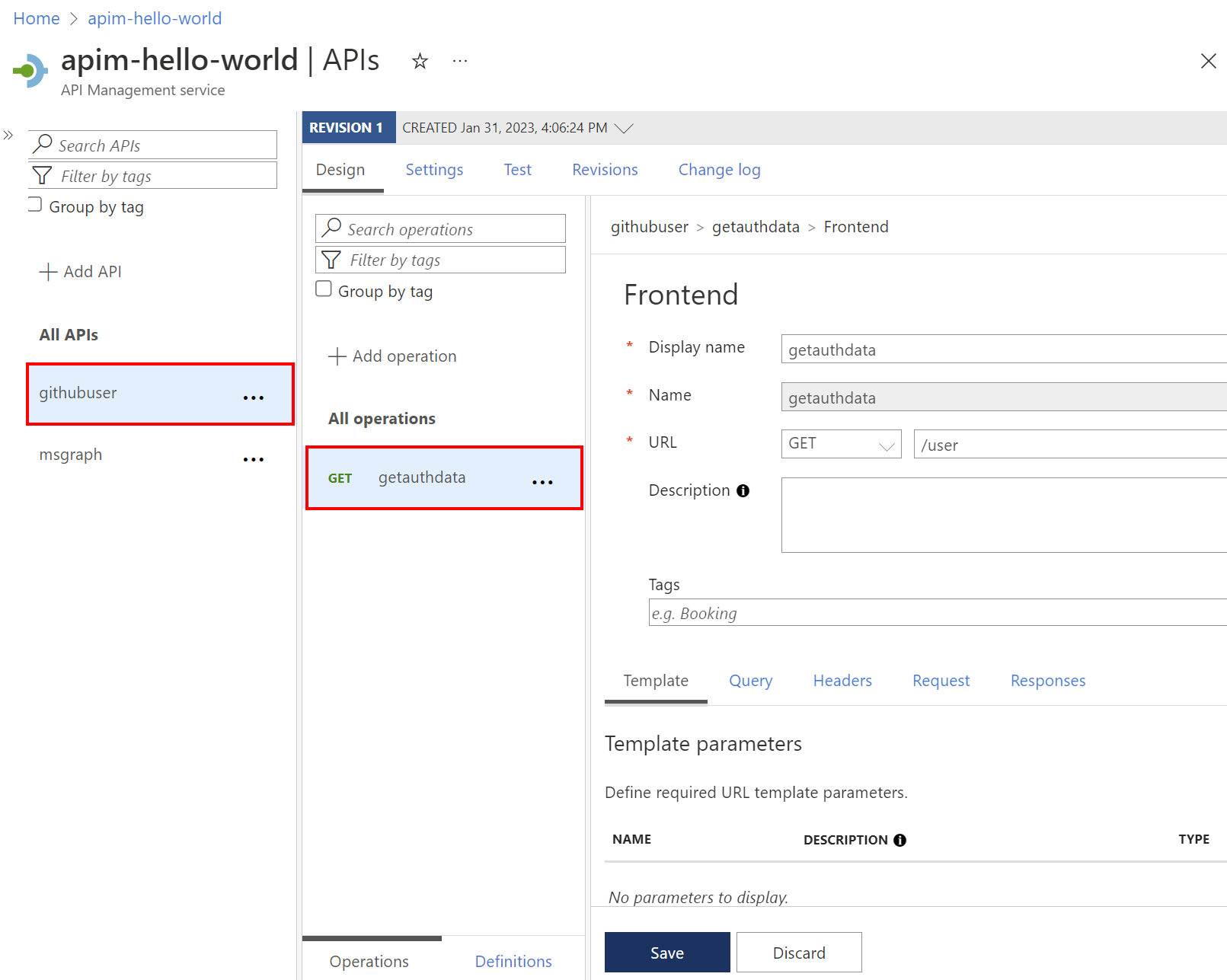

    Screenshot of adding a getauthdata operation to the API in the portal.

  5. Follow the preceding steps to add another operation with the following settings.

    Setting Value
    Display name getauthfollowers
    URL for GET /user/followers

  6. Select All operations. In the Inbound processing section, select the (</>) (code editor) icon.

  7. Copy the following, and paste in the policy editor. Make sure the provider-id and authorization-id values in the get-authorization-context policy correspond to the names of the credential provider and connection, respectively, that you configured in the preceding steps. Select Save.

    <policies>
    <inbound>
        <base />
        <get-authorization-context provider-id="github-01" authorization-id="first-connection" context-variable-name="auth-context" identity-type="managed" ignore-error="false" />
        <set-header name="Authorization" exists-action="override">
            <value>@("Bearer " + ((Authorization)context.Variables.GetValueOrDefault("auth-context"))?.AccessToken)</value>
        </set-header>
        <set-header name="User-Agent" exists-action="override">
            <value>API Management</value>
        </set-header>
    </inbound>
    <backend>
        <base />
    </backend>
    <outbound>
        <base />
    </outbound>
    <on-error>
        <base />
    </on-error>
</policies>

The preceding policy definition consists of three parts:

  • The get-authorization-context policy fetches an authorization token by referencing the credential provider and connection that you created earlier.
  • The first set-header policy creates an HTTP header with the fetched authorization token.
  • The second set-header policy creates a User-Agent header (GitHub API requirement).

Step 5: Test the API

  1. On the Test tab, select one operation that you configured.

  2. Select Send.

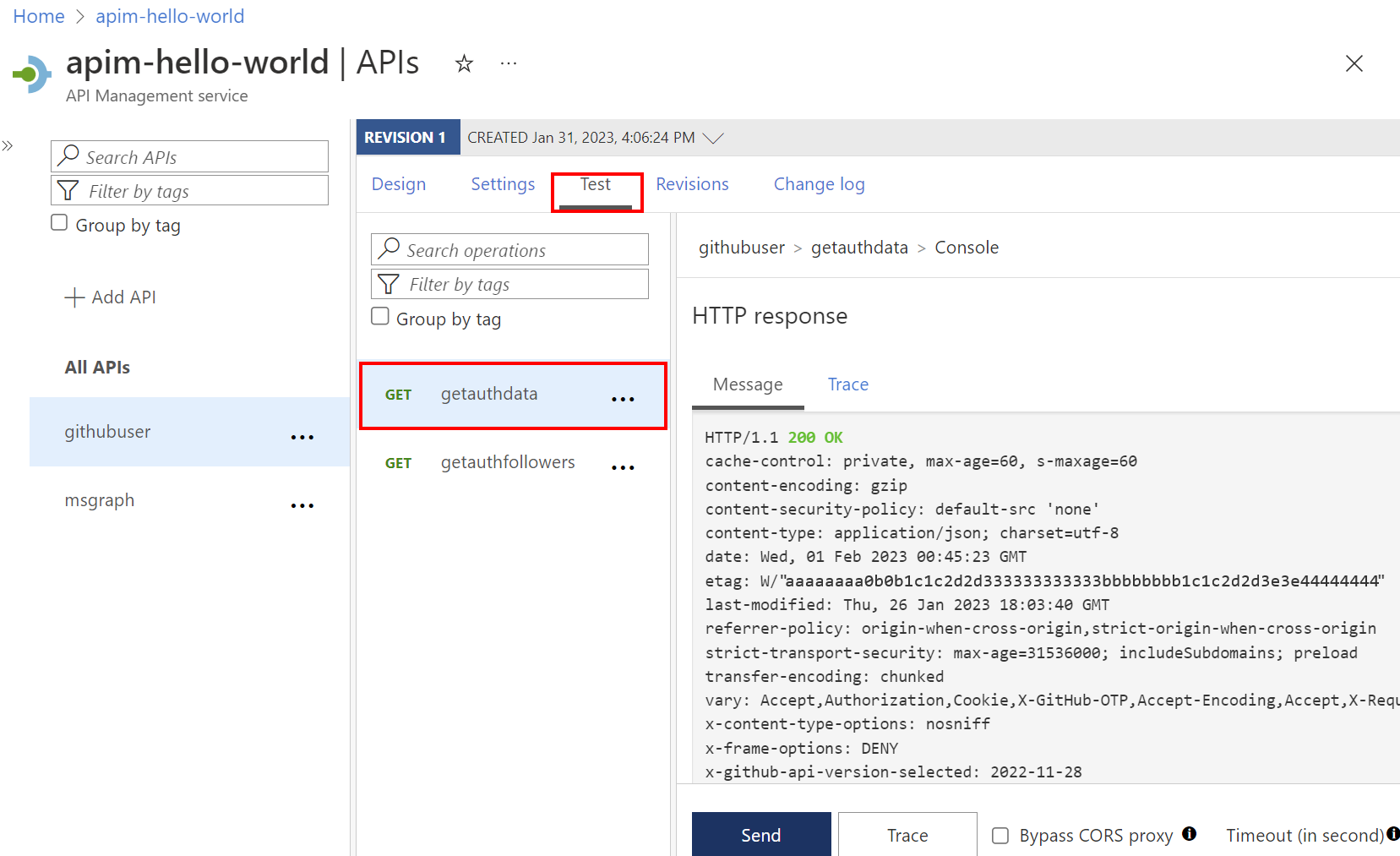

    Screenshot of testing the API successfully in the portal.

    A successful response returns user data from the GitHub API.
