Configure semantic ranker and return captions in search results

Semantic ranking iterates over an initial result set, applying an L2 ranking methodology that promotes the most semantically relevant results to the top of the stack. You can also get semantic captions, with highlights over the most relevant terms and phrases, and semantic answers.

This article explains how to configure a search index for semantic reranking.

Prerequisites

• A search service on a Basic tier or higher, subject to region availability.

• Semantic ranker enabled on your search service.

• An existing search index with rich text content. Semantic ranking applies to strings (nonvector) fields and works best on content that is informational or descriptive.

Choose a client

You can use any of the following tools and software development kits (SDKs) to add a semantic configuration:

• Azure portal, using the index designer to add a semantic configuration.
• Visual Studio Code with the REST client
• Azure SDK for .NET
• Azure SDK for Python
• Azure SDK for Java
• Azure SDK for JavaScript

Add a semantic configuration

A semantic configuration is a section in your index that establishes field inputs for semantic ranking. You can add or update a semantic configuration at any time, no rebuild necessary. If you create multiple configurations, you can specify a default. At query time, specify a semantic configuration on a query request, or leave it blank to use the default.

A semantic configuration has a name and the following properties:

Property	Characteristics
Title field	A short string, ideally under 25 words. This field could be the title of a document, name of a product, or a unique identifier. If you don't have suitable field, leave it blank.
Content fields	Longer chunks of text in natural language form, subject to maximum token input limits on the machine learning models. Common examples include the body of a document, description of a product, or other free-form text.
Keyword fields	A list of keywords, such as the tags on a document, or a descriptive term, such as the category of an item.

You can only specify one title field, but you can have as many content and keyword fields as you like. For content and keyword fields, list the fields in priority order because lower priority fields might get truncated.

Across all semantic configuration properties, the fields you assign must be:

• Attributed as searchable and retrievable
• Strings of type Edm.String, Collection(Edm.String), string subfields of Edm.ComplexType

Azure portal

1. Sign in to the Azure portal and navigate to a search service that has semantic ranking enabled.

2. From Indexes on the left-navigation pane, select an index.

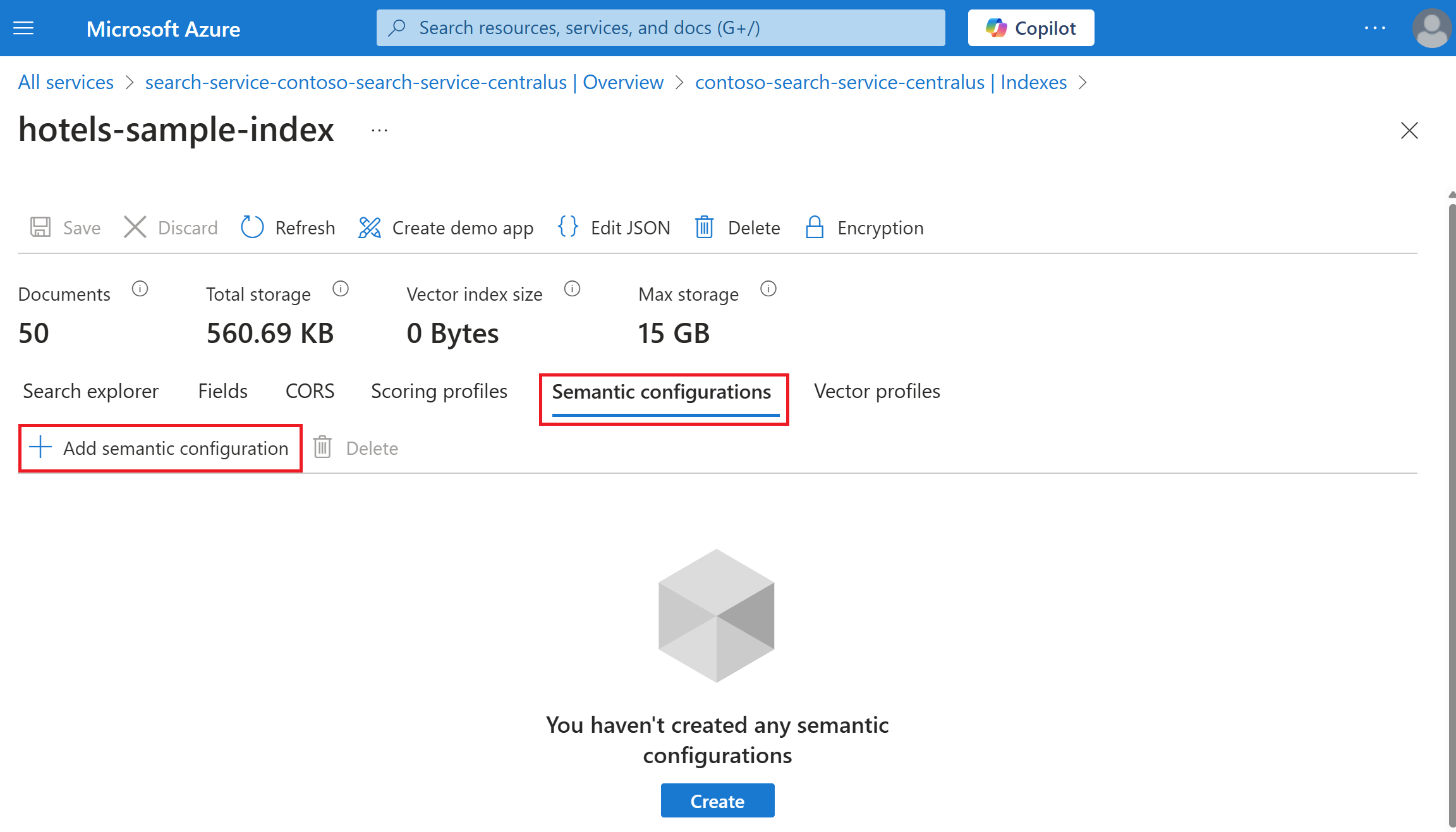

3. Select Semantic configurations and then select Add semantic configuration.

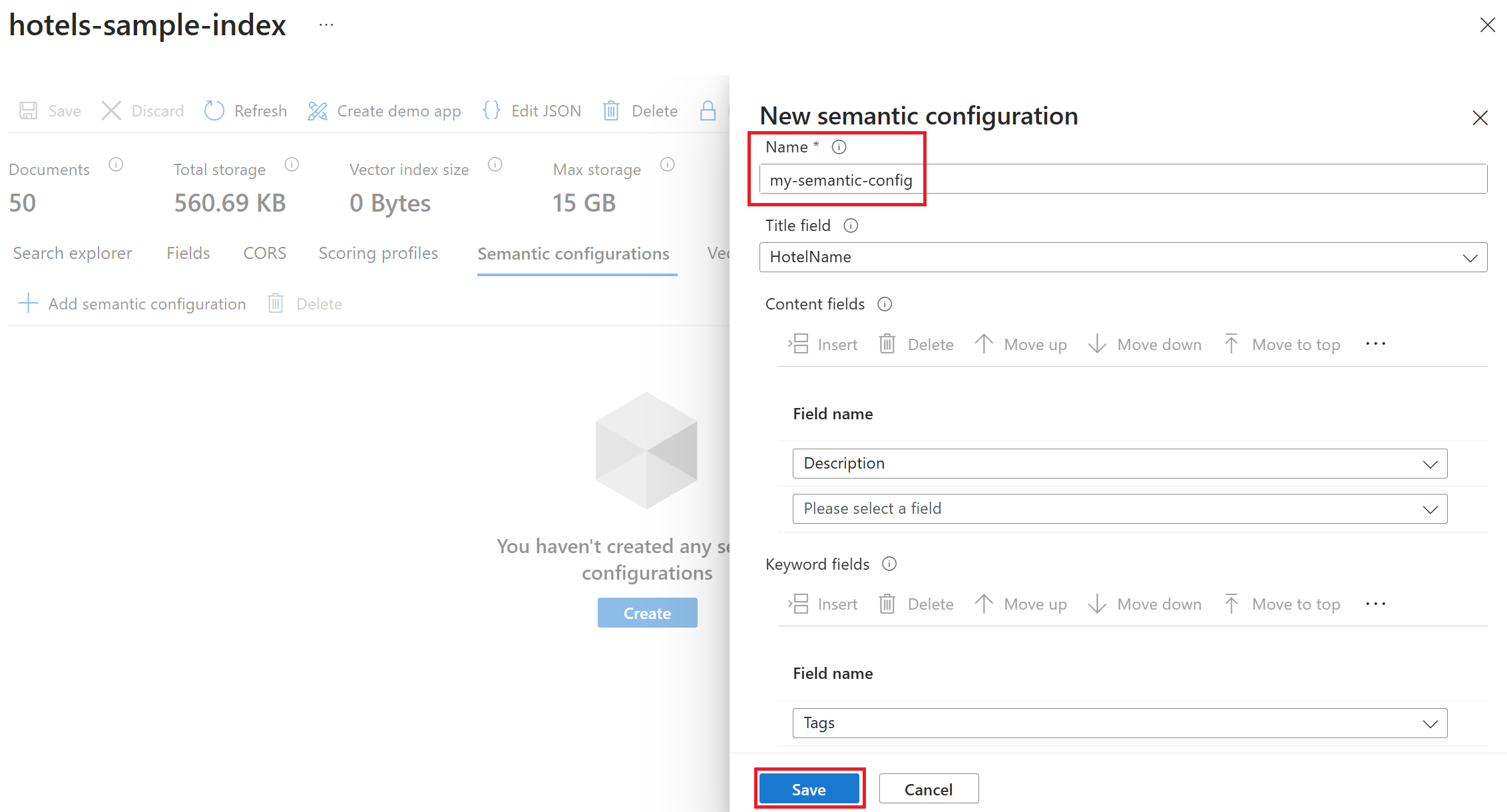

4. On the New semantic configuration page, enter a semantic configuration name and select the fields to use in the semantic configuration. Only searchable and retrievable string fields are eligible. Make sure to list content fields and keyword fields in priority order.



5. Select Save to save the configuration settings.

6. Select Save again on the index page to save the semantic configuration in the index.

REST API

1. Formulate a Create or Update Index request.

2. Add a semantic configuration to the index definition, perhaps after scoringProfiles or suggesters. Specifying a default is optional but useful if you have more than one configuration.

   "semantic": {
       "defaultConfiguration": "my-semantic-config-default",
       "configurations": [
           {
               "name": "my-semantic-config-default",
               "prioritizedFields": {
                   "titleField": {
                       "fieldName": "HotelName"
                   },
                   "prioritizedContentFields": [
                       {
                           "fieldName": "Description"
                       }
                   ],
                   "prioritizedKeywordsFields": [
                       {
                           "fieldName": "Tags"
                       }
                   ]
               }
           },
                       {
               "name": "my-semantic-config-desc-only",
               "prioritizedFields": {
                   "prioritizedContentFields": [
                       {
                           "fieldName": "Description"
                       }
                   ]
               }
           }
       ]
   }


.NET SDK

Use the SemanticConfiguration class in the Azure SDK for .NET.

The following example is from the semantic ranking sample authored by the Azure SDK team.

string indexName = "hotel";
SearchIndex searchIndex = new(indexName)
{
    Fields =
    {
        new SimpleField("HotelId", SearchFieldDataType.String) { IsKey = true, IsFilterable = true, IsSortable = true, IsFacetable = true },
        new SearchableField("HotelName") { IsFilterable = true, IsSortable = true },
        new SearchableField("Description") { IsFilterable = true },
        new SearchableField("Category") { IsFilterable = true, IsSortable = true, IsFacetable = true },
    },
    SemanticSearch = new()
    {
        Configurations =
        {
            new SemanticConfiguration("my-semantic-config", new()
            {
                TitleField = new SemanticField("HotelName"),
                ContentFields =
                {
                    new SemanticField("Description")
                },
                KeywordsFields =
                {
                    new SemanticField("Category")
                }
            })
        }
    }
};

Migrate from preview versions

If your semantic ranking code is using preview APIs, this section explains how to migrate to stable versions. You can check the change logs for verification of general availability:

• 2024-07-01 (REST)
• Azure SDK for .NET (11.5) change log
• Azure SDK for Python (11.4) change log
• Azure SDK for Java (11.6) change log
• Azure SDK for JavaScript (12.0) change log

queryLanguage for semantic ranker

As of July 14, 2023, semantic ranker is language agnostic. It can rerank results composed of multilingual content, with no bias towards a specific language. In preview versions, semantic ranking would deprioritize results differing from the language specified by the field analyzer.

Stop using queryLanguage in your code if you were using it for semantic ranking. The queryLanguage property is still applicable to features such as spell correction, but not to semantic ranking.

searchFields for semantic ranker

For the REST API and all SDK packages targeting version 2021-04-30-Preview and later, the searchFields property is no longer used for semantic ranking.

Instead, use the semanticConfiguration property (in a search index) to determine which search fields are used in semantic ranking. To specify field prioritization, add a semanticConfiguration to in an index schema following the instructions in this article.

You can keep searchFields in query requests if you're using it to limit full text search to the list of named fields.

Next steps

Test your semantic configuration by running a semantic query.

Create a semantic query
