Quickstart: Automate deployments

  • Article

Note

The Basic, Standard, and Enterprise plans will be deprecated starting from mid-March, 2025, with a 3 year retirement period. We recommend transitioning to Azure Container Apps. For more information, see the Azure Spring Apps retirement announcement.

The Standard consumption and dedicated plan will be deprecated starting September 30, 2024, with a complete shutdown after six months. We recommend transitioning to Azure Container Apps. For more information, see Migrate Azure Spring Apps Standard consumption and dedicated plan to Azure Container Apps.

This article applies to: ❎ Basic/Standard ✅ Enterprise

This quickstart shows you how to automate deployments to the Azure Spring Apps Enterprise plan by using GitHub Actions and Terraform.

Prerequisites

Set up a GitHub repository and authenticate

The automation associated with the sample application requires a Storage account for maintaining Terraform state. The following steps show you how to create a Storage Account for use with GitHub Actions and Terraform.

  1. Use the following command to create a new resource group to contain the Storage Account:

    Azure CLI
    az group create \
    --name <storage-resource-group> \
    --location <location>

  2. Use the following command to create a Storage Account:

    Azure CLI
    az storage account create \
    --resource-group <storage-resource-group> \
    --name <storage-account-name> \
    --location <location> \
    --sku Standard_RAGRS \
    --kind StorageV2

  3. Use the following command to create a Storage Container within the Storage Account:

    Azure CLI
    az storage container create \
    --resource-group <storage-resource-group> \
    --name terraform-state-container \
    --account-name <storage-account-name> \
    --auth-mode login

  4. Use the following commands to get an Azure credential. You need an Azure service principal credential to authorize Azure login action.

    Azure CLI
    az login
az ad sp create-for-rbac \
    --role contributor \
    --scopes /subscriptions/<SUBSCRIPTION_ID> \
    --json-auth

    The command should output a JSON object:

    JSON
    {
    "clientId": "<GUID>",
    "clientSecret": "<GUID>",
    "subscriptionId": "<GUID>",
    "tenantId": "<GUID>",
    ...
}

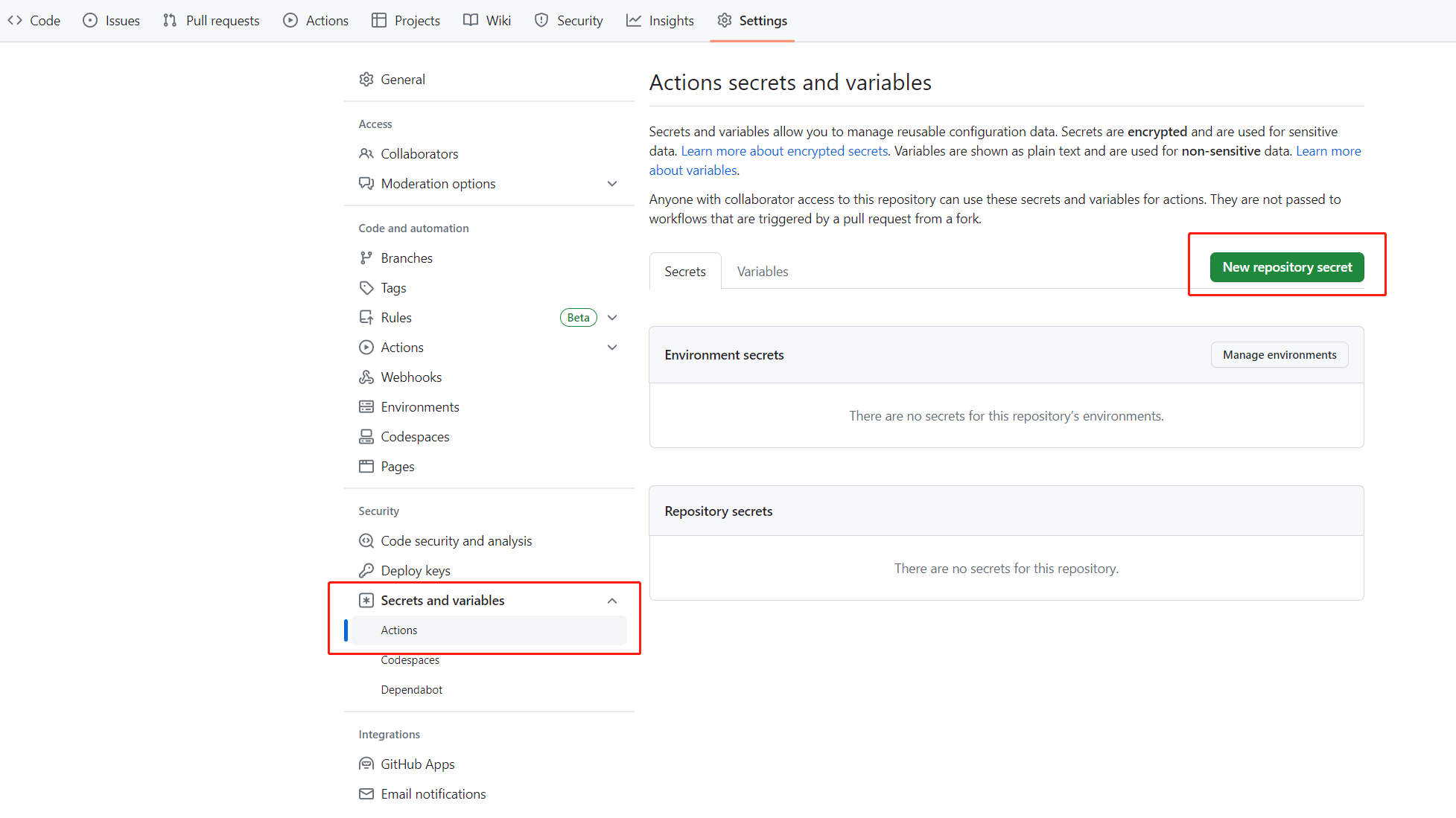

  5. This example uses the fitness store sample on GitHub. Fork the sample, open the GitHub repository page, and then select the Settings tab. Open the Secrets menu, then select Add a new secret, as shown in the following screenshot.

    Screenshot showing GitHub Settings Add new secret.

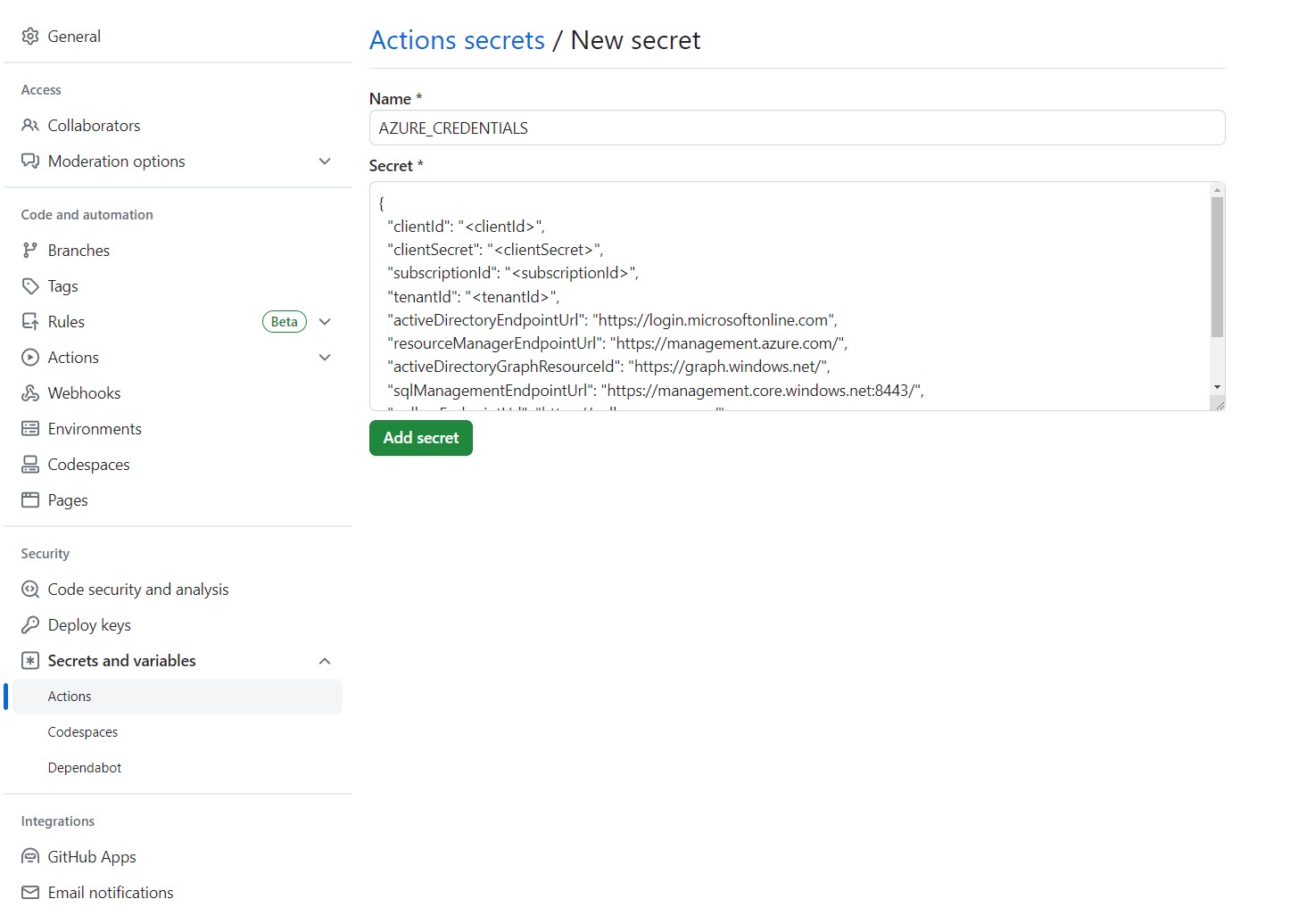

  6. Set the secret name to AZURE_CREDENTIALS and set its value to the JSON string that you found under the heading Set up your GitHub repository and authenticate.

    Screenshot showing GitHub Settings Set secret data.

  7. Add the following secrets to GitHub Actions:

  8. Add the secret TF_BACKEND_CONFIG to GitHub Actions with the following value:

    text
    resource_group_name  = "<storage-resource-group>"
storage_account_name = "<storage-account-name>"
container_name       = "terraform-state-container"
key                  = "dev.terraform.tfstate"

Automate with GitHub Actions

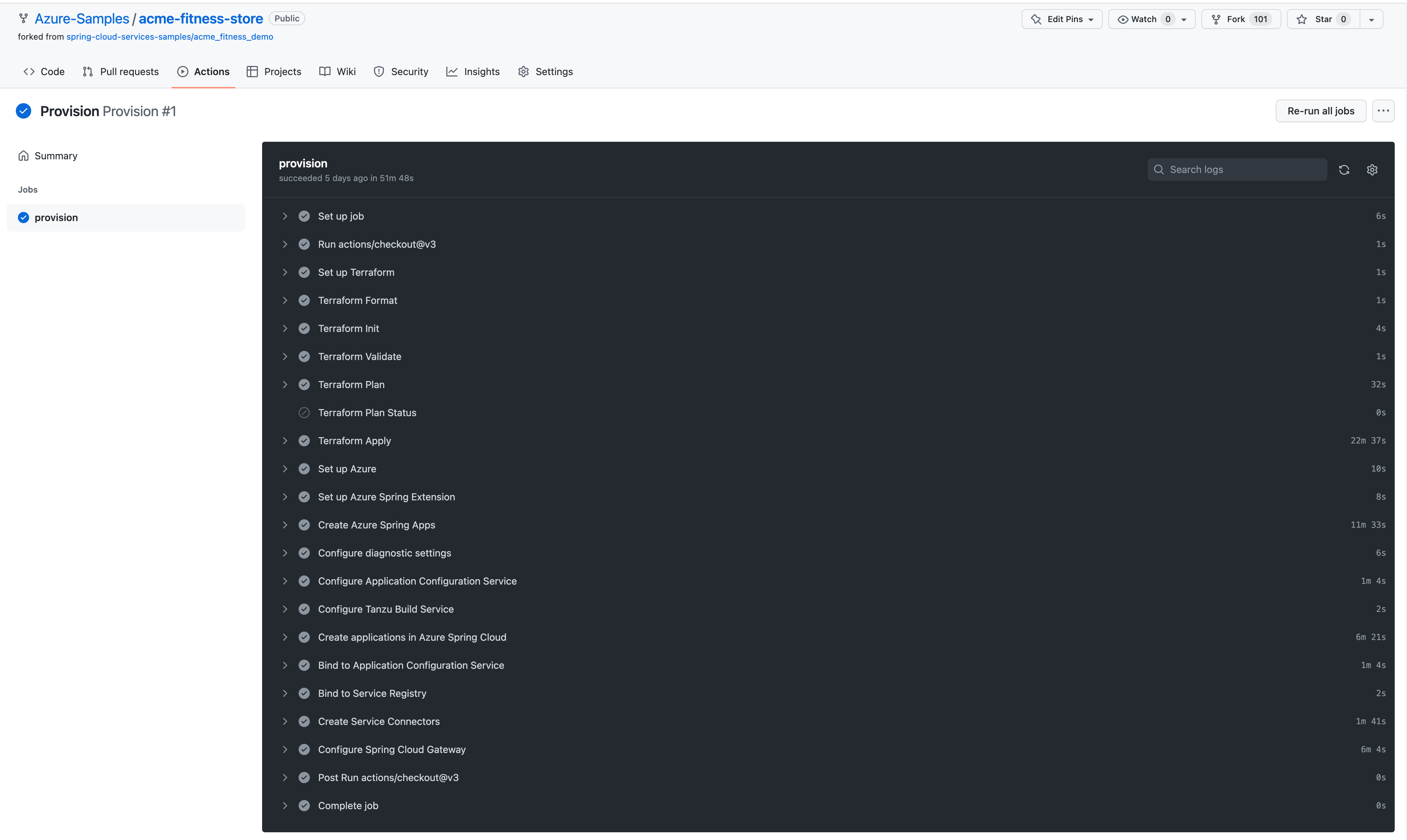

Now you can run GitHub Actions in your repository. The provision workflow provisions all resources necessary to run the example application. The following screenshot shows an example run:

Screenshot of GitHub showing output from the provision workflow.

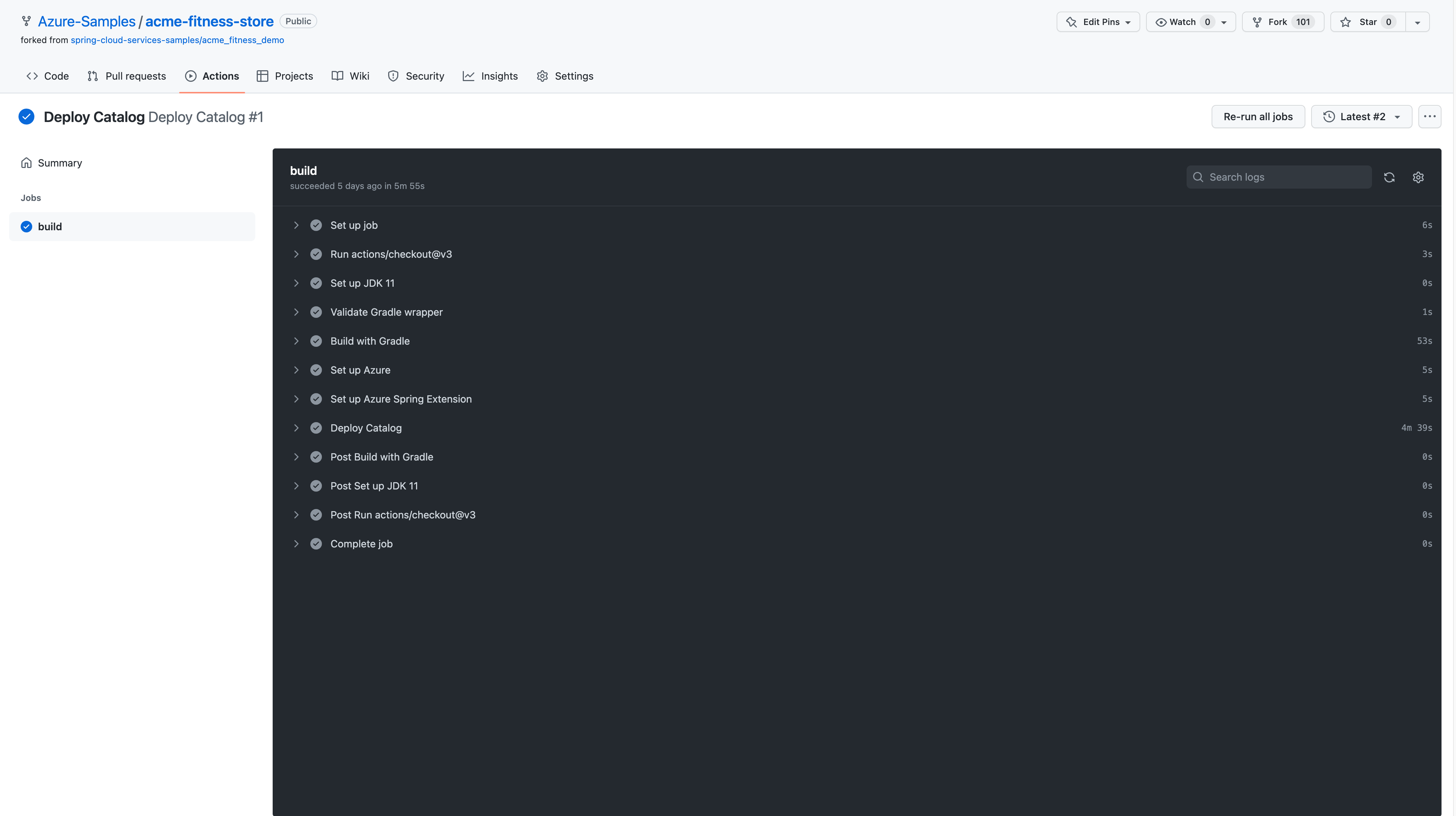

Each application has a deploy workflow that will redeploy the application when changes are made to that application. The following screenshot shows some example output from the catalog service:

Screenshot of GitHub showing output from the Deploy Catalog workflow.

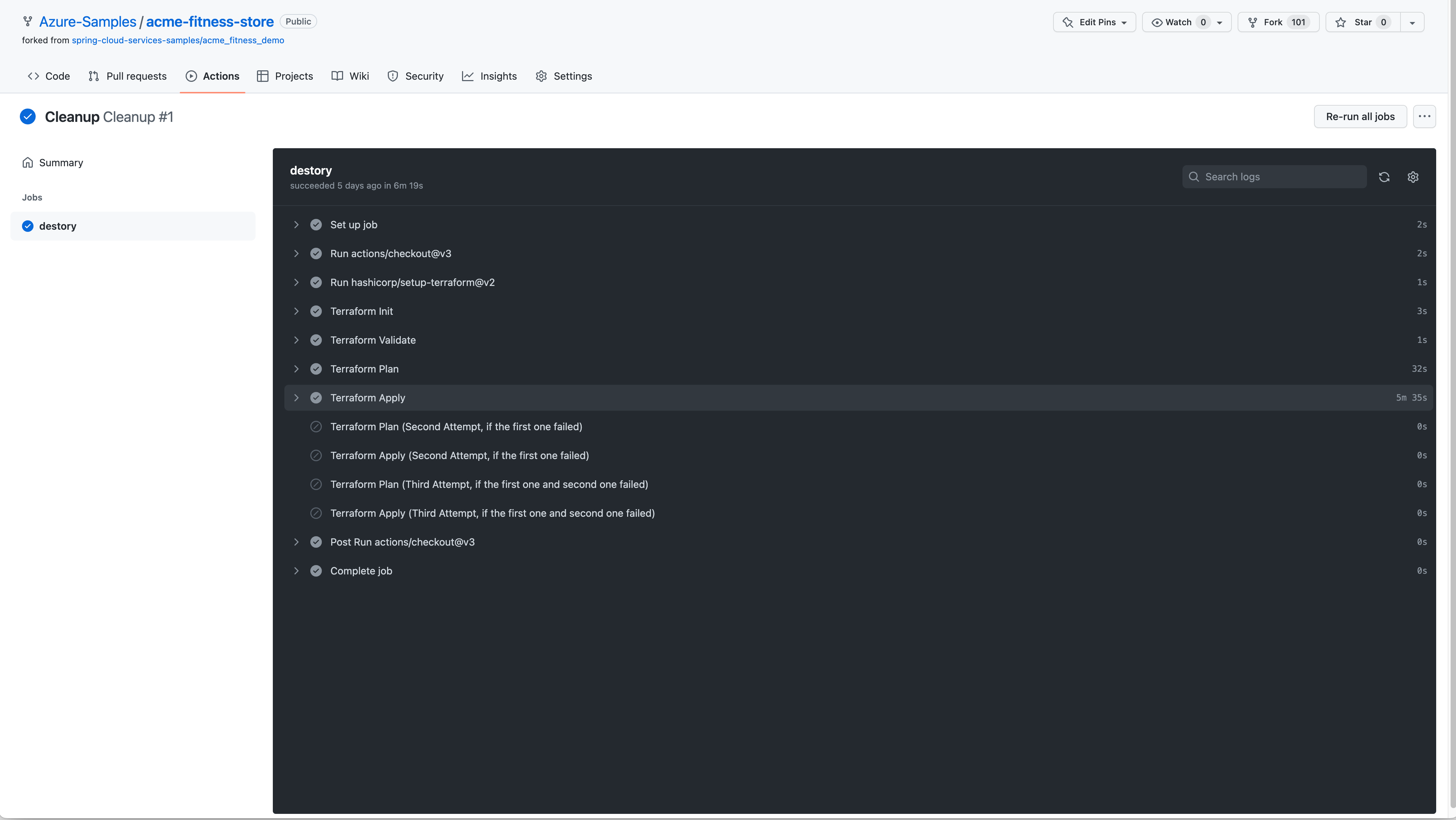

The cleanup workflow can be manually run to delete all resources created by the provision workflow. The following screenshot shows the output:

Screenshot of GitHub showing output from the cleanup workflow.

Clean up resources

If you plan to continue working with subsequent quickstarts and tutorials, you might want to leave these resources in place. When no longer needed, delete the resource group, which deletes the resources in the resource group. To delete the resource group by using Azure CLI, use the following commands:

Azure CLI
echo "Enter the Resource Group name:" &&
read resourceGroupName &&
az group delete --name $resourceGroupName &&
echo "Press [ENTER] to continue ..."

Next steps

Continue on to any of the following optional quickstarts:
