Back up an Azure VM using Enhanced policy

This article explains how to use Enhanced policy to configure Multiple Backups Per Day and back up Trusted Launch VMs with Azure Backup service.

Azure Backup now supports Enhanced policy that's needed to support new Azure offerings. For example, Trusted Launch VM is supported with Enhanced policy only.

Important

• Default policy will not support protecting newer Azure offerings, such as Trusted Launch VM, Ultra SSD, Premium SSD v2, Shared disk, and Confidential Azure VMs.
• Enhanced policy now supports protecting both Ultra SSD and Premium SSD v2.
• Backups for VMs having data access authentication enabled disks will fail.
• If you're protecting a VM with an enhanced policy, it incurs additional snapshot costs. Learn more.
• Once you enable a VM backup with Enhanced policy, Azure Backup doesn't allow to change the policy type to Standard.
• Azure Backup now supports the migration to enhanced policy for the Azure VM backups using standard policy. Learn more.
• You can exclude shared disk with Enhanced policy and backup the other supported disks in the VM.

You must enable backup of Trusted Launch VM through enhanced policy only. Enhanced policy provides the following features:

• Supports Multiple Backups Per Day.
• Instant Restore tier is zonally redundant using Zone-redundant storage (ZRS) resiliency. See the pricing details for Managed Disk Snapshots.

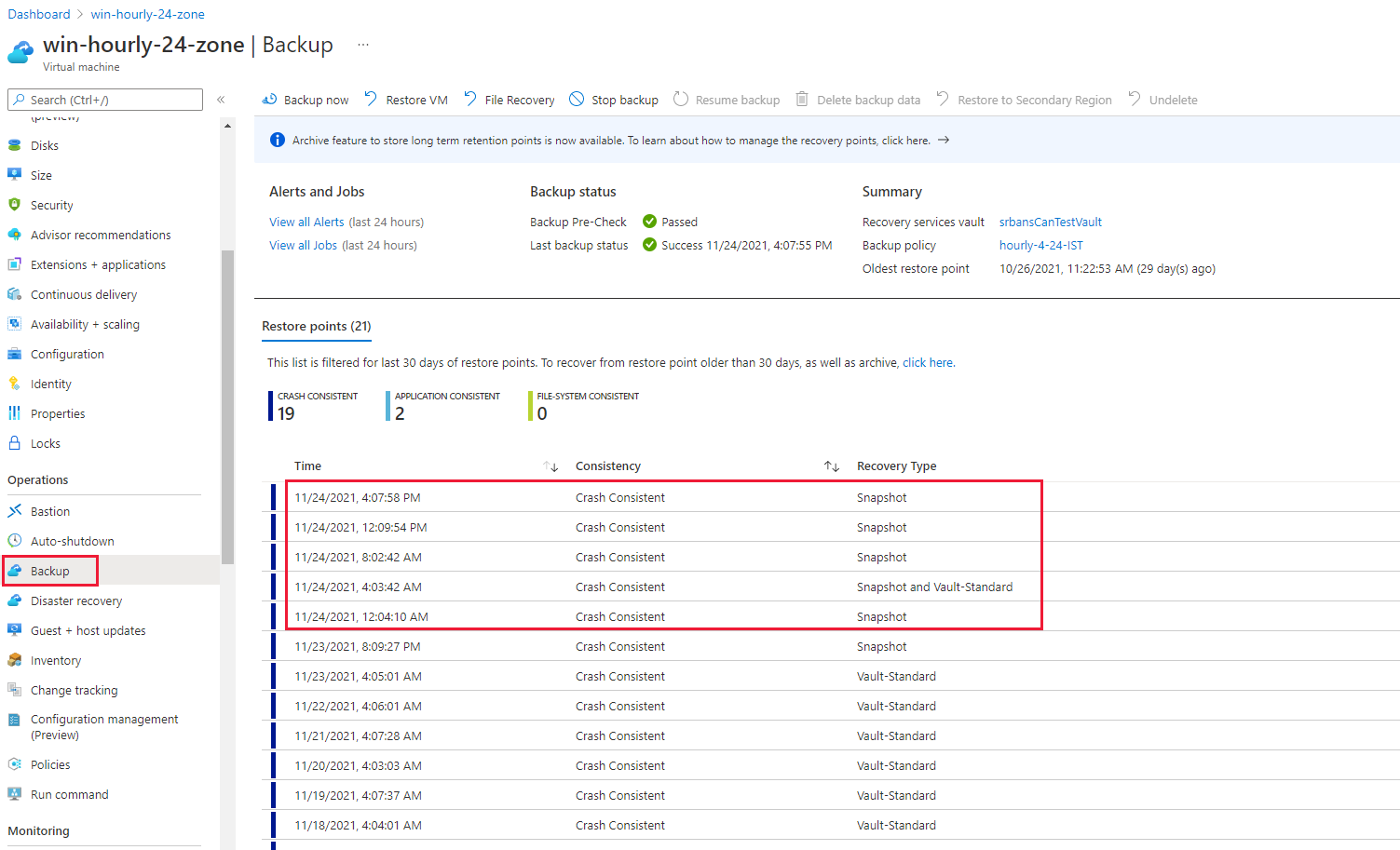

The following screenshot shows Multiple Backups occurred in a day.

Note

The above screenshot shows that one of the backups is transferred to Vault-Standard tier.

Create an Enhanced policy and configure VM backup

Choose a client

Azure portal

Follow these steps:

1. In the Azure portal, select a Recovery Services vault to back up the VM.

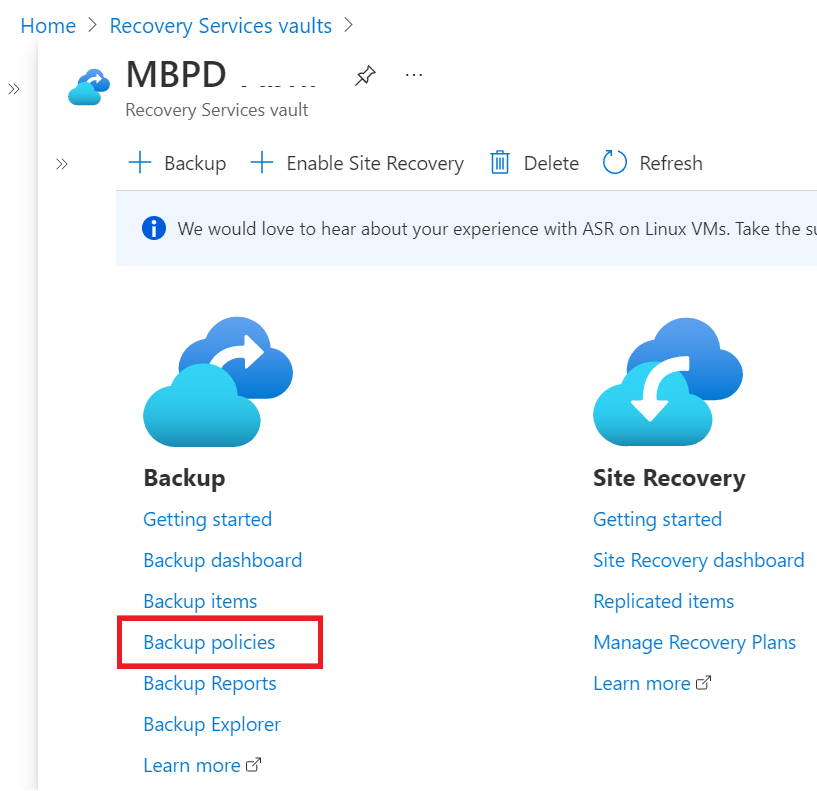

2. Under Backup, select Backup Policies.

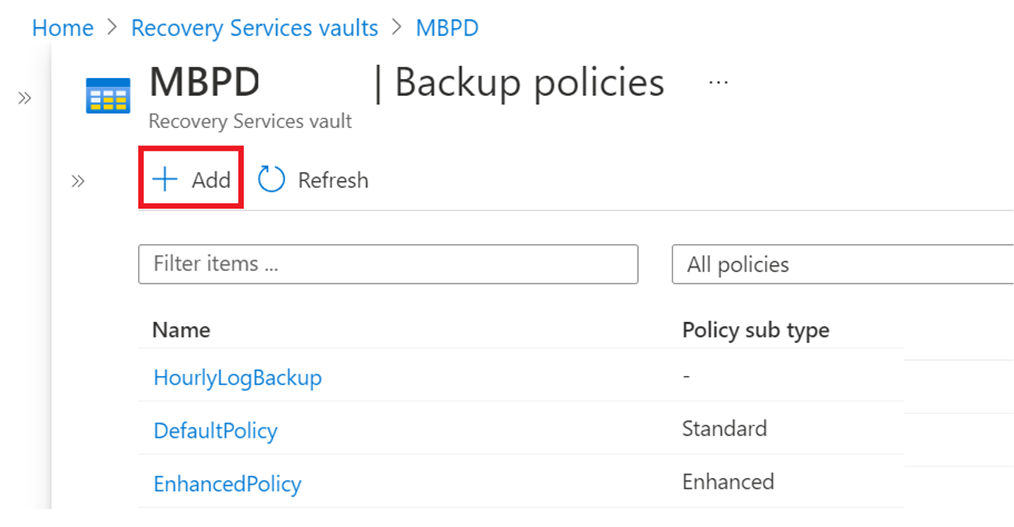

3. Select +Add.



4. On Select policy type, select Azure Virtual Machine.

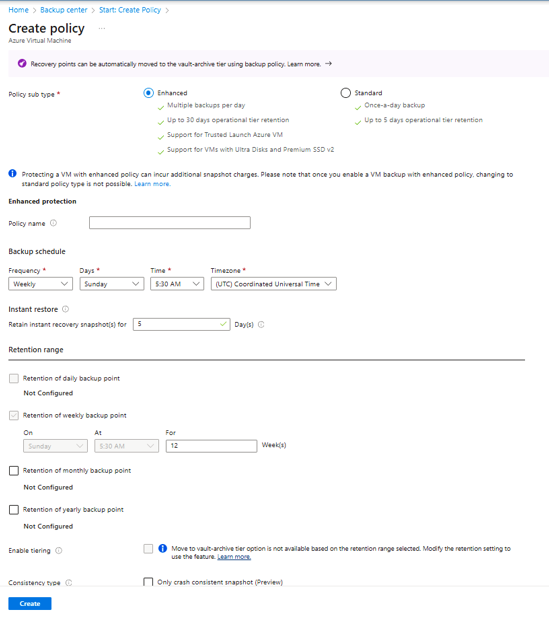

5. On Create policy, perform the following actions:

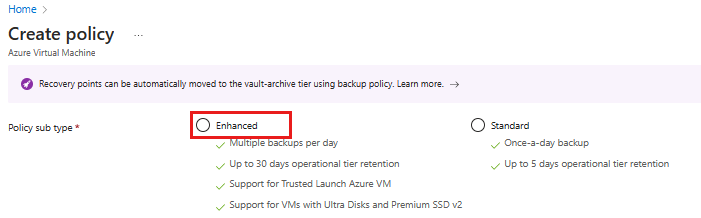

   • Policy sub-type: Select Enhanced type.



   • Backup schedule: You can select frequency as Hourly/Daily/Weekly.

     With backup schedule set to Hourly, the default selection for start time is 8 AM, schedule is Every 4 hours, and duration is 24 Hours. Hourly backup has a minimum RPO of 4 hours and a maximum of 24 hours. You can set the backup schedule to 4, 6, 8, 12, and 24 hours respectively.

   • Instant Restore: You can set the retention of recovery snapshot from 1 to 30 days. The default value is set to 7.

   • Retention range: Options for retention range are autoselected based on backup frequency you choose. The default retention for daily, weekly, monthly, and yearly backup points are set to 180 days, 12 weeks, 60 months, and 10 years respectively. You can customize these values as required.



   Note

   The maximum limit of instant recovery point retention range depends on the number of snapshots you take per day. If the snapshot count is more (for example, every 4 hours frequency in 24 hours duration - 6 scheduled snapshots), then the maximum allowed days for retention reduces.

   However, if you choose lower RPO of 12 hours, the snapshot retention is increased to 30 days.

6. Select Create.

PowerShell

To create an enhanced backup policy or update the policy, run the following cmdlets:

Step 1: Create the backup policy

$SchPol = Get-AzRecoveryServicesBackupSchedulePolicyObject -PolicySubType "Enhanced" -WorkloadType "AzureVM" -ScheduleRunFrequency “Hourly”

The parameter ScheduleRunFrequency:Hourly now also be an acceptable value for Azure VM workload.

Also, the output object for this cmdlet contains the following additional fields for Azure VM workload, if you're creating hourly policy.

• [-ScheduleWindowStartTime <DateTime>]
• [-ScheduleRunTimezone <String>]
• [-ScheduleInterval <Int>]
• [-ScheduleWindowDuration <Int>]

Step 2: Set the backup schedule objects

$schedulePolicy = Get-AzRecoveryServicesBackupSchedulePolicyObject -WorkloadType AzureVM -BackupManagementType AzureVM -PolicySubType Enhanced -ScheduleRunFrequency Hourly
$timeZone = Get-TimeZone -ListAvailable | Where-Object { $_.Id -match "India" }
$schedulePolicy.ScheduleRunTimeZone = $timeZone.Id
$windowStartTime = (Get-Date -Date "2022-04-14T08:00:00.00+00:00").ToUniversalTime()
$schPol.HourlySchedule.WindowStartTime = $windowStartTime
$schedulePolicy.HourlySchedule.ScheduleInterval = 4
$schedulePolicy.HourlySchedule.ScheduleWindowDuration = 23

In this sample cmdlet:

• The first command gets a base enhanced hourly SchedulePolicyObject for WorkloadType AzureVM, and then stores it in the $schedulePolicy variable.

• The second and third command fetches the India timezone and updates the timezone in the $schedulePolicy.

• The fourth and fifth command initializes the schedule window start time and updates the $schedulePolicy.

  [Note] The start time must be in UTC even if the timezone is not UTC.

• The sixth and seventh command updates the interval (in hours) after which the backup will be retriggered on the same day, duration (in hours) for which the schedule will run.

Step 3: Create the backup retention policy

Get-AzRecoveryServicesBackupRetentionPolicyObject -WorkloadType AzureVM -ScheduleRunFrequency "Hourly"

• The parameter ScheduleRunFrequency:Hourly is also an acceptable value for Azure VM workload.
• If ScheduleRunFrequency is hourly, you don't need to enter a value for RetentionTimes to the policy object.

Step 4: Set the backup retention policy object

$RetPol.DailySchedule.DurationCountInDays = 365

Step 5: Save the policy configuration

AzRecoveryServicesBackupProtectionPolicy
New-AzRecoveryServicesBackupProtectionPolicy -Name "NewPolicy" -WorkloadType AzureVM -RetentionPolicy $RetPol -SchedulePolicy $SchPol

For Enhanced policy, the allowed values for snapshot retention are from 1 day to 30 days.

Note

The specific value depends on the hourly frequency. For example, when hourly frequency is 4 hours, the maximum retention allowed is 17 days, for 6 hours it is 22 days. Let's add this specific information here.

Step 6: Update snapshot retention duration

$bkpPol = Get-AzRecoveryServicesBackupProtectionPolicy -Name "NewPolicy"
$bkpPol.SnapshotRetentionInDays=10
Set-AzRecoveryServicesBackupProtectionPolicy -policy $bkpPol -VaultId <VaultId>

List enhanced backup policies

To view the existing enhanced policies, run the following cmdlet:

Get-AzRecoveryServicesBackupProtectionPolicy -PolicySubType "Enhanced"

For Get-AzRecoveryServicesBackupProtectionPolicy:

• Add the parameter PolicySubType. The allowed values are Enhanced and Standard. If you don't specify a value for this parameter, all policies (standard and enhanced) get listed.
• The applicable parameter sets are NoParamSet, WorkloadParamSet, WorkloadBackupManagementTypeParamSet.
• For non-VM workloads, allowed value is Standard only.

Note

You can retrieve the sub type of policies. To list Standard backup policies, specify Standard as the value of this parameter. To list Enhanced backup policies for Azure VMs, specify Enhanced as the value of this parameter.

Configure backup

To configure backup of a Trusted launch VM or assign a new policy to the VM, run the following cmdlet:

$targetVault = Get-AzRecoveryServicesVault -ResourceGroupName "Contoso-docs-rg" -Name "testvault"
$pol = Get-AzRecoveryServicesBackupProtectionPolicy -Name "NewPolicy" -VaultId $targetVault.ID
Enable-AzRecoveryServicesBackupProtection -Policy $pol -Name "V2VM" -ResourceGroupName "RGName1" -VaultId $targetVault.ID

CLI

To create an enhanced backup policy, run the following command:

az backup policy create --policy {policy} --resource-group MyResourceGroup --vault-name MyVault --name MyPolicy --backup-management-type AzureIaaSVM -PolicySubType "Enhanced"
Policy is passed in JSON format to the create command.

Update an enhanced backup policy

To update an enhanced backup policy, run the following command:

az backup policy set --policy {policy} --resource-group MyResourceGroup --vault-name MyVault  -PolicySubType "Enhanced"

List enhanced backup policies

To list all existing enhanced policies, run the following command:

az backup policy list --resource-group MyResourceGroup --vault-name MyVault --policy-sub-type Enhanced --workload-type VM

For parameter –policy-sub-type, the allowed values are Enhanced and Standard. If you don't specify a value for this parameter, all policies (standard and enhanced) get listed.

For non-VM workloads, the only allowed value is Standard

Configure backup for a VM or assign a new policy to a VM

To configure backup for a VM or assign a new policy to the VM, run the following command:

az backup protection enable-for-vm \
    --resource-group myResourceGroup \
    --vault-name myRecoveryServicesVault \
    --vm $(az vm show -g VMResourceGroup -n MyVm --query id | tr -d '"') \
    --policy-name DefaultPolicy

Trusted Launch VMs can only be backed up using Enhanced policies.

Note

• Currently, a non-Trusted Launch VM that was earlier using Standard policy can't start using Enhanced policy.
• A VM that is using Enhanced policy can't be updated to use Standard policy.

Note

• The support for Enhanced policy is available in all Azure Public and US Government regions.
• For hourly backups, the last backup of the day is transferred to vault. If backup fails, the first backup of the next day is transferred to vault.
• Migration to enhanced policy for Azure VMs protected with standard policy is now supported and available in preview.
• Backup an Azure VM with disks that have public network access disabled is now supported and generally available.

Enable selective disk backup and restore

You can exclude noncritical disks from backup by using selective disk backup to save costs. Using this capability, you can selectively back up a subset of the data disks that are attached to your VM, and then restore a subset of the disks that are available in a recovery point, both from instant restore and vault tier. Learn more.
