Use the Azure portal to manage bandwidth schedules on your Azure Stack Edge Pro GPU

  • Article

APPLIES TO: Yes for Pro GPU SKUAzure Stack Edge Pro - GPUYes for Pro 2 SKUAzure Stack Edge Pro 2Yes for Pro R SKUAzure Stack Edge Pro RYes for Mini R SKUAzure Stack Edge Mini R

This article describes how to manage bandwidth schedules on your Azure Stack Edge Pro. Bandwidth schedules allow you to configure network bandwidth usage across multiple time-of-day schedules. These schedules can be applied to the upload and download operations from your device to the cloud.

You can add, modify, or delete the bandwidth schedules for your Azure Stack Edge Pro via the Azure portal.

In this article, you learn how to:

  • Add a schedule
  • Modify schedule
  • Delete a schedule

Add a schedule

Do the following steps in the Azure portal to add a schedule.

  1. In the Azure portal for your Azure Stack Edge resource, go to Bandwidth.

  2. In the right-pane, select + Add schedule.

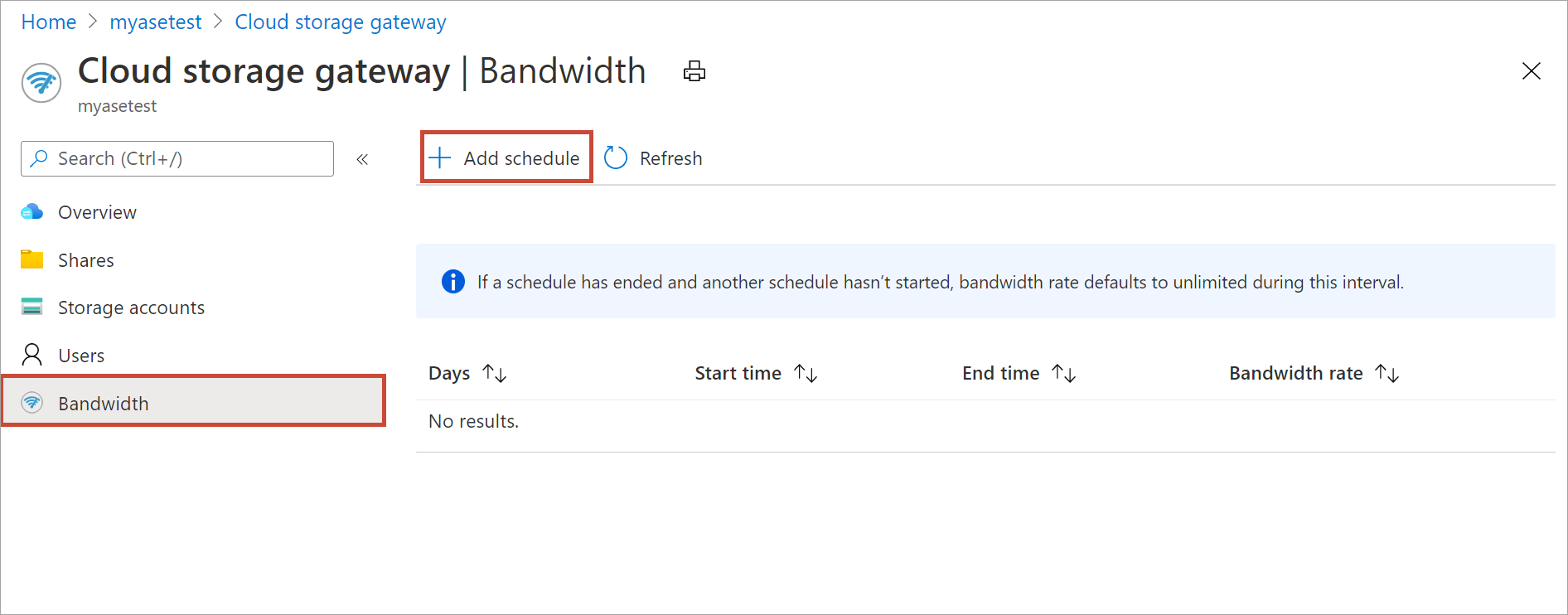

    Select Bandwidth

  3. In the Add schedule:

    1. Provide the Start day, End day, Start time, and End time of the schedule.

    2. Check the All day option if this schedule should run all day.

    3. Bandwidth rate is the bandwidth in Megabits per second (Mbps) used by your device in operations involving the cloud (both uploads and downloads). Supply a number between 64 and 2,147,483,647 for this field.

    4. Select Unlimited bandwidth if you do not want to throttle the date upload and download.

    5. Select Add.

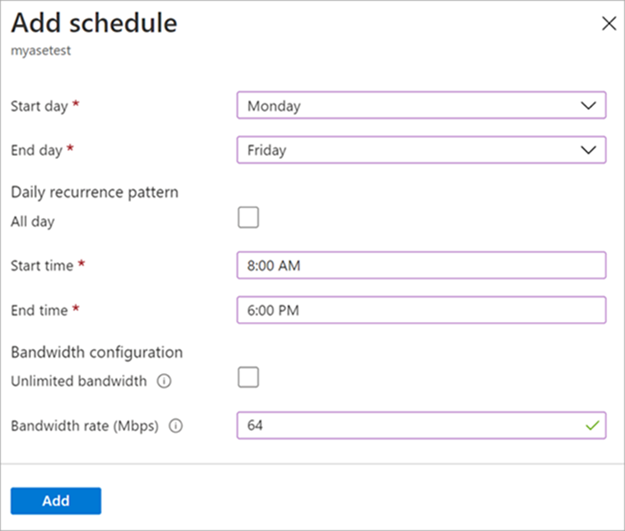

      Add schedule

  4. A schedule is created with the specified parameters. This schedule is then displayed in the list of bandwidth schedules in the portal.

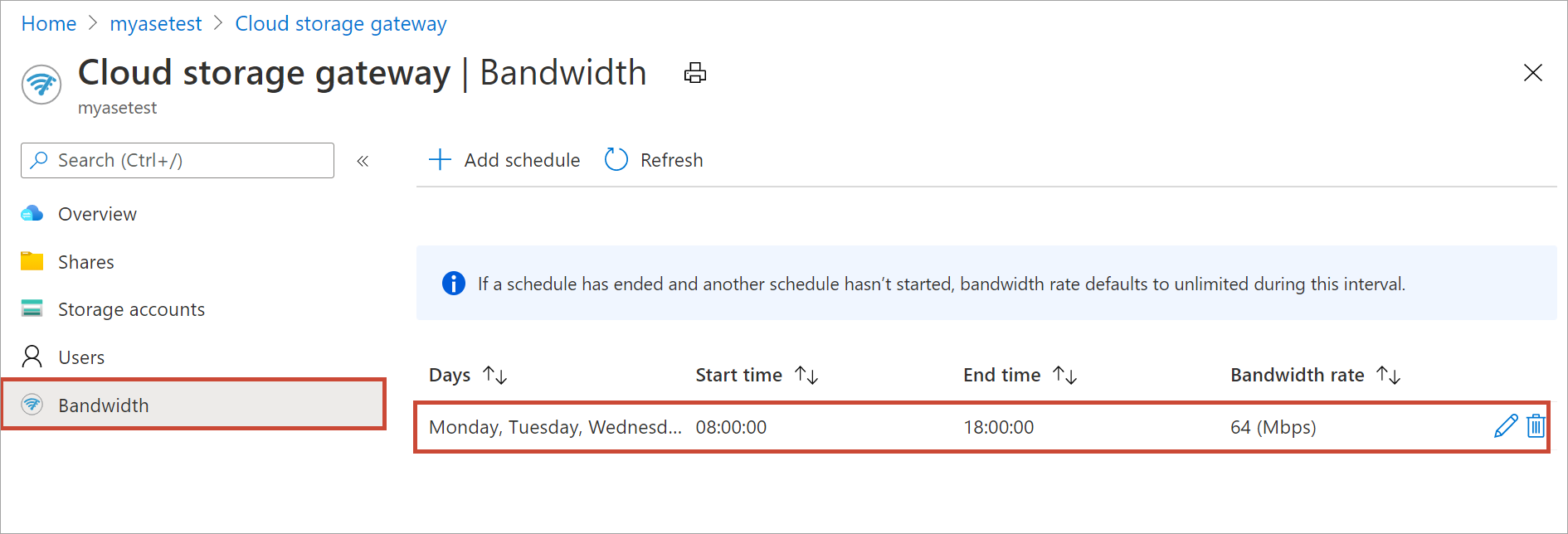

    Updated list of bandwidth schedules

Edit schedule

Do the following steps to edit a bandwidth schedule.

  1. In the Azure portal, go to your Azure Stack Edge resource and then go to Bandwidth.

  2. From the list of bandwidth schedules, select a schedule that you want to modify.

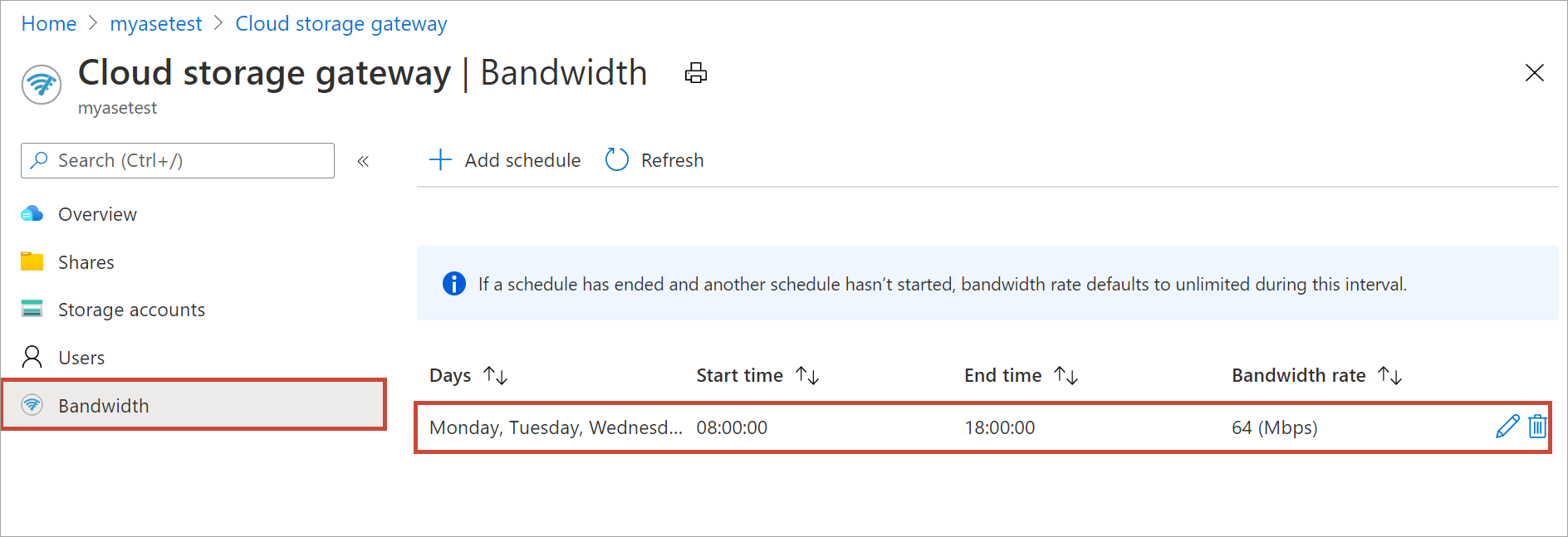

    Select bandwidth schedule

  3. Make the desired changes and save the changes.

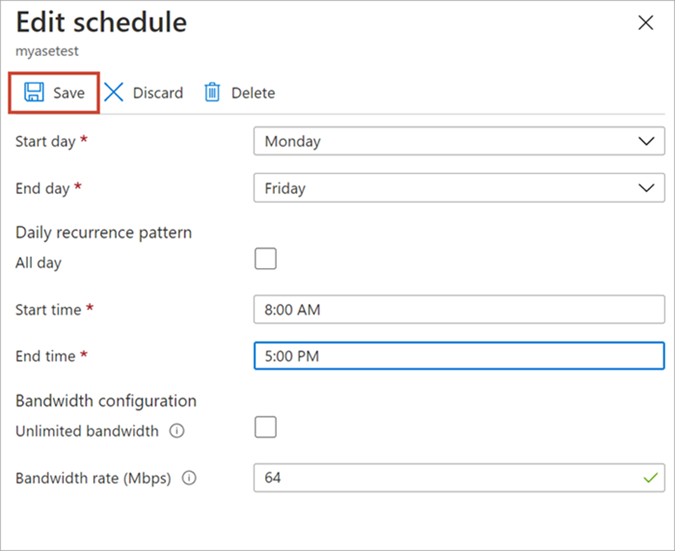

    Modify user

  4. After the schedule is modified, the list of schedules is updated to reflect the modified schedule.

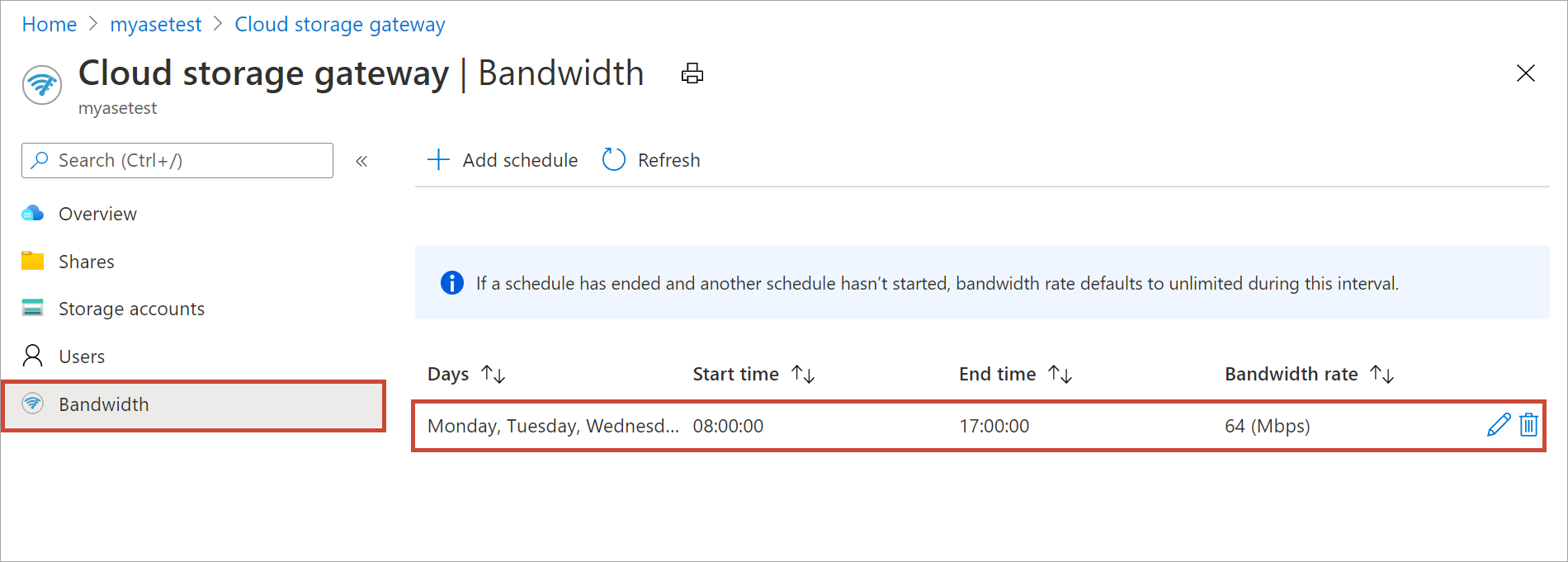

    Modify user 2

Delete a schedule

Do the following steps to delete a bandwidth schedule associated with your Azure Stack Edge Pro device.

  1. In the Azure portal, go to your Azure Stack Edge resource and then go to Bandwidth.

  2. From the list of bandwidth schedules, select a schedule that you want to delete. In the Edit schedule, select Delete. When prompted for confirmation, select Yes.

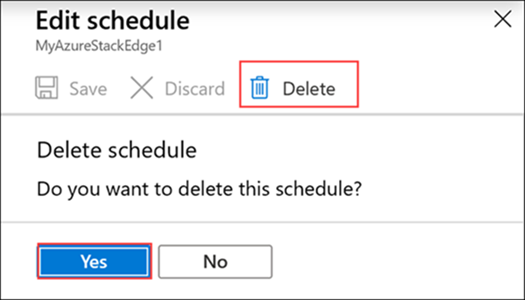

    Delete a user

  3. After the schedule is deleted, the list of schedules is updated.
