Manage and analyze network security group flow logs in Azure using Network Watcher and Graylog

  • Article

Important

On September 30, 2027, network security group (NSG) flow logs will be retired. As part of this retirement, you'll no longer be able to create new NSG flow logs starting June 30, 2025. We recommend migrating to virtual network flow logs, which overcome the limitations of NSG flow logs. After the retirement date, traffic analytics enabled with NSG flow logs will no longer be supported, and existing NSG flow logs resources in your subscriptions will be deleted. However, NSG flow logs records won't be deleted and will continue to follow their respective retention policies. For more information, see the official announcement.

Network security group flow logs provide information that you can use to understand ingress and egress IP traffic for Azure network interfaces. Flow logs show outbound and inbound flows on a per network security group rule basis, the network interface the flow applies to, 5-tuple information (Source/Destination IP, Source/Destination Port, Protocol) about the flow, and if the traffic was allowed or denied.

You can have many network security groups in your network with flow logging enabled. Several network security groups with flow logging enabled can make it cumbersome to parse and gain insights from your logs. This article provides a solution to centrally manage these network security group flow logs using Graylog, an open source log management and analysis tool, and Logstash, an open source server-side data processing pipeline.

Warning

The following steps work with flow logs version 1. For details, see Introduction to flow logging for network security groups. The following instructions will not work with version 2 of the log files, without modification.

Scenario

Network security group flow logs are enabled using Network Watcher. Flow logs flow in to Azure blob storage. A Logstash plugin is used to connect and process flow logs from blob storage and send them to Graylog. Once the flow logs are stored in Graylog, they can be analyzed and visualized into customized dashboards.

Graylog workflow

Installation Steps

Enable network security group flow logging

For this scenario, you must have network security group flow logging enabled on at least one network security group in your account. For instructions on enabling network security group flow logs, refer to the following article Introduction to flow logging for network security groups.

Setting up Graylog

In this example, both Graylog and Logstash are configured on an Ubuntu Server, deployed in Azure.

  • Refer to the documentation from Graylog, for step by step instructions on how install onto Ubuntu.
  • Make sure to also configure the Graylog web interface by following the documentation.

This example uses the minimum Graylog setup (i.e. a single instance of a Graylog), but Graylog can be architected to scale across resources depending on your system and production needs. For more information on architectural considerations or a deep architectural guide, see Graylog's documentation and architectural guide.

Graylog can be installed in many ways, depending on your platform and preferences. For a full list of possible installation methods, refer to Graylog's official documentation. The Graylog server application runs on Linux distributions and has the following prerequisites:

Install Logstash

Logstash is used to flatten the JSON formatted flow logs to a flow tuple level. Flattening the flow logs makes the logs easier to organize and search in Graylog. The following instructions are used to install Logstash in Ubuntu. For instructions about how to install this package in Red Hat Enterprise Linux, see Installing from Package Repositories - yum.

  1. To install Logstash, run the following commands:

    wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo gpg --dearmor -o /usr/share/keyrings/elastic-keyring.gpg
sudo apt-get install apt-transport-https
echo "deb [signed-by=/usr/share/keyrings/elastic-keyring.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-8.x.list
sudo apt-get update && sudo apt-get install logstash

  2. Configure Logstash to parse the flow logs and send them to Graylog. Create a Logstash.conf file:

    sudo touch /etc/logstash/conf.d/logstash.conf

  3. Add the following content to the file. Change the storage_account_name, storage_access_key, and container values to reflect your storage account details:

     input {
     azureblob
     {
         storage_account_name => "mystorageaccount"
         storage_access_key => "NrUZmx7pJSKaRJzvQbeiZWi5nBRWOTr7Wwr9DrvK7YtDBrADYxT1y0oEExtSlkDnGRt7qcRiZzEBCCyRYND8SxSt"
         container => "insights-logs-networksecuritygroupflowevent"
         registry_create_policy => "start_over"
         codec => "json"
         file_head_bytes => 21
         file_tail_bytes => 9
         # Possible options: `do_not_break`, `with_head_tail`, `without_head_tail`
         break_json_down_policy  => 'with_head_tail'
         break_json_batch_count => 2
         interval => 5
     }
 }

 filter {
     split { field => "[records]" }
     split { field => "[records][properties][flows]"}
     split { field => "[records][properties][flows][flows]"}
     split { field => "[records][properties][flows][flows][flowTuples]"
 }

  mutate {
     split => { "[records][resourceId]" => "/"}
     add_field =>{
                 "Subscription" => "%{[records][resourceId][2]}"
                 "ResourceGroup" => "%{[records][resourceId][4]}"
                 "NetworkSecurityGroup" => "%{[records][resourceId][8]}"
     }
     convert => {"Subscription" => "string"}
     convert => {"ResourceGroup" => "string"}
     convert => {"NetworkSecurityGroup" => "string"}
     split => { "[records][properties][flows][flows][flowTuples]" => ","}
     add_field => {
                 "unixtimestamp" => "%{[records][properties][flows][flows][flowTuples][0]}"
                 "srcIp" => "%{[records][properties][flows][flows][flowTuples][1]}"
                 "destIp" => "%{[records][properties][flows][flows][flowTuples][2]}"
                 "srcPort" => "%{[records][properties][flows][flows][flowTuples][3]}"
                 "destPort" => "%{[records][properties][flows][flows][flowTuples][4]}"
                 "protocol" => "%{[records][properties][flows][flows][flowTuples][5]}"
                 "trafficflow" => "%{[records][properties][flows][flows][flowTuples][6]}"
                 "traffic" => "%{[records][properties][flows][flows][flowTuples][7]}"
     }
     add_field => {
                 "time" => "%{[records][time]}"
                 "systemId" => "%{[records][systemId]}"
                 "category" => "%{[records][category]}"
                 "resourceId" => "%{[records][resourceId]}"
                 "operationName" => "%{[records][operationName}}"
                 "Version" => "%{[records][properties][Version}}"
                 "rule" => "%{[records][properties][flows][rule]}"
                 "mac" => "%{[records][properties][flows][flows][mac]}"
     }
     convert => {"unixtimestamp" => "integer"}
     convert => {"srcPort" => "integer"}
     convert => {"destPort" => "integer"}
     add_field => { "message" => "%{Message}" }
 }
     date {
         match => ["unixtimestamp" , "UNIX"]
     }
 }
 output {
     stdout { codec => rubydebug }
     udp {
         host => "127.0.0.1"
         port => 12201
     }
 }

    The Logstash config file provided is composed of three parts: the input, filter, and output. The input section designates the input source of the logs that Logstash will process - in this case, you're going to use an Azure blog input plugin (installed in the next steps) that allows us to access the network security group flow log JSON files stored in blob storage.

The filter section then flattens each flow log file so that each individual flow tuple and its associated properties becomes a separate Logstash event.

Finally, the output section forwards each Logstash event to the Graylog server. To suit your specific needs, modify the Logstash config file, as required.

Note

The previous config file assumes that the Graylog server has been configured on the local host loopback IP address 127.0.0.1. If not, be sure to change the host parameter in the output section to the correct IP address.

For further instructions on installing Logstash, see the Logstash documentation.

Install the Logstash input plug-in for Azure blob storage

The Logstash plugin allows you to directly access the flow logs from their designated blob storage account. To install the plug-in, from the default Logstash installation directory (in this case /usr/share/logstash/bin), run the following command:

cd /usr/share/logstash/bin
sudo ./logstash-plugin install logstash-input-azureblob

For more information about this plug in, see the documentation.

Set up connection from Logstash to Graylog

Now that you have established a connection to the flow logs using Logstash and set up the Graylog server, you need to configure Graylog to accept the incoming log files.

  1. Navigate to your Graylog Server web interface using the URL you configured for it. You can access the interface by directing your browser to http://<graylog-server-ip>:9000/

  2. To navigate to the configuration page, select the System drop-down menu in the top navigation bar to the right, and then select Inputs. Alternatively, navigate to http://<graylog-server-ip>:9000/system/inputs

    Getting started

  3. To launch the new input, select GELF UDP in the Select input drop-down, and then fill out the form. GELF stands for Graylog Extended Log Format. The GELF format is developed by Graylog. To learn more about its advantages, see the Graylog documentation.

    Make sure to bind the input to the IP you configured your Graylog server on. The IP address should match the host field of the UDP output of the Logstash configuration file. The default port should be 12201. Ensure the port matches the port field in the UDP output designated in the Logstash config file.

    Screenshot shows the Graylog Inputs, with options to launch and find inputs.

    Once you launch the input, you should see it appear under the Local inputs section, as shown in the following picture:

    Screenshot that shows the Local inputs section that contains the input you launched.

    To learn more about Graylog message inputs, refer to the documentation.

  4. Once these configurations have been made, you can start Logstash to begin reading in flow logs with the following command: sudo systemctl start logstash.service.

Search through Graylog messages

After allowing some time for your Graylog server to collect messages, you're able to search through the messages. To check the messages being sent to your Graylog server, from the Inputs configuration page select the "Show received messages" button of the GELF UDP input you created. You're directed to a screen that looks similar to the following picture:

Screenshot shows the Graylog server that displays Search result, Histogram, and Messages.

Select the blue %{Message} link to expand the message to show the parameters of the flow tuple.

By default, all message fields are included in the search if you don't select a specific message field to search for. If you want to search for specific messages (i.e. - flow tuples from a specific source IP) you can use the Graylog search query language as documented

Analyze network security group flow logs using Graylog

Now that Graylog it set up running, you can use some of its functionality to better understand your flow log data. One such way is by using dashboards to create specific views of your data.

Create a dashboard

  1. In the top navigation bar, select Dashboards or navigate to http://<graylog-server-ip>:9000/dashboards/

  2. From there, select the green Create dashboard button and fill out the short form with the title and description of your dashboard. Hit the Save button to create the new dashboard. You see a dashboard similar to the following picture:

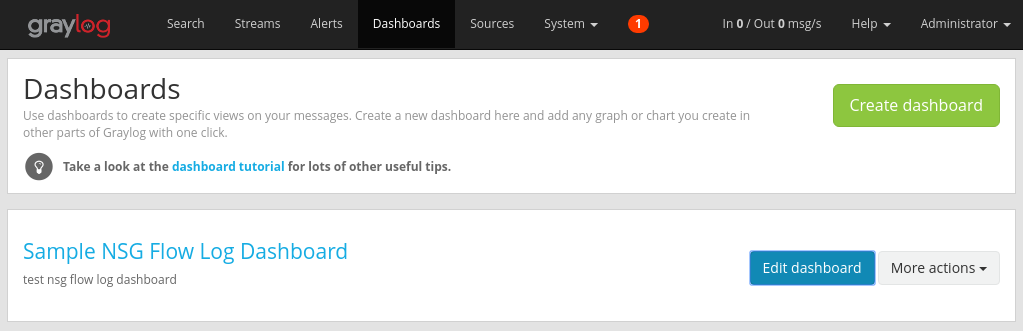

    Screenshot shows Graylog server Dashboards, with the options to create and edit dashboards.

Add widgets

You can select the title of the dashboard to see it, but right now it's empty, since we haven't added any widgets. An easy and useful type widget to add to the dashboard are Quick Values charts, which display a list of values of the selected field, and their distribution.

  1. Navigate back to the search results of the UDP input that's receiving flow logs by selecting Search from the top navigation bar.

  2. Under the Search result panel to the left side of the screen, find the Fields tab, which lists the various fields of each incoming flow tuple message.

  3. Select any desired parameter in which to visualize (in this example, the IP source is selected). To show the list of possible widgets, select the blue drop-down arrow to the left of the field, then select Quick values to generate the widget. You should see something similar to the following picture:

    Source IP

  4. From there, you can select the Add to dashboard button at the top right corner of the widget and select the corresponding dashboard to add.

  5. Navigate back to the dashboard to see the widget you just added.

    You can add a variety of other widgets such as histograms and counts to your dashboard to keep track of important metrics, such as the sample dashboard shown in the following picture:

    Flowlogs dashboard

    For further explanation on dashboards and the other types of widgets, refer to Graylog's documentation.

By integrating Network Watcher with Graylog, you now have a convenient and centralized way to manage and visualize network security group flow logs. Graylog has a number of other powerful features such as streams and alerts that can also be used to further manage flow logs and better understand your network traffic. Now that you have Graylog set up and connected to Azure, feel free to continue to explore the other functionality that it offers.

Next step

Visualize network security group flows logs with Power BI
