Header-based authentication for single sign-on with application proxy and PingAccess

Microsoft partnered with PingAccess to provide more access applications. PingAccess provides another option beyond integrated header-based single sign-on.

What's PingAccess for Microsoft Entra ID?

With PingAccess for Microsoft Entra ID, you give users access and single sign-on (SSO) to applications that use headers for authentication. Application proxy treats these applications like any other, using Microsoft Entra ID to authenticate access and then passing traffic through the connector service. PingAccess sits in front of the applications and translates the access token from Microsoft Entra ID into a header. The application then receives the authentication in the format it can read.

Users don't notice anything different when they sign in to use corporate applications. Applications still work from anywhere on any device. The application proxy connectors direct remote traffic to all apps without regard to their authentication type, so they still balance loads automatically.

How do I get access?

You need a license for PingAccess and Microsoft Entra ID. However, Microsoft Entra ID P1 or P2 subscriptions include a basic PingAccess license that covers up to 20 applications. If you need to publish more than 20 header-based applications, you can purchase more licenses from PingAccess.

For more information, see Microsoft Entra editions.

Publish your application in Microsoft Entra

This article outlines the steps to publish an application for the first time. The article provides guidance for both application proxy and PingAccess.

Note

Some of the instructions exist on the Ping Identity site.

Install an application proxy connector

The application proxy connector is a Windows Server service that directs traffic from your remote employees to your published applications. For more detailed installation instructions, see Tutorial: Add an on-premises application for remote access through application proxy in Microsoft Entra ID.

  1. Sign in to the Microsoft Entra admin center as at least a Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Application proxy.
  3. Select Download connector service.
  4. Follow the installation instructions.

Downloading the connector should automatically enable application proxy for your directory, but if not, you can select Enable application proxy.

Add your application to Microsoft Entra ID with application proxy

There are two steps to add your application to Microsoft Entra ID. First, you need to publish your application with application proxy. Then, you need to collect information about the application that you can use during the PingAccess steps.

Publish your application

First, publish your application. This action involves:

  • Adding your on-premises application to Microsoft Entra ID.
  • Assigning a user for testing the application and choosing header-based single sign-on.
  • Setting up the application's redirect URL.
  • Granting permissions for users and other applications to use your on-premises application.

To publish your own on-premises application:

  1. Sign in to the Microsoft Entra admin center as an Application Administrator.

  2. Browse to Enterprise applications > New application > Add an on-premises application. The Add your own on-premises application page appears.

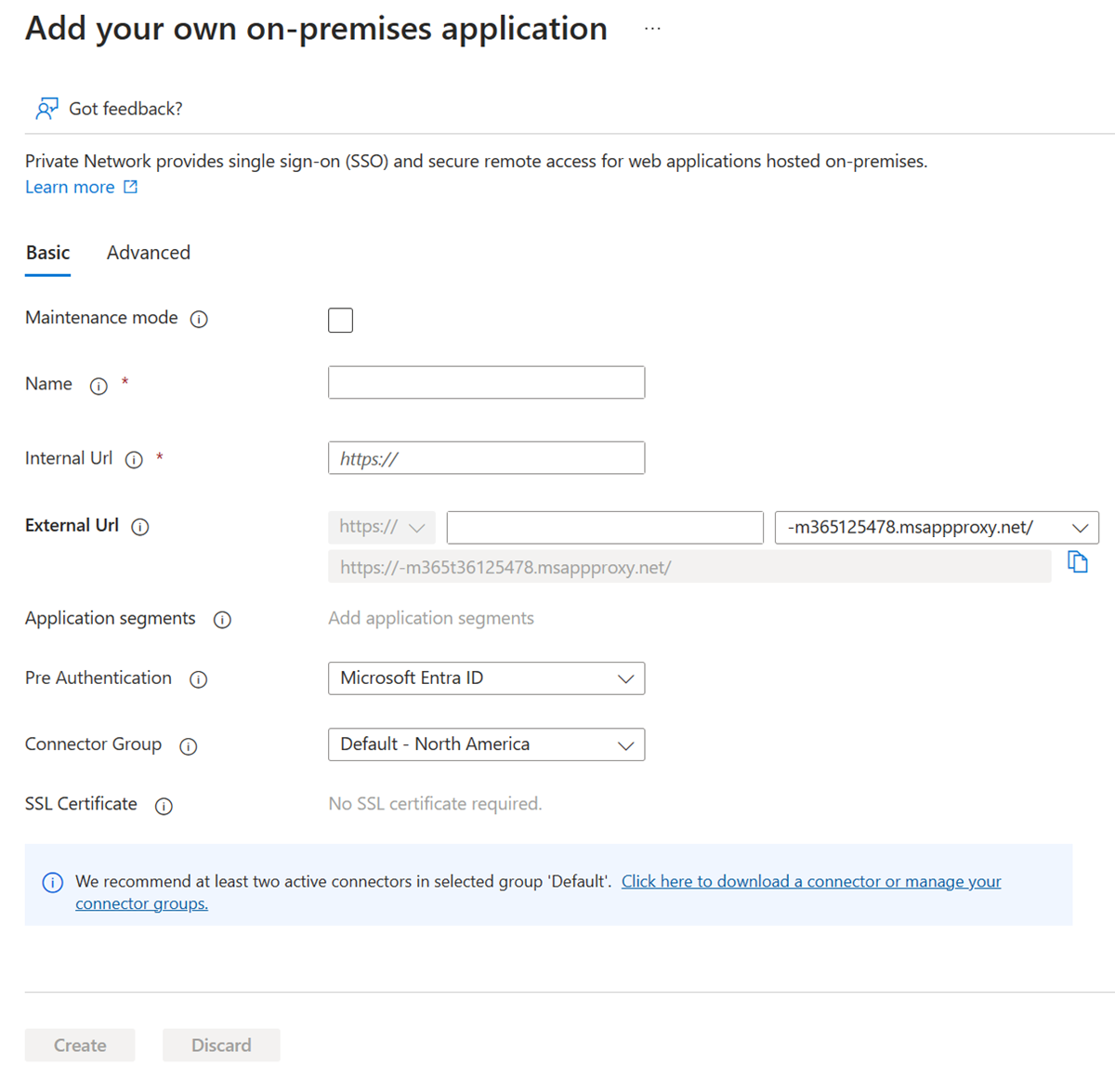

    Add your own on-premises application

  3. Fill in the required fields with information about your new application. Use the guidance for the settings.

    Note

    For a more detailed walkthrough of this step, see Add an on-premises app to Microsoft Entra ID.

    1. Internal URL: Normally you provide the URL that takes you to the app's sign-in page when you're on the corporate network. For this scenario, the connector needs to treat the PingAccess proxy as the front page of the application. Use this format: https://<host name of your PingAccess server>:<port>. The port is 3000 by default, but you can configure it in PingAccess.

      Warning

      For this type of single sign-on, the internal URL must use https and not http. Also, no two applications should have the same internal URL so application proxy can maintain a distinction between them.

    2. Pre authentication method: Choose Microsoft Entra ID.

    3. Translate URL in Headers: Choose No.

    Note

    If this is your first application, use port 3000 to start and come back to update this setting if you change your PingAccess configuration. For subsequent applications, the port will need to match the Listener you've configured in PingAccess. Learn more about listeners in PingAccess.

  4. Select Add. The overview page for the new application appears.

Now assign a user for application testing and choose header-based single sign-on:

  1. From the application sidebar, select Users and groups > Add user > Users and groups (<Number> Selected). A list of users and groups appears for you to choose from.

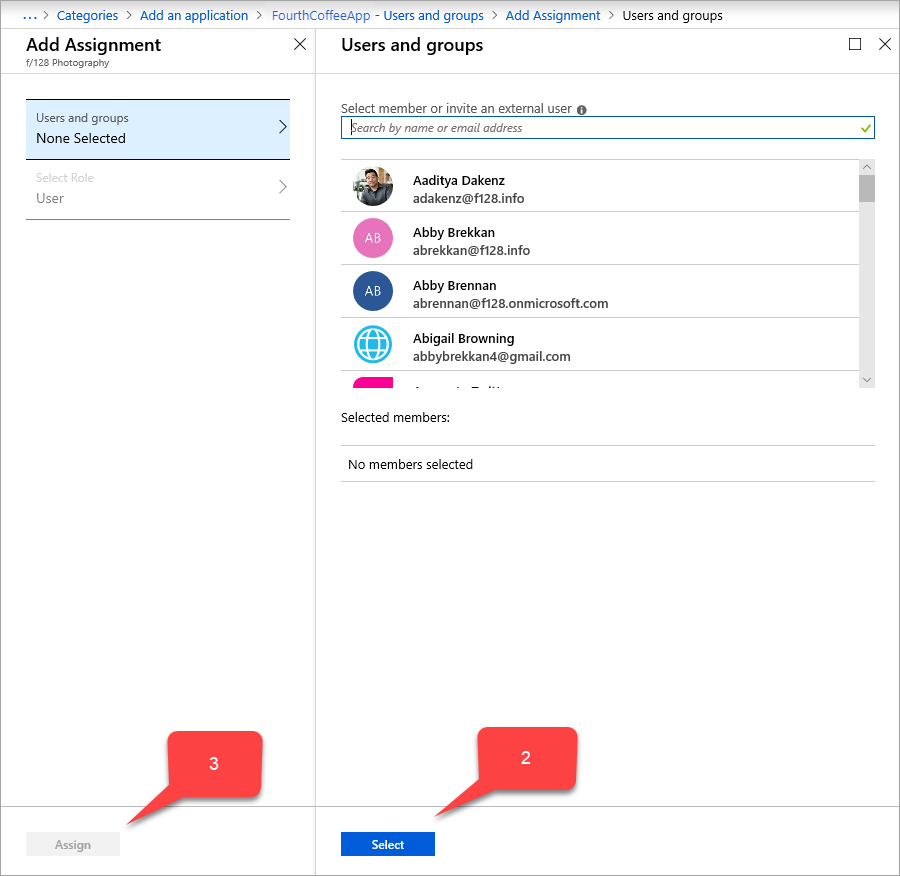

    Shows the list of users and groups

  2. Select a user for application testing, and select Select. Make sure this test account has access to the on-premises application.

  3. Select Assign.

  4. From the application sidebar, select Single sign-on > Header-based.

    Tip

    If this is your first time using header-based single sign-on, you need to install PingAccess. To make sure your Microsoft Entra ID subscription is automatically associated with your PingAccess installation, use the link on this single sign-on page to download PingAccess. You can open the download site now, or come back to this page later.

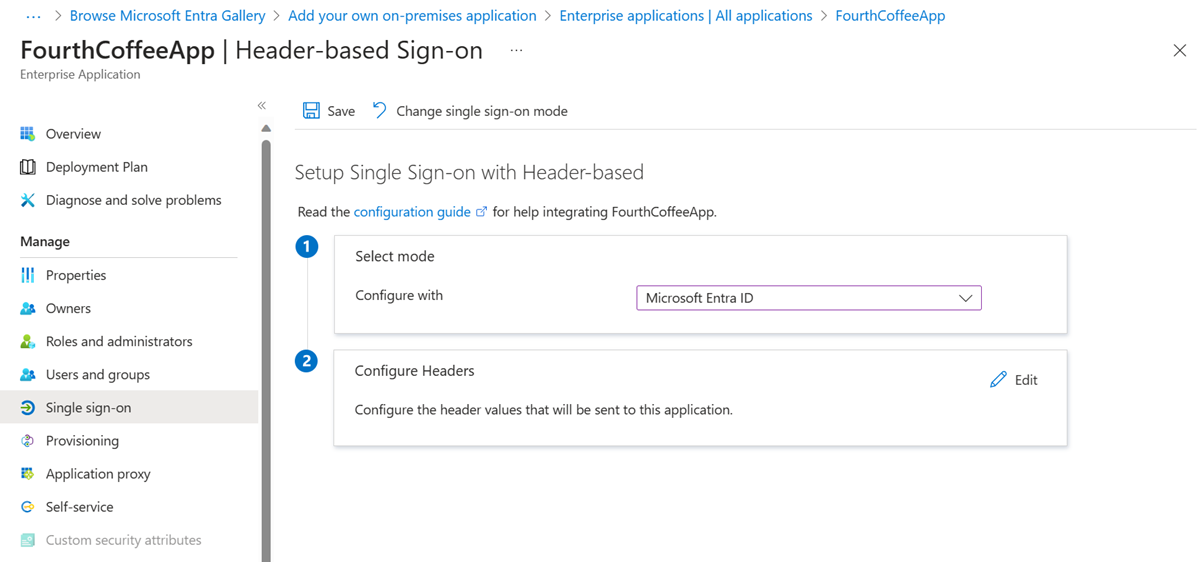

    Shows header-based sign-on screen and PingAccess

  5. Select Save.

Then make sure your redirect URL is set to your external URL:

  1. Browse to Identity > Applications > App registrations and select your application.
  2. Select the link next to Redirect URIs. The link shows the amount of redirect Uniform Resource Identifiers (URIs) setup for web and public clients. The <application name> - Authentication page appears.
  3. Check whether the external URL that you assigned to your application earlier is in the Redirect URIs list. If it isn't, add the external URL now, using a redirect URI type of Web, and select Save.

In addition to the external URL, an authorize endpoint of Microsoft Entra ID on the external URL should be added to the Redirect URIs list.

https://*.msappproxy.net/pa/oidc/cb https://*.msappproxy.net/

Finally, set up the on-premises application so that users have read access and other applications have read/write access:

  1. From the App registrations sidebar for your application, select API permissions > Add a permission > Microsoft APIs > Microsoft Graph. The Request API permissions page for Microsoft Graph appears, which contains the permissions for Microsoft Graph.

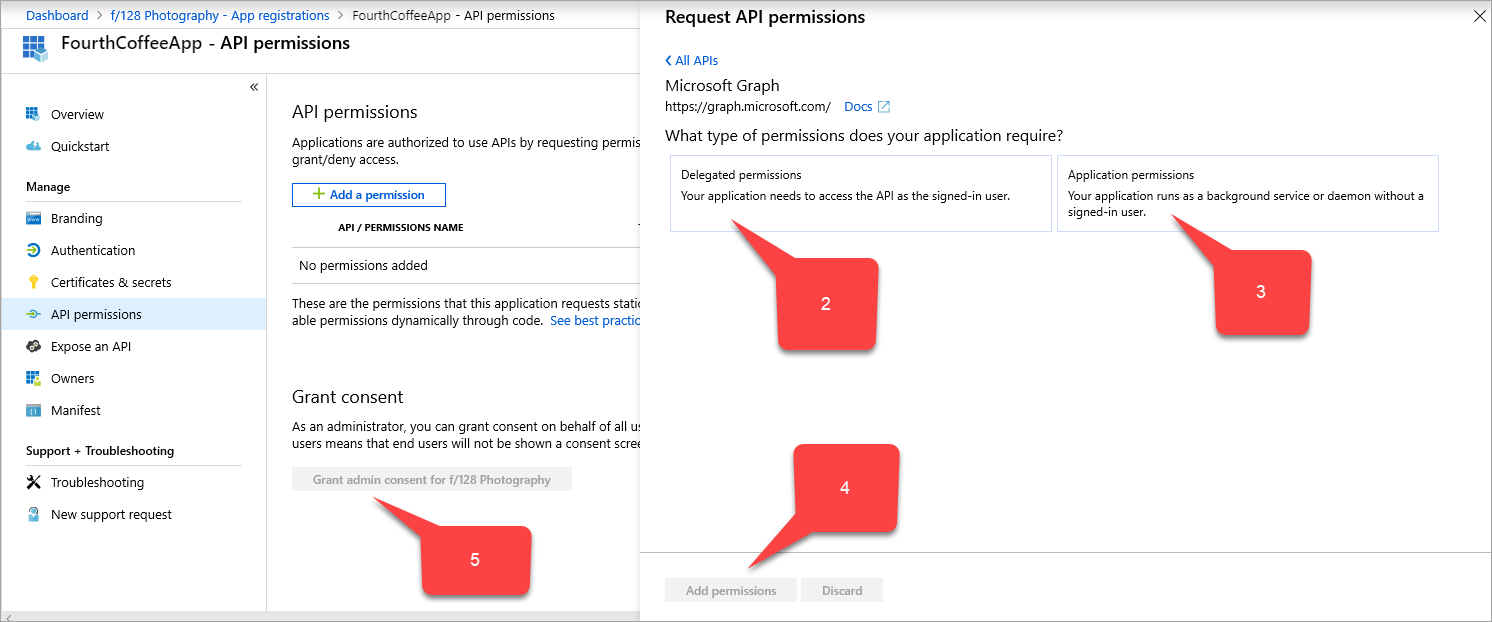

    Shows the Request API permissions page

  2. Select Delegated permissions > User > User.Read.

  3. Select Application permissions > Application > Application.ReadWrite.All.

  4. Select Add permissions.

  5. In the API permissions page, select Grant admin consent for <your directory name>.

Collect information for the PingAccess steps

Collect three Globally Unique Identifiers (GUIDs). Use the GUIDs to set up your application with PingAccess.

Name of Microsoft Entra ID field Name of PingAccess field Data format
Application (client) ID Client ID GUID
Directory (tenant) ID Issuer GUID
PingAccess key Client Secret Random string

To collect this information:

  1. Browse to Identity > Applications > App registrations and select your application.

    Registration overview for an application

  2. Next to the Application (client) ID value, select the Copy to clipboard icon, then copy and save it. You specify this value later as PingAccess's client ID.

  3. Next the Directory (tenant) ID value, also select Copy to clipboard, then copy and save it. You specify this value later as PingAccess's issuer.

  4. From the sidebar of the App registrations for your application, select Certificates and secrets > New client secret. The Add a client secret page appears.

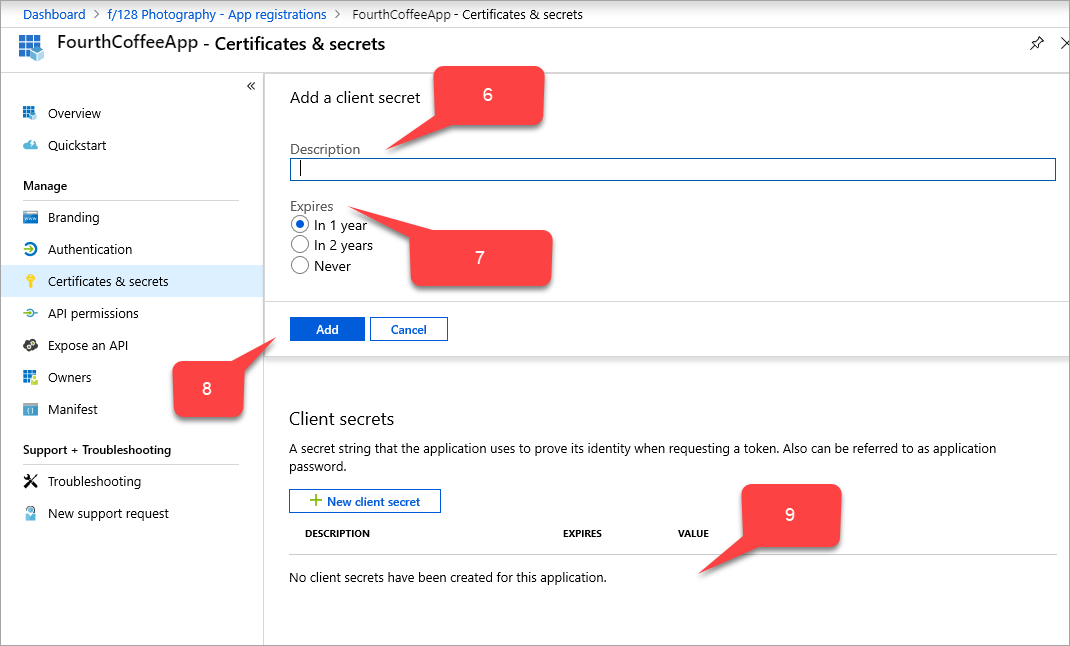

    Shows the Add a client secret page

  5. In Description, type PingAccess key.

  6. Under Expires, choose how to set the PingAccess key: In 1 year, In 2 years, or Never.

  7. Select Add. The PingAccess key appears in the table of client secrets, with a random string that autofills in the VALUE field.

  8. Next to the PingAccess key's VALUE field, select the Copy to clipboard icon, then copy and save it. You specify this value later as PingAccess's client secret.

Update the acceptMappedClaims field:

  1. Sign in to the Microsoft Entra admin center as at least a Application Administrator.
  2. Select your username in the upper-right corner. Verify you're signed in to a directory that uses application proxy. If you need to change directories, select Switch directory and choose a directory that uses application proxy.
  3. Browse to Identity > Applications > App registrations and select your application.
  4. From the sidebar of the App registrations page for your application, select Manifest. The manifest JSON code for your application's registration appears.
  5. Search for the acceptMappedClaims field, and change the value to True.
  6. Select Save.

Use of optional claims (optional)

Optional claims allow you to add standard-but-not-included-by-default claims that every user and tenant has. You can configure optional claims for your application by modifying the application manifest. For more info, see the Understanding the Microsoft Entra application manifest article.

Example to include email address into the access_token that PingAccess consumes:

    "optionalClaims": {
        "idToken": [],
        "accessToken": [
            {
                "name": "email",
                "source": null,
                "essential": false,
                "additionalProperties": []
            }
        ],
        "saml2Token": []
    },

Use of claims mapping policy (optional)

Claims mapping lets you migrate old on-premises apps to the cloud by adding more custom claims that back your Active Directory Federation Services (ADFS) or user objects. For more information, see Claims Mapping Policy (preview).

To use a custom claim and include more fields in your application. Created a custom claims mapping policy and assigned it to the application.

Note

To use a custom claim, you must also have a custom policy defined and assigned to the application. The policy should include all required custom attributes.

You can do policy definition and assignment through PowerShell or Microsoft Graph. If you're doing them in PowerShell, you may need to first use New-AzureADPolicy and then assign it to the application with Add-AzureADServicePrincipalPolicy. For more information, see Claims mapping policy assignment.

Example:

$pol = New-AzureADPolicy -Definition @('{"ClaimsMappingPolicy":{"Version":1,"IncludeBasicClaimSet":"true", "ClaimsSchema": [{"Source":"user","ID":"employeeid","JwtClaimType":"employeeid"}]}}') -DisplayName "AdditionalClaims" -Type "ClaimsMappingPolicy"

Add-AzureADServicePrincipalPolicy -Id "<<The object Id of the Enterprise Application you published in the previous step, which requires this claim>>" -RefObjectId $pol.Id

Enable PingAccess to use custom claims

Enabling PingAccess to use custom claims is optional, but required if you expect the application to consume more claims.

When you configure PingAccess in the following step, the Web Session you create (Settings->Access->Web Sessions) must have Request Profile deselected and Refresh User Attributes set to No.

Download PingAccess and configure your application

The detailed steps for the PingAccess part of this scenario continue in the Ping Identity documentation. Follow the instructions in Configuring PingAccess for Microsoft Entra ID on the Ping Identity web site and download the latest version of PingAccess.

The steps in the PingAccess article walk you through obtaining a PingAccess account. To create a Microsoft Entra ID OpenID Connect (OIDC) connection, set up a token provider with the Directory (tenant) ID value that you copied from the Microsoft Entra admin center. Create a web session on PingAccess. Use the Application (client) ID and PingAccess key values. Set up identity mapping and create a virtual host, site, and application.

Test your application

The application is up and running. To test it, open a browser and navigate to the external URL that you created when you published the application in Microsoft Entra. Sign in with the test account you assigned to the application.
