Troubleshoot corporate access to an application
This article helps you troubleshoot common issues for the
This corporate app can't be accessed error on a Microsoft Entra application proxy application.
When you see this error, find the status code on the error page. The status code is one of the following status codes:
- Gateway Timeout: The application proxy service is unable to reach the connector. The error typically indicates a problem with the connector assignment, connector itself, or the networking rules around the connector.
- Bad Gateway: The connector is unable to reach the backend application. The error could indicate a misconfiguration of the application.
- Forbidden: The user isn't authorized to access the application. The error can happen when the user isn't assigned to the application in Microsoft Entra ID. The error can also happen if the user doesn't have permission to access the application on the backend.

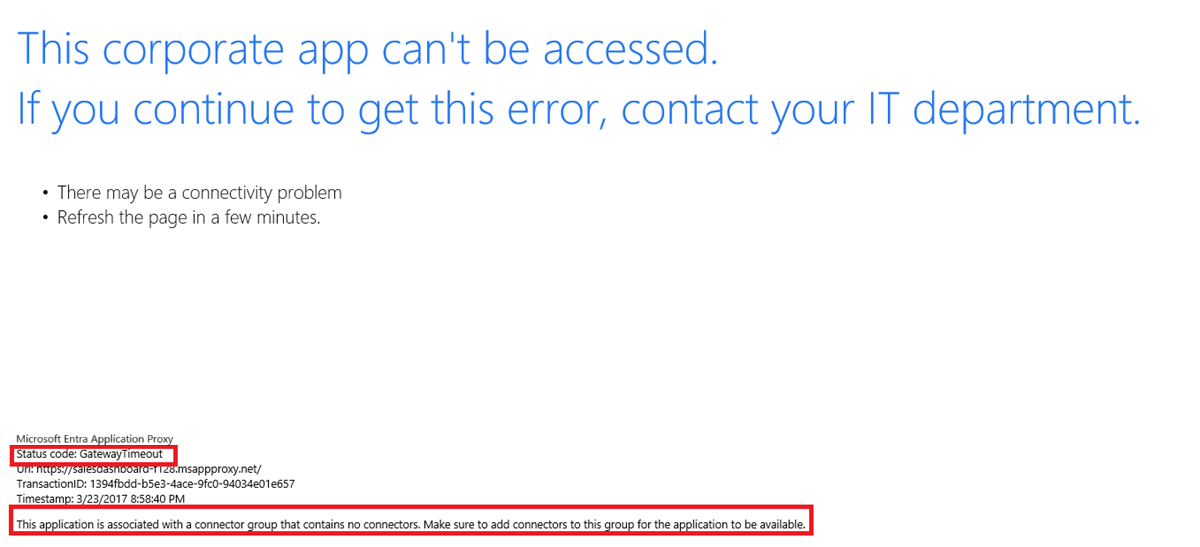

To find the code, look at the text at the bottom left of the error message for the
Status Code field.
Gateway Timeout errors
A gateway timeout occurs when the service tries to reach the connector and fails within the timeout window. The error is seen when an application is assigned to a connector group with no working connectors. The error is also seen when the required ports aren't open.
Bad Gateway errors
A bad gateway error indicates that the connector is unable to reach the backend application. Common mistakes that cause this error are:
- A typo or mistake in the internal URL
- Not publishing the root of the application. For example, publishing
http://expenses/reimbursementbut trying to access
- Problems with the Kerberos Constrained Delegation (KCD) configuration
- Problems with the backend application
If you see a forbidden error, the user isn't assigned to the application. This error could be either in Microsoft Entra ID or on the backend application.
To learn how to assign users to the application in Azure, see the configuration documentation.
Check the application's internal URL
As a first quick step, double check and fix the internal URL by opening the application through Enterprise Applications, then selecting the application proxy menu. Verify the internal URL of the application is the one used from your on premises network.
Check the application is assigned to a working connector group
You must confirm an application is assigned to a working connector group. For more information, see Tutorial: Add an on-premises application for remote access through application proxy in Microsoft Entra ID.
Check all required ports are open
Verify that all required ports are open. For required ports, see the open ports section of Tutorial: Add an on-premises application for remote access through application proxy in Microsoft Entra ID. If all the required ports are open, move to the next section.
Check for other connector errors
Look for issues or errors with the connector itself. For more information about common errors, see application proxy troubleshooting.
Look directly at the connector logs to identify any errors. Many of the error messages share specific recommendations for fixes. To view the logs, see the application proxy connectors.
If your application is configured to use integrated Windows authentication (IWA), test the application without single sign-on. To check the application without single sign-on, open your application through Enterprise Applications, and go to the Single Sign-On menu. Change the drop-down from Integrated Windows authentication to Microsoft Entra single sign-on disabled.
Now open a browser and try to access the application again. You should be prompted for authentication and get into the application. If you're able to authenticate, the problem is with the Kerberos Constrained Delegation (KCD) configuration that enables the single sign-on.
If you continue to see the error, go to the machine where the connector is installed, open a browser and attempt to reach the internal URL used for the application. The connector acts like another client from the same machine. If you can't reach the application, investigate why that machine is unable to reach the application, or use a connector on a server that is able to access the application.
If you can reach the application from that machine, to look for issues or errors with the connector itself. You can see some common errors in the Troubleshoot document. You can also look directly at the connector logs to identify any errors. Many of our error messages be able to share more specific recommendations for fixes. To learn how to view the logs, see our connectors documentation.
