Tutorial: Microsoft Entra integration with Adobe Experience Manager

  • Article

In this tutorial, you'll learn how to integrate Adobe Experience Manager with Microsoft Entra ID. When you integrate Adobe Experience Manager with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Adobe Experience Manager.
  • Enable your users to be automatically signed-in to Adobe Experience Manager with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Adobe Experience Manager single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Adobe Experience Manager supports SP and IDP initiated SSO

  • Adobe Experience Manager supports Just In Time user provisioning

To configure the integration of Adobe Experience Manager into Microsoft Entra ID, you need to add Adobe Experience Manager from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Adobe Experience Manager in the search box.
  4. Select Adobe Experience Manager from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Adobe Experience Manager

Configure and test Microsoft Entra SSO with Adobe Experience Manager using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Adobe Experience Manager.

To configure and test Microsoft Entra SSO with Adobe Experience Manager, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Adobe Experience Manager SSO - to configure the Single Sign-On settings on application side.
    1. Create Adobe Experience Manager test user - to have a counterpart of Britta Simon in Adobe Experience Manager that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Adobe Experience Manager > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, enter the values for the following fields:

    a. In the Identifier text box, type a unique value that you define on your AEM server as well.

    b. In the Reply URL text box, type a URL using the following pattern: https://<AEM Server Url>/saml_login

    Note

    The Reply URL value is not real. Update Reply URL value with the actual reply URL. To get this value, contact the Adobe Experience Manager Client support team to get this value. You can also refer to the patterns shown in the Basic SAML Configuration section.

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type your Adobe Experience Manager server URL.

  7. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.

    The Certificate download link

  8. On the Set up Adobe Experience Manager section, copy the appropriate URL(s) as per your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Adobe Experience Manager.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Adobe Experience Manager.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Adobe Experience Manager SSO

  1. In another browser window, open the Adobe Experience Manager admin portal.

  2. Select Settings > Security > Users.

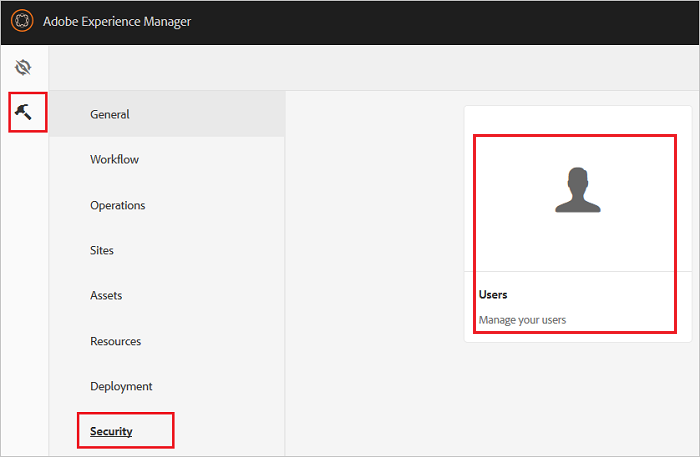

    Screenshot that shows the Users tile in the Adobe Experience Manager.

  3. Select Administrator or any other relevant user.

  4. Select Account settings > Manage TrustStore.

    Screenshot that shows Manage TrustStore under Account settings.

  5. Under Add Certificate from CER file, click Select Certificate File. Browse to and select the certificate file, which you already downloaded.

    Screenshot that highlights the Select Certificate File button.

  6. The certificate is added to the TrustStore. Note the alias of the certificate.

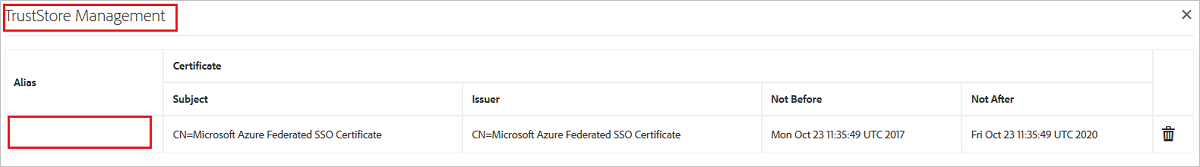

    Screenshot that shows that the certificate is added to the TrustStore.

  7. On the Users page, select authentication-service.

    Screenshot that highlights authentication-service on the screen.

  8. Select Account settings > Create/Manage KeyStore. Create KeyStore by supplying a password.

    Screenshot that highlights Manage KeyStore.

  9. Go back to the admin screen. Then select Settings > Operations > Web Console.

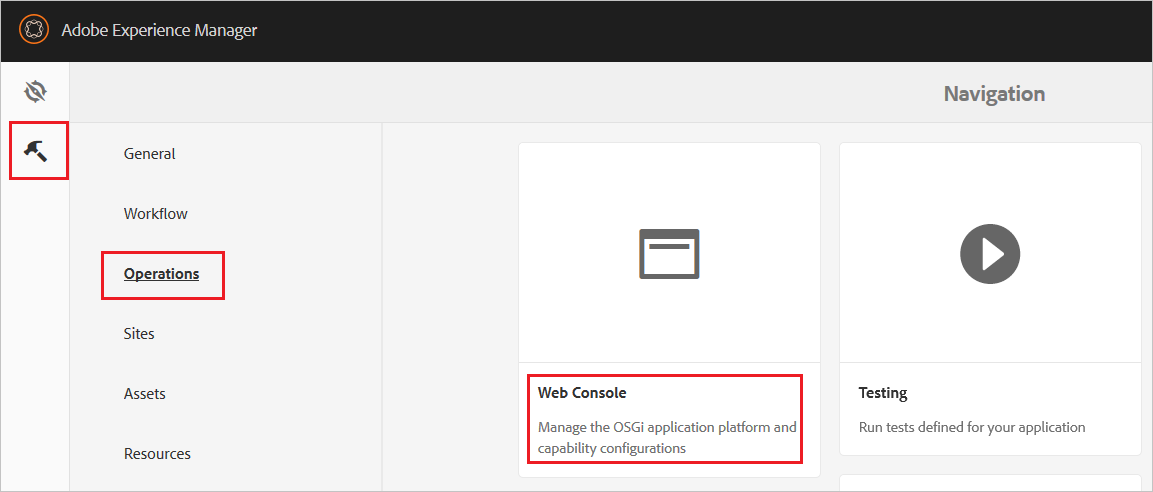

    Screenshot that highlights Web Console under Operations within the Settings section.

    This opens the configuration page.

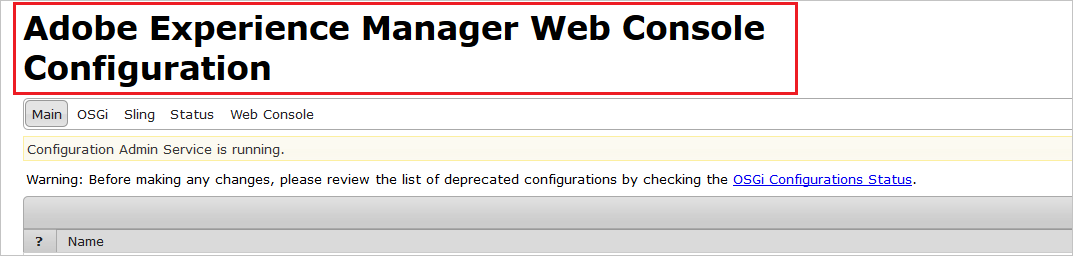

    Configure the single sign-on save button.

  10. Find Adobe Granite SAML 2.0 Authentication Handler. Then select the Add icon.

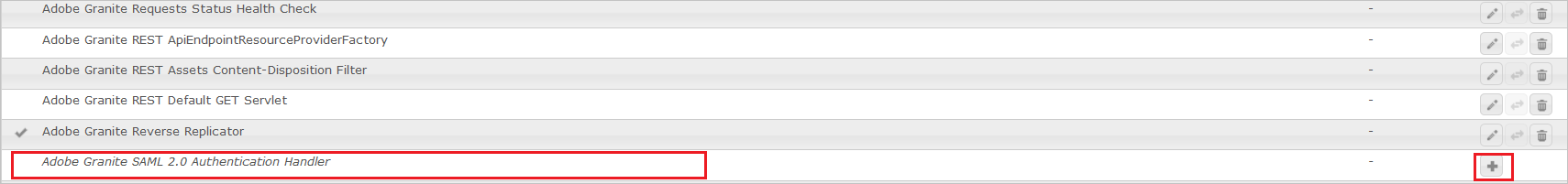

    Screenshot that highlights Adobe Granite SAML 2.0 Authentication Handler.

  11. Take the following actions on this page.

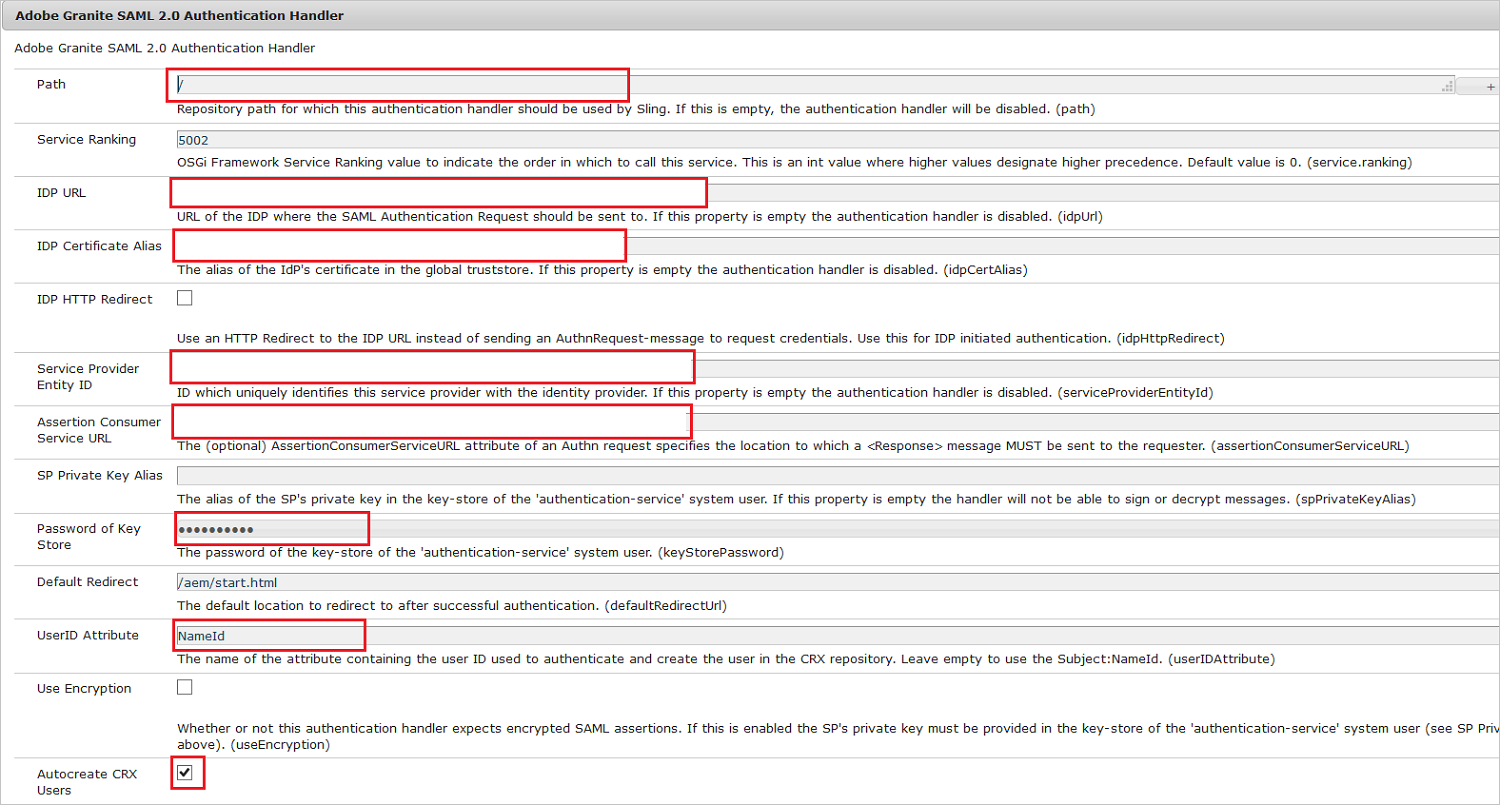

    Screenshot shows for Configure Single Sign-On Save button.

    a. In the Path box, enter /.

    b. In the IDP URL box, enter the Login URL value that you copied.

    c. In the IDP Certificate Alias box, enter the Certificate Alias value that you added in TrustStore.

    d. In the Security Provided Entity ID box, enter the unique Microsoft Entra Identifier value that you configured.

    e. In the Assertion Consumer Service URL box, enter the Reply URL value that you configured.

    f. In the Password of Key Store box, enter the Password that you set in KeyStore.

    g. In the User Attribute ID box, enter the Name ID or another user ID that's relevant in your case.

    h. Select Autocreate CRX Users.

    i. In the Logout URL box, enter the unique Logout URL value that you got.

    j. Select Save.

  12. In Apache Sling Referrer Filter section, perform the below steps:

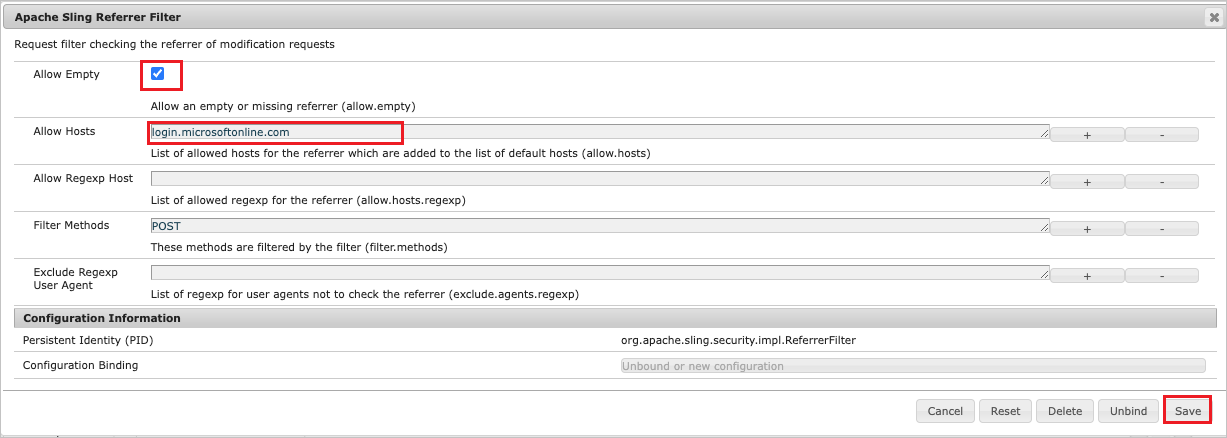

    Screenshot shows for Sling Referrer Filter.

    a. Ensure allow.empty value is set to true.

    b. Add login.microsoftonline.com to the Allow Hosts.

    c. Click Save.

Create Adobe Experience Manager test user

In this section, you create a user called Britta Simon in Adobe Experience Manager. If you selected the Autocreate CRX Users option, users are created automatically after successful authentication.

If you want to create users manually, work with the Adobe Experience Manager support team to add the users in the Adobe Experience Manager platform.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Adobe Experience Manager Sign-on URL where you can initiate the login flow.

  • Go to Adobe Experience Manager Sign on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Adobe Experience Manager for which you set up the SSO

You can also use Microsoft My Apps to test the application in any mode. When you click the Adobe Experience Manager tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Adobe Experience Manager for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Adobe Experience Manager you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
