Tutorial: Microsoft Entra SSO integration with ArcGIS Enterprise

  • Article

In this tutorial, you'll learn how to integrate ArcGIS Enterprise with Microsoft Entra ID. When you integrate ArcGIS Enterprise with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to ArcGIS Enterprise.
  • Enable your users to be automatically signed-in to ArcGIS Enterprise with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • ArcGIS Enterprise single sign-on (SSO) enabled subscription.

Note

This integration is also available to use from Microsoft Entra US Government Cloud environment. You can find this application in the Microsoft Entra US Government Cloud Application Gallery and configure it in the same way as you do from public cloud.

Scenario description

In this tutorial, you configure and test Microsoft Entra single sign-on in a test environment.

  • ArcGIS Enterprise supports SP and IDP initiated SSO.
  • ArcGIS Enterprise supports Just In Time user provisioning.

To configure the integration of ArcGIS Enterprise into Microsoft Entra ID, you need to add ArcGIS Enterprise from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type ArcGIS Enterprise in the search box.
  4. Select ArcGIS Enterprise from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for ArcGIS Enterprise

Configure and test Microsoft Entra SSO with ArcGIS Enterprise using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in ArcGIS Enterprise.

To configure and test Microsoft Entra SSO with ArcGIS Enterprise, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure ArcGIS Enterprise SSO - to configure the single sign-on settings on application side.
    1. Create ArcGIS Enterprise test user - to have a counterpart of B.Simon in ArcGIS Enterprise that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > ArcGIS Enterprise > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps, if you wish to configure the application in IDP Initiated mode:

    a. In the Identifier text box, type a value using the following pattern: <EXTERNAL_DNS_NAME>.portal

    b. In the Reply URL text box, type a URL using the following pattern: https://<EXTERNAL_DNS_NAME>/portal/sharing/rest/oauth2/saml/signin

    c. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type a URL using the following pattern: https://<EXTERNAL_DNS_NAME>/portal/sharing/rest/oauth2/saml/signin

    Note

    These values are not real. Update these values with the actual Identifier, Reply URL and Sign-on URL. Contact ArcGIS Enterprise Client support team to get these values. You will get the Identifier value from Set Identity Provider section, which is explained later in this tutorial.

  6. On the Set up Single Sign-On with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    The Certificate download link

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to ArcGIS Enterprise.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > ArcGIS Enterprise.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure ArcGIS Enterprise SSO

  1. In a different web browser window, sign in to your ArcGIS Enterprise company site as an administrator

  2. Select Organization > Edit Settings.

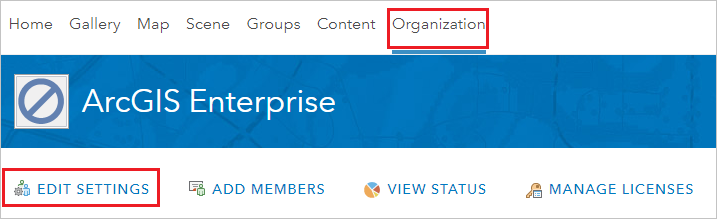

    Screenshot shows the ArcGIS Enterprise Organization tab with Edit settings called out.

  3. Select Security tab.

    Screenshot shows the Security tab selected.

  4. Scroll down to the Enterprise Logins via SAML section and select SET ENTERPRISE LOGIN.

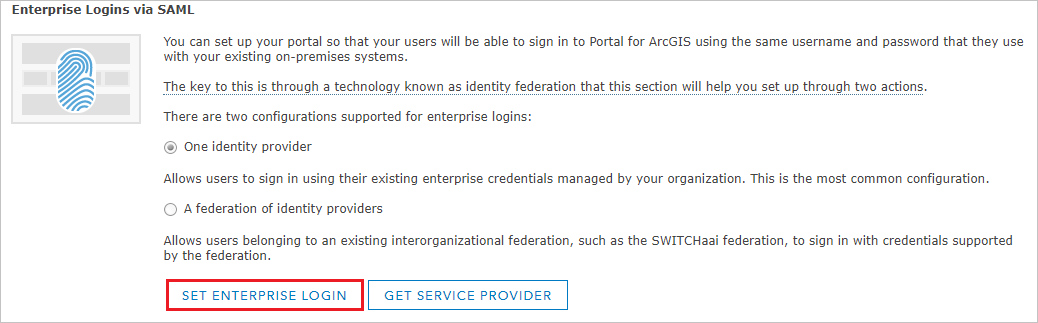

    Screenshot shows Enterprise Logins via SAML where you can select Set Enterprise Login.

  5. On the Set Identity Provider section, perform the following steps:

    a. Kindly provide a name like Microsoft Entra ID Test in the Name textbox.

    b. In the URL textbox, paste the App Federation Metadata Url value which you copied previously.

    c. Click Show advanced settings and copy the Entity ID value and paste it into the Identifier textbox in the ArcGIS Enterprise Domain and URLs section in Azure portal.

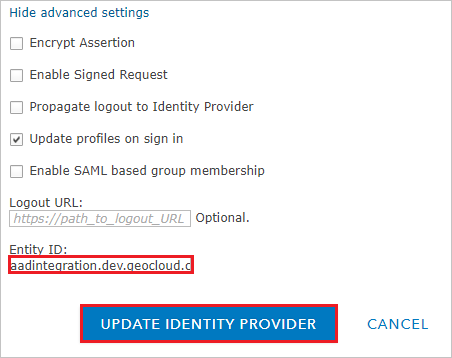

    Screenshot shows where to get the Entity I D and update identify provider.

    d. Click UPDATE IDENTITY PROVIDER.

Create ArcGIS Enterprise test user

In this section, a user called Britta Simon is created in ArcGIS Enterprise. ArcGIS Enterprise supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in ArcGIS Enterprise, a new one is created after authentication.

Note

If you need to create a user manually, contact ArcGIS Enterprise support team.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to ArcGIS Enterprise Sign on URL where you can initiate the login flow.

  • Go to ArcGIS Enterprise Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the ArcGIS Enterprise for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the ArcGIS Enterprise tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the ArcGIS Enterprise for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure ArcGIS Enterprise you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
