Tutorial: Microsoft Entra SSO integration with Coggle

In this tutorial, you'll learn how to integrate Coggle with Microsoft Entra ID. When you integrate Coggle with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to Coggle.
• Enable your users to be automatically signed-in to Coggle with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• Coggle single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• Coggle supports SP and IDP initiated SSO.
• Coggle supports Just In Time user provisioning.

Add Coggle from the gallery

To configure the integration of Coggle into Microsoft Entra ID, you need to add Coggle from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type Coggle in the search box.
4. Select Coggle from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Coggle

Configure and test Microsoft Entra SSO with Coggle using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Coggle.

To configure and test Microsoft Entra SSO with Coggle, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure Coggle SSO - to configure the single sign-on settings on application side.
   1. Create Coggle test user - to have a counterpart of B.Simon in Coggle that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > Coggle > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration section, the user does not have to perform any step as the app is already pre-integrated with Azure.

6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

   In the Sign-on URL text box, type a URL using the following pattern: https://coggle.it/<TENANT_NAME>/login

   Note

   The value is not real. Update the value with the actual Sign-on URL. Contact Coggle Client support team to get the value. You can also refer to the patterns shown in the Basic SAML Configuration section.

7. Click Save.

8. Coggle application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.



9. In addition to above, Coggle application expects few more attributes to be passed back in SAML response, which are shown below. These attributes are also pre populated but you can review them as per your requirements.

   Name	Source Attribute
   firstName	user.givenname
   lastName	user.surname
   email	user.mail

10. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.



11. On the Set up Coggle section, copy the appropriate URL(s) based on your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Coggle.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > Coggle.
3. In the app's overview page, find the Manage section and select Users and groups.
4. Select Add user, then select Users and groups in the Add Assignment dialog.
5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
7. In the Add Assignment dialog, click the Assign button.

Configure Coggle SSO

1. In a different browser window, sign on to your Coggle company site as administrator.

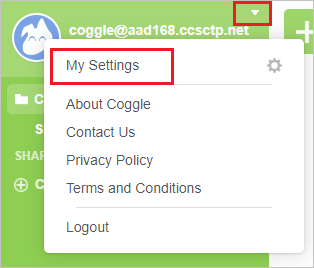

2. Click on Coggle account and select My Settings.



3. Click on following Logo and select Authentication.



4. Click on Edit SAML Config.

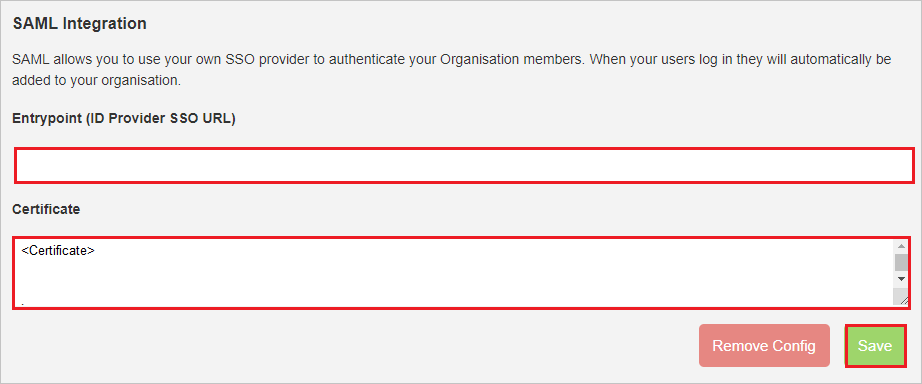

5. On the SAML Integration dialog page, perform the following steps:



   a. In the Entrypoint (ID Provider SSO URL) textbox, paste the Login URL value, which you copied previously.

   b. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Certificate textbox.

   c. Click on Save.

Create Coggle test user

In this section, a user called B.Simon is created in Coggle. Coggle supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Coggle, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

• Click on Test this application, this will redirect to Coggle Sign on URL where you can initiate the login flow.

• Go to Coggle Sign-on URL directly and initiate the login flow from there.

IDP initiated:

• Click on Test this application, and you should be automatically signed in to the Coggle for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Coggle tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Coggle for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Coggle you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
