Tutorial: Microsoft Entra integration with Nimblex

  • Article

In this tutorial, you'll learn how to integrate Nimblex with Microsoft Entra ID. When you integrate Nimblex with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Nimblex.
  • Enable your users to be automatically signed-in to Nimblex with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Nimblex single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra single sign-on in a test environment.

  • Nimblex supports SP initiated SSO.

  • Nimblex supports Just In Time user provisioning.

To configure the integration of Nimblex into Microsoft Entra ID, you need to add Nimblex from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Nimblex in the search box.
  4. Select Nimblex from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Nimblex

Configure and test Microsoft Entra SSO with Nimblex using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Nimblex.

To configure and test Microsoft Entra SSO with Nimblex, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Nimblex SSO - to configure the single sign-on settings on application side.
    1. Create Nimblex test user - to have a counterpart of B.Simon in Nimblex that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Nimblex > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Sign-on URL text box, type a URL using the following pattern: https://<YOUR_APPLICATION_PATH>/Login.aspx

    b. In the Identifier box, type a URL using the following pattern: https://<YOUR_APPLICATION_PATH>/

    c. In the Reply URL text box, type a URL using the following pattern: https://<path-to-application>/SamlReply.aspx

    Note

    These values are not real. Update these values with the actual Sign-On URL, Identifier and Reply URL. Contact Nimblex Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  6. On the Set-up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.

    The Certificate download link

  7. On the Set up Nimblex section, copy the appropriate URL(s) as per your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to NAVEX One.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > NAVEX One.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Nimblex SSO

  1. In a different web browser window, sign in to Nimblex as a Security Administrator.

  2. On the top right-side of the page, click Settings logo.

    Screenshot shows the Settings icon.

  3. On the Control Panel page, under Security section click Single Sign-on.

    Screenshot shows Single Sign-on selected from the Security menu.

  4. On the Manage Single Sign-On page, select your instance name and click Edit.

    Screenshot shows Manage Single Sign-On where you can select Edit.

  5. On the Edit SSO Provider page, perform the following steps:

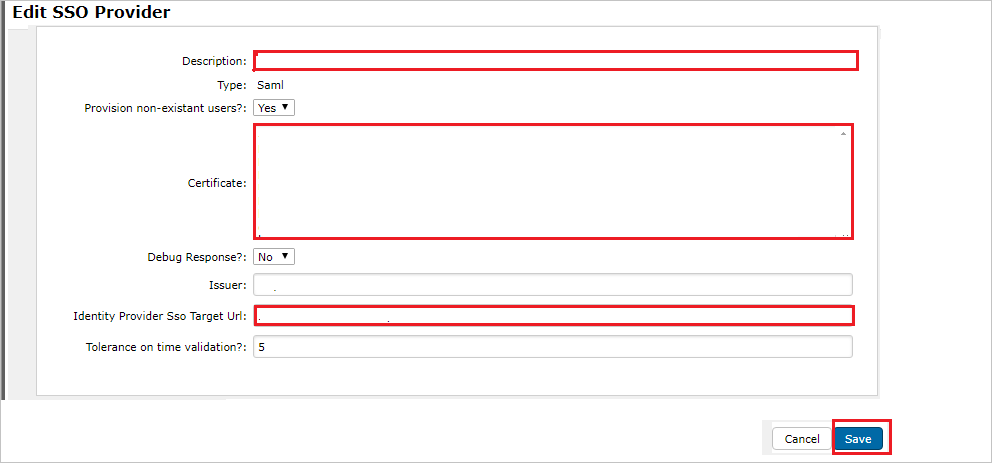

    Screenshot shows Edit S S O Provider where you can enter the values described.

    a. In the Description textbox, type your instance name.

    b. In Notepad, open the base-64 encoded certificate that you downloaded, copy its content, and then paste it into the Certificate box.

    c. In the Identity Provider Sso Target Url textbox, paste the value of Login URL, which you copied previously.

    d. Click Save.

Create Nimblex test user

In this section, a user called Britta Simon is created in Nimblex. Nimblex supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Nimblex, a new one is created after authentication.

Note

If you need to create a user manually, contact Nimblex Client support team.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, this will redirect to Nimblex Sign-on URL where you can initiate the login flow.

  • Go to Nimblex Sign-on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the Nimblex tile in the My Apps, this will redirect to Nimblex Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Nimblex you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
