Tutorial: Microsoft Entra SSO integration with Palantir Foundry

In this tutorial, you'll learn how to integrate Palantir Foundry with Microsoft Entra ID. When you integrate Palantir Foundry with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to Palantir Foundry.
• Enable your users to be automatically signed-in to Palantir Foundry with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• Palantir Foundry single sign-on (SSO) enabled subscription.
• Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Note

This integration is also available to use from Microsoft Entra US Government Cloud environment. You can find this application in the Microsoft Entra US Government Cloud Application Gallery and configure it in the same way as you do from public cloud.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• Palantir Foundry supports SP and IDP initiated SSO.
• Palantir Foundry supports Just In Time user provisioning.

Add Palantir Foundry from the gallery

To configure the integration of Palantir Foundry into Microsoft Entra ID, you need to add Palantir Foundry from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type Palantir Foundry in the search box.
4. Select Palantir Foundry from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Palantir Foundry

Configure and test Microsoft Entra SSO with Palantir Foundry using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Palantir Foundry.

To configure and test Microsoft Entra SSO with Palantir Foundry, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure Palantir Foundry SSO - to configure the single sign-on settings on application side.
   1. Create Palantir Foundry test user - to have a counterpart of B.Simon in Palantir Foundry that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > Palantir Foundry > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. Choose Upload metadata file, select the metadata file which you have downloaded in the Configure Palantir Foundry SSO section, and then select Add.



6. When the metadata file is successfully uploaded, the values for Identifier, Reply URL and Logout URL appear automatically in the Palantir Foundry section text box.

   Note

   If the Identifier, Reply URL and Logout URL values don't appear automatically, fill in the values manually which can be found in Foundry Control Panel.

7. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Palantir Foundry.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > Palantir Foundry.
3. In the app's overview page, select Users and groups.
4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
   1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
   2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
   3. In the Add Assignment dialog, click the Assign button.

Configure Palantir Foundry SSO

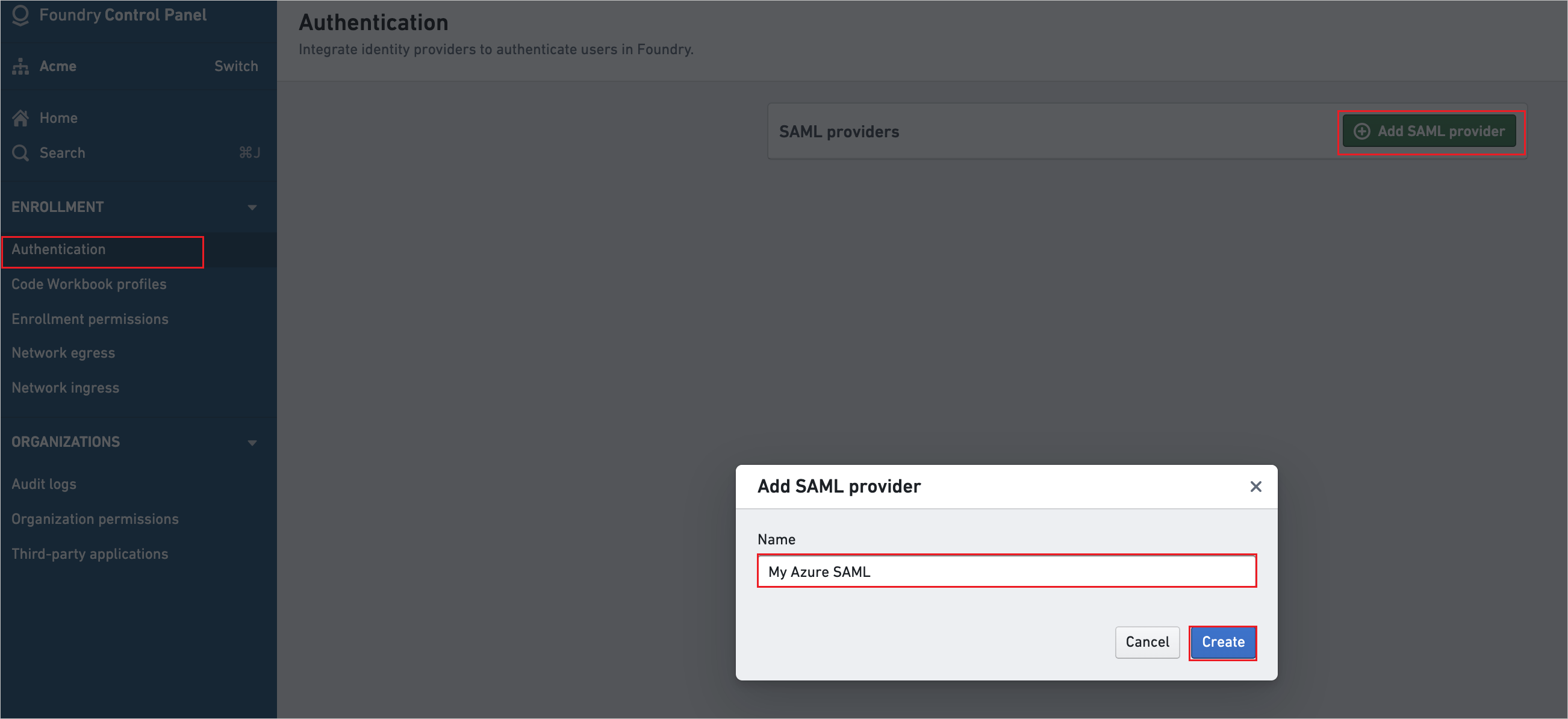

1. In Foundry Control Panel, go to the Authentication tab and click Add SAML provider.



2. Give a valid SAML provider name and click Create.

3. Click Manage in the SAML section.

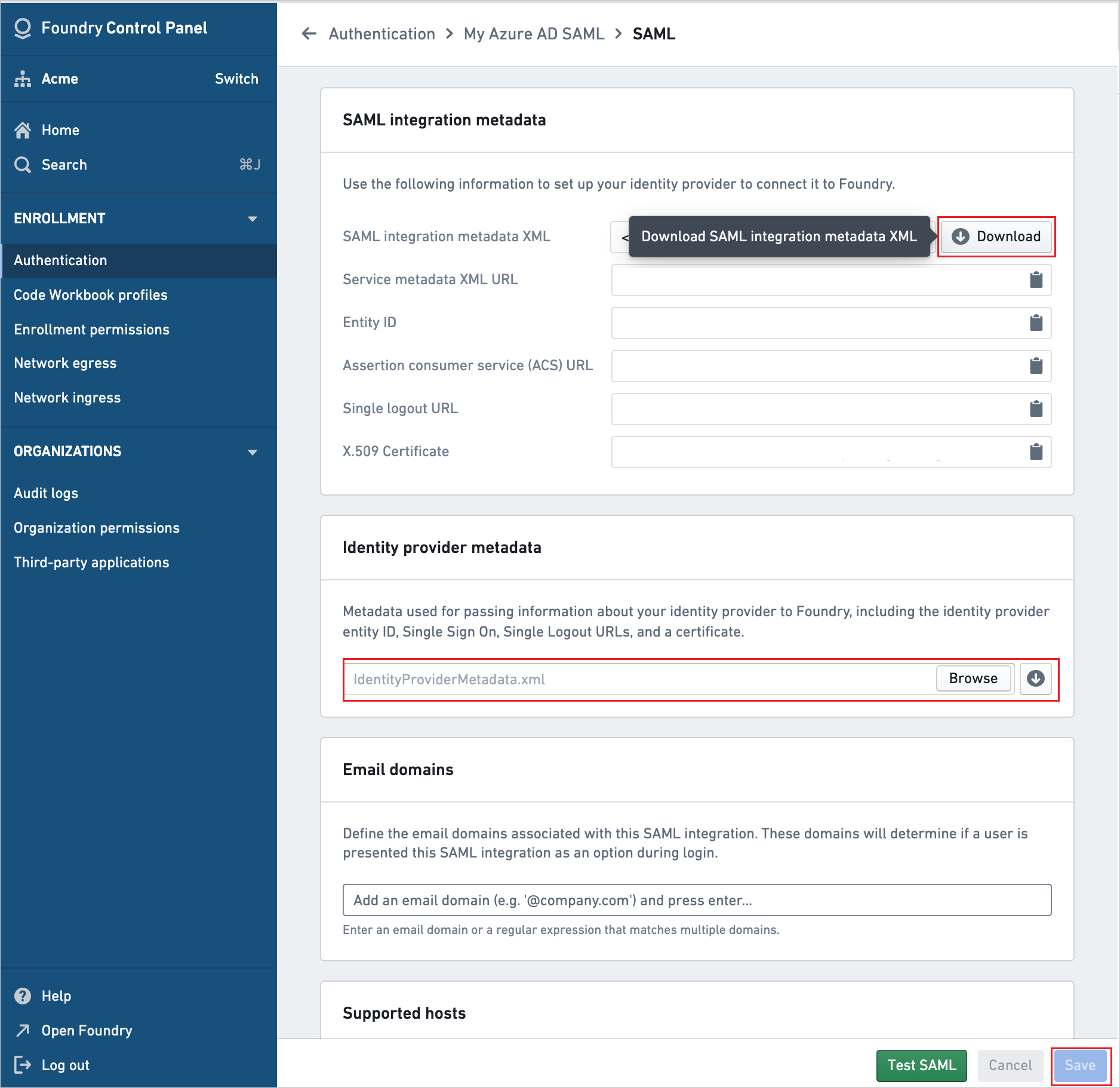

4. Perform the following steps in the SAML section:



   a. In the SAML integration metadata section, download the SAML integration metadata XML, and save it as file in your computer.

   b. In the Identity provider metadata section, click on Browse to upload the Federation Metadata XML file which you have downloaded.

   c. Click Save.

Create Palantir Foundry test user

In this section, a user called Britta Simon is created in Palantir Foundry. Palantir Foundry supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Palantir Foundry, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

• Click on Test this application, this will redirect to Palantir Foundry Sign-on URL where you can initiate the login flow.

• Go to Palantir Foundry Sign-on URL directly and initiate the login flow from there.

IDP initiated:

• Click on Test this application, and you should be automatically signed in to the Palantir Foundry for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Palantir Foundry tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Palantir Foundry for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Palantir Foundry you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Cloud App Security.
