Tutorial: Microsoft Entra SSO integration with Training Platform

  • Article

In this tutorial, you'll learn how to integrate Training Platform with Microsoft Entra ID. When you integrate Training Platform with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Training Platform.
  • Enable your users to be automatically signed-in to Training Platform with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Training Platform single sign-on (SSO) enabled subscription.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Training Platform supports SP and IDP initiated SSO.
  • Training Platform supports Just In Time user provisioning.

To configure the integration of Training Platform into Microsoft Entra ID, you need to add Training Platform from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Training Platform in the search box.
  4. Select Training Platform from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Training Platform

Configure and test Microsoft Entra SSO with Training Platform using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Training Platform.

To configure and test Microsoft Entra SSO with Training Platform, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Training Platform SSO - to configure the single sign-on settings on application side.
    1. Create Training Platform test user - to have a counterpart of B.Simon in Training Platform that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Training Platform > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows to edit Basic S A M L Configuration.

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier textbox, type a value using the following pattern: urn:auth0:living-security:<ID>

    b. In the Reply URL textbox, type a URL using the following pattern: https://identity.livingsecurity.com/login/callback?connection=<ID>

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://app.livingsecurity.com

    Note

    These values are not real. Update these values with the actual Identifier and Reply URL. Contact Training Platform support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  7. On the Set up single sign-on with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    Screenshot shows the Certificate download link.

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Training Platform.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Training Platform.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Training Platform SSO

  1. Log in to your Training Platform company site as an administrator.

  2. Go to Configuration section and select SAML SSO Configuration tab.

  3. Make sure your application is set to Metadata URL Mode.

  4. In the Identity Provider Metadata Url* textbox, paste the App Federation Metadata Url which you copied previously.

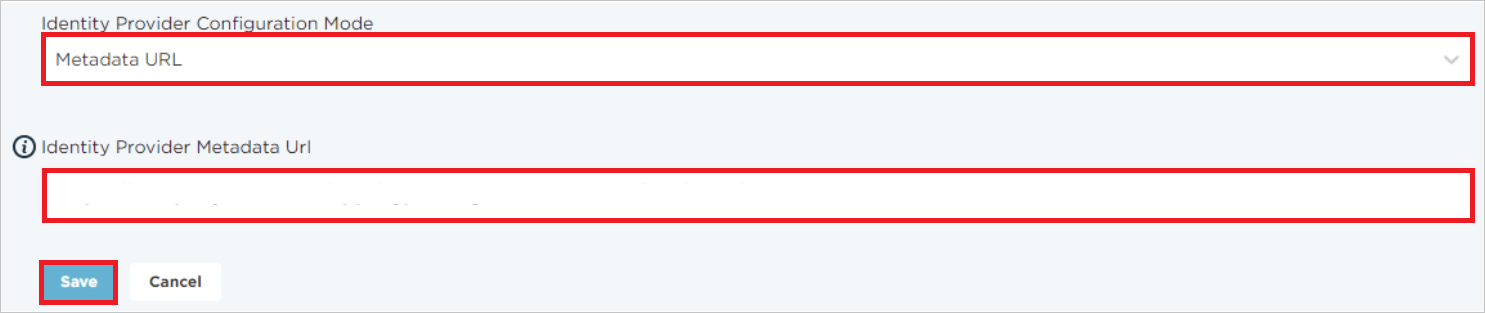

    Screenshot that shows the Configuration Settings.

  5. Click Save.

Create Training Platform test user

In this section, a user called B.Simon is created in Training Platform. Training Platform supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Training Platform, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Training Platform Sign-on URL where you can initiate the login flow.

  • Go to Training Platform Sign on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Training Platform for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Training Platform tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Training Platform for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Training Platform you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Defender for Cloud Apps.
