Tutorial: Microsoft Entra single sign-on (SSO) integration with Zylo

  • Article

In this tutorial, you'll learn how to integrate Zylo with Microsoft Entra ID. When you integrate Zylo with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Zylo.
  • Enable your users to be automatically signed-in to Zylo with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Zylo single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Zylo supports SP and IDP initiated SSO.
  • Zylo supports Just In Time user provisioning.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Zylo into Microsoft Entra ID, you need to add Zylo from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Zylo in the search box.
  4. Select Zylo from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Zylo

Configure and test Microsoft Entra SSO with Zylo using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Zylo.

To configure and test Microsoft Entra SSO with Zylo, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Zylo SSO - to configure the single sign-on settings on application side.
    1. Create Zylo test user - to have a counterpart of B.Simon in Zylo that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Zylo > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, perform the following step:

    In the Reply URL text box, type a URL using the following pattern: https://api.zylo.com/saml/sso/azuread/<CUSTOMER_NAME>

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://app.zylo.com/login

    Note

    The Reply URL value is not real. Update the value with the actual Reply URL. Contact Zylo Client support team to get the value. You can also refer to the patterns shown in the Basic SAML Configuration section.

  7. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    The Certificate download link

  8. On the Set up Zylo section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Zylo.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Zylo.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
  7. In the Add Assignment dialog, click the Assign button.

Configure Zylo SSO

  1. Log in to the Zylo website as an administrator in a separate window.

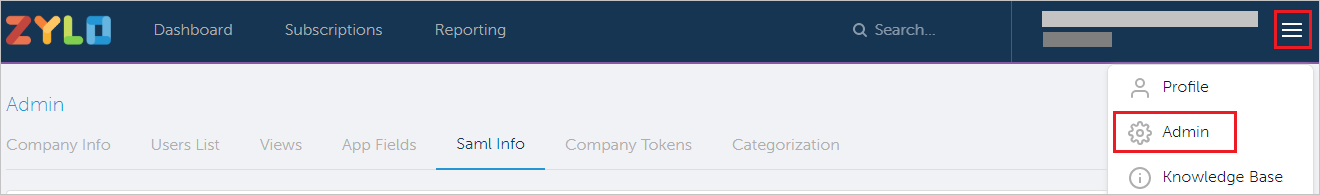

  2. Click on Menu of Zylo at the top-right corner and select Admin

    Configuration for Zylo.

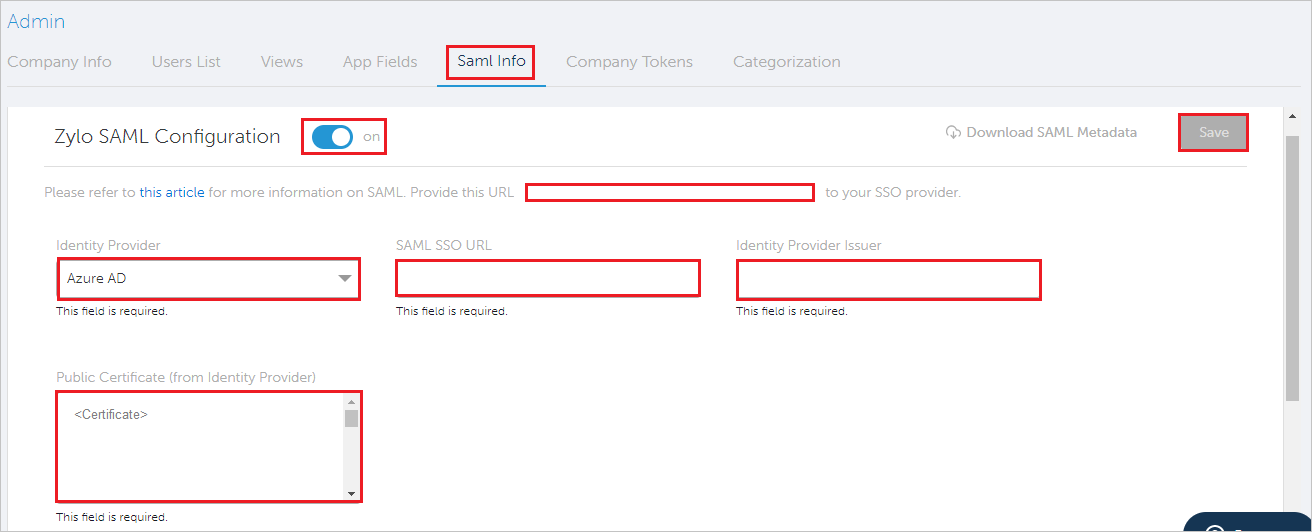

  3. In the Admin page, go to the Saml Info tab and perform the following steps:

    Zylo SAML Configuration.

    a. Change the Zylo SAML Configuration to On.

    b. Select Identity Provider as Microsoft Entra ID from the dropdown.

    c. In the SAML SSO URL textbox, paste the Login URL value which you copied previously.

    d. In the Identity Provider Issuer textbox, paste the Application ID value which you have copied from Zylo's overview page in Azure portal.

    e. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Public Certificate (from Identity Provider) textbox.

    f. Click on Save.

Create Zylo test user

In this section, a user called B.Simon is created in Zylo. Zylo supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Zylo, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Zylo Sign on URL where you can initiate the login flow.

  • Go to Zylo Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Zylo for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Zylo tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Zylo for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Zylo you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
