Analyze agents using Agent Review Tool in Copilot Agent Kit

Agent Review Tool is an automated quality assessment and compliance review system for Microsoft Copilot Studio agents and Microsoft 365 Declarative Agents. It helps makers, admins, and governance teams identify problems, anti-patterns, and compliance gaps before they reach end users.

As organizations scale their Copilot Studio deployments, manually reviewing each agent's configuration, instructions, and topic structure becomes impossible. Agent Review Tool automates that review through AI-powered analysis, typically surfacing actionable findings in under 60 seconds.

It's for:

• Makers: Get actionable feedback to improve agent quality before deployment.
• Admins and CoE teams: Enforce governance standards across all agents in an environment.
• Security and compliance officers: Verify that agents follow privacy, safety, and accuracy guidelines.

Key capabilities

Capability	Details
Agent coverage	Copilot Studio agents and Microsoft 365 Declarative Agents
Review time	Typically under 60 seconds per agent
Patterns checked	18 patterns (10 deterministic + 8 AI-powered)
Compliance criteria	15 instruction-quality criteria
Score system	0–100 overall score (50% patterns, 50% compliance)
Export formats	PDF, SARIF, Excel
Data storage	Microsoft Dataverse (user-scoped, row-level security enforced)
AI engine	Microsoft Copilot Studio AI prompts through Dataverse PredictV2

Get started: The dashboard

When you open Agent Review Tool, you land on the Dashboard, the central hub that shows all agents in your environment and their review status.

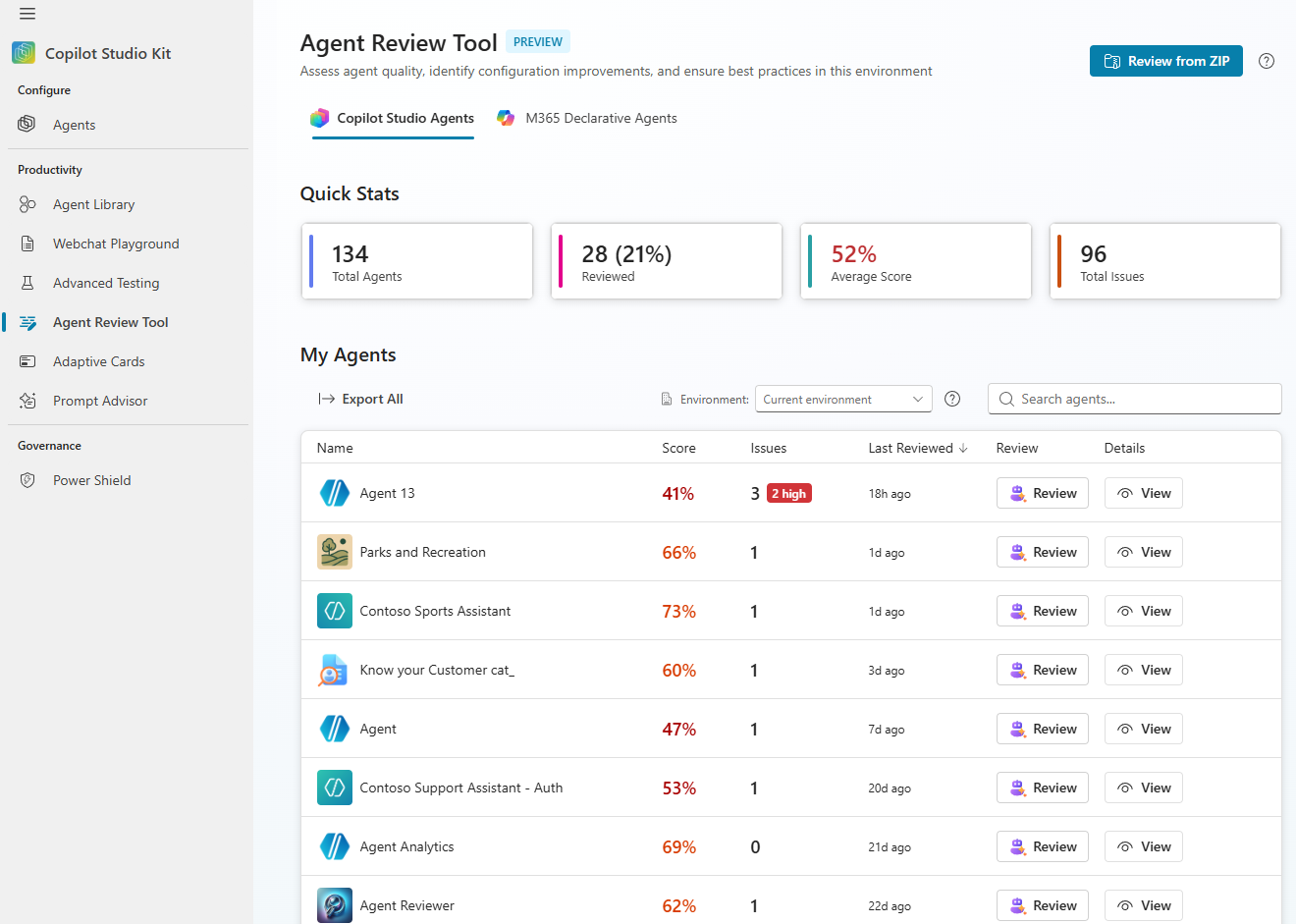

Dashboard layout

The dashboard shows everything at a glance: the tab bar switching between Copilot Studio and Microsoft 365 agents, four stat cards summarizing portfolio health, a search toolbar, the paginated agent grid, and the Upload ZIP button for offline reviews.

Stat cards

The four stat cards give you an instant health snapshot of your agent portfolio:

Card	What it shows	How it's calculated
Total Agents	Count of all active bots in the environment.	Query the bot table where statecode = 0
Reviewed	Number and percentage of agents that are reviewed.	Count of completed reviews divided by total agents
Average Score	Mean overall score across all completed reviews.	Sum of scores divided by reviewed count
Total Issues	Cumulative issues found across all reviewed agents.	Sum of pattern failures plus compliance failures

Agent grid

Column	Content
Name	Agent display name with icon.
Score	Overall review score (0–100), or -- if not yet reviewed. Color-coded.
Issues	Summary of High, Medium, and Low severity findings. -- if not reviewed.
Last Reviewed	Relative time (for example, "2 hours ago" or "1 week ago"), or "Not reviewed".
Actions	Review for unreviewed agents; View for agents with existing reviews.

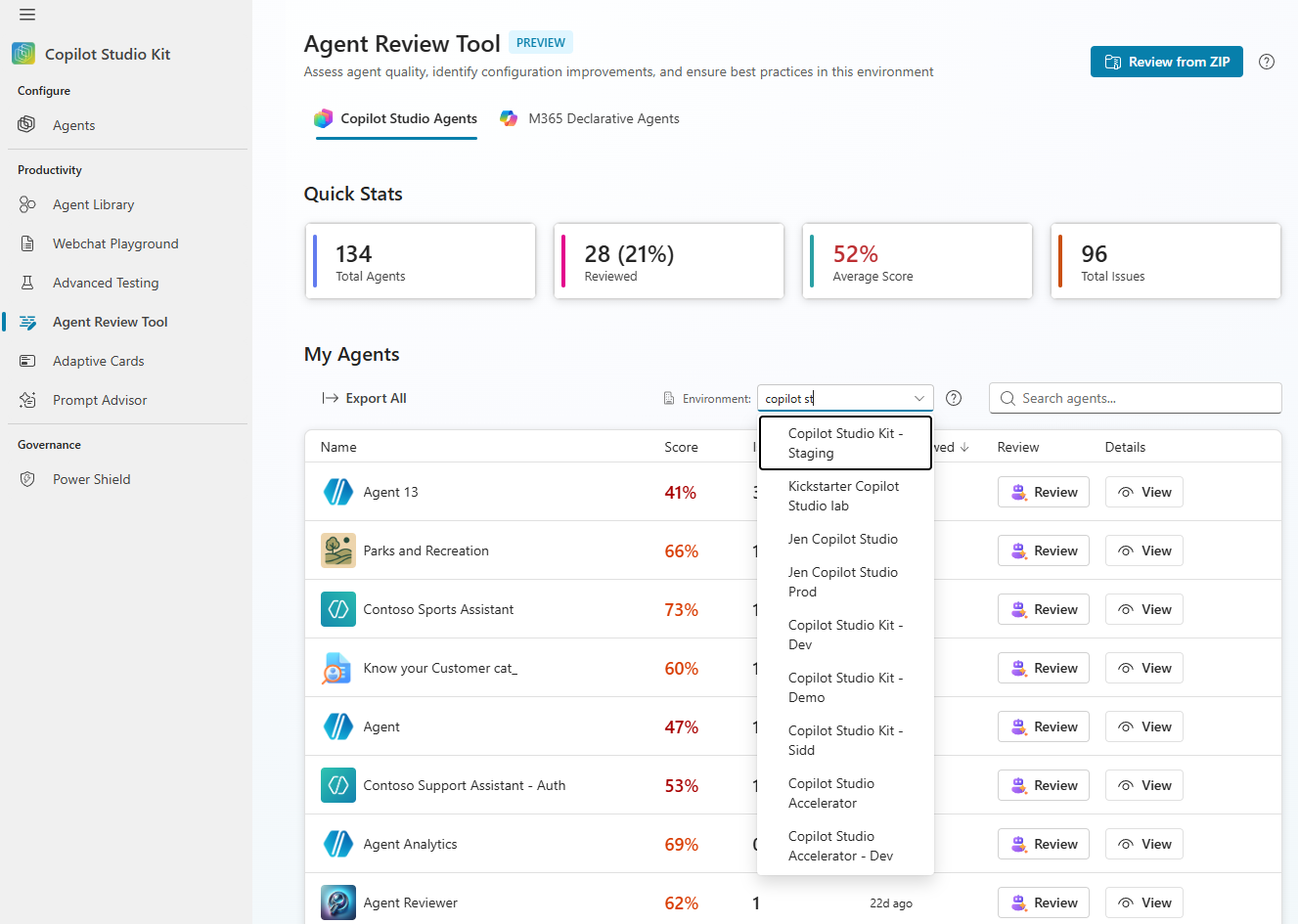

Select an environment

By default, the tool shows agents from the environment where you installed it. If you need to review an agent from a different environment, use the environment selector in the dashboard toolbar. The dropdown lists all Power Platform environments you have access to.

After you select a different environment, the agent grid refreshes to show agents from that environment. You can then review any of those agents. The review result is stored in the current (home) environment, not the one you selected.

Review modes

The tool supports two distinct review modes, accessible from the tab bar at the top of the dashboard.

Copilot Studio agent review

This mode reviews agents built in Microsoft Copilot Studio. It reads directly from Dataverse—no file upload required.

What it analyzes:

• Topic configurations (names, descriptions, variables).
• Tool and action configurations (count, descriptions, routing).
• Knowledge source types.
• Test case coverage.
• Agent instructions (generative mode).
• Agent metadata (language, authentication, AI settings).

To start a review:

1. Find your agent in the grid.
2. Select Review. The analysis starts automatically.
3. A progress panel shows what's happening in real time.
4. Results open in the review panel when complete.

You can review any agent again at any time. Each review creates a new record in Dataverse. The grid always shows the most recent review result.

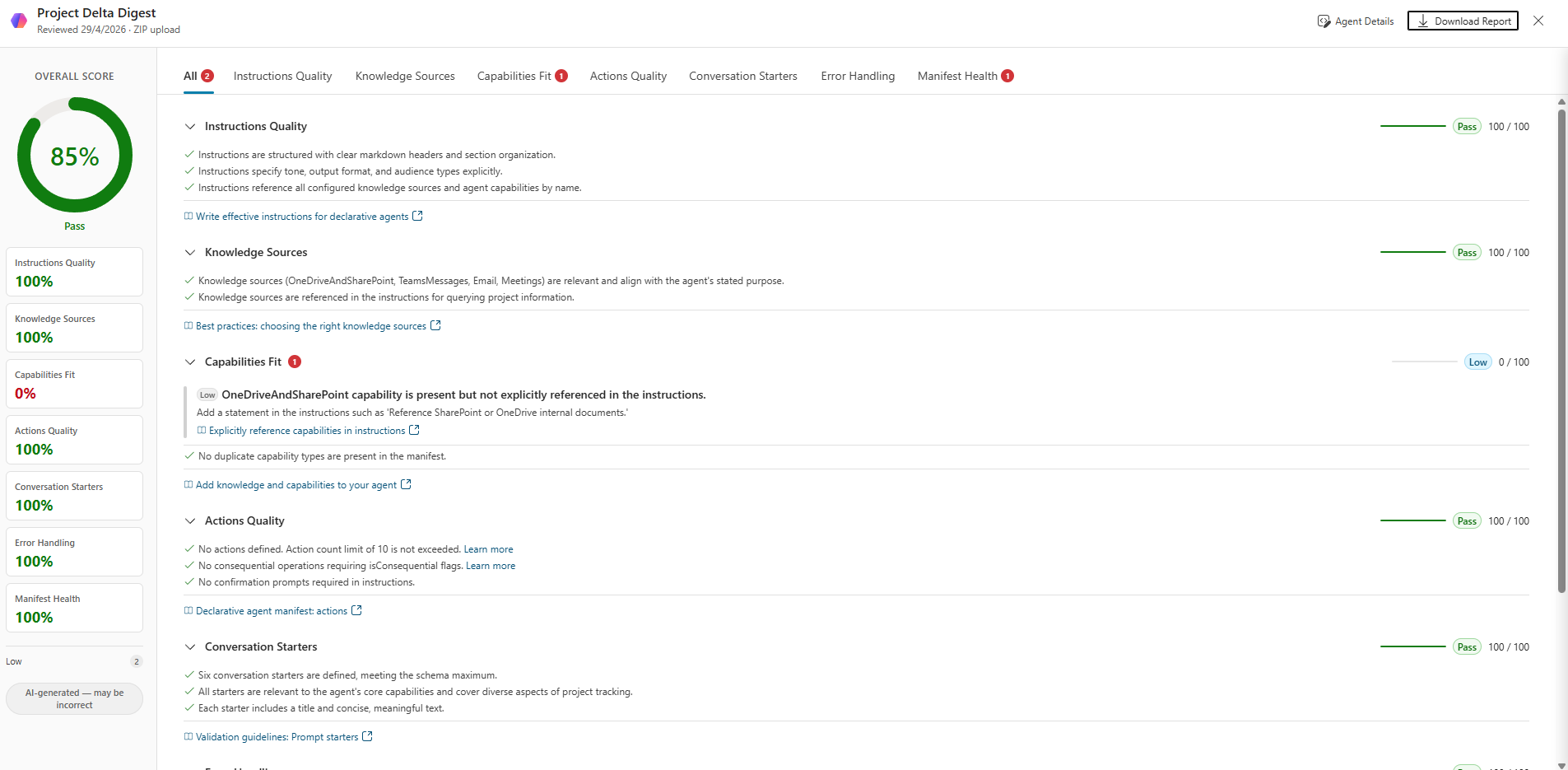

Declarative agent review (Microsoft 365 Copilot)

This mode reviews Microsoft 365 Declarative Agents, which are defined by a manifest JSON file and deployed to the Microsoft 365 Copilot ecosystem.

You can submit a Declarative Agent for review in two ways:

Method	How	When to use
Upload ZIP	Select Upload ZIP in the page header; select the exported package.	Agent is from another tenant or not in your catalog.
From Microsoft 365 catalog	Connect to Microsoft 365 through the Graph API setup wizard, then browse agents.	Agent is deployed in your Microsoft 365 tenant.

What it analyzes (5 criteria, not 15):

Criterion	Weight	What's checked
Instructions	30%	Clarity, completeness, and quality of agent instructions
Knowledge	20%	Grounding through connected knowledge sources
Capabilities	15%	Use of CodeInterpreter and OneDriveAndSharePoint
Actions	15%	Tool routing and action descriptions
Conversation Starters	10%	Minimum 3, recommended 6 (maximum 12)
Graceful Error Handling	10%	Error recovery and fallback behaviors

Note

The 15-criterion instruction compliance check is specific to Copilot Studio agents and doesn't apply to Declarative Agents.

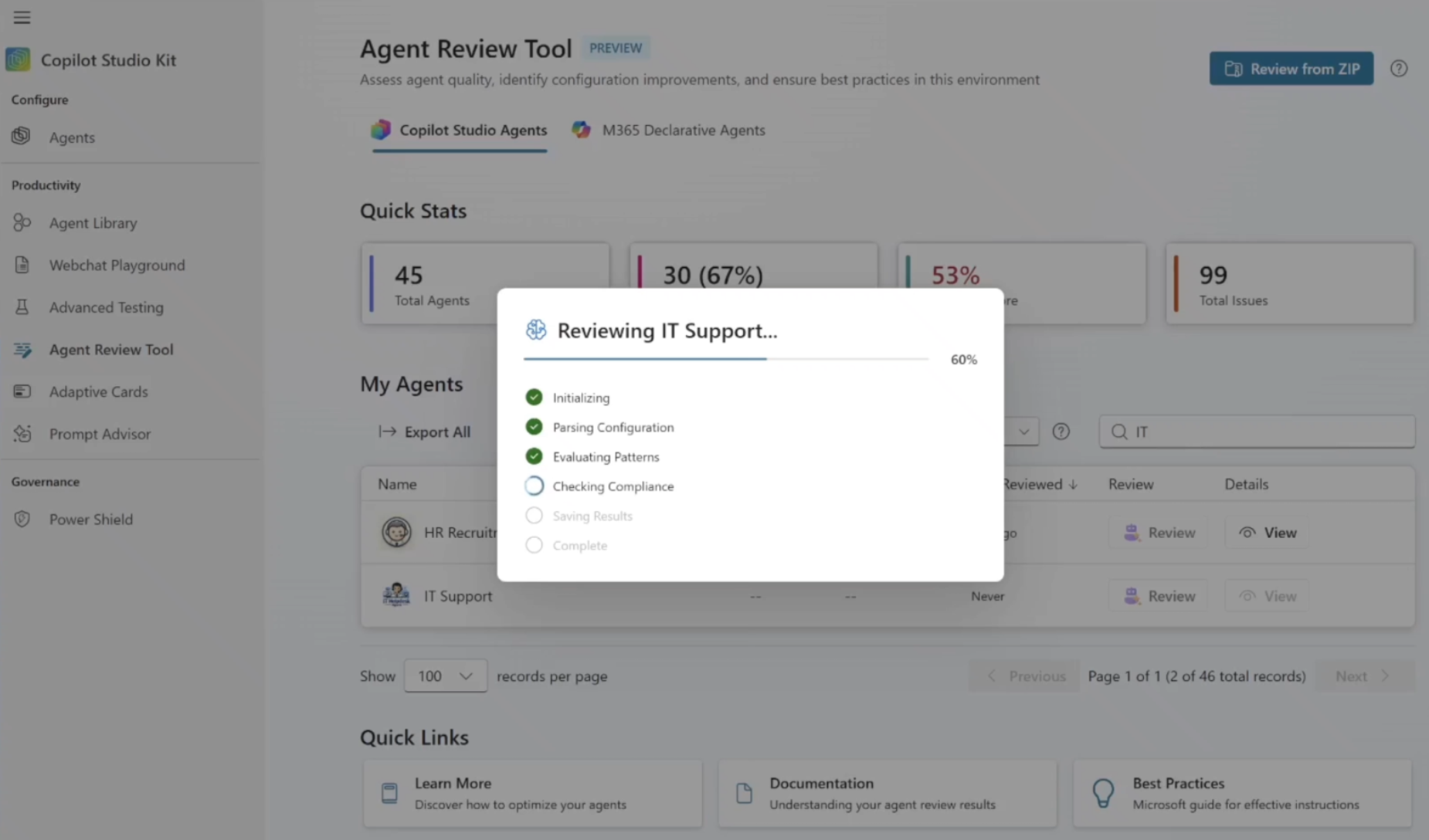

What happens during a review

When you select Review, the tool runs an automated analysis that typically completes in under 60 seconds. A progress panel keeps you informed while it works.

The analysis covers three things in sequence:

1. Configuration analysis: The tool reads the agent's complete configuration from Dataverse—every topic, tool, knowledge source, test case, and instruction. It checks for missing fields across all components and measures things like tool count and test coverage against Microsoft's documented best practices.
2. AI-powered pattern evaluation: An AI model reviews the same configuration to assess quality, not just completeness. It looks at whether topic names and descriptions are clear enough for the generative orchestrator to route correctly, whether multiple topics overlap in ways that cause routing confusion, and whether tool descriptions give the AI enough guidance to invoke the right tool at the right time.
3. Instruction compliance check: A second AI model reads the agent's system instructions and checks them against 15 best-practice criteria from Microsoft's generative-mode guidance—covering scope, safety, response quality, and user experience. For each criterion the instructions don't satisfy, it surfaces a specific finding and a concrete recommendation.

After all three steps complete, a PDF report is automatically generated and the results open in the review panel.

Important

Each review consumes Copilot credits. The AI-powered steps (pattern evaluation, instruction compliance check, and PDF generation) each invoke an AI model through Dataverse. Plan accordingly if you're reviewing a large number of agents.

Patterns detected

Patterns identify specific anti-patterns or missing best practices in an agent's configuration. The tool checks 18 patterns across 7 categories.

All 18 patterns

ID	Pattern name	Category	Impact
pat-001	Missing Model Name	Model Naming	Generative orchestrator can't reliably route to this topic.
pat-002	Missing Model Description	Model Description	Topic might be skipped or wrongly triggered during routing.
pat-003	Missing Input Variable Name	Input Variables	Users see unnamed variables, causing confusion in the conversation.
pat-004	Missing Input Variable Description	Input Variables	AI can't correctly extract the right value from user input.
pat-005	Missing Output Variable Name	Output Variables	Output values are unlabeled and hard for users to interpret.
pat-006	Missing Output Variable Description	Output Variables	AI lacks context to populate the variable correctly.
pat-007	Excessive Tools Usage	Architecture	Too many tools degrade routing accuracy and increase latency.
pat-008	Inadequate Test Cases	Evaluation	Regressions in topic behavior go undetected before deployment.
pat-009	Missing Child Agent Description	Architecture	Orchestrator can't decide when to delegate to the child agent.
pat-010	Child Agent Architecture Sprawl	Architecture	Excessive delegation creates orchestration complexity and latency.
pat-011	Unclear Model Name	Model Naming	Vague names cause the orchestrator to route to the wrong topic.
pat-012	Unclear Model Description	Model Description	Poor descriptions lead to missed or incorrect topic triggers.
pat-013	Unclear Input Variable Name	Input Variables	Ambiguous names make it harder for the AI to fill the variable correctly.
pat-014	Unclear Input Variable Description	Input Variables	AI extracts the wrong value or asks unnecessary clarifying questions.
pat-015	Unclear Output Variable Name	Output Variables	Downstream topics or flows that consume this variable might misinterpret it.
pat-016	Unclear Output Variable Description	Output Variables	AI can't reliably produce the expected output format or value.
pat-017	Overlapping Topic Descriptions	Model Description	Multiple topics compete for the same user utterances, causing unpredictable routing.
pat-018	Tool Routing Gap	Architecture	AI can't decide which tool to call, leading to wrong tool invocations or no action.

For each failing pattern, the tool shows which topics are affected, the current value that triggered the finding, a suggested improvement, and a link to the relevant Microsoft Learn documentation.

Pattern categories

The results grid groups patterns into seven categories, sorted in the following order:

#	Category	Patterns included
1	Model Naming	pat-001, pat-011
2	Model Description	pat-002, pat-012, pat-017
3	Input Variables	pat-003, pat-004, pat-013, pat-014
4	Output Variables	pat-005, pat-006, pat-015, pat-016
5	Architecture	pat-007, pat-009, pat-010, pat-018
6	Orchestration	Reserved for future AI-detected patterns
7	Evaluation	pat-008

Severity logic

The combination of keyword matching and topic count determines pattern severity:

Condition	Severity assigned
Pattern name contains "model name" or "model description"	High
Pattern name contains "variable"	Medium (unless topic count is 5 or more)
Topic count is 5 or more	High
Topic count is 2 or more	Medium
Topic count is 1	Low

Severity drives both the visual badge in the results grid and the SARIF error level in the exported report.

Compliance criteria

This part of the review evaluates the quality of an agent's system instructions—the natural-language text a maker provides in the Generative settings of Copilot Studio. These instructions define how the agent behaves across all conversations.

The 15 criteria are derived from Microsoft's generative mode guidance and represent the most impactful best practices for instruction quality.

All 15 criteria

#	ID	Criterion name	Category	Severity	What it checks
1	scope-definition	Scope Definition	Scope	High	Agent instructions explicitly define which topics the agent should and shouldn't respond to.
2	out-of-scope-handling	Out-of-Scope Handling	Scope	Medium	Instructions specify what to say when a user asks about something outside the agent's scope.
3	persona-and-tone	Persona and Tone	UX	Low	Instructions define tone for non-default scenarios. (Professional/polite is already the default—skip if not needed.)
4	privacy-and-sensitive-data	Privacy and Sensitive Data	Safety	High	Instructions contain explicit guidance on not storing, displaying, or repeating personal data.
5	fallback-when-uncertain	Fallback When Uncertain	Quality	High	Instructions specify what to do when the agent doesn't have the information needed to answer.
6	citations-and-sources	Citations and Sources	Quality	Medium	Instructions require the agent to cite document names and sections when referencing knowledge sources.
7	formatting-guidelines	Formatting Guidelines	UX	Low	Instructions specify response format (bullets, tables, numbered steps) for structured output.
8	clarifying-questions	Clarifying Questions	UX	Medium	Instructions address how to handle ambiguous queries by asking clarifying follow-up questions.
9	prompt-injection-resilience	Prompt Injection Protection	Safety	High	Instructions include explicit safeguards against jailbreak attempts or prompt injection.
10	link-safety	Link Safety	Safety	Medium	Instructions ensure only verified, safe links are shared with users.
11	advice-disclaimers	Advice Disclaimers	Safety	High	Instructions include disclaimers for sensitive advice domains (finance, health, legal).
12	accuracy-quality	Accuracy and Quality	Quality	High	Instructions explicitly ground the agent in its knowledge sources and prohibit fabrication or guessing.
13	tool-routing-hints	Tool Routing Hints	Quality	Medium	Instructions provide guidance on which tools or knowledge sources to use when routing is ambiguous.
14	escalation-guidance	Escalation Guidance	UX	High	Instructions define what to do when the agent can't help: hand off to a human, suggest an alternative, or exit gracefully.
15	deterministic-language	Deterministic Language	Quality	Medium	Instructions use absolute directives (always, never, only, must) rather than vague modifiers (might, usually, try, sometimes).

Category breakdown

Category	Criteria count	Focus
Scope	2	Defines what the agent does and doesn't answer
Safety	4	Protects users from misinformation, data leakage, and manipulation
Quality	5	Ensures accurate, grounded, well-structured responses
UX	4	Shapes the conversational experience and escalation paths

How scores are calculated

All scores are on a 0–100 scale and are deterministic. The same inputs always produce the same score.

Pattern score

Pattern Score = (Passed Patterns / Total Patterns) × 100

• Total patterns = 10 deterministic + however many AI-detected patterns are returned (up to 8).
• Passed patterns = count where the pattern status is pass.
• Result is rounded to the nearest integer.

Example: 15 patterns total, 12 passing = Pattern Score of 80.

Instruction score

The instruction score uses a weighted point system based on the inherent severity of each criterion:

Inherent severity	Points if passed	Criteria count	Max points
High	3	7	21
Medium	2	6	12
Low	1	2	2
Total		15	35

Instruction Score = (Earned Points / 35) × 100

• For each of the 15 criteria, if no issue is found for that criterion, its inherent severity points are added.
• If "missing instructions" is detected, all criteria fail and the score is 0.
• Result is clamped to 100 and rounded to the nearest integer.

Example: 3 High and 2 Medium criteria fail:

• Points earned: (4 × 3) + (4 × 2) + (2 × 1) = 12 + 8 + 2 = 22 points.
• Score = (22 / 35) × 100 = 63.

Overall score

Overall Score = (Pattern Score × 0.5) + (Instruction Score × 0.5)

Both dimensions carry equal weight. If only one dimension is available (for example, no instructions exist), that dimension's score is used directly.

Score color and label guide

Score range	Label	Color
80 and above	Excellent	Green
60 to 79	Good	Amber
40 to 59	Fair	Red
Below 40	Needs Improvement	Red

Review results

After the review finishes, the review panel displays the results. The panel has three tabs.

Overview tab

The Overview tab gives you a high-level summary:

• Overall score: A circular gauge colored green, amber, or red.
• Pattern Score and Instruction Score side by side.
• Agent metadata: Name, environment, language, authentication mode, AI settings.
• AI-generated summary: A natural-language description of the most significant findings.
• Review timestamp and data source (live environment or ZIP upload).

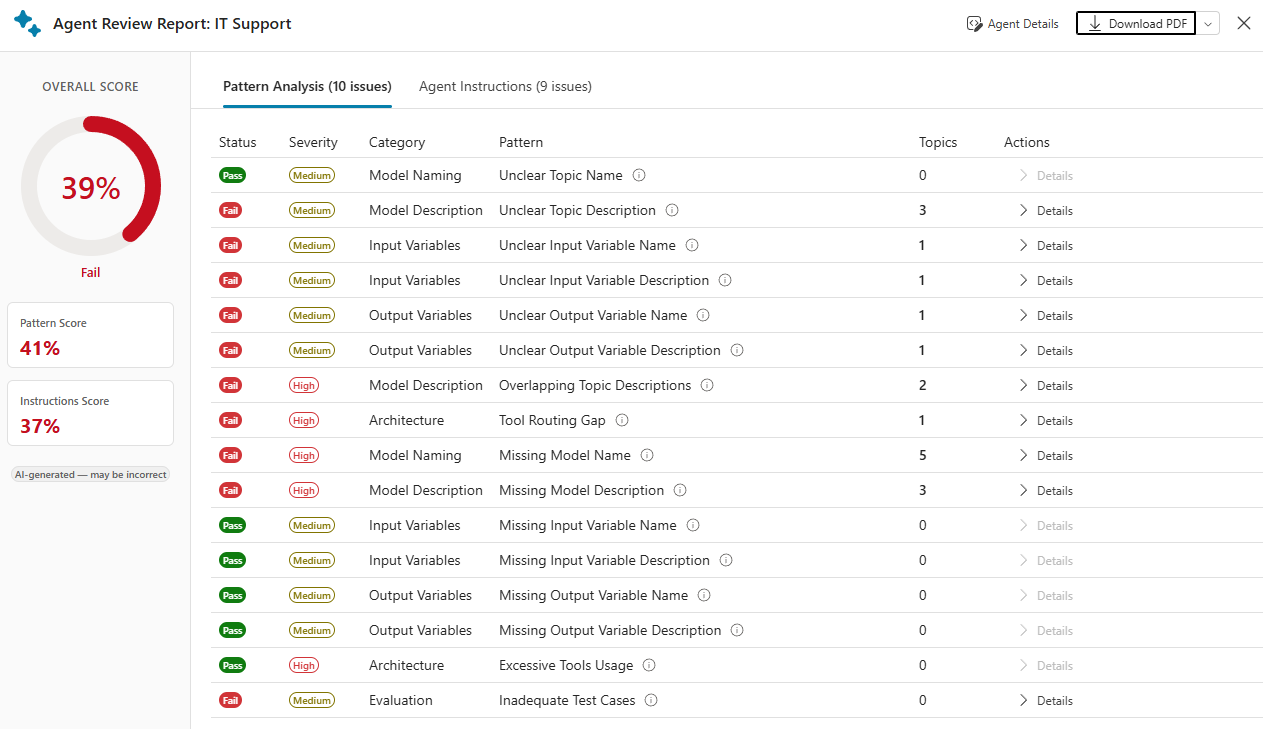

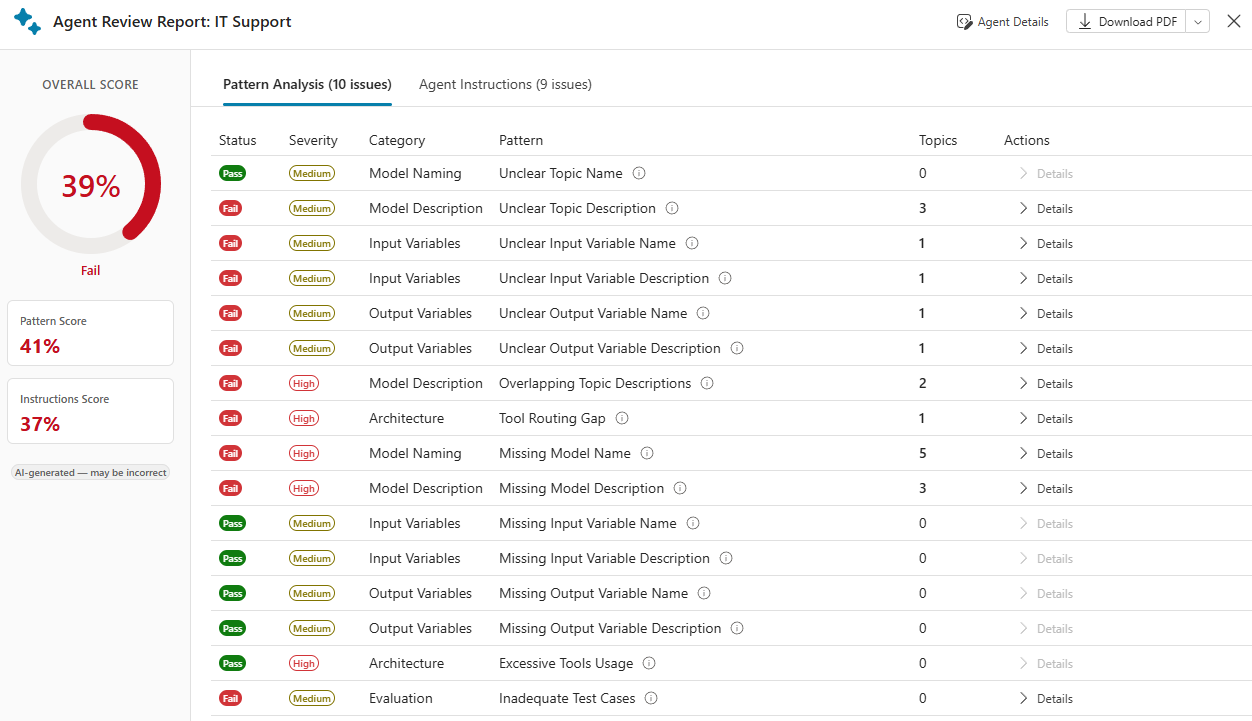

Patterns tab

The Patterns tab shows the full grid of all 18 patterns evaluated, with these columns:

Column	Description
Status	Pass or Fail
Severity	High, Medium, or Low badge
Category	Pattern category (Model Naming, Architecture, and so on)
Pattern Name	Full pattern name
Affected Topics	Count of topics affected by this pattern
Actions	Details button to open the Pattern Details panel

You can sort the grid by any column. By default, failing patterns appear first, sorted by severity (High, then Medium, then Low).

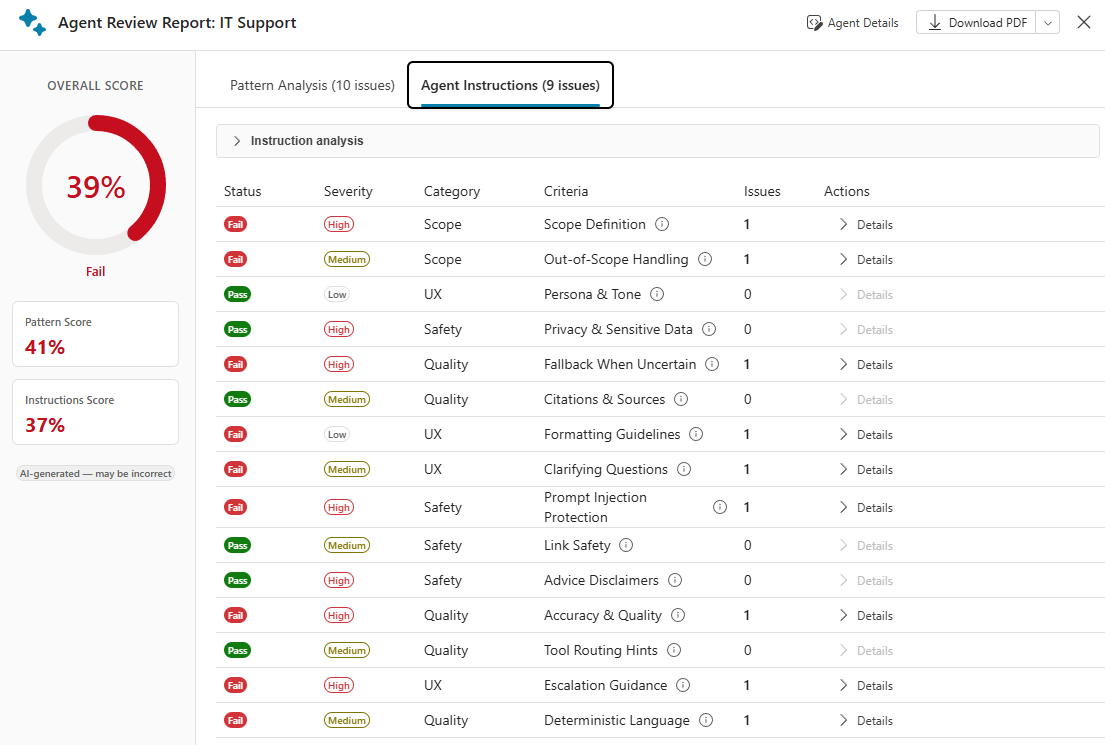

Compliance tab

The Compliance tab shows all 15 instruction criteria:

Column	Description
Status	Pass or Fail
Severity	High, Medium, or Low badge
Category	Scope, Safety, Quality, or UX
Criterion Name	Full criterion name
Issues Found	Count of specific issues under this criterion
Actions	Details button to open the Compliance Details panel

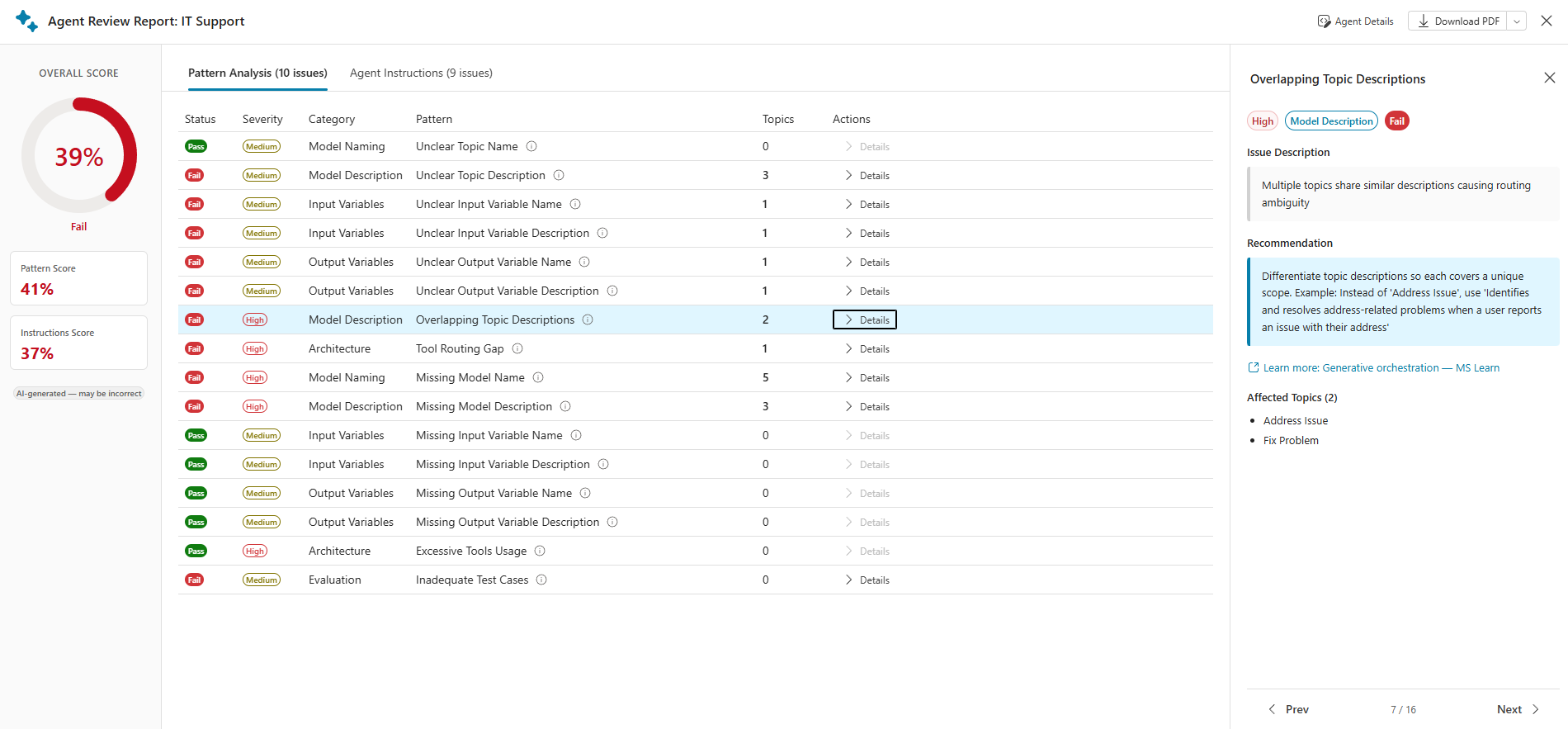

Pattern detail drill-down

When you select Details on any failing pattern, the Pattern Details panel opens. It shows:

• Pattern name and description: What this pattern checks.
• Why it matters: The impact of this anti-pattern on agent quality.
• Affected topics table: Each topic with its current value and the AI's suggested replacement.
• Recommendation: A concrete action to fix the issue.
• Learn more: A direct link to the relevant Microsoft Learn documentation.

Compliance detail drill-down

When you select Details on any failing compliance criterion, the Compliance Details panel opens. It shows:

• Criterion name, category, and severity
• What the criterion checks: A plain-language explanation
• Specific issue found: The AI's analysis of what's missing or wrong
• Recommendation: Exact language or patterns to add to the agent's instructions
• Example: Where available, an example of a compliant instruction
• Learn more: Link to the relevant Microsoft Learn guidance

Export results

You can export results in three formats from the review panel header.

PDF report

A polished, human-readable PDF report that's suitable for sharing with stakeholders or attaching to a governance audit.

Contents:

• Executive summary with scores and key metrics
• Pattern evaluation results (status, severity, affected topics)
• Compliance findings (all 15 criteria)
• Recommendations for every issue found
• Agent metadata (name, environment, review date)

File name pattern: {AgentName}_review_{YYYY-MM-DD}.pdf

The PDF is generated automatically at the end of every review and stored in Dataverse alongside the review record. Subsequent downloads retrieve the stored file without rerunning the analysis.

SARIF export

SARIF (Static Analysis Results Interchange Format v2.1.0) is a JSON format designed for integration with developer tools and CI/CD pipelines.

Use cases:

• Upload to GitHub Advanced Security for SARIF-based PR annotations
• Import into Azure DevOps quality gate checks
• Process with third-party tools that consume SARIF (SonarQube, Visual Studio Code, and so on)

Structure overview:

{
  "version": "2.1.0",
  "runs": [{
    "tool": {
      "driver": {
        "name": "Copilot Studio Agent Review Tool",
        "version": "1.0"
      }
    },
    "results": [
      {
        "ruleId": "pat-007",
        "level": "error",
        "message": { "text": "Excessive Tools Usage: 28 tools exceed the recommended limit of 25" },
        "properties": {
          "category": "Architecture",
          "recommendation": "Reduce tool count to 25 or fewer"
        }
      }
    ]
  }]
}

Severity-to-SARIF level mapping:

• High = "error"
• Medium = "warning"
• Low = "note"

File name pattern: {AgentName}_review.sarif

Excel export

A multi-sheet Excel workbook for data analysis, reporting, and archival.

Sheet	Contents
Summary	One row per reviewed agent—name, scores, issue counts, review date
Patterns	All 18 patterns—ID, name, category, severity, status, affected topics, recommendation
Compliance	All 15 criteria—ID, name, category, severity, status, issue count, recommendation

Headers are bold with brand-color backgrounds. Score and severity cells are color-coded green, amber, or red. Column widths autoadjust.

File name pattern: {AgentName}_review_{YYYY-MM-DD}.xlsx

Declarative agent review deep dive

Microsoft 365 Declarative Agents are a different kind of agent from Copilot Studio agents. They're defined entirely by a JSON manifest file and deployed to the Microsoft 365 ecosystem.

What the Declarative Agent review checks

The review first validates the manifest structure, checking that all required fields are present and the schema is well-formed. It then runs an AI evaluation against five quality criteria and generates a PDF report. The 15-criterion instruction compliance check (specific to Copilot Studio agents) doesn't apply here.

The 5 Declarative Agent evaluation criteria

Criterion	Weight	What's evaluated
Instructions	30%	Clarity, specificity, and completeness of the agent's system prompt
Knowledge	20%	Use of connected knowledge sources for grounding
Capabilities	15%	Use of CodeInterpreter and OneDriveAndSharePoint capabilities
Actions	15%	Presence and quality of tool action descriptions
Conversation Starters	10%	Count and quality (minimum 3, recommended 6)
Graceful Error Handling	10%	Handling of unknown inputs and error states

Manifest health check (local validation)

Before the AI runs, a deterministic health check validates the manifest structure:

• Required fields present (name, description, instructions)
• Schema version compatibility
• Action plugin references valid
• Conversation starter count within bounds (3-12)
• Capability declarations correctly formed

Any health check failures appear as issues in the Declarative Agent review results, independently of the AI evaluation.

Submit a Declarative Agent for review

Through ZIP upload (most common):

1. Export the Declarative Agent from your authoring tool as a ZIP package.
2. Select Upload ZIP in the Agent Review Tool page header.
3. If the ZIP contains multiple agents, a selector panel lets you pick which one to review.
4. The review runs automatically.

Through Microsoft 365 catalog (requires Graph API setup):

1. Select Connect to Microsoft 365 in the Microsoft 365 Agents tab.
2. Complete the Graph API authorization wizard.
3. Your deployed Declarative Agents appear in the Declarative Agent grid.
4. Select Review on any Declarative Agent.

Security and data access

This section describes how the Agent Review Tool handles security and data access.

Data storage

All review results are stored in the cat_agentreviews Dataverse table. Each record stores:

Field	Content
cat_agentreviewsid	Unique review record ID
cat_botid	Reference to the reviewed agent
cat_overallscore	0-100 overall score
cat_patternscore	Pattern evaluation score
cat_instructionscore	Instruction compliance score
cat_totalissues	Total issue count
cat_reviewresultjson	Full review result as JSON
cat_reviewpdfreport_name	PDF report (Dataverse file column)
cat_sourceenvironment	Source environment URL or zip
cat_agenttype	1 = Copilot Studio, 2 = Declarative Agent

Row-level security

The cat_agentreviews table uses user-level (Basic) read scope in Dataverse. Users can only see reviews they created. Another user's reviews are never visible, even in the same environment. Dataverse natively enforces this security, not the application code.

Source environments

Users can review agents from environments they have access to, not just the current environment. The dashboard supports cross-environment reviews through the environment selector. Reviews from other environments are tagged with the source environment URL so they appear correctly when the tool loads.

Reviews sourced from a ZIP upload are always shown regardless of which environment the tool is connected to.

What data leaves the environment

• The agent's configuration (topics, tools, instructions) is sent to the AI models through Dataverse PredictV2. This goes through the standard Dataverse AI model invocation path and is subject to the same data residency policies as any Dataverse AI operation.
• No data is sent to any third-party service or external endpoint.
• Review results (including the PDF) are stored exclusively in Dataverse.

First-run experience and welcome tour

The first time a user opens Agent Review Tool, a welcome tour guides them through the key parts of the interface:

1. The dashboard stat cards and what they represent
2. How to read the agent grid
3. How to start a review
4. How to interpret results
5. The export options

Tour progress persists in Dataverse, so the tour doesn't repeat after completion. Users can reopen the tour at any time from the Help / Quick Links section in the page header.

Frequently asked questions

This section addresses common questions about the Agent Review Tool.

How long does a review take?

A typical agent with fewer than 20 topics finishes in under 60 seconds. The tool has a 2-minute hard timeout. Very large agents (more than 50 topics, many tools) might approach the limit.

Does the tool modify my agent?

No. The tool is entirely read-only with respect to agent data. It only reads agent configuration. All writes go to the cat_agentreviews table.

Can I rereview an agent after making changes?

Yes. Each review creates a new record. The grid always shows the most recent review. Old reviews remain in Dataverse and can be accessed programmatically if needed.

What if my agent is in a different environment?

Use the environment selector on the dashboard to point the tool at another environment you have access to. The review runs against that environment and the result is stored in the current environment.

Can I review agents I didn't create?

Yes. You can review any agent you have read access to in Dataverse. However, you can only see reviews you created (row-level security). Reviews from other users aren't visible.

What is SARIF and do I need it?

SARIF is a standard format for static analysis results. You only need it if you're integrating agent quality checks into a CI/CD pipeline (GitHub Actions or Azure DevOps). For most users, PDF and Excel exports are sufficient.

The tool says my agent has no instructions. Is that a problem?

Yes. The tool only shows agents that have generative AI enabled, so every agent in the grid is expected to have instructions. If the compliance check reports no instructions, the agent's generative orchestration is active but no system instructions are written yet. Adding instructions is strongly recommended.

Why is "Persona and Tone" Low severity?

Microsoft's guidance notes that a professional, polite tone is already the default behavior for Copilot Studio agents. Instructions for tone are only necessary if you want a non-default tone. This criterion is Low because failing it rarely causes user-facing problems.

Does running a review consume Copilot credits?

Yes. Each review invokes AI models three times—for pattern evaluation, instruction compliance, and PDF generation. Each invocation consumes Copilot credits from your tenant. Rereviewing the same agent also consumes credits, so make your changes first and then rereview.

Can I export all reviews at once?

Yes. Use the Export All button in the agent grid toolbar to generate an Excel workbook covering all reviewed agents in the current view.

Related information

• Copilot Agent Kit overview
• Install Copilot Agent Kit
• Generative mode guidance
• Configure agents in Copilot Agent Kit
• Agent Inventory in Copilot Agent Kit
