Run command-line app console with Surface Diagnostic Toolkit for Business
Article
Applies to:
Windows 10, Windows 11
Running the Surface Diagnostic Toolkit (SDT) at a command prompt requires downloading the Surface IT Toolkit and saving a copy of the Diagnostics App Console. You can run SDT at a command prompt on the target Surface device via the Windows command console (cmd.exe) or Windows PowerShell. For a list of supported Surface devices in SDT, refer to Deploy Surface Diagnostic Toolkit for Business.
Note
To run SDT using commands, you must be signed in to the Administrator account or signed in to an account that is a member of the Administrator group on your Surface device.
Run SDT app console
Download the Surface IT Toolkit and install it on the PC you use to manage devices in your organization.

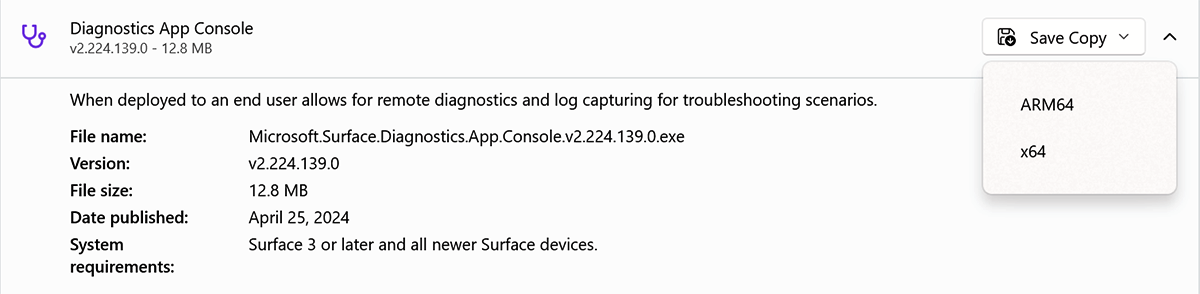

Open Surface IT Toolkit. Select Tool Library > Diagnostics App Console > Save a copy and choose ARM64 or X64.
Use the Windows command prompt (cmd.exe) or Windows PowerShell to:
Collect all log files
Run health diagnostics using Best Practice Analyzer (BPA)
Check for missing firmware or driver updates
Note
In this release, the SDT app console supports single commands only. Running multiple command-line options requires running the console exe separately for each command.
By default, output files are saved in the same location as the console app. Refer to the following table for a complete list of commands.
Command
Notes
-DataCollector "output file"
Collects system details into a zip file. "output file" is the file path to create the system details zip file.
To run the SDT app console remotely on target devices, use a configuration management tool such as Microsoft Configuration Manager. Alternatively, you can create a .zip file containing the console app and appropriate console commands and deploy per your organization’s software distribution processes.
Run Best Practice Analyzer
You can run BPA tests across key components such as BitLocker, Secure Boot, and Trusted Platform Module (TPM) and then output the results to a shareable file. The tool generates a series of tables with color-coded headings and condition descriptors along with guidance about how to resolve the issue.
Green indicates the component is running in an optimal condition (optimal).
Orange indicates the component isn't running in an optimal condition (not optimal).
Red indicates the component is in an abnormal state.
Sample BPA results output
BitLocker
Description: Checks if BitLocker is enabled on the system drive.
Value: Protection On
Condition: Optimal
Guidance: It's highly recommended to enable BitLocker to protect your data.
Secure Boot
Description: Checks if Secure Boot is enabled.
Value: True
Condition: Optimal
Guidance: It's highly recommended to enable Secure Boot to protect your PC.
Trusted Platform Module
Description: Ensures that the TPM is functional.
Value: True
Condition: Optimal
Guidance: Without a functional TPM, security-based functions such as BitLocker might not work properly.
Connected Standby
Description: Checks if Connected Standby is enabled.
Value: True
Condition: Optimal
Guidance: Connected Standby allows a Surface device to receive updates and notifications while not being used. For the best experience, Connected Standby should be enabled.
Bluetooth
Description: Checks if Bluetooth is enabled.
Value: Enabled
Condition: Optimal
Guidance: N/A
Debug Mode
Description: Checks if the operating system is in Debug mode.
Value: Normal
Condition: Optimal
Guidance: The debug boot option enables or disables kernel debugging of the Windows operating system. Enabling this option can cause system instability and can prevent DRM (digital rights management) protected media from playing.
Test Signing
Description: Checks if Test Signing is enabled.
Value: Normal
Condition: Optimal
Guidance: Test Signing is a Windows startup setting that should only be used to test prerelease drivers.
Active Power Plan
Description: Checks that the correct power plan is active.
Value: Balanced
Condition: Optimal
Guidance: It's highly recommended to use the "Balanced" power plan to maximize productivity and battery life.
Windows Update
Description: Checks if the device is up to date with Windows updates.
Value: Microsoft Silverlight (KB4023307), Definition Update for Windows Defender Antivirus - KB2267602 (Definition 1.279.1433.0)
Condition: Not Optimal
Guidance: Updating to the latest Windows ensures you are on the latest firmware and drivers. It's recommended to always keep your device up to date.
Free Hard Drive Space
Description: Checks for low free hard drive space.
Value: 66%
Condition: Optimal
Guidance: For best performance, your hard drive should have at least 10% of its capacity as free space.
Non-Functioning Devices
Description: List of nonfunctioning devices in Device Manager.
Value: [Not provided in the screenshot]
Condition: Optimal
Guidance: Nonfunctioning devices in Device Manager might cause unpredictable problems with Surface devices, such as, but not limited to, no power savings for the respective hardware component.
External Monitor
Description: Checks for an external monitor that might have compatibility issues.
Value: N/A
Condition: Optimal
Guidance: Check with the original equipment manufacturer for compatibility with your Surface device.
