Analytics Consumption Zone concepts

Analytics Consumption Zone (ACZ) exports selected entity data from Azure Data Manager for Energy to your Azure Data Lake Storage Gen2 account. ACZ writes Azure Data Manager for Energy data in open Delta Parquet format. Services like Microsoft Fabric and Azure Databricks can read this format directly.

Important

Analytics Consumption Zone is currently in preview. For legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability, see Supplemental Terms of Use for Microsoft Azure Previews.

During the preview, ACZ is available only on Developer tier instances and requires the use of allow lists. Follow the guidance in Enable Analytics Consumption Zone, and contact your Microsoft representative.

What is ACZ?

ACZ is a managed sync layer. It exports entity data from your Azure Data Manager for Energy instance to an Azure Data Lake Storage Gen2 storage account that you own. You can then connect that data to analytics, reporting, and machine learning tools.

Key characteristics of ACZ:

• Customer-owned storage: You create and manage a Data Lake Storage Gen2 storage account where your data goes. You're responsible for selecting an in-geo destination storage account if you have data residency requirements.
• Open format: Your data exports in Delta Parquet format. Analytics engines widely support this format.
• Selective sync: You choose which entity types to sync. Options include catalog kinds and Wellbore Domain Data Management Service (DDMS) kinds.
• Historical and incremental sync: You get an initial snapshot of existing data from ACZ. Then ACZ synchronizes changes as they occur.
• API-driven: You configure and manage ACZ entirely through REST APIs.

Architecture

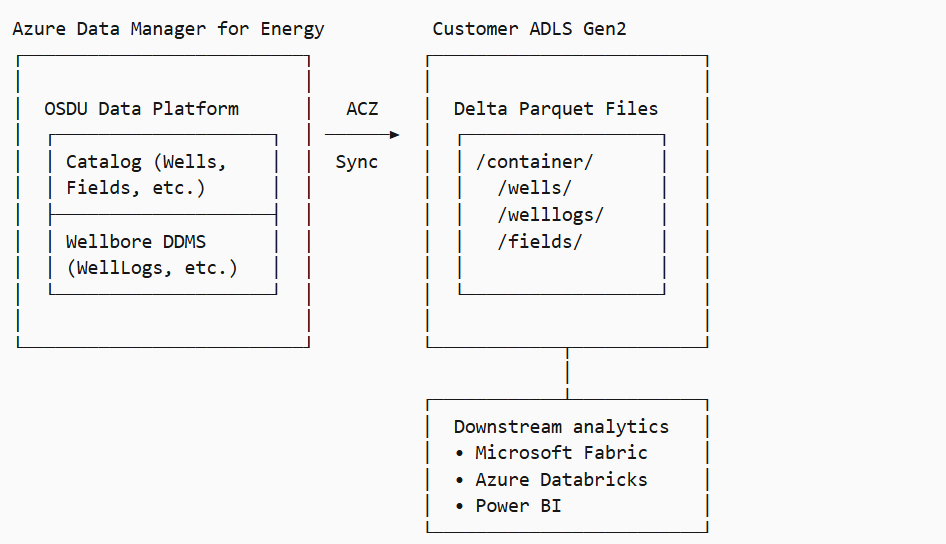

The following diagram shows the ACZ data flow.

How ACZ works

Supported entity types

ACZ synchronizes two categories of Azure Data Manager for Energy entity types.

Category	Description	Example kinds
Catalog kinds	Primary data and reference data from the storage service	osdu:wks:master-data--Well:*, osdu:wks:reference-data--UnitOfMeasure:*
Wellbore DDMS kinds	Entities from Wellbore DDMS	osdu:wks:work-product-component--WellLog:*

When you create an ACZ instance, you specify which entity types to synchronize by providing:

• catalogKinds: A list of catalog kind patterns (for example, osdu:wks:master-data--Well:*).
• wellboreDDMSKinds: A list of Wellbore DDMS kind patterns (for example, osdu:wks:work-product-component--WellLog:*).

These kind patterns act as filters that determine which Azure Data Manager for Energy records ACZ exports and keeps synchronized.

Use the allCatalogSync flag

The allCatalogSync flag is an optional Boolean parameter that you can specify when you create an ACZ instance. When set to true, it synchronizes all catalog kinds from the data partition.

Key behaviors:

• allCatalogSync is specified outside the configuration section in the request body.
• When allCatalogSync: true, ACZ exports all catalog kinds automatically.
• The catalogKinds and wellboreDDMSKinds arrays in the configuration are ignored for catalog data.
• Wellbore DDMS bulk file downloads are not affected by this flag. Files are only downloaded for kinds explicitly listed in wellboreDDMSKinds.

Example configurations:

// Selective catalog sync - only Wells and Fields
{
  "allCatalogSync": false,
  "configuration": {
    "catalogKinds": [
      "osdu:wks:master-data--Well:*",
      "osdu:wks:master-data--Field:*"
    ]
  }
}

// Sync all catalog kinds using allCatalogSync flag
{
  "allCatalogSync": true,
  "configuration": {
    // catalogKinds is ignored when allCatalogSync is true
  }
}

// Sync all catalog kinds, but Wellbore DDMS files only for specified kinds
{
  "allCatalogSync": true,
  "configuration": {
    "wellboreDDMSKinds": [
      "osdu:wks:work-product-component--WellLog:*"
    ]
  }
}

Version types

When you create an ACZ instance, you choose how to handle entity versions.

Type	Description
LATEST_VERSION	Exports only the latest version of each entity. Default and recommended.
ALL_VERSIONS	Exports all versions of each entity. Keeps the full version history.

Lifecycle states

Each ACZ goes through these states:

Status	Description
ACTIVE	Operational. ACZ synchronizes changes incrementally.
FAILED	An error stopped setup or sync.
ACCESS_DENIED	ACZ can't reach the destination Data Lake Storage Gen2 storage account.

Historical snapshot

When you create a new ACZ instance, the service takes a historical snapshot. This snapshot exports all existing records that match the configured entity types (catalogKinds and wellboreDDMSKinds). The snapshot progresses through the following states:

Status	Description
PROCESSING	Actively exporting data.
COMPLETED	All historical data exported.
FAILED	An error occurred.

After the snapshot finishes, ACZ switches to incremental mode. It captures new and updated records in near real time.

How ACZ handles data changes

ACZ propagates created, updated, and deleted records from Azure Data Manager for Energy to the Delta tables.

• Creations and updates: When you create a record or change its data block, Azure Data Manager for Energy creates a new version. ACZ detects the change and writes a new row to the Delta table.
• Metadata-only updates: When a PATCH operation changes the access control list, legal, or tags without creating a new version, ACZ detects this change and runs a merge upsert on the existing row.
• Soft deletes: When you soft-delete a record in Azure Data Manager for Energy, ACZ sets the isActive field to False on the row instead of removing it. Soft deletes preserve history for auditing and time-travel queries.
• Purges: When you purge a record in Azure Data Manager for Energy, ACZ permanently removes the record from the Delta table. The row is deleted and can't be recovered from the ACZ data.

Warning

ACZ is a one-way, read-only sync from Azure Data Manager for Energy to Data Lake Storage Gen2:

• Data flows only from Azure Data Manager for Energy to Data Lake Storage Gen2.
• Do not modify, delete, or add files directly in the ACZ folders in Data Lake Storage Gen2.
• Manual changes to ACZ data corrupt the sync and cause data inconsistencies.
• ACZ manages all Delta Lake operations (transaction logs, checkpoints, and compaction).

For analytics and reporting, treat the exported data as read-only. All data modifications must occur in Azure Data Manager for Energy.

Data output format

ACZ writes data in Delta Lake format with Parquet-encoded files (DELTA_PARQUET). Delta Lake supports atomicity, consistency, isolation, and durability transactions. It also supports time travel and efficient incremental reads.

Data Lake Storage Gen2 folder structure

ACZ organizes data in your Data Lake Storage Gen2 storage account by folder. Each ACZ instance gets its own folder under the container or under the base path if you specified one. ACZ partitions catalog Delta Lake tables by kind. One folder per DDMS entity type and record ID.

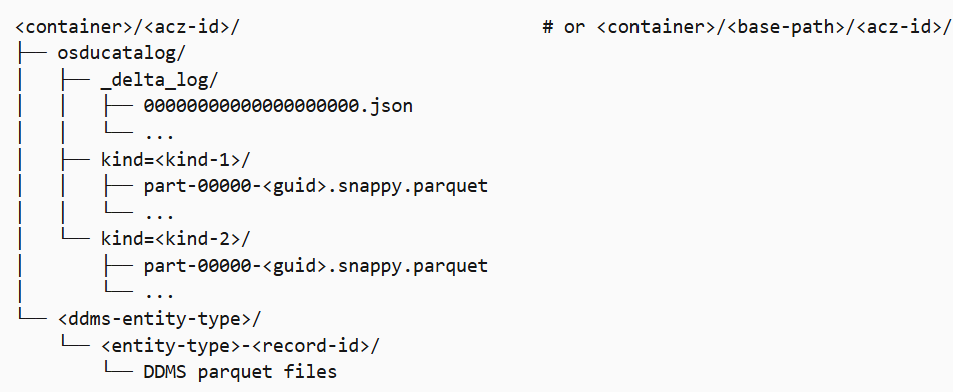

Folder layout

Key details

Element	Description
Top-level folder	Named <acz-id> under the container, or under <base-path> if specified. One folder per ACZ instance.
osducatalog/	One Delta table for all catalog kinds. Partitioned by kind (for example, kind=osdu:wks:master-data--Well:1.0.0).
_delta_log/	The Delta Lake transaction log. Tracks all table changes for ACID transactions and time travel.
DDMS entity folders	One folder per DDMS entity type (for example, work-product-component--WellLog). Holds DDMS-specific Parquet files by entity type and record ID.
Parquet files	Snappy-compressed data files. Updates create new files. ACZ runs VACUUM and OPTIMIZE to compact small files and remove old ones.

Delta table schema

The Delta table has the following fields:

Field	Type	Description
id	String	OSDU® record ID.
version	String	Version number.
kind	String	Fully qualified OSDU® kind.
data	String	Data block (JSON).
meta	String	Metadata (JSON).
acl	String	Access control list.
legal	String	Legal tags.
tags	String	User-defined tags.
createUser	String	User who created the record.
createTime	Timestamp	When the record was created.
ingestTime	Timestamp	When ACZ ingested the record.
isActive	Boolean	True if active. False if soft-deleted.

Note

Wellbore DDMS entities also have fileDownloadTime, fileDownloadState, and fileDownloadFolder fields for file tracking.

Limits and access

Preview limits

Constraint	Limit
Maximum ACZ instances per data partition	Three
ACZ name uniqueness	Must be unique within a data partition
Target format	Delta Parquet only
Storage type	Data Lake Storage Gen2 only
Instance tier support	Developer tier only during preview

Authentication and authorization

ACZ requires:

• API access: To call ACZ APIs, you must belong to the users@{data-partition-id}.dataservices.energy and users.datalake.ops@{data-partition-id}.dataservices.energy groups.
• Storage access: The managed identity needs the Storage Blob Data Contributor role (or equivalent) on the Data Lake Storage Gen2 container. During preview, share the identity details with Microsoft to add the identity to the allow list.
• Azure Data Manager for Energy access: The managed identity needs to be assigned to the Azure Data Manager for Energy resource.
