Tutorial: Microsoft Entra ID integration with Oracle HCM

The Inbound Provisioning API is a capability that allows you to create, update, and delete users in Microsoft Entra ID and on-premises Active Directory from an external source, such as Oracle Human Capital Management (HCM). This capability enables organizations to improve productivity, strengthen security and more easily meet compliance and regulatory requirements.

You can use Microsoft Entra ID Governance to automatically ensure that the right people have the right access to the right resources. This access includes identity and access process automation, delegation to business groups, and increased visibility.

In this tutorial, we guide you through the steps and best practices for integrating Oracle HCM with Microsoft Entra ID via API-driven provisioning, You'll learn how to:

  • Prepare your environment and configure the API settings
  • Export your worker data from Oracle HCM in CSV format and transform it to the system for cross-domain identity management (SCIM) format using Microsoft scripts
  • Send your worker data to the Inbound Provisioning API using PowerShell or Logic Apps
  • Perform delta syncs to keep your worker data up to date using Oracle ATOM feed APIs or HCM Extracts
  • Configure writeback (if necessary) from Microsoft Entra ID to Oracle HCM using the Oracle HCM SCIM APIs

Terminology

Prerequisites

Before you start integrating Oracle HCM with Microsoft Entra ID using the Inbound Provisioning API, you need to ensure that you have the following prerequisites:

Integration overview

There are three main sync scenarios that you can use to set up an HR integration. The diagram in this section illustrates these sync scenarios. This guide is split up and organized into three sections. For each workflow, we provide a recommendation on how to configure the workflow.

  • Initial / full sync is the process of synchronizing all worker data between two systems, in this case: Oracle HCM and Microsoft Entra ID directly or to on-premises Active Directory (on-premises AD). This process includes all worker identities and attributes such as personal information, contact information, employment information, and more. A full sync is typically performed during the initial integration setup to ensure that all worker data is consistent and up to date across both systems.

  • Delta sync is the process of synchronizing only the changes or updates that occurred since the last sync with Oracle HCM. Delta syncs are typically performed after the initial full sync to keep worker data up to date with any changes that occur in the source system. This process includes new employees, updated employee data, or deleted employees. Delta syncs are incremental updates and are faster and more efficient than performing a full sync every time any worker data changes.

  • Writeback is the optional process of sending user attribute changes that occur in Microsoft Entra ID (such as username, email, and phone numbers) back to Oracle HCM.

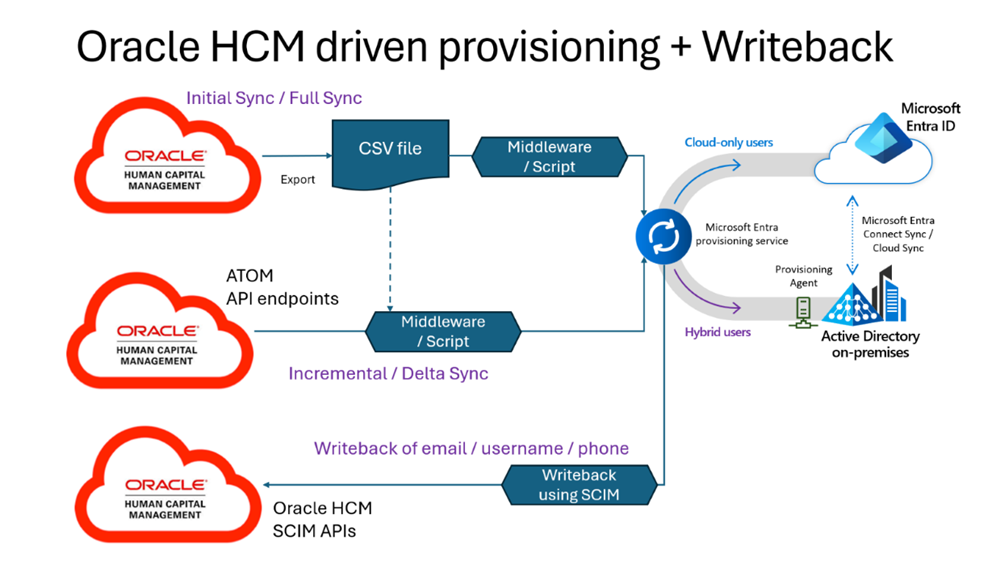

Diagram of Oracle HCM driven provisioning plus writeback.

Integration steps

# Step What to do Who to engage
1. Determine which set of attributes you want to provision from HCM Reference this list of HCM attributes and determine which attributes you wish to export to Microsoft Entra ID
Map Oracle HCM attributes to SCIM attributes
Define unique ID generation and transformation rules
Oracle HCM Admin & IT Admin
2. Grant permissions to the inbound provisioning API Create an application to represent your API client and grant it permissions to send data to the inbound provisioning endpoint IT Admin - Privileged Role Administrator
3. Determine your provisioning target: Are you provisioning cloud-only identities to Microsoft Entra ID or hybrid identities to on-premises AD? If your target is Microsoft Entra ID (cloud-only identity provisioning):
Configure gallery app
Map SCIM to Microsoft Entra attributes
If your target is on-premises AD (hybrid identity provisioning):
Download and configure provisioning agent
Configure gallery app
Map SCIM attributes to on-premises Active Directory
Update your Microsoft Entra Connect Sync and cloud sync mappings to flow new HR attributes to Entra ID
For provisioning agent installation, involve Windows admin

For gallery app configuration, engage admin with Application Administrator privileges
4. Perform initial sync to send full scope of data to provisioning endpoint Prepare for initial sync
Perform CSV export and send data to API
• Validate that the right workers have been matched and are present in Microsoft Entra / AD
IT Admin
5. Perform delta syncs to keep data in Microsoft Entra ID up to date Use one of these methods:
Use CSV extracts
Use Atom Feed APIs
IT Admin
6. Writeback data to Oracle HCM Configure and run writeback provisioning job IT Admin
7. Recommended: Configure Microsoft Entra lifecycle workflows Automate your Joiner, Mover, Leaver processes using Microsoft Entra
Governance license required
IT Admin

Before you can configure the provisioning job in Microsoft Entra, you need to determine if the target for your provisioning is on-premises AD or Microsoft Entra ID. If you wish to have hybrid users with an on-premises dependency, AD becomes your target. If your users are cloud only, you can provision them directly to Microsoft Entra ID.

For cloud-only users

Create and configure the gallery application API-driven provisioning to Microsoft Entra ID by following these steps:

  1. Create the gallery application, then name the application Oracle HCM Cloud to Entra ID provisioning.

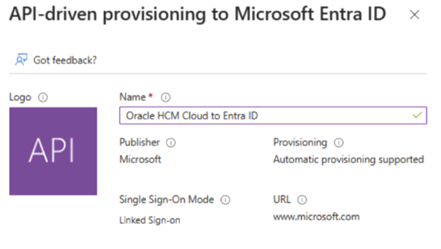

    Diagram of API-driven provisioning to Microsoft Entra ID.

  2. Configure the application.

For hybrid users

Work with your Windows admin to install the provisioning agent on a domain-joined Windows server, then follow these steps:

  1. Install the provisioning agent.

  2. Create the gallery application, then name the application Oracle HCM Cloud to on-premises Active Directory.

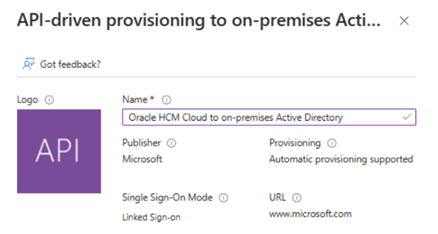

    Diagram of API-driven provisioning to on-premises Active Directory.

  3. Configure the application.

Prepare for initial sync

Before sending your initial sync payload, you need to make sure your data is prepared to properly sync with Microsoft Entra. The following steps help ensure a smooth integration.

  1. Matching identifier presence and uniqueness: The provisioning service uses a matching attribute to uniquely identify and link worker records in your Oracle system with corresponding user accounts in AD / Microsoft Entra ID. The default matching attribute pair is Person Number in Oracle HCM mapped to employee ID attribute in Microsoft Entra ID / on-premises AD. Ensure that the value of employee ID is populated in Microsoft Entra ID (for cloud-only users) and on-premises AD (for hybrid users) before initiating full sync, as it uniquely identifies users.

  2. Use scoping filters to skip HR records that are no longer relevant: HR systems have several years of employment data probably going all the way back to the 1970s. On the other hand, your IT team may only be interested in the list currently active employees and termination records that will come through after go-live. To filter out HR records that are no longer relevant from your IT team perspective, identify scoping filters rules that you can configure in Microsoft Entra.

CSV export for initial sync

In this step, you export your worker data from Oracle HCM in CSV format and transform it to SCIM format using the Microsoft CSV to SCIM scripts. This step allows you to send your worker data to the Inbound Provisioning API in a standards-based payload that it can understand and process.

Share the list of Oracle HCM worker attributes you wish to export with your Oracle HCM administrator. To export your worker data from Oracle HCM in CSV format, Oracle provides multiple options.

  • HCM Extract tool: The main way to retrieve data in bulk from Oracle HCM Cloud is by using HCM Extracts, a tool for generating data files and reports. HCM Extracts has a dedicated interface for specifying the records and attributes to be extracted. With this tool, you can:

    • Identify records for extraction using complex selection criteria
    • Define data elements in an HCM extract using fast formula database items and rules

Note

To get started with creating HCM Extracts, refer to Define Extracts (oracle.com).

  • Oracle BI Publisher: Supports both scheduled and unplanned reporting, based on either predefined Oracle Transactional Business Intelligence analysis structures or your own data models. You can generate reports in various formats. To use Oracle BI Publisher for outbound integrations, you generate reports in a format suitable for automatic downstream processing, such as XML or CSV. To get started with creating your BI Publisher report, refer to Define the BI Publisher Template in HCM Extracts (oracle.com).

  • Oracle Integration Cloud (OIC) Service: If you have a subscription to OIC, you can configure the integration with the Oracle HCM Adapter (oracle.com) to extract the required data from Oracle HCM. Oracle provides a guide (oracle.com) that you can use to get started.

Note

Work with your Oracle HCM administrator to export your required attributes into a CSV file.

After you've exported your worker data to a CSV file, you need to transform the CSV to SCIM format so that the payload is in a format that we can accept. We provide documentation and sample code for how to transform your CSV into a SCIM payload via two methods: PowerShell and Azure Logic Apps.

Here are links for performing this transformation with each method:

The inbound provisioning process includes sending the provisioning payload. Before you send the payload, make sure to select Start provisioning in the Microsoft Entra admin center to ensure that the provisioning job is listening to new requests. Before sending the full file for processing, send 5-10 records to validate the correct matching of workers and attributes. After the payload is sent, the users will show up briefly in your Microsoft Entra tenant /on-premises AD.

Delta syncs

After you've sent your worker data to the Inbound Provisioning API for the initial sync, you need to perform delta syncs to keep your worker data up to date. Delta syncs are incremental updates that only send the changes that occurred since the last sync, such as new workers, updated workers, or deleted workers.

To perform delta syncs, you have three options:

Option 1: Use the Oracle ATOM feed APIs to get real-time notifications of worker changes in Oracle HCM and send them to the Inbound Provisioning API.

Option 2: Use CSV Extracts to generate periodic reports of worker changes in Oracle HCM and send the extracts to the Inbound Provisioning API using your own automation tool or Logic Apps.

Option 3: Use the Oracle Integration Cloud Service (oracle.com). If you have a subscription to OIC, you can configure the integration with the Oracle HCM Adapter (oracle.com) to extract the required data from Oracle HCM. Oracle provides a guide (oracle.com) that you can use to get started.

Option 1: Use the Oracle ATOM feed APIs

The Oracle ATOM feed APIs provide real-time notifications of worker changes in Oracle HCM. You can subscribe to the ATOM feed APIs and receive a JSON representation of attributes that contain the worker data that changed. You can then transform the JSON to SCIM format and send them to the Inbound Provisioning API using our sample PowerShell script or Logic Apps integration.

If you intend to use the ATOM feeds integration, make sure to turn on ATOM feeds immediately after your initial sync. A delay in this step can lead to loss of changes.

To get started with Oracle's ATOM feeds, reference the Oracle documentation (oracle.com) and tutorial (oracle.com). We recommend subscribing to the Employee workspace (oracle.com) and applying these Atom Feed collections: newhire, empassignment, empupdate, termination, cancelworkrelship, and workrelshipupdate.

Once you've configured ATOM feeds in your HCM tenant, you need to create a custom module that reads the output of the ATOM feed API and sends the data to Microsoft Entra ID in a SCIM payload format using the Inbound Provisioning API.

The logic in the custom module is responsible for handling the following scenarios:

  • Data validation
  • Unique ID generation
  • Sequencing of ATOM feeds
  • Conversion of ATOM feeds to SCIM payloads
  • Error handling

We recommend using an Oracle HCM partner or a Microsoft System Integrator to build this custom module. You can host this custom module either in an Oracle middleware like Oracle Integration Cloud, or in Azure cloud as an Azure function, Azure Logic Apps, or Azure Data Factory pipeline.

Implement Joiner Scenario

Joiner scenarios specifically address the onboarding process for new hires. Oracle HCM ATOM feeds returns data for joiners as documented here: Fusion Cloud HCM Integration with External Entitlement Management Systems (oracle.com).

Read data from the new hire ATOM feed and implement logic in your custom module to ensure the following data elements are present in the SCIM payload: personal data, contact data, employment information, and job information.

If required after getting the ATOM feed for joiner scenarios, query the Workers or Employees endpoints to retrieve additional worker attributes.

To trigger Microsoft Entra Lifecycle Workflows for new hires, be sure to include the custom SCIM attribute for the employee’s hire date: urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:HireDate.

Use the Oracle HCM field EffectiveStartDate to set the value for the hire date. Refer to the SCIM payload example.

Implement Mover Scenario

Mover scenarios are triggered in Oracle HCM when a worker is converted from full-time to contractor or vice-versa, when an assignment change occurs, when a work relationship change occurs, when there is a transfer, or when there is a promotion. Oracle HCM ATOM feeds returns data for movers as documented here: Fusion Cloud HCM Integration with External Entitlement Management Systems (oracle.com).

Make sure to fetch the new values of attributes that changed in Oracle HCM. These values can often be fetched from the Changed Attributes section of the ATOM feed response. If required, query the Workers or Employees endpoints directly to retrieve additional worker attributes.

Use the data retrieved to construct a SCIM payload. Refer to the SCIM payload example.

Implement Leaver Scenario

Leaver scenarios occur when a worker’s employment with the organization is terminated, either voluntarily or involuntarily. Oracle HCM ATOM feeds returns data for leavers as documented here: Fusion Cloud HCM Integration with External Entitlement Management Systems (oracle.com). Read data from the ATOM feed and construct the SCIM payload.

To trigger Lifecycle Workflows for leavers, be sure to include the custom SCIM attribute for the employee’s leave date: urn:ietf:params:scim:schemas:extension:COMPANYAME:1.0:User:TermDate

Use the Oracle HCM field EffectiveDate to set the value for the termination date. Refer to the SCIM payload example.

SCIM payload example

Transform the JSON payloads associated with the Joiner, Mover, and Leaver scenarios to create a SCIM payload to send to the Microsoft API-driven provisioning endpoint.

Here is a generic example of how the Oracle HCM attributes could map to attributes in the SCIM payload based on the Oracle HCM to SCIM worksheet:

{
"schemas": ["urn:ietf:params:scim:api:messages:2.0:BulkRequest"],
"Operations": [

{

    "method": "POST",
    "bulkId": "897401c2-2de4-4b87-a97f-c02de3bcfc61",
    "path": "/Users",
    "data": {
        "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User",
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User"],
        "externalId": "<Oracle HCM workers.PersonNumber>",
        "userName": "<Oracle HCM employee.UserName>",
        "name": {
            "familyName": "<Oracle HCM workers.names.LastName>",
            "givenName": "<Oracle HCM workers.names.FirstName> ",
            "middleName": "<Oracle HCM workers.names.MiddleName>",
               },
        "displayName": "<Oracle HCM workers.DisplayName>",
        "emails": [
        {
          "value": "<Oracle HCM workers.emails.EmailAddress> ",
          "type": "work",
          "primary": true
        }
        ],
        "addresses": [
        {
          "type": "work",
          "streetAddress": "<Oracle HCM workers.addresses.AddressLine1>",
          "locality": "<Oracle HCM workers.addresses.TownorCity>",
          "region": "<Oracle HCM workers.addresses.Region1>",
          "postalCode": "<Oracle HCM workers addresses.PostalCode> ",
          "country": "<Oracle HCM workers addresses.Country> ",
          "primary": true
        }
        ],
        "phoneNumbers": [
        {
          "value": "<Oracle HCM workers. phones.PhoneNumber ",
          "type": "work"
        }
        ],
        "userType": "<Oracle HCM workers.workRelationships.WorkerType ",
        "title": " <Oracle HCM worker.workRelationships.assignments.JobName",
         "active":true,
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User": {
             "employeeNumber": "<Oracle HCM workers.PersonNumber> ",
             "division": "<Oracle HCM worker.workRelationships.assignments.BusinessUnitId> ",
             "department": "<Oracle HCM worker.workRelationships.assignments.DepartmentId >",
             "manager": {
               "value": "<Oracle HCM worker.workRelationships.assignments.allReports.ManagerPersonNumber> ",
                 "displayName": "<Oracle HCM worker.workRelationships.assignments.allReports.ManagerDisplayName"
             }
        }
    }
}


],
"failOnErrors": null
}

Once you format the SCIM bulk request, you can then send the data to the bulkUpload API endpoint via API-driven provisioning.

Before enabling the integration, run manual tests and verifications to validate the SCIM bulk request payload structure. You may use tools, such as cURL or Graph Explorer to confirm that the bulk request payloads are processed as expected.

Note

If you don't want to engage a partner or build your own custom module, we recommend using the HCM Extract tool described in the next section.

Option 2: Use CSV extracts

Similar to the method used in the initial sync, you can also use CSV extracts to handle your delta syncs. You can configure your extract to only run new changes from the previous sync. Or, you can send the full scope of your worker data and the Microsoft Entra ID Provisioning Service manages and update any changes such as new hires, attributes changes, and terminations.

Similar to initial sync, you can also use multiple options to obtain the CSV extract:

  • HCM Extract tool: The main way to retrieve data in bulk from Oracle HCM Cloud is by using HCM Extracts, a tool for generating data files and reports. HCM Extracts has a dedicated interface for specifying the records and attributes to be extracted. With this tool, you can:

    • Identify records for extraction using complex selection criteria.

    • Define data elements in an HCM extract using fast formula database items and rules.

      Note

      To get started with creating your HCM Extracts, refer to Define Extracts (oracle.com).

  • Oracle BI Publisher: Oracle BI Publisher supports both scheduled and unplanned reporting, based on either predefined Oracle Transactional Business Intelligence analysis structures or your own data models. You can generate reports in various formats. To use Oracle BI Publisher for outbound integrations, you generate reports in a format suitable for automatic downstream processing, such as XML or CSV. To get started with creating your BI Publisher report, refer to Define the BI Publisher Template in HCM Extracts (oracle.com).

  • Oracle Integration Cloud (OIC) service: If you have a subscription to OIC, you can configure the integration with the Oracle HCM Adapter (oracle.com) to extract the required data from Oracle HCM. Oracle provides a guide (oracle.com) that you can use to get started.

    Once you have your worker data in CSV format, use either of the following two methods to convert that into a SCIM payload and send the data to our provisioning service.

  • PowerShell: API-driven inbound provisioning with PowerShell script

  • Logic Apps: API-driven inbound provisioning with Azure Logic App

Writeback from Microsoft Entra ID to Oracle HCM

After you've synchronized your user data from Oracle HCM to Microsoft Entra ID / on premises Active Directory using the Inbound Provisioning API, you may want to configure writeback from the Microsoft Entra Provisioning Service to Oracle HCM. Writeback is the process of sending user changes that occur in Entra ID back to Oracle HCM, such as username, email, and password. This ensures that your user data is consistent and accurate across both systems.

To configure writeback, you need to use the Oracle HCM SCIM APIs. The Oracle HCM SCIM APIs (oracle.com) are RESTful web services that allow you to create, update, and delete users in Oracle HCM from an external source, such as Entra. You can use the existing Oracle Fusion ERP provisioning connector in the Microsoft Entra App Gallery to connect to the Oracle HCM SCIM APIs and map the user attributes that you want to write back.

To set up writeback, you need to configure an outbound provisioning job to your Oracle HCM tenant. To configure writeback, you need the following info:

  • Admin username and password: You need the details of the admin account that has access to Oracle HCM and can invoke the HCM User update API.

Follow these steps to configure the writeback job to Oracle HCM using the Oracle Fusion ERP connector:

  1. In the Microsoft Entra Enterprise App Gallery, search for the app Oracle Fusion ERP.

  2. Refer to Oracle Fusion ERP to configure writeback using the Oracle Fusion ERP app.

  3. When you're prompted to enter a URL and admin username and password, use the URL specified in the instructions and enter the admin username and password of the account that has access to Oracle HCM and can invoke HCM User update API.

  4. Follow the guidance in the Oracle Fusion ERP tutorial to edit attribute mappings and provision specific users back to Oracle HCM.

  5. In the edit Attribute Mapping section, select only the Update operation under target object actions.

  6. You'll see that HCM attributes are automatically populated in the attribute mappings section. Remove attributes that you don't want to write back.

  7. Save the settings and enable the provisioning status.

  8. Use Entra’s Provision on Demand capability to test and validate the writeback integration.

  9. Once you have validated the workflow, start the job and keep it running for Entra to continuously sync data back to Oracle HCM.

Appendix

Worksheet 1: Oracle HCM attributes

The table in this section represents attributes that you can export from Oracle HCM. The names of these attributes may differ in your HCM system, but this list represents a common list of attributes in an HR integration. Determine which attributes you wish to export for your integration.

Oracle HCM attribute (from CSV file) Required or mandatory
Person Number Mandatory
Account Status Mandatory -> set value to True for nonterminated workers
Street Address
City
State
Postal Code
Country
Department Name
Division
Company
Username
First Name Mandatory
Last Name Mandatory
Job Code
Job Name
Email Address
Manager
Mobile Phone Number
Phone Number
Work Address
Phone Number
Hire Date Required by Lifecycle Workflows
Termination Date Required by Lifecycle Workflows



Note

We've included blank rows in the above worksheet, so you can add other attributes not in this list for inclusion in your provisioning job.

Worksheet 2: Oracle HCM to SCIM attribute mapping

The table in this section displays a sample mapping from the Oracle HCM attributes to the generic SCIM attributes supported by the API.

Oracle HCM attribute (from CSV file) SCIM attribute
Person Number ExternalId
Account Status Active
Street Address addresses[type eq "work"].streetAddress
City addresses[type eq "work"].locality
State addresses[type eq "work"].region
Postal Code addresses[type eq "work"].postalCode
Country addresses[type eq "work"].country
Department Name urn:ietf:params:scim:schemas: extension:enterprise:2.0:User:department
Division urn:ietf:params:scim:schemas: extension:enterprise:2.0:User:division
Company urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:organization
Username displayName
First Name name.givenName
Last Name name.familyName
Job Code urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:JobCode
Job Name title
Email Address emails[type eq "work"].value
Manager urn:ietf:params:scim:schemas:extension: enterprise:2.0:User:manager
Mobile Phone Number phoneNumbers[type eq "mobile"].value
Phone Number phoneNumbers[type eq "work"].value
Work Address addresses[type eq "work"].formatted
Hire Date urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:HireDate
Termination Date urn:ietf:params:scim:schemas:extension:COMPANYAME:1.0:User:TermDate

Worksheet 3: Define unique ID generation and transformation rules

The table in this section describes certain attributes that require unique generation or specific transformation rules. These include three commonly used attributes that have additional rules to set their value. Reference the links to populate these attributes properly.

Attribute How to set attribute value
userPrincipalName (mandatory) Plan cloud HR application to Microsoft Entra user provisioning
SamAccountName (on-premises AD only) Plan cloud HR application to Microsoft Entra user provisioning
parentDistinguishedName (on-premises AD only) Plan cloud HR application to Microsoft Entra user provisioning

Worksheet 4: SCIM attributes on-premises AD attributes mapping

The table in this section represents the set of on-premises attributes that Active Directory supports. Map your SCIM attributes to the attributes in this table if your provisioning target is Active Directory.

SCIM attribute On-premises AD attribute
ExternalId employeeID
Active accountDisabled
addresses[type eq "work"].streetAddress streetAddress
addresses[type eq "work"].locality l
addresses[type eq "work"].region st
addresses[type eq "work"].postalCode postalCode
addresses[type eq "work"].country co
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:department department
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:division division
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:organization company
displayName cn
name.givenName givenName
name.familyName sn
urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:JobCode extensionAttribute1
title title
emails[type eq "work"].value <Generated by AD>
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:manager manager
phoneNumbers[type eq "mobile"].value mobile
phoneNumbers[type eq "work"].value telephoneNumber
addresses[type eq "work"].formatted physicalDeliveryOfficeName
urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:HireDate extensionAttribute2
urn:ietf:params:scim:schemas:extension:COMPANYAME:1.0:User:TermDate extensionAttribute3

Note

If you're defining SCIM schema extension attributes that don't have a corresponding on-premises AD attribute, you can map them to extensionAttributes 1-15 or extend the AD schema to add a new auxiliary object class with required attributes.

Worksheet 5: On-premises AD to Microsoft Entra ID mapping

Once you have your identities synced to on-premises AD, you can send them to Microsoft Entra ID via cloud sync or Microsoft Entra ID connect. Reference the linked documentation on how to use these tools.

The table in this section is an example attribute mapping from the AD attributes included in Worksheet 4 to Microsoft Entra attributes.

Note

The custom attribute extensionAttribute1 is the worker's job code. In the previous table, it was mapped to AD extensionAttribute1. But here we're mapping it to Microsoft Entra extensionAttribute1, because there's no corresponding attribute in Microsoft Entra. The extensionAttribute2 and extensionAttribute3 (hire date and termination date) are mapped accordingly.

On-premises AD attribute Microsoft Entra attribute
streetAddress streetAddress
l city
st state
postalCode postalCode
co country
department department
division EmployeeOrgData.division
company companyName
cn displayName
givenName givenName
sn surname
extensionAttribute1 extensionAttribute1
title jobTitle
<Generated by AD> mail
manager manager
mobile mobile
telephoneNumber telephoneNumber
physicalDeliveryOfficeName physicalDeliveryOfficeName
extensionAttribute2 employeeHireDate
extensionAttribute3 employeeLeaveDateTime

Worksheet 6: SCIM attribute to Microsoft Entra attributes mapping

The table in this section represents the set of attributes that Microsoft Entra ID supports. Map your SCIM attributes to the attributes in this table if your provisioning target is Microsoft Entra ID. To add custom SCIM attributes to your gallery application, refer to Extend API-driven provisioning to sync custom attributes.

SCIM attribute Microsoft Entra attribute
ExternalId employeeId
Active accountEnabled
addresses[type eq "work"].streetAddress streetAddress
addresses[type eq "work"].locality city
addresses[type eq "work"].region state
addresses[type eq "work"].postalCode postalCode
addresses[type eq "work"].country country
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:department department
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:division EmployeeOrgData.division
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:organization companyName
displayName displayName
name.givenName givenName
name.familyName surname
urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:JobCode extensionAttribute1
title jobTitle
emails[type eq "work"].value mail
urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:manager manager
phoneNumbers[type eq "mobile"].value mobile
phoneNumbers[type eq "work"].value telephoneNumber
addresses[type eq "work"].formatted physicalDeliveryOfficeName
urn:ietf:params:scim:schemas:extension:COMPANYNAME:1.0:User:HireDate employeeHireDate
urn:ietf:params:scim:schemas:extension:COMPANYAME:1.0:User:TermDate employeeLeaveDateTime

Acknowledgements

We thank the following partners for their help reviewing and contributing to this tutorial:

  • Michael Starkweather, Director at PwC
  • Rob Allen, Director of Architecture and Technology at ActiveIdM
  • Ray Nalette, Technical Delivery Manager at ActiveIdM
  • Randy Robb, Principal Consultant at Oxford Computer Group
  • Frank Urena, Principal Architect at Oxford Computer Group
  • Nick Herbert, Vice President of Sales at Oxford Computer Group
  • Steve Brugger, CEO at Oxford Computer Group

Next steps
